Product Type	VCR (Video Cassette Recorder)
Model	LRV-600
Brand	Sylvania
Dimensions (W x D x H)	430 x 250 x 90 mm
Weight	3.5 kg
Power Supply	110-240V AC, 50/60 Hz
Power Consumption	15 W (typical)
Video Format	VHS
Playback Modes	SP, LP, EP
Recording Modes	SP, LP, EP
Timer Recording	Yes, programmable up to 1 year
Number of Heads	4
Video Output	Composite (RCA), RF
Audio Output	Stereo (RCA x2)
Inputs	Composite (RCA), RF antenna
Remote Control	Infrared, included
Cleaning	Use a VHS head cleaning cassette; avoid liquids
Safety	Do not open; unplug before cleaning; keep away from moisture
Spare Parts	Belts, heads (service by qualified technician)

Frequently Asked Questions - LRV-600 SYLVANIA

How do I set the clock on the Sylvania LRV-600?

Press the MENU button on the remote, navigate to CLOCK SET, use the +/- buttons to adjust the date and time, then press ENTER to confirm.

How do I connect the VCR to my TV?

Use either an RF coaxial cable from the VCR's OUT to the TV's antenna input (tune TV to channel 3/4), or RCA composite cables (yellow for video, red/white for audio) from VCR OUT to TV IN.

Why is the picture snowy or unstable?

Check the RF connection or RCA cables. Also clean the video heads with a head cleaning cassette. If using RF, ensure the TV is on the correct channel (3 or 4).

How do I program a timer recording?

Press PROG on the remote. Set the date, start/end time, channel, and recording speed (SP/LP/EP). Press ENTER to save. Ensure the VCR is in TIMER mode and a cassette is inserted.

The remote control is not working. What should I do?

Replace the batteries (two AAA cells). Check for obstructions between the remote and the VCR's sensor. If still not working, try resetting the VCR by unplugging it for 30 seconds.

How do I clean the video heads?

Purchase a VHS head cleaning cassette. Insert it, press PLAY (or follow the cassette's instructions). Do not use any liquids or abrasive materials inside the VCR.

The VCR eats tapes or ejects them. Why?

This is often due to dirty or worn pinch rollers or caps. Try a cleaning cassette. If the problem persists, the belts may be loose – this usually requires professional service.

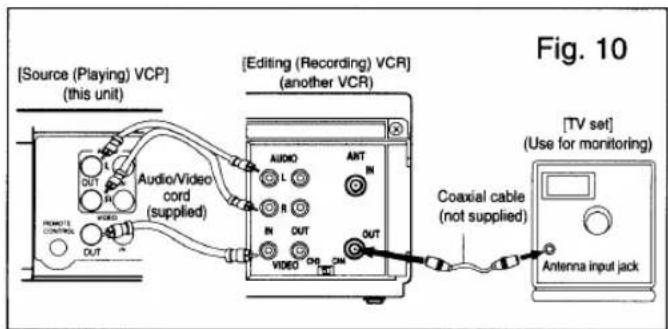

Can I record from one VCR to another?

Yes. Connect the RCA outputs of the source VCR to the RCA inputs of the LRV-600. Press INPUT on the LRV-600 to select the source, then press REC on the LRV-600.

What types of tapes are compatible?

The Sylvania LRV-600 is designed for VHS tapes. It can play T-120 (standard) and T-160 (longer) tapes, but not VHS-C without an adapter.

How do I reset the VCR to factory settings?

Unplug the VCR from the power outlet for about 1 minute. Plug it back in. The clock and timer settings will be cleared. You may need to set the clock again.

USER MANUAL LRV-600 SYLVANIA

Partner, our company has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. ENERGY STAR® is a U.S. registered mark.

VHS

If you need additional assistance for set-up or operating after reading owner's manual, please call TOLL FREE : 1-800-968-3429.

Please read before using this equipment.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

IMPORTANT SAFEGUARDS

1. Read instructions-All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instructions should be retained for future reference.
   3.Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.
3. Follow Instructions-All operating and use instructions should be followed.
4. Cleaning-Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

1. Attachments-Do not use attachments not recommended by the video product manufacturer as they may cause hazards.
2. Water and Moisture-Do not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
3. Accessories-Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video product. Any mounting of the appliance

should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the ap-

PORTABLE CART WARNING (Symbol provided by RETAC)

Silhouette of a person climbing a ladder inside a circular frame with no text or symbols

S3125A

pliance and cart combination to overturn.

1. Ventilation-Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
2. Power Sources-This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
3. Grounding or Polarization- This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
4. Power Cord Protection-Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

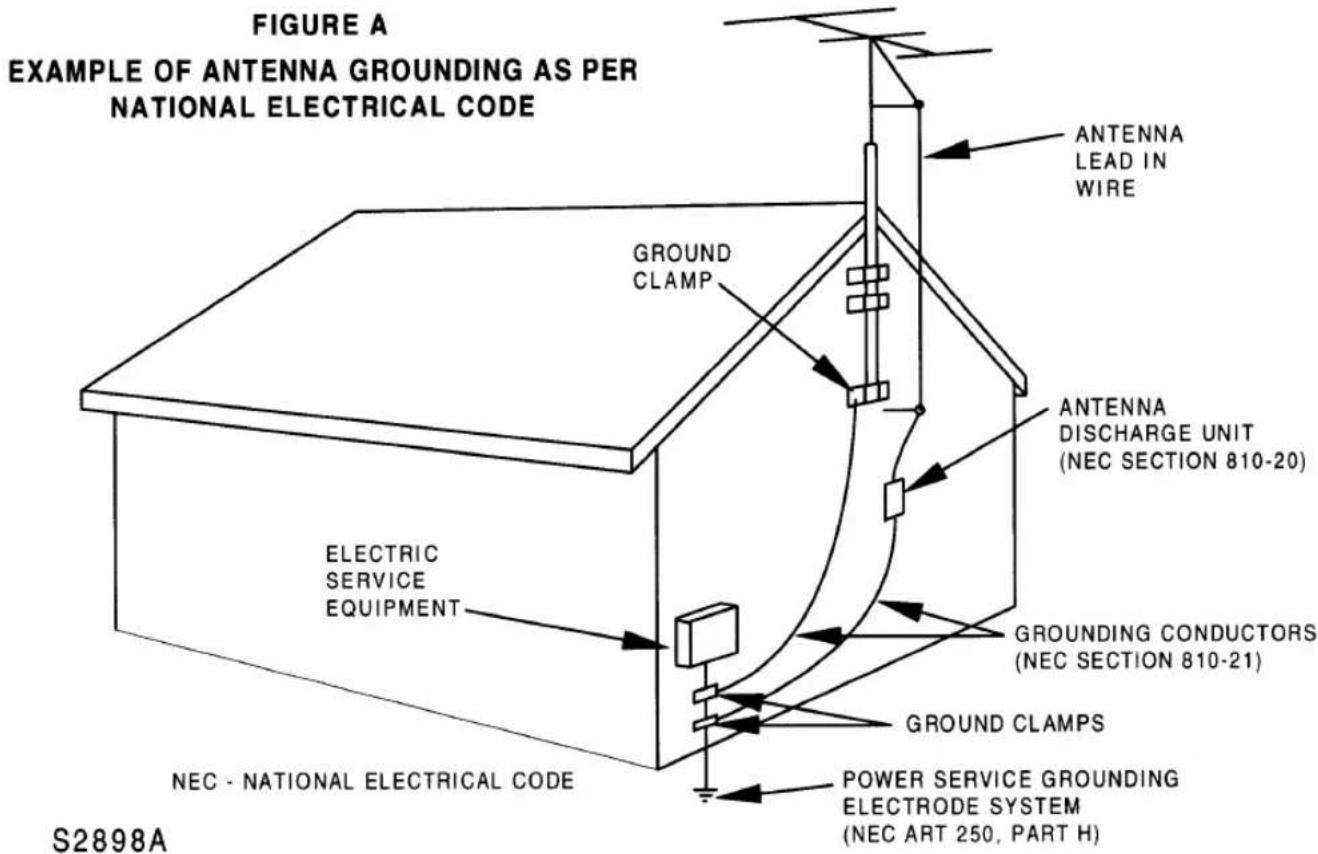

5. Outdoor Antenna Grounding-If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

1. Lightning-For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.

2. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

3. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

1. Servicing-Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service-Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the video product.

c. If the video product has been exposed to rain or water.

d. If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

e. If the video product has been dropped or damaged in any way.

f. When the video product exhibits a distinct change in performance-this indicates a need for service.

1. Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

2. Safety Check-Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

3. Heat-This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

LOCATION

For safe operation and optimum performance of your VCP, keep the following in mind when selecting a place for its installation:

• Shield it from direct sunlight and keep it away from sources of intense heat.
• Avoid dusty or humid places.
• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the VCP.
  • Install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the VCP near strong magnetic fields.
• Avoid moving VCP to locations where temperature differences are extreme.
• Do not place the VCP directly on top of the TV.

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on your VCP, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.
• Do not put your fingers or objects into the VCP cassette holder.
• Do not place anything directly on top of the VCP.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

WARNING: The driver should never watch the video program while operating a motor vehicle.

DEW WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. In this case, the POWER indicator flashes. Do not use the VCP at least for 2 hours until its inside is dry.

The serial number of this product may be found on the back of the VCP. No other VCP has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.

TABLE OF CONTENTS

■ IMPORTANT SAFEGUARDS.... 2

■ PRECAUTIONS 4

LOCATION 4

AVOID THE HAZARDS OF ELECTRICAL

SHOCK AND FIRE 4

WARNING 4

■ FEATURES....6

■ SUPPLIED ACCESSORIES.... 7

■ VIDEO CASSETTE TAPE INFORMATION.... 8

■ OPERATING CONTROLS AND FUNCTIONS.. 10

■ PREPARATION FOR USE....10

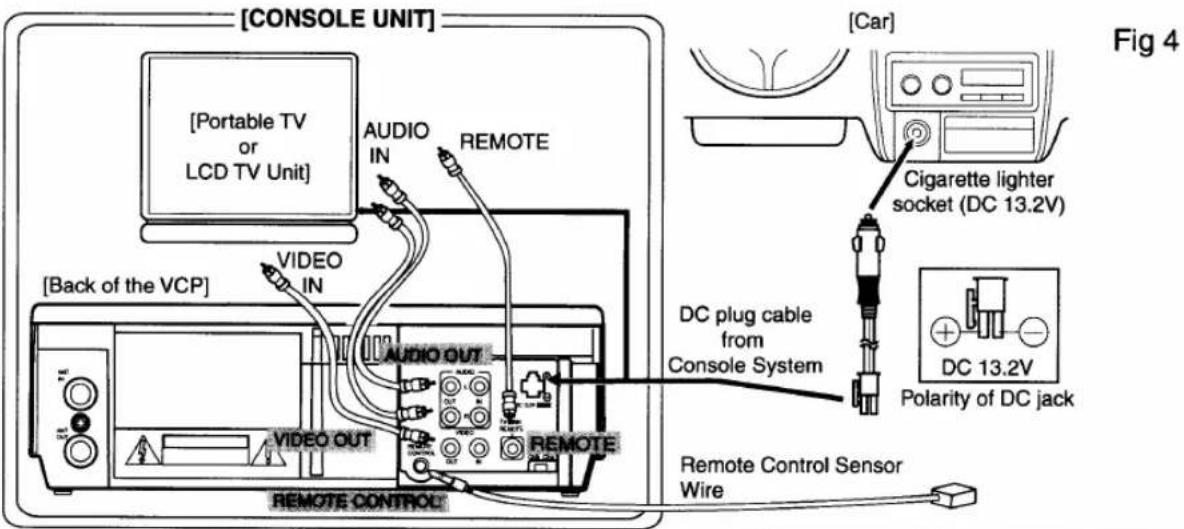

VCP TO VEHICLE CONNECTION .... 10

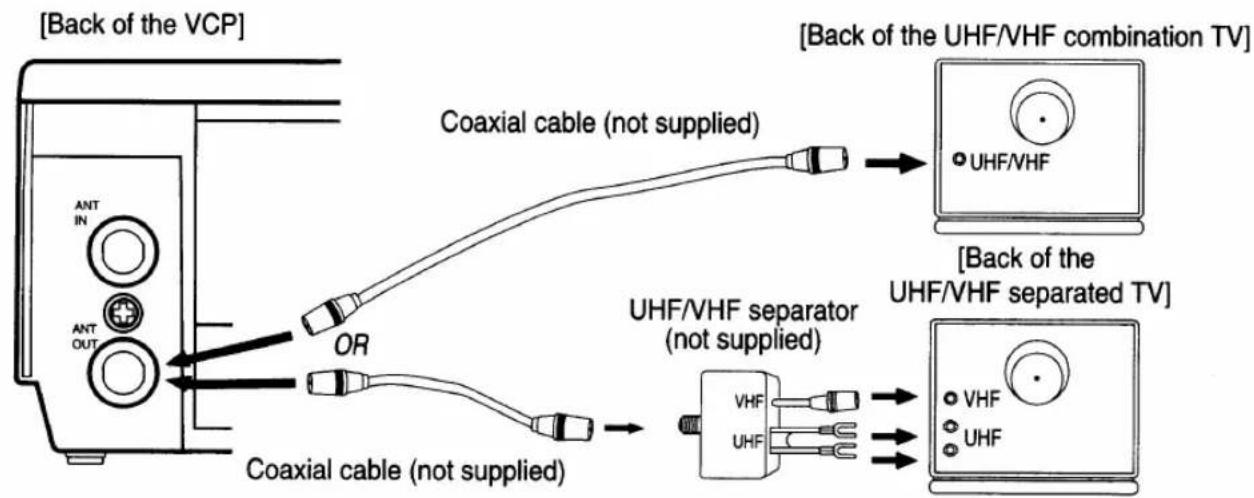

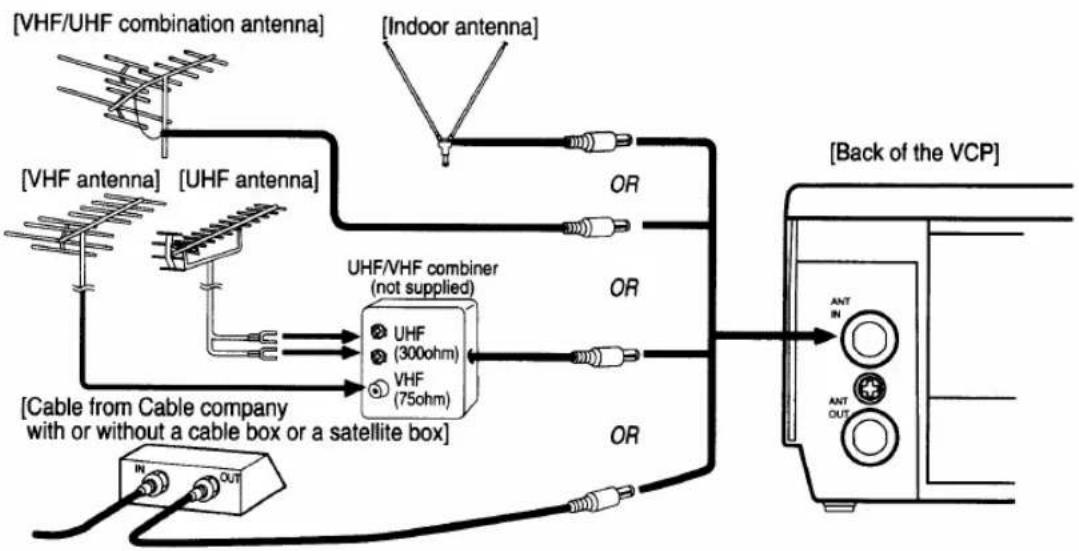

ANTENNA/CABLE CONNECTIONS ..... 11

SETTING THE CH3/CH4 SWITCH.... 12

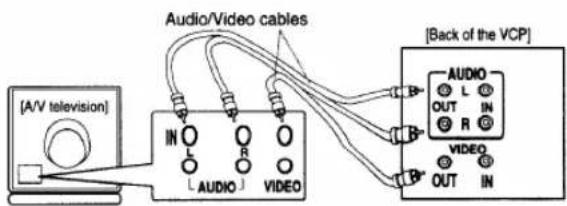

A/V TERMINALS.... 12

INSTALLING THE BATTERIES 12

■ SET UP FOR USE 13

CHANNEL SET UP (Automatic) 13

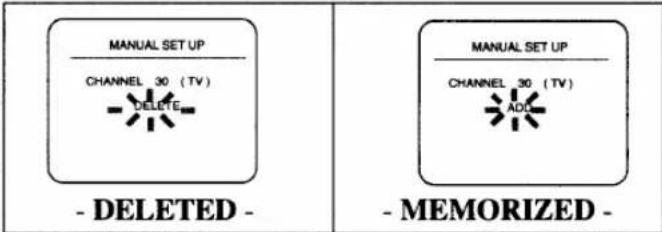

TO DELETE CHANNELS 14

CHANNEL SET UP AGAIN 14

SELECTING THE LANGUAGE 14

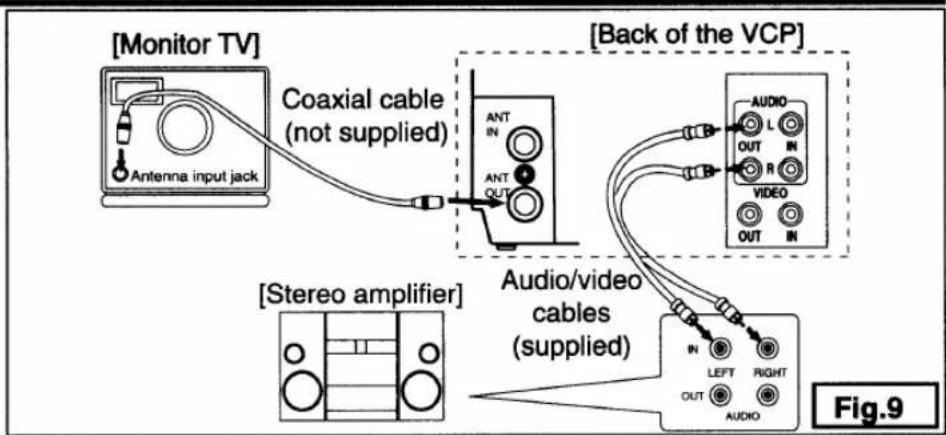

■ MTS (Multi-Channel Television Sound) SYSTEM.... 15

CHECKING THE SELECTED MTS MODE.... 15

MTS MONITOR MODE.... 15

SELECTING THE MTS SYSTEM.... 16

■ PLAYBACK 17

NORMAL PLAYBACK.... 17

PICTURE SEARCH.... 17

STILL PICTURE.... 17

VERTICAL HOLD CONTROL 18

TRACKING ADJUSTMENT 18

SLOW MOTION.... 18

COUNTER MEMORY 18

• Hi-Fi system – The Hi-Fi stereo recording system offers you excellent sound quality with a dynamic range of 80dB, frequency response from 20Hz to 20kHz, and 0.005% wow and flutter.
• Rotary 4-head Playback System—4-heads ensure excellent picture quality and special effects playback.
• Bilingual on-screen menu display selectable in English or Spanish
  • Infrared remote control
• Real time tape counter— This shows the elapsed playback time in hours, minutes, and seconds. (Does not work in blank areas of the tape)
• 181 channel capability PLL frequency synthesizer tuner with direct station call— (A converter may be necessary to view scrambled cable channels.)
• Auto power on and off system— Automatically turns the VCP when you insert the cassette, turns off after auto-rewind, and ejects when the beginning of the tape is reached.
• Auto counter reset— (Automatically resets tape counter "0:00:00" when a tape is inserted.)
• Auto rewind when the end of a tape is reached— (Does not occur when using the timer recording).
• Direct Button Operation— When a tape is in the VCP and the power is off, just press the PLAY, REW or F.FWD button on the main unit and it will automatically turn on the VCP and perform the desired function..
• 2 Step Picture Search Operation— You can view a video program at a high speed or super high speed in either a forward or

reverse direction. (Super high speed is available in LP and SLP mode only)

- Still— "Freeze" the picture at any time, for close viewing of a particular scene.

- Digital Auto Tracking (DTR)— Automatically adjusts the tracking for each tape you play.

- Auto Repeat— Allows you to repeat the playing of a tape indefinitely without pressing the PLAY button.

● Picture Select— Allows you to select the picture quality of a tape.

● Three different playback tape speeds : SP/LP/SLP

- Auto Head Cleaner— Automatically cleans video heads as you insert or remove a cassette.

- Quick-Find- Lets you search and confirm the contents of the recorded program(s) using the index mark.

- Time Search— Lets you set the VCP to advance the tape by entering the desired playback time you want to skip.

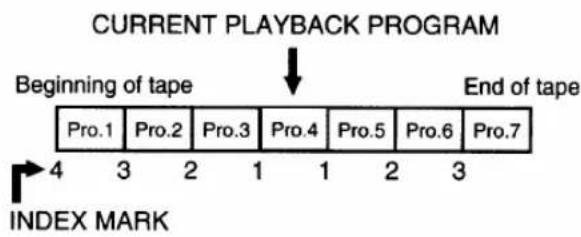

- Index Search— Lets you search the recording starting point of the recorded program(s) using the index mark.

- Slow Motion— You can view the video program at a slower than normal playback speed. Slow speed can be controlled by pressing the F.FWD button (faster) or the REW button (slower).

- S-VHS Quasi Playback (SQPB)— Allows you to view a tape recorded in S-VHS format.(Noise lines may appear on the picture.)

- Dew sensor– Indicates that moisture condensation may occur inside the VCP.

SUPPLIED ACCESSORIES

Remote controller

PART NO.
(N9357UD)

Batteries
(AA × 2)

AV Cable

Line drawing of a multi-up microphone with multiple leads (no text or symbols)

PART NO.
(WPZ0102TM007 or
WPZ0102LG008)

TV Remote Link Cable

PART NO.
(WPZ0102TM013)

Remote Control Sensor Wire

Simple line drawing of a cable with a rectangular connector and connectors (no text or symbols)

PART NO.
(0VSA10988)

DC Cable

Line drawing of a coiled cable with connectors (no text or symbols)

PART NO.
(WX1H35B4-001)

• If you need to replace these accessories, please refer to the PART NO. under the illustrations and call 1-800-968-3429.
• Depending on your antenna system, you may need different types of Combiners (Mixer) or Separators (Splitter). Contact your local electronics store for these items.
• We do not recommend the use of universal remote controls. Not all of the functions may be controlled with a universal remote control.
  If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the universal remote control.

VIDEO CASSETTE TAPE INFORMATION

This VCP will operate with any cassette that has the VHS mark. For best results, we recommend the use of high-quality tapes. Do not use poor quality or damaged tapes.

PRECAUTIONS

• Avoid moisture. Moisture condensation may occur on the tape if it is moved from a cold place to a warm place or visa versa. Before using a tape with these conditions, to avoid damage of the tape and your VCP, wait until the tape has warmed to room temperature and the moisture has evaporated.
• Avoid extreme heat, high humidity and magnetic fields.
• Do not tamper with the cassette mechanism.
• Do not touch the tape with your fingers.

TWO DIFFERENT TAPE SPEEDS

Before recording, select the tape speed from : SP mode (Standard Play) or SLP mode (Super Long Play).

The table below shows the maximum recording/play-back time using T60, T120 or T160 tapes in each mode.

Tape Speed	Recording/Playback Time
Type of tape	T60	T120	T160
SP mode	1 hour	2 hours	2-2/3 hours
SLP mode	3 hours	6 hours	8 hours

Note: You can play back a tape recorded in LP mode (Long Play).

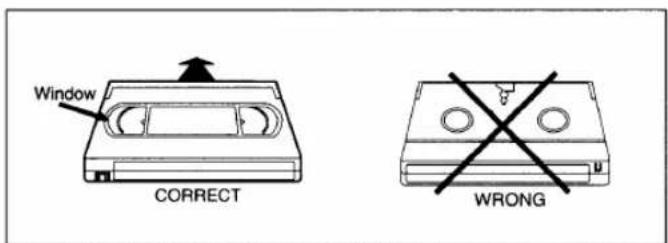

INSERTING A CASSETTE

Insert the cassette in the direction as shown. Push in gently, but continuously, on the center-back of the cassette until it is drawn into the VCP.

The VCP will automatically turn on.

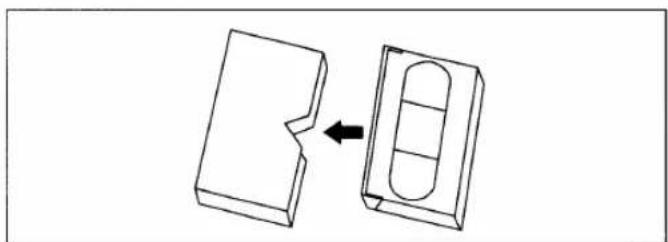

REMOVING A CASSETTE

1) In the Stop mode, press the EJECT button on the remote control or press the STOP/EJECT button on the VCP. The cassette will be ejected.
2) Pull the cassette out of the cassette compartment.
3) Store the cassette in its case as shown.

Diagram showing a mechanical component being cut into a housing, with an arrow indicating the process (no text or symbols present)

ERASE PREVENTION

You can prevent accidental erasing of a recording by breaking off the tab on the back edge of the cassette.

If you decide to record on the tape again, cover the hole with plastic tape.

NOTE:

- We do not recommend the use of universal remote controls. Not all of the functions may be controlled with a universal remote control.

If you decide to use a universal remote control with this unit, please be aware that the code number given may not operate this unit. In this case, please call the manufacturer of the universal remote control.

Fig 1

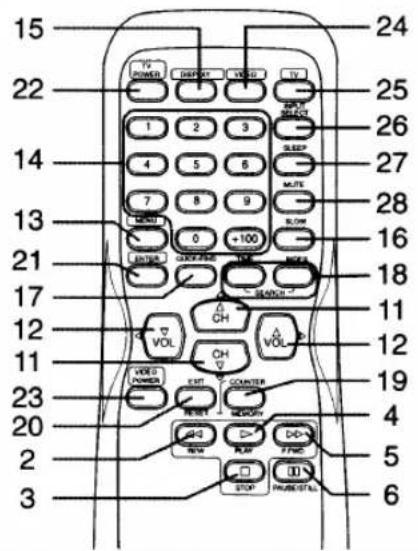

—REMOTE CONTROL—

Fig 2

Note:

• A unified remote control unit will enable you to control main function of Funai Video player.
• To use as TV remote control, press the TV button on the remote control, then press the ENTER button within 10 seconds.
• To use as VCP remote control, press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.

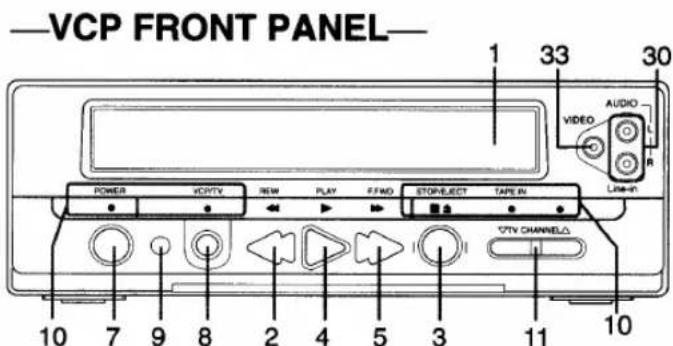

1. Cassette Compartment

1. REW(◀◀) button- Press to rewind the tape, or to view the picture rapidly in reverse during the play-back mode. (Rewind Search)

2. EJECT button— Press to remove the tape from the VCP. STOP(■) button— Press to stop the tape motion.

Down button- Press to choose menu item on the TV screen (Remote control unit).

1. PLAY(▶) button- Press to begin playback.

Up button- Press to choose menu item on the TV screen (Remote Control unit).

1. F.FWD(▶▶) button—Press to rapidly advance the tape, or view the picture rapidly in forward during playback. (Forward Search)

Press to enter selected menu on the TV screen (Remote control unit).

1. PAUSE/ STILL button- Press to view a still picture during playback.

Frame Advance function- Press to advance the picture by one frame at a time during still mode.

1. POWER button- Press to turn VCP on and off.

2. VCP/TV button—Press to select TV or VCP mode. VCR position: to view playback, towatch TV using the VCP tuner.

TV position: to watch TV.

1. Remote sensor window—Receives the infrared signals from the remote control.

10. Indicators

POWER indicator- Indicates that the power is turned on.

VCP/TV indicator— Indicates that the VCP is in the VCP position.

TAPE IN indicator- Indicates that there is a tape in the VCP.

1. CHANNEL ▲ or ▼ buttons- Press to select the desired channels for viewing.

Tracking function— Press to minimize video 'noise' (lines or dots on screen) during playback or slow mode.

Press to stabilize the picture in the Still mode when the picture begins to vibrate vertically.

Hold down the Channel ▲or▼ button for 1 second or so, and the channel number will automatically go up or down to search a desired station. Then select the channel number of the station that is being received.

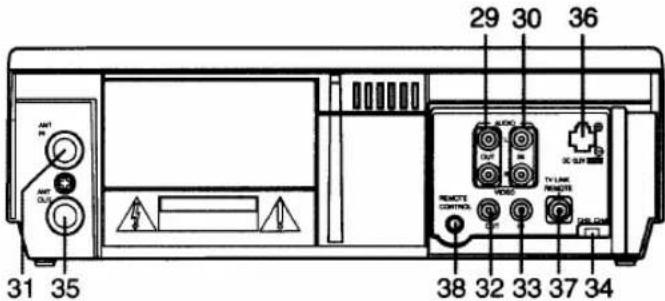

—REAR VIEW—

Fig 3

1. VOL ▲ or ▼ buttons - Press to adjust the volume.
2. MENU button- Press to display the menu on the TV screen. Press to exit the menu on the TV screen.
3. NUMBER buttons— Press to select desired channels for viewing or recording. To select channels from 1 to 9, first press "0" button then 1 to 9. (only on the remote control)

+100 button- When selecting cable channels which are higher than 99, press this button first, then press the last two digits. (To select channel 125, first press "+100" button then press "2" and "5"). (only on the remote control)

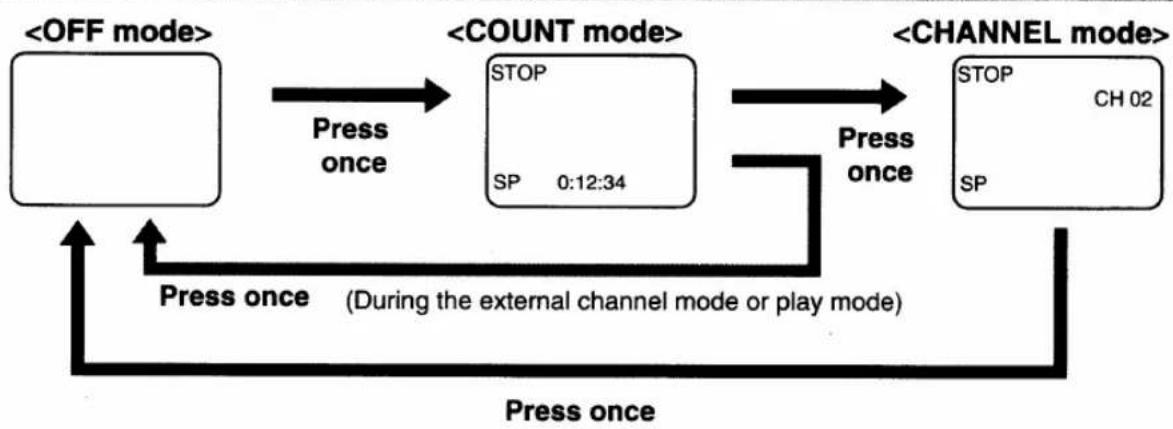

1. DISPLAY button- Press to display the counter or the current channel number and the current time on the TV screen. (only on the remote control)
2. SLOW button- Press to start slow motion playback. The slow speed can be controlled by pressing the F.FWD button (faster) or REW button (slower). (only on the remote control)
3. QUICK-FIND button- Quick Find mode. For more information, please read page 20. (only on the remote control)
4. SEARCH buttons

TIME SEARCH button- Time Search mode. For more information, please read page 21. (only on the remote control)

INDEX SEARCH button- Index Search mode. For more information, please read page 20. (only on the remote control)

1. COUNTER MEMORY button— Press to set counter memory on and off.(only on the remote control)
2. COUNTER RESET button- Press to reset counter to 0:00:00. (only on the remote control)

EXIT button- Press to exit the menu on the TV screen. (only on the remote control)

1. ENTER button—Press to set the remote control to TV mode or Video mode.

2. TV POWER button – Press to turn TV on and off.

3. VIDEO POWER button – Press to turn VCP on and off.
4. VIDEO button – Press to change the remote control to Video mode.
5. TV button - Press to change the remote control to TV mode.
6. INPUT SELECT button - Press to select VCP (video) input from TV mode.
7. SLEEP button - Press the SLEEP button to display the sleep timer and start the function. The shut off time can be determined by the number of times you press the button. (0, 10, 20, 30,..90, 0 minutes)
8. MUTE button - Press the MUTE button to turn off the sound portion of the TV program. (Volume level display turns LIGHT RED from LIGHT BLUE.) Press the MUTE button again or press the VOL(ume) ▲ or ▼ button to restore sound.
9. AUDIO OUT jacks—Connect to the audio input jacks of your audio equipment or another VCR.
10. AUDIO IN jacks- Connect to the audio output jacks of your audio equipment or video game. When Video Game unit has only one Audio Output, connect to L (left) jack for Audio In.
11. ANT. IN terminal- Connect to an antenna, Cable system or Satellite system.
12. VIDEO OUT jack- Connect to the video input jacks of your video equipment or another VCR..
13. VIDEO IN jack- Connect to the video output jack of your video camera or video game.
14. CH3/CH4 selector switch— Use to select a video output channel (3 or 4) for VCP playback.
15. ANT. OUT terminal—Connects to the antenna input terminal on your TV.

36 DC 13.2V jack

37 TV REMOTE LINK jack- Connects to the Remote jack of your TV set (Funai TV).

38 REMOTE CONTROL jack - To control Video Player, connect 3.5mm dia. jack of "Remote Control Sensor Wire" box (supplied) when Video Player locates remote cargo area or behind rear seat. Instrad if firing at the Video Player, you can control Video Player function by locating "Remote Control Sensor Wire" box where it is accessible to signal from remote control unit.

VCP TO VEHICLE CONNECTION

HOW TO USE THIS METHOD

• You can apply this method to only DC 13.2V output.
• Please connect after making sure of the polarity of the cigarette lighter socket.
• If the polarity is reversed, the unit will not operate.
• Use of this VCP is not recommended in excessive heat.
• If inside temperature of vehicle is over 104^ , do not use VCP. Allow VCP to cool before use.

• WARNING: The driver should never watch the video program while operating a motor vehicle.
• CAUTION: If you use the TV and VCP or VCP with the vehicle's engine off, recharge the vehicle's battery after about every 4 hours of use to prevent it from running down. After you finish using the TV and VCP or VCP be sure you unplug the DC plug cable from the cigarette lighter socket.

Notes:

• When you purchased LRV-600 in Console System forms, it is quite possible that the Console System is already pre-wired and ready to use as soon as you plug in DC Adaptor to Cigarette lighter socket of the car.
• If the Console System does not turn on after you press "POWER" button, then please refer to the wiring illustration at "Vehicle Connection" on this page.
• When used in the Console System, the VCP can be controlled though the remote control receiver of the TV (SYLVANIA LRT-090). To do this, connect the Cable Remote Link between the VCP and the TV (REMOTE jack).
• When the remote control sensor wire is connected to the VCP, the remote control signal is received from this wire only even if TV Link Remote cable is connected to TV, signal from "Remote Control Sensor Wire" box has a priority to signal from TV Link Remote to control Video Player.
• When your Portable TV or LCD TV has only Mono Audio Input, connect Left(L) Audio Output and select the AUDIO OUT mode to "MONO". Refer to page 16.
• When your Car Stereo system has a Stereo Aux. Input, connect L/R of Audio Output to your Car Stereo System for Stereo Sound.

ANTENNA / CABLE CONNECTIONS (Home use reference only)

For some of the most common types of connections, please follow the drawings below for most types of connection. Use only one connection. For any further complex connections, please contact your local dealer or other qualified persons. (You may need additional accessories which are not supplied).

1 Disconnect the antenna or cable from your TV.
3 Connect one end of the coaxial cable (not supplied) to the ANT.OUT jack of the VCP.

2 Connect the antenna or cable to the ANT.IN jack of the VCP

4 Connect the other end of the coaxial cable (not supplied) to the UHF/VHF antenna jacks.

Fig 5

Fig 6

Note to CATV system installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

SETTING THE CH3/CH4 SWITCH

If your TV does not have A/V terminals:

When the VCP is in the Playback mode or when the VCP is in the VCP position, your TV will receive signals from the VCP on either channel 3 or 4.

To use the VCP with your TV, set the selector switch to

CH3 or CH4 (which is located in the back of your VCP), whichever is not used for normal broadcasts in your area. Then set your TV to the same channel.

[Back of the VCP]

A/V TERMINALS

CONNECTING TO INPUT JACKS

When you watch a program recorded on an another source or use as monitor for the video game, use the audio/video input jacks on the VCP.

- When you connect a monaural another source to this VCP, connect the Audio output jack of the monaural another source to the AUDIO IN L jack of this VCP. The audio signal will be output in both L and R channel equally.

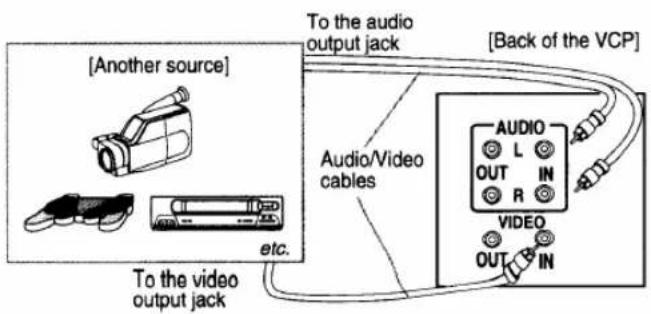

USING THE REAR JACK:

Fig.7:

USING THE FRONT JACK:

You can use the audio and video input jacks on the front panel of the VCR instead of using the jacks on the back.

INPUT SELECT OF FRONT OR REAR

To use the audio/video input jacks, select the "LineIn Rear (L1)" or "LineIn Front (L2)" position.

1) Be sure to check that the POWER and the VCR/TV indicators are both on.

2) Turn on the TV and set the TV to channel 3 or 4. No set the CH3/CH4 switch on the back of the VCR to match the channel selected on the TV.

3) Connect the audio/video cables to the audio/video input jacks on the back of the VCR. Now connect the other end of the cables to the audio/video output jacks on the source.

4)

- If you use the audio and video input jacks on the back of the unit, press 0, 0, 1 on the remote control to select the "LineIn Rear (L1)" position.

- If you use the audio and video input jacks on the front of the unit, press 0, 0, 2 on the remote control to select the "LineIn Front (L2)" position.

You may also select the "LineIn Rear (L1)" or "LineIn Front (L2)" setting by pressing the CHANNEL ▲ or ▼ button.

Notes:

• When the TV screen displays "LineIn Rear (L1)" or "LineIn Front (L2)", its background will be blue.
• "LineIn Rear (L1)" or "LineIn Front (L2)" is found before the lowest memorized channel. (Example: CH2)

CONNECTING TO OUTPUT JACKS

If your TV has A/V input jacks,

You may connect your VCP's AUDIO/VIDEO OUTPUT jacks to the audio/video input jacks on back of your TV.

Direct audio/video connections usually result in a better picture and sound quality for tape playback. Please see your TV's owner's manual for A/V input connections.

Fig.8:

INSTALLING THE BATTERIES

1) Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.
2) Insert 2 "AA" penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.
3) Replace the cover.

Top-down schematic of a remote control panel with battery and switch (no text or symbols)

You can program the tuner to scan only the channels you receive in your area.

NOTES:

• You must follow the steps below before attempting to play a video tape. If you want to play a video tape BEFORE programming the tuner, you can cancel it by pressing the RESET/EXIT button. To program the tuner again, see "CHANNEL SET UP AGAIN" on page 14.
• To use as TV remote control, press the TV button on the remote control, then press the ENTER button within 10 seconds.

CHANNEL SET UP (Automatic)

1 Select channel 3 or 4 on the TV

Turn on the TV and set the TV to channel 3 or 4. Now set the CH3/CH4 switch on the back of the VCP to match the channel selected on the TV.

[Back of the VCR]

2 Remote control setup

Press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.

3 Turn on the VCP

Press the POWER button to turn on the VCP. Both the POWER indicator and the VCP/TV indicator on the VCP come on.

4 Select "ENGLISH" or "ESPAÑOL"

Select "ENGLISH" or "ESPAÑOL" = Spanish by using the PLAY(Up) or STOP(Down) button.

Then, press the F.FWD/▶▶ button.

Note: This function effects only the language on the screen menu and not the audio source.

5 Begin channel preset

- Press the F.FWD/▶ button once. The tuner scans and memorizes all active channels in your area.

The VCP distinguishes between standard TV channels and cable channels.

6 After scanning

The tuner stops on the lowest memorized channel. The TV screen returns to TV mode.

CH 01

- If "AUTO SET UP" appears on the TV screen again, check the cable connections. Press the F.FWD/▶ button once again and the VCP will begin preset again.

TO SELECT A DESIRED CHANNEL

You can select the desired channel by using the CHANNEL ▲ or ▼ button or directly pressing the number buttons on the remote control.

Note for using the number buttons:

• When selecting cable channels which are higher than 99, press the +100 button first, then press the last two digits. (Example: to select channel 125, first press the +100 button then press "2" and "5").
• You must precede single-digit channel numbers with a zero (For example: 02, 03, 04 and so on).

TO DELETE CHANNELS

The channels you no longer receive or seldom watch can be deleted from the memory. (Of course, you can later add the deleted channel into the memory again.)

- Be sure to check that the POWER and the VCP/TV indicators are both on.

- To use as TV remote control, press the TV button on the remote control, then press the ENTER button within 10 seconds.

- Turn on the TV and set the TV to channel 3 or 4. Now set the CH3/CH4 switch on the back of the VCP to match the channel selected on the TV.

[Back of the VCR]

1 Remote control setup

Press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.

2 Select main menu

Press the MENU button. The main menu appears.

3 Select "CHANNEL SET UP"

Press the PLAY(Up) or STOP (Down) button to point to "CHANNEL SET UP". Then, press the F.FWD/▶▶ button.

4 Select "MANUAL SET UP"

Press the PLAY(Up) or STOP (Down) button to point to "MANUAL SET UP". Then, press the F.FWD/▶▶ button.

5 Enter the desired channel number

Press the number buttons or the PLAY(Up) or STOP(Down) button until your desired channel number appears. (Example: CH30)

6 Delete it from memory

Press the F.FWD/▶▶ or REW/◀◀ button so that "DELETE" flashes on the TV screen.

• To delete another channel, repeat steps [4] and [5].
• If you press the F.FWD/▶▶ or REW/◀◀ button again, the channel is memorized again.

7 Exit the preset mode

Press the RESET/EXIT button to return to TV mode.

NOTE: To confirm that channel(s) has been deleted or added, press the CHANNEL ▲ or ▼ button.

CHANNEL SET UP AGAIN

1) Press the VIDEO button on the remote control, then press the ENTER button within 10 seconds. Press the MENU button. The main menu appears.
2) Press the PLAY(Up) or STOP (Down) button to point to "CHANNEL SET UP". Then, press the F.FWD/▶▶ button.
3) Confirm "AUTO SET UP" is pointed to, then press the F.FWD/▶ button. After scanning, the tuner stops at the lowest memorized channel.
- The VCP distinguishes between standard TV channels and cable channels.

SELECTING THE LANGUAGE

If you want to change the language on the TV screen, follow the steps below:

Note: This function effects only the language on the screen menu and not the audio source.

1) Press the VIDEO button on the remote control, then press the ENTER button within 10 seconds. Press the MENU button. The main menu appears.

2) Press the PLAY(Up) or STOP (Down) button to point to "LANGUAGE SELECT". Then, press the F.FWD/▶▶ button.
3) Select "ENGLISH" or "ESPAÑOL" = Spanish using the PLAY(Up) or STOP(Down) button.
4) Press the RESET/EXIT button to return to TV mode. NOTE: If for some reason the menu is in Spanish, press the MENU button and then press the PLAY(Up) button to point to "SELEC. IDIOMA", press the F.FWD/▶▶ button, press the PLAY/▶ button to point to "ENGLISH", then press the RESET/EXIT button.

MTS (Multi-Channel Television Sound) SYSTEM

You can listen to a program in MTS stereo, by using a stereo amplifier and speakers.

Connect your VCP to your stereo amplifier using the following diagram.

CHECKING THE SELECTED MTS MODE

When you play a VHS tape, or receive a broadcast on the VCP tuner channel you are watching, the status shown below will appear when you press the DISPLAY button on the remote control.

SAP	Second Audio Program, which means your program, can also be received in a second language or sometimes a radio station.
HIFI	High Fidelity which produces better sound than standard stereo VCPs.

1] When a program is broadcast in stereo, STEREO appears on the TV screen.
2] When a program is broadcast in second audio, SAP appears on the TV screen.
3] When a program broadcast both in stereo and second audio, STEREO and SAP appear on the TV screen.
4] While the VCP is set in HIFI stereo mode, HIFI appears on the TV screen. While the VCP is set in monaural(MONO) mode, HIFI disappears from the TV screen.

NOTE: If you play non-HIFI tapes while the VCP is set in HIFI, HIFI will disappear from the TV screen and the VCP will play automatically in monaural.

MTS MONITOR MODE

Type of broadcast	Display on the TV screen	STEREO/SAP SELECTION	Hi-Fi audio track (2-channel)		Normal audio track
			L-channel	R-channel
Regular (monaural audio)	-None-	-Invalid-	Mono	Mono	Mono
Stereo broadcast	STEREO	-Invalid-	L	R	L + R
Bilingual broadcast	SAP	TV STEREO*	Main audio program	Main audio program	Main audio program
		SAP*	Sub audio program	Sub audio program	Sub audio program
Stereo & Bilingual broadcast	STEREO SAP	TV STEREO*	L	R	L + R
		SAP*	Sub audio program	Sub audio program	Sub audio program

SELECTING THE MTS SYSTEM

• Be sure to check that the POWER and the VCP/TV indicators are both on.
• To use as TV remote control, press the TV button on the remote control, then press the ENTER button within 10 seconds.
• Turn on the TV and set the TV to channel 3 or 4. Now set the CH3/CH4 switch on the back of the VCP to match the channel selected on the TV.

TO SELECT HIFI MODE

1 Remote control setup

Press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.

2 Select main menu

Press the MENU button. The MENU appears.

3 Select "AUDIO OUT"

Press the PLAY(Up) or STOP (Down) button to point to "AUDIO OUT". Then, press the F.FWD/▶ button.

4 Select "HIFI"

Press the PLAY(Up) or STOP (Down) button to point to "HIFI".

5 To return to TV mode

Press the RESET/EXIT button.

NOTES:

• Normally, "HIFI" should be selected for playback with HIFI sound.
• When you play non-HIFI tapes, the VCP will play automatically in the monaural mode.

TO SELECT MONO MODE

You can change the selection to "MONO" if you want to listen to HIFI tapes in normal audio playback.

1) Press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.
2) Press the MENU button. The MENU appears.
3) Press the PLAY(Up) or STOP(Down) button to point to "AUDIO OUT". Then, press the F.FWD/▶▶ button.
4) Press the PLAY(Up) or STOP(Down) button to point to "MONO".
4) Press the RESET/EXIT button to return to TV mode.

TO SELECT STEREO OR SAP MODE

1 Remote control setup

Press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.

2 Select main menu

Press the MENU button. The MENU appears.

3 Select "TV STEREO" or "SAP"

Press the PLAY(Up) or STOP(Down) button to point to "TV STEREO" or "SAP" (depending which one you would prefer to select).

Then, press the F.FWD/▶ button.

4 To return to TV mode

Press the RESET/EXIT button.

NORMAL PLAYBACK

• Be sure to check that the POWER and the VCP/TV indicators are both on.
• Turn on the TV and set the TV to channel 3 or 4. Now set the CH3/CH4 switch on the back of the VCP to match the channel selected on the TV.

1 Insert a prerecorded tape

Counter mode appears at 0:00:00 on the TV screen. If the erase-protection tab has been removed, the VCP will start playback automatically.

2 To begin playback Press the PLAY/▶ button.

NOTE: If any menu is activated on the TV screen, the PLAY button does not function. Press the RESET/EXIT button to clear the menu. Then, press the PLAY button.

If a tape is left in the VCP with power off

2A) Using button on the VCP

Just press the PLAY button on the VCP. Power will automatically turn on and playback will start. (Direct Button Operation)

2B) Using button on the remote control

Press the POWER button to turn on the VCP, and then press the PLAY button on the remote control.

3 To stop playback Press the STOP/■ button

PICTURE SEARCH

This feature is very useful in finding or skipping over a particular scene on a tape. In this mode, the sound will be muted.

1) You may view a video tape at a high speed in either a forward or reverse direction by pressing the F.FWD/▶▶ or REW/◀◀ button. (in the SP / LP / SLP modes)
2) Press it again and the VCP will now search in super high speed. (in the LP / SLP modes only)
3) Press the PLAY/▶ button to return to normal speed.

STILL PICTURE

You can view a still picture on the TV screen during playback (the Still mode). Press the PAUSE/STILL button during playback. Press the PLAY/▶ button to return to playback.

• You can advance the picture by one frame at a time by pressing the PAUSE/ STILL button during the still mode.
• If it is left in the Still mode for more than five minutes, the VCP will automatically switch to the Stop mode.

VERTICAL HOLD CONTROL

In the Pause/Still mode only, if the picture begins to vibrate vertically, stabilize the picture by pressing the CHANNEL ▲ or ▼ button.

NOTES:

• To use as VCP remote control, press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.
• If the picture is distorted or rolling vertically, adjust the vertical hold control on your TV, if equipped.
• Most newer TV's do not have a user adjustable vertical hold control.

TRACKING ADJUSTMENT

- Tracking adjustment will be set automatically (Digital Tracking function) when you start playback. However when playing pre-recorded tapes or tapes recorded on units other than your own, noise lines (black and white streaks) may appear on the playback picture. If this occurs, you can adjust the tracking control manually by pressing the CHANNEL ▲ or ▼ button on the VCP until the streaks disappear.

To return to the DTR function, stop the tape once and start playback again.

- You can reduce the noise lines by pressing the CHANNEL ▲ or ▼ button in slow mode, too. Slow tracking adjustment will not be set automatically.

NOTES:

• To use as VCP remote control, press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.
• In Still mode, press the SLOW button and press the CHANNEL ▲ or ▼ button until the streaks disappear. To return to Still mode, press the PAUSE/STILL button again.

SLOW MOTION

Press the SLOW button to reduce the playback speed. The VCP mutes the sound during slow motion. You can control the speed by pressing the F.FWD button (faster) or REW button (slower).

Press the PLAY button to return to normal playback.

NOTE: If it is left in the Slow mode for more than five minutes, the VCP will automatically switch to the Stop mode.

COUNTER MEMORY

Use this feature to memorize the beginning point that you want to return to. And you can search it easily by rewinding or fast forwarding.

• Be sure to check that the POWER and the VCP/TV indicators are both on.
• Turn on the TV and set the TV to channel 3 or 4. Now set the CH3/CH4 switch on the back of the VCP to match the channel selected on the TV.
• This feature only works with a prerecorded tape.

1 Stop tape at your desired point

Insert a prerecorded tape. Rewind or fast forward the tape to the beginning point at which you want to mark.

2 Reset the counter to 0:00:00

Press the COUNTER RESET button on the remote control. If necessary press the COUNTER RESET button again to reset the counter to 0:00:00.

3 Select the Counter Memory mode

Press the COUNTER MEMORY button on the remote control until "M" appears on the TV screen.

- The COUNTER MEMORY button does not function if the Auto Repeat mode is set to [ON]. In this case, set the Auto Repeat mode to [OFF].

4 Begin recording or playback

Press the PLAY button.

Press the STOP button when recording or playback is completed.

5 To activate the Counter Memory

Press the REW (or F.FWD) button, the VCP will stop automatically when the counter has returned to approximately 0:00:00.

NOTE: The displayed time will not change during blank portions on the tape.

TO EXIT THE COUNTER MEMORY

Press the COUNTER MEMORY button on the remote control so that "M" disappears from the TV screen.

On more information concerning the on screen display, please refer to page 22.

• Be sure to check that the POWER and the VCP/TV indicators are both on.
• To use as TV remote control, press the TV button on the remote control, then press the ENTER button within 10 seconds.

- Turn on the TV and set the TV to channel 3 or 4. Now set the CH3/CH4 switch on the back of the VCP to match the channel selected on the TV.

[Back of the VCR]

AUTO REPEAT PLAYBACK

The VCP has the auto repeat function that allows you to repeat a tape indefinitely without touching the PLAY button.

- Make sure to insert a prerecorded tape.

1 Remote control setup

Press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.

2 Select main menu

Press the MENU button. The main menu appears.

3 Select "AUTO REPEAT"

Press the PLAY(Up) or STOP (Down) button to point to "AUTO REPEAT".

4 Begin Auto repeat playback

Press the F.FWD/▶ button so that [ON] will appear next to "AUTO REPEAT" on the TV screen.

When in Stop mode, Repeat playback mode will start automatically.

If the on-screen menu still remains, press the RESET/EXIT button to exit the menu.

• Once you select the Auto Repeat mode, it stays in effect even after you turn off the VCP.
• The COUNTER MEMORY button does not function if the Auto Repeat mode is set to [ON]. In this case, set the Auto Repeat mode to [OFF].
• To stop playback, press the STOP button.

TO EXIT THE AUTO REPEAT MODE

Repeat steps [1] to [2], and press the F.FWD/▶▶ button. [OFF] will then appear on the menu. Then, press the RESET/EXIT button to return to TV mode.

Power failure: If there is a power failure, Auto Repeat Playback will go to off.

PICTURE SELECT

This function enables you to select the picture quality of a tape.

- This selection must be done during playback.

1 Remote control setup

Press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.

2 Insert a tape into VCP

Begin playback.

3 Select main menu

Press the MENU button. The main menu appears.

4 Select "PICTURE SELECT"

Press the PLAY(Up) or STOP(Down) to point to "PICTURE SELECT".

5 Select your desired mode

Press the F.FWD/▶ button until your desired mode (NORMAL, SOFT or SHARP) appears on the TV screen.

• Once you select the Picture Select mode, it stays in effect even after you turn off the VCP.
• To stop playback, press the STOP button.

Power failure: If there is a power failure for more than 30 seconds, Picture Select will go to NORMAL.

INDEX SEARCH

This feature provides a method of searching a recording starting point so that it can be easily returned to in either fast forward or rewind mode.

Example:

- You are watching program number 4 and want to fast forward to program number 7. You must skip three programs.

1 Select "INDEX SEARCH" mode

Press the INDEX SEARCH button on the remote control.

2 Enter your desired num-ber

Press the PLAY(Up), STOP (Down), or INDEX SEARCH button until the number of programs that you want to skip appears.

(Example: "03" for 3 programs)

- The Index Search mode will be cancelled if the procedures are not activated in 30 seconds.

3 Begin Index Search

Press the REW or F.FWD button. The VCP begins re-winding or fast forwarding to the beginning of desired program.

NOTE: Every time an index signal is skipped, the number in the program indicator decreases by one.

4 After Index Search

When the preset program is reached, the VCP will start playback automatically.

• A video cassette must be inserted in the VCP for this function to work.
• The number of Index Searches can be set up to 20.
• When you want to cancel the Index Search while in progress, press the STOP button.

QUICK-FIND

This function enables you to search and confirm the contents of the recorded program(s) using the index mark.

The VCP begins fast forwarding by selecting this function. When the VCP find the beginning of the program (=the index mark), the VCP begins playback video tape at high speed for 30 seconds. Then, return to fast forwarding again to the beginning of next program. The VCP repeats these operation to the tape end.

Concerning the index mark, please see "INDEX SEARCH" section.

- Tape must be fully rewound.

1 Select "QUICK-FIND" mode

Press the QUICK-FIND button on the remote control.

TO SKIP TO THE BEGINNING OF NEXT PROGRAM

Press the QUICK-FIND button on the remote control.

TO VIEW AT NORMAL SPEED

Press the PLAY button. The Quick-Find is cancelled.

• A video cassette must be insert in the VCP for this function to work.
• When you want to cancel the Quick-Find while in progress, press the STOP button.
• When the end of a tape is reached during the Quick-Find, the tape will automatically rewind to the beginning. After rewinding finishes, the VCP will eject the tape and turn itself to off.

TIME SEARCH

The Time Search function makes it possible to quickly advance the tape to your desired position simply by entering the exact amount of playback time you want to skip.

Example:

- To watch a program after 2 hours and 50 minutes from the present position, in either direction.

1 Select "TIME SEARCH" mode

Press the TIME SEARCH button on the remote control.

2 Enter your desired time

Press the PLAY(Up), STOP (Down), or TIME SEARCH button until your desired time appears. ("2:50" stands for 2 hours 50 minutes)

- The Time Search mode will be cancelled if the procedures are not activated in 30 seconds.

3 Begin Time Search

By pressing the REW or F.FWD button, the VCP will rewind or fast forward to the specified point.

The time counts down as the searching progresses.

4 After Time Search

Playback starts automatically when 0:00 is reached.

• A video cassette must be inserted in the VCP for this function to work.
• Time Search can be set up to a maximum of 9 hours 59 minutes (9:59).
• When you want to cancel the Time Search while in progress, press the STOP button.

COPYING A VIDEO TAPE(Reference only)

You can make copies of video tapes made by friends or relatives for your enjoyment.

WARNING: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

Connect the editing (recording) VCR (another VCR), source (playing) VCP (this unit) and your TV using the following diagram.

1) Insert a pre-recorded video cassette into the source(playing) VCP.
2) Insert a blank video cassette, or one you want to record over, into the editing(recording) VCR cassette compartment.
3) Press the TAPE SPEED button on the editing (recording) VCR to select the desired recording speed (SP/LP/SLP).
4) Press the RECORD button on the editing (recording) VCR.
5) Begin playback of the tape in the this VCP.

• For best results during dubbing, use the VCR's front panel controls whenever possible. The remote control might affect the playback VCP's operation.
• Always use video-quality shielded cables with RCA-type connectors. Standard audio cables are not recommended.

TO MONITOR THE RECORDING (Reference only)

1) Turn on the TV, and set it to the same output channel as the editing(recording) VCR channel 3 or 4.
2) Press the TV/VCR button on the editing(recording) VCR so that the VCR position is selected.

Tsewaninatteo check the Count, Channel number, press the DISPLAY button on the remote control.

Each time you press the DISPLAY button, TV screen will change as shown.

- It is normal for the status display (STOP, PLAY etc.) and the tape speed display (SP, LP, or SLP) to disappear after 5 seconds.

NOTES:

• VCP power and the VCP/TV indicator must be turned on.
• To use as VCP remote control, press the VIDEO button on the remote control, then press the ENTER button within 10 seconds.
• If the VCP is in the playback mode or the VCP is receiving external channel, the Channel display is not shown.
    note right of B
        (During the external channel mode or play mode)
    end

SPECIAL FEATURES

REAL TIME TAPE COUNTER

• This shows the elapsed playback time in hours, minutes, and seconds. (The displayed time will not change during blank portions on the tape.)
• The "-" indication will appear when the tape is rewound further than "0:00:00" on the tape counter.

AUTO REWIND

When the end of a tape is reached during playback or fast-forward, the tape will automatically rewind to the beginning. After rewinding finishes, the VCP will eject the tape and turn itself to off.

When the Counter Memory is activated, the tape will rewind to the M0:00:00 and the VCP will go into the Stop mode.

If you have followed the instructions contained in this manual and have difficulty in operating your VCP, locate the PROBLEM in the left column below. Check the corresponding CORRECTIVE ACTION column to remedy the problem.

PROBLEM	CORRECTIVE ACTION
No power.	Make sure the power is turned on.
No picture or poor picture on playback.	Fine tune your TV.
Noise in picture on playback.	Head cleaning is necessary.Refer to "AUTO HEAD CLEANING" below.
Playback picture is partially noisy.	Adjust tracking control for a better picture using the TRACKING + or - button on the remote control.
The TV programmes cannot be seen.	Re-check the ANT-IN and ANT- OUT connections.Turn off the VCP.
No operation by infrared Remote Control.	Check batteries in the remote control.
Power indicator flashes.	Refer to page 4 "DEW WARNING".

MAINTENANCE

SERVICING

Should your VCP become inoperative, do not try to correct the problem by yourself. There are no user-service-able parts inside. Turn off, unplug the power cord, and please call our help line at 1-800-968-3429, to locate an Authorized Service Center.

CABINET CLEANING

• Wipe the front panel and other exterior surfaces of the VCP with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the VCP. Such chemicals may cause damage and discoloration to the exposed surfaces.

AUTO HEAD CLEANING

• Automatically cleans video heads as you insert or remove a cassette, so you can see a clear picture.

• Playback picture may become blurred or interrupted while the TV program reception is clear. Dirt accumulated on the video heads after long periods of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your VCP may need to be cleaned.

• Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.

• If a Video Head Cleaner does not solve the problem, please call our help line at 1-800-968-3429, to locate an Authorized Service Center.

NOTES:

• Remember to read the instructions included with the video head cleaner before use.
• Clean video heads only when problems occur.

GENERAL SPECIFICATIONS

Television system :	NTSC, TV standard
Video heads :	Rotary four-head
Tape width :	1/2inch (12.65mm)
Tape speed
SP :	33.35mm/sec.
LP :	16.67mm/sec.
SLP :	11.12mm/sec.
Tuner channel
VHF :	#2~#13
UHF :	#14~#69
Cable channel :	5A, A-5 ~ A-1, A ~ W+84
RF converter :	Built-in VHF converter
Converter output :	VHF Channel 3 or 4.
Timer indication :	AM/PM 12-hour system
Operating temperature :	5^ 40^ ( 41^ 104^ )
Terminals
Antenna input :	F type connector × 1
Antenna output :	F type connector × 1
Video output :	RCA connector × 2
Audio output :	RCA connector × 4
Remote input :	RCA connector × 1
Remote Control :	3.5 mini x 1
DC input :	DC Power jack × 1

ELECTRICAL SPECIFICATIONS

Video output level :	1Vp-p
Video output impedance :	75Ω
Audio output level :	-6dBv (1KHz)
Video S/N ratio
SP:	More than 45dB
Audio S/N ratio
(Normal audio track):	More than 38dB
(Hi-Fi audio track):	More than 40dB

OTHER SPECIFICATIONS

Power requirement :	DC 13.2V
Power consumption :	DC 12W
Dimensions :	W 11" (280mm)H 3-5/8" (92mm)D 10-1/16" (255mm)
Weight :	4.85 lbs. (2.2 Kg.) (approx.)

CABLE CHANNEL DESIGNATIONS

If you subscribe to cable TV, the channels are displayed as 1-125.

Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations.

CATV channel	5A	2	3	4	5	6	7	8	9	10	11	12	13	A	B
VCR Display	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
CATV channel	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q
VCR Display	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30
CATV channel	R	S	T	U	V	W	W+1	W+2	W+3	W+4	W+5	W+6	W+7	W+8	W+9
VCR Display	31	32	33	34	35	36	37	38	39	40	41	42	43	44	45
CATV channel	W+10	W+11	W+12	W+13	W+14	W+15	W+16	W+17	W+18	W+19	W+20	W+21	W+22	W+23	W+24
VCR Display	46	47	48	49	50	51	52	53	54	55	56	57	58	59	60
CATV channel	W+25	W+26	W+27	W+28	W+29	W+30	W+31	W+32	W+33	W+34	W+35	W+36	W+37	W+38	W+39
VCR Display	61	62	63	64	65	66	67	68	69	70	71	72	73	74	75
CATV channel	W+40	W+41	W+42	W+43	W+44	W+45	W+46	W+47	W+48	W+49	W+50	W+51	W+52	W+53	W+54
VCR Display	76	77	78	79	80	81	82	83	84	85	86	87	88	89	90
CATV channel	W+55	W+56	W+57	W+58	A-5	A-4	A-3	A-2	A-1	W+59	W+60	W+61	W+62	W+63	W+64
VCR Display	91	92	93	94	95	96	97	98	99	100	101	102	103	104	105
CATV channel	W+65	W+66	W+67	W+68	W+69	W+70	W+71	W+72	W+73	W+74	W+75	W+76	W+77	W+78	W+79
VCR Display	106	107	108	109	110	111	112	113	114	115	116	117	118	119	120
CATV channel	W+80	W+81	W+82	W+83	W+84
VCR Display	121	122	123	124	125

ADVERTENCIA:

PARA REDUCIR EL RIESGO DE INCENDIO O DE SHOCK ELÉCTRICO, NO EXPONGA ESTE ARTEFACTO A LA LLUVIA O LA HUMEDAD.

PRECAUCIÓN

RIESGO DE SHOCK ELECTRICO NO ABRIR

Symbolic illustration of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

Funai Corporation will exchange or repair this product, at its option, in the event of defect in materials or workmanship as follows:

EXCHANGE DURATION:

1-90 DAYS: FUNAI CORPORATION will exchange for a new unit without charge for a period of ninety (90) days from the date of original retail purchase.

91-365 DAYS: FUNAI CORPORATION will exchange for a factory-service-to-new-condition unit for a charge of \$49.00 for the period of ninety one (91) days to three hundred sixty five (365) days from the date of original retail purchase.

REPAIR DURATION:

LABOR: FUNAI CORPORATION will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

PARTS: FUNAI CORPORATION will provide parts to replace defective parts without charge for a period of one (1) year from the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

LIMITS AND EXCLUSIONS:

This warranty is extended only to the original retail purchaser. A purchase receipt or other proof of original retail purchase will be required together with the product to obtain exchange or service under this warranty.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced or missing. This FUNAI CORPORATION Limited warranty applies only to product purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship, which occur during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations, or parts not supplied by FUNAI CORPORATION, or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product, or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL UNITS), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMONSTRATION OR FLOOR MODELS.

FUNAI CORPORATION AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, THAT ARE HEREBY DISCLAIMED BY FUNAI CORPORATION AND ITS REPRESENTATIVES OR AGENTS IN THE UNITED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED CENTER. THIS WARRANTY IS VALID WHEN THE PRODUCT IS DELIVERED PREPAID TO A FUNAI AUTHORIZED SERVICE FACILITY.

PRIOR TO RETURNING THIS PRODUCT TO THE FACTORY SERVICE CENTER FOR REPAIR, CONTACT THE FUNAI SERVICE DEPARTMENT TO RECEIVE A RETURN FOR REPAIR AUTHORIZATION. ANY POSTAGE, INSURANCE, AND SHIPPING COSTS INCURRED IN PRESENTING PRODUCT FOR REPAIR ARE THE SHIPPER'S RESPONSIBILITIES.

CAREFULLY PACK WITH PROPER PACKING MATERIALS, PREFERABLY IN THE ORIGINAL CARTON OR PACKING MATERIALS AND CARTON OBTAINED FROM FUNAI CORPORATION.

ENCLOSE WRITTEN DOCUMENTATION DETAILING THE COMPLAINT. PLACE INSIDE THE CARTON OR IN A PACKING SLIP ENVELOPE ON THE OUTSIDE OF THE CARTON.

A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT MUST ACCOMPANY THE PRODUCT. IF NO PROOF OF PURCHASE IS INCLUDED, THE WARRANTY WILL NOT BE HONORED.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE, IF AT ANY TIME DURING THE WARRANTY PERIOD YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE EXCHANGE OR REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORPORATION.

ATTENTION:

FUNAI CORPORATION RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE. For information about your product, or for information on how to exchange or repair your product, telephone or write to the following:

FUNAI CORPORATION

Customer Service

100 North Street; Teterboro, NJ 07608

Telephone [phone]
