Product Type	Freestanding Refrigerator-Freezer
Brand	Temptech
Model	TW6GB
Total Capacity	approximately 250 L
Refrigerator Capacity	approximately 180 L
Freezer Capacity	approximately 70 L
Energy Efficiency Class	F
Annual Energy Consumption	approximately 220 kWh
Noise Level	approximately 40 dB(A)
Dimensions (H x W x D)	1850 x 600 x 650 mm
Net Weight	70 kg
Power Supply	220-240 V, 50 Hz
Climate Class	N-ST
Defrost Type	Manual (freezer), Auto (refrigerator)
Refrigerant	R600a
Temperature Control	Mechanical thermostat
Shelves Material	Glass
Reversible Door	Yes
Adjustable Feet	Yes
Interior Light	LED
Freezer Star Rating	4 stars
Freezing Capacity	4 kg/24h
Storage Time (power failure)	12 hours

Frequently Asked Questions - TW6GB Temptech

What is the total capacity of the Temptech TW6GB fridge-freezer?

The Temptech TW6GB has a total capacity of approximately 250 litres, with around 180 litres for the refrigerator and 70 litres for the freezer.

What are the dimensions and weight of the TW6GB?

The dimensions are approximately 1850 mm in height, 600 mm in width, and 650 mm in depth. The net weight is about 70 kg.

How do I adjust the temperature on this model?

The temperature is controlled via a mechanical thermostat dial inside the refrigerator compartment. Turn the dial to a higher number for colder temperatures.

Does the TW6GB have automatic defrost?

The refrigerator compartment features automatic defrost, but the freezer compartment requires manual defrosting. It is recommended to defrost when ice buildup exceeds 5 mm.

Can I reverse the door opening direction?

Yes, the door is reversible. Instructions for changing the door swing are provided in the user manual. You will need basic tools and assistance.

What is the noise level of this refrigerator?

The noise level is approximately 40 dB(A), which is considered quiet and suitable for open-plan living areas.

How to clean the Temptech TW6GB fridge?

Unplug the appliance before cleaning. Use warm water and mild detergent to wipe interior and exterior. Avoid abrasive cleaners. Clean the condenser coils at the back every 6 months.

What is the energy efficiency class of the TW6GB?

The Temptech TW6GB is rated as energy efficiency class F on the EU energy label. Annual energy consumption is estimated at 220 kWh.

What should I do if the refrigerator is not cooling properly?

First, check if the appliance is level and the door seals are intact. Ensure the condenser coils are clean and there is adequate ventilation. If the problem persists, contact a qualified technician.

Where can I purchase spare parts for the TW6GB?

Spare parts such as shelves, door bins, and thermostat can be ordered from authorized Temptech service centers or online retailers. Check the user manual for part numbers.

USER MANUAL TW6GB Temptech

● Before use, please read this manual carefully.
- This appliance is Semi-conductor electric refrigerating appliance, which belongs to Category 10 other appliance according to ErP 643/2009, Its design temperature is 17°C.
- Other appliance means a compartment, other than a Chinese traditional wine storage compartment, intended for the storage of particular foodstuffs at a temperature warmer than +14°C, and the particular foodstuff is cabernet, claret or vin rouge and so on.
- The range of storage temperature is from 8°C to 18°C, 10°C to 18°C or 12°C to 18°C, but the test condition for energy consumption is equal to 15°C or higher at the ambient temperature 25°C.

It's suitable for use in bedrooms, apartments, hotels, hospitals and offices.

Before Putting Into Use

• Clean the appliance, and be thorough, especially in the interior (See "HOW TO CLEAN").
• In case the interior accessories are not correctly placed, rearrange them as described in chapter "NAME OF THE PARTS".

Instructions for Use

These instructions for use are intended for the user. They describe the appliance and its correct and safe use. They were prepared for various types/models of refrigerators therefore you may find in it description of some functions and accessories that your appliance does not have.

Tips for Energy Savings

• Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.
• Every now and then check if the appliance is sufficiently ventilated (adequate air circulation around the appliance).

• Set thermostat from higher to lower settings as soon as possible (depends on how loaded the appliance is ambient temperature etc).

• Before loading the appliance with packages of fresh foods, make sure they are cooled to ambient temperature. For hot foods, please cool to room temperature before placing it in the refrigerator.

• Set it on higher temperature can minimize the energy consumption of the household refrigerating appliance at ordinary temperature.

Important

DANGER: Risk of child entrapment. Before you throw away your old refrigerator:

Take off the door.
- Leave the shelves in place so that children may not easily climb inside.

• The appliance must be correctly connected to the power supply. (See: "HOW TO INSTALL").
• Do not touch the cooled surfaces while the appliance operates, especially not with wet hands, because the skin may stick to the cold surfaces.
• Disconnect the appliance from the power supply before repairing it (only a qualified technician should repair it), before cleaning or not in use for long time.
• Do not place power plug, microwave oven or other home appliance on the top of the refrigerator.
  ● The rating plate is inside the appliance or outside on the rear wall.
• Do not place refrigerator under the direct sun light, high temperature and high humidity
• Do not place any object near upper back of the unit which will affect the cooling of refrigerator.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Children should be supervised to ensure that they do not play with the appliance.

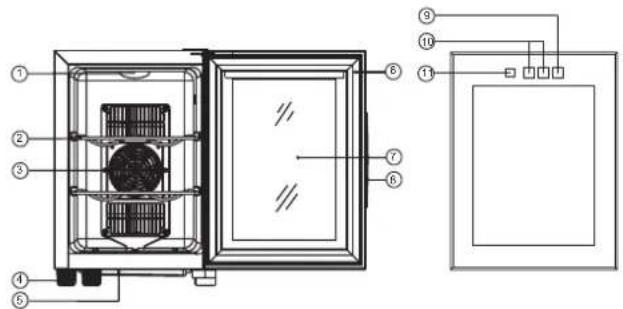

Structure

tw6gb

1. LIGHT
2. SHELF
3. FAN MASK
4. FOOT
5. WATER BOX

6. MAGNETIC SEAL

7. GLASS

8. DOOR FRAME
9. LIGHT SWITCH
10. TEMPERATURE CONTROL PANEL
11. TEMPERATURE DISPLAY

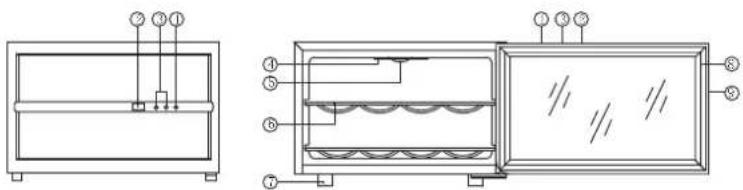

JC-23A

1. LIGHT SWITCH
2. LCD DISPLAY
3. TEMPERATURE ADJUSTMENT BUTTONS

4. LIGHT COVER

5. INTERIOR LIGHTS

6. CHROME SHELVE
7. FEET
8. MAGNETIC SEAL
9. DOOR

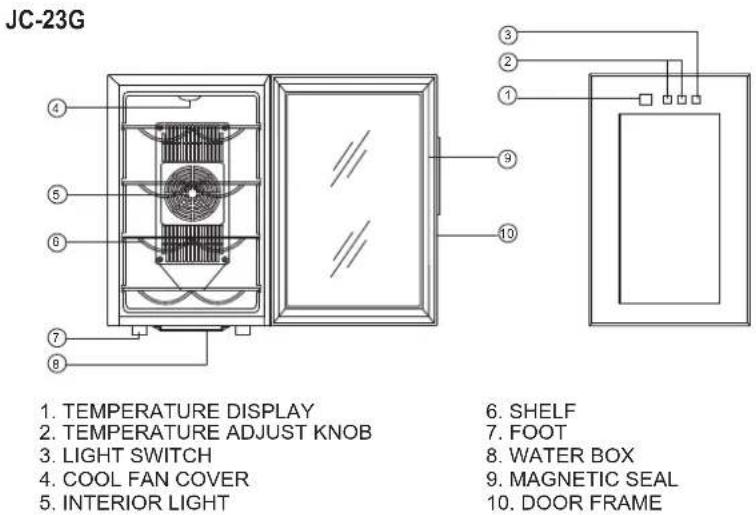

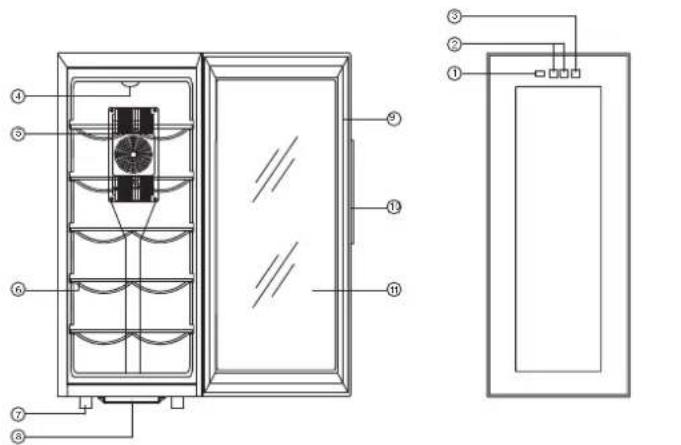

Structure

1. TEMPERATURE DISPLAY

2. TEMPERATURE ADJUST KNOB

3. LIGHT SWITCH

4. COOL FAN COVER

5. INTERIOR LIGHT

6. SHELF

7. FOOT

8. WATER BOX

9. MAGNETIC SEAL

10. DOOR FRAME

JC-33C

1. TEMPERATURE DISPLAY

2. TEMPERATURE ADJUST KNOB

3. LIGHT SWITCH

4. INTERIOR LIGHT

5. COOL FAN COVER

6. SHELF

7. FOOT

8. WATER BOX

9. MAGNETIC SEAL

10. DOOR FRAME

11. GLASS

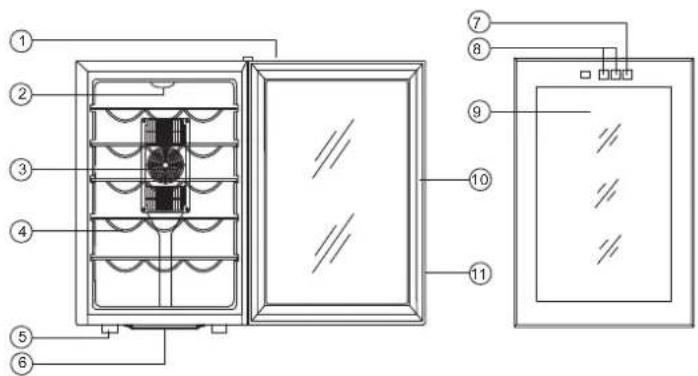

JC-48G

1. REAM COVER
2. LIGHT
3. FAN MASK
4. SHELF
5. FOOT

6. WATER BOX

7. LIGHT SWITCH

8. TEMPERATURE CONTROL PANEL
9. GLASS
10. MAGNETIC SEAL
11. DOOR FRAME

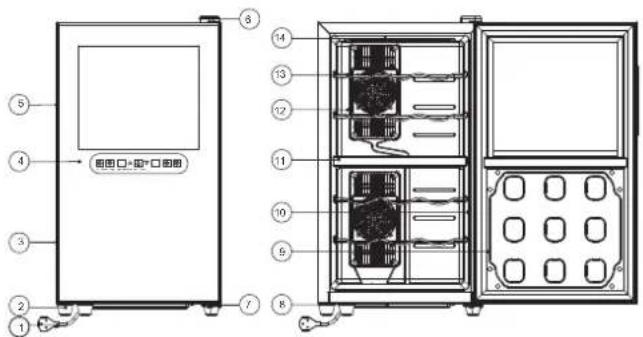

JC-48D

1. POWER CORD
2. FOOT
3. DOOR FRAME
4. GLASS DOOR
5. RECESSED HANDLE
6. TOP DOOR HINGE COVER

7. BOTTOM DOOR HINGE

8. WATER TRAY

9. DOOR LINER
10. DOOR SEAL
11. ISOLATED BOARD
12. COLD FAN MASK
13. SHELF
14. LAMP COVER

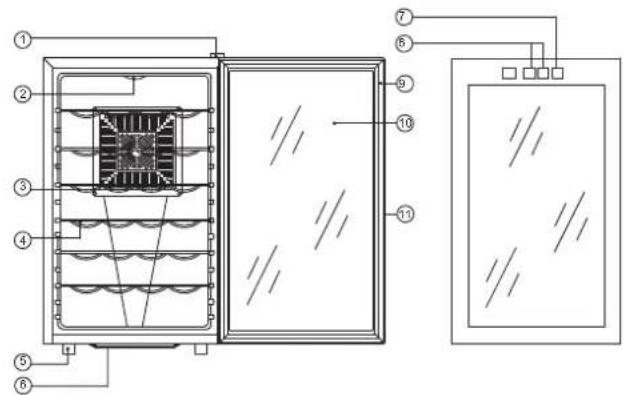

JC-65G

1. REAM COVER
2. LIGHT
3. FAN MASK
4. SHELF
5. FOOT

6. WATER BOX

7. LIGHT SWITCH

8. TEMPERATURE CONTROL PANEL
9. MAGNETIC SEAL
10. GLASS
11. DOOR FRAME

JC-78D

1. WATER TRAY
2. DOOR LINER
3. DOOR SEAL
4. ISOLATED BOARD
5. COLD FAN MASK
6. SHELF
7. LAMP COVER

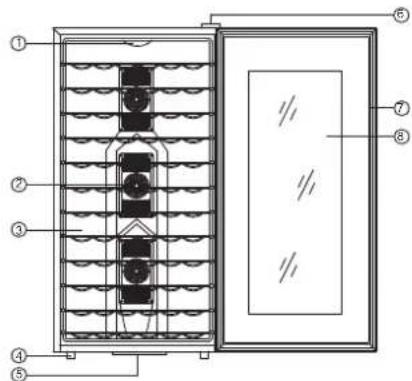

JC-180A

1. LIGHT
2. FAN MASK
3. SHELF
4. FOOT
5. WATER BOX
6. REAM COVER

1. MAGNETIC SEAL
2. GLASS
3. TEMPERATURE CONTROL PANEL
4. LIGHT SWITCH
5. SET SWITCH
6. LCD

HOW TO OPERATE Starting Your New Refrigerator

1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the interior with a clean moist cloth.
2. Insert the power supply cord into the socket.

Normal operating

When the refrigerator works with full power, the two LEDs on the circuit board will flash. The red one shows the power input status. The green one shows the output status of the cooling system. Meanwhile the fan inside the refrigerator begins to work. When the door is opened, the light under the temperature adjustor will turn on automatically.

The temperature range for refrigerator is 8°C to 18°C, 10°C to 18°C or 12°C to 18°C. When the temperature is set on one certain point and the temperature inside reaches this point, the automatic temperature control system begins to work and the cooling system goes into linear temperature keeping status.

Note: Wait 3-5 minutes before restarting if you unplug the refrigerator. The unit may fail to operate properly if restarted too quickly.

HOW TO CLEAN

Cleaners: Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface.

Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic waxing, use silicon wax.

Refrigeration Section: Wash shelves and other removable parts in warm sudsy water, rinse and dry. Wash interior with baking soda solution (3 tablespoons to 1 liter of water) or warm sudsy water, rinse and dry.

Magnetic Door Seals: Wash with warm sudsy water.

The Finishing Touch: Replace all parts and return thermostat dial to desired setting.

HOW TO INSTALL

• Install refrigerator in a convenient location away from extreme heat and cold. Allow sufficient clearance between the refrigerator and side wall so the door will open without obstruction. Refrigerator is not designed for recessed installation.
• Select a space with strong level floor.

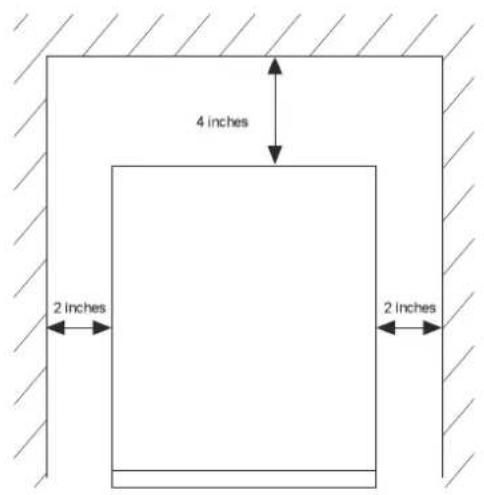

• Allow 2 inches (5cm) of space between the refrigerator's side & wall and 4 inches (10cm) between back & the wall.

POWER CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarity qualified person in order to avoid a hazard.

WHAT TO DO ...

When the refrigerator is not in use for a prolonged period of time:

• Remove the power plug from the power supply.
• Remove all contents from the refrigerator.
  ● Dry the interior and leave the door open for a few days.

When you wish to move the refrigerator:

• Secure all movable parts and contents. (Package them separately if necessary.)
  ● Transport the refrigerator only in an upright position.

If the refrigerator seems too warm inside:

• Check that the door has not been opened too frequently or for a long period.
• Check that the interior circulation is not obstructed by having too many goods stored (The refrigerator is overloaded)
  Did you store anything hot, without first cooling it to room temperature?
  Is there sufficient clearance around all sides and above the refrigerator?

If the refrigerator starts making any unusual noises:

Is it wobbling? Re-level it and check if it now operates normally.
- Have any objects fallen behind the refrigerator? If so, remove them and check if operation is now normal.
- Are any containers inside the refrigerator vibrating or resonating? If so, rearrange them then check to see if operation has returned to normal.

If the inside light flashes:

• Set temperature is higher than inner temperature.
  ● The automatic defrost function starting to work.

Disposal of the appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Technical data:

Model No.	tw6gb	JC-23G	JC-33C	JC-48D	JC-48G
Volume	16 L	23L	33L	48 L	48L
Rated Voltage	220V~240V	220V~240V	220V~240V	220V~240V	220V~240V
Rated Frequency	50Hz	50Hz	50Hz	50Hz	50Hz
Climate Type	SN : N	SN : N	SN : N	SN : N	SN : N
Input Power	50W	50W	50W	100W	70W
Power Consumption KW-h/24h	0.27	0.5	0.34	0.54	0.47
Temperature Control Range	8-18°C	8-18°C	12-18°C	8-18°C&12-18°C	12-18°C
Net Weight	8.0kg	9.3kg	11.3kg	16 kg	14.1kg
Product Size (WXHXD)mm	302X460X562	252X456X515	252X616X507	355X650X506	355X645X503

Model No.	JC-48G	JC-65G	JC-78D	JC-180A
Volume	48L	65L	78L	180L
Rated Voltage	220V~240V	220V~240V	220V~240V	220V~240V
Rated Frequency	50Hz	50Hz	50Hz	50Hz
Climate Type	SN:N	SN:N	SN:N	SN:N
Input Power	70W	70W	140W	185W
Power Consumption KW-h/24h	0.47	0.5	0.45	2.2
Temperature Control Range	12-18°C	12-18°C	8-18°C&12-18°C	12-18°C
Net Weight	14.1kg	19.3kg	22.6kg	44.8kg
Product Size (WXHXD)mm	355X645X503	460X738X520	400X849X515	570X1200X515
