Norelco NoseTrimmer 5100 NT517 - Precision trimmer PHILIPS - Free user manual and instructions

Product Type	Nose and Ear Trimmer
Brand	Philips
Model	Norelco NoseTrimmer 5100 NT517
Color	Black/Silver
Power Source	1 AA battery (not included)
Battery Life	Up to 60 minutes
Blade Material	Stainless steel, self-sharpening
Washable	Yes, rinse head under running water
Cutting System	Rotary cutting system
Usage	Nose and ear hair trimming
Protection	Protective cap included
Grip	Ergonomic handle for comfortable use
Cleaning Brush	Included for blade maintenance
Dimensions	Approx. 15 x 3 x 3 cm
Weight	Approx. 50 g (including battery)
Warranty	2-year limited warranty
Accessories	Protective cap, cleaning brush
Series	Norelco 5100 series
Technology	Precision trimming head with dual foil

Frequently Asked Questions - Norelco NoseTrimmer 5100 NT517 PHILIPS

How do I clean the Norelco NoseTrimmer 5100?

Rinse the trimmer head under running water after each use. Use the included cleaning brush to remove any hairs from the blades. Ensure the device is switched off and battery removed before cleaning.

What type of battery does the NT517 use?

It uses one AA battery (alkaline recommended). The battery is not included and should be inserted with correct polarity.

Can I use this trimmer on ear hair?

Yes, the Norelco NoseTrimmer 5100 is designed for both nose and ear hair. Use gentle circular motions for effective trimming.

Is the trimmer waterproof?

The trimmer head is washable under running water, but the main body is not fully waterproof. Do not submerge the device.

How do I replace the battery?

Twist the bottom cap counterclockwise to open the battery compartment. Insert a new AA battery with the correct polarity, then close the cap securely.

How often should I clean the trimmer?

It is recommended to clean the trimmer head after each use to prevent buildup. Deep clean with the brush weekly to maintain optimal performance.

Does the NT517 come with a warranty?

Yes, Philips offers a 2-year limited warranty covering manufacturing defects. Retain your proof of purchase.

Can I use this trimmer on eyebrows?

This model is specifically designed for nose and ear hair. For eyebrows, use a dedicated trimmer or comb attachment to avoid irritation.

How should I store the trimmer?

Always replace the protective cap after use to protect the blades. Store in a dry place away from moisture.

What is the cutting system of the Norelco 5100?

It uses a rotary cutting system with stainless steel blades that move in a circular motion to capture and cut hair effectively.

USER MANUAL Norelco NoseTrimmer 5100 NT517 PHILIPS

IMPORTANT SAFETY INSTRUCTIONS

When using a battery-operated appliance, basic safety precautions should always be followed, including the following:

Read all instructions before using this appliance.

WARNING

To reduce the risk of burns, fire or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or invalids.
2. Use this appliance for its intended household use as described in this manual. Do not use attachments not recommended by Philips Electronics North America Corporation.
3. Never operate this appliance if it is not working properly, or if it has been dropped or damaged. For assistance call 1-800-243-3050.
4. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
5. Never put the appliance in direct sunlight. Always use and store the appliance at a temperature between 40°F (4.5°C) and 100°F (38°C).
6. Always check trimming head(s) and comb(s) before using. Do not use the appliance if the trimming head(s) or comb(s) are damaged, as injury may occur.
7. If appliance will not be used on a regular basis, remove the battery to prevent possible damage due to chemical leakage. If battery does leak, remove it carefully. Do not allow bare skin to touch leaking fluid.
8. The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100°C (212°F) or incinerate.

SAVE THESE INSTRUCTIONS

IMPORTANT INFORMATION

CAUTION

If the appliance and accessories are subjected to a major change in temperature, pressure or humidity, let it acclimatize for 30 minutes before using.
For hygienic reasons, it is recommended that the trimmer be used by only one person.
This appliance is only intended for trimming facial, nose, ear, neck or eyebrow hair.
Do not insert the trimmer tip more than 3/16 in/5mm into the nostril or outer ear when trimming nose and ear hairs.
▶ Be careful to always keep trimmer away from eyes and eyelashes.
Do not use while bathing, showering or immerse trimmer in water or other liquids as damage to the trimmer may occur.

- Keep the trimmer handle away from water. - Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as gasoline or acetone to clean the appliance.

Do not apply pressure or touch trimmer with hard objects as this may dent or damage trimmer.

▶ Turn trimmer off before putting on or taking off attachments or cleaning.

Make sure your hands and trimmer are dry when inserting the battery.

For best performance, use a non-rechargeable 1.5V AA Lithium battery. However, any non-rechargeable 1.5V AA battery may be used as a replacement.

GENERAL

▶ Use this appliance for its intended household use as described in this manual.
Test trimmer on a small area of your arm or leg. If any sensitivity occurs, discontinue use. Do not use trimmer on sensitive areas or irritated skin.
Be certain your skin is clean. If you have sensitive skin, you may wish to apply talcum powder before and/or after use. Do not use deodorant or alcohol-based lotions immediately before or after using.
It is not necessary to press hard to get a close result. Pressing too hard may cause skin irritation, and the trimmer will not function properly.
- For optimum trimming of outer ear hair, pull skin taut with one hand while using. - Clean the trimmer after each use.

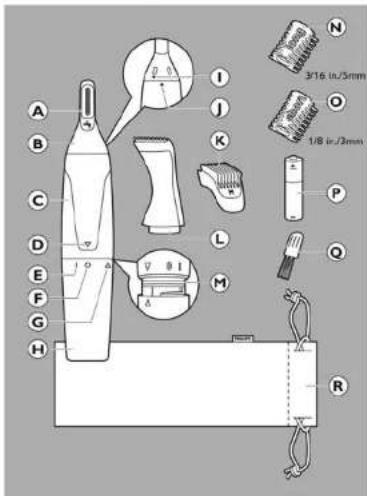

Features

A Cutting Element
B Precision Trimmer Head
C Handle
D Setting Indicator
E 'On' Indicator
F 'Off' Indicator
G 'Open' Indicator
H Battery Compartment Cover
1 Locking Indicator
J 'Unlocked' Indicator
K Beard Comb
L DualCut Trimmer Head
M Sealing Ring
N Long Eyebrow Comb
O Short Eyebrow Comb
P 1 "AA" 1.5 Volt Lithium Battery
Q Cleaning Brush
R. Pouch

Introduction

Congratulations on your purchase and welcome to Philips Norelco!

To fully benefit from the support that Philips Norelco offers, register your product at www.norelco.com/register

Inserting Battery

Trimming Nose Hair

▶ Make sure nasal passages are clean before trimming.
- Clean thoroughly after each use.

Tip: For best results, slowly move trimmer tip in and out of each nostril making sure the side of the tip is held firmly against the skin. This will reduce the tickling effect that can occur.

Trimming Ear Hair

Before trimming, clean the outer area of the ear and make sure it is free of wax.

- Clean thoroughly after each use.

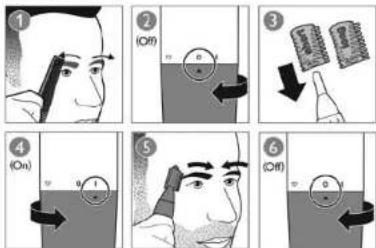

Trimming Eyebrows

▶ Make sure the comb slides into the grooves on both sides of the trimmer.

Tip: If trimming for the first time, start by using the Long Comb (3/16 in./5mm) to prevent accidentally trimming hairs too short.

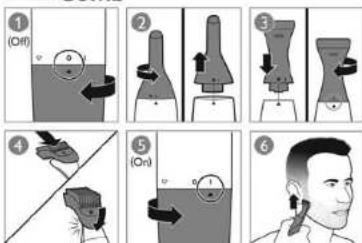

Trimming with DualCut Trimmer Head and Beard Comb

Trimming with DualCut Trimmer Head and Beard Comb

Use the DualCut trimmer head with beard comb to trim and shape your beard, sideburns and neck hair to a length of 1/8 in./3mm.
If trimming for the first time, use the beard comb to prevent accidentally trimming hairs too short.

Tip: Move the trimmer slowly over the skin against the direction of hair growth making sure the trimmer head is in complete contact with the skin.

Trimming with DualCut Trimmer Head

Use the DualCut trimmer head without the beard comb to trim to a 'stubble' length of 1/32 in./0.5mm.
To trim neck hair, pull skin taut with one hand and place trimmer gently on the skin.

Tip: Make smooth and gentle movements against the direction of hair growth.

Cleaning

Note: Allow all parts to air dry thoroughly.

Tip: For best cleaning results, immerse only the cutting element of the trimmer head in warm water for a few minutes and then turn trimmer ON to remove any remaining debris/hairs.

This appliance has no other user-serviceable parts. For assistance call 1-800-243-3050.

Storage

- Store the appliance in the pouch in a safe, dry location.

Disposal

Battery must be removed from the appliance before discarding. Dispose of battery properly. Do not incinerate. Battery may explode if overheated. Do not wrap in metal or aluminum foil. Wrap in newspaper before discarding. It is suggested that you contact your local town or city to determine proper battery drop-off locations.

Assistance

For assistance visit our website www.philips.com/support or call toll free: 1-800-243-3050.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support or call 1-800-243-3050 for assistance.

Problem	Possible cause	Solution
The appliance does not work as well as it should.	Hairs may be stuck in the cutting element or combs.	Clean the appliance (see 'Cleaning' section).
The appliance pulls on the hairs.	You move the appliance too fast.	Do not move the appliance too fast.
	The disposable battery is empty.	Insert a new battery.
The appliance does not work.	The disposable battery is empty or has been inserted incorrectly.	Replace the battery or insert it correctly.

The cutting element of the trimmer head is dirty.

Immerse the cutting element in a glass of warm water for a few minutes. Turn on trimmer to remove any remaining debris/hairs.

PHILIPS

NT5175

Battery-Operated

Always here to help you

Register your product and get support at www.norelco.com/register

4222 002 8533 2

45-Day Money-Back Guarantee

If you are not fully satisfied with your Philips Noreko appliance send the product back and we'll refund you the full purchase price.

The Trimmer must be shipped prepaid by insured mail, insurance prepaid, have the original sales receipt, indicating purchase price and date of purchase, and the money-back guarantee return authorization form enclosed. We cannot be responsible for lost mail.

The Trimmer must be postmarked no later than 45 days after the date of purchase. Philips Norelco reserves the right to verify the purchase price of the product and limit refunds not to exceed suggested retail price.

To obtain money-back guarantee return authorization form, call 1-800-243-3050 for assistance.

Delivery of refund check will occur 6–8 weeks AFTER receipt of returned product.

Full Two-Year Warranty

Philips Electronics North America Corporation warrants each new Philips Norelco product, Model NT5175 (except cutters and combs) against defects in materials or workmanship for a period of two years from the date of purchase, and agrees to repair or replace any defective product without charge.

IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product or loss of parts or subjecting the product to any but the specified battery.*

NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

In order to obtain warranty service, simply go to www.philips.com/norelco or call 1-800-243-3050 for assistance. It is suggested that for your protection you return shipments of product by insured mail, insurance prepaid. Damage occurring during shipment is not covered by this warranty.

NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America Corporation. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion and limitations may not apply to you.

*Read enclosed instructions carefully.

Manufactured for:

Philips Consumer Lifestyle

A Division of Philips Electronics North America Corporation

P.O. Box 10313, Stamford, CT 06904

Nordco is a Registered Trademark of Philips Electronics

North America Corporation.

PHILIPS is a Registered Trademark of Koninklijke Philips N.V.

© 2015 Philips Electronics North America Corporation, All Rights Reserved.
