LR 710 E - Washing machine James - Free user manual and instructions

Product Type	Freestanding Washing Machine
Brand	James
Model	LR 710 E
Load Capacity	7 kg
Maximum Spin Speed	1000 rpm
Energy Efficiency Class	E (EU 2019/2014)
Dimensions (H x W x D)	85 cm x 60 cm x 50 cm
Weight	Approximately 62 kg
Power Supply	220-240 V, 50 Hz, 10 A
Water Connection	Cold water, 3/4" thread
Drum Type	Stainless steel, anti-rust
Number of Programs	15 (including Cotton, Synthetics, Delicates, Wool, Quick 30, etc.)
Noise Level (Wash/Spin)	58 dB / 76 dB
Water Consumption per Cycle	Approximately 45 L (depending on program)
Annual Energy Consumption	Approximately 185 kWh (based on 220 cycles)
Safety Features	Child lock, overflow protection, unbalanced load detection
Display Type	LED with program status, time remaining, and delay start
Delay Start	Yes, up to 24 hours
Detergent Drawer	3 compartments (main wash, pre-wash, fabric softener)
Spare Parts Availability	Spare parts available for at least 10 years (EU regulation)

Frequently Asked Questions - LR 710 E James

How do I install the washing machine properly?

Ensure the machine is on a level, solid floor. Remove all transport bolts and packing material. Connect the inlet hose to a cold water tap with a 3/4 inch thread. Place the drain hose into a standpipe or sink. Level the machine by adjusting the feet. Finally, plug into a grounded outlet.

What is the maximum load capacity for cotton program?

The maximum load for a cotton program is 7 kg of dry laundry. Overloading may affect washing performance and cause excessive noise.

How can I clean the detergent drawer?

Press the release button inside the drawer and pull it out completely. Wash the drawer under warm running water to remove detergent residues. Clean the recess with a brush. Dry and reinsert.

Why does the machine not drain?

Check if the drain hose is kinked or blocked. Clean the pump filter (located at the bottom front) – unscrew and remove any debris. Also ensure the standpipe is not clogged. If problem persists, contact service.

How do I activate the child lock feature?

Press and hold the Child Lock button (usually marked with a padlock icon) for 3 seconds. A key symbol will appear on the display. To deactivate, repeat the same process.

What does error code E10 mean?

Error code E10 indicates a water inlet problem. Check that the water tap is open, the inlet hose is not kinked, and the water pressure is sufficient. Also clean the inlet filter.

Can I wash delicate fabrics like silk or wool?

Yes, use the Delicate or Wool program. Select low spin speed (max 600 rpm) and use a laundry bag for small items. Always check the garment care label.

How often should I clean the pump filter?

Clean the pump filter every 2-3 months or whenever you notice slow draining. Also check it after washing items with high lint or debris.

What is the energy efficiency class of this machine?

The James LR 710 E has an energy efficiency class of E according to the EU 2019/2014 scale. This indicates moderate energy consumption.

How do I obtain spare parts or service?

Spare parts are available through authorized James service centers. Refer to the user manual for the list of serviceable parts and contact details. The model number LR 710 E and serial number are on the rating plate.

USER MANUAL LR 710 E James

Line drawing of a washing machine with front panel and side door (no text or symbols)

Figura 2

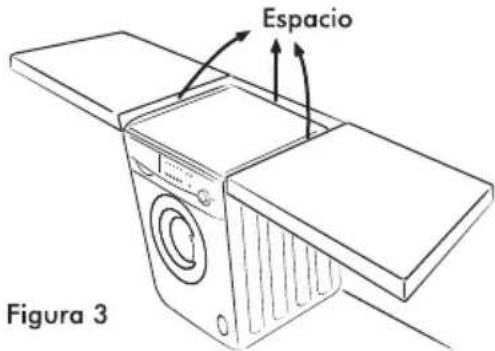

Figura 3

Line drawing of two hands holding a tool, no text or symbols present

Line drawing of a hand holding a blue tool or device, no text or symbols present

Figura 7

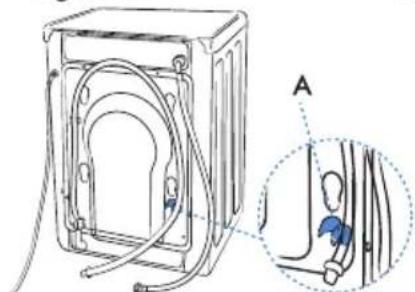

Technical line drawing of a mechanical device with internal components and a close-up inset showing a component labeled A (no text or symbols present)

Figura 8

Hand holding a small object near a vertical axis, with a circle above (no text or symbols)

Figura 2

Pata regulable

Two technical line drawings showing electrical socket connections with no text or symbols

Corte de energía

Three line drawings of household items: a person with a blue tool, a medical device with tubing, and a hand holding a tool (no text or symbols)

Diagram of a door handle with a blue circular knob and directional arrow (no text or symbols)

Illustration of a hand holding a blue tool with a curved handle, enclosed in a dotted circle (no text or symbols)

Figura 2

Illustration of a hand holding a tool near a vehicle door (no text or symbols visible)

Figura 3

Illustration of a hand using a screwdriver to adjust or install a component (no text or symbols visible)

10
