EG601 - Tumble drier VEDETTE - Free user manual and instructions

Product Type	Tumble dryer
Brand	Vedette
Model	EG601
Capacity (max load)	6 kg
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	40 kg
Power Supply	230 V ~ 50 Hz
Rated Power	2000 W
Energy Efficiency Class	C
Drying System	Condenser (ventless)
Drum Material	Stainless steel
Number of Drying Programs	12 (including cotton, synthetics, delicate, timed)
Control Type	Electronic with LED display
Anti-Crease Function	Yes
Delayed Start	Up to 24 hours
Lint Filter	Removable, easy to clean
Condenser Unit	Self-cleaning (with rinse water)
Safety Features	Child lock, overheating protection, door lock during cycle
Noise Level	65 dB(A)
Spare Parts Availability	Manufacturer stocks parts for at least 10 years
Manual Languages	English, French, etc. (available online)

Frequently Asked Questions - EG601 VEDETTE

How do I install the tumble dryer?

Place the dryer on a stable, level surface with at least 5 cm clearance on all sides. Ensure the power cord is connected to a grounded outlet. For ventless models, no external venting is required.

What is the maximum load capacity?

The maximum load is 6 kg of dry laundry. Overloading may reduce drying efficiency and cause wrinkles.

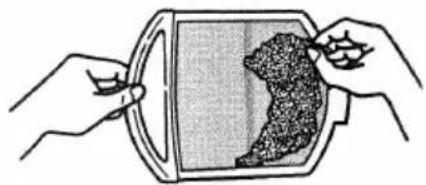

How do I clean the lint filter?

After each drying cycle, remove the lint filter located at the door opening, wipe off the lint with your hand or a soft brush, and rinse under running water if needed. Reinsert when dry.

Can I dry all types of fabrics?

Check garment care labels. Most cotton, synthetics, and blends are safe. Do not dry items with foam rubber, rubber, or flammable materials. Use the appropriate program.

The dryer stops before clothes are dry. What should I do?

Check if the lint filter is clogged or the water tank is full (for condenser models). Ensure the load is not too large. Restart with a longer program if needed.

How do I empty the water tank?

For condenser dryers, pull out the water tank (usually located at the top or front), empty it into a sink, and reinsert. Some models allow direct drainage via a hose.

What does the 'Anti-Crease' function do?

After drying, the drum rotates periodically for up to 60 minutes without heat to prevent wrinkles from setting in if you cannot remove laundry immediately.

Why is my dryer making unusual noises?

Check for coins, buttons, or small objects in the drum or lint filter. Ensure the dryer is level. If noise persists, contact customer support.

How do I activate the child lock?

Press and hold the child lock button (or a combination of buttons) for 3 seconds until an indicator appears. To deactivate, repeat.

Where can I find spare parts?

Contact Vedette customer service or visit authorized dealers. Spare parts such as filters, belts, and heating elements are available for at least 10 years after purchase.

USER MANUAL EG601 VEDETTE

Line drawing of a portable air conditioner unit with ventilation grille and handle (no text or symbols)

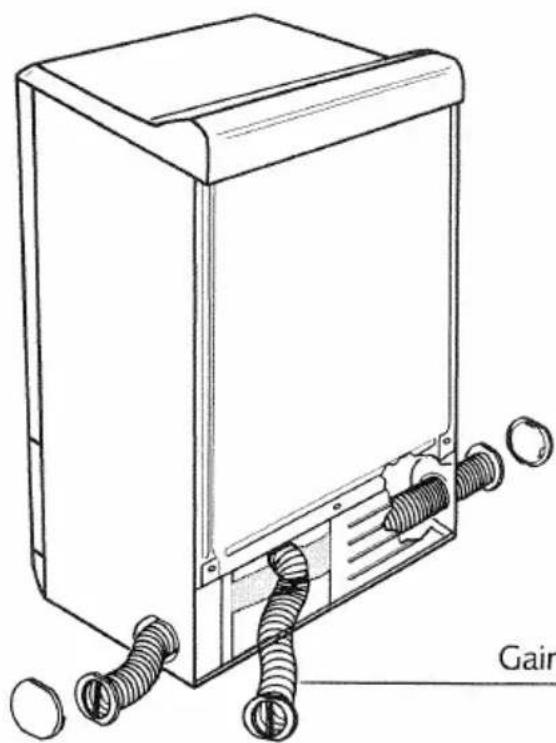

Line drawing of a rectangular device with coiled hoses and a labeled 'Gain' section (no other text or symbols)

Illustration of a hand placing a component into a car wheel (no text or symbols visible)

Dess.12
OUI

Illustration of hands holding a small object inside a transparent container, with no visible text or symbols.

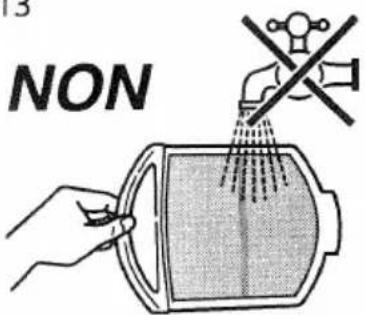

Dess.13

Dess.14

Crossed diagram of a layered structure with no visible text or symbols

Incidents pouvant survenir
