Product Type	Outdoor Gas Grill
Brand	KitchenAid
Model	750-0780
Fuel Type	Liquid Propane (LP) / Natural Gas (convertible)
Number of Main Burners	4
Rotisserie Burner	Yes, infrared
Ignition Type	Electronic (battery-powered)
Cooking Surface Material	Stainless steel cooking grids
Grill Material	Stainless steel
Built-in or Portable	Built-in
Dimensions (Enclosure Minimum)	11" H x 23" D x 30" W
Weight (Approximate)	120 lbs (estimate)
Warranty	10 years on stainless steel burners, 3 years on cooking grids & stainless steel parts, 1 year on all other parts
Included Accessories	Pressure regulator/hose assembly, warming rack, LP tank tray, AA battery, conversion kit for natural gas
Power Source (Igniter)	1 "AA" alkaline battery
Gas Pressure (LP)	11" WCP operating, 11-14" WCP supply
Gas Pressure (Natural)	4" WCP operating, 7-14" WCP supply

Frequently Asked Questions - 750-0780 KITCHENAID

How do I light the main burners?

Open the hood completely. Push in and turn the burner control knob to IGNITE/HI while holding it in. You will hear a snapping sound. Once lit, release the knob and adjust to desired setting. If it does not light immediately, turn off and wait 5 minutes before relighting.

How do I convert the grill from LP to natural gas?

Conversion must be done by a qualified gas technician. Use the supplied natural gas conversion kit. Instructions include replacing the regulator, orifices, and connecting to a natural gas supply line. See the 'Gas Conversions' section of the manual.

What type of battery does the igniter use and how do I replace it?

The igniter uses one 'AA' size alkaline battery. To replace, unscrew the igniter button cap counterclockwise, remove the old battery, insert the new battery with negative end first, and screw the cap back on.

How should I clean the stainless steel surfaces?

Use a soft cloth or sponge with mild detergent and warm water. Rinse with clean water and dry immediately. Avoid steel wool or abrasive cleaners. For tough spots, use a commercial degreaser designed for stainless steel. Always rub in the direction of the grain.

What should I do if the burner flame is yellow or orange?

A yellow flame indicates not enough air. Adjust the air shutter by turning the adjustment screw counterclockwise to increase air. If the flame is noisy or lifts, there is too much air; adjust clockwise. See 'Check and Adjust the Burners' section.

Can I use this grill indoors or in a garage?

No. This grill is designed for outdoor use only. Do not use in a building, garage, or any enclosed area. Keep away from combustible materials and ensure proper ventilation.

What is the warranty coverage?

The warranty covers defects in materials and workmanship. Stainless steel tube burners: 10 years limited against perforation. Cooking grids and stainless steel parts: 3 years limited. Other parts: 1 year limited. Cosmetic issues like surface rust or discoloration are not covered.

How do I check for gas leaks?

Use a noncorrosive leak-detection solution. Apply to all connections with a brush. If bubbles appear, turn off the gas supply and do not use the grill. Contact a qualified gas technician to repair leaks.

What is the minimum clearance required from combustible materials?

Maintain a minimum of 24 inches (58 cm) from the front, sides, and back of the grill to any combustible construction. Also maintain 24 inches below the cooking surface.

How do I clean the grill grates?

After cooking, loosen food with a brass bristle brush. Turn all burners to HI for 10-15 minutes with hood closed to burn off residue. Let cool, then brush off ash. For thorough cleaning, remove grates and wash with mild detergent and warm water. For baked-on soil, soak in a solution of 1 cup ammonia to 1 gallon water for 20 minutes.

USER MANUAL 750-0780 KITCHENAID

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories or service, call: 1-877-373-2301 or visit our website at www.Kitchenaidgrills.com

Location Requirements.... 5

Product Dimensions....6

Built-In Outdoor Grill Enclosure 6

Cabinet Cutout Dimensions 7

Gas Supply Requirements 8

Gas Connection Requirements....9

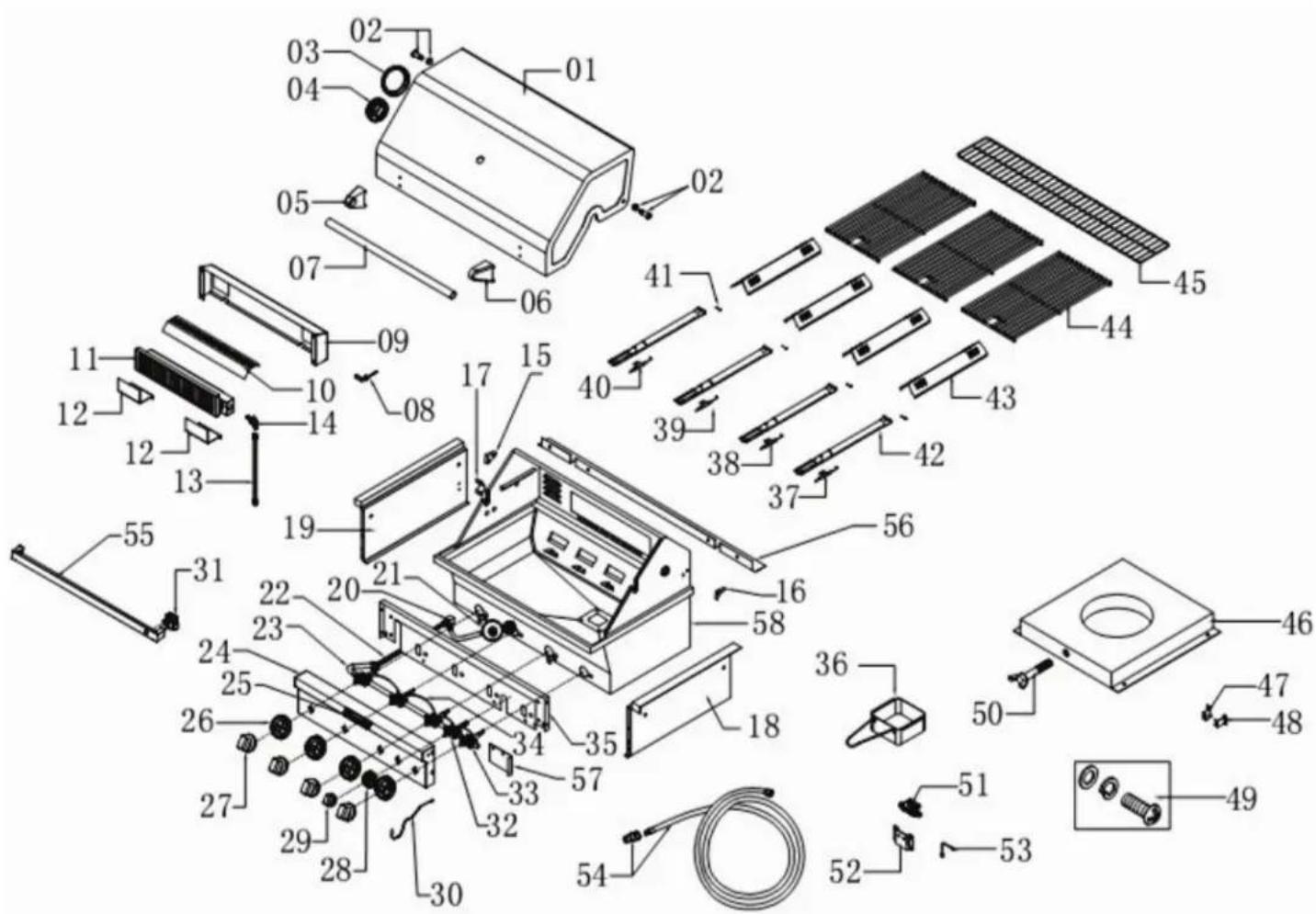

REPLACEMENT PARTS 10

INSTALLATION INSTRUCTIONS....12

Unpack Grill 12

Install Grill....12

Make Gas Connection....14

GAS CONVERSIONS ....15

Check and Adjust the Burners 18

OUTDOOR GRILL USE....19

Using Your Outdoor Grill.... 19

Using Your Rotisserie Burner.... 21

Rotisserie Cooking Tips....21

TIPS FOR OUTDOOR GRILLING 22

Cooking Methods....22

Grilling Chart 23

OUTDOOR GRILL CARE 25

Replacing the Igniter Battery.... 25

General Cleaning....25

TROUBLESHOOTING....27

ASSISTANCE....27

Accessories....27

WARRANTY....28

ÍNDICE

SEGURIDAD DEL ASADOR PARA EXTERIORES....30

INSTRUCTIONS D'INSTALLATION....69

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

DANGER

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

WARNING

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

In the State of Massachusetts, the following installation instructions apply:

■ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by the State of Massachusetts.
■ If using a ball valve, it shall be a T-handle type.
■ A flexible gas connector, when used, must not exceed 3 feet.

IMPORTANT: This grillis manufactured for outdoor use only. For grills that are to be used at elevations above 2000 ft (609.6 m) orifice conversion is required. See “Gas Supply Requirements” section. It is the responsibility of the installer to comply with the minimum installation clearances specified on the model/serial rating plate. The model/serial rating plate for built-in models can be found on the right-hand side of the grill.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock, injury to persons, or damage when using the outdoor cooking gas appliance, follow basic precautions, including the following:

■ Do not install portable or built-in outdoor cooking gas appliances in or on a recreational vehicle, portable trailer, boat or in any other moving installation.
■ Always maintain minimum clearances from combustible construction, see "Location Requirements" section.
■ The outdoor cooking gas appliance shall not be located under overhead unprotected combustible construction.
■ This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a building, garage, or any other enclosed area.
- Keep any electrical supply cord and fuel supply hose away from any heated surfaces.
- Keep outdoor cooking gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
■ Do not obstruct the flow of combustion and ventilation air. Keep the ventilation openings of the cylinder enclosure free and clear from debris.
■ Open the cabinet door and inspect the gas cylinder supply hose before each use of the outdoor cooking gas appliance. If the hose shows excessive abrasion or wear, or is cut, it MUST be replaced before using the outdoor cooking gas appliance. Contact your dealer and use only replacement hoses specified for use with the outdoor cooking gas appliance.

■ Visually check the burner flames. They should be blue. Slight yellow tipping is normal for LP gas. The flames should be approximately 1" (2.5 cm) high.

- Check and clean burner/venturi tube for insects and insect nest. A clogged tube can lead to fire under the outdoor cooking gas appliance.

■ The LP gas supply cylinder to be used must be:
- constructed and marked in accordance with the Specification for LP Gas Cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres, and Tubes for Transportation of Dangerous Goods; and Commission.
- provided with a listed overfilling prevention device.
- provided with a cylinder connection device compatible with the connection for outdoor cooking gas appliances.
■ Always check connections for leaks each time you connect and disconnect the LP gas supply cylinder. See "Installation Instructions" section.
■ When the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply cylinder.
■ Storage of an outdoor cooking gas appliance indoors is permissible only if the cylinder is disconnected and removed from the outdoor cooking gas appliance.
■ Cylinders must be stored outdoors and out of the reach of children and must not be stored in a building, garage, or any other enclosed area.
■ The pressure regulator and hose assembly supplied with the outdoor cooking gas appliance must be used. A replacement pressure regulator and hose assembly specific to your model is available from your outdoor cooking gas appliance dealer.
■ Gas cylinder must include a collar to protect the cylinder valve.
■ For appliances designed to use a CGA791 Connection: Place a dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.
If the following information is not followed exactly, a fire causing death or serious injury may occur.
■ Do not store a spare LP gas cylinder under or near this outdoor cooking gas appliance.
■ Never fill the cylinder beyond 80 percent full.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

ToolsaaddParts

Gather the required to ols and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

■ Tape measure
■ Pipe wrench
■ Small, flat -blade screw driver
■ Scissors or cutting pliers (to remove tiedowns)
■ #2 and #3 Phillips screw driver
■ Noncorrosive leak-detection solution
Level
■ Wrench or pliers

Parts Supplied

■ Gas pressure regulator/hose assembly set for 11" WCP LP gas.
■ 1 - "AA" size alkaline battery
■ 20 lb LP gas fuel tank tray
■ 12 screws (for inst alling 20 lb LP gas fuel tank tray, 90° clamp/Natural gas regulator clamp)
■ Hardware packet
■ 2 piece 90° clamp (for m ounting 90° connector)
■ Hex wrench (for loosening control knobs)
■ Warming rack

Parts Needed

■ 20 lb LP gas fuel tank

Parts Supplied for Conversion to Natural Gas

■ Natural gas conversion kit (which includes):

■ Natural gas regulator (m arked “Natural Gas Regulator”)
■ 10 ft (3.0 m) PVC flexible gas supply hose with quick connector
■ 6 mm nut drive r
■ Natural gas regulator c lamp
■ 2.05 mm Na tural gas orifice for rotisserie/infrared burner

Parts Needed for Conversion to Natural Gas

■ Gas line shut off valve
■ 1/2 " male pi pe thread nipple for connection to pressure regulator.
■ LP gas-resistant p ipe-joint compound
■ C SA design-certified outdoor flexible stainless steel appliance connector (4-5 ft [1.2-1.5 m]) or rigid gas supply line as needed.

Location Requirements

Explosion Hazard

Do not store fuel tank in a garage or indoors.

Do not store grill with fuel tank in a garage or indoors. Failure to follow these instructions can result in death, explosion, or fire.

Fire Hazard

Do not use grill near combustible materials.

Do not store combustible materials near grill.

Doing so can result in death or fire.

Select a location that provides minimum exposure to wind and traffic paths. The location should be away from strong draft areas.

Do not obstruct flow of combustion and ventilation air.

Clearance to combustible construction for outdoor grills:

A minimum of 24" (58.0 cm) must be maintained between the front of the grill hood, sides and back of the grill and any combustible construction.

☐ A 24" (58.0 cm) minimum clearance must also be maintained below the cooking surface and any combustible construction.

Rotisserie (accessory)*

If you equip your gril l with a rotisserie, a 6" (15.2 cm) minimum clearance is needed for the rotisserie motor.

A grounded, 3-prong outlet located to the left of the grill is required.

*See “Assistance or Service” section to order.

Product Dimensions Built-In Outdoor Grill Enclosure

WARNING

Fire Hazard

Do not install grill on or near combustible materials.

Doing so can result in death or fire.

The enclosure for the built-in outdoor grill is to be a minimum of 11" (28.0 cm) high x 23" (58.4 cm) deep x 30" (76.2 cm) wide This built-in outdoor grill is only for installation in a built-in enclosure constructed only of noncombustible materials. Non-combustible materials could be brick, firewall or steel. Do not use wood or other combustible materials for built-in enclosure.

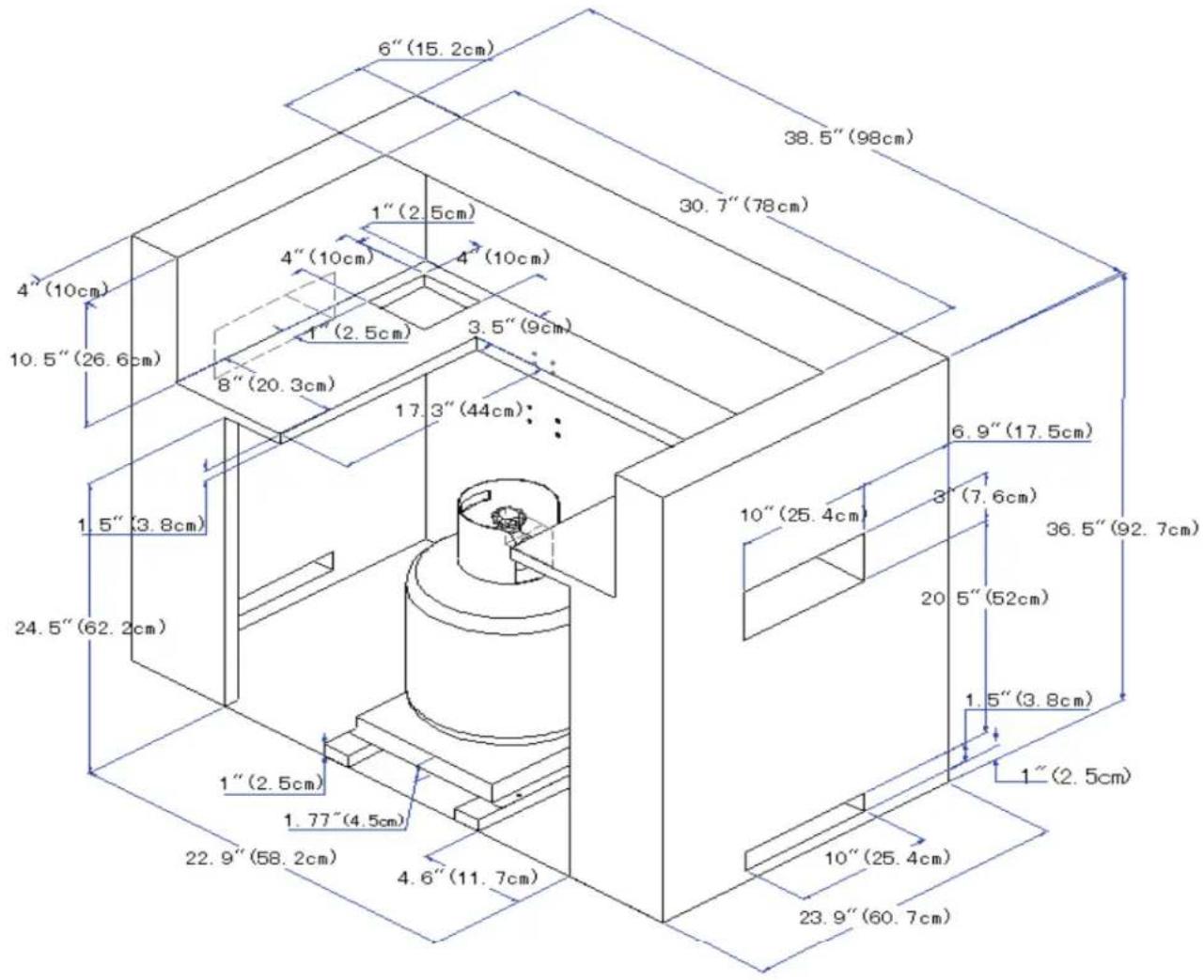

Cabinet Cutout Dimensions

The illustration below includes cutout dimensions and minimum spacing requirements. The illustration is for reference. The design of your cabinet layout can be personalized, but the dimensions for the cutouts and minimum spacing must be followed.

Center or support surfaces must be level.

The installation of this grill must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NPFA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.

Copies of the standards listed may be obtained from:

CSA International

8501 East Pleasant Valley Rd.

Cleveland, Ohio 44131-5575

NOTE: The grill drops into the opening and is supported by its side flanges. Do not use a bottom support

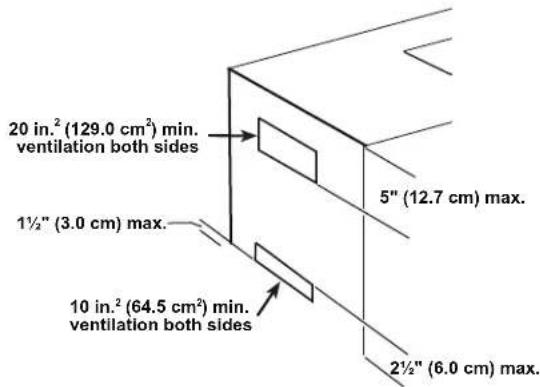

Built-in Outdoor Grill Enclosure Ventilation Requirements

Any enclosure is to be ventilated by openings at both the top and lower levels of the enclosure. The following information is the minimum for proper ventilation of your island construction.

■ There should be a minimum of 1 7/8" (4.4 cm) of clearance from the bottom of the main burner bowl assembly island for proper ventilation

NOTE: There should be no solid surface underneath the firebox portion of the grill.

A minimum of 3" (7.6 cm) is required between the back of the grill and any noncombustible materials. A minimum of 24" (61.0 cm) is required between the back of the grill and any combustible material.

■ The island must be vented in one of the 2 following ways: A 90° or a 180° ventilation in the island to ensure that air flows through the island at either 90° or 180°.

■ Any enclosure for built-in installation is to have at least one ventilation opening on an exposed exterior side located within 2½" (6.0 cm) of the top and is to be a minimum of 20 in.² (129.0 cm²). One ventilation opening within 1½" (3.0 cm) of the bottom of the enclosure, and the bottom opening is to be a minimum of 10 in.² (64.5 cm²). All vent openings are to be unobstructed. Every opening is to be a minimum of 1/8" (0.32 cm) wide.

■ To ensure that the grill operates properly, it is recommended that the island have ventilation on all 4 sides as shown in the following illustration. The ventilation holes should be as diagrammed to ensure adequate ventilation for your grill and island.

■ Proper ventilation is a required based on the above mentioned specifications for your grill to operate properly.

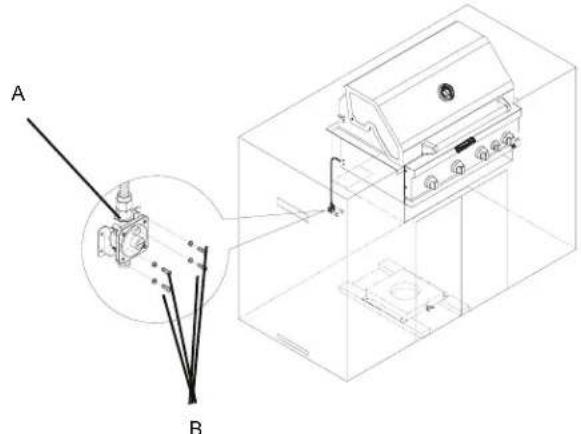

LP Gas

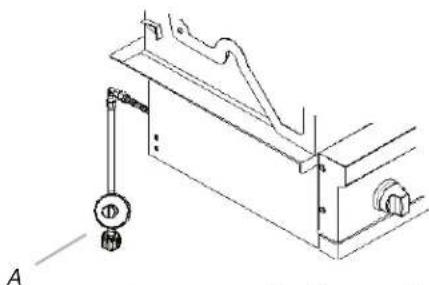

LP Gas Pressure Regulator/Hose Assembly Location

Measurements shown are for attaching the LP gas pressure regulator/hose assembly to the enclosure.

Natural Gas Conversion

Natural Gas Pressure Regulator Location

Measurements shown are for attaching the Natrual gas pressure regulator to the enclosure.

Gas Supply Requirements

WARNING

Explosion Hazard

Use a new CSA International approved "outdoor" gas supply line.

Install shut-off valve.

Securely tighten all gas connections.

If connected to LP, have a qualified person make sure gas pressure does not exceed 14" (36 cm) water column.

Examples of a qualified person include:

licensed heating personnel, authorized gas company personnel, and authorized service personnel.

Failure to do so can result in death, explosion, or fire.

Observe all governing codes and ordinances.

IMPORTANT: This installation must conform with all local codes and ordinances. In the absence of local codes, installation must conform with American National Standard, National Fuel Gas Code ANSI Z223.1 - latest edition or CAN/CGA B149.1 - latest edition.

Refer to the model/serial rating plate for information on the type of gas that can be used. If this information does not agree with the type of gas available, check with your local gas supplier.

Gas Conversion:

No attempt shall be made to convert the grill from the gas specified on the model/serial rating plate for use with a different gas type without consulting the serving gas supplier. The conversion kit supplied with the grill must be used. See “Gas Conversions” section.

Gas Pressure Regulator

The gas pressure regulator supplied with this grill must be used. The inlet (supply) pressure to the regulator should be as follows for proper operation:

LP Gas:

Operating pressure: 11" (27.9 cm) WCP

Inlet (supply) pressure: 11" to 14" (27.9 cm to 35.5 cm) WCP

Natural Gas:

Operating pressure: 4" (10.2 cm) WCP

Inlet (supply) pressure: 7" to 14" (17.8 cm to 35.5 cm) WCP maximum.

Contact local gas supplier if you are not sure about the inlet (supply) pressure.

Burner Requirements for High Altitude

Input ratings shown on the model/serial rating plate are for elevations up to 2,000 ft (609.6 m).

For elevations above 2,000 ft (609.6 m), ratings are reduced at a rate of 4% for each 1,000 ft (304.8 m) above sea level. Orifice conversion is required. See “Assistance” section to order.

Gas Supply Line Pressure Testing

Testing above 1/2 psi (3.5 kPa) or 14" (35.5 cm) WCP (gauge):

The grill and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures greater than 1/2 psig (3.5 kPa).

Testing below 1/2 psi (3.5 kPa) or 14" (35.5 cm) WCP (gauge) or lower:

The grill must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).

Gas Connection Requirements

This grill is equipped for use with a 20 lb LP gas fuel tank (fuel tank not supplied). A gas pressure regulator/hose assembly is supplied.

A. Gas pressure regulator/hose assembly

Any brand of 20 lb LP gas fuel tank is acceptable for use with the grill provided they are compatible with the grill tank tray.

The grill is also design-certified by CSA International for local LP gas supply or for Natural gas with appropriate conversion.

20 lb LP Gas Fuel Tank

The 20 lb LP gas fuel tank must be mounted and secured.

1. Open cabinet doors.

2. Loosen the tank tray locking screw.

3. Place the 20 lb LP ga s fuel tank bottom collar into the mounting hole in the tank tray.

4. Tighten the locking screw against the bottom collar of the 20 lb LP gas fuel tank to secure.

A. Locking screw

B. Tank tray

C. 20 lb LP gas fuel tank tray

LP Gas Conversion Using a Local LP Gas Supply

If you want to convert to local LP gas supply, contact your local gas company for specific instructions.

Natural Gas Conversion

Conversion must be made by a qualified gas technician. The qualified Natural gas technician shall provide the Natural gas supply to the selected grill location in accordance with the National Fuel Gas Code ANSI Z223.1/NFPA 54 - latest edition, and local codes. For conversion to Natural gas, the Natural gas conversion kit supplied with the grill must be used. See the "Gas Conversions" section.

IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 - latest edition.

The supply line shall be equipped with an approved shutoff valve. This valve should be located in the same area as the grill and should be in a location that allows ease of opening and closing. Do not block access to the shutoff valve. The valve is for turning on or shutting off gas to the grill.

A. Gas supply line

B. Shutoff valve "open" position

C. To grill

REPLACEMENT ARTS

Part Number	Part (description) Warranty	Coverage	Quantity
01 Main lid 3 1
02 Main lid screw with screw cover		3	2
03	Temperature gauge housing	3	1
04 1	Temperature gauge 1
05 Main lid handle seat with heat insulating spacer, left		1	1
06 Main lid handle seat with heat insulating spacer, right		1	1
07 Main lid handle tube 3 1
08 Rotisserie burner igniter wire		1	1
09 Rear baffle 3 1
10 Rotisserie heat shield 3 1
11 Rotisserie burner 1 1
12 Rotisserie burner igniter bracket		3	2
13 Rotisserie burner flex gas line		1	1
14 Rotisserie orifice with brass elbow		1	1
15 Main lid bracket, left 3 1
16 Main lid bracket, right 3 1
17	Main burner flex gas clamp	3	1
18	Flange, right	3	1
19	Flange, left	3	1
20 90° brass adaptor	1 1
21 Regulator, LP	1 1
22	Main burner flex gas line	1	1
23	Main manifold	1	1
24	Main control panel	3	1
25	Logo	1	1
26	Main control knob bezel,main burner	1	4
27	Control knob	1	4
28	Control knob bezel,rotisserie burner	1	1
29 1	Control knob,rotisserie burner	1
30	Lighting rod	1 1

Part Number	Part (description)	Warranty Coverage	Quantity
31	Electronic igniter module	1	1
32	Rotisserie gas valve	1	1
33	Main gas valve	1 4
34 1	Igniter junction wire 1
35	Front baffle	3	1
36	Grease box	3	1
37	Main burner igniter wire, A	1	1
38	Main burner igniter wire, B	1	1
39	Main burner igniter wire,C	1	1
40 1	Main burner igniter wire,D	1
41	Burner pin assembly 1 4
42	Main burner	10	4
43	Flame tamer	3 4
44	Cooking grid with hole	3
45	Warming rack	3 1
46	Tank tray	3 1
47 90° clamp, left	3 1
48 90° clamp, right	3 1
49 Preassembly hardware pack	1 1
50	Tank tray bolt	1	1
51 Regulator with brass connector, Natural gas		1	1
52 Natural gas regulator clamp	3 1
53 Nut driver	1 1
54	10 ft (3.0 m) PVC flexible gas supply hose with quick connector	1	1
55	Trim piecee,front	3	1
56	Trim piecee,rear	3	1
57	Electronic igniter module heat shield panel	1	1
58	Main burner bowl assembly	Non-replaceable	1
	Natural gas orifice kit	1 1

INSTALLATION INSTRUCTIONS

Unpack Grill

WARNING

Excessive Weight Hazard

Use two or more people to move and install grill.

Failure to do so can result in back or other injury.

Unpack Grill

1. Remove all packaging materials and remove grill from the shipping base.
2. Move gr ill close to desired outdoor location.
3. Open the grill hood.
4. Using an utility knife to cut yellow straps and packing tape to open box from top and remove the boxes.

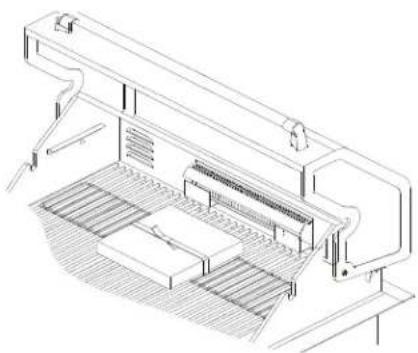

5. Remove the warming shelf and grill grates from inside the grill and remove the package inside the firebox.
6. Remove foam block and wrap from inside the grill.

1. Replace the grill grates.
2. Place warming shelf on brackets as shown.

A. Warming rack brackets
B. Warming rack

1. Dispose of recycle all packaging material.

Install 20 lb LP Gas Fuel Tank Tray

The tank tray should be secured to a fixed location that can be easily accessed and will allow the gas pressure regulator/ hose assembly to connect to the 20 lb LP gas fuel tank without kinking or putting strain on the gas pressure regulator/ hose assembly.

1. Place the tank tray in a location that can be secured using 4 screws (supplied) through the predrilled holes.
2. Use 4 screws to secure the tank tray. The typical location for a 20 lb LP gas fuel tank is within the enclosure where the tank ban be turned on and off easily.

A. Four 5/32" x 10 mm truss head screws

Install Grill

Place grill into outdoor enclosure, but leave enough room in the back to connect to the gas supply.

LP Gas Installation

1. Check that the LP gas pressure regulator/hose assembly is positioned under the grill (as shown in the following illustration) and is not pinched or kinked.
2. Use 2 screws and the 1-piece 90° clamp mounting bracket provided to attach the 90° brass connector to the back of the enclosure. The brass connector is located between the flexible gas hose and the LP gas pressure/hose assembly.

A. 2 screws
B. 1 piece 90° clamp mounting bracket

Grease Cup Bracket Installation

1. Loosen and remove the 4 screws preassembled on the grease cup bracket.

1. Attach the left and right grease cup bracket on firebox bottom panel under side, align screw holes, insert 4 screws which moved from step 1 into these screw holes. Screws lock from firebox bottom panel under side.

1. Tighten these 4 screws.

Make Gas Connection

NOTE: If grill is to be converted to Natural gas, follow instructions in the “Gas Conversions” section.

20 lb LP Gas Fuel Tank

WARNING

Fire Hazard

Do not use grill near combustible materials.

Do not store combustible materials near grill.

Doing so can result in death or fire.

WARNING

Explosion Hazard

Use a new CSA International approved "outdoor" gas supply line.

Install shut-off valve.

Securely tighten all gas connections.

If connected to LP, have a qualified person make sure gas pressure does not exceed 14" (36 cm) water column.

Examples of a qualified person include:

licensed heating personnel, authorized gas company personnel, and authorized service personnel.

Failure to do so can result in death, explosion, or fire.

IMPORTANT: A 20 lb LP gas fuel tank must be purchased separately.

IMPORTANT: The gas pressure regulator/hose assembly supplied must be used. Replacement gas pressure regulator/hose assembly specific to your model, is available from your outdoor grill dealer.

To Install the 20 lb LP Gas Fuel Tank:

1. Install the 20 lb LP gas fuel tank into the compartment below the grill.

2. Tighten the locking screw against the bottom collar of the 20 lb LP gas fuel tank to secure.

To Connect the 20 lb LP Gas Fuel Tank:

1. Check that the 20 lb LP gas fuel tank is in the "Off" position. If not, turn the valve clockwise until it stops.
2. Check that the 20 lb LP gas fuel tank valve has the proper type-1 external male thread connections per ANSI Z21.81.
3. Check that the burner control knobs are in the "Off" position.
4. Remove any debris and inspect the valve connections, port, and gas pressure regulator/hose assembly for damage.
5. Using your hand, turn the gas pressure regulator/hose assembly clockwise to connect to the 20 lb LP gas fuel tank as shown. Hand tighten only. Use of a wrench could damage the quick coupling nut.

A. Gas pressure regulator/hose assembly
B. 20 lb LP gas fuel tank

1. Open the tank valve fully by turning the valve counterclockwise. Wait a few minutes for gas to move through the gas line.
2. Before lighting the grill, test all connections by brushing on an approved noncorrosive leak-detection solution. Bubbles will show a leak.
3. If a leak is found, turn the tank valve off and do not use the grill. Contact a qualified gas technician to make repairs.
4. T he igniter battery is not factory installed. A "AA" size alkaline battery is located in the accessory box on the grill grate. Install battery at this time following the instructions in "Replacing the Igniter Battery" section.
5. Go to "Check and Adjust the Burners" section.

GAS CONVERSIONS

Gas Connection to Natural Gas

WARNING

Explosion Hazard

Use a new CSA International approved "outdoor" gas supply line.

Install a shut-off valve.

Securely tighten all gas connections.

Failure to do so can result in death, explosion, or fire.

This installation must conform with local codes and ordinances. In the absence of local codes, installations must conform with either the National Fuel Gas Code ANSI Z223.1 - latest edition, or CAN/CGA-B149.1 Natural Gas and Propane installation code.

Copies of the standards listed above may be obtained from:

CSA International

8501 East Pleasant Valley Rd.

Cleveland, Ohio 44131-5575

National Fire Protection Association

One Batterymarch Park

Quincy, Massachusetts 02269

IMPORTANT: The Natural gas Conversion Kit supplied with this grill must be used.

1. Turn off all burner control valves.

2. Turn off the main gas supply valve.

3. Disconnect 20 lb LP gas fuel tank (if present) and remove the 20 lb LP gas fuel tank from the grill cabinet.

4. Use a Phillips screwdriver to remove the 1-piece 90° clamp mounting bracket from the cabinet wall.

A. 2 screws

B. 1 piece 90° clamp mounting bracket

1. Use an adjustable wrench to remove the LP gas pressure regulator/hose assembly from the 90° brass adapter.

A. Flexible gas hose from grill
B. 90° brass adapter
C. LP gas pressure regulator/hose assembly

1. Install the Natural gas pressure regulator onto the flexible gas hose from the grill.
2. Check that the Natural gas pressure regulator is positioned under the grill (as shown in the following illustration) and is not pinched or kinked.

Use 4 screws to attach the Natural gas pressure regulator to the back of the enclosure.

A. Natural gas pressure regulator
B. Four 5/32" x 10 mm truss head screws

1. Make gas co nnections.

A combination of pipe fittings must be used to connect the grill to the existing gas line.

■ The 10 ft (3.0 m) PVC flexible gas supply hose design-certified by CSA must be used.
- Pipe-joint compounds suitable for use with Natural gas must be used. Do not use Teflon tape.

1. Connect the brass connector on one end of the 10 ft (3.0 m) PVC flexible gas supply hose (supplied) to the Natural gas pressure regulator (A).

TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

1. Connect the quick connector on the other end of the 10 ft (3.0 m) PVC flexible gas supply hose to the rigid Natural gas supply pipe (B).

A. Brass connector

B. Quick connector

Change Grill Main Burner Valve Orifices

1. Remove the grates and flame tamers.

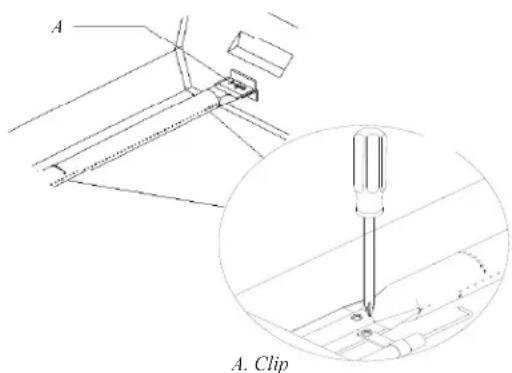

2. Remove the screw and clip that hold the burner in place. Set the screw and clip aside. Remove the burner from the grill by lifting the burner out.

1. Use a 6 mm socket and wrench or 6 mm nut driver to remove the brass orifice from the end of gas valve. The main NG burner orifice is located behind the LP orifice, so no additional orifice needs to be installed.

A. Main burner orifice

IMPORTA NT: Check that the orifice is properly installed inside of the gas valve.

1. Reinsert the burner and reattach using the screw and clip previously removed. Repeat the procedure for each main burner.

2. Position the igniters so they are 1/4 " (6.0 mm) away from each burner.

Change the Rotisserie/Infrared Burner Orifice

1. Using a Phillips screwdriver, u nscrew the 2 screws and remove the rotisserie/infrared burner wind baffle.

A. Wind baffle

1. Remove the acces s cover at the back of the grill by removing the 6 screws at the back of firebox.

A. Access cover

1. Using a Phillips screwdriver, remove the screw holding the spider guard to the burner.

1. Use 24 mm wrench to remove the orifice nut.

A. Orifice nut

1. Take out the orifice support, and then use a 6 mm socket and wrench or 6 mm nut driver to remove the LP orifice at the end of the supply pipe. Replace with Natural gas orifice.

A. Orifice support
B. Orifice

IMPORTANT: Check that the orifice is properly installed inside of the supply pipe.

1. Reinstall the spider guard, access cover, and wind baffle.

2. Open the manual shutoff valve in the gas supply line. The valve is open when the handle is parallel to the gas pipe.

A. Closed valve
B. Open valve

1. Test all connections by brushing on an approved noncorrosive leak-detection solution. Bubbles will show a leak. Correct any leak found.

2. The igniter battery is not factory installed. A "AA" size alkaline battery is located in the accessory box on the grill grate. Install battery at this time following the instructions in "Replacing the Igniter Battery" section.

3. Go to "Check and Adjust the Burners" section.

Record Conversion

The model/serial number plate is located on the right-hand side of the grill. With a permanent marker, check the box next to "Natural gas" and mark through "LP."

In the last page of the Use and Care Guide, write “Converted to Natural Gas.” Also record the conversion date and the technician/company that performed the conversion.

NOTE: Place the LP gas parts in plastic parts bag for future use and keep with package containing the literature.

Check and Adjust the Burners

The burners are tested and factory-set for most efficient operation. However, variations in gas supply and other conditions may make minor adjustments to air shutter or low flame setting necessary.

It is recommended that a qualified person make burner adjustments.

NOTE: The rotisserie burner cannot be adjusted.

Checking and adjusting the grill burner flames requires removing the grates and flame tamers.

Burner Flame Characteristics

The flames of the grill burners and side burners (on some models) should be blue and stable with no excessive noise or lifting (LP gas flames will have a slightly yellow tip). A yellow flame indicates not enough air. If flame is noisy or lifts away from the burner, there is too much air. Some yellow tips on flames when the burner is set to HI setting are acceptable as long as no carbon or soot deposits appear. The flames should be approximately 1" (2.5 cm) high.

1" (2.5 cm)

Check that burners are not blocked by dirt, debris, insect nests, etc., and clean as necessary. If they are clean, adjust air shutters as needed.

IMPORTANT: Before adjusting air shutters, let burners cool completely.

To Adjust:

1. Light grill using information in the "Outdoor Grill Use" section.
2. Observe flame to determine which burners need adjustment and how the flame is acting.
3. Turn off the valve and wait until grill and burners cool completely.
4. Remove grill grates and flame tamers.
5. Remove the screw and clip that hold the burner in place. Remove gas burner from the grill.

1. If flame is yellow (not enough air), turn air shutter adjustment screw counterclockwise.

If flame is noisy or lifts away from burner (too much air), turn air shutter adjustment screw clockwise.

A. Air shutter adjustment screw

Adjustment should be made clockwise or counterclockwise from 1/8" (3.2 mm) to 1/4" (6.4 mm).

1. Replace gas burner, flame tamers and grates.
2. Light grill using information in the "Outdoor Grill Use" section. See "Burner Flame Characteristics."

Low Flame Adjustment

If flame goes out on the "LO" setting, the low flame setting must be adjusted.

1. T urn off the valve and wait until grill and burners are cool.
2. Remove grill grates and flame tamers.
3. Light grill using information in the "Outdoor Grill Use" section.
4. Turn burner to its lowest setting and remove knob.
5. Hold valve stem with pliers and insert a small flat-blade screwdriver into the shaft.
6. W atch the flame and slowly turn the screwdriver counterclockwise.
7. Adjust flame to minimum stable flame.

A. Valve stem
B. Small flat-blade screwdriver
C. Pliers

1. Replace the control knob and turn off the burner .
2. Repeat steps 3 through 8 for each burner if needed.
3. Replace the flame tamers and grates after the burners have cooled.

OUTDOOR GRILL USE

This manual covers several different models. The grill you have purchased may have some or all of the features listed. The locations and appearances of the features shown here may not match those of your model.

Control Panel

A. Left grill burner control knob
B. Left center grill burner control knob
C. Right center grill burner control knob

D. Rotisserie burner control knob

E. Right center grill burner control knob

Using Your Outdoor Grill

WARNING

Explosion Hazard

Do not store fuel tank in a garage or indoors.

Do not store grill with fuel tank in a garage or indoors.

Failure to follow these instructions can result in death, explosion, or fire.

WARNING

Fire Hazard

Do not use grill near combustible materials.

Do not store combustible materials near grill.

Doing so can result in death or fire.

WARNING

Food Poisoning Hazard

Do not let food sit for more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Inspect the LP GasFuel Tank Supply Hose

Inspect the gas pressure regulator/hose assembly before each use.

1. Inspect the gas pressure regulator/hose assembly for cuts, abrasions, or excessive wear.
2. If necessary, replace the gas pressure regulator/hose assembly before using the grill.

Contact the dealer and use only replacement hoses specified for use with the grill.

A. Gas pressure regulator/hose assembly

Prepare the Gas Supply

1. Open the hood completely. Do not light burners with the hood closed.

Turn the Gas Supply On

1. For outdoor grills using a 20 lb LP gas fuel tank: Slowly open the tank valve.

NOTE: If flow limiting device activates, your grill may not light. If your grill does light, the flames will be low and will not heat properly. Turn tank valve and all control knobs off and wait 30 seconds. After shutting off the tank, very slowly open tank valve and wait 5 seconds before lighting.

1. For outdoor grills using gas supply source other than 20 lb LP gas fuel tank: Open the manual shutoff valve in the gas supply line. The valve is open when the handle is parallel to the gas pipe.

A. Closed valve B. Open valve

Lighting the Main Grill

IMPORTANT: If burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting.

1. Do not lean over the grill.

2. Select the burner you want to light. Push in and turn the grill burner control knob to IGNITE/HI, while continuing to hold it in.

1. You will hear the "snapping" sound of the spark. When burner is lit, release the knob. Turn knob to desired setting.

2. Repeat for each of the other burners as needed.

Manually Lighting the Main Gl

1. Do not lean over the grill.

2. Remove the manual lighting extension (see following illustration) and attach a match to the split ring.

1. Strike the match to light it.

2. Guide the lit match under the grill grate.

1. Push in and turn the burner knob to IGNITE/HI for the burner closest to the lit match. The burner will light immediately. When burner is lit, turn knob to desired setting.

1. Repeat steps 2 through 5 for each main burner.

2. Remove match and replace manual lighting extension on the right side panel.

IMPORTANT:

If burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting.

If any burners do not light after attempting to light them manually, contact the Customer Service Center. See the "Assistance" section.

Using Your Rotisserie Burner

A Rotisserie kit can be purchased as an accessory for the grill. See "Accessories" in the "Assistance" section.

To avoid damage to the warming rack, remove from grill when using the rotisserie burner.

Do not use the main burners when the rotisserie burner is in use.

Lighting the Rotisserie Burner

1. Do not lean over the grill.

2. Push in and turn the control knob to IGNITE/ON. You will hear the "snapping" sound of the spark.

1. When the rotisserie burner lights, continue to hold the knob in for another 10 seconds, then release the knob and burner will stay lit. You will hear the "snapping" sound of the spark until the knob is released.

IMPORTANT: If the rotisserie burner does not light immediately, turn the burner knob to OFF and wait 5 minutes before relighting.

Manually Lighting the Rotisserie Burner

1. Do not lean over the grill.

2. Remove the manual lighting extension (see following illustration) and attach a match to the split ring.

1. Strike the match to light it.

2. Gently hold the lit match close to the rotisserie burner.

A. Lighting extension

B. Rotisserie burner

1. Push in and turn the control knob to IGNITE/ON. Hold this knob in for 10 seconds after the burner is lit. You will hear the "snapping" sound of the spark until after the knob is released.

IMPORTANT: If the rotisserie burner does not light immediately, turn the rotisserie burner control knob to OFF and wait 5 minutes before relighting.

1. Remove the match and replace the manual lighting extension inside the cabinet door.

Rotisserie Cooking Tips

WARNING

Food Poisoning Hazard

Do not let food sit for more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Rotisserie cooking rotates food in front of the rotisserie burner, creating an intense heat for searing the outside and sealing in natural juices.

The rotisserie burner reaches cooking temperatures in about

1 minute. It is not necessary to preheat when using the rotisserie.

■ Select tender meat and poultry.
- Allow at least 1" (2.5 cm) space between rotisserie burner and the food.
■ To make cleanup easier, place a pan under the food to catch drippings.
■ Add barbecue sauce or glaze only during the last 10 minutes of cooking to keep sauce from burning.

Trussing Poultry for the Rotisserie

1. Load the spit rod by sliding one of the forks on the rod, with the prongs facing inward. Tighten the screw to keep it from slipping.
2. Push the rod through the center of the bird.
3. Cut 24" (61.0 cm) of butcher's string and center it under the bird, breast side up.
4. Wrap each end of the string around the wings; catch each wing tip. Bring the string tightly together at the top of the breast and knot. It is not necessary to cut off the extra string.
5. Cut another 2 0" (50.8 cm) of string and lay it under the back of the bird. Wrap it around the tail then around the spit rod, cinching tightly.
6. Cross the legs on top of spit rod; tie string around the crossed legs.
7. Connect the twine holding the legs, to the string holding the wings, and knot. Cut off any bits of hanging string.
8. Slide on the second fork pushing the tines into the drumsticks.
9. Center the food and forks on the rod and tighten the thumb-screws. The bird should be firmly in place on the rotisserie spit rod.

ROTISSERIE CHART

Use a portable meat thermometer to check internal doneness of the food. Turn off rotisserie burner when meat thermometer reads 5° F/ 3° C lower than desired internal temperature. Continue rotating, hood closed, for 10 minutes before carving.

Timing is affected by weather conditions such as wind and outside temperature.

Food Weight Internal		Doneness or Temperature (°F/°C)	Approximate Grilling Time (min/lb)
Beef
Roasts	4-6 lbs	Medium-rare	15-20
Rib Eye	(1.5-2.2 kg)	(145°F/ 63°C)
Sirloin Tip		Medium	20-25
Rib, boneless		(160°F/71°C)
Poultry
Chicken	3-6 lbs	Breast	25-30
	(1.1-2.2 kg)	(170°F/ 77°C)
		Thigh	25-30
		(180°F/82°C)
Turkey, whole	7-10 lbs	Breast	11-20
	(2.6-3.7 kg)	(170°F/77°C)
		Thigh	11-20
		(180°F/82°C)
Lamb
Boneless leg 4-7 lbs		Medium	20-25
		(1.5-2.6 kg)	(160°F/71°C)
Pork
Loin roast, boneless	4-6 lbs	Medium	20-23
	(1.5-2.2 kg)	(160°F/71°C)

TIPS FOR OUTDOOR GRILLING

WARNING

Food Poisoning Hazard

Do not let food sit for more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

Before Grilling

■ Thaw food items before grilling.
■ Preheat grill on high (use all grill burners) 10 minutes. The hood must be closed during preheating. Preheating provides the high heat needed to brown and seal the juices.

■ Shorten the preheat time when grilling high-fat cuts of meat or poultry, such as chicken thighs. This will help reduce flare-ups.
- Lightly oil the grill grates or the food when cooking low-fat cuts of meat, fish or poultry, such as lean hamburger patties, shrimp or skinless chicken breasts.
■ Using too much oil can cause gray ash to deposit on food.
- Trim excess fat from meats prior to cooking to reduce flare-ups.
■ Make vertical cuts at 2" (5.0 cm) intervals around the fat edge of meat to avoid curling.
■ Add seasoning or salt only after the cooking is finished.

During Grilling

■ Turn foods only once. Juices are lost when meat is turned several times.
■ Turn meat just when j uices begin to appear on the surface.
■ Avoid puncturing or cutting the meats to test doneness. This allows juices to escape.
■ It may be necessary to lower the heat setting for foods that cook a long time or are marinated or basted in a sugary sauce.
■ If using a high flame, add barbecue sauce only during the last 10 minutes of cooking to avoid burning the sauce.
■ The degree of doneness is influenced by the type of meat, cut of meat (size, shape and thickness), heat setting selected, and length of time on the grill.
■ Cooking time will be longer with an open grill cover.

Cooking Methods

Direct Heat

Cooking by direct heat means the food is placed on grill grates directly above lighted burners. Hood position can be up or down. If hood is in the up position, total cooking times may be longer.

Direct heat sears the food. Searing is a process that seals natural juices in food by cooking with intense heat for a short period of time. While juices stay inside, the outside is browned with a flavorful grilled coating.

Indirect Heat

For best results, do not select the indirectheat cooking method when it is windy.

Cooking by indirect heat means the food is placed on the grill grate above an unheated burner, allowing heat from lighted burner(s) on either side to cook the food.

If possible, turn on 2 burners. Cook with the hood down. This will shorten the cooking time.

Grilling Chart

■ Knobs have High, Medium and Low settings for flame adjustment.
■ Heat settings indicated are approximate.
■ Grilling times are affected by weather conditions.

• When 2 temperatures are listed, for example: Medium to Medium-Low, start with the first and adjust based on cooking progress.
  ■ Cooking times may vary from chart times depending on the type of fuel, Natural or LP gas.

FOOD COOKING METHOD/ BURNER SETTING		INTERNAL TEMP. TIME (total minutes)		SPECIAL INSTRUCTIONS
Beef
Hamburgers 1⁄2" (1.3 cm) to 3⁄4" (1.9 cm) thick	DIRECT Medium	Medium (160°F/71°C)	10-15	Grill, turning once.
Roasts Rib Eye, Sirloin	INDIRECT Medium/OFF/Medium	Med-Rare (145°F/63°C) to Medium (160°F/71°C)	32-40 per lb (15-18 per kg)	Tent with foil first 45-60 minutes of cooking time.
Steaks, 1" (2.5 cm) Porterhouse, Rib, T-bone, Top Loin, Sirloin	DIRECT Medium	Med-Rare (145°F/63°C) to Medium (160°F/71°C)	11-16	Rotate steaks 1⁄4 turn to create criss-cross grill marks.
Steaks, 11⁄2" (3.8 cm) Porterhouse, Rib, T-bone, Top Loin, Sirloin	DIRECT Medium	Med-Rare (145°F/63°C) to Medium (160°F/71°C)	18-25
Top Round or Shoulder/ Chuck (London Broil) 11⁄2" (3.8 cm) thick	DIRECT Medium	Med-Rare (145°F/63°C) to Medium (160°F/71°C)	22-29
Flank, 1⁄2" (1.3 cm) thick	DIRECT Medium	Med-Rare (145°F/63°C)	11-16
Pork
Chops, 1" (2.5 cm) 11⁄2" (3.8 cm) thick	DIRECT Medium to Med-Low	Medium (160°F/71°C)	12-22 30-40
Ribs 21⁄2-4 lbs (0.9-1.5 kg)	INDIRECT Med/OFF/Med	Medium (160°F/71°C)	40-60	Grill, turning occasionally. During last few minutes brush with barbecue sauce if desired. When done, wrap in foil.
Roast, boneless tenderloin, 1 lb (0.37 kg)	DIRECT Medium	Medium (160°F/71°C)	18-22	Turn during cooking to brown on all sides.
Ham half, 8-10 lbs (3-3.7 kg)	INDIRECT Med/OFF/Med	Reheat (140°F/60°C)	2-21⁄2 hours	Wrap entire ham in foil and put on grill without pan or drip pan.
Ham steak precooked, 1⁄2" (1.3 cm) thick	DIRECT Preheat Medium Grill Medium	Reheat (145°F/63°C)	7-10
Hot Dogs	DIRECT Medium	Reheat (145°F/63°C)	5-10	Slit skin if desired.
Chicken
Breast, boneless	DIRECT Medium	170°F/77°C	15-22 For even cooking, pound breast to 3⁄4" (2.0 cm) thick.
Pieces, 2-3 lbs (0.75-1.1 kg)	DIRECT Med-Low to Medium	Breast 170°F/77°C Thigh 180°F/82°C		Start bone side down.
Lamb
Chops and Steaks, Loin, Rib, Sirloin
1" (2.5 cm) thick	DIRECT Medium	Med-rare (145°F/63°C) to Medium (160°F/71°C)	10-20
11⁄2" (3.8 cm) thick	DIRECT Medium	Med-rare (145°F/63°C) to Medium (160°F/71°C)	16-20

Fish and Seafood

FOOD COOKING METHOD/ BURNER SETTING		INTERNAL TEMP. TIME (total minutes)	SPECIAL INSTRUCTIONS
Fillets, Steaks, Chunks Halibut, Salmon, Swordfish, 8 oz (0.25 kg)	DIRECT Medium		4-6 per 1/2" (1.3 cm) thickness of fishGrill, turning once. Brush gril with oil to keep fish from sticking.Remove when inside is opaque and flaky with skin easily removed.
Whole, Catfish, Rainbow Trout, 8-11 oz (0.25-0.34 kg)	DIRECT High		5-7 per side
Shellfish, Scallops, Shrimp	DIRECT Medium		4-8
Turkey
Whole breast (bone-in)	INDIRECT HI/OFF/HI	170°F/77°C	14-18 per lb (7-8 per kg)Tent with foil until last 30 minutes of cooking time.
Half breast (bone-in)	INDIRECT Medium/OFF/Medium	170°F/77°C	25-30 per lb (11-14 per kg)Start skin side down.
Whole, 7-12 lbs (2.6-5.4 kg)	INDIRECT HI/OFF/HI	Breast 170°F/77°C Thigh 180°F/82°C	11-16 per lb (5-7 per kg)Less than 11 lbs (5.0 kg)
Fresh Vegetables
Corn on the cob	DIRECT Medium		20-25Soak in cold water 20 minutes. Do not husk. Shake off excess water.
Eggplant	DIRECT Medium		7-10Wash and cut into 1/2" (1.3 cm) slices or lengthwise. Brush with olive oil.
Onion, 1/2" (1.3 cm) thick	DIRECT Medium		8-20Grill, turning once. Brush with olive oil. Put a skewer through several slices to hold together.
Potatoes, Sweet, whole	DIRECT Medium		40-70Individually wrap in heavy-duty foil. Grill, rotating occasionally.
Baking, whole	DIRECT High		45-90
Peppers, Roasted	DIRECT High		15-22Wash and place on grill whole. Char skin all around. Cool in a paper bag or plastic wrap to loosen blackened skin. Peel and remove seeds.
Squash, Summer, Zucchini	DIRECT Medium		7-10Wash and cut into 1/2" (1.3 cm) slices or lengthwise. Brush with olive oil.
Garlic Roasted	DIRECT Medium		20-25Cut off top, drizzle with olive oil and wrap in double layer of foil.

OUTDOOR GRILL CARE

Replacing the Igniter Battery

If igniters stop sparking, the battery should be replaced.

1. Unscr ew igniter button cap counterclockwise to remove.

A. Igniter push button
B. "AA" size battery

1. Remove battery from the battery compartment.

2. Replace with a new alkaline "AA" size battery. Install battery with negative end in first.

3. Screw igniter button cap clockwise into place.

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are of and the grill is cool. Always follow label instructions on cleaning products.

For routine cleaning, wash with soap and water using a soft cloth or sponge. Rinse with clean water and dry at once with a soft, lint-free cloth to avoid spots and streaks.

Do not use steel wool to clean the grill, as it will scratch the surface.

To avoid weather damage to finish, use vinyl grill cover. See

"Assistance" section to order.

STAINLESS STEEL

IMPORTANT: To avoid damage to stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners, cooktop polishing creme, steel wool, gritty wash cloths or paper towels.

Cleaners should not contain chlorine. Damage may occur.

Food spills should be cleaned as soon as entire grill is cool. Spills may cause permanent discoloration.

Cleaning Method:

■ Rub in direction of grain to avoid scratching or damaging the surface.

■ Stainless steel cleaner

■ Liquid detergent or all-purpose cleaner:

■ Rinse with clean water and dry with soft, lint-free cloth.

■ Vinegar to remove hard water spots.

■ Glass cleaner to remove fingerprints.

GRILL GRATES

IMPORTANT: To avoid damage to grill grates, do not use a steel or fiber scraper. Immediately after you are finished cooking, loosen food soil with a brass bristle brush. Turn all burners to HII for 10-15 minutes with the hood closed to burn off food soil. Turn off all burners, raise the hood and let grates cool. Use the brass bristle brush to remove ash from the grill grates.

When completely cool, grill racks can be removed for thorough cleaning. Clean them with a mild detergent and warm water.

For baked-on soil, prepare a solution of 1 cup (250 mL) ammonia to 1 gal. (3.75 L) water. Soak grates for 20 minutes, then rinse with water and dry completely.

WARMING SHELF

Cleaning Method:

■ Liquid detergent or an all-purpose cleaner.

■ Rinse with clean water and dry with soft, lint-free cloth.

■ For tough spots or baked-on grease, use a commercial degreaser designed for stainless steel.

IMPORTANT: Make sure gas supply is off and all control knobs are in the Off position.

EXTERIOR

The quality of this material resists most stains and pitting, providing that the surface is kept clean, polished and covered.

■ Apply stainless steel polish to all non-cooking areas before first use. Reapply after each cleaning to avoid permanent damage to surface.

■ Cleaning should always be followed by rinsing with clean warm water.

■ Wipe the surface completely dry with a soft cloth.

■ For tough spots or baked-on grease, use a commercial degreaser designed for stainless steel.

INTERIOR

Discoloration of stainless steel on these parts is to be expected, due to intense heat from the burners. Always rub in the direction of the grain. Cleaning should always be followed by rinsing with clean, warm water.

Cleaning Method:

■ Liquid detergent or all-purpose cleaner.

■ Rinse with clean water and dry completely with a soft, lint-free cloth.

■ A heavy-duty scrub sponge can be used with mild cleaning products.

■ For small, difficult-to-clean areas, use a commercial degreaser designed for stainless steel.

BURNERS

Cleaning Method:

■ Clean the exterior of the burner with a wire brush.
■ Clear any clogged burner ports with a straightened paper clip.
■ Do not use a toothpick as it may break off and clog the port.
■ Check and clean burner/venturi tubes.

1. Remove grill grates and flame tamers.
2. Remove the screw and clip that hold the burner in place. Remove gas burner from the grill.

1. Use a flashlight to inspect into the burner through the burner inlet to ensure there is no blockage. If any obstruction is seen, use a metal coat hanger that has been straightened to clear them.
2. After inspecting the inside of burner for blockage, reassemble burner by sliding the middle tube of the gas burner over the gas orifice.

A. Burner/orifice connection

1. Reattach gas burner using screw and clip.

ROTISSIERE BURNER

Cleaning Method:

1. Light the rotisserie burner. See the "Using Your Rotisserie Burner" section.
2. Clo se the grill hood.
3. Leave the burner on high for approximately 30 minutes.
4. Turn knob to OFF and let cool completely.
5. Brush off ash particles from the rotisserie burner.

GREASE CUP

IMPORTANT: The grease cup should only be removed when grill is completely cool.

The grease cup collects grease and food particles that fall through the grill. Clean often to avoid grease buildup.

Cleaning Method:

■ Remove cup and set on a flat surface.
■ Wipe excess grease with paper towels.
■ Mild detergent and warm water. Rinse and dry thoroughly.
■ Replace cup

KNOBS AND FLANGE AREA AROUND KNOBS

IMPORTANT: To avoid damage to knobs or flange area around knobs, do not use steel wool, abrasive cleaners, or oven cleaner.

Do not soak knobs.

Cleaning Method:

■ Mild detergent, a soft cloth and warm water.
■ Rinse and dry.

CONTROL PANEL GRAPHICS

IMPORTANT: To avoid damage to control panel graphics, do not use steel wool, abrasive cleaners or oven cleaner. Do not spray cleaner directly onto panel.

Cleaning Method:

■ Clean around the burner labels gently; scrubbing may remove printing.
■ Mild detergent, soft cloth and warm water.
■ Rinse and dry.

TROUBLESHOOTING

Grill will not light

■ Is the 20 lb LP gas fuel tank valve turned off? Turn the 20 lb LP gas fuel tank on.
- Is the grill properly connected to the gas supply? Contact a trained repair specialist or see Installation Instructions.
■ Is there gas in the 20 lb LP gas fuel tank? Check the gas level.
- Is the igniter working? Check that the igniter battery is properly installed or check to see if the battery needs to be replaced. See the “Replacing the Igniter Battery” section. Check to see if the grill will match-light. See “Manually Lighting the Main Grill” in the “Outdoor Grill Use” section. Check for loose wire connections to the igniter or electrodes. Check to see if debris is blocking the electrodes. If a spark occurs anywhere but the igniter tip, replace the igniter.

Burner flame will not stay lit

■ Is the gas supply fully turned on?
Check that the 20 lb LP gas fuel tank valve is fully open.
■ Is the gas supply in the 20 lb LP fuel gas tank low? Check the gas level.
- Is the burner properly installed and in good condition? Check that the burner is installed properly. Check for defects in the burner.

Flame is noisy, low or erratic

■ Is the gas supply fully turned on?
Check that the 20 lb LP gas fuel tank valve is fully open.
■ Is the gas supply in the 20 lb LP fuel gas tank low? Check the gas level.
- Does only one burner appear low? Check and clean the burner ports if clogged or dirty. See “General Cleaning” section.

■ Is the gas supply hose bent or kinked? Straighten the gas supply hose.

- Is the flame noisy or lifting away from the burner? Burner may be getting too much air. Check the air shutter adjustment, see “Check and Adjust Burners” section.

- Is the burner flame mostly yellow or orange? Grill may be in an area that is too windy, or not receiving enough air. Check the burner air inlets for obstructions. Check the air shutter adjustment, see “Check and Adjust Burners” section.

Excessive flare-ups

■ Is there excessive fat in the food being grilled?
Keep flame on low or turn one burner off.
Keep the hood up when grilling to avoid excessive flare-ups.
Move food to the warming rack until flames subside.
To avoid damage to the grill, do not spray water on gas flames.

Low heat

LP Gas:

For outdoor grills using a 20 lb LP gas fuel tank, slowly open the tank valve.

NOTE: If flow limiting device activates, your grill may not light. If your grill does light, the flames will be low and will not heat properly.

1. Turn tank valve and all control knobs off and wait 30 seconds.
2. After shutting off the tank, very slowly open the tank valve and wait 5 seconds before lighting.
3. Light the burners one at a time. See "Lighting the Main Grill" section.

Natural Gas:

Gas pressure is affected by size and length of the gas line from the house to the grill. Contact a qualified gas technician to provide the Natural gas supply to the selected grill location in accordance with the National Fuel Gas Code ANSI Z223.1/NFPA54 - latest edition, and local codes.

ASSISTANCE

Before calling for assistance, please check "Troubleshooting." If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you have questions or need to order replacement parts, contact Customer Service Center at 1-877-373-2301 or email to

CustomerSerice □ GrillServices.com.

Please direct all correspondence to:

Nexgrill Industries, Inc.

5270 Edison Avenue

Chino, CA 91710

Please include a daytime phone number in your correspondence.

Accessories

Rotisserie Kit (This is optional)

Order Part Number 790-0007A

LIMITED WARRANTY

Nexgrill warrants to the original consumer-purchaser only that this product (Model #740-0780) shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. The manufacturer reserves the right to require photographic evidence of damage, or that defective parts be returned, postage and or freight pre-paid by the consumer, for review and examination.

Stainless steel tube burners: 10 year LIMTED warranty against perforation; Other burner (Rotisserie): 1 year LIMITED warranty against perforation.

Cooking grids: 3 Year LIMITED warranty; does not cover dropping, chipping, scratching, or surface damage.

Stainless steel parts: 3 Year LIMITED warranty against perforation; does not cover cosmetic issues like surface corrosion, scratches and rust.

All other parts: 1 Year LIMITED warranty (Includes, but not limited to, valves, frame, housing, cart, control panel, igniter, regulator, hoses); does not cover chipping, scratching, cracking surface corrosion, scratches or rust.

Upon consumer supplying proof of purchase as provided herein, Manufacturer will repair or replace the parts which are proven defective during the applicable warranty period. Parts required to complete such repair or replacement shall be free of charge to you except for shipping costs, as long as the purchaser is within the warranty period from the original date of purchase. The original consumer-purchaser will be responsible for all shipping charges of parts replaced under the terms of this limited warranty. This limited warranty is applicable in the United States only, is only available to the original owner of the product and is not transferable. Manufacturer requires reasonable proof of your date of purchase. Therefore, you should retain your sales receipt and/or invoice. If the unit was received as a gift, please ask the gift-giver to send in the receipt on your behalf, to the below address. Defective or missing parts subject to this limited warranty will not be replaced without registration or proof of purchase. This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the discoloration of stainless steel surfaces. Surface rust, corrosion, or powder paint chipping on metal parts that does not affect the structural integrity of the product is not considered a defect in workmanship or material and is not covered by this warranty. This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage. If an original replacement part is not available, a comparable replacement part will be sent. You will be responsible for all shipping charges of parts replaced under the terms of this limited warranty.

ITEMS MANUFACTURER WILL NOT PAY FOR:

■ Service calls to your home.
■ Repairs when your product is used for other than normal, single-family house hold or residential use.
■ Damage resulting from accident, alteration, misuse, lack of maintenance/cleaning, abuse, fire, flood, acts of God, improper installation, and installation not in accordance with electrical or plumbing codes or use of products not approved by the manufacturer.

■ Any food loss due to product failures.

■ Replacement parts or repair labor costs for units operated outside the United States or Canada.

- Pickup and delivery of your product.

■ Postage fees or photo processing fees for ph otos sent in as documentation.

■ Repairs to parts or systems resulting from unauthorized modifications made to the product.

■ The removal and/or reinstallation of your product.

- Shipping cost, standard or expedited, for warranty/non warranty and replacement parts.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any applicable implied warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration, replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather, acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE, INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the documented purchase price of the product paid by the original consumer. This warranty only applies to units purchased from an authorized retailer and or re-seller.

NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions may not apply to you; this limited warranty gives you specific legal rights as set for herein. You may also have other rights which vary from state to state.

If you wish to obtain performance of any obligation under this limited warranty, you should write to:

Nexgrill Customer Relations

5270 Edison Avenue

Chino, CA 91710

All consumer returns, parts orders, general questions, and troubleshooting assistance can be acquired by calling 1-877-373-2301.
