Product Type	Freezer
Brand	White Knight
Model	WK 1537
Total Capacity	153 L (approx.)
Dimensions (H x W x D)	85 x 55 x 60 cm
Net Weight	35 kg
Voltage / Frequency	220-240 V / 50 Hz
Energy Efficiency Class	E (older standard) / F (new label)
Annual Energy Consumption	220 kWh
Climate Class	N (16°C - 32°C)
Freezing Capacity (24h)	10 kg
Storage Time During Power Failure	12 hours
Noise Level	42 dB(A)
Defrost Type	Manual
Temperature Control	Mechanical dial
Refrigerant	R600a
Door Hinge	Left or right reversible
Number of Drawers/Baskets	3 wire baskets
Fast Freeze Function	Yes, via switch
Lock and Key	No
Interior Light	No

Frequently Asked Questions - WK 1537 White Knight

How do I install my White Knight WK 1537 freezer?

Place the freezer on a level surface in a well-ventilated area, away from heat sources. Allow 10 cm clearance on all sides for air circulation. Wait 4 hours after transport before switching it on.

What is the ideal temperature setting for the freezer?

The recommended temperature is -18°C or below. Adjust the dial to a medium setting (usually 3-4) for normal use.

How often should I defrost the freezer?

Manual defrosting is needed when ice builds up to about 5 mm (approx. 2-3 times per year). Turn off the freezer, remove food, let ice melt, and clean the interior.

How do I clean the interior?

Unplug the freezer, remove food and baskets. Wash with warm water and mild detergent. Rinse and dry thoroughly before restarting.

Why is the freezer not cooling properly?

Check if the door is fully closed, the thermostat is set correctly, and the condenser coils are clean. Ensure the ventilation grille is not blocked.

Can I change the door opening direction?

Yes, the door is reversible. Follow the manual to relocate hinges to the opposite side. Tools will be required.

What is the maximum freezing capacity per day?

The freezer can freeze up to 10 kg of fresh food within 24 hours. Avoid overloading to maintain temperature.

How long can food be stored during a power outage?

The freezer can keep food frozen for about 12 hours if the door remains closed. After that, check food quality.

What safety precautions should I take?

Do not store flammable substances. Keep ventilation clear. Avoid using extension cords. Always unplug before cleaning. The refrigerant is R600a, which is flammable; dispose properly.

What does the Fast Freeze function do?

Activating the Fast Freeze switch runs the compressor continuously to lower temperature rapidly. Use it 24 hours before freezing large quantities of fresh food. Remember to turn it off after use.

USER MANUAL WK 1537 White Knight

Line drawing of a rectangular door with a handle and lid, no text or symbols present

Simple line drawing of a door corner with hatched walls (no text or symbols)

Simple line drawing of a vertical structure with a base and curved base, no text or symbols present.

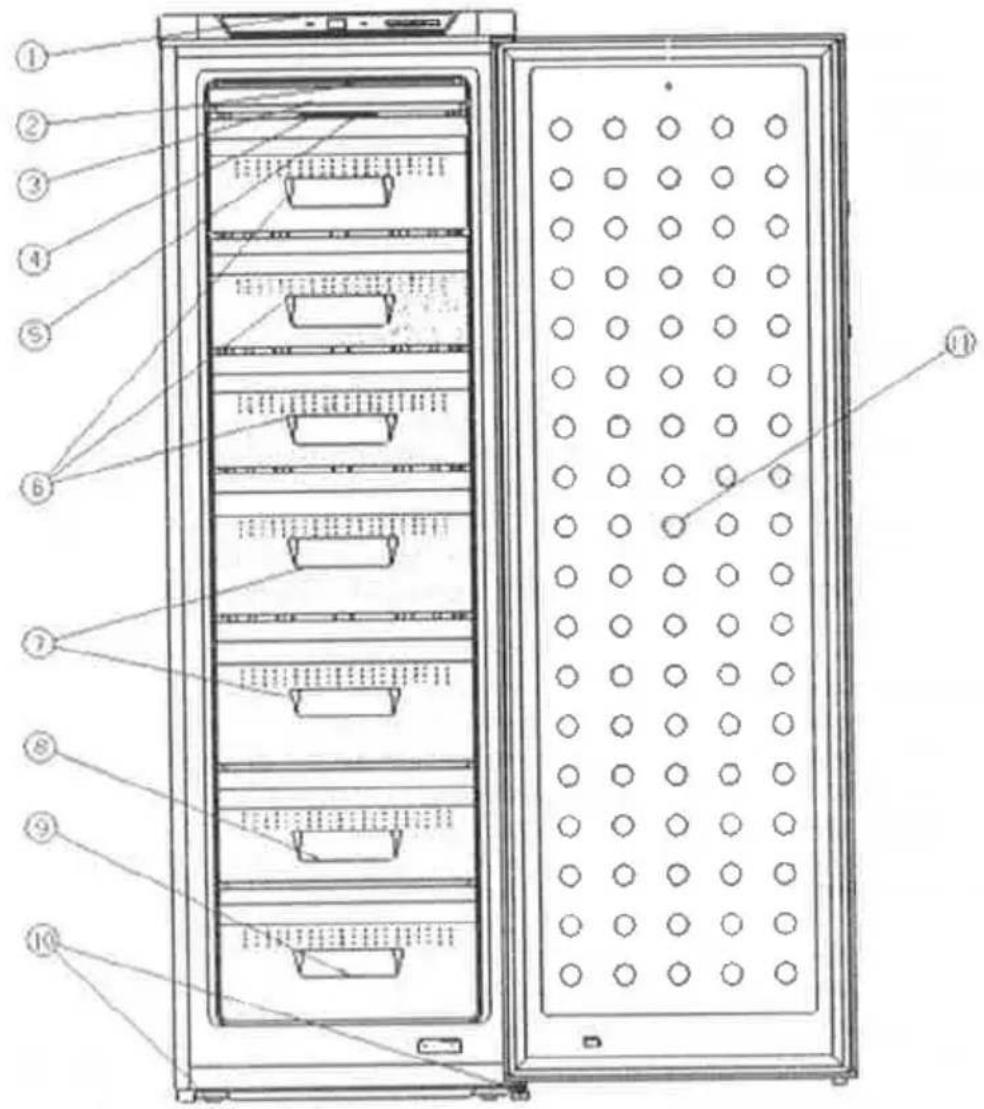

BESCHRIJVING VAN HET TOESTEL DIEPVRIEZER

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Simple line drawing of a mechanical setup with a tool and two circular components on a base (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component on a surface (no text or symbols)

Two mechanical bracket components with mounting holes, shown from different angles (no text or symbols)

Diagram of a mechanical device with a container and mounting bracket (no text or symbols)

Two identical mechanical components with mounting holes and mounting brackets (no text or symbols visible)

Line drawing of a person using a tool on a mechanical device (no text or symbols)

Illustration of a finger pressing a small object on a surface (no text or symbols)

Simple line drawing of a door handle assembly (no text or symbols)

Simple line drawing of a vertical rod inserted into a curved surface, no text or symbols present

Simple line drawing of a rectangular door or cabinet (no text or symbols)
