TD7005 - Tumble dryer ASKO - Free user manual and instructions

Product Type	Tumble Dryer
Brand	ASKO
Model	TD7005
Dimensions (H x W x D)	850 x 595 x 585 mm
Weight	55 kg
Energy Class	A++
Drying Capacity	8 kg
Power Supply	230 V, 50 Hz
Drying Programs	Cotton, Synthetics, Delicates, Wool, etc.
Sensor Drying	Yes
Anti-Crease Function	Yes
Condenser Drying	Yes
Lint Filter	Clean after each use
Condenser Cleaning	Regular cleaning required
Child Lock	Yes
Overheating Protection	Yes
Noise Level	65 dB
Spare Parts Availability	Genuine ASKO parts available
Repairability Index	8/10

Frequently Asked Questions - TD7005 ASKO

How do I clean the lint filter?

Open the door and pull out the lint filter located at the bottom of the door opening. Remove lint by hand or with a soft brush. Rinse under running water if necessary and dry completely before reinserting.

What does the 'Anti-Crease' function do?

The Anti-Crease function periodically rotates the drum after the drying cycle ends to prevent wrinkles from setting in. It can be activated or deactivated via the control panel.

How often should I clean the condenser?

The condenser should be cleaned every 3-6 months, or when the 'Clean Condenser' indicator lights up. Remove the condenser unit from the bottom front, rinse with water, and dry thoroughly before reinstalling.

Can I install the dryer on top of a washing machine?

Yes, the ASKO TD7005 can be stacked on a compatible ASKO washing machine using a stacking kit (sold separately). Ensure the surface is stable and level.

What does the 'Child Lock' feature do?

The Child Lock prevents accidental changes to the settings during operation. To activate, press and hold the 'Child Lock' button for 3 seconds. A lock symbol will appear on the display.

Why is my dryer not heating?

Check if the condenser is clogged, the lint filter is dirty, or the overheating protection has tripped. Also ensure the power supply is connected and the door is properly closed. If the problem persists, contact ASKO service.

How do I resolve an error code on the display?

Refer to the user manual for specific error code meanings. Common issues include blocked airflow (E01), full water tank (E02), or sensor failure (E03). Reset the dryer by unplugging for 10 minutes.

What is the maximum load for the 'Wool' program?

For the Wool program, the maximum load is 1 kg to ensure gentle drying and prevent shrinkage. Overloading can damage delicate fabrics.

Can I use fabric softener sheets in this dryer?

It is not recommended to use fabric softener sheets, as they can leave residues on the lint filter and reduce drying efficiency. Use liquid fabric softener in the washing machine instead.

Where can I find spare parts for my ASKO TD7005?

Genuine ASKO spare parts are available through authorized service centers and online retailers. Use the model number TD7005 to ensure compatibility. For repair guides, visit the ASKO support website.

USER MANUAL TD7005 ASKO

Line drawing of a kitchen appliance with front panel and side door (no text or symbols)

CE

Simple line drawing of a box with two circular openings and a black smokestack inside (no text or symbols)

Waneer u wilt controleren of de was al droog is

Line drawing of a box with internal components and a handle (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and a tool, no text or symbols present.

Filterhouder

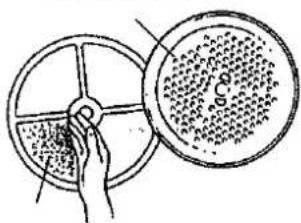

Diagram showing a hand operating a circular fan with a meshed screen on the right side (no text or symbols)

Pluisjesfilter

Simple line drawing of a door with a circular component and a handle, no text or symbols present

Simple line drawing of a staircase with vertical supports and a small protrusion at the base (no text or symbols)

Two identical mechanical clamp or bracket components with mounting brackets (no text or symbols)

2 houders

Het monteren:

Simple line drawing of a hand pressing down on a rectangular object with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Droog- trommel
Was- automaat

Line drawing of two stacked rectangular containers (no text or symbols)

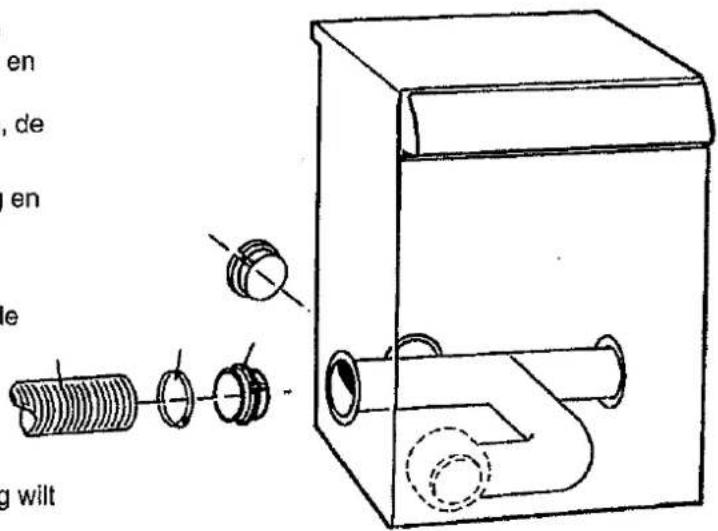

Diagram showing a ventilation system with a fan and pipe connection (no text or symbols)

Simple line drawing of an open box with two circular ovals and a dark, irregularly shaped object inside (no text or symbols)

Normale temperatuur witte was gekleurde was Synth. was

Wanneer u wilt controleren of de was droog is:

Line drawing of a person washing dishes in a washing machine (no text or symbols)
