| Product Type | Car Stereo Amplifier (4-Channel) |
| Model | SX900.4 |
| Brand | KICKER |
| Dimensions (with EndKaps) | Length: 25.75 in (65.4 cm), Width: 10 in (25.4 cm), Height: 2.5 in (6.35 cm) |
| Dimensions (without EndKaps) | Length: 20.75 in (52.7 cm) |
| RMS Power (4Ω Stereo, 13.8V) | 107W x 4 (0.02% THD) |
| RMS Power (2Ω Stereo, 13.8V) | 213W x 4 (0.2% THD) |
| RMS Power (4Ω Bridged Mono, 13.8V) | 425W x 2 (0.4% THD) |
| Dynamic Power (4Ω Stereo, 14.4V) | 115W x 4 (1% THD) |
| Dynamic Power (2Ω Stereo, 14.4V) | 225W x 4 (1% THD) |
| Dynamic Power (4Ω Bridged Mono, 14.4V) | 450W x 2 (1% THD) |
| Frequency Response | 20 Hz – 20 kHz (+0/-1 dB) |
| Signal-to-Noise Ratio | 100 dB |
| Input Sensitivity | 62.5 mV – 16 V (selectable ranges: 1V, 2V, 4V, 8V, 16V) |
| Fusing | 120A (40A x 3) |
| Recommended Power/Ground Wire | 2 Gauge (up to 2 GA capable) |
| High Pass Crossover | 10 Hz – 16 kHz, 1/12 octave steps, slope 0 – 36 dB/oct (6 dB steps) |
| Low Pass Crossover | 30 Hz – 20 kHz, 1/12 octave steps, slope 0 – 36 dB/oct (6 dB steps) |
| Parametric EQ (Kicking) | Center frequency: 20 Hz – 20 kHz (1/12 octave), Q: 0.5 – 10 (0.5 steps), Boost/Cut: ±18 dB |
| Phase Adjustment | 0° or 180° per channel (independent left/right) |
| Kompressor | 4 modes: OFF, Contour, Red-Line, Attack; threshold adjustable ±24 dB |
| Remote Bass Level Control | BLAST port (RJ45) for wired remote; can control multiple amps |
| Protection Circuits | SORT: Short circuit, Over-voltage, Reverse polarity, Thermal |
| User Interface | ISIS: VFD display and 9-button keypad; menu-driven DSP control |
| Additional Features | PAST (RCA output pass-through), SAMS (simultaneous stereo/mono), Memory presets (4), SICK BAY diagnostics, Pink noise generator |
Frequently Asked Questions - SX900.4 KICKER
User questions about SX900.4 KICKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Car radio in PDF format for free! Find your manual SX900.4 - KICKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SX900.4 by KICKER.
USER MANUAL SX900.4 KICKER
KICKER®
SX .4 Series Amplifier Owners Manual
Four Channel Models: SX700.4 / SX900.4
Attention:
Please take a moment and record the information asked for below in the provided area. It is also a good idea to attach the original sales receipt or a copy of it to this page for future reference
If for any reason you require service on this amplifier during the warranty period, you will need to provide this information and a copy of the receipt to Kicker to validate your warranty.
ALWAYS KEEP YOUR RECEIPT!
Congratulations!
You have just purchased the latest in amplifier technology to carry the famous KICKER name. Your KICKER SX series amplifier employs the latest in DSP signal processing to give you total control over your sound. Like all KICKER products it is designed and built to give you years of powerful and trouble-free performance. This installation manual contains valuable information on how to get the most out of your new SX series amplifier.
Thanks for buying KICKER. Enjoy!
Dealer Where Purchased:
Purchase Date:
Amplifier Model Number:
Amplifier Serial Number:
5X H S### OTE W##
Features
Low Impedance Operation Stable into 2 ohm stereo or 4 ohm mono loads
SORT Protection Circuitry (Short circuit, Over-voltage, Reverse polarity, Thermal) Protects amplifier from accidents and out of spec operation.
MOSFET Power Supply Provides high efficiency operation.
PAST (Pre Amp Signal Transfer) Output RCA jacks to pass the incoming signal to another amplifier or component:
SAMS (Stereo And Mono Simultaneously) Amplifier will operate into a bridged mono load and a stereo load at the same time.
Low Pass Filter Fully adjustable digital crossover with variable slope and crossover frequency. 30 Hz - 20 kHz in 1/12 octave spacing. OFF - 36 dB per octave slope in 6 dB increments.
High Pass Filter Fully adjustable digital crossover with variable slope and crossover frequency. 10 Hz - 16 kHz in 1/12 octave spacing. OFF - 36 dB per octave slope in 6 dB increments.
Kicking Fully adjustable single band digital parametric equalizer with variable Q (bandwidth), variable center frequency and variable boost or cut. Q range 5 - 10 in .5 steps. Center frequency 20 kHz - 20 kHz in 1/12 octave steps. Boost or cut range +/- 18 dB
Adjustable Phase The output phase of each channel can be set at 0 Degrees or 180 Degrees. Left and Right channels can be linked or independently adjusted
Ultramatch Gain Structure Digital input gain control with five selectable gain ranges (1 volt, 2 volt, 4 volt, 8 volt, 16 volt) with 12 dB of adjustment in each range in 3 dB steps. Left and Right channels can be linked or adjusted independently
SickBay and On Board Diagnostics Various tools to troubleshoot installation issues and check amp status.
Kompressor A 4-setting, user-selectable bass compressor used to fatten up your sub bass. OFF, RED-LINE, CONTOUR and ATTACK with +/- 24 d3 of adjustment to compensate for speaker size, speaker location, vehicle size or listening style.
ISIS (pronounced eye-sis) Indicate Status & Input Settings) The user interface to view or adjust current settings and check the status of your Kicker SX amplifier.
BLAST Port (Bass Level And Signal Transfer) Provides Remote Bass Level Control and control signal transfer between multiple SX amplifiers.
EndKaps Cast aluminum, custom, removable covers to protect and nice all your wiring connections to the amplifier. Can be prepped and painted any custom color you choose.
SASA (Shake A Stick At) So many more features...it is more than you can Shake A Stick At. It's an Oklahoma thing! Read on to find out!
GX-4 Green 075

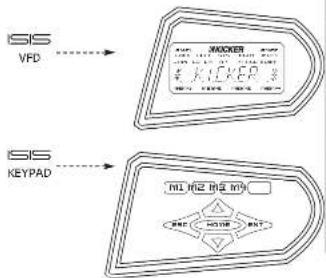

ISIS
Meet the ISS Interface Indicate Status & Input Settings: The ISS (pronounced eye-sisi allows you to view the current conditions and settings of your amplifier as well as change the many user-aqustable settings. The ISS system consists of the VFD (Vacuum Fluorescent Display) and the nine soft touch buttons that make up the KEYPAO.
VFD DISPLAY
Here is a brief description of the indicators found on the VFD
AMP1 - Indicates amplifier 1 is selected for adjustment.
AMPE - indicates amplifier 2 is selected for adjustment.
LOCK - Indicates the amplifier controls are locked out and not usable.
LEFT - Indicates an action or adjustment of the left channel
SYS - Indicates you are in the system menu.
RIGHT Indicates an action or adjustment of the right channel.
mute - Indicates you are in the mute menu or the mute function is active.
VFD DISPLAY - cont
GRIN - Indicates you are in the gain menu.
ep - indicates you are in the equalizer menu
LPF - Indicates you are in yellowcaps filter menu.
HFP - indicates you are in the high pass filter menu.
PHASE - Indicates you are in the phase menu
KOMP - Indicates you are in the Kompressor menu.
m≡m-1 - Memory preset 1 activated
mem-e - Memory preset 1 activated.
mem-3 - Memory preset 1 activated
MEM-4 - Memory preset 1 activated
KEYPAD
The keypad consists of nine buttons that allow you to adjust your amplifier.
m1 - Used to select memory preset 1 or to store current settings into preset 1.
me - used to select memory preset 2 or to store current settings into preset 2.
ms - Used to select memory preset 3 or to store current settings into preset 5.
M4 - Used to select memory preset 4 or to store current settings into preset 4
ESC - Used to exit the current menu.
ENT - Used to enter the selected menu.
HOME - Used to return to the Main menu and other functions explained later.
UP - Used to advance up through menu selections and/or adjust amplifier controls.
DOWN - Used to advance down through menu selections and/or adjust amplifier controls.
These controls and their usage will be explained later with more detail in each menu usage section.
End Panel Views
The BLAST Port is used to connect the Remote Bass Level Controller and for transferring control signals from one SX amplifier to another SX amplifier. An RJ45 cable is required to connect the BLAST Port (out) of one amp to the BLAST Port link of another. This is only required if you want to control more than one amplifier with the same Bass Level Controller. More details on this further in the manual.
The speaker terminals are custom-machined connectors with full protective shrouds and are designed to accept heavy gauge speaker wire assures maximum power transfer and damping with minimal power loss.
Cold-plated RCA Input connectors and PAST Jacks provide solid input and output connections for your pre-amp signal.
Custom-machined power block accepts up to a 2 Ga wire for both power and ground connections and up to an 8 Ga for remote turn-on assures maximum power transfer with minimal loss.
On board fusing inumber of fuses vary by amp size to protect amplifier against over current conditions and reverse polarity.
Power LED indicates amplifier is powered up and operating.
Check Fuse LED indicates a fault with the end panel fuses. This could be fuses which are not seated properly, faulty fuses or blown fuses.
mounting
When selecting a location to mount your Kicker amplifier be sure it is structurally sound and that there are no items behind the area that could be damaged by the screws. Check for wiring, brake lines, fuel lines, gas tanks, etc.
All amplifiers generate heat under normal operation. Be sure to choose a location that allows adequate ventilation for the amplifier. Also consider that the air temperature inside an automobile's trunk can reach upwards of 140 degrees Fahrenheit. An amplifier mounted in the trunk may require additional cooling such as extra fans moving air around the amplifier's chassis or ventilating the trunk to exchange the hot air in the trunk for cooler air outside. If possible, mounting the amo in the passenger commute will allow cooler operation.
Remember that the controls on top of the amp will need to be accessible for adjustment later. Keep this in mind as you choose your amplifier's mounting location.
Now that you are ready to mount your amplifier, use the supplied 3mm alien wrench to remove the amplifier EndKaps. This will give you access to the mounting holes in the amplifier and all wiring connections.
See Fig. 1
With the endcaps removed, you now have access to the four mounting holes in the mounting feet and all wiring connections. Drill 4 holes using a 7/64" drill bit and use the supplied #8 screws to mount the amplifier
See Fig. 2
Fig. 2
WING
Signal is input into the amplifier using the low level RCA input connections. If your source unit does not have RCA output connectors you will need to use a Hi-Lo level signal adapter. See your Kicker dealer for more details on this.
The output IPAST: RCA jacks provide an unaltered signal output to feed another amplifier or component.
The use of twisted pair interconnects is recommended for all installations to minimize noise. When routing these cables through the automobile, try to keep them away from factory wiring harnesses and other power wiring. If you need to cross any of this wiring do so at a 30 degree angle to reduce the possibility for noise problems.
When working with power connections it is always recommended that you disconnect the battery to prevent accidents
The ground should be connected to the amplifier first before making any of the other connections. This wire should be as short as possible 124 inches or less and connected to a paint/corrosion free solid metal area of the car's chassis. Use the same gauge wire as recommended for the amplifier's power connection to the battery. Adding an additional ground wire between the car battery's negative post and the car chassis of this same gauge for longent is also recommended.
If you ever need to remove the amp from the vehicle after it has been installed, the ground wire should be the last wire disconnected from the amplifier, just the opposite of when you installed it.
A fuse must be installed within 18 inches of the battery to protect the power wire feeding your amplifier. This fuse should be of at least the same value used in the amplifier but no higher than the capacity of the power wire. See the charts below for wire size and fusing recommendations.
| Model | Fuse Size | Wire Size |
| SX700.4 | 80A | 4 GA |
| SX900.4 | 120A | 2 GA |
| Wire Size | Length | Maximum Fuse |
| 8 Ga | Less than | 70 Amps |
| 4Ga | 10 feet In | 175 Amps |
| 2 Ga | length | 250 Amps |
| 0Ga | 400 Amps | |
| 8 Ga | 10 feet to | 40 Amps |
| 4 Ga | 20 feet in | 90 Amps |
| 2 Ga | length | 150 Amps |
| 0 Ga | 200 Amps |
System Diagrams

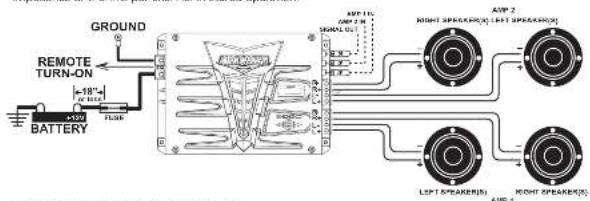

FOUR CHANNEL OPERATION (STEREO)
SX.4 series amplifiers are capable of operating into a minimum impedance of 2 ohms per channel in stereo operation.

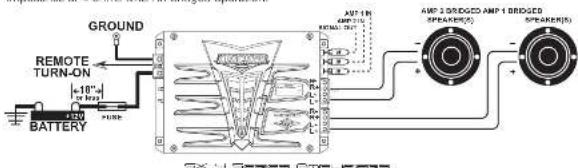

TWO CHANNEL OPERATION (BRIDGED)
SX.4 series amplifiers are capable of operating into a minimum impedance of 4 ohms when in bridged operation.

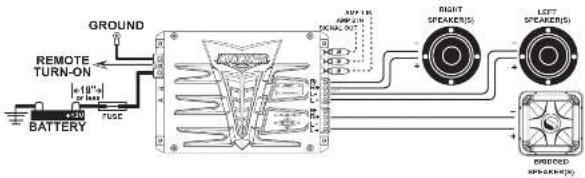

STEREO AND BRIDGED SIMULTANEOUSLY
SX 4 series amplifiers are capable of operating into a minimum impedance of 2 ohms per channel in stereo mode and 4 ohms bridged in mono mode. AMP 1 can be bridged while AMP 2 is in stereo OR AMP 2 can be bridged while AMP 1 is in stereo.
These are just a few of the many ways you can use your SX.4 series Kicker amplifier. These system diagrams are designed to give you a basic understanding of the most common uses for this amplifier. For more complex systems please visit your local authorized Kicker dealer. You can also download the SX Technical Manual from our website at www.kicker.com for more detailed information and complex system diagrams.

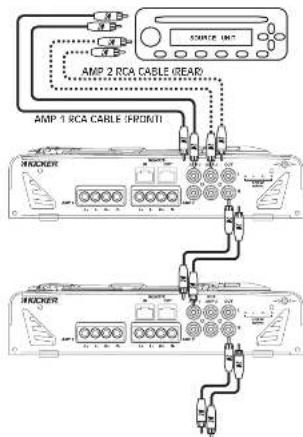

USING THE SIGNAL OUTPUT JACKS (PAST)
The Output (Pre Amp Signal Transfer RCA jacks allow you to send the incoming signal from the AMP-1 RCA Input jacks on one Kicker SX.4 series amplifier to another amplifier or processor without the need for Y cables. The signal from the PAST jacks is identical to the signal fed to the amplifier via its AMP-1 RCA input jacks and is not affected by any of the amplifiers, built in digital signal processing.
Most head units with high voltage outputs should be capable of driving up to ten amplifiers in a chain.
If only using one RCA cable to feed signal into your SX.4 series amplifier, be sure to use the AMP-1 input on the amplifier. The AMP-1 input will feed signal to AMP-2 and the PAST RCA jacks.

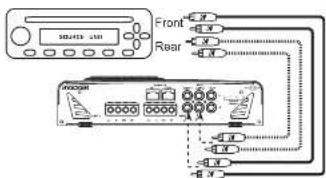

If your source unit has front and rear RCA outputs and you want to enable fading, simply use an additional cable to connect AMP 2 to your source unit.
To Next Amplifier or Processor

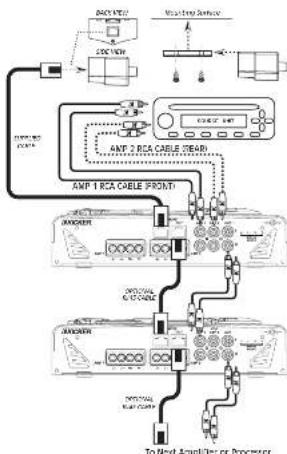

USING THE REMOTE BASS LEVEL CONTROL & BLAST
You can use the Remote Bass Level Control to control the output of your amplifier from the front of the car
Mount the controller by simply screwing the meta bracket to the chosen location and then slide the housing onto the bracket until it snaps into place.
Route the cable from the controller to the BLAST input jack on the amplifier chassis. That's it.
If you wish to control more than one amplifier with your remote, you will simply need to use a R-45 cable not supplied but available at any Radio Shack, computer store or electronic center to connect the BLAST output jack of the first amp to the BLAST input jack of the next amplifier.
On a KICKER SX 4 series amplifier you can control AMP 1, AMP 2 or both of them using the Remote Bass Level Controller. There is a setting you must adjust in the DSP to 'call' the amplifier which one you want to control. See the Operation section of this manual for instructions on how to adjust this setting.
navigation
Your KICKER SX series amplifier uses the latest in Digital DSP control and provides you with valuable operational information about your amplifier, real-time diagnostics and a full multi-level menu-driven operating system to access and adjust your amplifier.
The menu system is designed in layers. There is a starting point and you keep drilling down until you get to the menu item you want to view or change. This menu tree is an example of how the SX menu structure is set up.
NOTE: Not all the menus and menu items are shown below. DEFAULT SCREEN
As you can see there can be an infinite number of menu levels and each one of these menu levels can have an infinite number of its own items.
Navigating this simple menu structure is very easy using the 5-way keypad.
You use the UP and DOWN keys to scroll through the available menu items, and the ENT key is used to select that menu item. The ESC key backs you up one menu level from where you are, and the HOME key can returns you all the way to MAIN MENU by pressing and holding it for 1.5 seconds.
For example let's begin at the DEFAULT SCREEN; our goal is to get to the HISTORY menu. Pressing the ENT key would get us to MAIN MENU. Now use the UP and DOWN keys to scroll to SYSTEM, and then press the ENT key. Now you are in the SYSTEM MENU. Using the UP and DOWN keys again you scroll to SICK BAY and press the ENT key. You are
now in the SICK BAY MENU. Use the UP and DOWN keys again to scroll to HISTORY and then press the ENT key. That's it! You are
This is how you view information ur KICKER SX amplifier.
Continuing our example, we are now in the HISTORY item in the SICK BAY MENU. If we press the ESC key we would go back up to the SICK BAY MENU, if we press the ESC key again we would go to the SYSTEM MENU. One more press of the ESC key and we are in the MAIN MENU.
Let's start at the HISTORY item in the SICK BAY MENU, again but instead press and hold the HOME key for 1.5 seconds. Doing this will take us all the w
holding the HOME key will return you all the way back to the MENU ITEM you started with in the MAIN MENU, no matter how deep in the menu level structure you are. Pretty cool!
This is a very quick way to return to the MAIN MENU after drilling down several menu layers to view or change an item.
When adjusting any amplifier control the UP and DOWN arrow keys have 2 speeds, normal and accelerated.
Pressing and releasing the key repeatedly will scroll through the menu items at normal speed.
Pressing the key and holding it in for longer than 1.5 seconds will activate the accelerated scrolling mode and scroll through the menu items at a much faster rate. Releasing the key will return it to normal speed mode.
Don't try to scroll through every 1/12 octave step without it!
menu System
The menu system layout is as follows:
DEFAULT - This menu is displayed when your amp is operating and no adjustments are being made to your amplifier. This information scrolls through the display one after the other and then repeats.
1J F:20 HP - Hey, we needed a brand plug for us since this amp is 500000 cdoll
2.1 = 40 V /s - Displays the current voltage at the amplifier's + 12 volt battery input terminal.
3.1 - NFS F or 4.2 - NFS F - Displays the current temperature of the amplifier in celsius orahrenheit.
4.1 RSE /RSE - Model name of the amplifier or the name you have changed it to.
5.1 (SOPPO) - Current memory preset in use (if any) or the name you have changed it to.
If you want to freeze the scrolling display simply press the HOME key and the scrolling will stop.
Now you can manually select the item you wish to have displayed by using the UP or DOWN keys.
If you want the display to continue scrolling simply press the HOME key again.
MAIN - This menu is the first menu accessed from the DEFAULT menu and is the gateway to all the settings and information on your SX series amplifier.
To enter the MAIN menu simply press the ENT key while in the DEFAULT menu.
The available selections in the MAIN menu are
SYSTEM RINT EU UC VSS HI-PASS NUS QUTC SUNP-9000 SECURITY
Use the UP and DOWN arrow keys to scroll through the available selections in the MAN menu.
When you have the menu item selected that you want to view or adjust simply press the ENT key to select it.
SYSTEM MENU - this menu item contains many diagnostic tools and first time setup options. Use the UP and DOWN arrow keys to scroll through the options and press ENT to select. Press the ESC key to return to the SYSTEM menu.
1.1 QOL FON - Displays the current voltage at the amplifiers +12 volt terminal
2.1 Q T 1007 - Displays the lowest voltage seen at the amplifiers +12 volt terminal since being installed.
3.1 201-40 - Displays the highest voltage at the amplifiers +12 volt terminal since being installed;
4.1 TEM FLOW - Displays the current temperature of the amplifier
5.1 TGNP M2 - Displays the highest temperature the amplifier has reached since being installed.
6.1 PSF Time - Displays the total time the amplifier has been powered up since installation in 1/10th of an hour increments
7.1 S/IFM - Contains several diagnostic tools. Once in this menu you use the UP and DOWN keys scroll through LUTORY, HISTORY and KEY, TOUSE options. Press the ENT key to select.
7a.1 LPSB shows amplifiers current status or fault code. The 6 possible codes are:
- No problem, normal operation. - Thermal cutoff protection engaged. - short circuit protection engaged. - High voltage protection engaged. - Faulty or blown power fuse.
When you are done viewing the current status press the ESC key to return to the S BAY menu.
7b. JH'S T02Y logs the last 5 far long ago they happened when compared to the RUN TIME log.
Use the UP and DOWN keys to select the KISUAY log entry you want to view
Press and hold the ENT key to view the time it happened.
SICK BAY - cont
7cJ PIR, 4015C is a built in pink noise generator to test operation of the amplifier
Use the UP and DOWN keys to select ON/SE OR ON/SE OK
When the PINK NOISE is ON the LEFT and RIGHT indicators in the VHD will blink on and off.
When you are done using the PINK NOISE generator press the ESC key to return to the SICK BAY menu.
NOTE...
If you exit the SICK BAY menu with the PINK NOISE generator still on, the LCK and PINK VFD Indicators will remain blinking as a reminder.
8.1 AXP 0xF - Here you can assign a unique name to your KICKER SX amplifier. This name will replace the model name in the DEFAULT screen, if you change your mind and do not want to change the name, press and hold the HOME key for 1.5 seconds BEFORE making any changes
The ESC and ENT keys move the cursor left or right to select which character to change.
NOISE 07 Use the UP and DOWN keys to change the character displayed
When you are finished press and hold the Home key for 1.5 seconds to save your new amplifier name
9.1 (54) (24) - Here you can change the names of the memory locations. The factory defaults are
[Unreadable due to extreme pixelation and noise]
Use the UP and DOWN keys to select the memory location name you want to change and then press the ENT key to select it. If you change your mind and do not want to change the name, press and hold the HOME key for 1.5 seconds BEFORE making any changes
The ESC and ENT keys move the cursor left or right to select which character to change.
Use the UP and DOWN keys to change the character displayed
When you are finished press and hold the HOME key for 1.5 seconds to save your new memory name.
Repeat the above steps to rename the other presets.
10.1 REMOTE CN - Here you select which amplifier is controlled by the Remote Bess Level Controller. The options are MT2, A35, B9-1, CN and RP-7, ON.
Use the UP and DOWN keys to select which option you want to use and press the ESC key to return to the SYSTEM menu.
11.1 RPNTF RSP - This feature is currently not used but is reserved for future expansion.
12.1 SET-RESET - Sets the input voltage window of the UltralMatch gain control. The options are
Select the one closest to the maximum RCA input voltage you expect to send to the amplifier.
Use the UP and DOWN keys to select your voltage. Press the ESC to return to the MAIN menu.
13.1 W_0 BPS - Bypasses all DSP processing and sends the input signal directly to the amplifier.
Use the UP and DOWN keys to select JMTCE D or JMTES OF. Press the ESC key to return to the MAIN menu.
14.1 KOMP-ROU - This adjusts the KOMPRESSOR activation threshold point. Range is +24 dB to -24 dB to allow for different sized speakers or listener tastes. 0 is the default factory setting
There are two KOMP ADJ. menus, one for AMP 1 and one for AMP 2. This allows each amplifier to have its own individual setting.
Use the UP and DOWN keys to select (Add) or (Add) Press ENT select.
Use the UP and DOWN keys to adjust your setting and then press the ESC to return to the KOMP ADJ. RSC-1 / RSC-7 menu.
Now use the UP and DOWN to select the other amplifier for adjustment. Press ENT to select
Use the UP and DOWN keys to adjust your setting and then press the ESC to return to the KOMP ADL.
You can now press the ESC key to return to the SYSTEM menu
NOTE...
While adjusting the KOMP ADJ, you will notice the SYS Indicator on the BS VFD display is it. This indicates you are in a SYSTEM menu item. The ^2 , or ^3 , 2 indicators will also light up to let you know which amplifier you are currently adjusting.
15.1 VFD & - Several options to allow customizing the amplifier's VFD display
15a. J P-000000 - Adjust the intensity level of the VFD display. Five selectable levels. GIFAM - dimmest setting.
[Unreadable]
GJF/LN
要
(S) 0.5M - brightest setting
15b.1 160° C 7 - Selects between Celsius (CULNUS) or Fahrenheit (VANES/VEF) for temperature readouts
15c.1 NC-7 TIME - Adjusts the speed of the scroll in the Default Screen display. Determines how long each menu item stays in the display before scrolling to the next item. Adjustable from 1 - 11 seconds.
15d.) Selection - Option to turn on or off the screensaver. When on 1/20 the display will go to sleep when there is no button activity for 60 seconds. Pressing any button once will wake up the display. The selection turns off the screensaver and the display is always on.
16.1075 FCF - Set your own lock code! The factory default is 23 but you can change it and create your own code with up to 10 characters.
The ESC and ENT keys move the cursor left or right to select which character to change.
Use the UP and DOWN keys to change the character displayed
When you are finished press and hold the HOME key for 1.5 seconds to save your new amplifier lock code, IMPORTANTIII be sure to write this code down for future reference.
17.1 RESET RP - This option resets all adjustable
settings back to their original factory o Use the UP and DOWN keys to select UP PEGT or IN PEGT and then press the ENT key to perform the selected action.
18.1 P3017 - This menu item will display information about the DAP (Digital Audio Processor hardware, software and build date.
Use the UP and DOWN keys to view the DSP Version, Software Version, Hardware Version and Build Date Press
the esc key to return to the MAN
menu
WIN MENU This menu is where you adjust your left and right channel gain for each amplifier. There are two GAIN menus, one for AMP 1 and one for AMP 2. This allows each amplifier to have its own individual gain setting.
Use the UP and DOWN keys to scroll through A37-1 and A37-2 and press the ENT key to select the amplifier you want to adjust.
Use the UP and DOWN keys to scroll through LEFT channel, RIGHT channel or 87N options and then press the ENT key to select.
Now use the UP and DOWN to increase or decrease the gain of the selected channels in 5 dB increments from 0 dB to +12 dB. (R to P, R)
Press the ESC key to return to the selected amo's LIFT, RIGHT, 2014 selection menu. You can now adjust another channel on this amplifier.
Press the ESC key again to return to the CAN menu ^2 / ^2 . Options to select the other amplifier.
If done adjusting the EQ, press the ESC key again to return to the MAIN menu.
NOTE...
While adjusting the GAIN you will notice the GAIN indicator on the ISS VFC display is lit. This indicates you are in the GAIN menu.
The RF^+ or RF^2 indicator will light up to indicate which amplifier you are currently adjusting.
The LFFT and/or RIGHT Indicator will light up to indicate which amplifier channels? you are currently adjusting.
EQ MENU - This menu is where you adjust the single band parametric equalizer for each amplifier. There are two EQ menus, one for AMP 1 and one for AMP 2. This allows each amplifier to have its own individual EQ setting.
Use the UP and DOWN keys to scroll through H4-1 and H4-2' and press the ENT key to select the amplifier you want to adjust.
Your options for each amplifier are /MULCH, INTUUM and RDS/INT, use the UP and DOWN keys to choose one and press the ENT key to select it.
P950 × P275 selects the center frequency of the 10 and can be set at any 1/12th octave frequency from 20 Hz - 20 kHz. (P275 to P275, N)
Use the UP and DOWN keys to select your frequency. Press the ESC to return to the selected amplifiers EQ menu.
NATM, N8 better known as Q can be set from -5 to -1 in 5 increments. In simple terms, lower Q effects more frequencies around the center frequency while higher Q effects fewer frequencies around the center frequency.
Use the UP and DOWN keys to select your Q value. Press the ESC to return to the selected amplifier's EQ menu.
B_1^ U_1^ is how much you want to boost or cut the equalizer and has a range of 0.00^ to 7.00^ in .5 dB steps.
Use the UP and DOWN keys to adjust each setting and the ESC key to return to the selected amplifier's EQ menu.
When you are done adjusting the selected amplifier's EQ press the esc key to return to the EQ menu RSP-1 / RSP-2 options to select the other amplifier.
If done adjusting the DQ, press the ESC key again to return to the MAIN menu
NOTE... While adjusting the EQ you will notice the EQ indicator on the VFD display is it. This indicates you are in the EQ menu.
The ^P or ^M -Indicator will light up to indicate which amplifier you are currently adjusting.
LO-PASS MENU - this menu is where you adjust the low-pass crossover for each amplifier. There are two LO-PASS menus, one for AMP 1 and one for AMP 2. This allows each amplifier to have its own individual LO-PASS setting.
Use the UP and DOWN keys to scroll through 'M' and 'M' and press the ENT key to select the amplifier you want to adjust.
Your options for each amplifier are REFLECT and S.ORG Use the UP and DOWN keys to choose one and press the ENT key to select it.
5900-597V selects the crossover point and can be set at any 1/12th octave frequency from 30 Hz to 20 kHz. (59 H° to 2725 H°)
Use the UP and DOWN keys to select your frequency. Press the ESC to return to the selected amplifier's LO-PASS menu.
5.194 selects the rolloff of the crossover and can be set from U to be US in 6 dB steps.
Use the UP and DOWN keys to select your slope. Press the ESC to return to the selected amplifier's LO PASS menu.
When you are done adjusting the selected amplifier's LO-PASS crossover press the ESC key to return to the LO-PASS menu (A12-1 / A12-d) options to select the other amplifier.
If done adjusting the LO PASS crossover, press the ESC key again to return to the MAIN menu
NOTE...
While adjusting the LO-PASS crossover you will notice the LTV indicator on the □□ VFD display is lit. This indicates you are in the LO-PASS crossover menu.
The R^a or R^b cIndicator will light up to indicate which amplifier you are currently adjusting.
The KICKER SX amplifier monitors and prevents any low pass crossover point from being any closer than 1/3 octave from the high pass crossover point. If you cannot set the low pass crossover where you want then check the Hi-PASS indicator and see if it is flashing. If it is then you need to go to the HI-PASS menu and raise the high pass crossover point.
This is done as a safety precaution to prevent a notch filter condition.
HI-PASS MENU - This menu is where you adjust the high pass crossover for each amplifier. There are two HI-PASS menus, one for AMP 1 and one for AMP 2. This allows each amplifier to have its own individual HI-PASS setting.
Use the UP and DOWN keys scroll through R0^2-1 and R0^2-2 an press the ENT key to select the amplifier you want to adjust.
Your options for each amplifier are FREE, AND FREE. Use the UP and DOWN keys to choose one and press the ENT key to select it.
HARDENLY selects the crossover point and can be set at any 1/12th octave frequency from 10 Hz to 16 kHz.
Use the UP and DOWN keys to select your frequency. Press the ESC key to return to the selected amplifier's HI-PASS menu.
SLU: selects the rolloff of the crossover and can be set from 0 to 10 dB in 6 dB steps
Use the UP and DOWN keys select your slope. Press the ESC to return to the selected amplifier's II-PASS menu.
When you are done adjusting the selected amplifier's HI-PASS crossover press the esc key to return to the HI-PASS menu RM2 / RM2 & options to select the other amplifier.
If done adjusting the HI-PASS crossover, press the esc key again to return to the MAIN menu
NOTE...
While adjusting the HI-PASS crossover you will notice the IYF indicator on the I= VFD display is lit. This indicates you are in the HI-PASS crossover menu.
The ^P or ^M -Indicator will light up to indicate which amplifier you are currently adjusting.
The KICKER SX amplifier monitors and prevents any high pass crossover point from being any closer than 1/3 octave from the low pass crossover point. If you cannot set the high pass crossover where you want then check the LYY indicator and see if it is flaming, if it is then you need to go to the LO-PASS menu and lower the low pass crossover point.
This is done as a safety precaution to prevent a notch filter condition.
PHASE MENU - Here you can switch the polarity of each amplifier's channel(s) output between 0 or 180 degrees. There are two PHASE menus, one for AMP 1 and one for AMP 2. This allows each amplifier to have its own individual PHASE setting
Use the UP and DOWN keys to scroll through 'k-1' and 'k-2' and press the ENT key to select the amplifier you want to adjust.
Use the UP and DOWN keys to scroll through 2018, LSF7 and PISK Press the ENT to select the one you want to adjust.
Now use the UP and DOWNKEYS to select from 0.10000 or 0.7.10000 Press the esc to return to the selected amplifier's PHASE menu.
When you are done adjusting the selected amplifier's phasing, press the ESC key again to return to the PHASE menu R_2 -1 / R_3 -2 options to select the other amplifier.
If done adjusting the phasing, press the ESC key again to return to the MAIN menu
NOTE...
While adjusting the PHASE you will notice the PMSE indicator on the IES VFD display is it. This indicates you are in the PHASE menu.
The RP1 or RP2 indicator will light up to indicate which amplifier you are currently adjusting.
There is also a 1.457 and a 2.087 indicator that will light up to let you know which channel Left and/or Right that you are currently adjusting.
NOTE MENU - Here you can mute each amplifiers channels/ output for setup or testing purposes. There are two MUTE menus, one for AMP 1 and one for AMP 2. This allows each amplifier to have its own individual muting function.
Use the UP and DOWN keys scroll through R^A and R^B an press the ENT key to select the amplifier you want to adjust.
Use the UP and DOWN keys to scroll through 2018, LSF7 and HWRL. Press the ENT to select the one you want to mute.
Now use the UP and DOWN to select from (MTE 10) or (MTE 20). Press the ESC key to return to the selected amplifier's MUTE menu.
When you are done adjusting the selected amplifier's muting, press the ESC key again to return to the VUTE menu. VTE / VTE options to select the other amplifier.
If done adjusting the muting, press the ESC key again to return to the MAIN menu
NOTE...
While adjusting the MUTE you will notice the VFD indicator on the ISS VFD display is lit. This indicates you are in the MUTE menu.
The RAP or RAP indicator will light up to indicate which amplifier you are currently adjusting.
There is also a LEFT and a POINT indicator that will light up to let you know which channel Left and/or Right that you are currently muting.
If you exit the MUTE menu with any channels! muted, the LUT and/or FLUT. Indicators will flash to indicate this.
M3999592 MENU - Here you can select each amplifier's Kompressor setting you wish to use. The SX amplifier utilizes a full digital compressor circuit to tweak the amplifier and the sound to your unique needs. There are two KOMPRESSOR menus, one for AMP-1 and one for AMP-2. This allows each amplifier to have its own individual Kompressor setting.
Use the UP and DOWN keys to scroll through _0^2 and _0^2 and press the ENT key to select the amplifier you want to adjust.
Use the UP and DOWN keys to scroll through PDM-175, GONION, RUSO and RSE.
Press the ESC key to accept your selection and return to the KOMPRESSOR menu HW-1 / HW-2 options to select the other amplifier.
When you are done adjusting the selected amplifier's Kompressor, press the ESC key again to return to the MAIN menu
NOTE...
While adjusting the Kompressor you will notice the VLD indicator on the ISS VTD display is it. This indicates you are in the KOMPRESSOR menu
The RP1 or RP2 indicator will light up to indicate which amplifier you are currently adjusting.
See the specifications pages for a brief description of each Kompressor setting and some general guidelines for their use.
SFF/INTY MENU - Here you can lock down your amplifier to prevent any access to the settings. The DEFAULT screen is still active and you can select any of the four presets... but that is in
Use the UP and DOWN keys to select LUCK + UFor XH1 LUCK and then press the ENT key to accept your setting
If you selected LLC-11, the display will now show LLC-1. The controls are now locked out. Press the esc key to return to the DEFAULT scrolling screen
If you selected X07.1 LOCK then you will return to the WAN menu and the amplifier will remain unlocked.
NOTE..
While your amplifier is in lock down you will notice the LUX indicator on the VFD display is lit. This indicates your amplifier is locked down and will require a code to unlock it before any adjustments can be made.
UNLOCK AMPLIFIER
You do remember your lock code right? You better because that is now the only way in! If you have not changed it then it is still at the factory default of .422.
To unlock your amplifier press the ENT key. The display will show NOT Press the ENT key again. You will now enter your code to unlock the amplifier.
The ESC and ENT keys move the binking cursor left or right to select which character to enter
Use the UP and DOWN keys to enter the character. 49 A F... (2, 2,...etc)
When you are finished press and hold the HOME key for 1.5 seconds to enter your unlock code.
If the code is correct the amp will unlock and drop you back into the MAIN menu. If not, then read on...
UNLOCK AMPLIFIER - cont.
If you enter the wrong code the display will flash the message, IUPC and return you to the NEX screen.
883 0
[Unreadable]
Press the ENT key to enter your lock your code again.
Enter your code again making sure to place the correct character in the correct position in the display. Blank spaces count as part of the code so be sure you are entering it correctly.
Press the HOME key and try again. If you have found your error then the amp will unlock. If not, the Flashing 195' Coat will greet you and you can try again.
If you have tried several times (several is defined as more than 3...less than 10) and you still can not unlock your amplifier, this more than likely means means you have forgotten your lock code.
You will need to call KICKER directly at 6051-624-8583 to handle this situation. You will need your amplifier's serial number AND your receipt as the guys and gals answering the phone will need this information from you to help you out
So, before you call, gather this information up and have it. 'Ready to save us some time on the phone. Cool? Cool!
Better yet, take the time RIGHT NOW to fill out the first page in this manual and STAPLE your receipt to it. That way if or when you need service like forgetting your lock once? you will have all the information you need right there in front of you.
Memory Presets
There are four memory preset keys each with an indicator above it in the VFD display. The indicator will illuminate if that
immediate if that memory preset is currently in use,
Each preset stores all the values for each of the following amplifier controls:
• ) N##l • ) EG • ) CO-ASS • ) #1-ASS • ) P#SE • ) M#C • ) S#P#S-SS(P)
This gives you the ability to dial in four completely different amplifier settings and store them in presets for instant recall later
It's like a preset for your favorite radio stations...only better
STORING A PRESET
Make all the adjustments you want to have stored in the preset and return to the DEFAULT screen
To store your settings into a preset simply press and hold the desired memory key until the VFD display flashes 5/1/2023. Then release the memory key. The indicator which matches the preset you used will illuminate.
RECALLING A PRESET
To recall a memory preset simply press and release the key. The matching indicator will light up and the amplifier w change all the corresponding controls to the values assigned to the memory pre-set.
PRESET PRESETS
Ok, we know that sounds like a certain pizza commercial, but seriously the four memory presets come with settings
You can use these as a starting point to do your own breaking or for quick push-a-button-and-be-done setup.
Any preset you store will replace the ones that come from the factory. You can reset all four preset back to factory defaults anytime simply by doing a reset in the RESET AMP menu.
Here are the settings in each preset from the factory.
in more general terms, each preset offers you these options.
Memory-1 sets Amp 1 and Amp 2 into full-range mode with a infrasonic filter (often called subsonic filter) to protect the speakers from harmful ultra-low frequencies.
Memory-2 sets Amp 1 and Amp 2 into high-pass operation. Used for powering up a set of coaxial or component speakers when another amp is driving a subwoofer.
Memory-5 sets Amp 1 and Amp 2 into low-pass operation with a infrasonic filter. For use when the amplifier is driving a subwoofer.
Memory-4 sets the amplifier up for El-Amp duty. Amp 1 is setup for use with coaxial or component speakers. Amp 2 is setup for subwoofer duty with an infrasonic filter.
As stated before you can always start with one of those presets, tweak it to fit your installation and then save your settings into a new preset.
TROUBLESHOOTING
If your amplifier does not appear to be working, check obvious things first such as blown fuses, poor or incorrect wiring connections, crossovers set improperly, gain controls Impropery set, etc.
There are two LEDs on the end panel of your KICKER SX series amplifier, one green and one red. The green LED indicates the amplifier is turned on. The red LED indicates that there is a fault condition with the end panel fuses and they need checked.
The power indicator on top of the amplifier which illuminates the model badge follows the same function as the green LED.
OGreen LED off, no output:
P with a volt ohm meter (VOM) check
+ 12 volt power terminal should read +12V to +16V.
^a Remote turn-on terminal (should read +12V to +16V).
Ground terminal to chassis ground (should read 0)
OGreen LED on, no output
Check amp status in SCK DAY
Check GAIN RANGE in SYSTEM menu.
Check GAIN LEVEL in GAIN menu.
Check if MUTE is activated.
Test amp using PINK NOISE in SICK BAY menu.
☑amp makes noise using PINK NOISE then:
Check RCA cable and connections.
Check for signal on RCA cable with VOM in AC
position
aSubstitute known good source unit.
If amp does not make noise using PINK NOSE then
Check speaker connections
a) Test speaker outputs with known good speaker
Other Symptoms:
☑Amo is very hot, no output.
a)Thermal protection is engaged. Check SICK BAY to
verify. Check for proper impedance at speaker
terminals. Also check for adequate airflow around
amplifier.
☑Amp shuts down while vehicle is running.
Over Voltage protection engaged. Check SICK BAY
to verify. Voltage to the amplifier is not within the
2-16 volt operating range. Have automobile
charging/electrical system inspected.
☑ Amp only plays at low volume levels.
Short circuit protection engaged. Check SCK BAY
to verify. Check for speaker wires shorted to each
other or the vehicle chassis. Damaged speakers or
operating amplifier below minimum recommended
Impedance will also cause this.
√Weak bass output
Change the phase of the LEFT channel in the PHASE
menu. If bass improves then one speaker channel is
out of phase (polarity): You can leave PHASE changed
for this channel to fix the problem or better yet:
Check speaker connections to amp and speakers to
determine which one is wrong and correct. Be sure
to set the PHASE of the LEFT channel back to original
setting after correcting wiring connections
○Alternator nholsemining sound that varies with engine RPMs
Check for damaged RCA cables
Check routing of RCA cable.
Check source unit for good ground
Check GAIN RANCE in SYSTEM menu, turn down if set too
nign.
Check GAIN in MAIN MENU, turn down if set too high
CAUTION: When jump-starting the vehicle, be sure that connections made with jumper cables are correct. Improper connections (+ to - & - to +) will result in blown amplifier fuses as well as failure to other systems in the vehicle.
If you have more questions about the installation and operation of your new KICKER amplifier, see the Authorized KICKER Dealer in your area. You may also call our Technical Services Line at 4051624-8583 for assistance or visit our website at www.KICKER.com
Kompressor
Here is a brief explanation of each KOMPRESSOR setting.
COTTOV - This preset applies expansion below the threshold point to provide a fuller sound at lower volume levels. Effect decreases at higher volume levels. Nice effect for someone wanting a fuller sound at low to moderate listening levels.
This preset applies expansion above the threshold point to provide a nice quick punch or attack to the music. Effect increase with higher volume levels. Like music with a quick and punchy sound? Give this one a try.
PE3-1/PE - Provides a quick clamp to dynamic peaks while still allowing a full sound to come through. Effect increases at higher volume levels. Like to play it loud but want to protect your speakers? Want low level details to come through over road noise? Want a more even volume level to your music? All can be achieved with this preset.
NF - Pretty much says it all. This turns the KOMPRESSOR off. This is the factory default setting.
After selecting your KOMPRESSOR setting you can adjust its effect using the KOMPRESSOR ADJUSTMENT (KMPY YOU) setting located in the SYSTEM menu. There you can change the threshold point for each of these settings to customize the KOMPRESSOR effect to fit your speakers, car or personal tastes.
A few words on the Kompressor. The effect is most noticeable in the bass area of your music and the descriptions above apply to that area of your music (Bass/Midbass). You can use the Kompressor in any amplifier configuration (Low Pass, High Pass, Band Pass or Full Range) but we feel the best results are obtained when with the amp is in a Low Pass (subwoofer) or Band Pass (midbass) situation.
A few exceptions to this rule are:
The HJ-1.2. We setting is good for use in any configuration as it helps control dynamic peaks and limit distortion at higher output levels.
The CONTOUT setting is also another good all around use setting and when used in Full Range or High Fass configurations tends to enhance the vocal and top end of the music. Great for helping to cover up interior noise.
The SHAK setting is really geared for bass and midbass duty.
The possibilities are almost endless! Tweak away!
Performance
Model SX700.4 SX900.4
RMS Power
In Watts, All Channels Driven
@ 13.8V, 4s2 Stereo, 0.02% THD 82 x 4 107 x 4
@ 13.0V, 2Ω Stereo, 0.2% THD 163 x 4 213 x 4
@ 13.8V, 4Ω Mono, 0.4% THD 325 x 2 425 x 2
Dynamic Power
In Watts, All Channels Driven
@ 14.4V, 4Ω Stereo, 1% THD 85 x 4 115 x 4
@ 14.4V, 2Ω Stereo, 1% THD 175 x 4 225 x
@ 14.4V, 40 Mono, 1% THD 350 x 2 450 x 2
Length With EndKaps 22.5" 25.75"
157.15cm (65.40cm)
Fusing 40A x 2 40A x 3
Recommended Power & Ground Wire
4 GA 2 GA
Height:
width:
Length Without EndKaps:
Frequency Response:
Input Sensitivity:
Signal-to-Noise Ratio:
High Pass Crossover Freq.:
High Pass Crossover Slope:
Low Pass crossover Freq.:
Low Pass crossover
Kicking Frequency: Kick20 Bandwidth
Kicking Bandwidth (Q): KickEQ Report/Cut:
Kicking Boost/Cut: Remote Bass Love
Remote Bass Level Control. Power & Ground Terminals
Power & Ground Terminals.
DSP Reaction Time / Delay:
DSP Reaction Time / Delay. Friends Reaction:
Stranger's Reaction:
2.5 Inches / 6.35 centimeters
10 inches / 25.4 centimeters
Subtract 5 inches (12.7 cm) from chart above
20 Hz - 20 kHz, +0 / -1 dB
62.5 mV - 16 V
100 dB
10 Hz - 16 kHz In 1/12 Octave steps
0 (off) - 36 dB in 6 dB steps
30 Hz - 20 kHz In 1/12 Octave steps
0 (off) - 36 dB in 6 dB steps
20 Hz - 20 kHz in 1/12 Octave steps
.5 to 10 in .5 steps
+7-18 dB per octave included with each a
INCLUDED WITH EACH AMPFITER WILL accent up to 2 Gauge w/
will accept up to 2 Gauge wire 0.7 milliseconds to standard. For
0.7 Millisecond in BES (Vanda...KSI Real) That Shipple Off The wingle
That Shizzle's Off The Hizzle Rude, Sweet
Dude...sweet...
ELECTRONICS LIMITED WARRANTY
Kicker warrants this product is a free front packet in material and workership under normal use for a period of 90 DAYS from date of original purchase with receipt. When purchased from an automobile truck, Kicker is warranted to be sold at the same price. For example, it is also a \$100.00 per unit. It is labeled "S Stock" is warranted for 90 DAYS from date of original purchase with receipt. If rated "B Stock" and purchased from an automobile truck, Kicker is warranted for ONE (8) W/FF from date of purchase with receipt. In all cases you have the original document should provide to be necessary under this product or sale. The company's sales will not be granted to Kicker will replace or repair at the discretion on the defective merchant and will equal its merchandise, as no change. Warranty replacements on "S Stock" merchandise may have cosmetic scrapies and blom shires. This product is a product that is available to the other products.
This warranty is valid only for the original purchaser and is not extended to payee of the product subsequent to the original purchaser. Any application is implied warranties are limited in duration to a period of the express warranty as probable herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to the product, thereafter. Some states do not allow for liabilities on implied warranties, therefore these
This warranty gives you specific legal rights; however you may have other
rights that vary from state to state.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE
Selective interrhage must be returned to your local authority sea water. Designs dricket dealer for warranty. Assistance in locating an authorized dealer can be obtained by writing or calling Stillwater Designs direct. You can confirm that a dealer is authorized by asking to see a current authorized dealer window postal.
If it becomes necessary for you to return defective merchandise, call the Kicker Customer Service Department at 205624-98/10 for a Return Authorization IRMS number. Package all defective items in the original container or in a package that will prevent shipping damage, and return to
Stillwater Designs, 5021 North Perkins Road, Stillwater, OK 74075
The RWA number must be clearly marked on the outside of the package. Return only defective components. Return of entire cabinets, system packs, pairs, etc. increases your return freight charges. Non-defective items received will be returned freight policy.
Include a dated proof-of-purchase stating the Customer name, Dealer name, product purchase and date of purchase. Warranty expiration an item without proof-of-purchase will be determined from type of sale and the manufacturing date code. Freight must be prepaid; items received freight collect will be refused.
Failure to follow these stops may void your warranty. Any questions directed to the Kicker Customer Service Department at 0405624-9510
WHAT IS NOT COVERED?
This warranty is valid only if the product is used for the purpose for which it
was designed.
It does not cover:
• Damage due to improper installation
- Subsequent damage to other companies - Europe caused by pressure to move it up
- Damage caused by exposure to this scale, excessive heat, chemical cleaners, and/or UV radiation.
• Damage through neuvence, misuse, accidents, or abuse. Repeated returns for
the same damage may be considered abuse.
• Any cost or expense related to the removal or installation of a procedure.
- Speakers damaged due to amplifier closing or distortion.
• Items previously repaired or missed by any unauthorized repair facility.
- Recruit shipments of non-specific items. - Products with increased or missing bps
- Products returned without a Return Authorization RNA number
• Freight Damage.
- The cost of shipping product to ticker.
• Service performed by anyone other than Kicker
- Speaker with any foreign menu use for games, material
HOW LONG WILL IT TAKE?
Kicker strives to maintain a goal of 24-hour service for all returns.
Delays may be Incurred. If lack of replacement inventory or parts is
encourtered
INTERDETICDEL WEBBENTY
Contact your international Officer deals or distal the core course, specifically
FOR THE YEAR OF THE COUNCING
F.D. Box 439 • Stillwater, Oklahoma 74376 • U.S.A. • 405 624-8310
RICKER drivers are capable of producing sound levels
that can permanently damage your hearing! Turning
up a system to a level that has audible distortion is more surviving in your way than listening to an
undistorted system at the same volume level. The
threshold of pain is always an indicator that the sound
level is too loud and may permanently damage your
Please use common sense when controlling volume
notes
Pizza Delivery
CHC'S NUMBERS
Hook UPS
38
5X H 6000000000
GX-1 Green Alpha
39
- KICKER®
- Attention:
- Congratulations!
- ISIS
- VFD DISPLAY
- VFD DISPLAY - cont
- KEYPAD
- End Panel Views
- mounting
- WING
- System Diagrams
- FOUR CHANNEL OPERATION (STEREO)
- TWO CHANNEL OPERATION (BRIDGED)
- STEREO AND BRIDGED SIMULTANEOUSLY
- USING THE SIGNAL OUTPUT JACKS (PAST)
- USING THE REMOTE BASS LEVEL CONTROL & BLAST
- navigation
- menu System
- SICK BAY - cont
- NOTE...
- NOTE..
- UNLOCK AMPLIFIER
- UNLOCK AMPLIFIER - cont.
- Memory Presets
- STORING A PRESET
- RECALLING A PRESET
- PRESET PRESETS
- TROUBLESHOOTING
- Kompressor
- Performance
- Model SX700.4 SX900.4
- RMS Power
- Dynamic Power
- ELECTRONICS LIMITED WARRANTY
- WHAT IS NOT COVERED?
Brand : KICKER
Model : SX900.4
Category : Car radio
