Product Type	Chest Freezer
Brand	Elba
Model	EF-5500
Capacity	510 L
Outer Dimensions (W x D x H)	1702 mm x 710 mm x 842 mm
Net Weight	70 kg
Temperature Control	Rotary dial (1 to 7, with 0 for off)
Recommended Setting	Position 4
Freezer Temperature	-18 °C
Defrost Type	Manual
Accessories Included	Basket
Power Supply (Estimated)	220-240 V, 50 Hz
Energy Consumption (Estimated)	~0.7 kWh/24h (typical for 510L chest freezer)
Climate Class (Estimated)	N/ST (temperate/subtropical)
Noise Level (Estimated)	~42 dB
Safety Feature	Avoid wet hands when touching interior or frozen food
Installation	Freestanding, ensure adequate ventilation
Cleaning	Unplug, remove food, defrost if needed, clean with mild detergent
Refrigerant (Estimated)	R600a (isobutane)

Frequently Asked Questions - EF-5500 Elba

How do I adjust the temperature on my Elba EF-5500 freezer?

The temperature is controlled by a rotary dial located on the front-bottom side of the chest freezer. Normally set it to 4. Turn towards 7 for colder temperatures, or towards 1 for warmer. Turn to 0 to stop operation temporarily.

What does the dial number mean?

The dial ranges from 1 to 7, with 0 being off. Higher numbers mean colder temperatures. Position 4 is the recommended setting for normal use.

How do I defrost the freezer?

This chest freezer requires manual defrosting. When frost buildup is about 5mm thick, unplug the appliance, remove all food, and leave the lid open to allow ice to melt. Do not use sharp objects to scrape off frost. Wipe dry before restarting.

What is the capacity of the EF-5500?

The Elba EF-5500 chest freezer has a capacity of 510 liters, suitable for large families or bulk storage.

Can I freeze hot food directly?

No, allow hot food to cool to room temperature before placing it in the freezer to avoid raising the internal temperature and affecting other stored items.

Why does my freezer have a basket?

The included basket helps organize smaller items and makes them easier to access without digging through larger packages.

How do I clean the freezer?

First, unplug the freezer. Remove all food and the basket. Defrost if necessary. Clean the interior with a mild detergent and warm water, then dry thoroughly. Do not use abrasive cleaners.

What should I do if the freezer is not cooling enough?

Ensure the temperature dial is set to a higher number (e.g., 6 or 7). Also check that the lid is fully closed, the door seal is intact, and the appliance has adequate ventilation around it.

Is it safe to touch the interior with wet hands?

No, never touch the interior or frozen food with wet hands as it can cause frostbite due to extreme cold.

What are the dimensions of the EF-5500?

The outer dimensions are 1702 mm width, 710 mm depth, and 842 mm height. Ensure you have enough space for proper ventilation.

USER MANUAL EF-5500 Elba

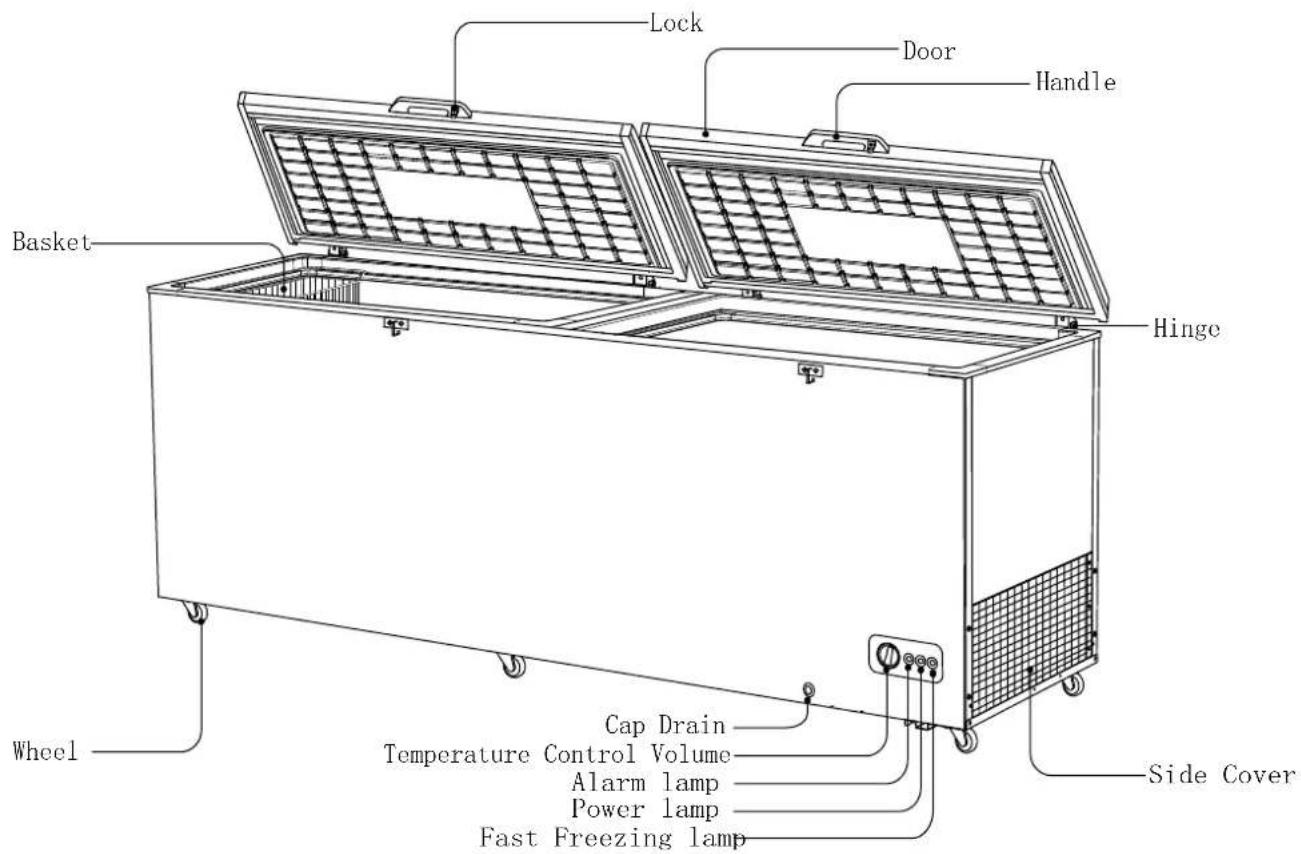

PART NAMES AND FUNCTIONS

Model NO: EF-5500

Never touch the interior of the Freezer Chamber or frozen foods in the compartment with wet hands as this could result in frostbite.

INSTRUCTION MANUAL.

TEMPERATURE ADJUSTMENT

• To adjust the temperature inside the freezer compartment, adjust the temperature control dial on front-bottom side of the chest freezer. Normally use chest freezer with temperature 4.
• If the cooling performance is inadequate, turn the temperature control dial in the direction of 7. If too cold, turn dial in direction of 1.
• When you stop running temporally, please turn the temperature control dial in the direction of 0.

INSTRUCTION MANUAL.

SPECIFICATIONS

Product Name	Chest Freezer
Product No.	EF-5500
Capacity	510L
Outer Dimensions (mm)	Width	Depth	Height
	1702	710	842
Performance	Freezer compartment temperature: - 18;°CConditions: Ambient temperature 13, unloaded state, exposed to direct sunlight.
Accessories	Basket, No Spatula for Defrost
Net Weight	70kg

The specifications may change, please refer to the circuit name plate on the back of your chest freezer.

BD510/H-SM1 (MAL..FSB)
