Product Type	Active Subwoofer
Brand	Pyle
Model	PPA8
Speaker Size	8 inches
Power Output (RMS)	150 Watts
Frequency Response	30 Hz - 250 Hz
Impedance	4 Ohms
Enclosure Type	Ported
Woofer Material	Polypropylene with Rubber Surround
Inputs	RCA Line Level, Speaker Level
Controls	Volume, Crossover Frequency, Phase Switch
Dimensions (W x H x D)	12 x 10 x 10 inches
Weight	15 lbs
Power Supply	AC 120V / 60Hz
Protection	Overload, Short Circuit, Thermal Protection
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquid cleaners.
Safety Precautions	Keep away from water and heat sources. Ensure proper ventilation.
Spare Parts & Repairability	Contact Pyle customer support for replacement parts or service.

Frequently Asked Questions - PPA8 Pyle

What is the ideal placement for the Pyle PPA8 subwoofer?

Place the subwoofer on a stable, flat surface near a power outlet. For best bass response, position it in a corner or along a wall, but avoid placing it directly against a wall to reduce vibrations. Ensure at least 6 inches of clearance around the subwoofer for proper ventilation.

How do I connect the PPA8 to my audio system?

The PPA8 offers both RCA line-level and speaker-level inputs. Use RCA cables from your receiver's subwoofer output to the subwoofer's LFE input, or connect speaker wires from your amplifier to the subwoofer's speaker terminals. Ensure proper polarity (+/-) for optimal performance.

What does the phase switch do on the PPA8?

The phase switch (0° or 180°) allows you to align the subwoofer's output with your main speakers. If the bass sounds weak or boomy, try flipping the phase switch to improve integration and bass response.

How should I set the crossover frequency?

Set the crossover frequency to around 80 Hz if you have small bookshelf speakers, or higher (100-120 Hz) for larger speakers. Adjust until the bass transitions smoothly without overpowering the main speakers. The PPA8 has a variable crossover control from 40-250 Hz.

Why is my subwoofer not producing sound?

First, check the power cable connection and ensure the power switch is on. Verify the audio source is sending a signal. Confirm the input cables are securely attached. Also check the volume and crossover controls are not set to minimum. If the problem persists, the subwoofer may be in protection mode; power cycle the unit.

Can I use the PPA8 with a home theater receiver?

Yes, the PPA8 is compatible with most home theater receivers that have a dedicated subwoofer pre-out. Use an RCA cable to connect the receiver's subwoofer output to the subwoofer's LFE input.

What is the power consumption of the PPA8?

The PPA8 is powered by standard AC 120V / 60Hz. The typical power consumption is around 150 watts RMS, with a maximum draw of approximately 300 watts under heavy load.

How do I clean and maintain my PPA8 subwoofer?

Unplug the subwoofer before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquid or chemical cleaners. Avoid dust buildup on the woofer cone by using a gentle brush attachment on a vacuum cleaner.

Does the PPA8 have a auto-on feature?

Yes, the PPA8 includes an auto-sensing power function. It will automatically turn on when an audio signal is detected and turn off after about 15 minutes of inactivity to save energy.

What should I do if the subwoofer sounds distorted?

Reduce the volume and crossover settings. Distortion can occur if the input signal is too high or the subwoofer is pushed beyond its limits. Also check the phase setting and placement. Ensure the subwoofer is not placed too close to a wall or corner.

USER MANUAL PPA8 Pyle

About Pyle Pro Premium Series Woofer

Congratulations! You have purchased one of our high power Pyle Pro woofer. Pyle Pro Premium Series Woofer is the professional PA woofer series, which has been designed and manufactured for consistent and high performance.

General Features of Pyle Pro Premium Series Woofers Include:

• Strong Paper Cone
• Cloth Edge Supension
• Bumped Vented Pole Piece
  -High Temperate KAPTON Voice Coils
  -8 Ohm Impedence

We do confident that Premium Series Woofer will bring you many hours of enjoyment over the years.

Abort This Booklet

In this booklet, you could find the SPECIFICATIONS and TEMPLATE of the woofer. With this information, you could achieve the best performance of woofer conveniently.

Below is the meaning of the rating abbreviations.

Fs : "Tree Air Resonance ", this value is the lowest audible frequency (in Hz) of the woofer.

Q: This value describes the degree fo control("damping")which the speaker exhibits.Speaker damping is due to both MECHANICAL characteristics (Qms) and ELECTRICAL characteristic s(Qes). A speaker's TOTAL DAMPLING VALUE is referring as Qts.

SPL This value means the sensitivity of the speaker.

Xmax The overall distance (in millimeters) the cone and voice ciol travel in a single excursion is referred to as Xmax

VAS: This value describes (in cubic feet) the maximum amount fo air which is displaced by the speaker cone in a single excursion.

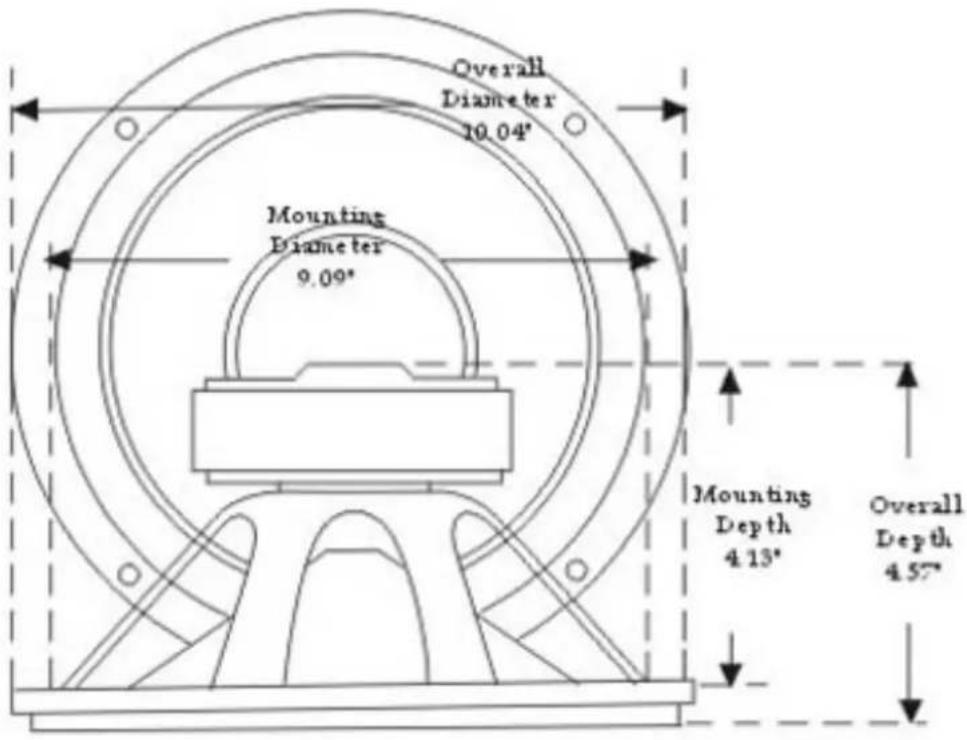

PPAG

SPECIFICATIONS

PYLE PRO PREMIUM-SERIES-Woofer for small enclosures

Performance Parameters		Physical&Installation Parameters
Power(Watts Peak/RMS)	400/150	Voice Coil	1"KSV
Nom.Impedance	8	Magnet	30 oz
Fs(Hz)	94.3	Cone	Paper
Qms	2.97	Surround	Cloth
Qes	1.27	Spider	Super
Qts	0.89	Dust cap	Poly-concave
SPL(db)	88.5	Frame	Stamped Steel
X-max(mm)		Terminals	Spade
Vas(cu ft)	0.148	Backplate	Bumped&Vented

PYLE PRO Continually strives to improve the performance and value of its products-all specifications are subject to change.

PYLE PRO PPA SERIES-3

PPAB

SPECIFICATIONS

PYLE PRO PREMIUM-SERIES-Woofer for small enclosures

Performance Parameters		Physical&Installation Parameters
Power(Watts Peak/RMS)	500/200	Voice Coil	1.2"KSV
Nom.Impedance	8	Magnet	40 oz
Fs(Hz)	60.7	Cone	Paper
Qms	2.99	Surround	Cloth
Qes	0.991	Spider	Super
Qts	0.69	Dust cap	Poly-concave
SPL(db)	89.2	Frame	Stamped Steel
X-max(mm)		Terminals	Spade
Vas(cu ft)	0.696	Backplate	Bumped&Vented

TYLE PRO Continually strives to improve the performance and value of its products-all specifications are subject to change.

PYLE PRO PPA SERIES-4

PPA10

SPECIFICATIONS

PYLE PRO PREMIUM-SERIES-Woofer for small enclosures

Performance Parameters		Physical&Installation Parameters
Power(Watts Peak/RMS)	600/200	Voice Coil	1.5"KSV
Nom.Impedance	8	Magnet	50 oz
Fs(Hz)	45	Cone	Paper
Qms	2.67	Surround	Cloth
Qes	0.911	Spider	Super
Qts	0.68	Dust cap	Poly-concave
SPL(db)	89.2	Frame	Stamped Steel
X-max(mm)		Terminals	Spade
Vas(cu ft)	1.69	Backplate	Bumped&Vented

PYLE PRO Continually strives to improve the performance and value of its products-all specifications are subject to change.

PPA12

SPECIFICATIONS

PYLE PRO PREMIUM-SERIES-Woofer for small enclosures

Performance Parameters		Physical&Installation Parameters
Power(Watts Peak/RMS)	700/200	Voice Coil	2"KSV
Nom.Impedance	8	Magnet	60 oz
Fs(Hz)	35.5	Cone	Paper
Qms	2.62	Surround	Cloth
Qes	0.88	Spider	Super
Qts	0.66	Dust cap	Poly-concave
SPL(db)	90.0	Frame	Stamped Steel
X-max(mm)		Terminals	Spade
Vas(cu ft)	4.517	Backplate	Bumped&Vented

PYLE PRO Continually strives to improve the performance and value of its products-all specifications are subject to change.

PPA15

SPECIFICATIONS

PYLE PRO PREMIUM-SERIES-Woofer for small enclosures

Performance Parameters		Physical&Installation Parameters
Power(Watts Peak/RMS)	800/250	Voice Coil	2.5"KSV
Nom.Impedance	8	Magnet	70 oz
Fs(Hz)	26.7	Cone	Paper
Qms	2.69	Surround	Cloth
Qes	0.89	Spider	Super
Qts	0.67	Dust cap	Poly-concave
SPL(db)	90.2	Frame	Stamped Steel
X-max(mm)		Terminals	Spade
Vas(cu ft)	11.357	Backplate	Bumped&Vented

IYLE PRO Continually strives to improve the performance and value of its products-all specifications are subject to change.

PYLE PRO PPA SERIES-7

PPA18

SPECIFICATIONS

PYLE PRO PREMIUM-SERIES-Woofer for small enclosures

Performance Parameters		Physical&Installation Parameters
Power(Watts Peak/RMS)	1000/300	Voice Coil	3"KSV
Nom.Impedance	8	Magnet	100 oz
Fs(Hz)	24.2	Cone	Paper
Qms	1.34	Surround	Cloth
Qes	0.55	Spider	Super
Qts	0.39	Dust cap	Poly-concave
SPL(db)	94	Frame	Stamped Steel
X-max(mm)		Terminals	Spade
Vas(cu ft)	17.77	Backplate	Bumped&Vented

PYLE PRO Continually strives to improve the performance and value of its products-all specifications are subject to change.

PYLE PRO PPA SERIES-8
