LC42 - Kitchen sink LEISURE - Free user manual and instructions

Brand	Leisure
Model	LC42
Product Type	Kitchen Sink
Material	Stainless Steel
Finish	Brushed Satin
Number of Bowls	1 (Single Bowl)
Bowl Dimensions	Approximately 33" x 19" x 9" depth
Overall Dimensions	36" x 22" x 10" (L x W x H)
Weight	Approximately 25 lbs (11.3 kg)
Installation Type	Drop-in / Top-mount
Faucet Holes	Pre-drilled for 1 or 3 holes (configurable)
Drain Size	Standard 3.5" (90 mm) drain opening
Soundproofing	Sound-dampening pads included
Minimum Cabinet Size	36" wide base cabinet recommended
Cleaning Instructions	Use mild soap and water; avoid abrasive cleaners
Maintenance	Wipe dry after use to prevent water spots
Warranty	Limited lifetime warranty
Included Accessories	Drain strainer, mounting clips, template

Frequently Asked Questions - LC42 LEISURE

What material is the LC42 kitchen sink made of?

The LC42 is constructed from high-quality stainless steel with a brushed satin finish, offering durability and resistance to rust and stains.

What are the overall dimensions of the Leisure LC42 sink?

The sink measures approximately 36 inches wide by 22 inches deep by 10 inches high, with a single bowl depth of about 9 inches.

Is the sink top-mount or undermount?

The Leisure LC42 is designed as a drop-in (top-mount) sink, which sits directly into a cutout in the countertop with a visible rim.

How many faucet holes does it have?

The sink comes pre-drilled with three holes (for faucet, soap dispenser, and sprayer), but you can install a deck plate to cover holes if using a single-hole faucet.

Can I install this sink in a standard 36-inch cabinet?

Yes, the sink requires a minimum base cabinet width of 36 inches for proper installation. Ensure the cabinet interior is large enough to accommodate the sink clips and plumbing.

Does the sink include soundproofing?

Yes, the LC42 comes with sound-dampening pads applied to the underside to reduce noise from running water and clattering dishes.

How do I clean and maintain the stainless steel sink?

Clean with a mild dish soap and warm water using a soft sponge. Rinse thoroughly and dry with a towel to prevent water spots. Avoid using abrasive cleaners or steel wool that may scratch the surface.

What is the drain size and does it come with a strainer?

The drain opening is standard 3.5 inches (90 mm), and the sink includes a drain strainer to catch food particles and prevent clogs.

What is the warranty period for the Leisure LC42?

Leisure offers a limited lifetime warranty against manufacturing defects. Coverage details are provided in the product manual.

Are installation instructions included?

Yes, the sink package includes a cutout template and mounting clips along with a detailed instruction manual. You can also download the manual in PDF from our website.

USER MANUAL LC42 LEISURE

Stainless Steel Sink Installation

Note:

During installation care should be taken to ensure the sink is protected from scuffs and scratches.

Straining and over tightening of all plumbing fixtures connected to the sink should be avoided.

Installers should carefully check that the moulding and edges of the sink are dead level so that water will flow off the drainer.

Installation – General

• Fit the waste(s) to the sink, including any inter-connecting pipe work (supplied with multiple bowl sinks)
  • Fit the tap(s) and plumb in any hoses or pipes.

Use either of the two methods of installation. Wooden battens are supplied with some models. The installer must supply the battens if this method of installation is required for other models.

Installation without wooden batons Installation with wooden batons

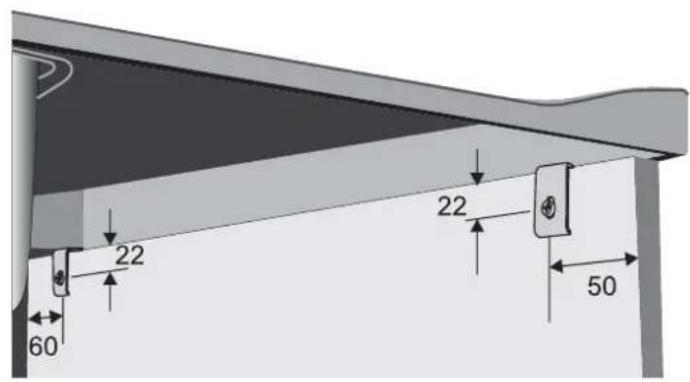

1) Drill 2 pilot holes in either side of the base unit as shown.
2) Fix the bracket with the long leg (18mm) clamping down onto the rim of the inner rim.
3) Attach the brackets to the cabinet with the Cabinet screws (screws are provided with some sink models).

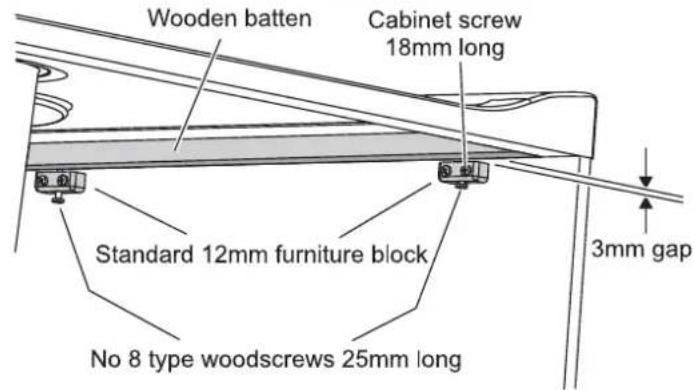

Items required too secure the sink (not supplied)

4 off Standard 12mm furniture block
8 off Cabinet screw 18mm long
4 off No 8 type woodscrews 25mm long

1) Position the sink over the cabinet in the desired location and mark the position of the screws, relative to the inside of the cabinet, using a soft pencil.
2) Using the pencil marks made previously as a guide, screw the 12mm furniture block to the cabinet using the Cabinet screws.
3) Put the No 8 type woodscrew into the furniture block and tighten the screw into the wooden baton.

Note: All dimensions shown are in millimetres and the sink is a typical installation

After Care - Stainless Steel Sinks

Day to Day Care

Routine cleaning of your stainless steel sink is easy if the following simple procedure is followed After use wipe the bowl and drainer with a soft damp soapy cloth, rinse with clean water. In hard-water areas, an application of Cif will avoid any build-up of dull fi lm of waterborne deposits.

Although stainless steel is an extremely durable material and will withstand a great deal of hard use, it can be scratched by hard or sharp objects. If the surfaces are to be kept in a blemish free condition reasonable care should be taken when handling such items.

Discolouration and Heavy Staining

Staining of stainless steel in most cases is due to something being deposited on the steel rather than an attack on the material itself. The most common cause of staining is the build up of a thin fi lm of water borne deposits on the sink surface, often fi rst seen as a rainbow effect. The build up of such a fi lm can be avoided by drying the surface of the sink after use as described above. However, should such a fi lm appear, it can be readily removed with a soft damp cloth and Cif. To remove the fi lm, apply the Cif neat and rub vigorously with a damp cloth along the length of the sink surface. After cleaning rinse thoroughly with clean water and dry. Wire wool products and ferrous water supply pipes can leave minute ferrous particles adhered to the sink surface. Since stainless steel under normal conditions does not rust, these particles can cause the appearance of small brown rust stains. These stains can be removed using the procedure described above.

CAUTION :

Certain household products contain substances which will attack the stainless steel surface, they are :

1. Bleaches :

Most common domestic bleaches contain Chlorine in the form of a hypochlorite. Chlorine attacks the microscopic Chromium Oxide film on the surface and can cause pitting of the surface. Bleaches should always be used in the prescribed strength specified by the manufacturers. Undiluted bleaches can cause pitting and staining of the surface and should be immediately rinsed off with plenty of clean water. All cleaning agents containing hypochlorites are unsuitable for use with stainless steel and, even highly diluted, can cause pitting under certain conditions. For this reason it is strongly recommended that the sink is not used for soaking clothes or cleaning clothes in hypochlorite solutions for long periods.

2. Silver Dip Cleaners :

These are particularly harmful since they contain strong acids which can cause discolouration and pitting. The first sign of this is an iridescent rainbow stain which turns an etched dull grey colour. Should any Silver Dip Cleaner come into contact with the surface of the sink it should be immediately rinsed off with plenty of clean water.

3. Corrosive Foodstuffs :

Fruit juices, damp salt, vinegar, readymade mustards, pickle and mayonnaise can cause pitting and corrosion if left in contact with the stainless steel surface for long periods.

4. Acids :

Sulphuric, Hydrochloric and other strong acids will cause pitting corrosion, as will photographic developing liquids. All should be immediately washed off with plenty of clean water if contact occurs.

Cleaning :

Always use a soft cloth. The use of coarse grit scouring powders or soap filled wire wool cleaning pads is not recommended, since both will mark the surface of the sink. Wire wool pads can leave tiny fragments of wire embedded in the surface and these can rust and leave small brown rust stains. Vigorous rubbing with a soft cloth, Cif, neat detergent, cleaning cream or liquid will remove these stains. Always remove wet cleaning aids (cloths, containers, etc.) from the sink surface after use in order to avoid the formation of water marks and rust stains.
