PMP37LED - Megaphone Pyle - Free user manual and instructions

Product Type	Megaphone
Brand	Pyle
Model	PMP37LED
Range	800 yards
Power Output	30 Watts
Dimensions	Diameter 6.2" x Length 10.0"
Power Source	4 x 'C' batteries (not included)
Usage Environment	Indoor / Outdoor
Volume Control	Adjustable
Special Features	Button activated LED light, Button activated siren alarm
Construction	Lightweight, portable
Military Use	Used by U.S. Armed Forces
Battery Installation	Press release button on underside to open compartment; observe polarity
Safety Notes	Keep away from children; use proper polarity; remove batteries if not used for long periods
Cleaning	Wipe with dry cloth; do not use abrasive cleaners
Storage	Store in cool, dry place; remove batteries for long-term storage
Warranty / Support	Contact PyleUSA.com or phone: [phone]

Frequently Asked Questions - PMP37LED Pyle

How do I turn on the megaphone?

Slide the switch on the rear of the megaphone to the desired mode: Voice, LED, or Siren alarm. For voice mode, adjust volume using the rear dial.

What batteries does the Pyle PMP37LED require?

It requires 4 x 'C' batteries (not included). Ensure correct polarity as indicated inside the compartment.

How do I open the battery compartment?

Press the button located near the back, underside of the megaphone. This releases the lid to access the battery compartment.

What is the range of this megaphone?

The PMP37LED has an 800-yard range and delivers 30 watts of power output.

Can I use this megaphone outdoors?

Yes, it is designed for both indoor and outdoor use.

Does the megaphone have a siren feature?

Yes, it has a button activated siren alarm mode in addition to voice and LED light modes.

How do I activate the LED light?

Slide the rear switch to the LED mode and press the button to activate the LED light.

Is the megaphone water resistant?

The manual does not specify water resistance. Avoid exposure to rain or moisture to prevent damage.

How should I clean the megaphone?

Wipe the exterior with a dry, soft cloth. Do not use abrasive cleaners or submerge in water.

Why might the megaphone not produce sound?

Check that batteries are inserted correctly with proper polarity, that the switch is in voice mode, and that the volume is turned up. Replace weak batteries.

USER MANUAL PMP37LED Pyle

with Siren Alarm and LED Lights

This user manual contains important information for safe operation and optimal megaphane performance.

Please carefully read and follow safety notes and instructions. Save this manual for future reference. Make sure that it is available to all persons using this device.

Safety

This megaphone is intended to be used only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or device damage. Please use the megaphone as described and under supervision if used by children or minors.

• Ensure that plastic bags, packaging, etc.
• Never let children unattended use electrical devices.
• Use proper polarity is observed when inserting batteries.
• Incorrectly inserted batteries may cause damage and risk of fire.
• Leaking batteries can cause permanent damage to the device.
• Remove batteries if the megaphone will not be used for long periods of time.

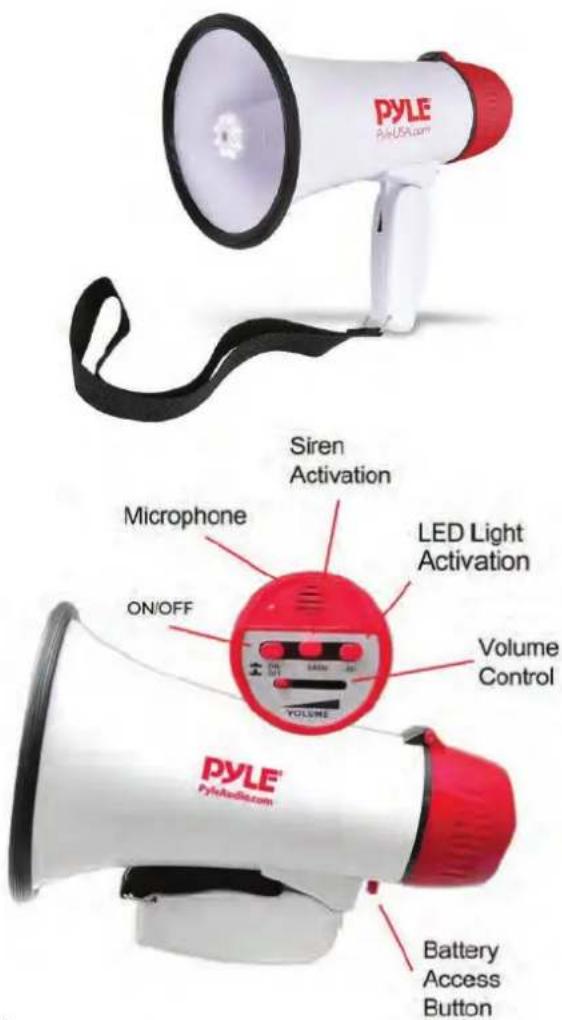

OPERATING INSTRUCTIONS

Voice Mode

• Slide the switch on the rear of the megaphone to voice
• Adjust the desired volume level using the rear of the megaphone

LED Mode

- Slide the switch on the rear of the megaphone to use led light

BATTERY INSERTION

Press the button located near the back, underside of the megaphone.

The button will release the lid to reveal the battery compartment. Please see correct battery direction placement on the top side of the opening battery compartment lid. Insert batteries, close the cover and fasten clip until locked.

NOTE: Make sure the batteries are inserted correctly observing correct polarity.

Features:

• 800 Yard Range
  • Power Output 30 Watts
  • For Indoor/Outdoor Use
• Adjustable Volume Control
  • Used By U.S. Armed Forces
• Button Activated LED Light Mode
• Button Activated Siren Alarm Mode
  • Lightweight, Portable & Powerful
• Battery Powered by 4 x 'C' Batteries, Not Included
• Dimensions: Diameter 6.2" x Length 10.0"
