| Product Type | Car Audio Coaxial Speaker |
| Model | SXE-69C2 |
| Brand | Alpine |
| Speaker Size | 6 x 9 inches (oval) |
| Configuration | 2-Way Coaxial |
| Woofer Material | Polypropylene Cone |
| Tweeter Material | Composite Dome |
| Power Handling (RMS) | 100 Watts |
| Power Handling (Peak) | 300 Watts |
| Impedance | 4 Ohms |
| Sensitivity | 92 dB |
| Frequency Response | 40 Hz - 20 kHz |

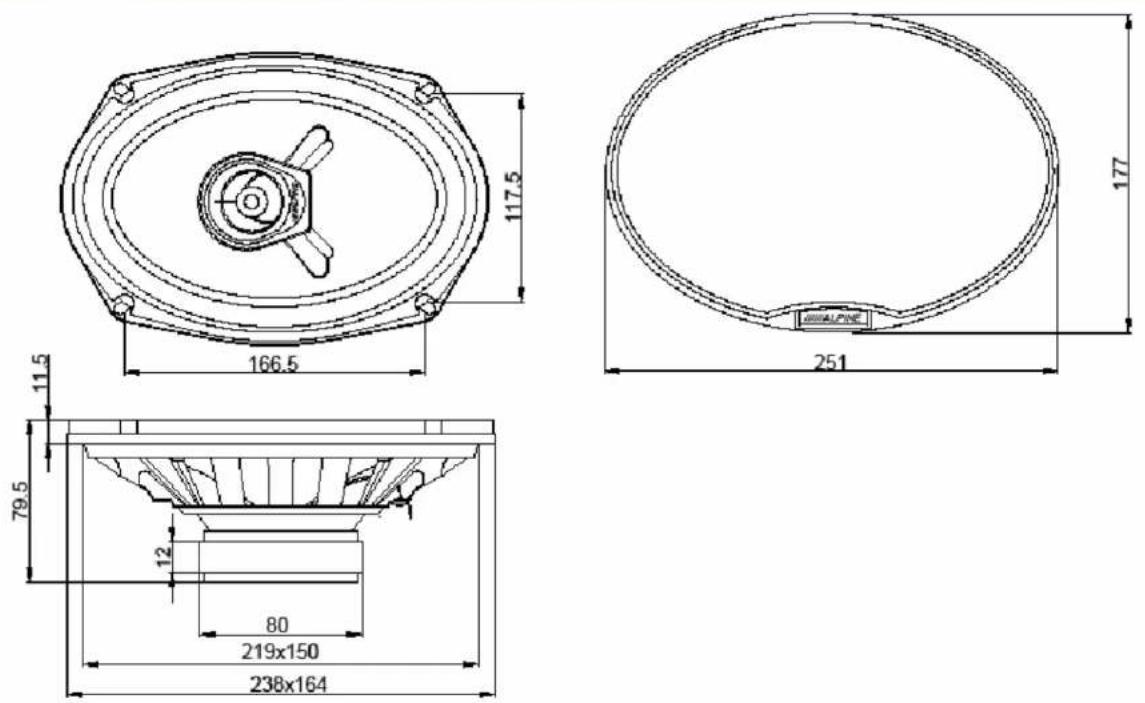

| Mounting Depth | 2.75 inches (70 mm) |
| Mounting Cutout | 5.6 x 8.3 inches (142 x 211 mm) |
| Weight | 2.5 lbs (1.13 kg) per speaker |
| Power Supply | Passive (no external power needed) |
| Main Functions | Reproduce audio frequencies from car stereo |
| Care & Cleaning | Wipe with a soft, dry cloth; avoid liquids |
| Safety Precautions | Install securely to prevent loose objects; disconnect battery during installation |
| Spare Parts & Repairability | Contact Alpine customer service; no user-serviceable parts |
| General Information | Designed for rear fill or full-range audio in vehicle |
Frequently Asked Questions - SXE-69C2 ALPINE
What is the size of the Alpine SXE-69C2 speaker?
The Alpine SXE-69C2 is a 6x9 inch oval coaxial speaker, commonly used for car audio.
What is the power handling of this speaker?
It handles 100 Watts RMS and 300 Watts peak power.
What is the impedance?
The impedance is 4 Ohms.
Can I install these speakers in my car doors?
Yes, they fit standard 6x9 inch cutouts. Check mounting depth (2.75 inches) for clearance.
Do I need an amplifier for these speakers?
While they can run off a head unit, an amplifier is recommended for optimal performance.
What is the sensitivity rating?
Sensitivity is 92 dB, meaning they produce moderate volume with low power.
Are these speakers compatible with my Alpine stereo?
Yes, they are compatible with any car stereo that supports 4-ohm speakers.
What tools are needed for installation?
You'll need screwdrivers, wire strippers, and possibly a panel removal tool. Always disconnect the battery first.
How do I clean the speakers?
Wipe the grille and cone gently with a soft, dry cloth. Avoid using liquids or chemicals.
What should I do if a speaker stops working?
Check wiring connections first. If still faulty, contact Alpine support for repair options.
