Product Type	Range Hood
Brand	Kelvinator
Model	KH61SS
Width	60 cm (23.6 inches)
Finish	Stainless Steel
Mounting Type	Under Cabinet
Maximum Extraction Rate	600 m³/h
Noise Level	55 dB (A)
Number of Fan Speeds	3
Control Type	Push Button
Lighting	2 x 40W Halogen
Filter Type	Aluminum Grease Filter
Ducted/Recirculating	Ducted (Recirculating optional with carbon filter)
Energy Class	B
Electrical Supply	220-240 V, 50 Hz
Net Weight	12 kg
Dimensions (W x D x H)	598 x 500 x 140 mm
Installation Height	65-75 cm above hob
Warranty	2 years

Frequently Asked Questions - KH61SS KELVINATOR

What are the dimensions of the Kelvinator KH61SS range hood?

The Kelvinator KH61SS has a width of 60 cm (23.6 inches), depth of 500 mm, and height of 140 mm. It is designed for under-cabinet installation.

Is the KH61SS ducted or recirculating?

The hood is primarily designed for ducted (external venting) installation. It can be used in recirculating mode if a carbon filter is installed, which must be purchased separately.

How do I clean the grease filter?

The aluminum grease filter should be cleaned every month or when the filter saturation indicator lights up. Remove the filter and wash it with warm soapy water or in a dishwasher at low temperature. Dry it thoroughly before reinstalling.

How often should I replace the carbon filter?

If using recirculating mode, the carbon filter should be replaced every 3-6 months depending on usage. A saturated carbon filter reduces efficiency.

What is the maximum airflow rate?

The maximum extraction rate is 600 m³/h, which is suitable for kitchens up to 15-20 m².

Does the hood have a light?

Yes, it includes two 40W halogen lights to illuminate the cooking area. These can be replaced if they burn out.

How many fan speeds are there?

The hood offers 3 fan speeds controlled by push buttons. Speed 1 is for low noise, speed 3 for maximum extraction.

What is the noise level of the KH61SS?

The noise level is approximately 55 dB at normal speed, which is comparable to a conversation at home.

Can I install this hood over a gas cooktop?

Yes, but ensure the minimum installation height of 65 cm above the hob is maintained. Follow the safety instructions in the manual.

Where can I find the user manual for the KH61SS?

The user manual can be downloaded for free in PDF format from the manual website. An AI question feature is also available for specific queries.

USER MANUAL KH61SS KELVINATOR

Line drawing of a mechanical housing with a circular opening and triangular base (no text or symbols)

● Carefully read this cooker hood instruction manual before using
- Keep these instructions for future reference

Cod:0103070413

CE CB

GENERAL

Carefully read the following important information regarding installation, safety and maintenance. Keep this information booklet accessible for further consultations.

The appliance has been designed with two venting options: exhausting version (external exhaust) or filter version (internal air recycle) cooker hood.

SAFETY PRECAUTIONS

Take care when the cooker hood is operating simultaneously with an open fireplace or burner as they depend on the air in the environment and the cooker hood removes the air from the environment.

The negative pressure in the environment must not exceed 4 Pa (4×10−5 bar).

Provide adequate ventilation in the environment for a safe operation of the cooker hood.

Follow the local laws applicable for external air evacuation.

WARNING!!

In certain circumstances electrical appliance may be a danger hazard.

• There must be adequate ventilation in the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
• Do not check the status of the filters while the cooker hood is operating.
• Do not touch the light bulb within half an hour after appliance use.
• Do not flambé under the cooker hood.
• Avoid opening gasometer when there is no pan on the stove, as it is damaging for the filters and a fire hazard
• Constantly check frying food to avoid overheated oil becoming a fire hazard
• Disconnect the electrical plug prior to any maintenance.

INSTALLATION INSTRUCTIONS

ELECTRICAL CONNECTION

- This cooker hood is designed for permanent fixture.

- Connect to mains supply. Check voltage and frequency given on the rating plate located on the inside of the hood. Connect the mains cable to a power socket or to a omnipolar switch with a contact gap of at least 3mm. The mains cable must be connected to a suitable and easily accessible fixed power point. As the electrical installation must comply with the laws and regulations in force only a qualified and authorized electrician must install the hood including connecting it to a omnipolar switch with a contact gap of at least 3mm.

- Connect the mains cable if provided with a plug to a power socket. The user must have access to the power socket to be able to connect and disconnect the plug once the hood is mounted and fixed.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The manufacturer will decline all responsibility if the governing health and safety laws are not adhered to, which permit safe and correct use of the hood and electrical connections.

ATTENTION: If the light does not work, check to see if the light bulb is in correctly.

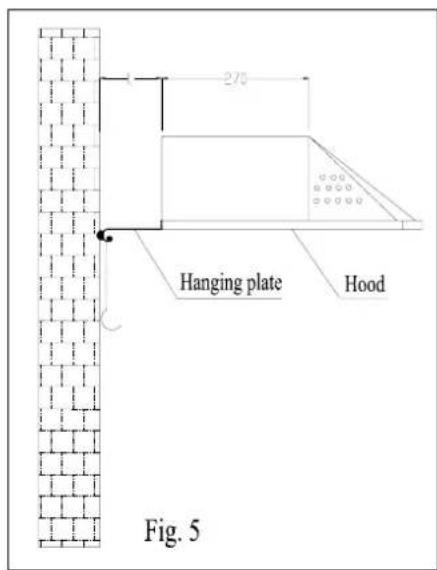

MOUNTING OF THE HOOD ON THE WALL

• Drill 4 holes of 6 on the wall, which correspond to the position (B-Z) of the Fig. 1.
• Hang the hood on the 2 holes by using the screws with expanding plugs, which are appropriate for walls of concrete, plasterboard etc.
• Fix definitely the hood through the 2 security holes.
• Air that is used for exhausting fumes from appliances burning gas or other fuels, must not be discharged into a flue.
• The minimum distance between the supporting surface for the cooking vessels (pots) on the

hob and the lowest part of the cooker hood must be at least 65 cm.

Regulations concerning the discharge of air have to be adhered to.

CHANGING FROM EXHAUSTING TO FILTERING (Fig. 1, 2, 3, 4)

At first remove the metallic filter (G) and turn the small lever (L) from the position (A) to the position (F), then fix the charcoal filter, lastly replace the metallic filter (G). Now the hood is ready for the filtering function.

USE AND MAITENANCE

• It is recommended to operate the appliance prior to cooking.
• It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapors and odours.

Before servicing, repairing or cleaning the hood, make sure the appliance is disconnected from the mains supply either by removing the plug or switching the power socket to OFF.

- It is recommendable to clean the metallic filter frequently by carrying out the following instructions:

• Remove the metallic filter from the cooker hood and wash it in a solution of water and neutral liquid detergent, leaving to soak. Rinse thoroughly with warm water and leave to dry. The metallic filter may also be washed in the dishwasher.

• The metallic filter may alter in color after several washes. This is not cause for customer complaint nor replacement of metallic filter.

• The charcoal filter purifies the air that is replaced in the environment. This filter is neither washable nor re-useable and must be replaced at least every 3 months. The saturation of the charcoal filter depends on the frequency of the use of the appliance, by the type of cooking and the regularity of cleaning the metallic filter.

• Clean the fan and other surfaces of the cooker hood regularly using a cloth moistened with a non abrasive liquid detergent.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.

Service and Spares

In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local Kelvinator Service Centre by telephoning:

0860 234 481 (South African Customers)

[phone] (International Customers)

Help us to help you

Please determine your type of enquiry before writing or telephoning. When you contact us we need to know:

• Your name
• Telephone Number
  ■ Physical Address where appliance is located
  ■ Model and Serial Number of the appliance
  ■ Clear and concise details of the fault

Customer Care

For general enquiries or information regarding Kelvinator appliances contact:

Customer Care Department

Kelvinator

P.O. Box 3657

Johannesburg

2000

South African Customers: 0860 234 481

International Customers: [phone]

E-mail:

[e-mail]

Guarantee Conditions

1. The guarantee is valid for Twelve (12) months commencing when the appliance is handed over to the first retail purchaser, which must be verified by purchase invoice or similar documentation.
2. Kelvinator guarantees the equipment against defective material or faulty manufacture, provided it is used for domestic use from the date of purchase by the original purchaser. If not used as above-mentioned, the warranty period will limited.
3. If the appliance is used or installed more than Fifty (50) kilometres from the nearest Kelvinator Authorised Service Agent, the additional distance covered shall be for the account of the purchaser.
4. The risk in regard to appliances to be repaired shall at all times remain with the purchaser.
5. This guarantee is given on condition that only genuine Kelvinator parts and accessories are used at all times in the appliance.
6. Kelvinator shall not be responsible for damage of any kind resulting from electricity fluctuations, faults in the building wiring, faulty installations, improper use of controls or failure to use the appliance in accordance with the operating instructions and/or general misuse and/or abuse, which would include unforeseen accidents, wear and tear, and/or earthquake, flood, lightning or any other natural disaster beyond the control of Kelvinator.
7. Any attempt by an unauthorised person to repair or tamper with the appliance shall render this guarantee null and void.
8. This guarantee does not include bulbs, loose glass, glass oven doors, enamelled surfaces, discolouring of stainless steel surfaces, filters and other parts subject to wear and tear.
9. Kelvinator shall not be responsible in terms of this guarantee for the replacement or repair of any parts of the appliance if damaged during transit, where packaging damage is visible.
10. Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of Kelvinator.
11. This guarantee shall be available only to a purchaser of Kelvinator appliances from an authorised Electrolux Home Products/Kelvinator Dealer or Distributor in and where the appliance has been retained for use in the Republic South Africa, Namibia, Swaziland, Lesotho and Zimbabwe.
12. Failure to produce documentary proof of the date or original acquisition by the original purchaser will result in normal charges being levied for the work carried out and the parts supplied.
13. The liability of Kelvinator under this guarantee is limited to the replacement and/or repair of the defective parts within the guarantee period and does not extend to be installation or removal of the appliance. Furthermore, Kelvinator does not accept responsibility or liability to compensate for any consequential loss or damage of any kind caused by or due to the failure of operation or malfunction of any equipment to which this guarantee applies.
14. It is at the sole discretion of Kelvinator that, in terms of guarantee, consideration be given to replace the appliance due to various parts failing of a similar nature or in the event of the appliance being in a state of beyond repair.
