OVA38251 - Lighting SCHNEIDER - Free user manual and instructions

Brand	Schneider
Model	OVA38251
Product Type	Indoor Lighting Fixture
Dimensions (L x W x H)	30 x 30 x 10 cm
Weight	1.2 kg
Power Source	Mains (220-240V AC, 50/60Hz)
Wattage	18 W
Luminous Flux	1200 lm
Color Temperature	3000K - 6500K (adjustable)
Dimmable	Yes (with compatible dimmer)
IP Rating	IP20
Lifespan	25,000 hours
Material	Aluminum, Polycarbonate
Mounting	Ceiling or wall mount
Certifications	CE, RoHS
Warranty	2 years
Maintenance	Wipe with dry cloth, avoid water
Safety	Install by qualified electrician
Spare Parts	LED module, driver, diffuser

Frequently Asked Questions - OVA38251 SCHNEIDER

What type of bulb does the OVA38251 use?

The fixture uses integrated LED modules and does not require replaceable bulbs. The entire LED panel is designed to last the lifetime of the product.

Can the OVA38251 be dimmed?

Yes, it is dimmable when used with a compatible dimmer switch. Please ensure the dimmer is rated for LED loads.

What is the color temperature range?

The fixture offers adjustable color temperature from warm white (3000K) to cool daylight (6500K), allowing you to set the ambiance as desired.

Is this light suitable for bathrooms or damp locations?

No, the OVA38251 has an IP20 rating, meaning it is only suitable for dry indoor areas. Do not install in bathrooms or outdoors.

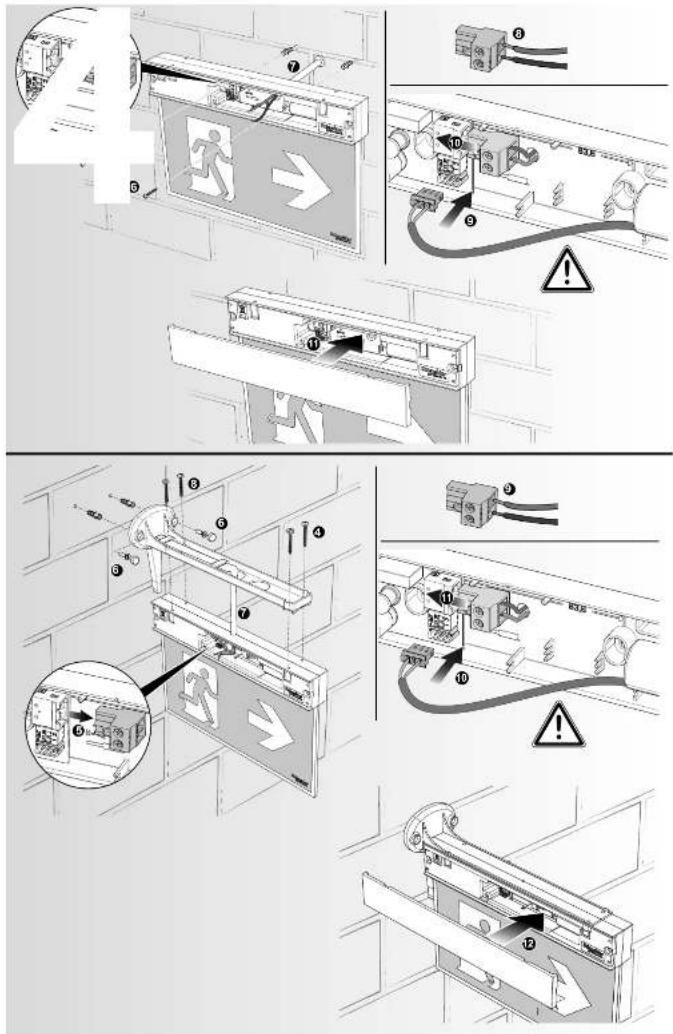

How do I install the OVA38251?

Installation should be performed by a qualified electrician. Mount the fixture securely to a ceiling or wall using the provided brackets and connect to mains power following local regulations.

Can I replace the LED module if it fails?

Yes, the LED module is replaceable. Contact Schneider customer service or an authorized dealer for spare parts. The driver is also replaceable.

What is the energy consumption of this light?

The fixture consumes 18 watts of power, producing 1200 lumens, which makes it highly energy-efficient compared to traditional lighting.

Does the OVA38251 come with a remote control?

No, it does not include a remote control. It is controlled via a standard wall switch or a compatible dimmer.

What is the warranty period for this product?

Schneider offers a 2-year warranty for the OVA38251 lighting fixture against manufacturing defects. Keep your purchase receipt for warranty claims.

Can I use this light with a smart home system?

The OVA38251 is not natively smart. However, you can integrate it with a smart dimmer or smart switch to enable remote control and automation.

USER MANUAL OVA38251 SCHNEIDER

[QR CODE]
    note right of B: 12 h → 1.5 h
    note right of C: 24 h → 3 h
    note right of D: 0% or 100% battery
    note bottom of C: Attenders 12 ore alla richè il prodotto sia operativo (incertice)
    note bottom of D: Wait 12 hours to have a working product (sharged)
