OVA38253 - Lighting SCHNEIDER - Free user manual and instructions

Product Type	LED Ceiling Light Fixture
Brand	Schneider
Model	OVA38253
Category	Indoor Lighting
Light Source	Integrated LED (non-replaceable)
Power Consumption	10W
Luminous Flux	800 lm
Color Temperature	3000K - 4000K (selectable)
Input Voltage	220-240V AC
Frequency	50/60 Hz
IP Rating	IP20 (indoor use only)
Material	Aluminum housing, polycarbonate diffuser
Dimensions (W x H x D)	300 mm x 300 mm x 50 mm
Weight	0.5 kg
Mounting Type	Surface or recessed ceiling mount
Dimmable	No
Lifespan	25,000 hours
Warranty	2 years
Energy Class	A+
Package Contents	Fixture, mounting bracket, screws, instruction manual
Operating Temperature	-10°C to 40°C
Special Features	Instant start, flicker-free, memory function
Cleaning and Maintenance	Wipe with a dry, soft cloth. Do not use liquids or abrasive cleaners.
Safety Instructions	Disconnect power before installation or maintenance. Use only with proper grounding.
Reparability	Not user-serviceable. Contact a qualified electrician for repairs.

Frequently Asked Questions - OVA38253 SCHNEIDER

How do I install the Schneider OVA38253 ceiling light?

Turn off the power at the breaker. Remove the existing fixture, connect the wires (live to L, neutral to N, ground to earth), and secure the mounting bracket. Attach the fixture and restore power. Refer to the manual for detailed diagrams.

Is the OVA38253 dimmable?

No, this model is not dimmable. Using it on a dimmer circuit may cause flickering or damage.

What bulb does this light use?

It uses an integrated LED module. The bulb is not replaceable; if the LED fails, the entire fixture needs to be replaced.

Can I use this light outdoors?

No, the OVA38253 has an IP20 rating, making it suitable only for dry indoor locations.

How do I clean the fixture?

Disconnect power. Wipe the surface with a soft, dry cloth. Do not use water, chemicals, or abrasive materials as they may damage the finish.

What color temperature options does it have?

The light has a selectable color temperature: 3000K (warm white) or 4000K (cool white). Adjust via a switch on the back of the fixture before mounting.

Is it compatible with smart home systems?

This model is not compatible with smart home systems unless used with an external smart switch that controls the power. It does not have built-in WiFi or Bluetooth.

How long does the LED last?

The LED lifespan is rated at 25,000 hours. Actual lifespan may vary with usage and operating conditions.

What is the warranty period?

Schneider offers a 2-year warranty from the date of purchase against manufacturing defects. Keep your receipt.

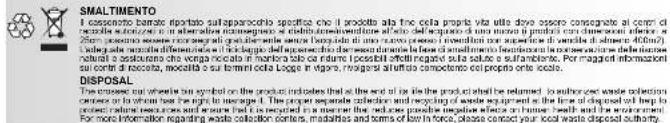

How should I dispose of this light at end of life?

Dispose of it as electronic waste at a local recycling center. Do not throw it in household trash as it contains electronic components.

USER MANUAL OVA38253 SCHNEIDER

Schneider Electric Industries SAS Jo Horace, Romania 10.51.19.2017 (2) 38-45-00 (2) 38-45-00 (2) 38-45-00

