BI14WD - Warming Drawer BELLING - Free user manual and instructions
Find the device manual for free BI14WD BELLING in PDF.
| Product Type | Warming Drawer |
| Brand | Belling |
| Model | BI14WD |
| Dimensions (W x H x D) | 595 x 140 x 560 mm |
| Weight | 18 kg |
| Electrical Supply | 220-240 V AC, 50/60 Hz |
| Total Power Input | 410 W |
| Temperature Range | 40°C to 80°C (in 10°C steps) |
| Automatic Programs | Heating plates, Heating cups, Keeping food warm, Yogurt, Defrosting |
| Manual Mode | Yes, with adjustable temperature and time (1-4 hours) |
| Child Lock | Yes, activated by pressing Manual operation sensor for 5 seconds |
| Control Type | Touch sensor |
| Maximum Drawer Load | 30 kg |
| Capacity Guide | Serving set for 6 persons (plates, bowls, etc.) |
| Installation Type | Built-in (fitted into kitchen unit) |
| Power Cord | 1.5 m, without plug (cord type H05VV-F 3G1.5) |
| Material | Stainless steel (front panel), glass (inner bottom removable) |
| Cleaning Instructions | Use soft sponge, mild detergent, and lukewarm water; avoid abrasives and steam cleaners |
| Safety Features | Auto shut-off, child lock, overheat protection, warning: hot surfaces |
| Spare Parts Availability | Contact Belling Spares Store at 0344 815 3745 or www.belling.co.uk |
| Warranty | 12-month manufacturer's guarantee |
| Country of Destination | GB, IE, DE, ES, FR, IT, PL, NL, SE, CN, NZ, AU |
Frequently Asked Questions - BI14WD BELLING
User questions about BI14WD BELLING
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Warming Drawer in PDF format for free! Find your manual BI14WD - BELLING and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BI14WD by BELLING.
USER MANUAL BI14WD BELLING
Countries of destination:
GB - Great Britain ☑
IE - Ireland ☑
DE - Germany
ES - Spain
FR - French
IT - Italy
PL - Poland
NL - Netherlands
SE - Sweden
CN - China
NZ - New Zealand
AU - Australia
To contact Belling about your appliance, please call:
Customer Care Helpline
0344 815 3746
in case of difficulty within the UK
Warranty Registration
0800 952 1068
*Please call our Customer Care team for extended warranty
Spares Store
0344 815 3745
To register your appliance online:
www.belling.co.uk
To contact us by email:
gdhainfo@gdha.com
To register your appliance by mail:
Please complete the warranty card and return to the address supplied
Alternatively general, spares and service information is available from
our website at: www.belling.co.uk
Calls are charged at the basic rate, please check with your telephone service provider for exact charges
Your new appliance comes with our 12-month guarantee, protecting you against electrical and mechanical breakdown. To register, please complete the registration form included, register online or by phone. For full terms & conditions of the manufacturer's guarantee, please refer to the web-site above. In addition, you may wish to purchase an extended warranty. A leaflet explaining how to do this is included with your appliance.
Our policy is one of constant development and improvement, therefore we cannot guarantee the strict accuracy of all of our illustrations and specifications. Changes may have been made subsequent to publishing.
Glen Dimplex Home Appliances, Stoney Lane, Prescot, Merseyside, L35 2XW
This user guide book is designed to help you through each step of owning your new product.
Please read it carefully before you start using your appliance, as we have endeavored to answer as many questions as possible, and provide you with as much support as we can.
General information, spares and service information is available from our website.
If you should find something missing from your product or have any questions that are not covered in this user guide, please contact us (see contact information inside the front cover).
European Directives
As a producer and a supplier of cooking appliances we are committed to the protection of the environment and are in the compliance with the WEEE directive. All our electric products are labelled accordingly with the crossed out wheeled bin symbol. This indicates, for disposal purposes at end of life, that these products must be taken to a recognized collection points, such as local authority sites/local recycling centres.
This appliance Complies with European Community Directives (CE) for household and similar electrical appliances and Gas appliances where applicable.
This appliance conforms to European Directive regarding Eco design requirements for energy-related products. Our policy is one of constant development and improvement, therefore we cannot guarantee the strict accuracy of all of our illustrations and specifications - changes may have been made subsequent to publishing.
Disposal of Packaging Material
The packaging materials used with this appliance can be recycled. Please dispose of the packaging materials in the appropriate container at your local waste disposal facilities.
DECLATAION OF COMPLIANCE
When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it. Contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.
If you smell gas, Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Help line at 0800 111999
CONTENT
| 5 | IMPORTANT INFORMATION, INSTRUCTIONS AND RECOMMENDATIONS | INTRODUCTION AND DESCRIPTION |
| 7 | DESCRIPTION AND OPERATION OF APPLIANCE | |
| 9 | THE USE OF WARMING DRAWER | OPERATION |
| 11 | CLEANING AND MAINTENANCE | MAINTENANCE AND RECLAMATION |
| 11 | TROUBLESHOOTING | |
| 12 | THE CONNECTION OF APPLIANCE TO POWER NET | INSTALLATION |
| 13 | INSTRUCTIONS FOR INSTALLATION | |
| 16 | TECHNICAL DATA | TECHNICAL DATA |
SAFETY MEASURES
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Before connecting, check that the data concerning the nominal voltage on the product's data sheet corresponds with the voltage of your electrical network. The appliance should only be installed and connected to the electrical network by an authorized service technician or similarly qualified person with national standards and regulations.
The producer bears no responsibility for damage to the appliance or human health arising from faulty mounting or connecting.
Have the date of installation confirmed in the in the written Guarantee.
The producer bears no responsibility for damage to the appliance or from incorrect use or from defects in the protective systems of the electrical network (e.g. overvoltage).
Use the appliance after it has been fitted in the cabinet.
Caution! Never dismantle the cover of appliance. An eventual contact with alive parts means endangering of the user safety.
Caution! During any kind of dismantling or assembly of the appliance outside its normal use, the electrical supply to it should be disconnected and secured in the OFF state. When disconnecting the appliance one of the following must be carried out:
- Switch off the fuse or circuit breaker in the distributor box.
- Pull out the plug from the socket. Do not pull the plug out by its cable but take hold of the plug itself.
Interference with the appliance or unprofessional service could lead to a risk of serious injury or damage to health as well as damage to the appliance itself. Installation and all repairs, modifications or checks to the appliance should be carried out by an authorized service technician or similarly qualified person only. The producer bears no responsibility for personal injuries or losses caused by incorrect manipulation or unprofessional interference with the appliance.
A damaged feed cable must only be replaced by a service technician or other professionally competent person to prevent dangerous situations arising.
If any fault occurs in the appliance within the guarantee period, do not repair it yourself. Put the appliance out of service and request repair from an authorized person competent for such work. The producer is not responsible for eventual losses arising from failure to observe the instructions and recommendations given in this manual.
This appliance is intended solely for domestic use!
Incorrect use could endanger the user.
This appliance should only be used for warming dinner service, keeping food warm, for preparation of yogurt, and similar uses. Any other use is not acceptable and could be dangerous. The producer
accepts no responsibility for dropouts or defects arising as a consequence of unsuitable or incorrect use of the appliance.
Depending on the chosen temperature and duration of operation, the temperature inside the appliance can reach up to 80 °C . Use oven gloves or a teatowel to remove dishes from the warming drawer.
WARNING: The appliance self and its accessible parts will be hot during the use.
Children under the age of 8 should not be allowed near the appliance except under adult supervision.

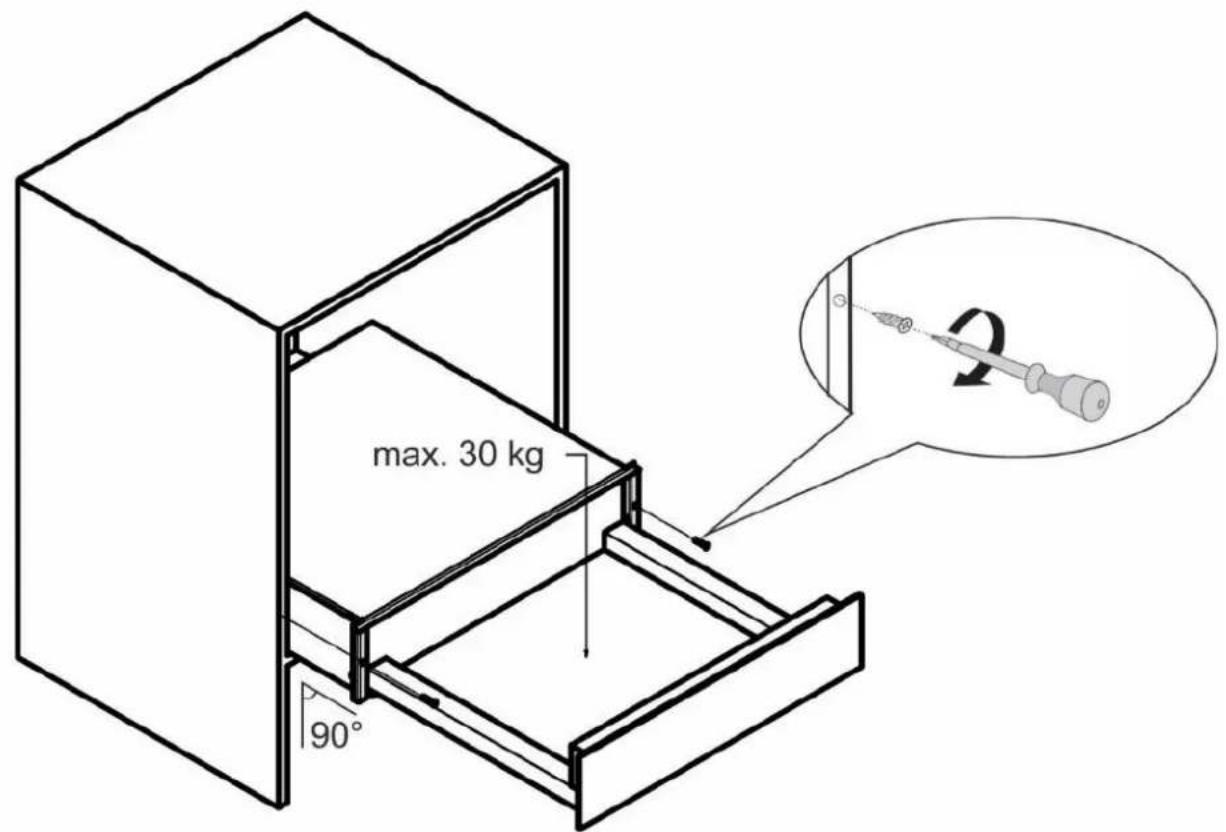

Do not sit or lean on the drawer. This could damage the telescopic fittings.
Maximum load of drawer is 30 kg.
CAUTION! Danger of fire: Do not put synthetic dishes or flammable objects into the warming drawer. Such dishes or objects could melt or ignite after the drawer is switched on.
Do not use for other purposes, for instance for room heating. The high temperatures could cause the ignition of flammable objects near the appliance.
Never use steam or pressure cleaners for cleaning of the appliance.
There is a risk of electric shock. The steam could damage the electrical parts and cause a short circuit. The steam pressure could permanently damage the surface and parts of the appliance.
When you stop using the appliance, such as at the end of its operational life, disconnect it from the mains and remove the feed cable to ensure the safe state of appliance.
THE PURPOSE OF THE APPLIANCE
The appliance is designed for usual preparation of food in households and it should not be used for other purposes.
The individual possibilities of its use are fully described in this manual.
This appliance is intended for fitting into kitchen units and is designed for warming dinner service, defrosting food, keeping food warm and for preparation of yogurts.
Warming is carried out by a convection system which pumps warm air into the drawer. Thanks to circulation of the air dishes are heated up evenly and quickly. Even so, dishes in the rear part of the drawer could be hotter than those at the front.
The control panel includes control sensors with pre-defined programs as well as a manual mode, which offers a selection temperatures from 40–80°C (in 10°C steps) and automatic switching off at the end of the set warming period (1–4 hours).
The appliance will heat correctly only if the drawer is properly closed.
CONTROL ELEMENTS

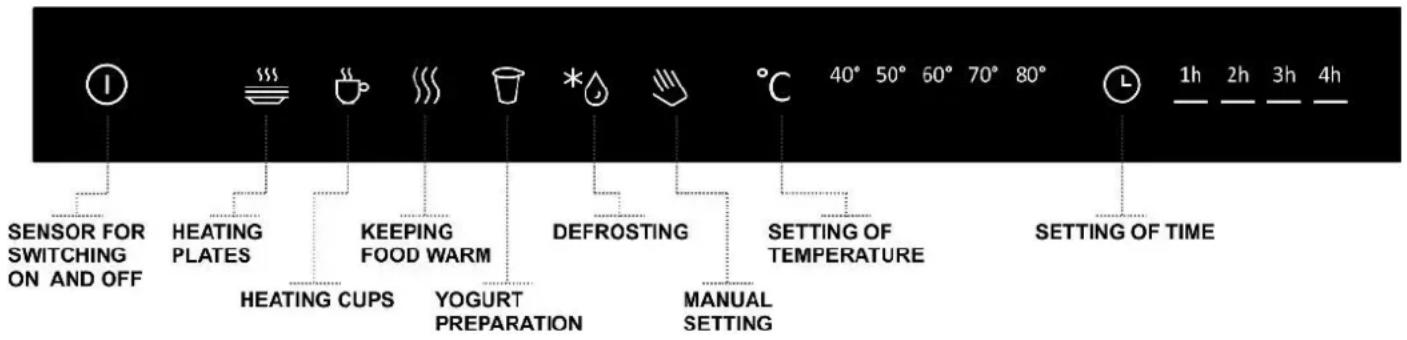

The sensor control is activated by touching the corresponding symbol on the control panel with your finger. The control panel should therefore be kept clean and dry.
Sensor for switching on and off
Before first use
Clean the appliance according to the instructions in the chapter „Cleaning and maintenance“ before first use.
Then leave the warming drawer in operation at maximum temperature for at least two hours. Ensure good ventilation of kitchen during this procedure. The parts of this appliance are protected with a special coating which may give off a slight smell when heated for the first time. This smell and any smoke will dissipate after a short period. It does not mean that the appliance or its connection are in any way defective.
Capacity
The capacity that can be loaded will depend on the size and weight of your own crockery. Do not overload the drawer. The maximum load bearing is 30kg .
Orientation capacity guide
Serving set for 6 persons
6 dinner plates 25.5 cm diam.
6 soup plates 22 cm diam.
6 dessert plates 23.5 cm diam.
1 oval plate width 32 cm
1 serving plate 19.5 cm diam.
1 serving plate 18.5 cm diam.
THE USE OF WARMING DRAWER
1 - Open the drawer...
2 - Switch ON the drawer by pressing on the touch sensor on/off.
3 - Place the dishes into the drawer.
4 - Select a suitable program or choose the manual operation and set the temperature and time.
5 - Close the drawer...
At the end of the heating time the heating system will stop and a signal will sound. The signal will sound continuously for one minute and then a short signal will sound after every minute. The drawer switches off five minutes after the selected program finishes.
If you want to interrupt the selected program open the drawer and press the touch sensor for switching it off. You can then select another program or prolong the heating duration after opening of the drawer.
Remark
When interrupting an automatic program the warming drawer will switch to manual operation. The change can not be done in the program Yogurt.
Heating time
Different factors can influence the length of the heating time:
The material and thickness of dishes
The quantity of heated dishes
The method of organization in the drawer
The setting of temperature
Perfect warming-through can therefore last different periods of time. The pre-set programs are in this regard for orientation only. After a while you will get to know what is the ideal heating time for your particular dishes.
The dishes in the rear part of the drawer could be hotter as in the front part of the drawer. Use oven gloves or a kitchen cloth for removing dishes from the drawer.
The switching the drawer on
The drawer can be switched on by pressing the ON touch sensor.

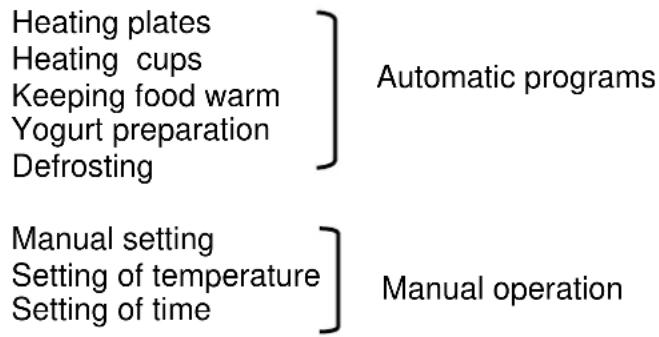

AUTOMATIC PROGRAMS
Heating plates
Select the program for Heating plates.
This automatic program has a pre-set temperature of 80^ C and a 1 hour heating time. It is designed for pre-heating of dinner servings. The pre-heated plates preserve the temperature of the served food.
Heating cups
Select the program for Heating cups.
This automatic program has a pre-set temperature of 60^ C and a 1 hour heating time. It is designed for pre-heating cups for preparation of warm drinks such as espresso coffee.
Keeping food warm
Select the program for Keeping food warm.
This automatic program has a pre-set temperature of 60^ C and a 2 hour heating time. It is designed for keeping cooked food warm in the dish or on serving plates.
Yogurt
Select the program for Yogurt preparation.
This automatic program has a pre-set temperature of 40^ C and a 4 hour heating time. It is designed for yogurt preparation. This procedure requires an exact temperature setting and an exactly determined duration, therefore these values cannot be modified.
Tip: Yogurt preparation
Heat up 1 liter of fresh full-cream milk to a temperature approximately 80 °C and then let it cool down to 40 °C. Stir into the milk 2 spoons of white yogurt with living culture. Pour the milk into jars. The jars should be totally clean, ideally sterilized. Put the jars into the center of the drawer. Don't put the jars closer than 10 cm from the back wall of the drawer. The air has to circulate around the jars, leave the gaps between them. Select the program for Yogurt. The program is complete after 4 hours, then let the yogurt an additional 2 hours in the drawer without heating. The yogurt will be ready after 10 hours in the refrigerator where it needs to ripe.
Defrosting
Select the program for Defrosting.
This automatic program has a pre-set temperature of 40^ C and a 2 hour heating time. It is designed for defrosting frozen food. Put the frozen food into a deeper dish or plate to catch water released during thawing.
MANUAL OPERATION
Select the Manual operation touch senzor.
Select the required temperature by repeatedly pressing the temperature touch sensor.
A selection of temperatures between 40–80°C are offered in 10°C steps.
The selected temperature is shown on the temperature display.
Select the required heating time period.
A selection of heating times from 1–4 hours is offered in 1 hour steps.
The selected time period is shown on the time display.
Child lock
The child lock is used to prevent children interfering with the drawer controls. You can activate the child lock by pressing the "Manual operation" touch sensor for 5 seconds.
The sensors will then be inactive. Only the "Manual operation" symbol will be lit up. The child lock can be deactivated by again pressing the "Manual operation" touch sensor for 5 seconds.
Switching the drawer off
You can switch the drawer off by pressing the OFF touch sensor.
The drawer switches off automatically at the end of the set heating time.
Warning
Never use steam cleaners or high pressure cleaners for cleaning of the appliance.

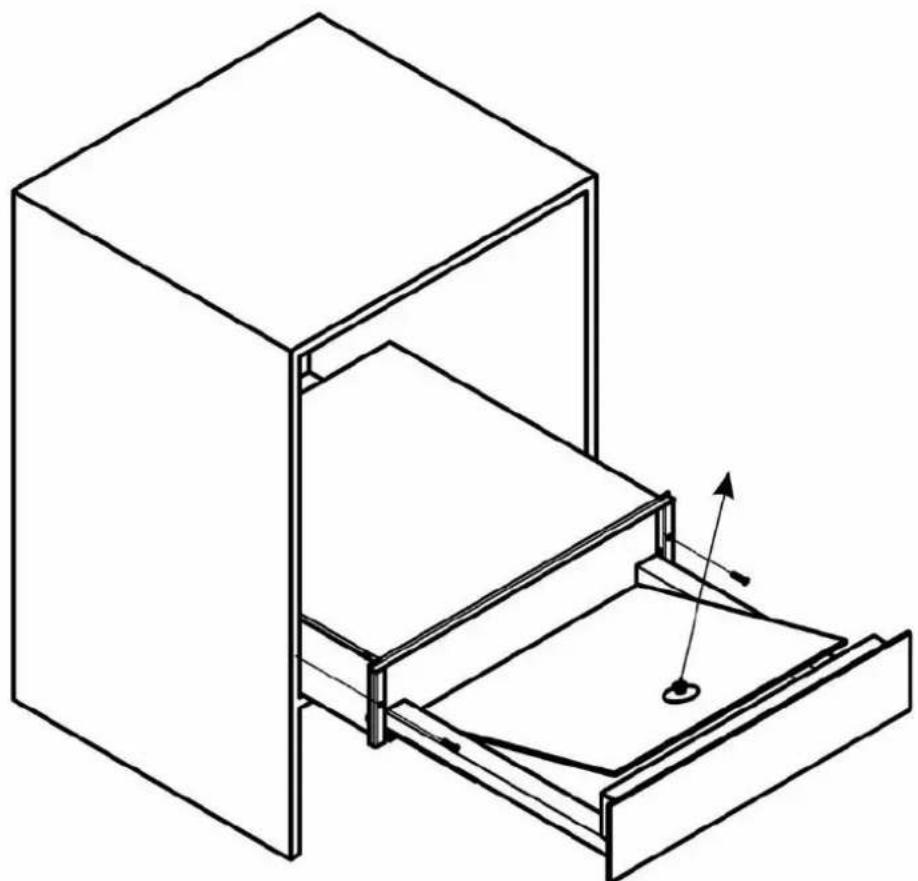

For removing of inner glass bottom use enclosed vacuum handle. See 'INTRUCTIONS FOR INSTALLATION', image 4.
Clean all surfaces with a soft sponge, a drop of detergent and lukewarm water. Then dry all surfaces with a soft cloth.
Clean front glass panel with cleaning means for glass and soft cloth. Do not use scraper.
Do not use: Detergents containing soda, acids or chloride, abrasive detergents (powder or cream) abrasive sponges (e.g. steel wool pads) or sponges containing residual abrasive detergent.
TROUBLESHOOTING
CAUTION! All repairs should only be carried out by a service technician or similarly qualified person. Repairs carried out by persons not authorized by the producer could be dangerous.
In case of minor defects first check if you can correct the fault with the help of this manual.
The dishes are not sufficiently heated.
Check, whether:
- the appliance is switched on;
- a suitable temperature has been set;
- the back wall of the drawer is not fully covered with the dishes;
- the dishes were heated long enough.
The time for heating depends on different factors including:
- the material and thickness of dishes;
- the quantity of dishes;
- the arrangement of dishes,
The dishes are not heated at all.
Check, whether:
- the fuse hasn't blown or the circuit breaker in the distributor box hasn't been tripped.
- you can hear the ventilator working.
If the ventilator is running then the heating element is defective.
A faulty temperature sensor is signaled by a flashing temperature display and intermittent sound signal. The drawer will then automatically switch off.

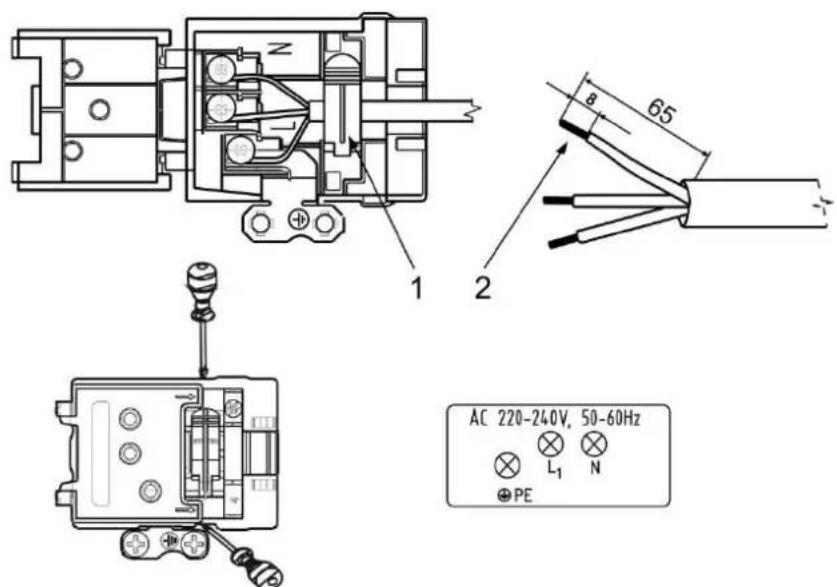

The appliance may only be connected to the electrical network by an authorized person and in compliance with national standards and regulations.
A device for disconnecting all poles of the appliance should be included in the circuit before the appliance for disconnecting the appliance from the network. This obligation is not necessary, when the supply cord is provided with a plug and this plug can be easily and without obstruction pulled out from the socket.
The appliance is delivered with a 1.5 mm diameter, three-core cable, type H05VV-F 3G1,5. The wire ends should be fastened against fraying with pressed on cable ends.
The appliance must be connected to a mains supply with the correct voltage as indicated on the rating plate and by means of a supply line of the appropriate rating.
CONNECTION
- Clip against cord tearing
- Wire ends braced with pressed terminal

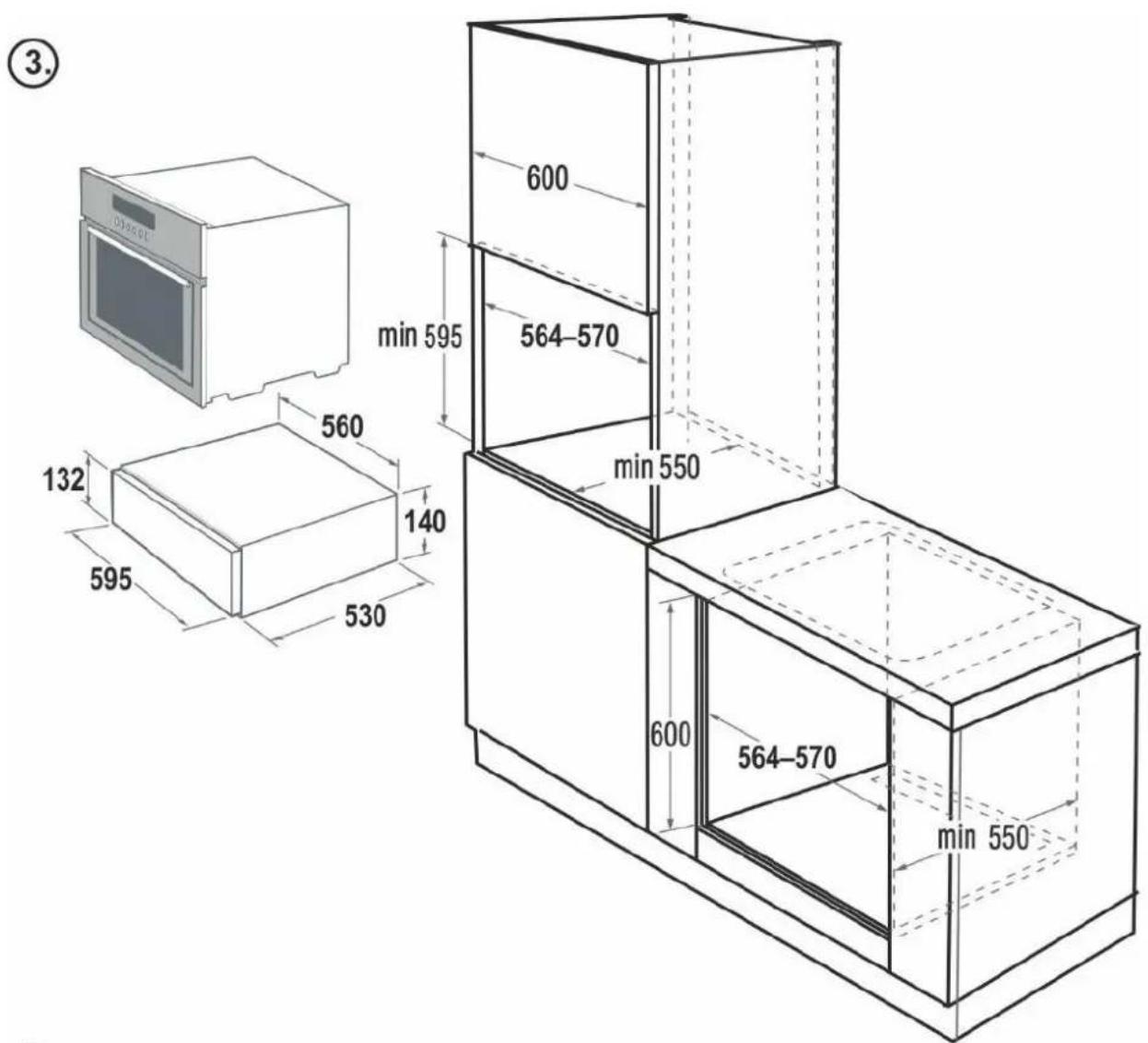

At installation of appliance the following steps should be provided from point of view of appliance:
The checking of correct connection to electric power net.
Checking the functioning of the heating element, ventilator and regulation elements.
The demonstration of appliance's all functions, operation and maintenance to the customer.
IMPORTANT NOTE!
At any manipulation with the appliance, except of normal use, it is necessary to disconnect the power, e.g. with pulling out of the plug from the socket or with switching off the main switch in front of the appliance.
This appliance is not designed for operation with help of an external timer or with a separate system of remote control.

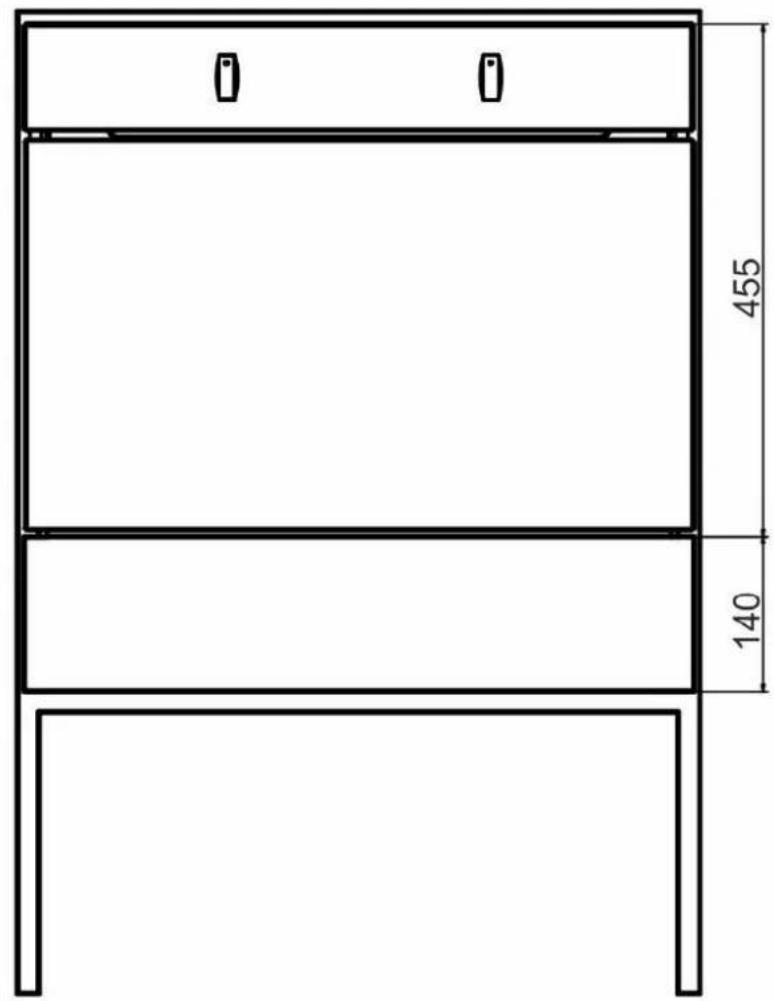

①.
②.
4.
| Built-In Warming Drawer | BEL BI14WD CN BK |
| Dimensions (WxHxD) | 595 x 140 x 560 mm |
| Electric voltage | 220-240V AC; 50/60Hz |
| Total electric input | 410 W |
| Product weight | 18 kg |
| Plug type | Without plug. The supply cord 1.5 m. |
For the specific power rating of your model, refer to the data badge on the front frame of your appliance.
WARNING: This appliance must be earthed.
The producer reserves the right for small modifications of manual, following from the technical or technological changes of product, which have no influence to the function of product.
Customer Care
Please keep this handbook in a safe place as the information inside may be of use should you sell, or pass on the appliance. Please fill in the model number and serial number in the spaces provided below as they will assist us should you need to call.
0344 815 3746
When you dial this number, you will hear a recorded message and be given several options. This indicates that your call has been accepted and is being held in a queue. Calls are answered in strict rotation as our Customer Care representatives become available.
Enter appliance number here for future reference:
Model No
Serial No
These numbers can be found on your appliances data badge. Outside the UK and Northern Ireland, refer to your local supplier.
Stoney Lane, Prescot, Merseyside, L35 2XW.
- Countries of destination:
- European Directives
- Disposal of Packaging Material
- DECLATAION OF COMPLIANCE
- SAFETY MEASURES
- Maximum load of drawer is 30 kg.
- THE PURPOSE OF THE APPLIANCE
- CONTROL ELEMENTS
- Before first use
- Capacity
- Orientation capacity guide
- THE USE OF WARMING DRAWER
- Remark
- Heating time
- The switching the drawer on
- AUTOMATIC PROGRAMS
- Heating plates
- Heating cups
- Keeping food warm
- Yogurt
- Tip: Yogurt preparation
- Defrosting
- MANUAL OPERATION
- Child lock
- Switching the drawer off
- Warning
- TROUBLESHOOTING
- CONNECTION
- IMPORTANT NOTE!
- Customer Care
- 815 3746
Brand : BELLING
Model : BI14WD
Category : Warming Drawer
