LAV-S6P - Microphone Synco - Free user manual and instructions

Product Type	Lavalier Microphone
Brand	Synco
Model	LAV-S6P
Polar Pattern	Omnidirectional
Frequency Response	20 Hz - 20 kHz
Impedance	200 ohms
Sensitivity	-30 dBV/Pa (1V/Pa at 1 kHz)
Signal-to-Noise Ratio	76 dB
Connector	3.5 mm TRS (locking)
Dimensions (Capsule Diameter)	5.8 mm
Cable Length	1.2 meters
Weight	15 g (microphone only)
Power Supply	Plug-in power (via transmitter/recorder)
Operating Voltage	2-10 V DC
Materials	Metal alloy capsule, rubberized cable
Included Accessories	Lavalier clip, foam windscreen, storage pouch
Cleaning Instructions	Wipe with dry, soft cloth; avoid moisture
Safety Precautions	Do not disassemble; keep away from liquids
Spare Parts	Windscreens, clips, cables available from Synco
Warranty	1 year limited warranty

Frequently Asked Questions - LAV-S6P Synco

What type of microphone is the Synco LAV-S6P?

The Synco LAV-S6P is a lavalier microphone designed for hands-free audio capture, ideal for video production, interviews, and presentations.

Does the LAV-S6P require batteries?

No, the LAV-S6P is a plug-in power microphone, powered directly by the connected device (e.g., wireless transmitter or recorder) via the 3.5 mm TRS jack.

Is the LAV-S6P compatible with smartphones?

It can be used with smartphones via a compatible audio adapter or wireless system. It is designed primarily for professional equipment like wireless bodypacks.

What polar pattern does the LAV-S6P have?

The LAV-S6P features an omnidirectional polar pattern, capturing sound equally from all directions, which reduces handling noise and allows for flexible placement.

How do I attach the LAV-S6P to clothing?

Use the included lavalier clip to secure the microphone to a lapel, tie, or collar. Ensure the clip is positioned 15-20 cm from the mouth for optimal sound.

Can I use the LAV-S6P outdoors?

Yes, but it is recommended to use the included foam windscreen to reduce wind noise. For severe wind conditions, a larger fur windscreen is advised.

How do I clean the LAV-S6P?

Gently wipe the microphone and cable with a dry, soft cloth. Avoid using liquids or cleaning agents. Store in a dry place.

What is the frequency response of the LAV-S6P?

The frequency response is 20 Hz to 20 kHz, covering the full range of human hearing, ensuring natural and clear audio reproduction.

Is the cable detachable?

No, the cable is permanently attached to the microphone capsule. It is designed to be rugged and strain-resistant.

What spare parts are available for the LAV-S6P?

Synco offers replacement windscreens, lavalier clips, and cables. Contact Synco support or authorized dealers for purchase.

USER MANUAL LAV-S6P Synco

Guangzhou Zhiying Technology Co., Ltd

Block 15.h, No 200 Fangqun Avenue East, Jwan District, Guangzhou, China, 513000
[e-mail]
www.syncoaudio.com
https://www.facebook.com/syncomicrophones

Microphone Lav-S6 Series >> User Manual

I thank you for choosing SYNCO Lav-S6 Series.

Please read this manual carefully before use and follow all instructions mentioned herein.

Contents

● Caring For Your SYNCO Microphone....1
● Operations....1

① The Use of Microphone
② Battery Replacement
③ The Use of Wind Muff and Windshield

• Specifications....3
• Specifications....3
  Warranty....4

Caring For Your SYNCO Microphone

• Please keep the product in a dry, clean, dust-free environment.
• Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanics damage.
• Use only a soft and dry cloth for cleaning the product.
• Malfunction may be caused by dropping, impact of external force.
• Do not attempt to disassemble the product. Doing so voids warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happened.
  ● Failure to follow all the instructions may result in mechanics damage.
• Warranty does not apply to human errors.

Operations

1. The Use of Microphone

① Simply attach the Tie Clip to collars, ties or other clothing, and plug it into your devices' microphone jack.
(Note: For Apple devices, iPhone6 and predecessors can use the microphone's 3.5mm connector directly, iPhone7 and subsequent devices require Apple's Lighting adapter. Some of Android devices may need a Type-c adapter to operate the microphone.)
② Slide the Switch Button to Camera or Phone mode according to your device.

1 www.syncoaudio.com www.syncoaudio.com 2

For camera series (cameras, recorders, audio mixers), slide the Switch Button to Camera mode. For phone series, slide the Switch Button to Phone mode.
③ Open the audio or video recording application on your device and begin recording. (Note: Android devices need the third-party applications to operate the microphone.)

2. Battery Replacement

SYNCO Lav-S6 Series uses a replaceable LR44 battery. When the battery runs out, please replace and install the battery as shown below.

3. The Use of Wind Muff and Windshield

SYNCO Lav-S6 Series comes with wind muff or windshield to eliminate the noise caused by wind or friction while recording. Please install the wind muff or windshield to the microphone as below.

Specifications

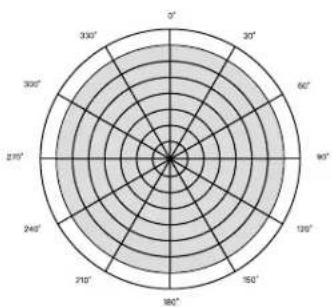

1. Polar Pattern: Omni-directional

3 www.syncoaudio.com www.syncoaudio.com 4

1. Performance Parameter

Transducer	Electrot Condenser
Polar Pattern	Omni-directional
Frequency Range	60Hz 19KHz
Signal/Noise	75dB
Sensitivity	-30dB +/-3dB/ 0dB=1V/Pa,1KHz
Output Impedance	1000 Ohm
Audio Cable	6 meters
Connector	3.5mm (1/8") 4-pole gold plug
Battery Type	LR44
Dimensions	Φ17.5*50mm

Warranty

Warranty Period

Thank you for purchasing SYNCO products.

1. Customers are entitled to free replacement or repair service in case of quality defect(s) found in the product under normal use within 30 days upon receipt of the product.
2. Original SYNCO products are entitled to 12-month limited warranty service. The warranty period begins

on the date of purchase of brand new, unused products by the first end-user.

Within the warranty period, if product defect or failure is attributable to material defection or technological problem, the defective product or defective part will be repaired or replaced without charge (service and materials fee).

Warranty Exclusions and Limitations

● Faults resulted from inappropriate use of a product without following its operation specification

● Artificial damage, e.g. crash, squeeze, scratch, or soaking

- Modifications to a product by its user or a third party without prior written consent of SYNCO, e.g., replacement of element or circuit, label alteration

- The code on product is inconsistent with that of warranty certificate, or the code on the product or warranty certificate is altered or torn off

- All consumable accessory attached to a product, like cable, wind muff, battery

- Faults as a result of force majeure, such as fire, flood, lightning, etc.

Warranty Claim Procedure

- If failure or any problem occurs to your product after purchase, please contact a local agent for assistance, or you can always contact SYNCO's customer service through email at [e-mail].

- Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only sales return or chargeable service will be provided.

- If the SYNCO product is out of the warranty coverage, the service and the parts cost will be charged.

5 www.syncoaudio.com

WARRANTY CERTIFICATE
Please register your warranty. Meanwhile, you are welcomed to contact us via Email: [e-mail]
USER INFORMATION	Customer Name:
	Phone Number:
	Email:
	Address:
SALES INFORMATION	Sales Date:
	Model:
	Product Code:
	Dealer:
REPAIR RECORD	Service Date:
	Technician:
	Issue:
RESULT	Solved	Unsolved	Returned(Replaced)
