PRX69S - Loudspeaker Memphis Audio - Free user manual and instructions

Product Type	6x9-inch Coaxial Car Speaker
Speaker Size	6 x 9 inches (oval)
Design	2-Way (Woofer + Tweeter)
Peak Power Handling	300 Watts
RMS Power Handling	100 Watts
Impedance	4 Ohms
Sensitivity	92 dB @ 1W/1m
Frequency Response	30 Hz - 20 kHz
Mounting Depth	3.5 inches (89 mm)
Mounting Hole Diameter	6.0 x 8.9 inches (152 x 226 mm) oval
Magnet Weight	20 oz (567 g)
Cone Material	Injection-Molded Polypropylene with Mica
Tweeter Type	1-inch PEI Dome
Grille Included	Yes (mesh grille)
Voice Coil Size	1.5 inches (38 mm)
Woofer Surround	Rubber
Warranty	Limited Lifetime (original owner)
Maintenance	Wipe with dry, soft cloth; avoid moisture and solvents
Safety	Disconnect battery before installation
Compliance	RoHS, CE

Frequently Asked Questions - PRX69S Memphis Audio

What are the dimensions of the Memphis Audio PRX69S?

The PRX69S is a 6x9-inch oval speaker. The mounting hole dimension is approximately 6.0 x 8.9 inches (152 x 226 mm), with a mounting depth of 3.5 inches (89 mm).

What is the power handling of the PRX69S?

The speaker handles 100 Watts RMS and 300 Watts peak power. It is designed for moderate to high-power aftermarket car audio systems.

Is the PRX69S a 2-way or 3-way speaker?

It is a 2-way coaxial speaker with a dedicated woofer and a 1-inch PEI dome tweeter, delivering clear highs and strong mid-bass.

What is the impedance of this speaker?

The PRX69S has a nominal impedance of 4 Ohms, which is standard for most car audio systems.

Does the PRX69S come with a grille?

Yes, the speaker includes a protective mesh grille to shield the cone and tweeter from damage.

What is the frequency response of the PRX69S?

The frequency response ranges from 30 Hz to 20 kHz, producing deep bass and crisp highs suitable for many music genres.

How do I install the PRX69S?

Disconnect the car battery. Cut or drill a 6x9-inch hole in the mounting location. Connect speaker wire to the terminals (positive + and negative -), then screw the speaker into place using the included hardware. Ensure polarity is correct for proper phase.

Can I use the PRX69S in doors or rear deck?

Yes, the 6x9 size is commonly used in rear decks and also fits some door locations with custom adapters. Ensure mounting depth clearance before installation.

What type of music sounds best on the PRX69S?

With a balanced frequency response and 92 dB sensitivity, the PRX69S performs well across rock, pop, hip-hop, and classical. The rubber surround and polypropylene cone offer durability and low distortion.

Does this speaker need a break-in period?

While not strictly required, a 10-20 hour break-in at moderate volumes can improve suspension compliance and overall sound quality. Avoid excessive power during break-in.

USER MANUAL PRX69S Memphis Audio

A = PRX46
B = PRX410
C = PRX57/PRX570C/PRXS57
D = PRX6902/PRX6903/PRX690C/PRXS69/PRX69S
Established 1965, Memphis, TN, USA

Power Reference Speaker Warranty

Memphis Audio offers a limited warranty on Memphis Audio products on the following terms:

Length of Warranty

Power Reference Coaxial and Component Speakers - 1 Year

Ask your installing dealer about warranty extensions that may or may not be available.

What Is Covered

This warranty applies only to Memphis Audio products sold to consumers by Authorized Memphis Audio Dealers in the United States of America or its possessions.

Who Is Covered

This warranty covers only the original purchaser of Memphis Audio product purchased from an Authorized Memphis Audio Dealer in the United States. In order to receive service, the purchaser must provide Memphis Audio with a copy of the receipt stating the consumer name, dealer name, product purchased, and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Memphis Audio's discretion.

What Is Not Covered

1. Damage caused by accident, abuse, improper operation or installation, water, theft, shipping.
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Memphis Audio.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the US.
7. Any product not purchased from an authorized Memphis Audio Dealer.

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Memphis Audio any other liability in connection with the sale of the product.

EU Warranty

This product meets the current EU warranty requirements. See your Authorized dealer for details.

How To Obtain Service

Contact the Authorized Memphis Audio Dealer you purchased this product from.

If you need further assistance, call 800-489-2300 for Memphis Audio's Customer Service.

YOU MUST OBTAIN A RETURN AUTHORIZATION (RA#) TO RETURN ANY PRODUCT TO MEMPHIS AUDIO'S WARRANTY FACILITY. NO PRODUCT WILL BE ACCEPTED WITHOUT THIS RETURN AUTHORIZATION!

You are responsible for shipment of product to Memphis Audio. Repaired and replaced product will be returned freight prepaid.

FOR MORE INFORMATION, PLEASE VISIT: WWW.MEMPHISCARAUDIO.COM

MEMPHIS

AUDIO SINCE 1965

SHOW US YOUR INSTALL!

MemphisAudio

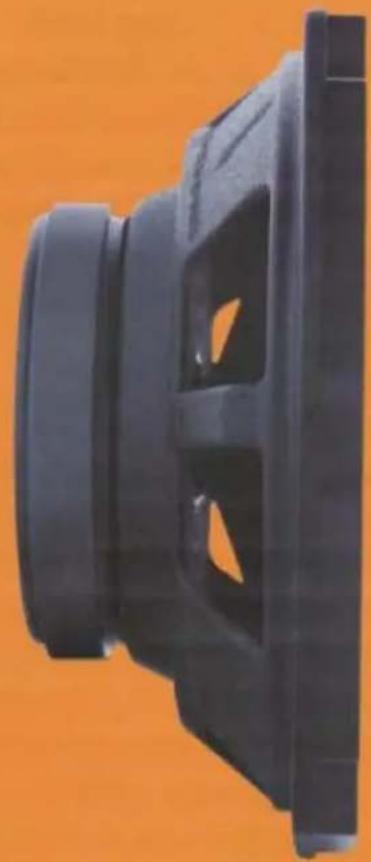

Close-up of a black plastic mechanical component against an orange background (no text or symbols visible)

6×9"

Shallow

PRX69S - SHALLOW

Size (in)	6x9
RMS / PEAK (w)	60/120
Sensitivity (dB)	88
Magnet Size (oz)	11
Mounting Depth (in)	2.29"

MEMPHIS

AUDIO SINCE 1965

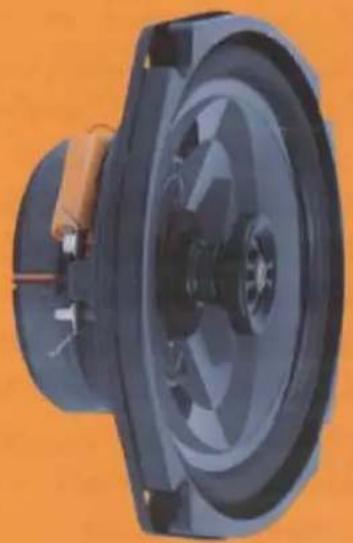

Close-up of a black speaker emitting fan blades, no visible text or symbols

Black oval-shaped speaker grille with mesh pattern, no visible text or symbols

FEATURES

• Shallow mount design
• 3Ω impedance
• Polypropylene cone
• Rubber surround
