| Product Type | Video Intercom |
| Brand | IDIS |
| Model | DC-I6212WRX |
| Monitor Dimensions (WxHxD) | 130 x 90 x 25 mm |
| Door Station Dimensions (WxHxD) | 130 x 50 x 30 mm |
| Monitor Weight | 0.5 kg |
| Door Station Weight | 0.3 kg |
| Power Supply | DC 12V, 2A or PoE (Power over Ethernet) |
| Power Consumption | ≤ 10 W |
| Display Resolution | 7-inch LCD, 1024 x 600 pixels |
| Camera Resolution | 2 MP (1920 x 1080) |
| Night Vision | Infrared LEDs, up to 5 m |
| Audio | Two-way full-duplex with noise reduction |
| Door Unlock | Electric strike release (12V output) |
| Connectivity | RJ45 Ethernet, Wi-Fi (optional dongle) |
| Motion Detection | PIR sensor, up to 10 m |
| Weatherproof Rating (Door Station) | IP65 |
| Mounting | Wall-mounted (monitor) and flush-mounted (door station) |
| Maintenance | Wipe with a soft dry cloth; do not use solvents |
| Safety | Low voltage operation; not intended for children under 3 years |
| Spare Parts | Available through authorized IDIS dealers |
| Reparability | Serviceable by qualified technician only |
Frequently Asked Questions - DC-I6212WRX IDIS
User questions about DC-I6212WRX IDIS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Intercom in PDF format for free! Find your manual DC-I6212WRX - IDIS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DC-I6212WRX by IDIS.
USER MANUAL DC-I6212WRX IDIS
Before reading this manual
This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product. Safety warnings and precautions contained in this operation manual are intended to promote proper use of the product and thereby prevent accidents and property damage and must be followed at all times. Once you have read this operation manual, keep it at an easily accessible location for future reference.
- The manufacturer will not be held responsible for any product damage resulting from the use of unauthorized parts and accessories or from the user's failure to comply with the instructions contained in this manual.
- The information in this document is believed to be accurate as of the date of publication even though explanation about some functions may not be incorporated. The manufacturer is not responsible for any problems resulting from the use thereof. The information contained herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.
- It is recommended that first-time users of this network camera and individuals who are not familiar with its use seek technical assistance from their retailer regarding product installation and use.
- If you need to disassemble the product for functionality expansion or repair purposes, you must contact your retailer and seek professional assistance.
- Both retailers and users should be aware that this product has been certified as being electromagnetically compatible for commercial use. If you have sold or purchased this product unintentionally, please replace with a consumer version.
Safety Symbols
| Symbol | Publication Description | |
| --- | IEC60417, No.5031 | Direct current |
In-Text
| Symbol | Type Description | |
 | Caution | Important information concerning a specific function. |
 | Note | Useful information concerning a specific function. |
Safety Precautions
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Important Safeguards
1. Read Instructions
All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipment without the approval of the manufacturer as such additions may result in the risk of fire, electric shock or other personal injury.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Placing and Accessories
Do not place this equipment on an wall or ceiling that is not strong enough to sustain the camera. The equipment may fall, causing serious injury to a child or adult, and serious damage to the equipment. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturer.
This equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.
Do not place this equipment in an enclosed space. Sufficient ventilation is required to prevent an increase in ambient temperature which can cause malfunction or the risk of fire.
7. Power Sources
This equipment should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power, please consult your equipment dealer or local power company.
You may want to install a UPS (Uninterruptible Power Supply) system for safe operation in order to prevent damage caused by an unexpected power stoppage. Any questions concerning UPS, consult your UPS retailer.
This equipment should be remain readily operable.
8. Power Cord
Operator or installer must remove power and TNT connections before handling the equipment.
9. Lightning
For added protection for this equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the equipment due to lightning and power-line surges. If thunder or lightning is common where the equipment is installed, use a surge protection device.
10. Overloading
Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.
11. Objects and Liquids
Never push objects of any kind through openings of this equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the equipment.
12. Servicing
Do not attempt to service this equipment yourself. Refer all servicing to qualified service personnel.
13. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have hit the equipment.
C. If the equipment has been exposed to rain or water.
D. If the equipment does not operate normally by following the operating instructions, adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the equipment to its normal operation.
E. If the equipment has been dropped, or the cabinet damaged.
F. When the equipment exhibits a distinct change in performance — this indicates a need for service.
14. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
15. Safety Check
Upon completion of any service or repairs to this equipment, ask the service technician to perform safety checks to determine that the equipment is in proper operating condition.
16. Field Installation
This installation should be made by a qualified service person and should conform to all local codes.
17. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type. Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
18. Tmra
A manufacturer's maximum recommended ambient temperature (Tmra) for the equipment must be specified so that the customer and installer may determine a suitable maximum operating environment for the equipment.
FCC Compliance Statement
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.
WARNING: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE CAUSING EQUIPMENT REGULATIONS.
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
Copyright
© 2023 IDIS Co., Ltd.
IDIS Co., Ltd. reserves all rights concerning this manual.
Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited.
Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.
Registered Trademarks
IDIS is a registered trademark of IDIS Co., Ltd.
Other company and product names are registered trademarks of their respective owners.
The software included in this product contains some Open Sources. You may obtain the corresponding source code which we have to distribute according to the license policy. For more information, refer to System > General page. This product includes software developed by the University of California, Berkeley and its contributors, and software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.oepnssl.org/). Also, this product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
Covered by one or more claims of the patents listed at patentlist.accessadvance.com.
1
Part 1 - Remote Setup....7
Remote Setup....7
Quick Setup....8
System....8
General 8
Date/Time 9
User/Group 10
Network 10
IP Address 11
FEN....12

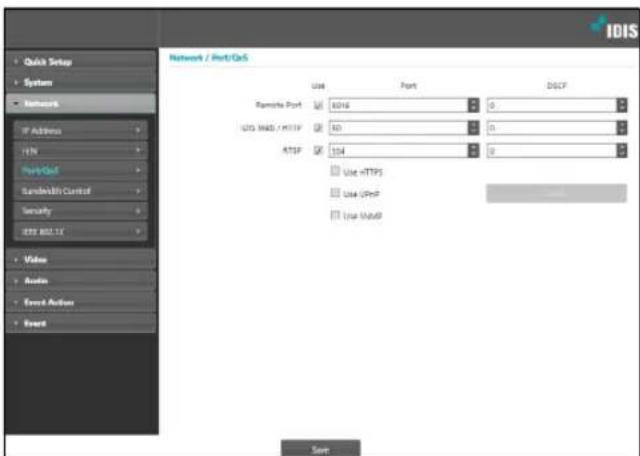

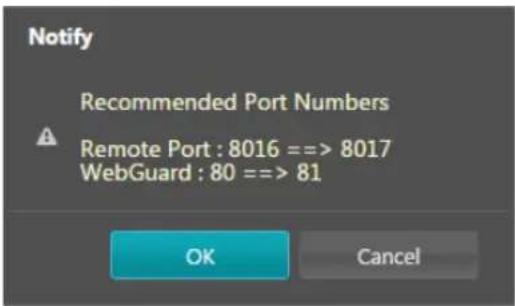

Port/QoS....13

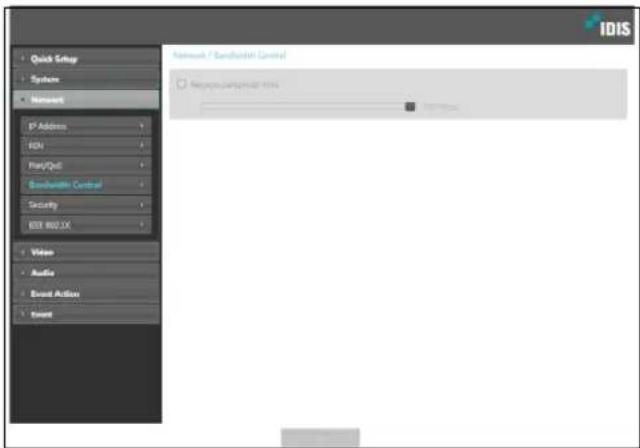

Bandwidth Control....14

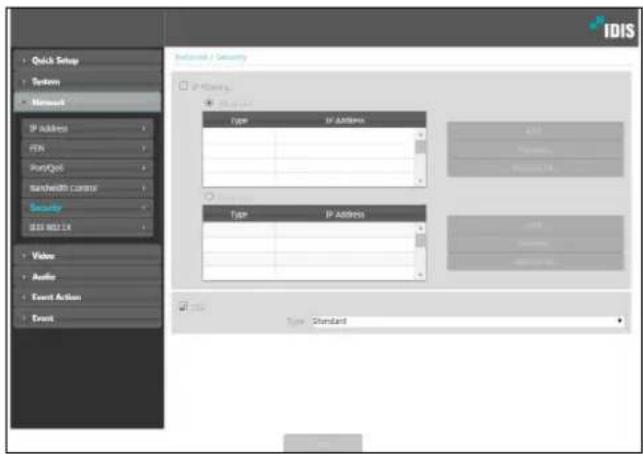

Security....14

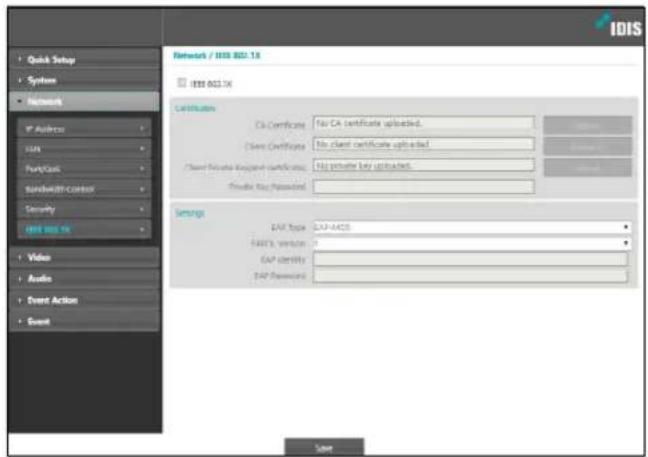

IEEE 802.1X 15

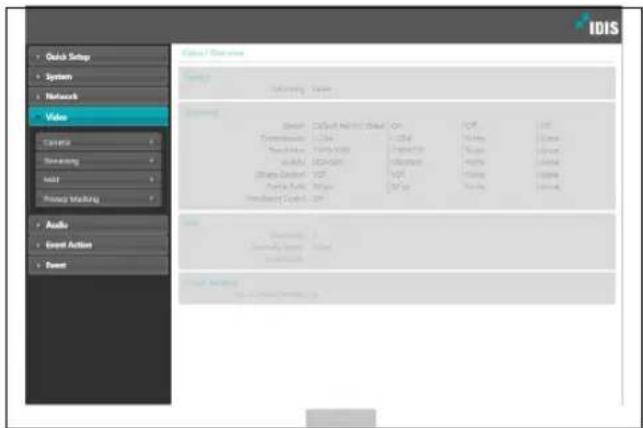

Video 15

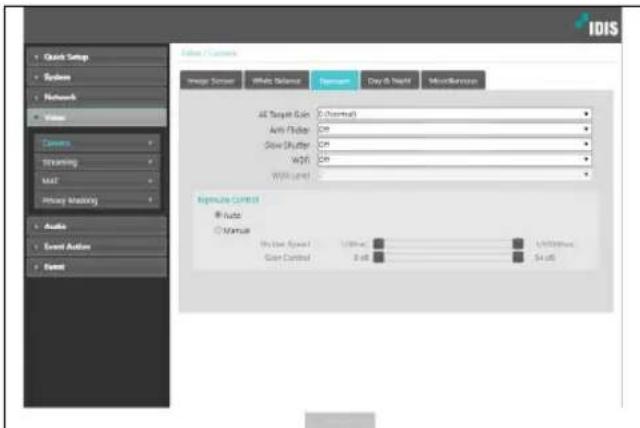

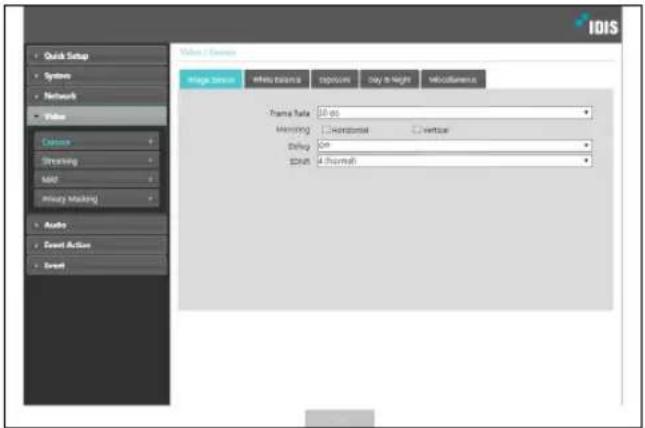

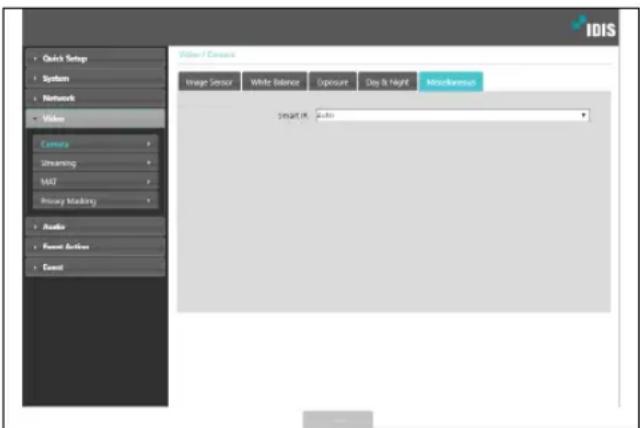

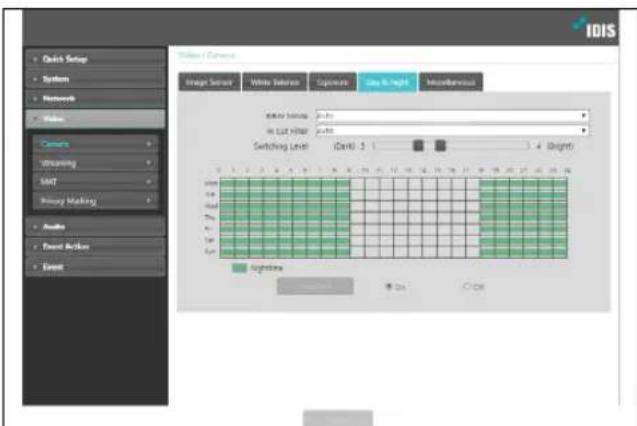

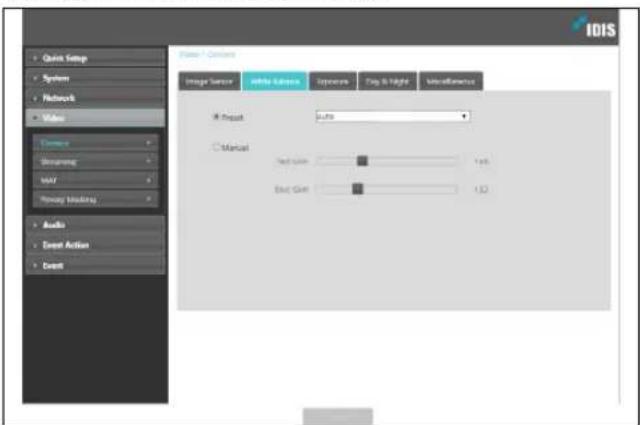

Camera 16

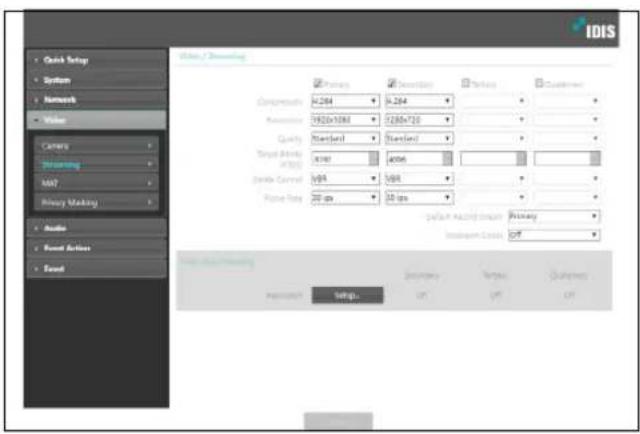

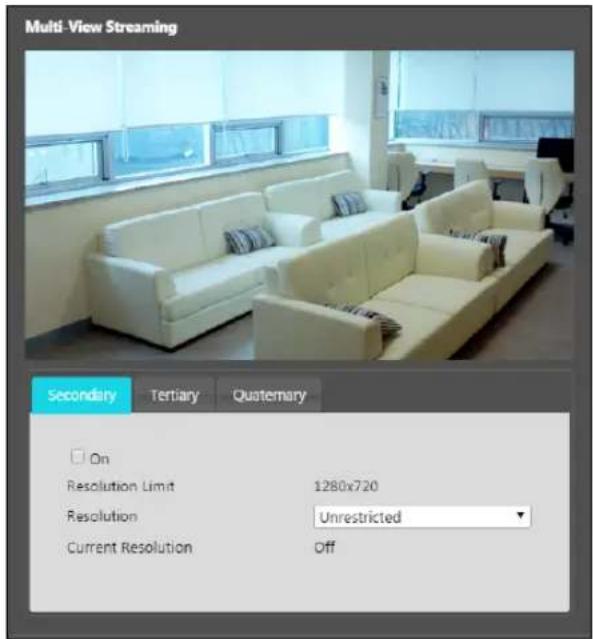

Streaming 19
MAT 20

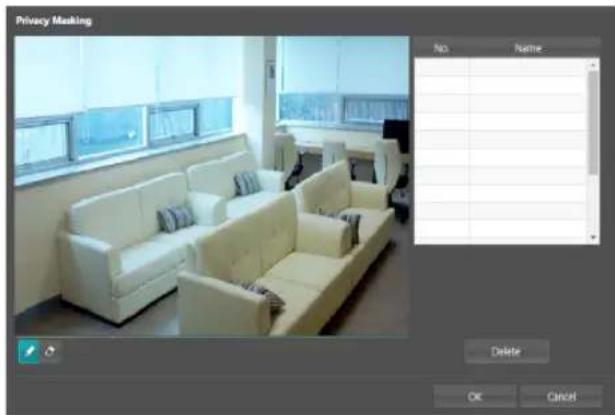

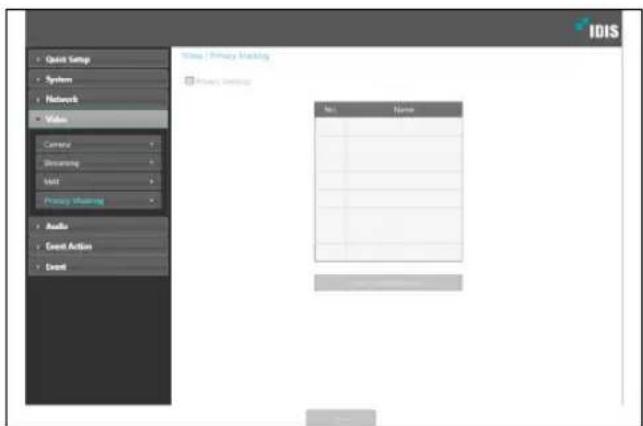

Privacy Masking....20

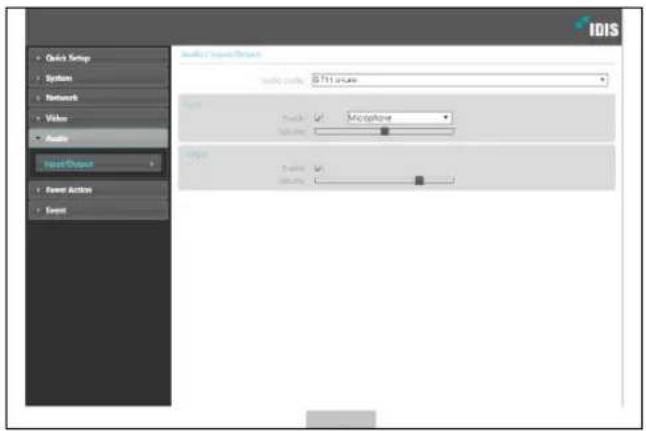

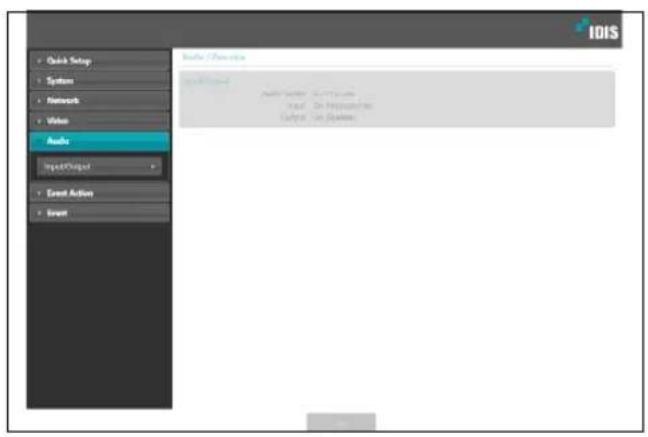

Audio 21
Input/Output 21

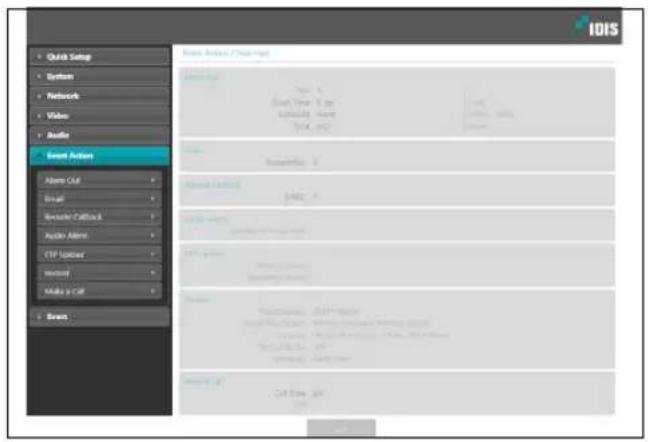

Event Action 22

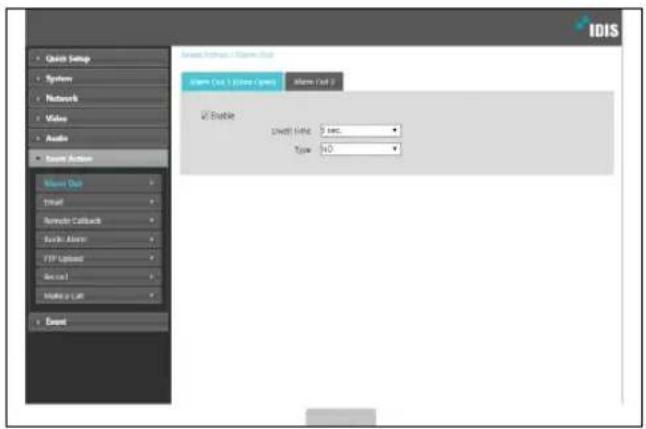

Alarm out....22

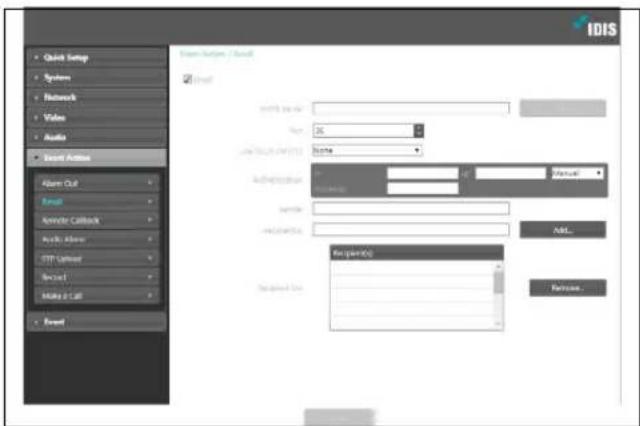

Email 23

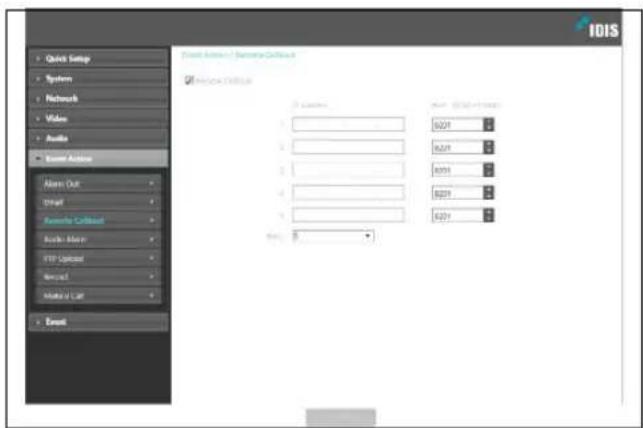

Remote Callback 23

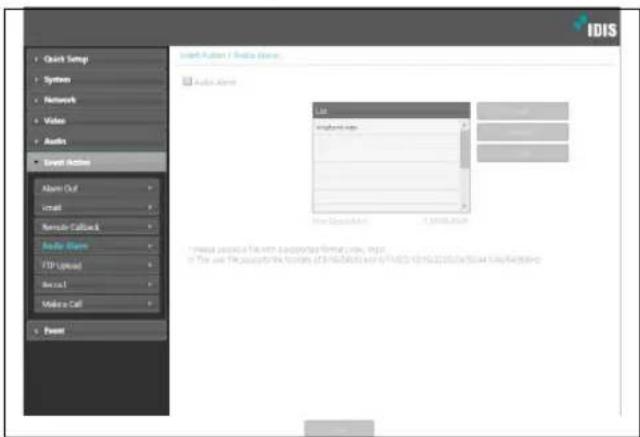

Audio Alarm 24

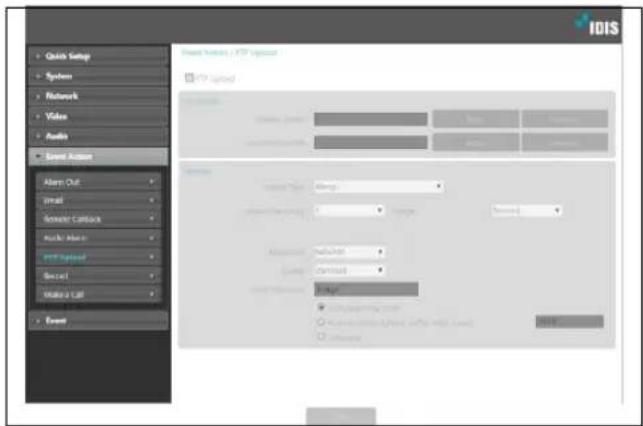

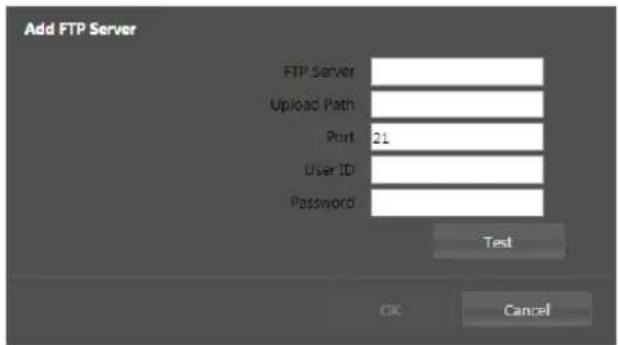

FTP Upload 24

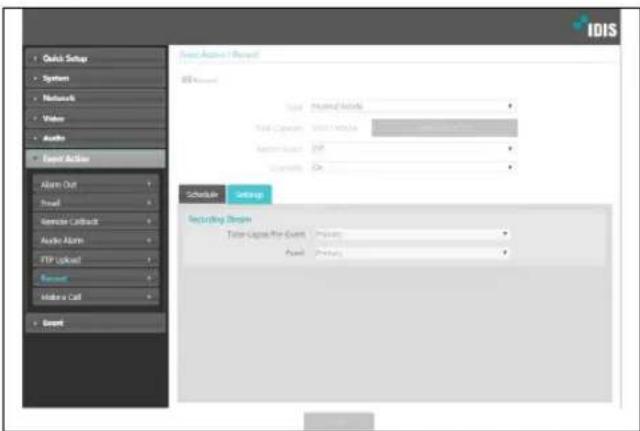

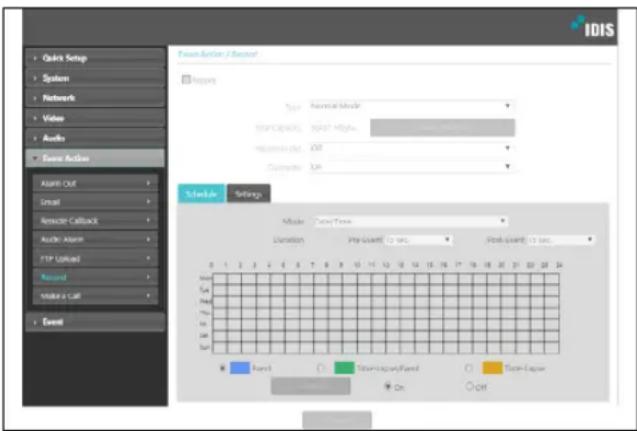

Record....25

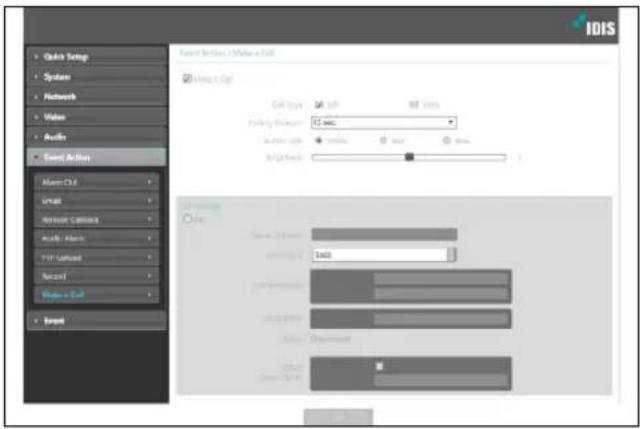

Make a Call....27

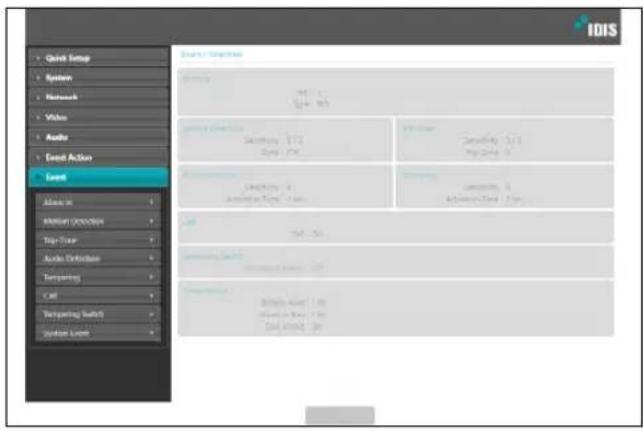

Event 27
Alarm In 28

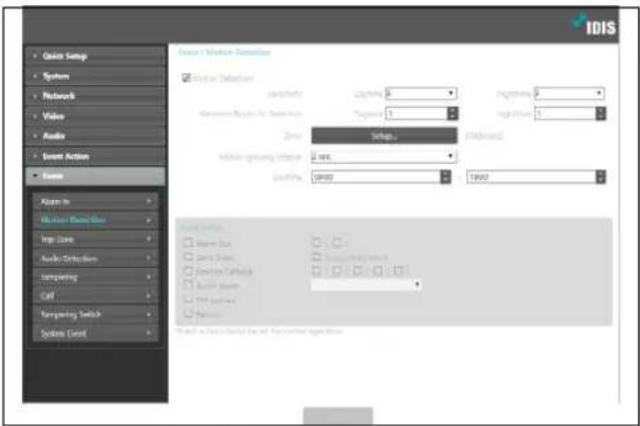

Motion Detection 28

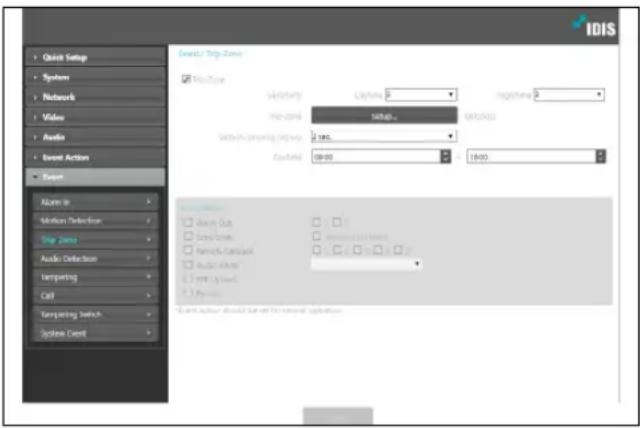

Trip-Zone 29
Audio Detection 30

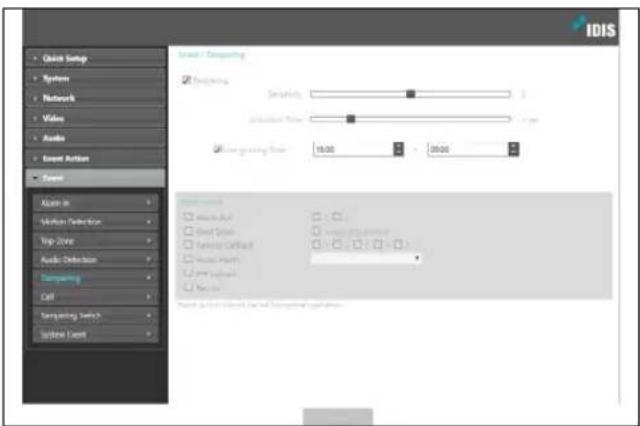

Tampering 31

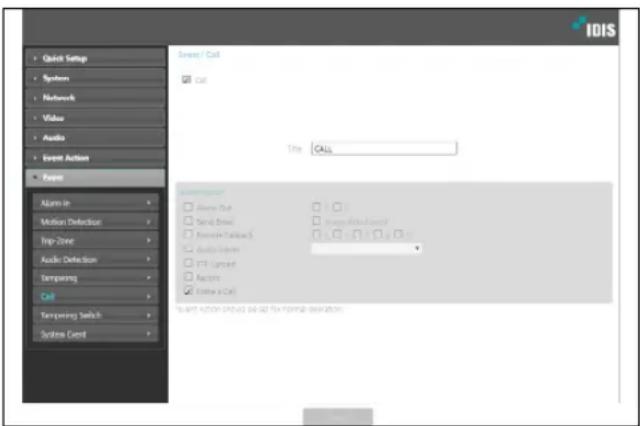

Call 32
Table of Contents

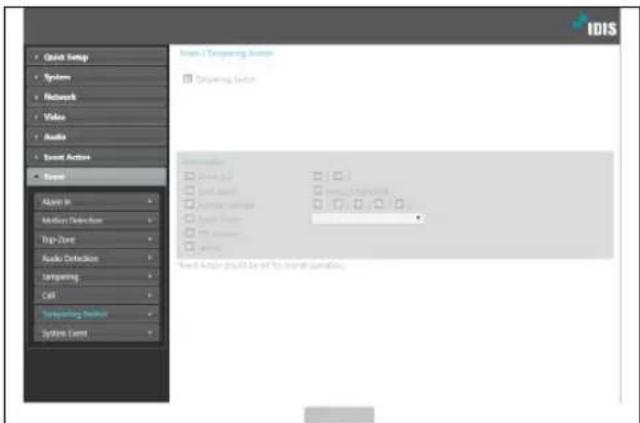

Tampering Switch....33
System Event 33
2

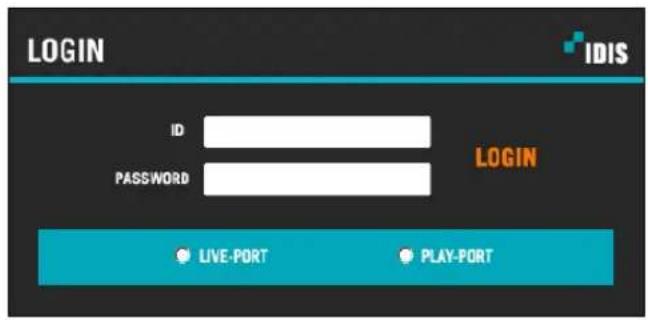

Part 2 - IDIS Web....34

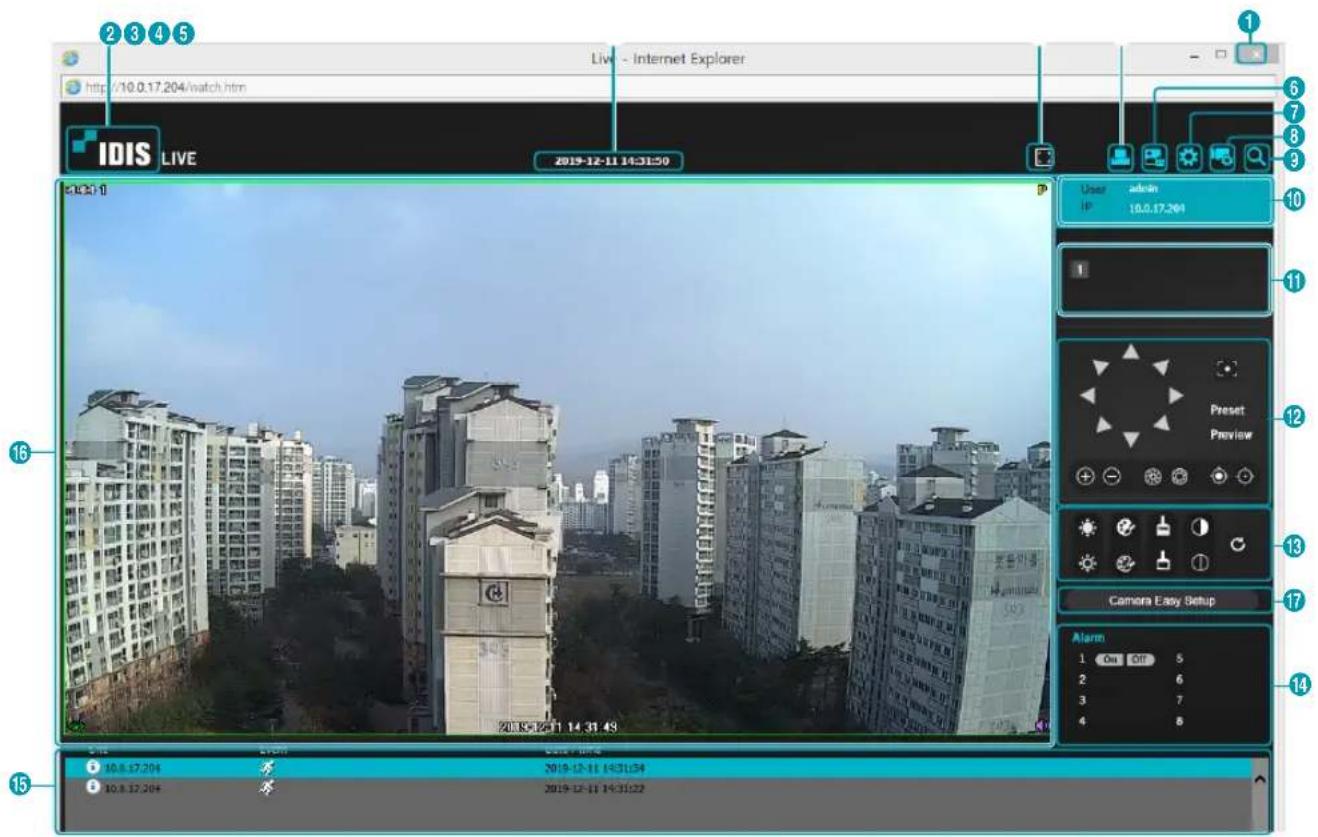

Web Live Mode....36

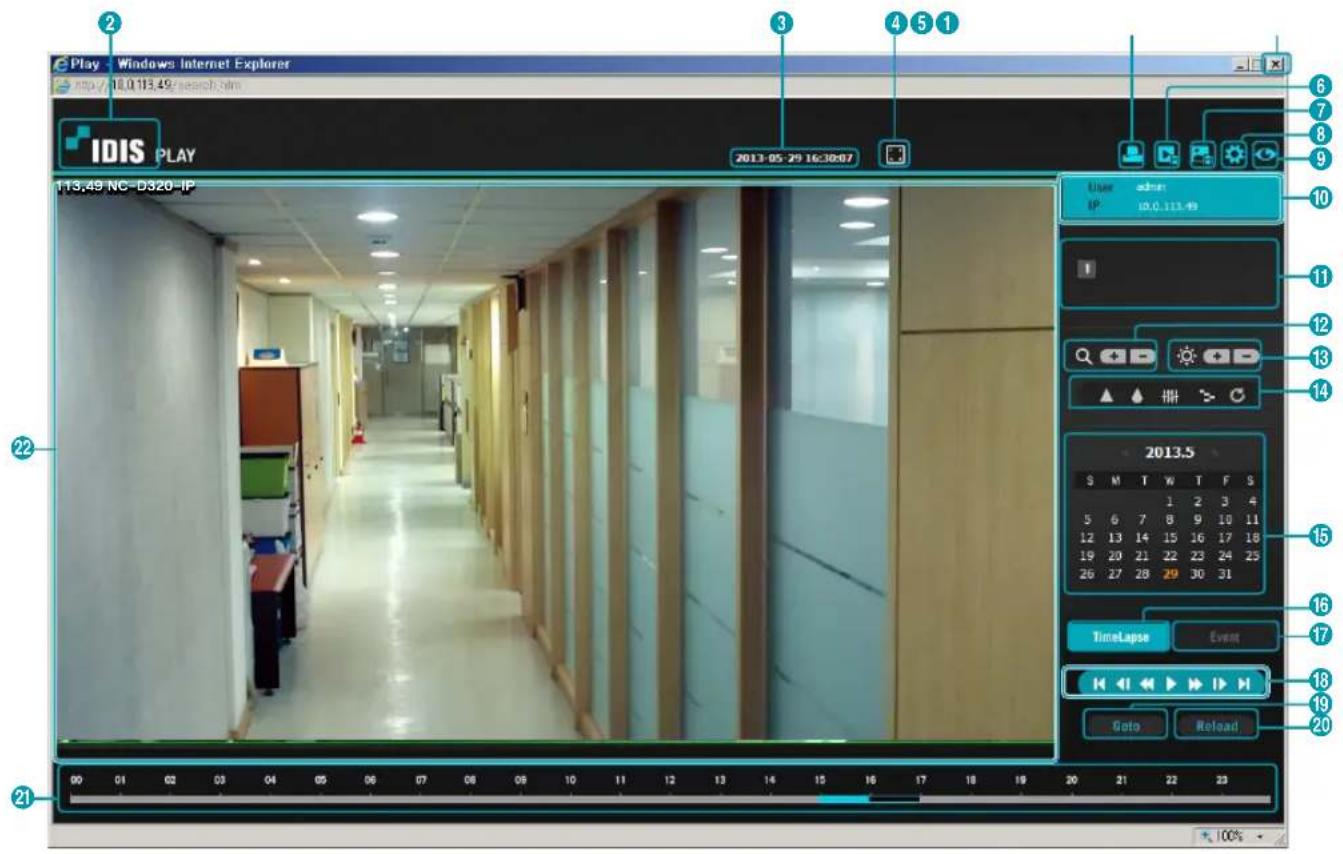

Web Search Mode....39
3
Part 3 - Appendix....41

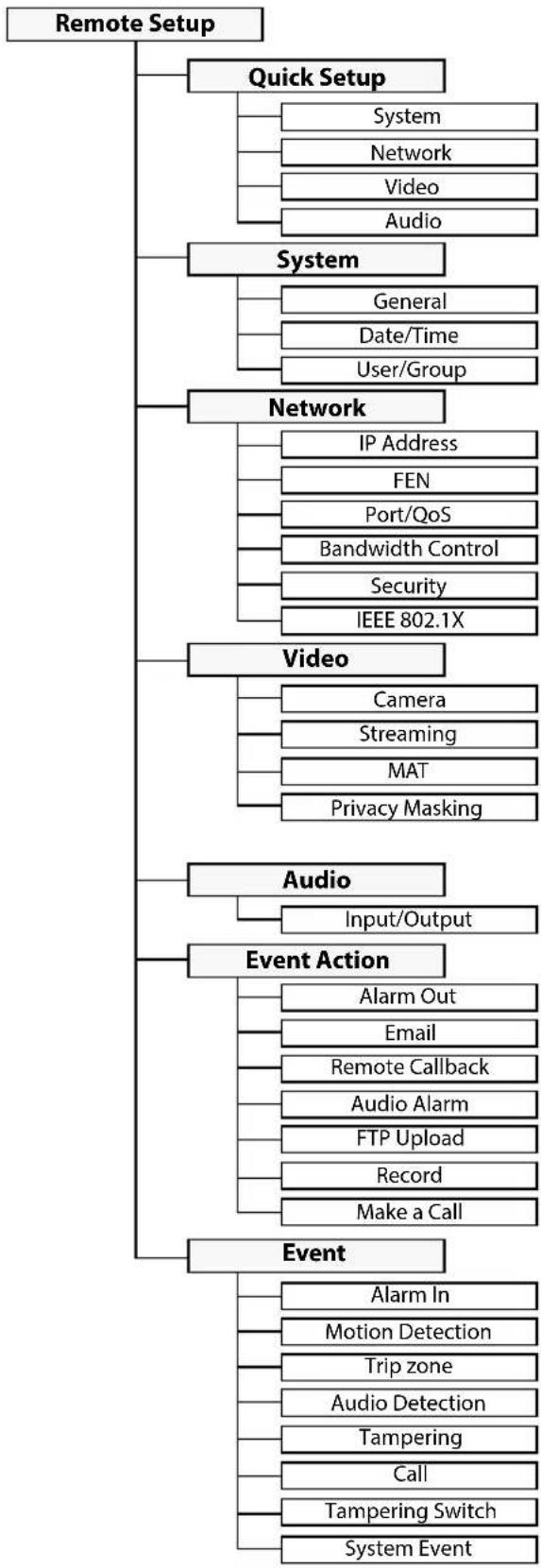

Setup Menu Tree (Remote Setup) 41
Index 42
Part 1 - Remote Setup
Configure basic network camera settings and all other system settings.
Screen images may vary depending on the model.
Remote Setup
1 Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change.
2 Click on the Setup Icon.
3 Select Remote Setup from the Setup menu to load the Remote Setup screen. Alternatively, you can select Network Camera from the main screen and then right-click to access the Remote Setup screen.
- System settings can also be changed using a remote program.
- Remote Setup works with the following web browsers when the web browsers support HTML5: Google Chrome, Mozilla Firefox, or Apple Safari. It is recommended that you update the web browser to the latest version.
From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed the settings, click Save to apply the settings.

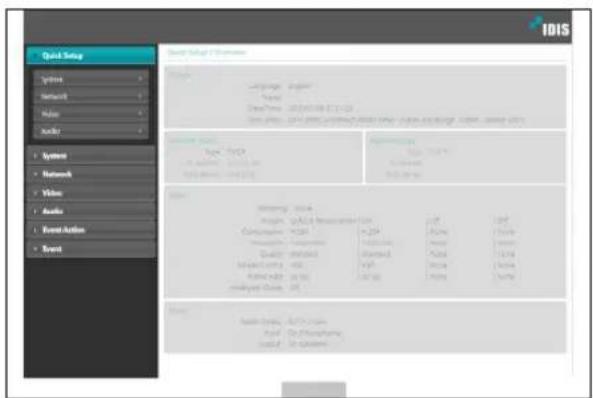

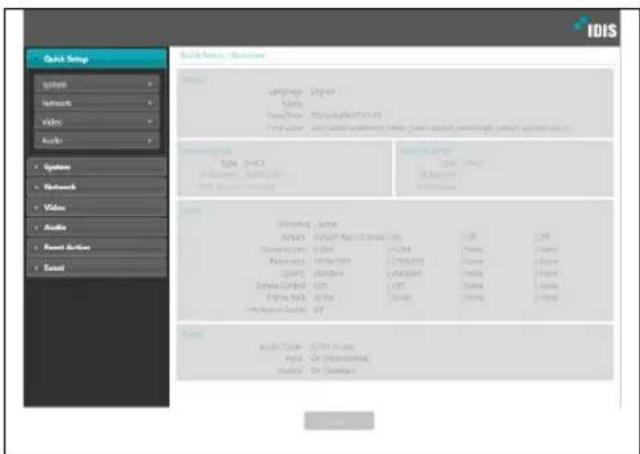

Quick Setup
Quick Setup allows you to set up System, Network, Video, Audio, and other basic settings needed for camera use.

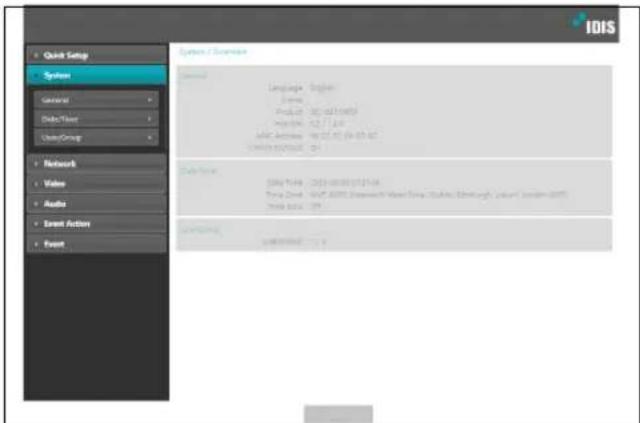

System
Change the camera's system information, add users/groups, and/or import/export settings.

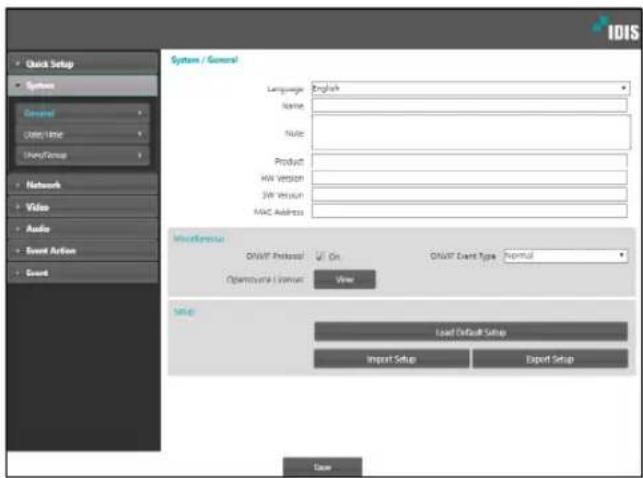

General
- Language: Select the language you wish to use for remote setup.
- Name: Enter a name for the camera. (Up to 31 alphanumeric characters, including spaces)
- Note: Enter a description for the camera.
- Product: Indicates the model name of the camera.
- HW Version/SW Version: Indicates the camera's hardware and software versions.
- MAC Address: Indicates the MAC address of the camera.
- Miscellaneous
- ONVIF Protocol: Select to enable ONVIF protocol use. However, ONVIF Protocol is available only to users belonging to the standard user groups (Administrator, Operator, and User). When you have connected to the camera by using the ONVIF protocol, only the currently enabled streams or events are supported and you cannot change it. There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program.
- ONVIF Event Type
- Normal: This is the usual way the camera delivers events.
- Standard: This is the ONVIF standard event delivery method.
- Opensource Licenses: Click View to see the information of opensource licenses.
- Setup
- Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 10.
- Import Setup: Open a setup file and apply its settings to the camera. Click on the button and then select a setup file. Select Include Network Setup to apply the file's network setup settings (exc. FEN). For more information on network setup, refer to the Network on page 10.
- Export Setup: Export the current settings as a file. Click on the button and then enter a file name.
- Load Default Setup and Import Setup options are available only to users belonging to the Administrator group.
- When applying the settings of a setup file, do not select the Include Network Setup option if the network settings contained in the selected file is currently being used by a different camera. Doing so can interfere with establishing a connection with the other camera.
- If IP Address, Port, and/or SSL settings have been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.

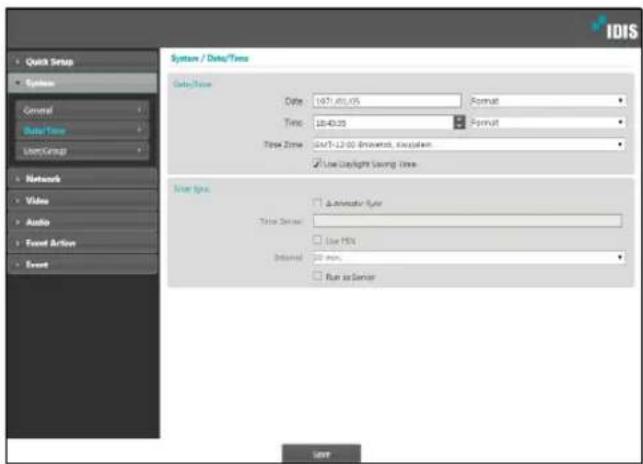

Date/Time
- Date/Time: Change the camera's date/time settings and display formats and configure the time zone and daylight saving time settings. Click Save to apply the changes right away.
- Time Sync
- Automatic Sync: Select to synchronize the system's time with the time server at a specified interval. Enter the time server's IP address or domain name and then specify the interval. If the time server is FEN-enabled, select the Use FEN option and then enter the time server's name instead of its IP address or domain name.
- Run as Server: Select to run the camera as a time server. Other devices will then be able to synchronize its time setting with this camera's time setting.
If you wish to enter a domain name instead of an IP address for the Time Server setting, DNS server must be configured during Network setup. If you wish to enter a server name instead of an IP address or a domain name, the Use FEN option must be enabled during Network setup.
Setting up the Automatic Sync is required to ensure there is no error to the SD memory card recording time.

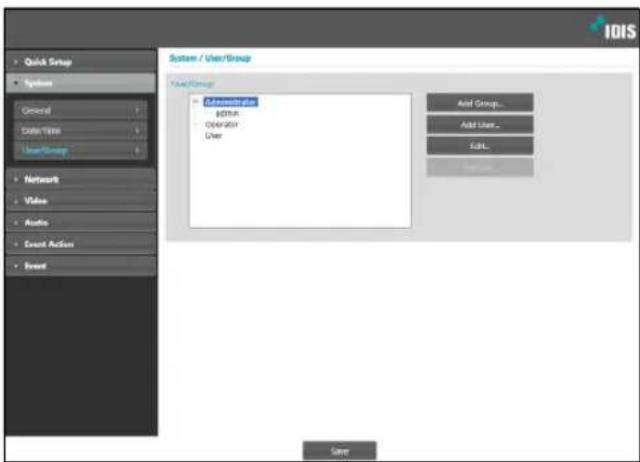

User/Group
- User/Group: Change remote camera control permission settings for users and user groups.
- Add Group: Add a new user group. Designate a name for the group and then specify control authorities.
- Add User: Add a new user. Designate a name for the user, select which group to add the user to, and then enter a connection password.
- Edit: Edit group authorities and/or user passwords. Select a group or user and then click on the button.
- Remove: Delete groups or users. Select a group of user you wish to delete and then click on the button.
- User/Group settings can only be configured by users belonging to the Administrator group.
- There is no default password for the Administrator group's admin user.
- Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.
- Group authorities that can be assigned are as follows:
- Upgrade: Upgrade the system.
- Setup: Configure the system's settings.
- Color Control: Adjust the camera's brightness, contrast, saturation, and hue settings.
- PTZ Control: Authority to control zoom function.
- Alarm-Out Control: Reset alarm outs.
- Search: Search video recordings saved on the SD memory card from a remote program.
- Clip-Copy: Search video recordings saved on the SD memory card and save them as video files from a remote program.

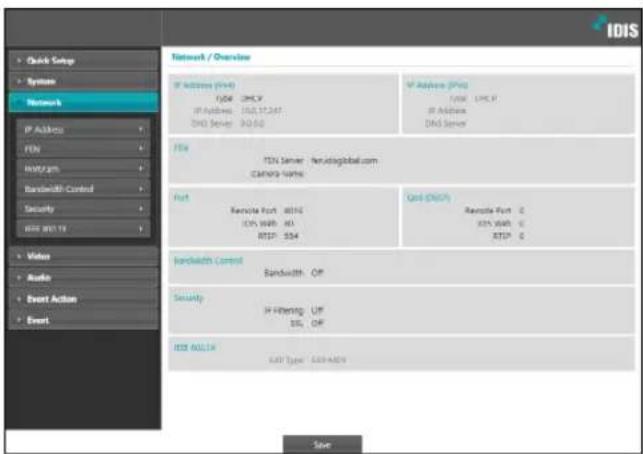

Network
Change the network settings, enable FEN and security features, and control network bandwidth use.

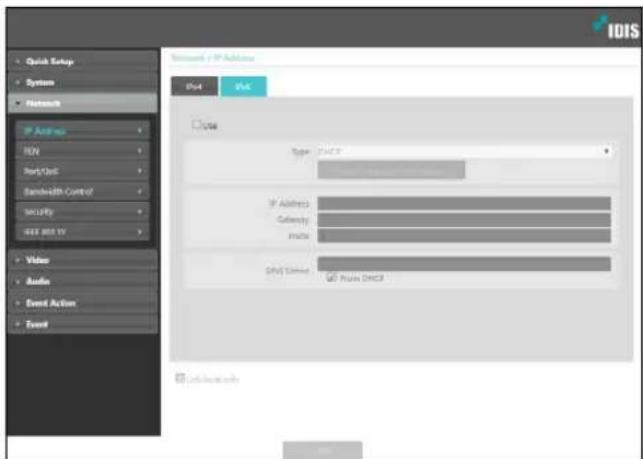

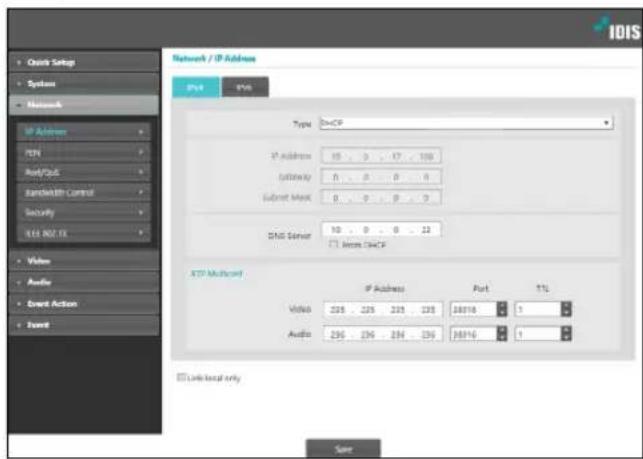

IP Address
IPv4
- Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.
- Manual: Select if using a static IP. You will then be able to configure the related settings manually.
-
DHCP: Select if connected to the network using DHCP. Click Save to retrieve IP address and other network settings automatically from the DHCP server.
-
DNS Server: Enter the DNS server's IP address. By using the DNS server, you will be able to use domain names instead of IP addresses when configuring the FEN, time, or SMTP server. If the camera is connected to the network via DHCP, select the From DHCP option to retrieve the DNS server's IP address from the DHCP server automatically. The updated address will be displayed upon the subsequent connection.
- RTP Multicast: Set up the IP address, the Port, and the TTL for the RTP multicast.
- Link-local only: Use only the IP address of link-local IPv4. (ex 169.254.x.x)
IPv6
- Check Use to activate IPv6.
-
Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.
-
Manual: Select if using a static IP. You will then be able to configure the related settings manually.
-
DHCP: Select if connected to the network using DHCP. Click Save to retrieve IP address and other network settings automatically from the DHCP server or the router. If it can not be received automatically, it will be created automatically from the camera.
-
View IP Address Information: The IPv6 address assigned to the IP camera is shown.
- DNS Server: Enter the DNS server's IP address. If the camera is connected to the network via DHCP, select the From DHCP option to retrieve the DNS server's IP address from the DHCP server or the router automatically. If it can not be received automatically, it will be created automatically from the camera. The updated address will be displayed upon the subsequent connection.
- Contact your network administrator for more information on the camera's network connection type, the DNS server's IP address, and other related information.
- If using DHCP, the camera's IP address may change from time to time. We therefore recommend that you use the FEN feature.
- If using IPv6, some network function may be limited.

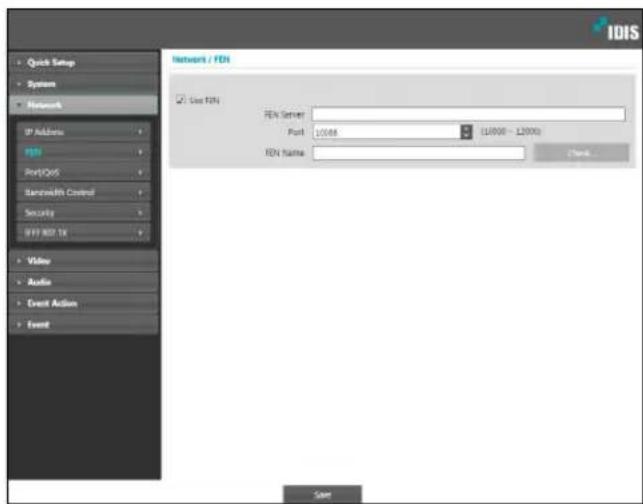

FEN
Select Use FEN to enable the FEN feature.
- FEN Server: Enter the FEN Server's IP address or domain name.
- Port: Enter the FEN Server's port number.
- FEN Name: Enter a camera name you wish to register to the FEN Server. Click OK to check the name's availability.
- In WAN environment it is recommended to use the UPnP while recording images using FEN or when FEN connection is not stable. Otherwise, surveillance and recording may not be desirable depending on your network configuration environment.
- Use FEN is a feature that allows you to register a unique name for a camera that utilizes a dynamic IP address to the FEN Server and connect to the camera using the registered name instead of an IP address, which can change from time to time. Moreover, you can access the camera without having to configure NAT (Network Address Translation) device settings even when the camera uses a NAT device. In order to use this feature, you must first register a FEN name to the FEN Server.
- If network settings have been changed, click Save at the bottom of the setup window to save the changes and then setup the FEN.
- Inquire with your network administrator for the FEN Server's IP address or domain name. If a DNS server has been configured under Network setup, you can enter the FEN Server's domain name instead of its IP address for the FEN Server setting.
- FEN Server's default address is fen.idisglobal.com. DNS server must be configured under network setup to ensure normal operation.
- You will not be able to save FEN settings unless you click on the OK button next to the FEN name field and check the entered name's availability. In addition, you will be prompted with an error message if you do not enter a FEN name or enter a name already registered to the FEN Server. If the FEN name contains special characters, the connection may not be made when the WebGuard or remote setting is accessed by FEN name through the Web browser. (If you can not access special characters, you can access by changing the encoding.)
The FEN Server operated by IDIS is a service to its clients and may go offline without notice for server update purposes or due to an unexpected failure.
Port/QoS
- Use/Port: Enable/disable ports and designate corresponding port numbers. Remote Port and IDIS Web / HTTP ports are enabled by default and cannot be disabled. By enabling IDIS Web and RTSP ports, you will be able to use the IDIS Web program or a media player that supports RTSP (Real-Time Streaming Protocol) service to connect to the camera. When the HTTP port is enabled, you can run the camera's Remote Setup. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.
- DSCP: Designate each port's QoS (Quality of Service) level using DSCP values. Assigning QoS levels prioritizes the ports for network bandwidth use. Higher the DSCP value, higher the QoS level and thus higher on the network bandwidth allocation priority list. Use 0 if you do not want to assign a QoS level. The network environment must support DSCP in order for this feature to function properly. Contact your network administrator for more details.
- Use HTTPS: Select this option to apply https protocol-based security on IDIS Web.
- Use UPnP: If the camera is connected to the network via an IP router (or NAT), select this option to connect to the camera without setting up port forwarding. The IP router (or NAT) must be enabled with UPnP in order for this feature to function properly. For more information enabling UPnP on your IP router (or NAT), refer to the IP router or NAT's operation manual.
Click Check to test the current port settings. A confirmation message will appear if all the selected ports are available for use. If not, a list of recommended port numbers will be shown.
Click Apply to use the recommended port numbers.
- Use SNMP: Select this option to enable SNMP (Simple Network Management Protocol).
- In a WAN environment, it is recommended that you use the UPnP function if you record video by using the FEN function or FEN connection is not smooth. Otherwise, monitoring or recording might not be smooth depending on the network environment.
• Each port number must be unique. - It is not allowed to use the same port number for more than one function.
- You can connect to the camera using a media player that supports RTSP service and monitor its video feed. If the camera is connected to the network via an IP router (or NAT) or is behind a firewall, you must open the ports. (All ports if using UDP protocol and RTSP ports if using TCP protocol) This feature may not be supported by al media player. In addition, video display on certain media players may not be smooth depending on the network status, video streaming compression method used, and/or the resolution setting. Connection methods are as follows:
- Via PC: Launch the media player (such as VLC) and then enter rtsp://ID:Password@IP Address: RTSP Port Number/trackID='Stream Number' (Stream Number: 1 if Primary, 2 if Secondary, and 3 if Tertiary). (e.g.: rtsp://admin:@10.0.152.35:554/ trackID=1 (User: admin, Password: None, Camera IP Address: 10.0.152.35, RTSP Port Number: 554, Stream: Primary))
- Port numbers of the remote program must be updated whenever the camera's port numbers are changed.
- ONVIF protocol may not function if using HTTPS.
Bandwidth Control
Regulates the camera's network bandwidth use based on network traffic fluctuations.
Select Network Bandwidth limit and then specify the maximum bandwidth. The camera will not be able to use more than the specified limit in the event of network traffic.
It may not be possible to produce the frame rate specified under Video > Streaming if a network bandwidth limit has been set.
Security
- IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others.
- Add: Add new IP addresses to Allow List or Deny List. Select the Host option to add one IP address at a time. Select the Group option to define a range of IP addresses you wish to add.
- Remove/Remove All: Remove individual or all IP addresses from Allow List or Deny List.
- SSL: Select this option to enable SSL (Secure Sockets Layer). Enabling this option applies SSL protocol protection on data transmitted out. However, programs and systems that do not support SSL will not be able to connect to the camera. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.
- Time server, FEN Server, and SMTP server's IP addresses must be added to Allow List under IP Filtering in order to use Time Sync, FEN, and Send Email features. No connection to the camera will be permitted whatsoever from IP addresses added to Deny List.
- Enabling the SSL option may place a greater load on the external system, depending on the level of security being used.
- This product contains software developed by Open SSL Project for use in Open SSL Toolkit. (http://www.openssl.org/)
IEEE 802.1X
Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication.
- Certificates: Upload a certificate or a private key. You may be prompted to enter a password for the private key.
-
Settings: Configure EAP (Extensible Authentication Protocol) settings.
-
EAP Type: Choose a network connection authentication method. Selected method must be identical to the authentication method used on the authentication server.
- EAPOL Version: Choose EAP authentication's version.
- EAP Identity/EAP Password: Enter authentication ID and password.
The authentication server and AP must support IEEE 802.1X authentication in order for the IEEE 802.1X network connection authentication feature to function properly.
Video
Configure Camera, Streaming, MAT, Privacy Masking options.
Camera
Image Sensor
Configure Image Sensor settings.
• Frame Rate: Set the frame rate of image sensor. Streaming settings are reset when changing the frame rate.
Streaming settings are reset when changing the frame rate.
- Mirroring: Select Horizontal Reverse or Vertical Reverse to flip the image horizontally or vertically.
- Defog: Disables or enables the Defog feature. When it is enabled, image with a fog is adjusted.
- 3DNR: Set the strength of 3DNR (3D Noise Reduction). A higher 3DNR value reduces background noise in a low-light environment, but it may cause afterimage (lag) of moving objects.
White Balance
Configure White Balance settings.
- Preset: Use preconfigured white balance settings.
- Auto: Allow the system to adjust the white balance automatically. The system will assess the lighting conditions and adjust the white balance automatically.
- Hold: Hold the current white balance.
- INCANDESCENT - FLUORESCENT COLD: Select a lighting type to apply the appropriate white balance.
If the Preset is Hold and the WDR mode is changed, a reset is required.
- Manual: Adjust the white balance manually. Adjust Red and Blue gain values. Greater the value, greater the intensity of the corresponding color.
If the white balance does not work properly under the following specific conditions, select Manual or Hold.
- When the surrounding environment of the object is out of the color temperature correction range
- When the surrounding environment of the object is dark
- The camera is pointed directly at the fluorescent lamp or installed in a place where the lighting change is severe.
Exposure
Configure Exposure settings.
- AE Target Gain: Specify exposure compensation's target gain. Exposure is compensated automatically based on the specified target gain. Higher the gain, brighter the images.
- Anti-Flicker: If the lights in the area where the camera is located use alternating current, specify the frequency of the lights to minimize flickering. Matching the frequencies can reduce flickering. (NTSC: 60Hz, PAL: 50Hz) When using WDR, flickering can be present in poor environments even if Anti-Flicker is turned on.
- Slow Shutter: Activate Slow Shutter. The electronic shutter's speed will decrease to the specified level under low-lighting conditions to allow more light in and therefore produce brighter images.
- WDR: Disables or enables the WDR(Wide Dynamic Range). When the very dark and very bright areas exist simultaneously on the screen, WDR allows you to recognize the both areas.
- WDR Level: Set the strength. The larger the value, the brighter the dark parts of the image.
- Exposure Control: Adjust Shutter Speed and gain. This option is available only when Anti-Flicker and Slow Shutter are both set to Off.
- Auto: The system will assess the lighting conditions and adjust the shutter speed and gain automatically.
- Manual: Use the slider to select the desired shutter speed and gain. Select the most suitable minimum and maximum shutter speeds and gains for the lighting conditions in the area where the camera is located.
With certain features, selecting Auto automatically loads settings suitable for the camera's installation environment.
Day & Night
Configure Day & Night settings.
- B&W Mode: Display the images in greyscale for greater clarity in low-lighting conditions.
- On/Off: Enable/disable B&W Mode.
- Auto: Allow the system to enable/disable B&W Mode automatically.
- Schedule: Set up a B&W Mode schedule. B&W Mode is enabled on days and times designated as Nighttime and disabled at all other times. Select On or Off at the bottom of the schedule table and then click or drag on the dates and times to select/unselect as Nighttime. Select On or Off and then click Select All/Clear All to select/unselect all dates and times as Nighttime.
- IR Cut Filter: IR Cut Filter blocks out the infrared spectrum. You can ensure clear images at all times by blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.
- Nighttime Mode/Daytime Mode: Disables or enables the IR cut filter.
- Auto: Allow the system to enable/disable IR Cut Filter automatically.
- Schedule: Sets up the IR cut filter schedule. The IR cut filter is disabled during the date and time scheduled as Nighttime and enabled during the rest. Set up or release Nighttime by selecting On or Off in the bottom and clicking or dragging the date and time area in the table. Selecting On or Off and clicking the Select All/Clear All button sets up or releases Nighttime for all dates and time.
Part 1 - Remote Setup
- Switching Level: Sets up the switching level between daytime and nighttime modes. For example, if the darkness level is set to 3 and the brightness level to 5, the system switches to nighttime mode when in lighting conditions of level 3 or below and to daytime mode when in lighting conditions of level 5 or over. It is recommended that you do not set up the darkness level and brightness level identically; otherwise, this function may not work properly. This functions only when B&W Mode or IR Cut Filter is set to Auto.
Miscellaneous
Configure Miscellaneous settings.
- Smart IR: Prevent the object from being saturated by IR light. Select Auto to control saturation only when the zone is over-saturated.
Streaming
• Primary/Secondary/Tertiary/Quaternary:
Multistreaming is supported. Enable/disable streaming use. The stream you set first has priority.
- Compression: Choose the streaming compression method.
When using H.265 compression, a device that does not support H.265 compression may prevent the screen from being displayed.
- Resolution: Choose a resolution setting for video streaming. The resolution varies depending on the camera model. The current stream resolution cannot be higher than the higher stream resolution.
• Quality: Choose a quality setting for video streaming.
- Target Bitrate(Kbps): Set the target bitrate. When Quality is set to Manual, you can configure the value of the target bitrate. If not, the set value of the target bitrate for each Quality appears.
- Bitrate Control: Choose a bitrate control mode for video compression.
- CBR (Fixed Bitrate): Maintains the current bitrate regardless of motion change in the video.
- VBR (Variable Bitrate): Bitrate varies depending on motion changes in the video. Less movement places less load on the network and takes up less storage space.
- Frame Rate: Choose a frame rate setting for video streaming. The fame rate of the current stream cannot be higher than the fame rate of the higher stream if those stream resolutions are same.
- Default Record Stream: Choose a stream to use for recording. This setting, however, may not apply if a recording stream has been designated from the remote program or the SD memory card recording feature has been enabled.
- Intelligent Codec: Analyze real-time video intelligently to minimize bitrate while maintaining frame rate and image quality.
In environments where there are many video changes, image quality can be reduced.
- Multi-View Streaming: Designate a specific area of the screen and stream images from that area only. (not supported for the primary stream) Click Setup to designate a streaming area.
Select On and then specify the streaming area's resolution.
- Resolution Limit: Indicates the maximum resolution that can be set for the streaming area.
- Resolution: Designate a streaming area. Designated area is marked in red on the screen. You can adjust the resolution of the area or reposition the area by dragging and dropping using the mouse.
- Current Resolution: Displays the resolution of the designated streaming area.
If multiple users are connected to the camera, the increase in bandwidth use can lower the frame rate.
MAT
Select the MAT option to use the MAT (Motion Adaptive Transmission) feature during video transmission and recording.
- Sensitivity: Set the motion detection sensitivity. Higher values will result in more sensitive motion detection.
- Inactivity Period: Set the Inactivity Period. If motion is not detected for the duration of time specified, video is transmitted and recorded using the frame rate designated below until movement is detected again.
- Frame Rate: Designate the frame rate to be used between the end of the Inactivity Period and the next motion detection. When the slow shutter mode is enabled under Video > Camera menu, the fame rate may change. Video is transmitted and recorded at the designated frame rate between then end of the Inactivity Period and the next motion detection. Once motion is detected again, the frame rate designated under Streaming is restored immediately.
MAT (Motion Adaptive Transmission) is a feature that lowers the frame rate when motion is not detected to reduce the load on the network and save on storage space. Based on the specified sensitivity setting, no movement will be assumed if there is no change between two consecutive images.
Privacy Masking
Select Privacy Masking to set up a privacy mask over a specific area. The section on which a privacy mask is applied will appear as black when monitoring video.
- Privacy Masking Setup: Set up privacy masks(up to 8).
- (Draw)/(Erase): Set or remove a privacy mask. Click on the button and drag & drop using the mouse to set up a privacy mask.
- No./Name: Displays a list of active privacy masks. The numbers indicate privacy mask numbers. Select the empty space next to a number to assign a name to the corresponding privacy mask. Click Delete to remove the selected privacy mask.
Audio
Configure audio in/out settings.
Input/Output
• Audio Codec: Select an audio codec.
- Input: Select an option and then adjust the volume.
- Output: Select an option and then adjust the volume.
Event Action
Designate event detection alert actions.
Alarm out
Select Alarm Out to enable alarm out.
- Alarm Out 1 (Door Open): This is the operation for opening and closing the door.
- Dwell Time: Designate the alarm out duration. When an event occurs, alarm out will be generated for the specified duration.
- Type: Select the alarm out type.
- Schedule: Specify the alarm out schedule. Alarm out is generated during the specified period only.
Select Email to send out emails.
- SMTP Server/Port: Enter the SMTP server's IP address (or domain name) and port number you received from the network administrator. If a DNS server has been set up during network configuration, you can enter a domain name instead of an IP address.
- Test: Enter the SMTP server and click the Test button. During normal operation, a pop-up window is displayed asking to confirm the e-mail has been received. Connect to the mail server and check if the email has been received.
- Use SSL/STARTTLS: If using an SMTP server requiring an SSL or STARTTLS connection, select SSL or STARTTLS option.
- Authentication: Enter a user ID and password if user authentication is required by the SMTP server.
- Sender/Recipient(s): Enter the sender and recipients' addresses. (Up to 10) The addresses must be properly formatted and include the @ symbol.
Remote Callback
Select Remote Callback to send callback messages to a remote system.
• Not supported from the IDIS Web program.
- The camera must be registered to the remote system in order to use the Remote Callback feature.
- IP Address: Enter the IP address and port number of the remote system that will receive the messages.
- Retry: Designate how many reattempts to make if message delivery fails.
Audio Alarm
Select Audio Alarm to generate audio.
- List: Displays a list of audio files to playback. Click Add or Remove to add/remove audio (.wav, .mp3) files. (supports 16-bit, 16KHz encoded files only) Select an audio file from the list and then click Play to listen to the file.
Please upload a file that a supported format. (.wav, .mp3) The .wav file supports the formats of 8/16/24bits and 8/11.025/12/16/22.05/24/32/44.1/48/64/96KHz.
FTP Upload
Select FTP Upload to upload .jpg image of the event detected to an FTP server.
- FTP Server: Click Add to register a new FTP server. Click Remove to remove a registered FTP server. When an event is detected, a .jpg image of the event detected image is uploaded to the Primary Server. If the upload to the Primary Server fails, the file will be uploaded to the Secondary Server. Upload to the Secondary Server will continue to be attempted until successful. Fill out the fields below and click Test to test the FTP server connection settings. Once the test is complete, click OK.
- FTP Server: Enter the FTP server's IP address (or domain name).
- Upload Path: Designate the file upload path.
- Port: Enter the FTP server's port number.
- User ID, Password: Enter the user ID and password needed for connecting to the FTP server.
- Settings: Configure image and upload settings.
- Upload Type: Choose an upload type. Select Always to upload images using the settings below, irrespective of event detection. Select Event to upload images using the settings below when an event is detected.
- Upload Frequency: Activated only when Upload Type has been set to Always. Designate the upload speed. The specified number of images will be uploaded to the FTP server during the specified period of time.
- Image per: Activated only when Upload Type has been set to Event. Designate the upload speed. Select Upload for and specify a duration. Images will be uploaded for the specified duration at the specified upload speed. Select Upload while event status is active to upload images at the specified speed only while event status is active.
- Resolution/Quality: Choose the resolution and quality of the images to upload to the FTP server. Range of resolution settings you can use here can vary depending on the resolution setting applied under Video > Streaming.
- Base File Name: Enter a name for the files to be uploaded to the FTP server and then choose file identification options. Select Add Date/Time Suffix to add event detection date and time information to each image file. Select Add Sequence Number Suffix - max. Count to number the image files based on the order of event detection. Select Overwrite to overwrite the previous image with the new image. Event type is automatically added to the file names.
- When specifying the Upload Path or Base File Name, you cannot use special characters such as \, /, #,* |,: ", <, >, and ?.
- The resolution of FTP upload image can change depending on the resolution setting applied under Video > Streaming.
- Set speed settings for Upload Frequency and Upload 1 image per options in consideration of the FTP server's performance. FTP uploads can fail if the configured speed is higher than what the FTP server can handle.
Record
Select Record to record video on the SD memory card. First, make sure that an SD memory card (Class 6 or higher) has been properly inserted.
- Type: Select the record type.
- Normal Mode: SD recording is performed according to schedule and setting.
-
Smart Failover: Used for recording failover in NVR / VMS interlock. For more information, refer to the NVR / VMS manual.
-
Total Capacity: Indicates the SD memory card's total capacity if it has been inserted properly.
- Format SD card: Click on this button to format the inserted SD memory card. Formatting the SD memory card erases all data saved on the card.
This function is only supported for users in Administrator group.
- Record Audio: Enable/disable audio recording.
- Overwrite: If the SD memory card runs out of storage space, the old video is automatically deleted and the new video is saved.
Setting up the Automatic Sync at Date/Time is required to ensure there is no error to the smart failover function.
Part 1 - Remote Setup
Schedule
Select the Schedule tab and set up a recording schedule.
- Mode: Choose a recording mode.
- Always - Event: Records video in event mode. In event recording mode, video is recorded when an event is detected.
- Always - Time-Lapse: Records video in time lapse mode. In time lapse recording mode, video is recorded continuously, irrespective of event detection.
- Always - Time-Lapse/Event: Records video in time lapse mode when event has not been detected and in event mode when one is detected.
- Date/Time: Video is recorded in the specified mode according to the dates and times selected in the schedule. Select On or Off at the bottom of the schedule table and then choose a recording mode. Click on dates and times on the schedule table or drag to enable/disable recording mode. Select On or Off and then click Select All/Clear All to enable/disable recording mode on all dates and times.
• Duration: Specify the event recording duration.
- Pre-Event: Select the pre-event recording duration. You can record up to 60MB of video. Using high resolution, quality, and frame rate settings can cause the recording to exceed the 60MB limit and stop before the end of the specified recording duration.
- Post-Event: Select the post-event recording duration.
Settings
Select the Settings tab and configure recording settings.
- Recording Stream: Choose a stream to use for recording. It's possible to designate different streams for different recording modes.
- Time-Lapse/Pre-Event: Designate the stream to use for recording in time lapse mode or event mode (pre-event).
- Event: Designate the stream to use for recording in event mode (post-event).
- Recordings saved on the SD memory card can be searched and played back from the IDIS Solution Suite Compact program or remotely from the remote program. For more information, refer to each program's operation manual.
• Video search and playback may not function properly on the remote program while video is being recorded on to the SD memory card.
To remove the SD memory card, unselect the Record option and wait 30 seconds before doing so. Removing the SD memory card while recording is in progress of without waiting 30 seconds can damage the system and/or the recording data.
Make a Call
Select Make a Call to set the call type, button LED, and SIP server.
- Call Type: Specifies the destination of the call to be transferred. Duplicate selection is possible.
- Calling Timeout: Sets the call event duration.
- Button LED: Sets the LED button color (White, Red, Blue).
- Brightness: Sets the brightness of LED button.
- Server Address: Sets the SIP server address.
- Server Port: Sets the SIP server port.
- Authentication: Enter the user ID and password if the the SIP server requires user authentication.
- DTMP(Door Open): Sets whether to use DTMF and the Sequence.
Event
Configure event detection settings.
Alarm In
Select Alarm In to enable alarm in event. With alarm in event enabled, alarm in detections by the alarm in connector will be assumed as events.
• Title: Enter the alarm-in device's name.
- Type: Select the alarm in type.
• Event Action: Select an alarm in event alert action.
- Alarm Out: Select if you wish to generate an alarm out.
- Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
- Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.
- Not supported from the IDIS Web program.
• The camera must be registered to the remote system in order to use the Remote Callback feature.
- Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav, .mp3).
- FTP Upload: Select this option if you wish to upload images to the FTP server.
- Record: Select this option to record video.
Event Action settings must be configured correctly in order to perform event actions.
Motion Detection
Select Motion Detection to configure motion detection event settings. With motion detection event enabled, motion detections within the designated area will be assumed as events.
- Sensitivity: Select daytime and nighttime motion detection sensitivity levels. Higher values will result in more sensitive motion detection.
- Minimum Blocks for Detection: Select minimum blocks for daytime and nighttime motion detection. Motion must take place over the selected number of blocks in order for it to be considered as a motion detection event.
-
Motion Zone: Click Setup and define the motion zone using blocks.
-
(Draw)/(Erase): Enable/disable motion detection blocks.
- □ (Cell): Select/unselect motion detection blocks individually.
- (Region): Select/unselect multiple motion detection blocks.
- (Fill): Select/unselect all motion detection blocks.
- Motion Ignoring Interval: With Motion Ignoring Interval configured, no event log or notification is generated for motions detected during a period of time following a motion detection event.
- Daytime: Specify when daytime starts and ends. All other times will be assumed as nighttime.
- Event Action: Select a motion detection event alert action.
- Alarm Out: Select if you wish to generate an alarm out.
- Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
- Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.
- Not supported from the IDIS Web program.
-
The camera must be registered to the remote system in order to use the Remote Callback feature.
-
Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav, .mp3).
- FTP Upload: Select this option if you wish to upload images to the FTP server.
- Record: Select this option to record video.
Event Action settings must be configured correctly in order to perform event actions.
Trip-Zone
Select Trip-Zone to configure trip zone event settings. With trip zone event enabled, motion detected inside/outside the selected area will be assumed as an event.
- Sensitivity: Select daytime and nighttime motion detection sensitivity levels. Higher values will result in more sensitive motion detection.
- Trip-Zone: Click Setup and define the trip zone using blocks.
- (Draw)/(Erase): Enable/disable trip zone blocks.
- □ (Cell): Select/unselect trip zone blocks individually.
- (Region): Select/unselect multiple trip zone blocks.
- (Fill): Select/unselect all trip zone blocks.
- Trip Direction: Define in which direction the motion has to occur in order for it to be considered as an event. Select In for movement occurring from outside the trip zone in and Out for movement occurring from inside the trip zone out.
- Motion Ignoring Interval: With Motion Ignoring Interval configured, no event log or notification is generated for motions detected during a period of time following a motion detection event.
-
Daytime: Specify when daytime starts and ends. All other times will be assumed as nighttime.
-
Alarm Out: Select if you wish to generate an alarm out.
- Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
- Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.
Part 1 - Remote Setup
- Not supported from the IDIS Web program.
-
The camera must be registered to the remote system in order to use the Remote Callback feature.
-
Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav, .mp3).
- FTP Upload: Select this option if you wish to upload images to the FTP server.
- Record: Select this option to record video.
Event Action settings must be configured correctly in order to perform event actions.
Audio Detection
Select Audio Detection to configure audio detection event settings. With audio detection enabled, an audio detection taking place during the specified activation period will be assumed as an event.
- Sensitivity: Define the audio detection sensitivity. Higher values will result in more sensitive detection.
- Activation Time: Specify how long audio has to be detected for it to be considered as an event. Audio detections that do not last for the specified duration of time will not be considered as events.
- Use Ignoring Time: Define the event ignoring time. Audio detections taking place during the defined time range will not be assumed as events.
- Audio Ignore Interval: With Audio Ignoring Time configured, no event log or notification is generated for audio detections taking place during a period of time following an audio detection event.
- Event Action: Select an audio detection event alert action.
- Alarm Out: Select if you wish to generate an alarm out.
- Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
- Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.
• Not supported from the IDIS Web program.
- The camera must be registered to the remote system in order to use the Remote Callback feature.
- FTP Upload: Select this option if you wish to upload images to the FTP server.
- Record: Select this option to record video.
Event Action settings must be configured correctly in order to perform event actions.
Tampering
Select Tampering to configure tampering detection event settings. With tampering detection event enabled, a sudden change in the video, such as due to movement of the camera or covering up of the lens, will be
assumed as an event.
- Sensitivity: Define the tampering detection sensitivity. Higher values will result in more sensitive detection.
- Activation time: Specify how long tampering has to be detected for it to be considered as an event. Tampering detections that do not last for the specified duration of time will not be considered as events.
- Use Ignoring Time: Define the event ignoring time. Tampering detections taking place during the defined time range will not be assumed as events.
-
Event Action: Select a tampering detection event alert action.
-
Alarm Out: Select if you wish to generate an alarm out.
- Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
- Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.
• Not supported from the IDIS Web program.
• The camera must be registered to the remote system in order to use the Remote Callback feature.
- Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav, .mp3).
- FTP Upload: Select this option if you wish to upload images to the FTP server.
- Record: Select this option to record video.
Event Action settings must be configured correctly in order to perform event actions.
Call
Select Call to configure call event settings. With call event enabled, when the intercom button is pressed, it will be assumed as an event.
- Event Action: Select a call event alert action.
- Alarm Out: Select if you wish to generate an alarm out.
- Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
- Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.
- Not supported from the IDIS Web program.
-
The camera must be registered to the remote system in order to use the Remote Callback feature.
-
Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav, .mp3).
- FTP Upload: Select this option if you wish to upload images to the FTP server.
- Record: Select this option to record video.
- Make a Call: Select this option for a call.
Event Action settings must be configured correctly in order to perform event actions.
Tampering Switch
Select Tampering Switch to configure tampering switch event settings. With tampering switch event enabled, when the intercom body is physically separated from the installation plate, it will be assumed as an event.
- Event Action: Select a tampering switch event alert action.
- Alarm Out: Select if you wish to generate an alarm out.
- Send Email: Select if you wish to send an email. Select the Image Attachment option to attach a .jpg image of the event detected to the email.
- Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to.
• Not supported from the IDIS Web program.
• The camera must be registered to the remote system in order to use the Remote Callback feature.
- Audio Alarm: Select this option to generate an audio alert and then choose an audio file (.wav, .mp3).
- FTP Upload: Select this option if you wish to upload images to the FTP server.
- Record: Select this option to record video.
Event Action settings must be configured correctly in order to perform event actions.
System Event
Select System Event and configure system event settings. With system event enabled, system status, alarm in status, and disk status will be checked periodically and corresponding alerts will be generated.
- System Alive: Select to check the system status and then set up a schedule.
- Send Email: Select to send out an email when the system comes on line.
- Remote Callback: Select this option to send a message to a remote system when the system comes on line and then select which system to send the message to.
- Alarm In Bad: Select to check the alarm in status and then set up a schedule.
- Send Email: Select to send out an email if no change is detected in the alarm in status.
- Remote Callback: Select this option to send a message to a remote system when the SD memory card is inserted/removed and then select which system to send the message to.
- Disk In/Out: Select to check if the SD memory card has been inserted/removed.
- Send Email: Select to send out an email when the SD memory card is inserted/removed.
- Remote Callback: Select this option to send a message to a remote system when the SD memory card is inserted/removed and then select which system to send the message to.
- Email and Remote Callback settings under Event Action must be configured correctly in order to send out emails and messages.
- Remote Callback is not supported on IDIS Web.
• The camera must be registered to the remote system in order to use the Remote Callback feature.
IDIS Web is a program that allows you to view and search video from remote locations over the Internet and can be accessed on the various web browser.
System requirements for running IDIS Web are as follows:
- OS: Microsoft Windows ^® 7 (Home Premium, Professional, Ultimate), Microsoft Windows ^® 8 (Pro, Enterprise), Microsoft Windows ^® 10 (Pro, Home), Microsoft Windows ^® 11
• CPU: Intel Pentium IV 2.4GHz or above (Core 2 Duo E4600 recommended) - RAM: 1GB or more
• VGA: 128MB or more (1280x1024, 24bpp or above) - Internet Explorer: Version 10 or later 32-bit
- Chrome: Google Chrome 22.0.1229.0 or above (59.xxx or above recommended)
- Edge: 98.0.1108.43 or above
1 Launch the web browser and then enter the following information in the address bar.
– http://IP Address:Port Number (IDIS Web connection port number selected during camera IP address and port number setup)
- Or http://FEN Server Address/FEN name (FEN Server address and FEN name registered to the FEN Server)
- Or http://web.idisglobal.com (it is required to enter the camera IP address when logging in. If the camera uses the FEN feature, you can enter the FEN name registered to the FEN server instead of the camera IP address after selecting the USE FEN option)
- If the Use HTTPS option has been selected during IDIS Web port number setup, enter https instead of http. If prompted with a security certificate warning, select "Continue to this website (not recommended)." If the IDIS Web login page fails to load, configure Internet Explorer's settings as follows:
- Tools → Internet Options → Security → Custom Level... → Medium-high (default) or Medium.
- Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select)
- If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
- If connecting by entering http://web.idisglobal.com, it is required to enter the Watch port number.
- Contact your network administrator for the IP address of the camera you wish to connect to the IDIS Web pot number.
2 When prompted with the IDIS Web login window, select LIVE-PORT or PLAY-PORT as the desired mode. Enter the ID and password and click LOGIN to sign in using the selected mode.
- IDIS Web does not work with Microsoft Windows® 8 metro UI.
- Do not close the login window while IDIS Web is running. Switching over to Web Live or Web Search mode can cause a script error, requiring you to restart the IDIS Web program.
- To use IDIS Web on Microsoft Windows Vista or above, launch Internet Explorer by right-clicking on the icon and selecting the Run as administrator option. Otherwise, certain IDIS Web functions might not be available.
- When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown. In this case, change Internet Options so that the address bar or the status bar is hidden. (Tools → Internet Options → Security → Custom level... → Allow websites to open windows without address or status bars (Enable))
- Launching a new version of IDIS Web for the first time can cause Internet Explorer to load information from the previous version. In this case, navigate to Tools → Internet Options → General, delete temporary Internet files, and then restart IDIS Web.
- On Microsoft Windows Vista or above, lowered image transmission rate can prevent the screen from being displayed or updated. In this case, we recommend that you disable the computer's auto tuning function. Open the command prompt as an administrator. (Start → Accessories → Command Prompt → Right-Click and then select Run as administrator) Type in "netsh int tcp set global autotuninglevel=disable" and then press Enter. Restart the computer to apply the change. To enable auto tuning again, launch the command prompt as an administrator and then type in "netsh int tcp set global autotuninglevel=normal". Restart the computer to apply the change.
Web Live Mode
A remote web monitoring program that allows you to monitor images from remote locales in real-time.
| 1 | Press × to terminate IDIS Web. | |||
| 2 | Place the mouse pointer on the logo to check IDIS Web's version. | |||
| 3 | Displays the current time. | |||
| 4 | Click 📄 to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen. | |||
| 5 | Click 📄 to print the current video screen using a printer connected to the computer. | |||
| 6 | Click 📄 to save the current video screen as an image file. | |||
| 7 | Click 📄 to configure rendering mode and OSD settings. Select rendering mode to adjust the video output rate or select which OSD elements to display on the screen from the OSD list. | |||
| 8 | Click 📄 to load the camera setup window. | |||
| 9 | Click 🔒 to switch over to Web Search mode. | |||
| 10 | Shows login information. | |||
| 11 | Indicates the camera's number. | |||
| 12 | Used to control zoom and focus at a remote location.One push button- Press this button to find the optimum focus automatically.- It is recommended to get an approximate focus using the manual focusing button before pressing the one push button for fast and efficient focusing.- This button is not supported in the ONVIF protocol.Zoom buttonsFocusing buttons | |||
| 13 | Used to adjust live video quality. | |||
| 14 | Click On Off to control the alarm out device connected to the camera. | |||
| 15 | Event status window at the bottom of the screen displays a list of events detected at remote locales. | |||
| Enable/Disable Alarm In Tampering | ||||
| Motion Detection Audio Detection | ||||
| Trip zone | ||||
| 16 | Right-click on the screen to display the pop-up menu. Click to enable or disable each function.Fisheye Dewarping:This function is not supported.Change Camera Title:Used to change the camera's name.Renaming the camera in Web Live mode does not affect the camera's name on the remote system. If no name is entered for the camera, the name used at the remote locale is shown on the screen.  | |||
| Enable Audio:Enables audio transmission with remote locales. Select to display buttons. | ||||
| Enables transmission of audio to the remote locale via microphone. | ||||
| Enables playback of audio from the remote locale on speakers. | ||||
| / Enables two-way audio communication with the remote locale. | ||||
| Disables audio transmission. | ||||
| If the remote locale connected to supports audio transmission, icon appears on the corresponding camera screen.Aspect Ratio:Change the aspect ratio of the video displayed on the screen.- Fit to Screen:Fit the video to the size of the camera screen.- Fit to Aspect Ratio:Resizes camera screen to original aspect ratio of the video.- Half Size (x0.5) - 4 Times Bigger (x4): Displays the camera videos in the selected size based on the original size of the video. For example, original size (x1) displays the video in its original size. Half size (x0.5) through 4 times larger (x4) options are only available if there is enough space on the camera screen to accommodate the selected size.MultiStream:If the camera is running on multi-stream mode, you can choose between the streams.Anti-Aliasing Screen:Removes stair step effect (blocks) that are caused when zooming a video to improve overall quality of video output.Mouse PTZ Control:Scrolling the mouse wheel zooms in or out. | ||||
Part 2 - IDIS Web
| 17 | Used to configure camera easy setup. Select from presets or custom setup for the video mode according to daytime/nighttime.Preset:Select from Natural, Vivid or De Noise.User Custom:Manually configure the values of each setting (Sharpness, Contrast, Colors and Brightness). |
Web Search Mode
A remote web search program that allows you to search for recordings from remote locales in real-time.
While in Web Search mode, connection to remote locales will terminate automatically after 30 minutes of inactivity.
| 1 | Press ✗ to terminate IDIS Web. | |||
| 2 | Place the mouse pointer on the logo to check IDIS Web's version. | |||
| 3 | Displays time information of the video recording from the remote locale. | |||
| 4 | Click [icon] to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen. | |||
| 5 | Click [icon] to print the current video screen using a printer connected to the computer. | |||
| 6 | Click [icon] to save the video recording as an executable file. | |||
| 7 | Click [icon] to save the current video screen as an image file. | |||
| 8 | Click [icon] to configure rendering mode and OSD settings. Select rendering mode to adjust the video output rate or select which OSD elements to display on the screen from the OSD list. | |||
| 9 | Click [icon] to switch over to Web Live mode. | |||
| 10 | Shows login information. | |||
| 11 | Indicates the camera's number. | |||
| 12 | Zoom in or out on the video. | |||
| 13 | Adjust image brightness. | |||
| 14 | Apply image filters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images. Image calibration is applied only during the paused state. | |||
| 15 | Use the calendar to search for video recordings by specific dates.Dates containing video recordings are highlighted in light blue. Selecting a date containing video recording data loads the earliest recording from that date. Selected date is highlighted in orange. | |||
| 16 | Select TimeLapse to enable time lapse search mode and search/playback video recordings in chronological order. In time lapse search mode, video recordings can be searched by selecting specific dates on the calendar. Time information of video recordings found on the selected dates is shown on the time table at the bottom of the screen. Select a point in time to display video from that moment. If multiple recordings are available for the selected point in time, you can select the desired segment. | |||
| 17 | Select Event to enable event search mode and search for events matching user-designated parameters. | |||
| 18 | Use the playback controls to play back video. | |||
| K | Go to First | ▶ | Fast Forward | |
| ◀ | Play by Frame (backwards) | ▶ | Play by Frame (forwards) | |
| ◀ Rewind | ▶ | Go to Last | ||
| ▶ | Play/Pause | |||
| 19 | Click Goto to designate recent recordings you wish to search and then jump to a specific point in the recording. | |||
| 20 | Click Reload to reload recent video recordings from remote locales. | |||
| 21 | Indicates the camera's recording data on a time bar. If the camera's system clock has been changed to a point in the past and more than one recording exists at the same point in time as a result, you will be able to choose which segment to search from the segment menu on the upper right portion of the time table. | |||
| 22 | Right-click on the screen to display the pop-up menu. Click to enable or disable each function.Fisheye Dewarping: This function is not supported.Change Camera Title: Used to change the camera's name.[83x8] Renaming the camera in Web Search mode does not affect the camera's name on the remote system. If no name is entered for the camera, the name used at the remote locale is shown on the screen.Enable Audio: If audio was recorded with the video, enabling this option plays audio upon playback.Aspect Ratio: Change the aspect ratio of the video displayed on the screen.Anti-Aliasing Screen: Removes stair step effect (blocks) that are caused when zooming a video to improve overall quality of video output. | |||
| Go to First | Fast Forward | ||
| Play by Frame (backwards) | Play by Frame (forwards) | ||
| Rewind | Go to Last | ||
| Play/Pause |
| Right-click on the screen to display the pop-up menu. Click to enable or disable each function. |
| • Fisheye Dewarping: This function is not supported. |
| • Change Camera Title: Used to change the camera's name. |
Setup Menu Tree (Remote Setup)
Index
B
Bitrate Control 19
C
Camera Name 8
Compression 19
D
Date/Time 9
DSCP 13
F
FEN Name 12
FEN Server 12
Frame Rate 19
|
IDIS Web port 13
IPFiltering 14
M
MAT 20
N
Network Bandwidth Limit 14
0
ONVIF Protocol 8
Q
Quality 19
R
Remote Port 13
Resolution 19
RTSP Port 13
s
SSL 14
T
Time Sync 9
U
Use FEN 12
Use HTTPS 13
User/Group 10
Use UPnP 13
- Before reading this manual
- Safety Precautions
- WARNING
- Important Safeguards
- Read Instructions
- Retain Instructions
- Cleaning
- Attachments
- Water and/or Moisture
- Placing and Accessories
- Power Sources
- Power Cord
- Lightning
- Overloading
- Objects and Liquids
- Servicing
- Damage requiring Service
- Replacement Parts
- Safety Check
- Field Installation
- Correct Batteries
- Tmra
- FCC Compliance Statement
- WEEE (Waste Electrical & Electronic Equipment)
- Correct Disposal of This Product
- (Applicable in the European Union and other European countries with separate collection systems)
- Copyright
- Registered Trademarks
- 1
- Part 1 - Remote Setup....7
- Table of Contents
- 2
- Part 2 - IDIS Web....34
- 3
- Part 3 - Appendix....41
- Part 1 - Remote Setup
- Remote Setup
- Quick Setup
- System
- General
- - Miscellaneous
- - ONVIF Event Type
- - Setup
- Date/Time
- - Time Sync
- User/Group
- Network
- IP Address
- FEN
- Port/QoS
- Bandwidth Control
- Security
- IEEE 802.1X
- Video
- Camera
- Image Sensor
- White Balance
- Exposure
- Day & Night
- Miscellaneous
- Streaming
- MAT
- Privacy Masking
- Audio
- Input/Output
- Event Action
- Alarm out
- Remote Callback
- Audio Alarm
- FTP Upload
- Record
- Schedule
- Settings
- Make a Call
- Event
- Alarm In
- Motion Detection
- Trip-Zone
- Audio Detection
- Tampering
- Call
- Tampering Switch
- System Event
- Web Live Mode
- Web Search Mode
- Index
- B
- C
- D
- F
- |
- M
- N
- 0
- Q
- R
- s
- T
- U
Brand : IDIS
Model : DC-I6212WRX
Category : Intercom
