Product Type	Vinyl Record Turntable
Model	Powel CR6047A
Brand	Crosley
Drive Type	Belt-drive
Speeds	33 1/3, 45, 78 RPM
Built-in Speakers	Yes, stereo
Bluetooth Connectivity	Yes, wireless audio streaming
USB Recording	Yes, convert vinyl to MP3
Cartridge / Stylus	Magnetic cartridge with diamond stylus
Dimensions (W x D x H)	16.5 x 13 x 5.5 inches
Weight	10.5 lbs
Power Supply	AC adapter (included)
Output Options	RCA line out, headphone jack
Radio	Built-in AM/FM
Care Instructions	Keep platter clean; replace stylus after 400-500 hours
Safety Features	Auto-shutoff after record ends
Replaceable Parts	Stylus (needle), belt
Color	Walnut/black (typical)

Frequently Asked Questions - Powel CR6047A Crosley

How do I connect the turntable to Bluetooth speakers?

Turn on the turntable and set it to Bluetooth mode using the function button. On your Bluetooth speaker, search for 'Crosley CR6047A' and pair.

Can I record vinyl to my computer via USB?

Yes, connect the turntable to your computer via the USB port and use recording software (e.g., Audacity) to capture audio as MP3 or WAV files.

How do I replace the turntable belt?

Remove the platter, then loop the new belt around the motor pulley and the inner rim of the platter. Ensure it's not twisted. Reinstall the platter.

What should I do if the turntable won't spin?

Check that the belt is properly installed and not broken. Ensure the speed selector is set correctly. If still not spinning, clean the belt and pulley with a dry cloth.

How do I clean the stylus (needle)?

Use a stylus cleaning brush or a soft, dry brush. Gently brush from back to front. Do not use liquids or alcohol as they may damage the cartridge.

Why is the sound distorted or skipping?

Check if the stylus is dirty or worn. Ensure the turntable is on a level surface and not near vibrations. Adjust the tracking force if possible (factory set).

Can I use a 78 RPM record?

Yes, the turntable supports 78 RPM. However, ensure you use a suitable stylus for 78 RPM records to avoid damage.

How do I switch between turntable, Bluetooth, and radio?

Press the 'Function' button on the front panel. Cycle through PHONO, BT, and RADIO modes until the desired source is selected.

The radio is not picking up stations. What can I do?

Extend the built-in FM antenna wire fully. For AM, rotate the turntable for better reception. Ensure you are not near large metal objects.

How do I maintain the turntable for long life?

Keep the dust cover closed when not in use. Clean records before playing. Replace the stylus every 400-500 hours. Avoid exposing to direct sunlight or moisture.

USER MANUAL Powel CR6047A Crosley

Powel 7 in 1 Entertainment Center Instruction Manual

Questions, problems, missing parts?

Before returning to the store, call Customer Service

8 a.m. – 6 p.m., EST, Monday – Friday

1-888-CROSLEY

www.crosleyradio.com

Safety Instructions

Read and understand this entire manual before using this product. Keep these instructions for future reference.

1. Do not use this product near water.
2. This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
4. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
5. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
6. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
9. Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
12. Unplug the product during lightning storms or when unused for long periods of time.

Items in this package

Before throwing away any packaging materials, please check thoroughly and make sure you find the following items that come along with this package:

• Turntable
• 45 RPM adapter
• Power adapter

Please contact Crosley customer service if there is any accessory missing from the package. Retain the original packaging materials for exchange or return purposes.

Specifications

Power AC power adaptor, DC output 10V 1A

Power consumption 12W

Speaker 3.5", 3Ω, 5W x 2

Turntable speed 33 13 , 45, 78 RPM

USB Charging Output 5V/1A

Replacement needle Crosley NP6

Frequency Range AM 522 – 1700 KHz

FM 88 - 108 MHz

Note:

• Design and specifications are subject to change without notice.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, you will need to turn off the power and turn it on again.

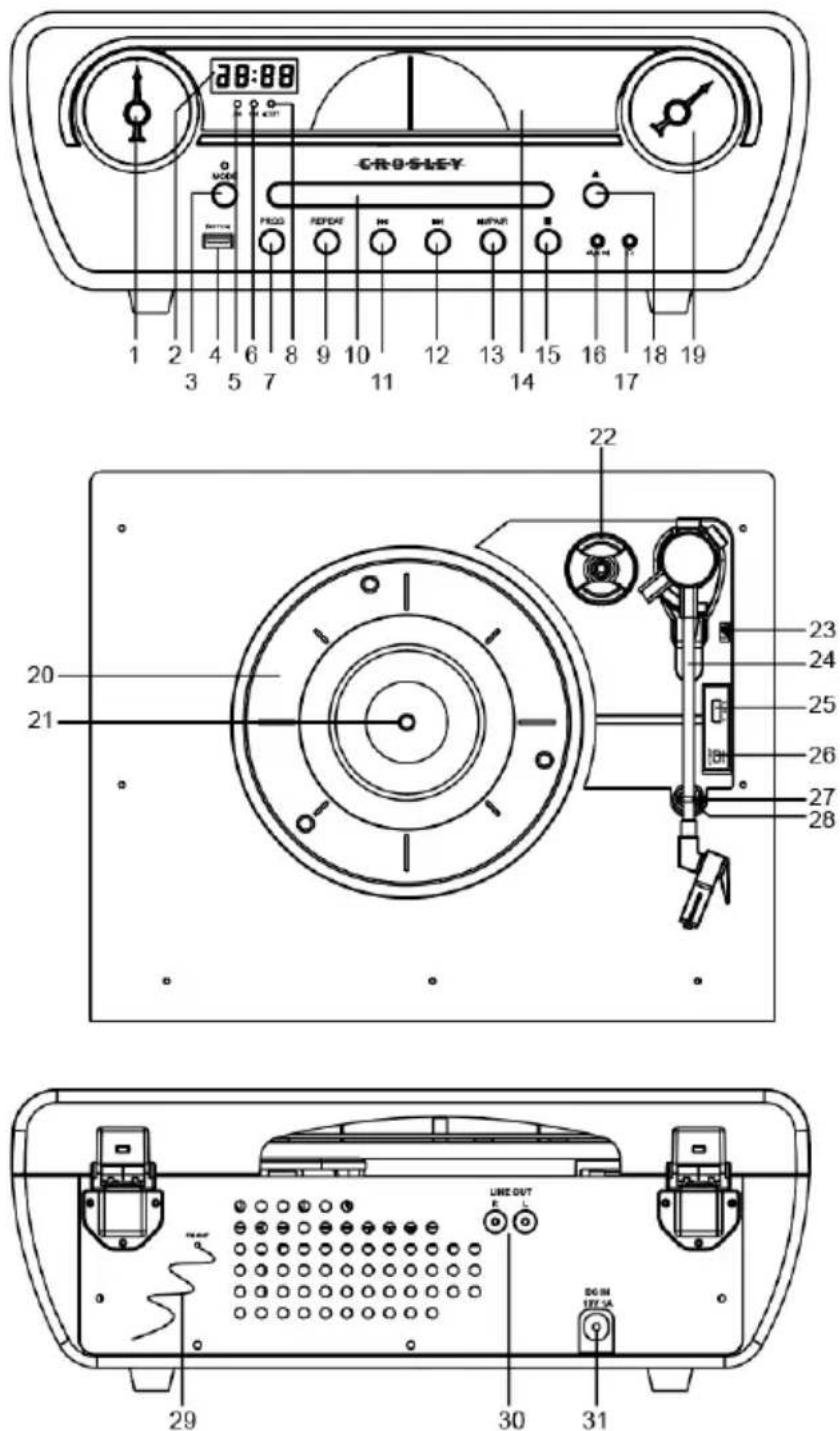

Product Description

1. Volume Knob
2. LED Display
3. Power/Mode Button
4. USB Jack
5. AM Indicator
6. FM Indicator
7. Program Button
8. Bluetooth Out Indicator
9. Repeat Button
10. CD Tray
11. Backward Skip Button
12. Forward Skip Button
13. Play/Pause/Pair Button
14. Dial Scale
15. Stop Button
16. Aux In Jack
17. Headphone Jack
18. CD Door Open/Close Button
19. Tuning Knob
20. Turntable Platter
21. Turntable Spindle
22. 45 RPM Adapter
23. Tonearm Lever
24. Tonearm
25. Speed Switch
26. Auto Stop Switch
27. Hold Down Clip
28. Tonearm Rest
29. External Antenna
30. Speaker Jacks
31. Power Jack

Initial Setup

Essential Setup

1. Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
2. Remove the tie-wrap that is holding the tonearm.
3. Connect power adaptor to the Power Jack of the unit.
4. Press the Power Button to turn on the unit.

USB Charging

To charge your USB chargeable device, turn off the turntable by holding the Power button and plug your device into the USB jack. The turntable will not charge your device while the power is on.

Stereo System Connection

RCA Jacks

• The RCA Jacks output analog line-level signals and could be connected directly with a pair of active/powered speakers or the appropriate input of your stereo system.
• The Red plug connects with the Right channel and the White plug connects with the Left channel.

Note: The RCA Jacks are not designed to be connected directly to the passive/unpowered speakers. If connected to the passive speakers, the volume level will be very low.

Aux Input Connection

You can connect an audio device to this unit and play your music through its speakers. To do this, press the Mode Button repeatedly to select Aux mode, connect the 3.5mm auxiliary cable (not included) between your audio device and the Aux In Jack of this unit and start playing the music.

Note: The LED display will show "Line"

Bluetooth Operation

1. Press the Mode Button repeatedly to select Bluetooth mode.
   Note: The LED display will flash "bt"
2. Turn on the Bluetooth feature of your audio device, search for "CROSLEY CR6047A" and pair.
3. Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit.
4. Play and stream music from your device to the unit.
5. During the playback, press the Play/Pause button to pause and press it again to resume playback.
6. To skip to the next or previous track, press the Forward Skip or Backward Skip button correspondingly.

Note: Bluetooth version - 5.3

The aux in connection will automatically override the Bluetooth functions. To resume using the Bluetooth functions, unplug the auxiliary cable from the aux in jack

Turntable Operation

1. Press the Mode Button repeatedly to select Phono mode.
   Note: The LED display will show "Phon"
2. Set the Speed Switch accordingly.
3. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
4. Remove the stylus protector from the stylus assembly.
   Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.
5. Release the tonearm Hold Down Clip.
   Note: When the turntable is not in use, remember to lock back the hold down clip.
6. Use the Tonearm Lever to lift up the tonearm.
7. Gently move the tonearm over the record where play is desired to begin. Set the Tonearm Lever back to the down position, the tonearm will descend slowly onto the record and begin to playback.
8. When the record is finished playing, use the Tonearm Lever again to raise the tonearm and then return it to the Tonearm Rest. Release the lever to let the tonearm sit back at its rest. To suspend the playback, repeat the same steps.
9. Lock the Hold Down Clip to secure the tonearm.

Platter Auto-stop

If the Auto-stop Switch is set to ON position, the platter will stop spinning automatically when the record plays to the end. In some rare occasion, if the turntable stops playing before the end of the record, set the switch to OFF position the turntable should overcome this issue.

Bluetooth Output Operation

This turntable features Bluetooth output which is a device that transmits audio from this turntable to another Bluetooth device such as wireless Bluetooth headphones, Bluetooth speakers, or other Bluetooth receiving devices.

1. Place the audio device that supports Bluetooth technology as close to your turntable as possible.
2. Press the Mode Button repeatedly to select either the CD, Phono, or Aux mode.
3. Long press the Play/Pause/Pair button to activate the Bluetooth out function.
4. Set the device that you would like to connect to pairing mode.

5. Your turntable will connect automatically to your audio device once they are both in pairing mode.

6. When the pairing is complete, the Bluetooth Out Indicator will be solid red. Note: If pairing is unsuccessful, make sure your audio device is not paired/connected to another Bluetooth device.

Needle Replacement

Removing Needle

1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.

Diagram of a mechanical component with a red highlighted section and a downward arrow, no text or symbols present.

Diagram of a mechanical component with red highlighted area and black arrow indicating direction (no text or symbols)

Diagram of a mechanical component with a red component and black directional arrow (no text or symbols)

Installing Needle

1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift the front of the needle upward until it snaps into place.

Technical illustration of a mechanical component with a red base (no text or symbols)

Technical illustration of a mechanical component with a red handle (no text or symbols)

Radio Operation

1. Press the Mode Button repeatedly to select Radio mode.

Note:

For AM frequency, the AM indicator will be solid red.

For FM frequency, the FM indicator will be solid red.

1. Rotate the Tuning Knob for the desired radio station.

Note:

• The unit is equipped with a FM wire antenna. To improve FM reception, move the wire around until the reception is clear without interferences. Do not connect the wire to any additional antenna.
• The AM antenna is built inside the unit. If AM reception is poor, try to rotate the unit for better reception.

CD Playback Operation

1. Press the Mode Button repeatedly to select CD mode.
   Note: The LED display will show "Cd"
2. Press the Open/Close button to open the CD tray and put the CD in the tray with the labeled side facing up.
3. Press the Open/Close button again to close the tray. The LED display will show "LoAd" for a few seconds, then the total number of tracks on the CD. If it is a blank CD or an unrecognizable CD, it will show "NO".
   Note: MP3 or similar types of digital audio files cannot be read by the CD player.
4. During the playback, press the Play/Pause button to pause and press it again to resume playback.
5. To skip to the next or previous track, press the Forward Skip or Backward Skip button correspondingly.
6. To search fast forward or backward, press and hold the Forward Skip or Backward Skip button correspondingly until you reach the desired time. Release the button and the playback will resume.
7. To repeat a specific track, press the Repeat button once while that track is playing, and the LED display will show "rP1". To repeat all the tracks, press the Repeat button twice and the LED display will show "ALL" To cancel repeat function, press the Repeat button and the LED display will show "OFF".
8. Press the Stop button if you want to completely stop playback.

Programmed Playback

1. Stop the playback, press the Program button once to enter program mode. The LED display will show "P01" as the track sequence which is to be edited.
2. Press the Forward Skip or Backward Skip buttons to select the desired track that you would like to play.

3. Press the Program button to confirm the selected track.

4. Repeat steps 2 & 3 for additional soundtracks that you would like to play. The tracks can be in any number and repeated. A maximum of 20 tracks can be programmed at one time.

5. Press the Play/Pause button to start the programmed playback. The tracks will play in the same sequence that you programmed earlier.
6. To exit the program mode, press the Stop button twice.

Turntable Maintenance

1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the turntable mat or a record's edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped microfiber cloth.
   Note: Do not use a cleanser that contains alcohol, benzene, or any other harsh chemicals, which might damage the paint and finish of the turntable.

** Crosley offers a product line of different cleaning accessories. Please ask your retailer or check out our website www.crosleyradio.com for more cleaning product information.

Troubleshooting

There is no power

• No power at the power outlet.
• To help save power consumption, some models will comply with the ERP energy saving standard. When there is no audio input for 20 minutes, the power will automatically cut-off. To turn power back on and resume playing, turn off the main power switch and turn it on again.

Power is on, but the platter does not turn

- Turntable mode is not selected.

Turntable is spinning, but there is no sound, or sound not loud enough

• Stylus protector is still on.
• Tone arm is lifted by the lever.
• Turn up the volume knob.

CD does not play

• Function mode is not set to CD.

• The CD is blank.
• The CD is placed on the tray incorrectly with the label side facing down.
• The CD has unsupported digital audio files like MP3 and similar types of format.
• The CD has too many scratches or is dirty.

FCC Statements

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.

The device has been evaluated to meet general RF exposure requirement.

To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of the transmitter and its antenna(s).

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby, Modern Marketing Concepts Inc. dba Crosley Brands, declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://crosleybrands.com/euDoC
