Product Type	Digital Security Safe Lock Box
Brand	Kogan
Model	KADSAFM16LA (also compatible with KADSAFSA9LA, KADSAFL27LA)
Power Source	4 x AA batteries (not included)
Locking Mechanism	Digital keypad (3-8 digit passcode) and emergency key override
Passcode Length	3-8 digits, factory default "159"
Emergency Override	2 emergency keys included
Mounting Options	Floor or wall mounting with pre-drilled holes; includes expansion anchors and bolts for concrete
Indicator Lights	Red (low battery), Yellow (programming/confirmation), Green (unlocked)
Reset Button	Inside safe, press and hold to reset passcode to factory default
Battery Compartment	Inside the door, covered
Emergency Lock Cover	Removable cover for keyhole
Material	Steel body
Number of Bolts	4 (based on diagram)
Cleaning	Wipe with damp cloth; do not use liquids or sprays
Safety Warning	Never store emergency keys inside the safe; do not install in elevated or insecure locations
Manual	Free download in PDF (8 pages, English)
Support	Online help at help.kogan.com

Frequently Asked Questions - KADSAFM16LA Kogan

How do I set or change the passcode?

Open the door and press the reset button inside. The yellow indicator will flash and the safe will beep. Input a new code (3-8 digits) and press # to confirm. If successful, the yellow indicator flashes twice with 2 beeps. If it flashes 3 times, the change failed and you need to repeat.

How do I unlock the safe using the passcode?

Input your passcode on the keypad and press the # button to confirm. The yellow indicator will flash twice, the safe will emit 2 beeps, and the green indicator will turn on. Turn the knob clockwise to open the door.

How to unlock the safe with the emergency key?

Remove the emergency lock cover on the control panel. Insert the emergency key and turn it counter-clockwise. Then turn the knob clockwise and open the door. Always keep the emergency keys in a safe place away from the safe.

What should I do if I forget my passcode?

Use the emergency key to unlock the safe. Once open, press and hold the reset button until the yellow indicator flashes twice and the safe beeps twice. The passcode will reset to the factory default 159.

How to reset the safe to factory settings?

Open the safe and press and hold the reset button until the yellow indicator flashes twice and the safe emits 2 beeps. The passcode will revert to the default 159.

What type of batteries does the safe use and how to replace them?

The safe uses 4 AA batteries (not included). To replace them, unlock the safe, open the door, remove the battery compartment cover, and insert new batteries matching the polarity (+/-). When the red indicator lights up during operation, batteries are low and should be replaced immediately. High-powered alkaline batteries are recommended.

How do I install the safe?

Select a stable, dry, and secure location. If bolting to a wall, ensure the safe rests on a well-supported surface (e.g., floor or shelf) – do not bolt to both floor and wall. Mark mounting holes, drill 50mm deep holes, and secure using the supplied bolts and expansion anchors (for concrete). Tighten bolts securely.

Can I mount the safe to both the floor and wall?

No, do not bolt the safe to both the floor and wall. It should be either floor-mounted or wall-mounted, and if wall-mounted, ensure it rests on a solid surface below.

What does the red indicator light mean?

If the red indicator turns on during operation, the batteries are low and need to be replaced. Replace them promptly to ensure proper functioning.

How should I clean the safe?

Clean the safe with a damp cloth. Do not use any liquids or spray cleaners, as they can damage the control panel and internal components. Avoid exposing the panel to water.

USER MANUAL KADSAFM16LA Kogan

Line drawing of a simple safe with a door and keypad (no text or symbols)

DIGITAL SECURITY SAFE LOCK BOX

KADSAFSA9LA, KADSAFL27LA & KADSAFM16LA

SAFETY & WARNINGS

• Do not install the safe in an elevated, insecure location. A falling safe can cause serious personal injury and damage to the product.
• Do not use any liquids or a spray cleaner to clean the safe. Wipe with a damp cloth instead.
• Do not expose the control panel to water or any other liquids as this may cause electric shock and damage the internal components.
• This product does not contain any user serviceable parts. Do not dismantle or modify the product in any way. Unguided dismantling and incorrect reassembly may damage the electrical components. If repairs are required, please contact help.Kogan.com for support.
  • Never store the emergency keys inside the safe.

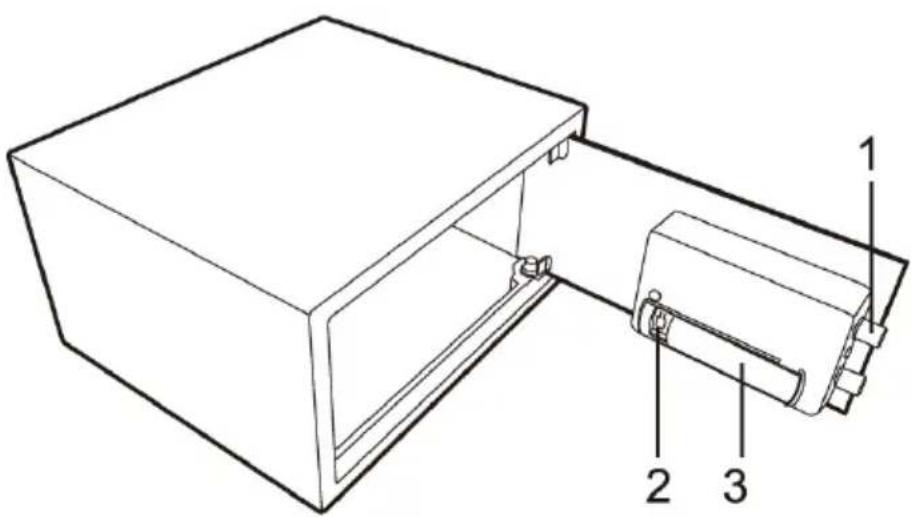

OVERVIEW

Safe

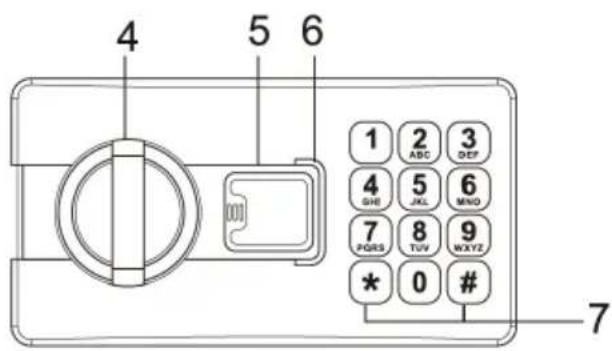

Control panel

1 Bolts
2 Reset Button
3 Battery Compartment
4 Knob
5 Emergency Lock Cover
6 Indicator
7 Confirm Button (#)

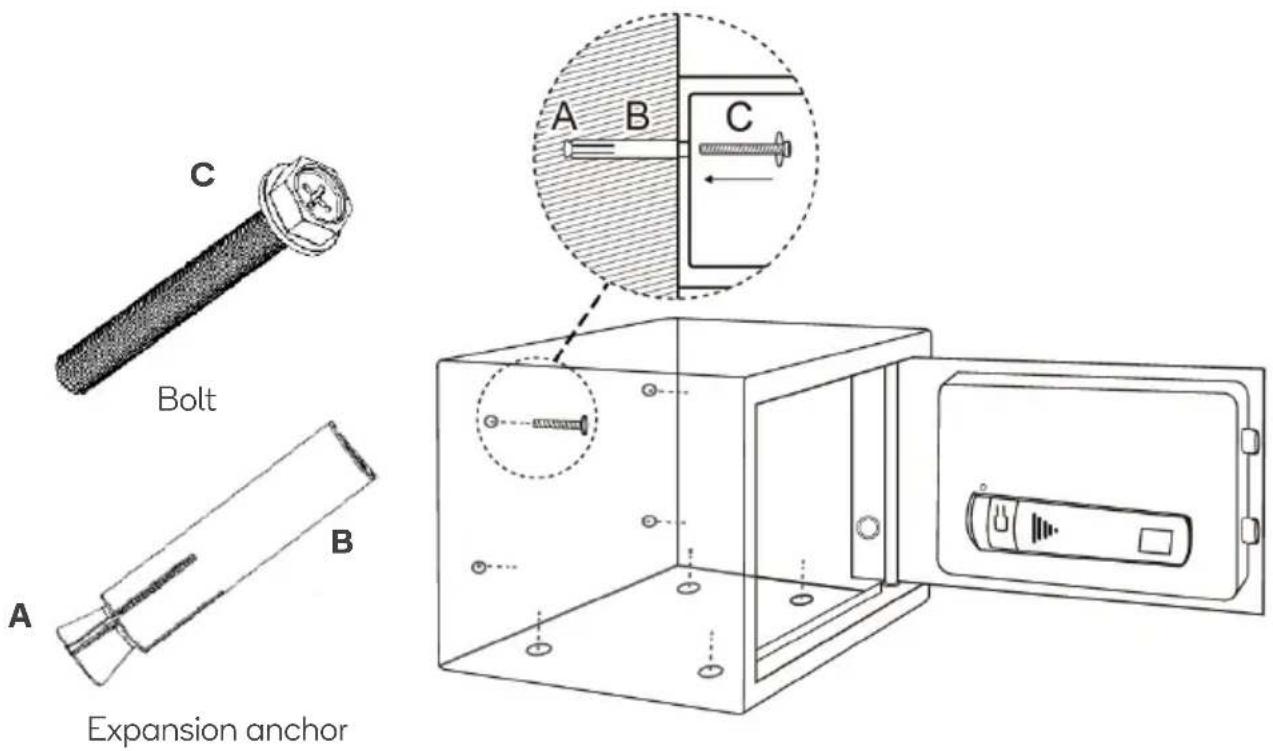

INSTALLATION

• Select a stable, dry and secure location for the safe.
• If bolting to a wall, ensure that your safe is resting on a well-supported surface (such as the floor or a shelf). Do not bolt your safe to both the floor and wall.
• Place the safe in the selected location. Use a pencil to mark the mounting holes on the floor or wall.
• Move the safe and drill the holes 50mm deep using the appropriately sized drill bit.

Note: If you have any doubt regarding the installation or appropriate hardware for your application, contact a qualified trades person for advice before drilling.

• Move the safe back into position and align the mounting holes to the openings in the safe.
• If you are mounting into concrete, insert the included expansion anchors into the holes before securing the safe in place using the suppled bolts.
  • Tighten the bolts securely.

WARNING: Always use the expansion anchor when mounting to a concrete surface.

OPERATION

Installing the Batteries

• Remove the emergency lock cover and unlock the safe using the emergency key.
• Pull the door open.
• Remove the battery compartment cover.
• Insert x4 AA batteries into the battery compartment. Pay close attention to the orientation of the polarity symbols (+ and -).

Note:

If the red indicator turns on during operation, the batteries are low and will need to be replaced. It is highly recommended to use a high-powered alkaline battery.

Setting the Passcode

By default the factory passcode is "159". It is highly recommended to change the passcode to something more secure.

• Open the door and press the reset button, the yellow indicator will flash and the safe will beep.
• Input a new code (between 3-8 digits) and press “#” to confirm. If the code change has been successful, the yellow indicator will flash twice and the safe will emit 2 beeps.
• If the yellow light flashes 3 times with 3 beeps, the code change has failed and the process will need to be repeated.

Unlocking the Safe

Passcode:

1. Input the passcode and press the “#” button to confirm.
2. The yellow indicator will flash twice, the safe will emit 2 beeps and the green indicator will turn on.
3. The safe has been successfully unlocked. Turn the knob clockwise to open the safe.

Emergency key:

In the event the passcode cannot be used, you can use the emergency key to unlock and open the safe.

1. Remove the emergency lock cover.
2. Insert the emergency key and turn counter-clockwise.
3. Turn the knob clockwise and open the door.

WARNING: Ensure the emergency keys are kept in a safe place. Never store them in safe.

Resetting the Safe

To return the safe back to factory settings, open the safe then press and hold the reset button until the yellow indicator flashes twice and the safe emits 2 beeps. The passcode will return to the default code "159".

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For the most up-to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com.

kogan.com
