PT-872xr - AV Extender Kramer - Free user manual and instructions
Find the device manual for free PT-872xr Kramer in PDF.
| Product Type | AV Extender |
| Model | PT-872xr |
| Brand | Kramer |
| Dimensions (W x D x H) | 19" x 7.2" x 1U (rackmount) |
| Weight | 2.5 kg (approx.) |
| Power Supply | 100-240V AC, 50/60Hz |
| Power Consumption | 25W (max) |
| Video Inputs | 8x HDMI, 2x VGA, 2x Composite |
| Video Outputs | 2x HDMI, 1x VGA, 1x Composite |
| Max Video Resolution | 1920x1200 (1080p supported) |
| Audio Support | Embedded HDMI audio, stereo analog |
| Control Interface | RS-232, Ethernet, IR remote |
| Main Features | Scaling, switching, EDID management, HDCP compliant |
| Maintenance | Clean with dry cloth, avoid liquids |
| Safety | Use only supplied power adapter, keep vents clear |
| Spare Parts | Contact Kramer support for replacements |
| Repairability | Authorized service only |
| Operating Temperature | 0-40°C |
| Humidity | 10-90% non-condensing |
| Warranty | 3 years limited |
Frequently Asked Questions - PT-872xr Kramer
User questions about PT-872xr Kramer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your AV Extender in PDF format for free! Find your manual PT-872xr - Kramer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PT-872xr by Kramer.
USER MANUAL PT-872xr Kramer
Introduction 1
Getting Started 1
Overview 2
Typical Applications 3
Defining PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr 4
Installing Device 7
Connecting Device 9
Connecting PT-871/2-KIT, PT-871/2xr-KIT, PT-871xr, PT-872xr 9

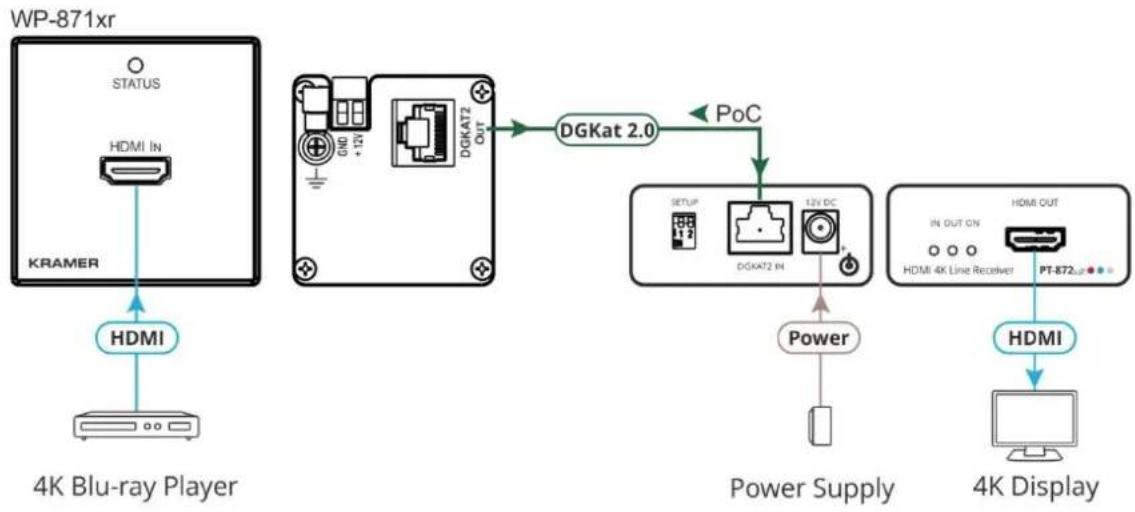

Connecting WP-871xr, and WP-872xr/PT-872xr 10

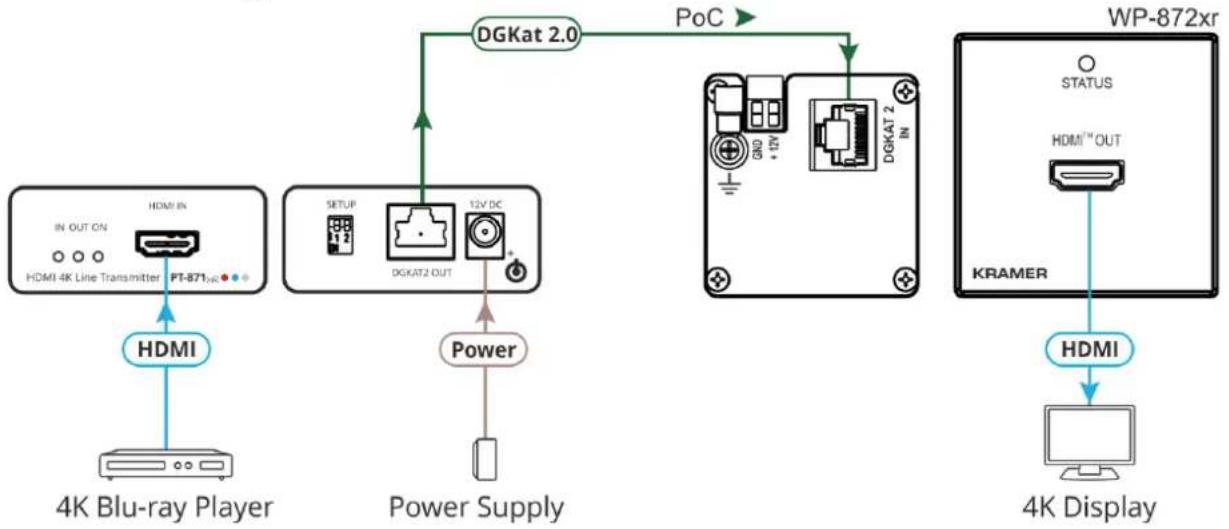

Connecting PT-871xr and WP-872xr 11
Setting Compression Level 12
Technical Specifications 13
PT-871/2-KIT 13
PT-871/2xr-KIT, PT-871xr, and PT-872xr 14
WP-871xr, WP-872xr 15
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!
Getting Started
Achieving Best Performance on page 1
Safety Instructions on page 1
Recycling Kramer Products on page 2
We recommend that you:
- Unpack the equipment carefully and save the original box and packaging materials for possible future shipment.
- Review the contents of this user manual.
Go to k.kramerav.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).
Achieving Best Performance
- Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).
- Do not secure the cables in tight bundles or roll the slack into tight coils.
- Avoid interference from neighboring electrical appliances that may adversely influence signal quality.
- Position your Kramer PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr away from moisture, excessive sunlight and dust.
This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.
Safety Instructions
Caution: There are no operator serviceable parts inside the unit
Warning: Use only the Kramer Electronics power supply that is provided with the unit
Warning: Disconnect the power and unplug the unit from the wall before installing
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling.
Overview
Congratulations on purchasing your Kramer PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr HDMI Line Transmitters and Receivers over Long-Reach DGKat. PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr are high-performance, long-reach DGKat™ 2.0 transmitters and receivers for 4K@60Hz (4:4:4) HDR, HDMI™, HDCP 2.2 signals and 2-way powering over twisted pair. The transmitters convert the HDMI input signal into a DGKat™ 2.0 signal. The receivers convert the transmitted DGKat™ 2.0 signal into an HDMI signal.
- High Performance Extender – Professional DGKat™ 2.0 extender for providing long-reach signals over twisted pair copper infrastructures. These devices employ low-
level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near-zero latency.
- HDMI Signal Extension – HDCP 2.2 compliant. Support HDR, deep color,
x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the display.
- EDID Pass-through – pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel Audio Extension – Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Cost-effective Maintenance – Status LED indicators for power and connectivity facilitate easy local maintenance and troubleshooting.
- Easy and Cost-effective Installation – Installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoC) connections.
PT-871/2-KIT, PT-871/2xr-KIT, PT-871xr, and PT-872xr are designed with
Compact Pico TOOLS™ fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the recommended rack adapter.
The WP-871xr and WP-872xr wall plates compactly fit into a standard US, EU and UK 1-gang in-wall box size, supporting decorative integration with room-deployed user interfaces such as electrical switches.
Typical Applications
PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr are ideal for the following typical applications:
- Long-distance AV signal extension for large room connectivity.
- AV extension in meeting rooms, boardrooms, hotels and corporate facilities.
Defining PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr
PT-871/2-KIT includes PT-871 and PT-872. PT-871/2xr-KIT includes PT-871xr and PT-872xr.
PT-871

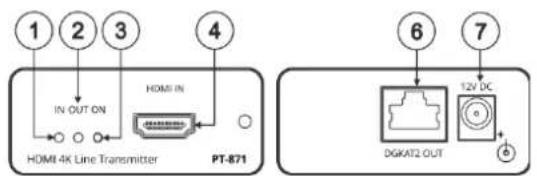

Figure 1: PT-871 Line Transmitter
PT-872

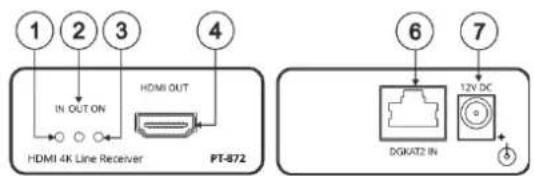

Figure 2: PT-872 Line Receiver
PT-871xr
Figure 3: PT-871xr Line Transmitter
PT-872xr

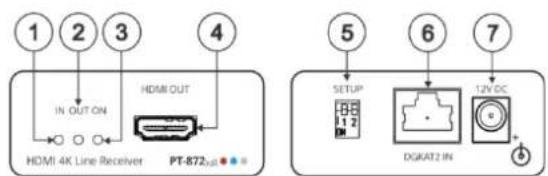

Figure 4: PT-872xr Line Receiver
| # | Feature | Function | ||
| 1 | LED Indicators | IN | Lights when an active source is connected to HDMI IN on the transmitter. | |
| 2 | OUT | Lights when an active acceptor is connected to HDMI OUT on the receiver. | ||
| 3 | ON | Lights when power is connected to the device. | ||
| 4 | HDMI IN Connector (PT-871, PT-871xr) | Connect to an HDMI source. | ||
| HDMI OUT Connector (PT-872, PT-872xr) | Connect to an HDMI acceptor. | |||
| 5 | SETUP DIP-switches (PT-871xr, PT-872xr) | Always set DIP-switch 1 identically on both devices. | ||
| DIP-switch 1: Compression Options | OFF (up) – Standard compression level (default). ON (down) – High compression level for additional range extension. | |||
| DIP-switch 2: | Must be set to OFF (up). | |||
| 6 | DGKAT2 RJ-45 Connector | OUT (PT-871, PT-871xr) | Connect to the DGKat-2.0 IN connector on the PT-872xr using twisted pair cable. | |
| IN (PT-872, PT-872xr) | Connect to the DGKat-2.0 OUT connector on the PT-871xr using twisted pair cable. | |||
| 7 | 12V DC Connector | Connect to the power adapter of one of the devices. | ||
WP-871xr
US-D Version
Front
EU/UK Version
Front
US-D/EU/UK Version
Rear
Figure 5: WP-871xr Line Transmitter Wall-plate
WP-872xr
US-D Version Front
EU/UK Version
Front
US-D/EU/UK Version
Rear
Figure 6: WP-872xr Line Receiver Wall-plate
| # | Feature | Function |
| 1 | HDMI IN Connector (WP-871xr) | Connect to an HDMI source. |
| HDMI OUT Connector (WP-872xr) | Connect to an HDMI acceptor. | |
| 2 | STATUS LED | Lights green when power is connected to the device.Lights blue when powered and both active source and acceptor are detected. |
| 3 | Ring Tongue Terminal Grounding Screw | Connect to grounding wire (optional). |
| 4 | Power Supply 2-pin Terminal Block Connector | Connect to the power adapter (if required). Connect GND to GND, +12V to +12V. |
| 5 | DGKAT2 OUT RJ-45 Connector | Connect to the DGKat-2.0 IN connector on the PT-872xr or WP-872xr using CAT 6A cable. |
| DGKAT2 IN RJ-45 Connector | Connect to the DGKat-2.0 OUT connector on the PT-871xr or WP-871xr using CAT 6A cable. |

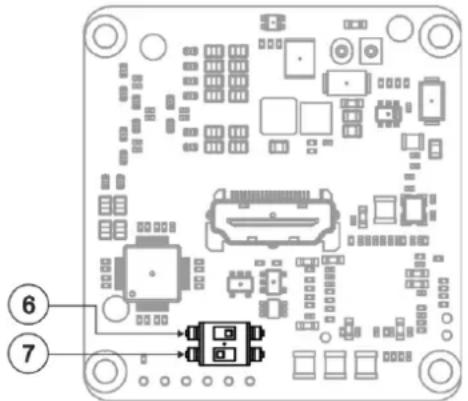

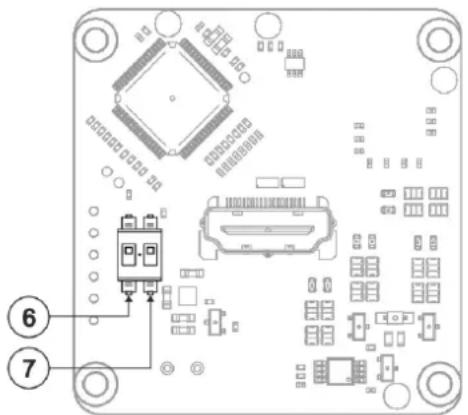

WP-871xr – Front Panel Before Assembly
Figure 7: WP-871xr Line Transmitter Wall-plate – Front Panel Before Assembly
| # | Feature | Function | |
| SETUP DIP-switches |  | Do not change the default DIP-switch settings (located on the front panel, behind the frame) | |
| 6 | DIP-switch 1 | Must be set to ON (right). | |
| 7 | DIP-switch 2 | Must be set to OFF (left). | |
WP-872xr – Front Panel Before Assembly
Figure 8: WP-872xr Line Receiver Wall-plate – Front Panel Before Assembly
| # | Feature | Function | |
| SETUP DIP-switches |  | Do not change the default DIP-switch settings (located on the front panel, behind the frame) | |
| 6 | DIP-switch 2 | Must be set to OFF (up). | |
| 7 | DIP-switch 1 | Must be set to ON (down). | |
Installing Device
This section provides instructions for installing PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr.
Before installing the device, verify that the environment is within the recommended range:
• Operation temperature – 0° to 40°C (32 to 104°F).
• Storage temperature -40^ to +70^ (-40 to +158^ ).
- Humidity – 10% to 90%, RHL non-condensing.
When installing on a 19" rack, avoid hazards by taking care that:
- It is located within recommended environmental conditions. Operating ambient temperature of a closed or multi-unit rack assembly may exceed ambient room temperature.
- There is enough air flow around the device.
- The device is placed upright in the correct horizontal position.
To mount PT-871/2-KIT, PT-871/2xr-KIT, PT-871xr and PT-872xr:
- Mount the unit in a rack using the recommended rack adapter www.kramerav.com/downloads/PT-871/2-KIT.
- Fasten a bracket (included) on each side of the unit and attach it to a flat surface.
For more information go to www.kramerav.com/downloads/PT-871/2-KIT. - Attach the rubber feet and place the unit on a flat surface.


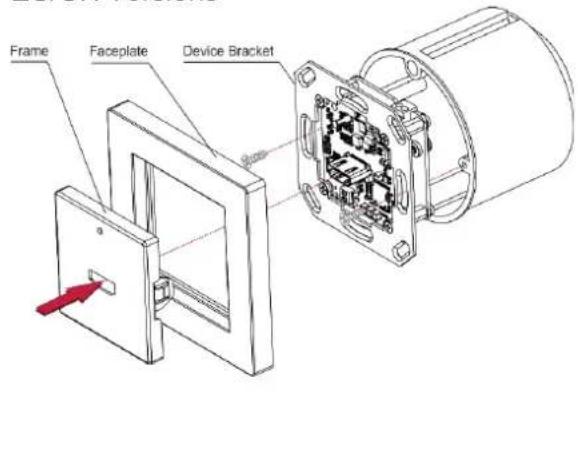

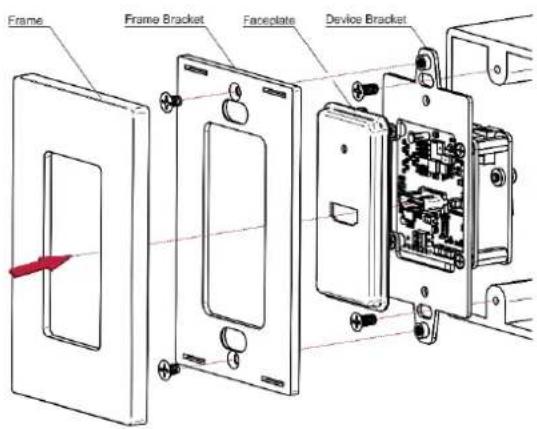

- Insert the device into the in-wall box (note that first you need to connect the DGKAT 2.0 cable and power) and connect the parts as shown in the illustrations below:
EU/UK Versions
US Version
We recommend that you use any of the following standard 1 Gang in-wall junction boxes (or their equivalent):
• US-D: 1 Gang US electrical junction boxes.
- EU: 1 Gang in-wall junction box, with a cut-hole diameter of 68mm and depth that can fit in both the device and the connected cables (DIN 49073).
- UK: 1 Gang in-wall junction box, 75x75mm (W, H), and depth that can fit in both the device and the connected cables (BS 4662).
Connecting Device
Always switch off the power to each external device before connecting it to your PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr. After connecting your PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr, connect its power and then switch on the power to each device.
We highly recommend using only Kramer UNIKAT cables with these products. If using 3^rd party shielded CAT-6A cables, both ends of the shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the extension line cable is lying straight and not coiled.
Connecting PT-871/2-KIT, PT-871/2xr-KIT, PT-871xr, PT-872xr
For illustrative purposes, the figure below shows PT-871/2xr-KIT, but the same connections apply to PT-871/2-KIT.


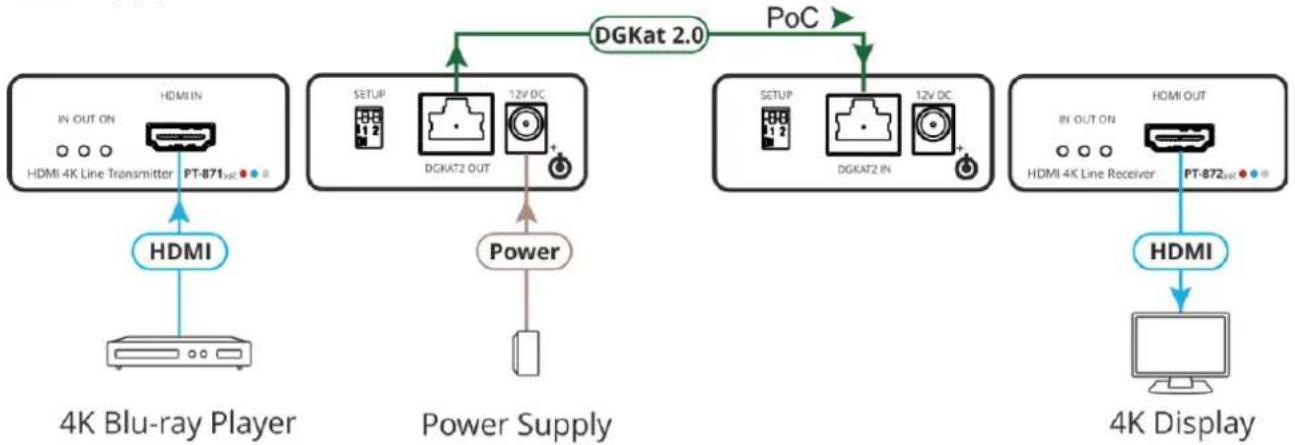

Figure 9: Connecting to PT-871/2xr-KIT
To connect PT-871/2-KIT, PT-871/2xr-KIT, PT-871xr, and PT-872xr as illustrated in Figure 9:
- Connect the HDMI video source to the HDMI IN Connector ☑ on the transmitter.
- Connect the DGKat2 OUT RJ-45 Connector ⑤ on the transmitter to the DGKat2 IN RJ-45 Connector ⑩ on the receiver using a DGKat 2.0 cable.
- Connect the HDMI video acceptor to the HDMI OUT Connector on the receiver.
- Connect the power adapter to either the transmitter or receiver. Each device provides power to its counterpart via DGKat 2.0. Each device can provide or accept power over cable (PoC) via DGKat 2.0. We recommend that you use only the power cord that is supplied with this device.
Connecting WP-871xr, and WP-872xr/PT-872xr
For illustrative purposes, the figure below shows PT-872xr as the receiver, but the same connections apply when using WP-872xr as the receiver.
Figure 10: Connecting to WP-871xr and PT-872xr
To connect WP-871xr and WP-872xr/PT-872xr as illustrated in Figure 9:
- Connect the HDMI video source to the HDMI IN Connector ① on WP-871xr.
- Connect the DGKat2 OUT RJ-45 Connector ⑤ on WP-871xr to the DGKAT2 IN RJ-45 Connector ⑥ on the PT-872xr (WP-872xr) receiver using a DGKat 2.0 cable.
- Connect the HDMI video acceptor to the HDMI OUT Connector ④ on the PT-872xr (WP-872xr) receiver.
Make sure PT-872xr DIP-switch 1 is set to ON (down = high-compression). WP-872xr only supports high compression.
- Connect the power adapter to the PT-872xr (WP-872xr) receiver.
Alternatively, you can connect the WP-871xr power adapter and PT-872xr is powered by PoC.
We recommend that you use only the power cord that is supplied with the PT-872xr/(WP-872xr) receiver.
Connecting PT-871xr and WP-872xr
Figure 11: Connecting to PT-871xr and WP-872xr
To connect PT-871xr and WP-872xr as illustrated in Figure 9:
- Connect the HDMI video acceptor to the HDMI OUT Connector ① on WP-872xr.
- Connect the DGKat2 IN RJ-45 Connector ⑤ on WP-872xr to the DGKAT2 OUT RJ-45 Connector ⑥ on the PT-871xr receiver using a DGKat 2.0 cable.
- Connect the HDMI video source to the HDMI IN Connector ④ on the PT-871xr transmitter.
- Connect the power adapter to the PT-871xr transmitter. We recommend that you use only the power cord that is supplied with the PT-871xr transmitter.
Alternatively, you can connect the WP-821xr power adapter and PT-871xr is powered by PoC.
Setting Compression Level
PT-871xr, and PT-872xr include a Compression Options DIP-switch (DIP-switch 1) that enables selecting the compression level.
By default, the Compression Options DIP-switch (DIP-switch 1) is set to OFF (up = standard compression).
Always set the DIP-switches identically for a connected transmitter and receiver.
When connecting to one of the wall plates, always set the DIP switches to high compression.
The following table describes the PT-871xr, and PT-872xr DIP-switches.
| DIP-Switch | Functions |
| DIP-switch 1:Compression Options | OFF (up) – Standard compression level.ON (down) – High compression level for additional range extension. |
| DIP-switch 2 | Must be set to OFF (up). |
To set the compression level for PT-871xr, and PT-872xr :
- Set DIP-switch 1 to the required compression level.
- Reboot the device.
The compression level is set.
Technical Specifications
PT-871/2-KIT
| PT-871 | ||
| Inputs | 1 HDMI | On a female HDMI connector |
| Outputs | 1 DGKAT 2.0 | On a female RJ-45 connector |
| PT-872 | ||
| Inputs | 1 DGKAT 2.0 | On a female RJ-45 connector |
| Outputs | 1 HDMI | On a female HDMI connector |
| General | ||
| Video | Max. Data Rate | 18Gbps (6Gbps per graphic channel) |
| Max. Resolution | 3840x2160@60Hz (4:4:4) 24bpp | |
| Compliance | HDR10 as specified in HDMI 2.0, HDCP 2.2 | |
| Extension Line | We recommend that you use Kramer shielded cables to achieve optimum extension ranges. | |
| Max. Range | 40m (130ft) at 4K60 (4:4:4 or 4:2:0) or full HD (1080p @60Hz 36bpp) | |
| Signal Compression | Low-level compression is applied to line-transmitted signals of above 1080p resolution | |
| Compliance | DGKat 2.0 | |
| User Interface | Indicators | IN, OUT and ON LEDs |
| Power | Source | 12V DC, 2A |
| Consumption | 600mA | |
| Environmental Conditions | Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | -40° to +70°C (-40° to 158°F) | |
| Humidity | 10% to 90%, RHL non-condensing | |
| Regulatory Compliance | Safety | CE, UL |
| Environmental | RoHs, WEEE | |
| Enclosure | Size | Pico TOOLS ^TM |
| Type | Aluminum | |
| Cooling | Convection ventilation | |
| General | Product Dimensions | 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96") W, D, H |
| Product Weight | 0.1kg (0.2lbs) approx. | |
| Shipping Dimensions | 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43") W, D, H | |
| Shipping Weight | 0.4kg (0.8lbs) approx. | |
| Accessories | Included | 1 Power adapter (Note: When purchasing PT-871/2-KIT, only one power adapter is supplied for both units.) |
| Specifications are subject to change without notice at www.kramerav.com | ||
PT-871/2xr-KIT, PT-871xr, and PT-872xr
| PT-871xr | ||
| Inputs | 1 HDMI | On a female HDMI connector |
| Outputs | 1 DGKAT 2.0 | On a female RJ-45 connector |
| PT-872xr | ||
| Inputs | 1 DGKAT 2.0 | On a female RJ-45 connector |
| Outputs | 1 HDMI | On a female HDMI connector |
| General | ||
| Video | Max. Data Rate | Up to 18Gbps (6Gbps per graphic channel) |
| Max. Resolution | 3840x2160@60Hz (4:4:4) 24bpp at high compression level4096x2160@60Hz (4:4:4) 24bpp at standard compression level | |
| Compliance | HDR 10 as specified in HDMI 2.0, HDCP 2.2 | |
| Extension Line | We recommend that you use Kramer shielded cables to achieve optimum extension ranges. | |
| Max Range – High Compression | 60m (200ft) at 4K@60Hz (4:4:4)70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp) | |
| Max Range – Standard Compression | 40m (130ft) at 4K@60Hz (4:4:4)70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp) | |
| Signal Compression: | Standard low-level compression is applied to line-transmitted signals above 1080p resolution, by default. The user can, optionally, apply high-level compression to all line-transmitted signals | |
| Compliance: | DGKat 2.0 | |
| User Interface | Indicators | IN, OUT and ON LEDs |
| Controls | DIP-switches | |
| Power | Source | 12V DC, 2A |
| Consumption | 600mA | |
| Environmental Conditions | Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | -40° to +70°C (-40° to 158°F) | |
| Humidity | 10% to 90%, RHL non-condensing | |
| Regulatory Compliance | Safety | CE, UL |
| Environmental | RoHs, WEEE | |
| Enclosure | Size | Pico TOOLS ^TM |
| Type | Aluminum | |
| Cooling | Convection Ventilation | |
| General | Product Dimensions | 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96") W, D, H |
| Product Weight | 0.2kg (0.5lbs) approx. | |
| Shipping Dimensions | 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43") W, D, H | |
| Shipping Weight | 0.6kg (1.4lbs) approx. | |
| Accessories | Included | 1 Power adapter (Note: When purchasing PT-871/2xr-KIT, only one power adapter is supplied for both units.) |
| Specifications are subject to change without notice at www.kramerav.com | ||
WP-871xr, WP-872xr
| WP-871xr | ||
| Inputs | 1 HDMI | On a female HDMI connector |
| Outputs | 1 DGKAT 2.0 | On a female RJ-45 connector |
| WP-872xr | ||
| Inputs | 1 DGKAT 2.0 | On a female RJ-45 connector |
| Outputs | 1 HDMI | On a female HDMI connector |
| General | ||
| Video | Max. Data Rate | Up to 18Gbps (6Gbps per graphic channel) |
| Max. Resolution | 3840x2160@60Hz (4:4:4) 24bpp | |
| Compliance | HDR 10 as specified in HDMI 2.0, HDCP 2.2 | |
| Extension Line | We recommend that you use Kramer shielded cables to achieve optimum extension ranges. | |
| Max Range – High Compression | 60m (200ft) at 4K@60Hz (4:4:4)70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp) | |
| Signal Compression: | High-level compression is applied to line-transmitted signals above 1080p resolution, by default | |
| Compliance: | DGKat 2.0 | |
| User Interface | Indicators | Power/connection |
| Power | Source | 12V DC, 2A |
| Consumption | 600mA | |
| Environmental Conditions | Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | -40° to +70°C (-40° to 158°F) | |
| Humidity | 10% to 90%, RHL non-condensing | |
| Regulatory Compliance | Safety | CE, UL |
| Environmental | RoHs, WEEE | |
| Enclosure | Size | 1 gang |
| Type | Aluminum | |
| Cooling | Convection Ventilation | |
| General | Product Dimensions | EU: 8.00cm x 3.10cm x 8.00cm (3.15" x 1.22" x 3.15") W, D, HUK: 8.60cm x 3.10cm x 8.60cm (3.39" x 1.22" x 3.39") W, D, HUS: 6.98cm x 3.10cm x 11.43cm (2.75" x 1.22" x 4.50") W, D, H |
| Product Weight | 0.1kg (0.1lbs) approx. | |
| Shipping Dimensions | EU: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94") W, D, H | |
| Shipping Weight | 0.6kg (1.3lbs) approx. | |
| Accessories | Included | 1 Power adapter, 1 power cordFor the US version: 2 US Frame sets and faceplates (in black and in white)For the European version: 1 EU white frame, 1 UK white frame, 1 EU/UK white faceplate |
| Specifications are subject to change without notice at www.kramerav.com | ||
The warranty obligations of Kramer Electronics Inc. ("Kramer Electronics") for this product are limited to the terms set forth below:
What is Covered
This limited warranty covers defects in materials and workmanship in this product.
What is Not Covered
This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product. Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.
How Long this Coverage Lasts
The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:
- All Kramer VIA hardware products are covered by a standard three (3) year warranty for the VIA hardware and a standard three (3) year warranty for firmware and software updates.
- All Kramer fiber optic cables, adapter-size fiber optic extenders, active cables, cable retractors, all Kramer speakers and Kramer touch panels are covered by a standard one (1) year warranty.
- All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all streaming, and all wireless products are covered by a standard three (3) year warranty.
- All Sierra Video MultiViewers are covered by a standard five (5) year warranty.
- Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for three (3) years).
- K-Touch software is covered by a standard one (1) year warranty for software updates.
- All Kramer passive cables are covered by a ten (10) year warranty.
Who is Covered
Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.
What Kramer Electronics Will Do
Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:
- Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
- Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
- Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.
What Kramer Electronics Will Not Do Under This Limited Warranty
If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.
How to Obtain a Remedy Under This Limited Warranty
To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.
In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product. If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.
Limitation of Liability
THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.
Exclusive Remedy
TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A "CONSUMER PRODUCT" UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.
Other Conditions
This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.
This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this document.
Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.
P/N:
2900-300716
Rev:
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. All brand names, product names, and trademarks are the property of their respective owners.
- Contents
- Introduction
- Getting Started
- Achieving Best Performance
- Safety Instructions
- Recycling Kramer Products
- Overview
- Typical Applications
- Defining PT-871/2-KIT, PT-871/2xr-KIT, WP-871xr, WP-872xr, PT-871xr, PT-872xr
- Installing Device
- To mount the WP-871xr and WP-872xr wall plate :
- Connecting Device
- Connecting PT-871/2-KIT, PT-871/2xr-KIT, PT-871xr, PT-872xr
- To connect PT-871/2-KIT, PT-871/2xr-KIT, PT-871xr, and PT-872xr as illustrated in Figure 9:
- Connecting WP-871xr, and WP-872xr/PT-872xr
- To connect WP-871xr and WP-872xr/PT-872xr as illustrated in Figure 9:
- Connecting PT-871xr and WP-872xr
- To connect PT-871xr and WP-872xr as illustrated in Figure 9:
- Setting Compression Level
- Technical Specifications
- What is Covered
- What is Not Covered
- How Long this Coverage Lasts
- Who is Covered
- What Kramer Electronics Will Do
- What Kramer Electronics Will Not Do Under This Limited Warranty
- How to Obtain a Remedy Under This Limited Warranty
- Limitation of Liability
- Exclusive Remedy
- Other Conditions
Brand : Kramer
Model : PT-872xr
Category : AV Extender
