Product Type	Fully adjustable wall mount for OLED TVs
Compatible Display Sizes	Designed for OLED TVs (specific sizes not listed; refer to VESA compatibility)
VESA Compatibility	Supports VESA patterns with screw sizes M5, M6, M8 (spacers included)
Recommended Wall Material	Solid concrete, solid brick, or solid wood
Included Components	Wall plate (A), arms (B x2), safety screw (C), screws (M5x14, M6x14, M8x20, M6x30, M8x30), washers (D5, D8), spacers (D), wall anchors (W-A, W-B, W-C), and other hardware
Maximum Load Capacity	Check product specifications; do not exceed rated weight (not explicitly listed in notice)

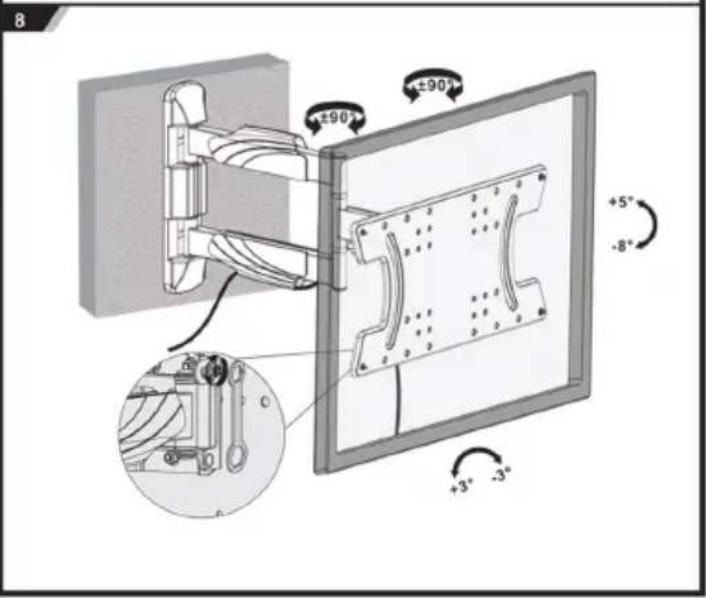

Adjustment Range	Full motion: tilt, swivel, and extension (exact degrees not specified)
Installation Tools Required	Phillips screwdriver, stud finder, level, socket wrench (for wall anchors)
Usage Environment	Indoor use only
Safety Features	Safety screw included; regular inspection every 3 months recommended
Material	Steel (presumed from typical design)
Color	Black (from product images)
Caution	Risk of injury if weight exceeded; use assistant or lifting equipment
Maintenance	Check screws and stability periodically; clean with a dry cloth
Warranty	Not specified; refer to manufacturer

Frequently Asked Questions - DRZAKOLEDTM GoGen

What is the maximum TV size and weight this mount can support?

The exact weight limit is not listed in the manual. However, typical full-motion mounts for OLED TVs support up to 50 kg. Always check the product rating before installation.

Is this mount compatible with all VESA patterns?

The mount includes screws for VESA patterns using M5, M6, and M8 screws, along with spacers. It should fit most standard VESA patterns, but verify your TV's VESA size before purchasing.

Can I install this mount on plasterboard walls?

The manual recommends solid concrete, brick, or wood. For plasterboard, use appropriate toggle bolts or hollow-wall anchors, but ensure the wall can support the combined weight.

What tools do I need for installation?

You will need a Phillips screwdriver, a stud finder (for wood studs), a level, and a socket wrench for wall anchors. A power drill with appropriate bits may also be required.

How do I ensure the mount is securely attached?

Follow the manual steps exactly. Use a stud finder to locate studs, drill pilot holes, and tighten screws firmly but not over-tighten. Use the included safety screw to lock the TV in place.

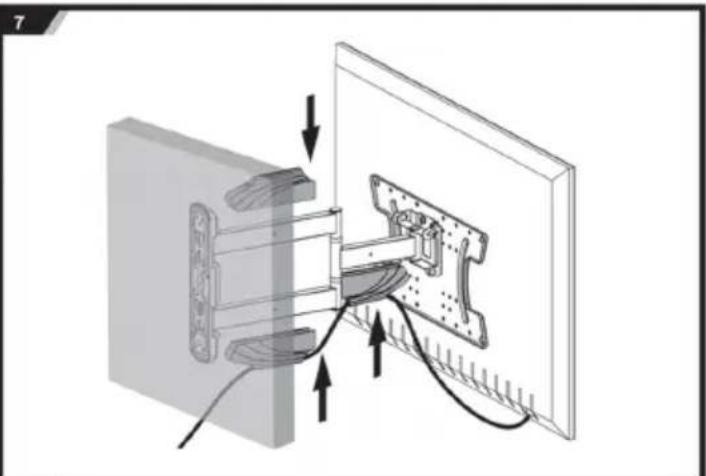

Does this mount allow for cable management?

The manual does not mention cable management features. You may need separate cable ties or channels to hide wires.

How often should I check the mount's security?

The manual advises inspecting the product at least every three months. Check for loose screws, stability, and signs of wear.

Can I use this mount for a non-OLED TV?

Yes, if the TV's weight and VESA pattern are compatible. The mount is designed for OLED but works with any TV meeting the specifications.

What should I do if parts are missing or damaged?

Contact the place of purchase for replacement. Do not substitute with non-specified parts, as this could compromise safety.

Is assembly service recommended?

The manufacturer recommends installation by a suitably qualified specialist to ensure safety and proper function.

USER MANUAL DRZAKOLEDTM GoGen

Abstract logo design with a stylized white 'S' inside a black circle (no text or symbols)

GoGEN

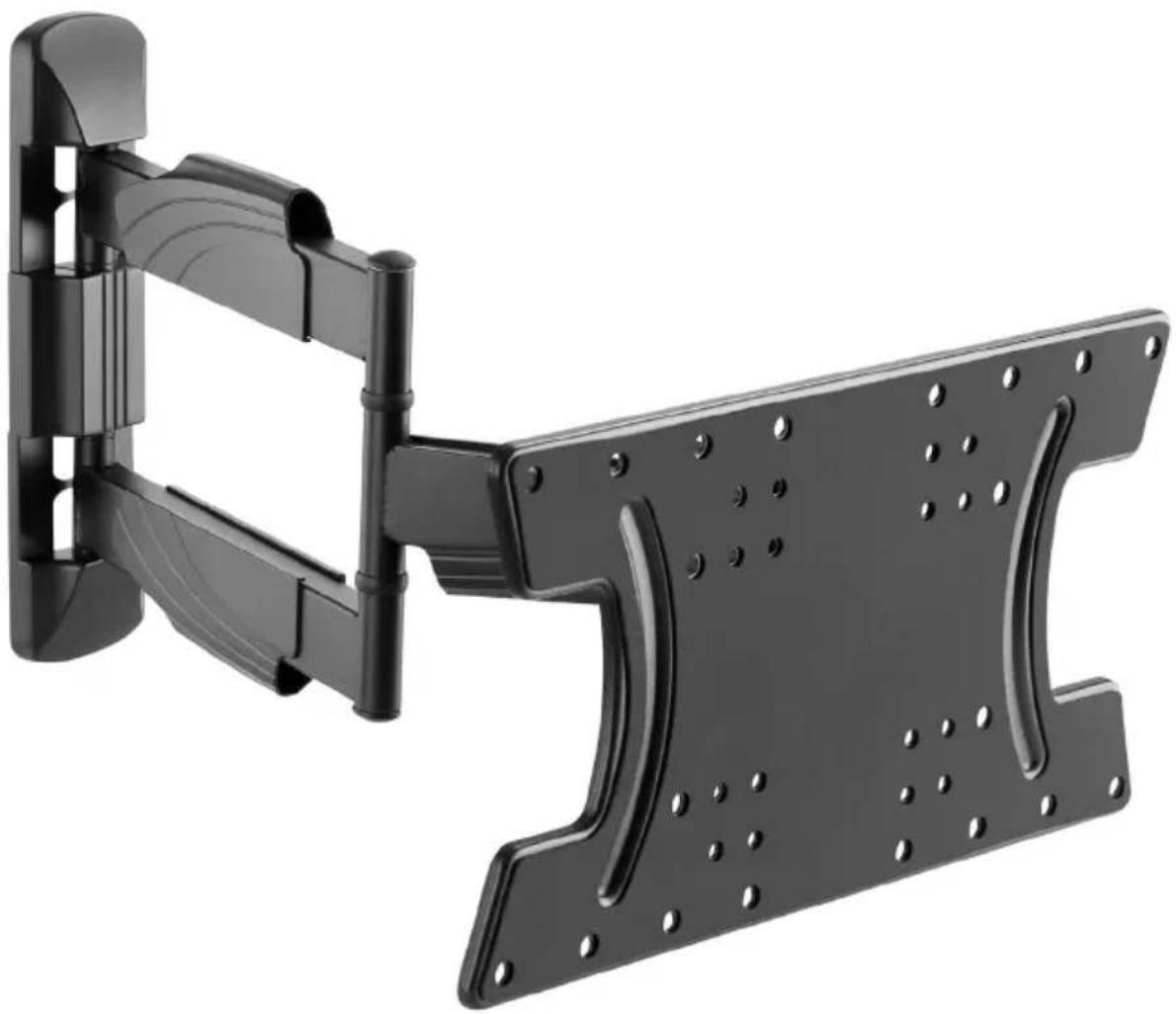

Exterior view of a black wall-mounted device with mounting flanges and bolt holes (no text or symbols visible)

PLNĚ POLOHOVATELNÝ DRŽÁK NA STĚNU PRO OLED PLNE POLOHOVATELŇNÝ DRŽIAK NA STENU PRE OLED UCHWYT ŠCIENNY DO TELEWIZORÓW OLED OLED TV WALL MOUNT FORGATHATÓ OLED FALI TARTÓ

NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI USER MANUAL HASZNÁLATI UTASÍTÁS

UPOZORNĚNÍ: NEPŘEKRAČUJTE POVOLENOU NOSNOST, JINAK MŮŽE DOJÍT K VÁŽNÉMU ZRANĚNÍ NEBO ŠKODĚ NA MAJETKU!

UPOZORNENIE: NEPREKRAČUJTE POVOLENÚ NOSNOST, INAK MÔŽE DÔJST K VÁŽNEMU ZRANENIU ALEBO ŠKODE NA MAJETKU!

UWAGA: NIE NALEŻY PRZEKRACZAĆ OKREŚLONEGO OBCIĄŻENIA. GROZI TO POWAŻNYMI OBRAŻENIAMI CIAŁA LUB MIENIA.

CAUTION: USE WITH PRODUCTS HEAVIER THAN THE RATED WEIGHTS INDICATED MAY RESULT IN INSTABILITY CAUSING POSSIBLE INJURY.

FIGYELEM: NE LÉPJE TÚL A JAVASOLT MAXIMÁLIS SÚLYT! ELLENKEZŐ ESETBEN KOMOLY SÉRÜ- LÉST, VAGY KÁROSODÁST OKOZHAT!

NOTICE: Read the entire instruction manual before you start installation and assembly.

- Do not begin the installation until you have read and understood all the instructions and warnings contained in this installation sheet. If you have any questions regarding any of the instructions or warnings, please contact your local distributor.

- This mounting bracket was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.

- The manufacturer recommends that the assembly and installation of this product be carried out by a suitably qualified specialist.

- The manufacturer will not be liable for damage caused by improper installation.

• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

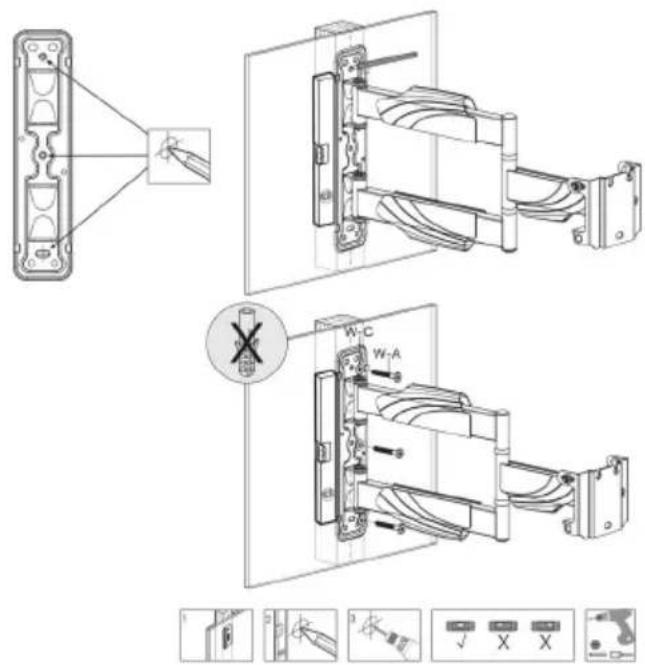

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended.
  • Always use an assistant or mechanical lifting equipment to safely lift and position the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the items. This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
• Safety gear and proper tools must be used.

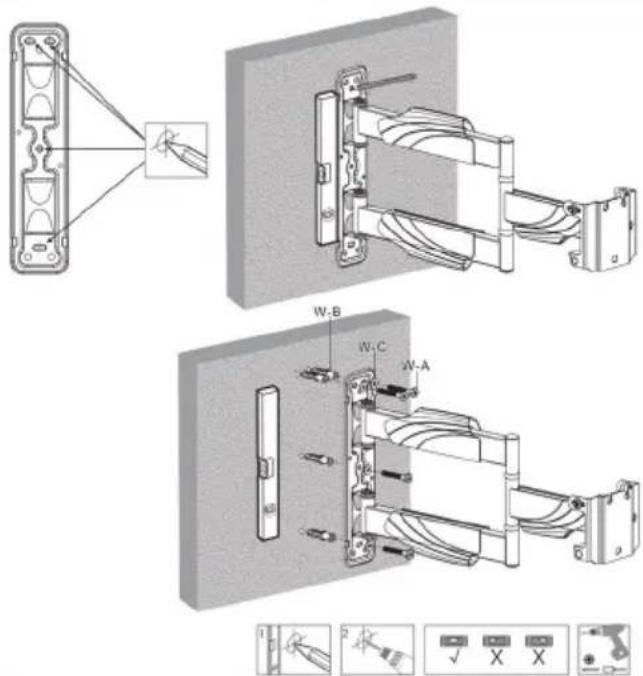

• The wall mounting material is intended exclusively for installation on a wall made of solid concrete, solid brick, or solid wood. When mounting on a wall made of another material, such as hollow bricks, plasterboard, aerated concrete, or wooden boards, use dowels designed for this purpose.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.

FIGYELEM

Check that the product is secure and safe to use at regular intervals (at least every three months). If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance.

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of purchase for a replacement.

Technical line drawing of a mechanical assembly with coiled components and mounting brackets (no text or symbols)

A (x1)

B (×2)

C (x1)

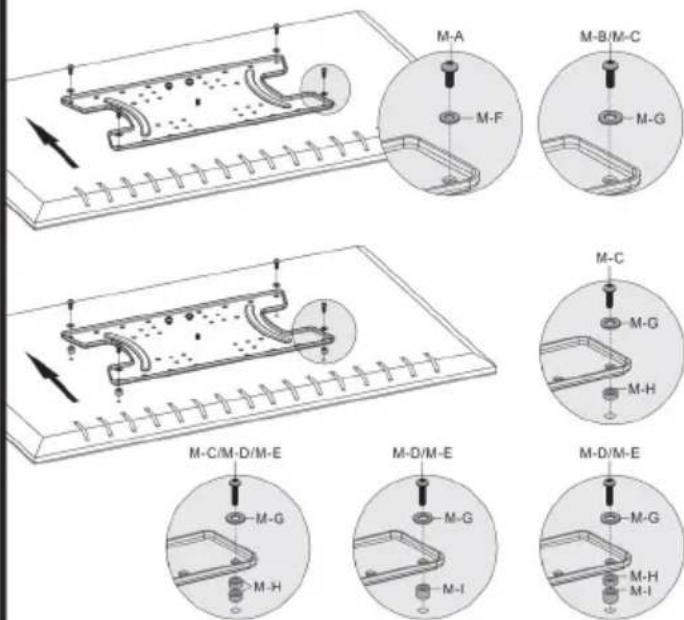

M5×14 (×4) M-A

M6×14 (×4) M-B

M8x20 (×4) M-C

M6×30 (x4) M-D

M8×30 (×4) M-E

D5 (x4) M-F

D8 (x4) M-G

M-H (×8)

M-1 (x4)

D (x1)

W-A (x4)

W-B (x4)

W-C (x4)

ZMĚNA TECHNICKÉ SPECIFIKACE VÝROBKU VYHRAZENA VÝROBCEM VÝROBCA SI VYHRADZUJE PRÁVO NA ZMENU TECHNICKEJ ŠPECIFIKÁCIE VÝROBKU ZMIANA SPECYFIKACJI TECHNICZNEJ PRODUKTU ZASTRZEŽONA PRZEZ PRODUCENTA WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS A GYÁRTÓ FENNTARTJA A JOGOT A TECHNIKAI SPECIFIKÁCIÓK VÁLTOZTATÁSÁRA.

1

2a

2b

3

4

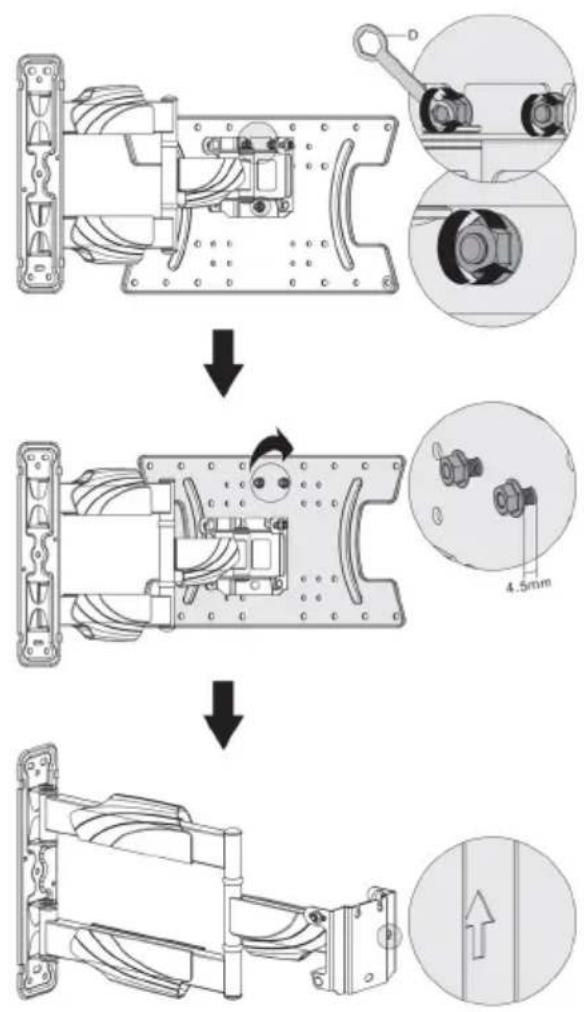

Diagram of a mechanical assembly with arrows indicating force or connection, no visible text or symbols

Technical diagram showing a mechanical assembly with directional arrows, no visible text or symbols

NEBEZPEČÍ UDUŠENÍ. PE SÁČEK ODKLÁDEJTE MIMO DOSAH DĚTÍ. SÁČEK NENÍ NA HRANÍ. NEPOUŽÍVEJTE TENTO SÁČEK V KOLÉBKÁCH, POSTÝLKÁCH, KOČÁRCÍCH NEBO DĚTSKÝCH OHRÁDKÁCH.

NEBEZPEČENSTVO UDUSENIA. PE VRECKO ODKLADAJTE MIMO DOSAHU DETÍ. VRECKO NIE JE NA HRANIE. NEPOUŽÍVAJTE TOTO VRECÚŠKO V KOLÍSKACH, POSTIELKACH, KOČÍKOCH ALEBO DETSKÝCH OHRÁDKACH.

NIEBEZPIECZEŃSTWO UDUSZENIA. TOREBKE Z PE POŁOŻYĆ W MIEJSCU BĘDĄCYM POZA ZASIĘGIEM DZIECI. TO- REBKA NIE SŁUŻY DO ZABAWY! TEGO WORKA NIE NALEŻY UŻYWAĆ W KOŁYSKACH, ŁÓŻECZKACH, WÓZKACH LUB KOJCACH DZIECIĘCYCH.

TO AVOID DANGER OF SUFFOCATION, KEEP THE PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

FULLADÁSVESZÉLY. TARTSA A PE ZACSKÓT GYERMEKEKTÖL ELZÁRT HELYEN. A ZACSKÓ NEM JÁTÉKSZER. NE HASZNÁLJA EZT A ZACSKÓT BÖLCSÖKBEN, KISÁGYAKBAN, BABAKOCSIKBAN, VAGY GYEREK JÁRÓKÁKBAN.
