Product Type	Ergonomic Office Chair
Brand	SereneLife
Model	SWC77DG
Overall Height	45 - 50 inches (adjustable)
Seat Height	17 - 21 inches
Seat Width	20 inches
Seat Depth	20 inches
Backrest Height	22 inches
Armrest Type	Fixed or adjustable (depending on variant)
Weight Capacity	250 lbs (approx. 113 kg)
Material	Fabric upholstery, foam padding, nylon base
Base Diameter	26 inches
Caster Size	2 inches (smooth-rolling)
Gas Lift Mechanism	Class 3 gas lift
Tilt Mechanism	Multi-lock tilt control with tension adjustment
Assembly Required	Yes, tools included
Product Weight	38 lbs (approx. 17.2 kg)
Care Instructions	Spot clean with mild soap and water; avoid harsh chemicals
Warranty	2 years limited warranty
Recommended Use	Home office, gaming, or general seating

Frequently Asked Questions - SWC77DG SereneLife

How do I assemble the SereneLife SWC77DG chair?

Assembly is straightforward. Unpack all parts, attach the base to the gas lift, then insert the seat onto the lift. Secure the backrest to the seat with the provided bolts. Use the included Allen key. Detailed steps are in the manual.

What is the weight capacity of this chair?

The recommended weight capacity is 250 lbs (113 kg). Exceeding this may cause damage or instability.

Can I adjust the height and tilt?

Yes, the chair features a pneumatic gas lift for height adjustment. The tilt mechanism can be locked in multiple positions and tension can be adjusted using the knob under the seat.

Are the armrests adjustable?

The armrests are typically fixed on this model, but some variants may offer 2D adjustment. Please check your specific unit.

What type of casters does it have?

It comes with smooth-rolling nylon casters suitable for hard floors and low-pile carpets.

How do I clean the chair?

Use a damp cloth with mild soap to spot clean the fabric. Avoid soaking. Do not use bleach or abrasive cleaners.

What is the warranty period?

SereneLife offers a 2-year limited warranty against manufacturing defects. Contact customer service for claims.

Are replacement parts available?

Yes, common parts such as gas lifts, casters, and armrests can be ordered through SereneLife support or authorized dealers.

Can the chair be used for gaming?

Absolutely, its ergonomic design and adjustable features make it suitable for long gaming sessions or office work.

Does the chair require any tools for assembly?

All necessary tools, including an Allen key, are included in the package. No other tools are needed.

USER MANUAL SWC77DG SereneLife

Line drawing of a circular bamboo seat with a pillow and handle, mounted on a tripod (no text or symbols)

Foldable Egg Chair

About SereneLife

SereneLife products are designed to create a more comfortable living space, indoors and out. Our team presents innovative lifestyle solutions throughout the year that promote simplicity and serenity.

We're committed to delivering the most dependable products so you can live a better, more serene life.

CONTENTS

FEATURES AND TECHNICAL SPECS 4
IMPORTANT NOTICE 5
SAFETY GUIDELINES 5
PARTS LIST 6
ASSEMBLY INSTRUCTIONS 7
CLEANING AND MAINTENANCE 10
REGISTER PRODUCT 11

This instruction contains important safety information. Please read before assembly and keep for future reference.

California Prop 65 Warning

! WARNING:

This product can expose you to chemicals, which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

SWC55B - SWC66DB - SWC77DG - SWC888R

Foldable Egg Chair

Rattan Wicker Hanging Egg Swing Chair with Stand, Waterproof Seat Cushion and Headrest for Patio, Bedroom, Porch, and Garden

Features:

• Hanging Egg Swing Chair
• Powder-Coated Steel Frame Construction
• Weather-Resistant Handwoven Rattan Wicker Chair
• Soft, Breathable Cushion
• Foldable Design for Convenient Storage
• Easy to Assemble
  • Freestanding, Cozy Egg-Shaped Design
• Stable Steel Base Stand
• Thick Padded Cushion with a Headrest
• Easy to Clean and Maintain
• Includes Hardware Kit
• Indoor/ Outdoor Use

What's in the Box:

• Egg Chair
• Seat Cushion
  • (4) Feet
  • (4) Support Legs
• Base Frame
• Hanging Pole
• Hardware Kit

Technical Specs:

• Construction Materials: Powder-Coated Steel Frame
  • Weight Capacity: 350 lbs.
• Product Dimension (L x W x H): 41.73" x 39.37" x 74.80" inches

Important Notice

• This product contains small components. Please ensure that they are kept away from small children.
• This instruction contains important safety information.
  Please read before assembly and keep for future reference.
• Read each step carefully. It is very important that each step of the instruction is performed in the correct order. If these steps are not followed in sequence, assembly difficulties may occur.
• Make sure all parts are included and work in a spacious area.
• Do not use power tools to assemble your furniture.
  Power tools may strip or damage the parts.
• Move your new furniture carefully. With two people, lift and carry the unit to its new location.
• Never push, drag, or pull your furniture, especially on carpet.

Unpack the product and accessories and inspect each for shipping damage.

Safety Guidelines

1. Read Instructions Carefully: Make sure to read the entire instruction manual before assembling or using the chair.
2. Proper Assembly: Follow the assembly instructions step by step. Improper assembly can lead to accidents.
3. Weight Capacity: Do not exceed the maximum weight capacity specified in the product details.
4. Stable Placement: Ensure that the chair is placed on a stable and level surface. Unstable surfaces can cause the chair to tip over.
5. Use Caution with Children: Do not allow small children to play on or around the chair unsupervised.
6. Avoid Sharp Objects: Keep the chair away from sharp or abrasive objects to prevent damage.
7. Check Regularly: Regularly inspect the chair and its components for wear and tear, and address any issues immediately.
8. Avoid Extreme Temperatures: Do not place the chair in extreme temperatures as it may affect the integrity of the materials.
9. No Standing: Do not stand on the chair, as it may cause instability and potential injury.
10. Avoid Excessive Swinging: Excessive swinging can put undue stress on the chair and its components, leading to damage or injury.

PARTS LIST

Item Description QTY
A		4
B		1
C		1
D		1
E		1
F		1
G		1

Item Description QTY
H		1
I		1
J	M8X55	1
K	M8X10	4
L	M8	6
M	M8	1
N		4
O		1
P		1

ASSEMBLY INSTRUCTIONS

Step 1

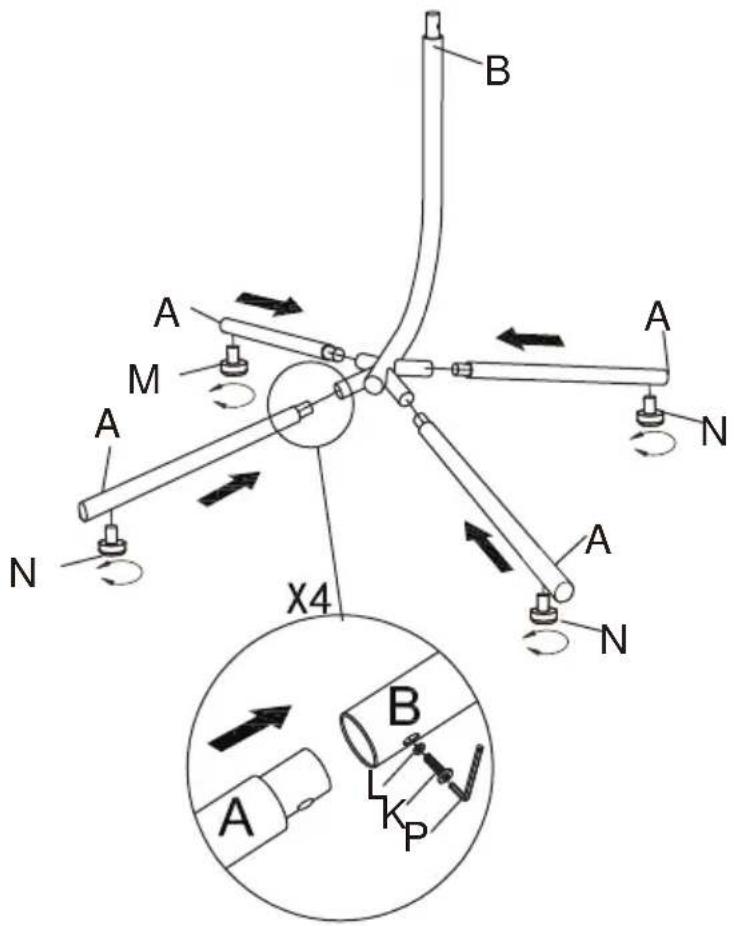

Screw 4 feet (N) into the end of the 4 support legs (A).

Then slide the 4 support legs (A) into the base frame (B) and tighten the bolts (K) and washers (L) using the Allen wrench (P).

Step 2

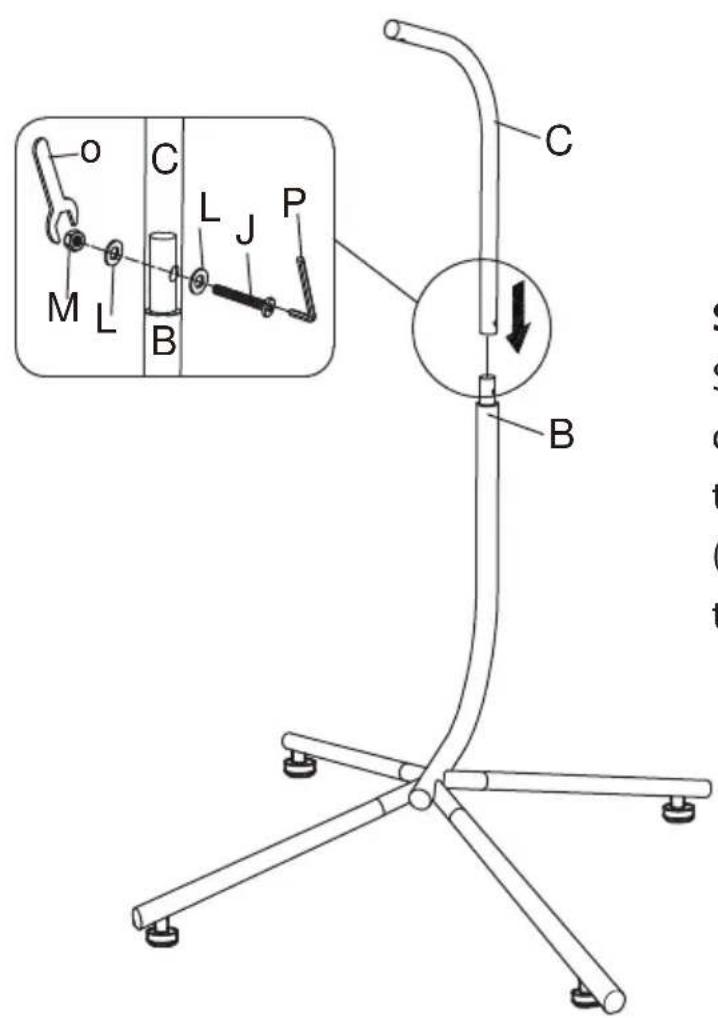

Slide the upper hanging pole (C) onto the base frame (B) and align the hole. Secure the pole using bolt (J), washer (L), and nut (M), and tighten firmly with the wrench (O).

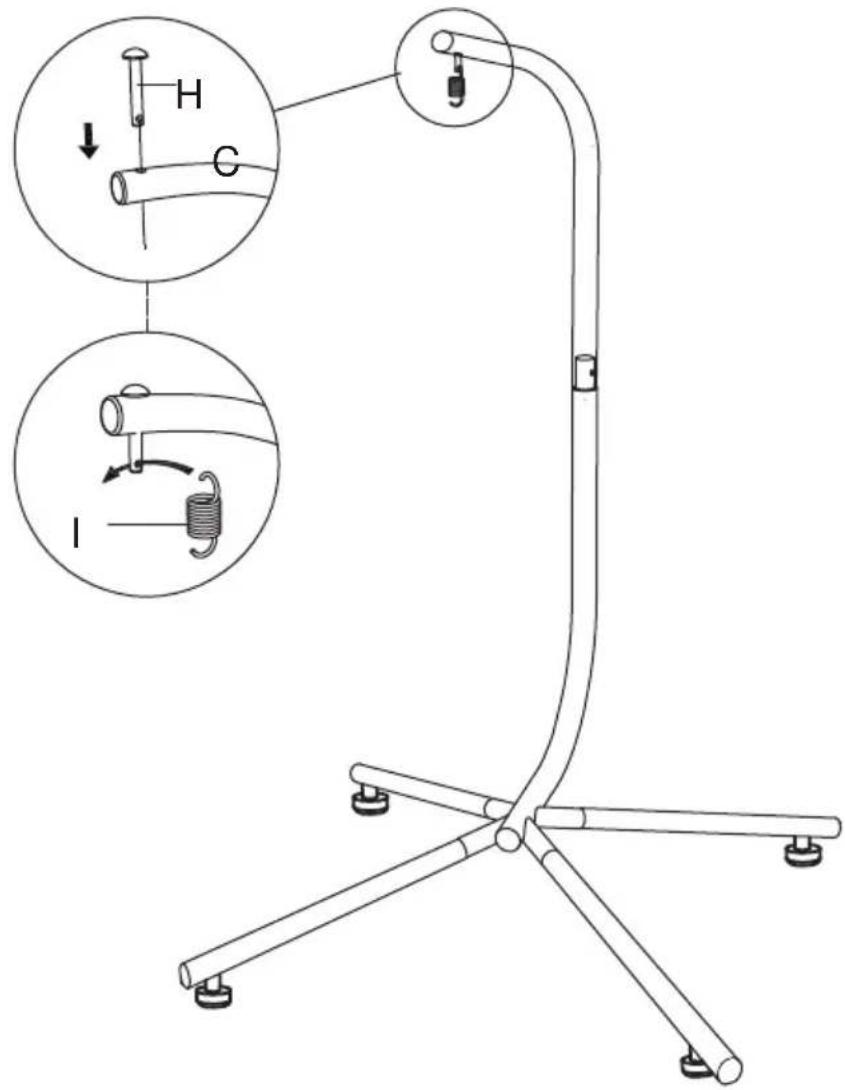

Step 3

Place pin (H) into the upper hanging pole (C). Insert the extension spring (I) through the bottom of pin (H).

Step 4

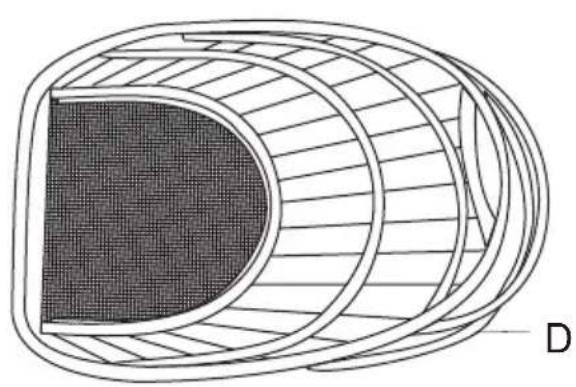

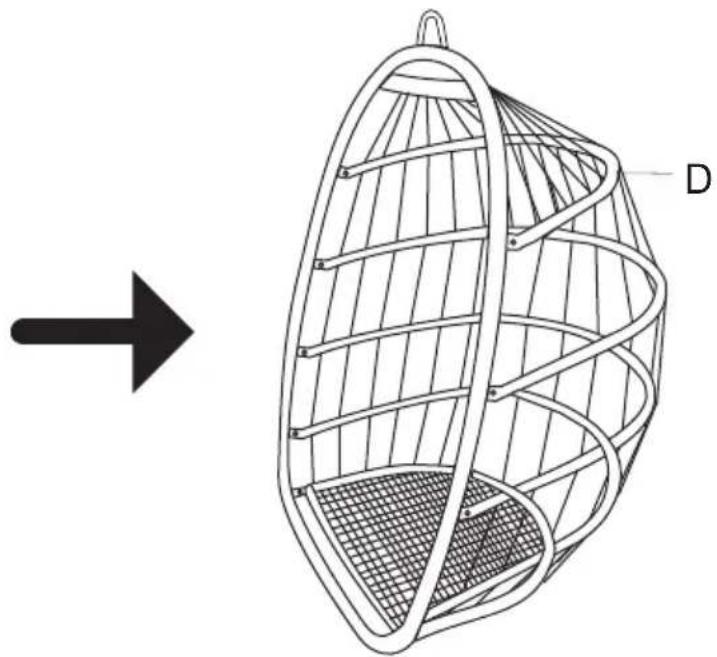

Unfold the egg chair (D).

Cross-sectional diagram of a curved structural component with internal hatching and labeled point D (no text or symbols beyond label)

Line drawing of a wire basket with a mesh pattern, shown with an arrow pointing to it (no text or symbols)

Step 5

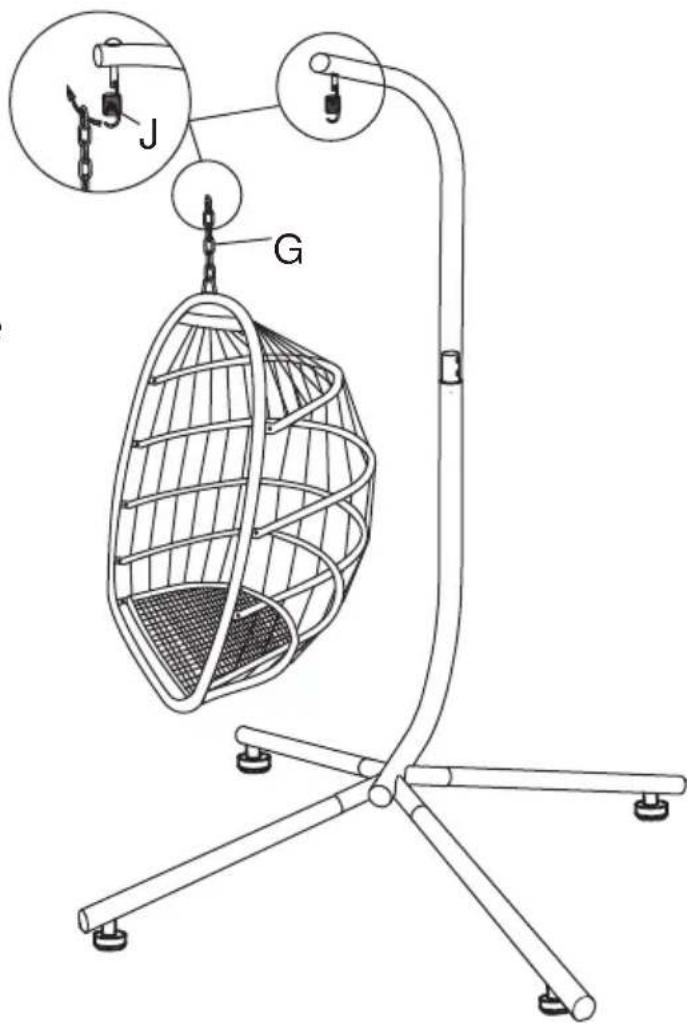

Connect chain (G) to the egg chair (D) and hang the chain that is attached to the egg chair onto the extension spring (I).

Step 6

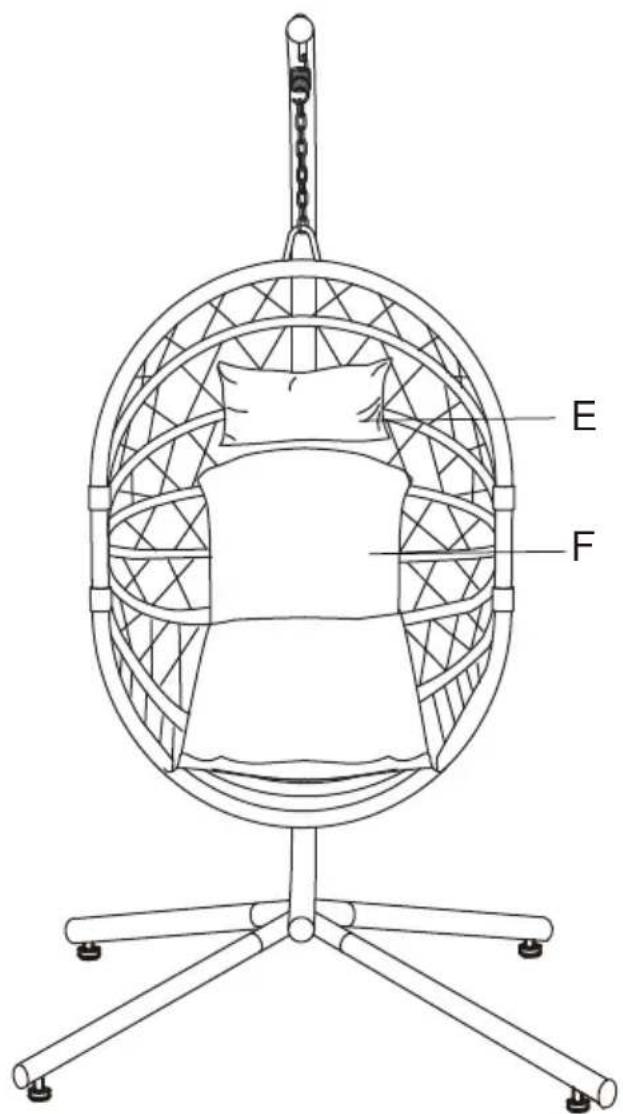

Place the seat cushion into the chair.

Cleaning and Maintenance

Regular Cleaning:

- Use a soft, damp cloth to wipe down the chair regularly to remove dust and dirt.

- For tougher stains, use a mild soap and water solution.

- Avoid harsh chemicals that may damage the chair's materials.

Cushion Care:

- Check the seat cushion label for specific care instructions.

- Remove the cushion cover (if possible) and machine wash according to care label instructions.

• Air dry or tumble dry on low heat.

Inspect Chains and Hardware:

- Regularly inspect the chain and other hardware for signs of wear or damage.

- Tighten any loose bolts or screws as needed.

Protect from Weather:

If using the chair outdoors, consider covering it or storing it in a sheltered area when not in use to protect it from rain and sun damage.

Storage:

When not in use for an extended period, disassemble and store the chair in a cool, dry place.

Check Fasteners:

Periodically check all fasteners and connections to ensure they are secure. Tighten any loose fasteners.

Avoid Sun Exposure:

Prolonged exposure to sunlight can cause fading and weakening of the materials. Consider placing the chair in a shaded area.

Lubricate Moving Parts:

Apply a small amount of lubricant to moving parts, such as the swivel mechanism, to keep them operating smoothly.

Register Product

Thank you for choosing SereneLife. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support.

Complete the form to access expert support and to keep your SereneLife purchase in perfect condition.

Serenelifehome.com/ register
