Product Type	Wall Sconce
Model	Edgewater 1683BK
Brand	Hinkley Lighting
Finish	Black (BK)
Material	Metal frame with clear glass shade
Overall Height	9.5 inches
Overall Width	6.25 inches
Extension	8 inches
Weight	2.5 lbs
Bulb Type	Medium base (E26), compatible with LED, CFL, or incandescent
Bulb Count	1
Wattage	100W max (incandescent), 13W LED equivalent
Voltage	120V AC
Dimmable	Yes, when using dimmable bulbs
Location Rating	Damp location (suitable for covered outdoor areas)
Installation	Hardwired, wall mount
Certification	cULus listed for safety
Cleaning	Wipe with soft, damp cloth; do not use abrasive cleaners
Warranty	1 year limited warranty from Hinkley Lighting
Repairability	Replacement glass shades available; consult manual for disassembly
Manual	Downloadable PDF from notice-facile.com

Frequently Asked Questions - Edgewater 1683BK Hinkley Lighting

What type of bulb does the Edgewater 1683BK use?

The fixture uses a standard medium base (E26) bulb, compatible with LED, CFL, or incandescent up to 100W.

Is the Edgewater 1683BK dimmable?

Yes, it is dimmable when used with dimmable bulbs and a compatible dimmer switch.

Can this sconce be installed outdoors?

It is rated for damp locations, so it can be installed in covered outdoor areas like porches or eaves.

What are the dimensions of the fixture?

The overall height is 9.5 inches, width is 6.25 inches, and it extends 8 inches from the wall.

How do I clean the Edgewater 1683BK?

Clean with a soft, damp cloth. Avoid abrasive cleaners that may damage the finish.

Does the fixture come with a bulb?

No, the bulb is not included. You need to purchase a separate E26 base bulb.

What finish is available?

The model number 1683BK indicates a black finish.

Is the glass shade replaceable?

Yes, replacement glass shades are available. Refer to the manual for part numbers.

What is the warranty on this fixture?

Hinkley Lighting offers a 1-year limited warranty against manufacturing defects.

Where can I find the installation manual?

The manual is available for free download at notice-facile.com in PDF format.

USER MANUAL Edgewater 1683BK Hinkley Lighting

assembly instructions

1683

Item No. 1683

Drawing 1 - Strap Detail

Drawing 2 - Fixture Mounting

Drawing 3 - Glass Installation

▼ start here

1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.

*** The construction of this fixture will be accomplished by first mounting the mounting strap to the junction box, making all necessary electrical connections, hanging the fixture from the ceiling, and then installing the glass.

1. Prepare gem strap (A) for mounting by threading two screws (B) provided into back of gull wing bracket of gem strap (A) - see Drawing 1.
2. Be sure the holes into which the screws are threaded match the spacing of holes (D) in the ceiling pan (1) - see Drawings 1 and 2.
3. Mount gem strap (A) to junction box (J), using the two 1" screws (C) not provided.

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18) AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

Make electrical connections from supply wire to fixture lead wires. Refer to instruction sheet (I.S. 18) and follow all instructions to make all necessary wiring connections. Then refer back to this sheet to continue installation of this fixture.

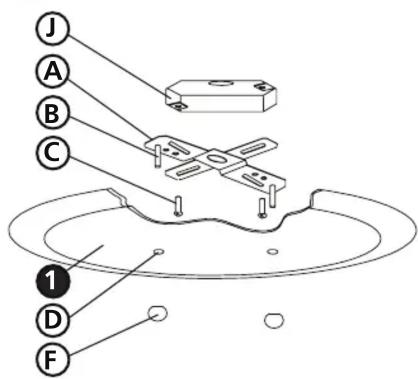

1. Hang the fixture by slipping the holes (D) in the ceiling pan (1) over the screws (B) in the mounting strap (A) - see Drawing 2.

2. Thread on ball knobs (F) to secure fixture to the ceiling.

3. Before installing glass, fixture can now be lamped accordingly.

4. To install bottom panel of glass (2), thread nipple (3) into coupler (4).
5. Slip glass panel (2) over nipple (3) and hold in place.
6. Thread knob (5) onto nipple (3) and hand tighten only. Note: tightening with a tool may cause damage to glass.

Drawing 1 - Flush Mount

Drawing 2 - Chain Hung

Drawing 3 - Post-Mount

SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18) AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.

wiring instructions

Indoor Fixtures

1. Connect positive supply wire (A) (typically black or the smooth, unmarked side of the two-conductor cord) to positive fixture lead (B) with appropriately sized twist on connector - see Drawings 1 or 2.
2. Connect negative supply wire (C) (typically white or the ribbed, marked side of the two-conductor cord) to negative fixture lead (D).
3. Please refer to the grounding instructions below to complete all electrical connections.

Outdoor Fixtures

1. Connect positive supply wire (A) (typically black or the smooth unmarked side of the two-conductor cord) to positive fixture lead (B) with appropriately sized twist on connector - see Drawings 2 or 3.
2. Connect negative supply wire (C) (typically white or the ribbed, marked side of the two-conductor cord) to negative fixture lead (D).
3. Cover open end of connectors with silicone sealant to form a watertight seal.
4. If installing a wall mount fixture, use caulk to seal gaps between the fixture mounting plate (backplate) and the wall. This will help prevent water from entering the outlet box. If the wall surface is lap siding, use caulk and a fixture mounting platform specially.
5. Please refer to the grounding instructions below to complete all electrical connections.

grounding instructions

Flush Mount Fixtures

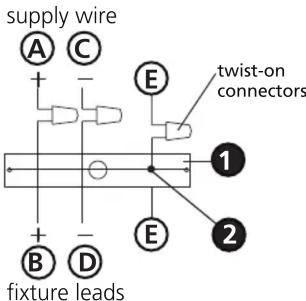

For positive grounding in a 3-wire electrical system, fasten the fixture ground wire (E) (typically copper or green plastic coated) to the fixture mounting strap (1) with the ground screw (2) - see Drawing 1.

Note: On straps for screw supported fixtures, first install the two mounting screws in strap. Any remaining tapped hole may be used for the ground screw.

Chain Hung Fixtures

Loop fixture ground wire (E) (typically copper or green plastic coated) under the head of the ground screw (2) on fixture mounting strap (1) and connect to the loose end of the fixture ground wire directly to the ground wire of the building system with appropriately sized twist-on connectors - see Drawing 2.

Post-Mount Fixtures

Connect fixture ground wire (E) (typically copper or green plastic coated) to power supply ground with appropriately sized twist-on connector inside post. Cover open end of connector with silicone sealant to form a watertight seal - see Drawing 3.
