USER MANUAL BT9908 B-Tech

natural_image Structural diagram of a multi-story metal shelving unit with vertical and horizontal beams (no text or symbols)

FEATURES

  • Wall mounted solution for 84" Microsoft® Surface Hub"
  • Universal design is also ideal for landscape mounting standard screens over 72"
  • Max load: 200kg
    • Max VESA® fixings: 1400 x 800mm
    • Dimensions: W. 1505mm x H. 901mm x D. 64mm
    • Lateral adjustment of screens along the length of the rail
  • Arms feature levelling screws to adjust the screen height
  • Safety screws help prevent unauthorised removal of screens
    • All mounting hardware included

B-Tech BT9908 - FEATURES - 1

B-Tech BT9908 - FEATURES - 2

B-Tech BT9908 - FEATURES - 3

CONTENTS

Installation Safety Notes....2
Parts List....4
Installation Instructions....6
Alternative Installations....10
Product Dimensions....11
B-Tech Contact Details 12

INSTALLATION TOOLS REQUIRED

Crosshead screwdriver

B-Tech BT9908 - INSTALLATION TOOLS REQUIRED - 1

Drill

B-Tech BT9908 - INSTALLATION TOOLS REQUIRED - 2

10mm masonary bit or 6mm wood bit

B-Tech BT9908 - INSTALLATION TOOLS REQUIRED - 3

Pencil

B-Tech BT9908 - INSTALLATION TOOLS REQUIRED - 4

Level (optional)

B-Tech BT9908 - INSTALLATION TOOLS REQUIRED - 5

Stud finder (optional)

B-Tech BT9908 - INSTALLATION TOOLS REQUIRED - 6

B-TECH AUDIO VIDEO MOUNTS

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

B-Tech BT9908 - INSTALLATION SAFETY INSTRUCTIONS - 1

CAUTION: This mount is intended for use only with the maximum weights indicated. Use screens heavier than the maximum indicated may instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech International Design and Manufacturing Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Design and Manufacturing Limited recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped.

If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter.

Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Check load capacity of wall prior to installation as some walls are not suitable for installation. Designed for indoor use, this mount is suitable for public or home installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling. If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment.

When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations.

The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling.

Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up.

Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

B-Tech BT9908 - CS - 1

B-Tech BT9908 - CS - 2

natural_image Simple line drawing of a vertical pipe with a curved end and a numbered label (7) at the bottom, no text or symbols present.

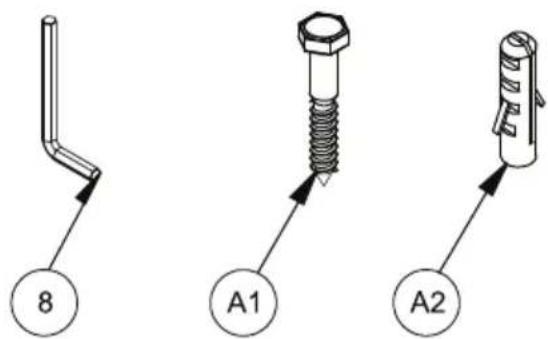

REFPART NAMEQTY
1MOUNTING RAIL L:1500mm2
2END CAP4
3WALL FIXING PLATE2
4INTERFACE ARM2
5M8 x 12mm CSK SCREW16
6M8 SLIDING INSERT16
75AF HEX KEY L:450mm1
85AF HEX KEY L:60mm2

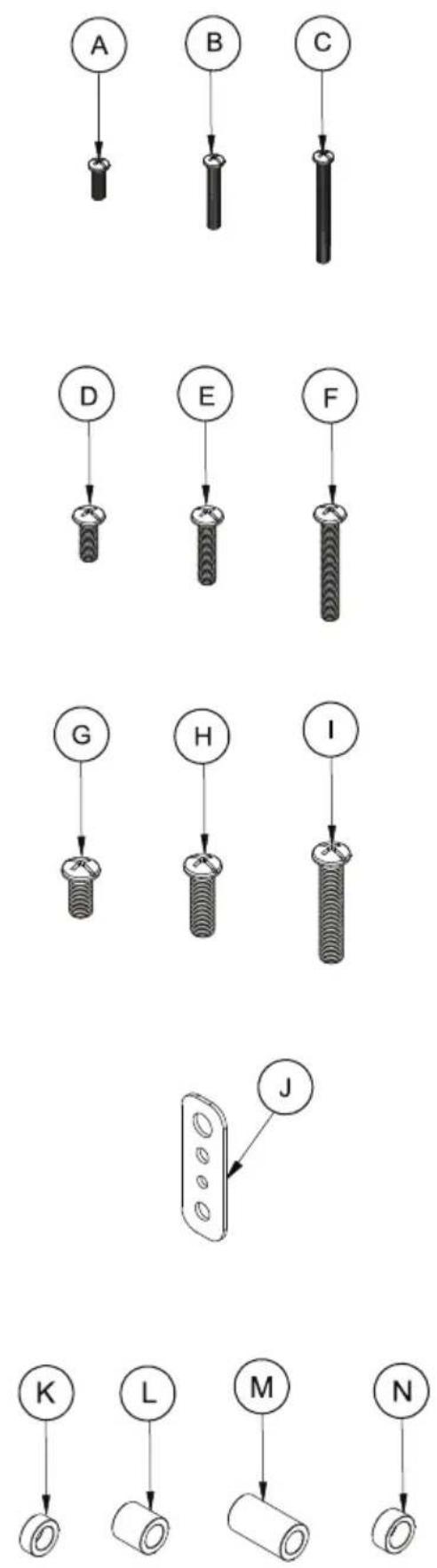

SCREEN INTERFACE KIT

AM6 x 16mm SCREW4
BM6 x 25mm SCREW4
CM6 x 40mm SCREW4
DM8 x 16mm SCREW4
EM8 x 25mm SCREW4
FM8 x 40mm SCREW4
GM10 x 16mm SCREW4
HM10 x 25mm SCREW4
IM10 x 40mm SCREW4
JMULTIWASHER4
K5mm SPACER4
L13mm SPACER4
M24mm SPACER4
N7mm SPACER4

WALL FIXING KIT

A1M8 x 50mm COACH SCREW12
A2N°10 WALL PLUG12

8 A1 A2

INSTALLATION INSTRUCTIONS

1

Attach Fixing Plate to Mounting Rail

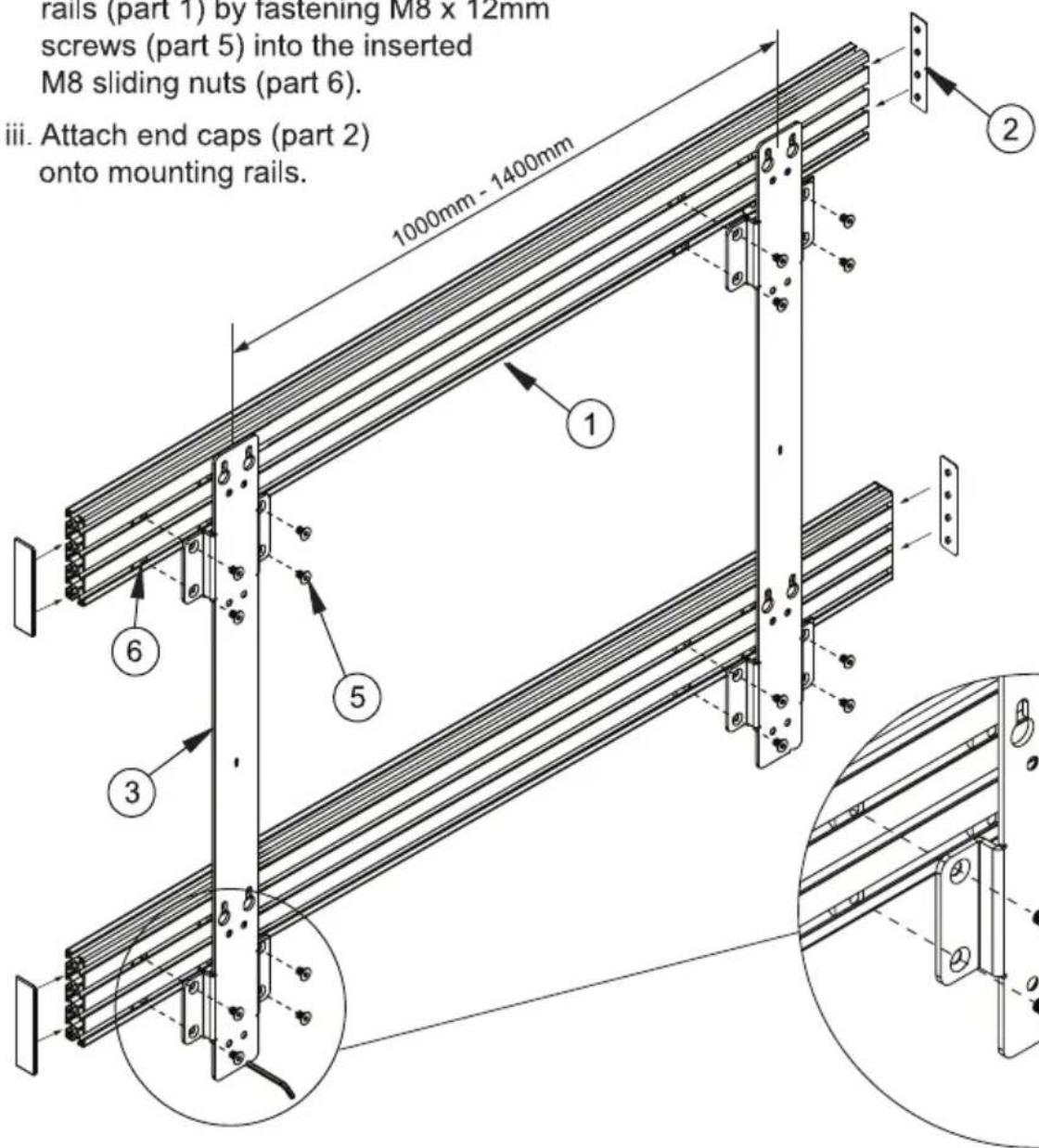

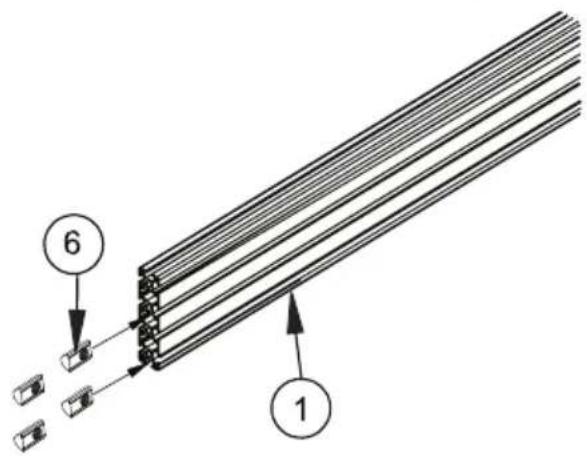

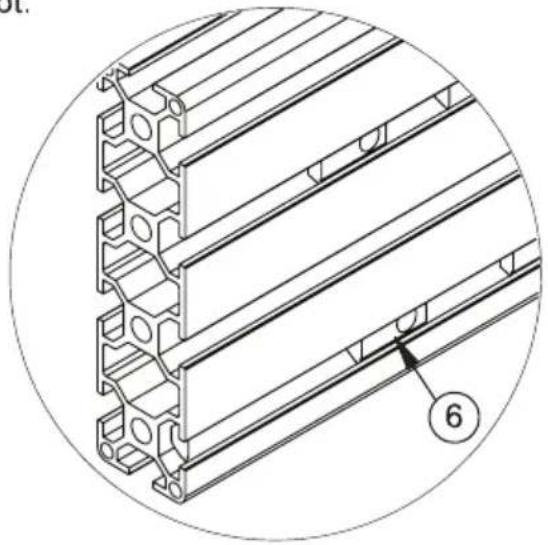

i. Insert 4 x M8 sliding nuts (part 6) into each mounting rail (part 1).

Two in the second slot / two in the bottom slot.

6 1

B-Tech BT9908 - Attach Fixing Plate to Mounting Rail - 2

natural_image Technical line drawing of a multi-layered mechanical structure with mounting holes and a numbered detail (6), no text or symbols present.

ii. Attach the fixing plates (part 3) to the mounting rails (part 1) by fastening M8 x 12mm screws (part 5) into the inserted M8 sliding nuts (part 6).
iii. Attach end caps (part 2) onto mounting rails.

rails (part 1) by fastening M8 x 12mm screws (part 5) into the inserted M8 sliding nuts (part 6). iii. Attach end caps (part 2) onto mounting rails. 1000mm - 1400mm ① ② ③ ④ ⑤ ⑥

rails (part 1) by fastening M8 x 12mm screws (part 5) into the inserted M8 sliding nuts (part 6). iii. Attach end caps (part 2) onto mounting rails. 1000mm - 1400mm ① ② ③ ④ ⑤ ⑥

2

Fix Mounting Rail to the Wall

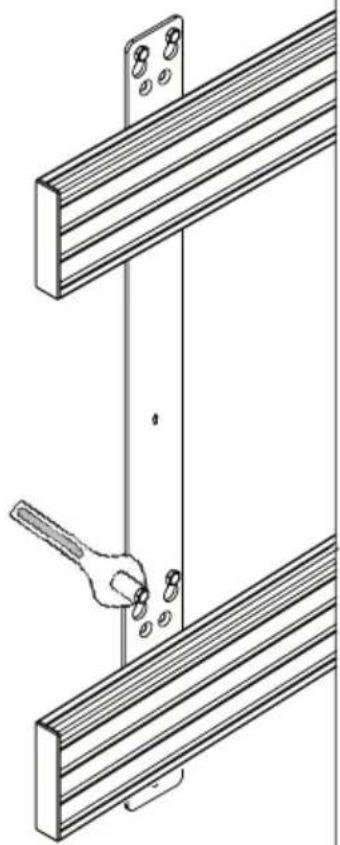

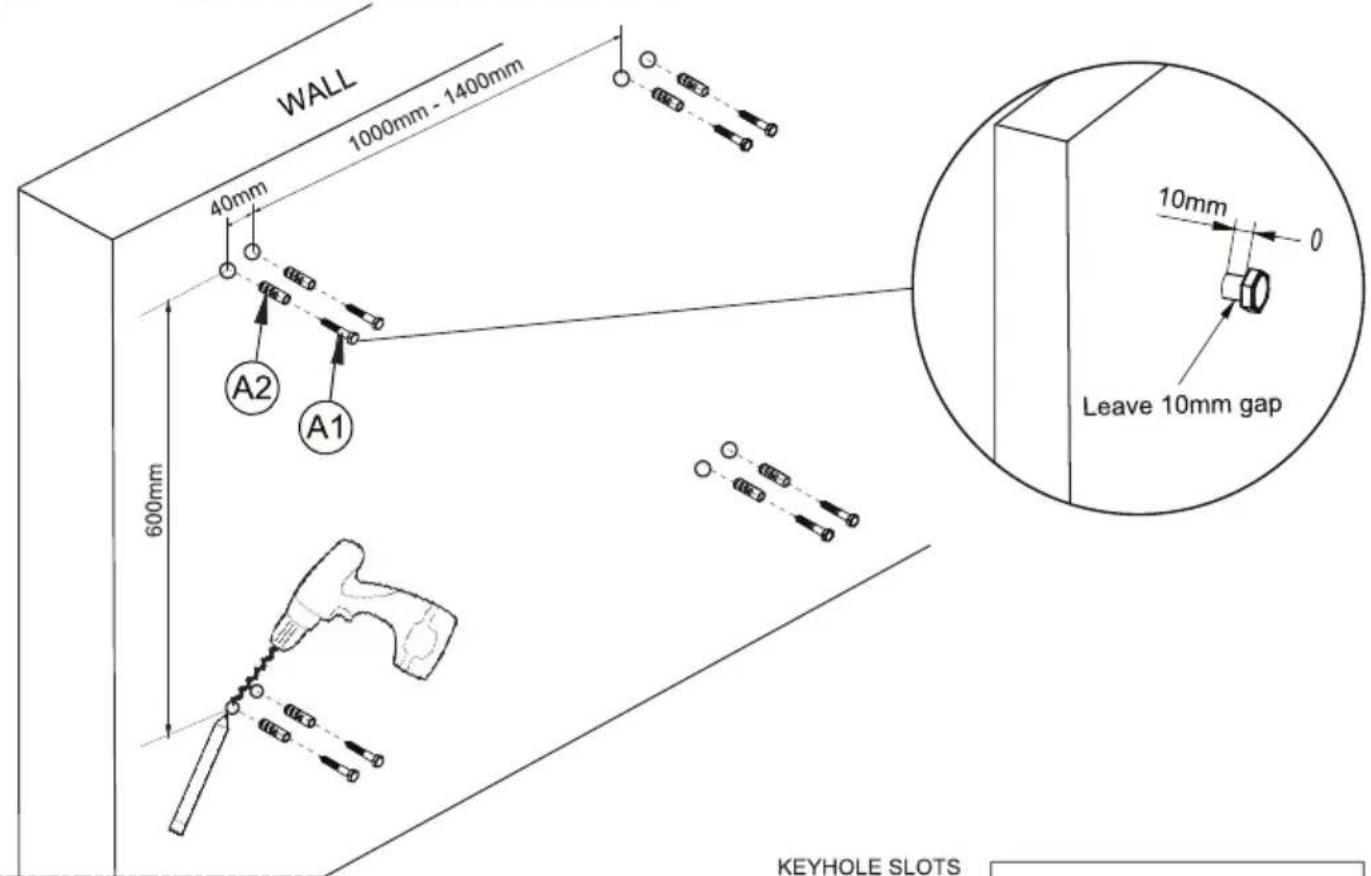

i. Pre-drill holes for wall fixings. Assemble wall fixings in place leaving a 10mm gap between the screw head and wall.

WALL 1000mm - 1400mm 40mm A2 A1 600mm 10mm Leave 10mm gap KEYHOLE SLOTS

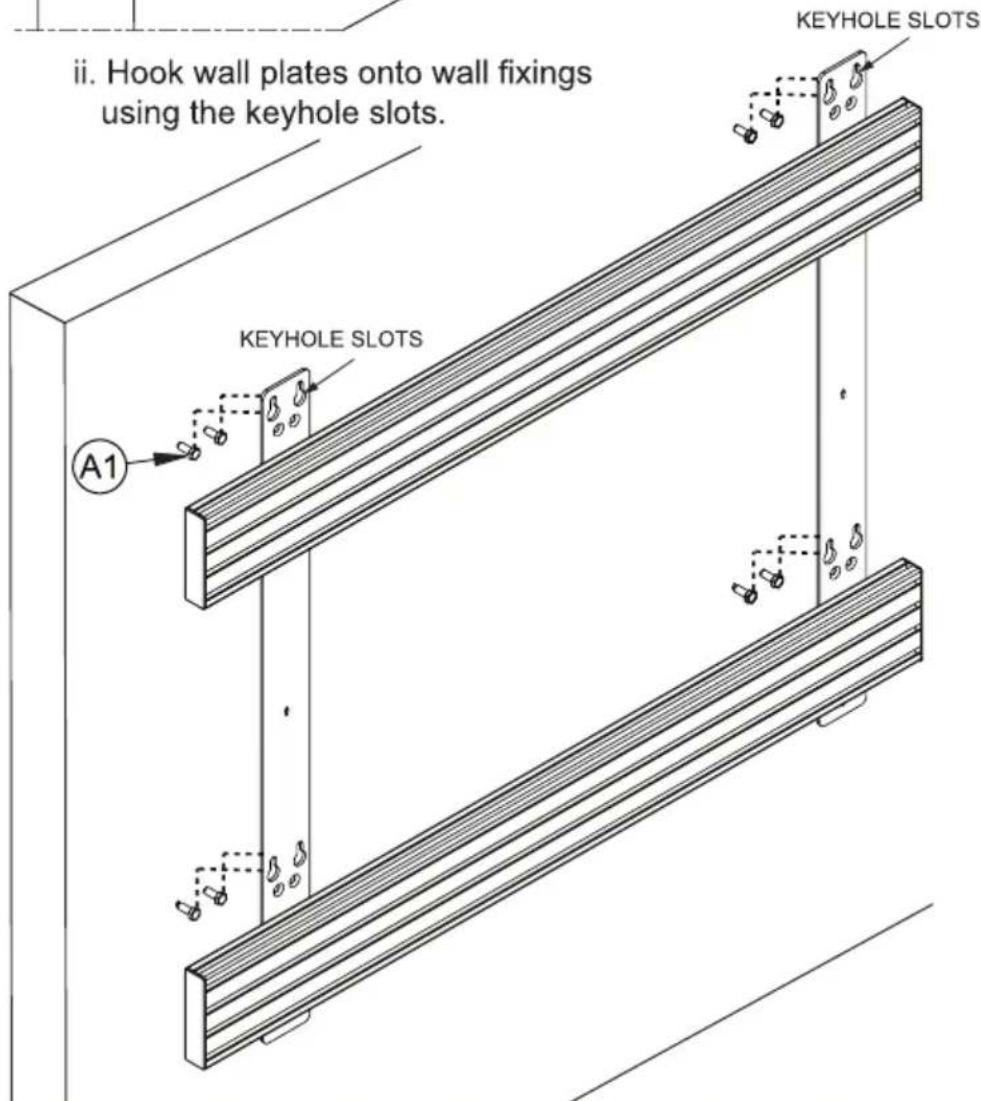

ii. Hook wall plates onto wall fixings using the keyhole slots. KEYHOLE SLOTS A1 KEYHOLE SLOTS

iii. Tighten all wall fixings.
B-Tech BT9908 - Fix Mounting Rail to the Wall - 3

natural_image Technical line drawing of a mechanical assembly with two parallel plates and a hand holding a tool (no text or symbols)

3

Mount Interface Arms to Screen

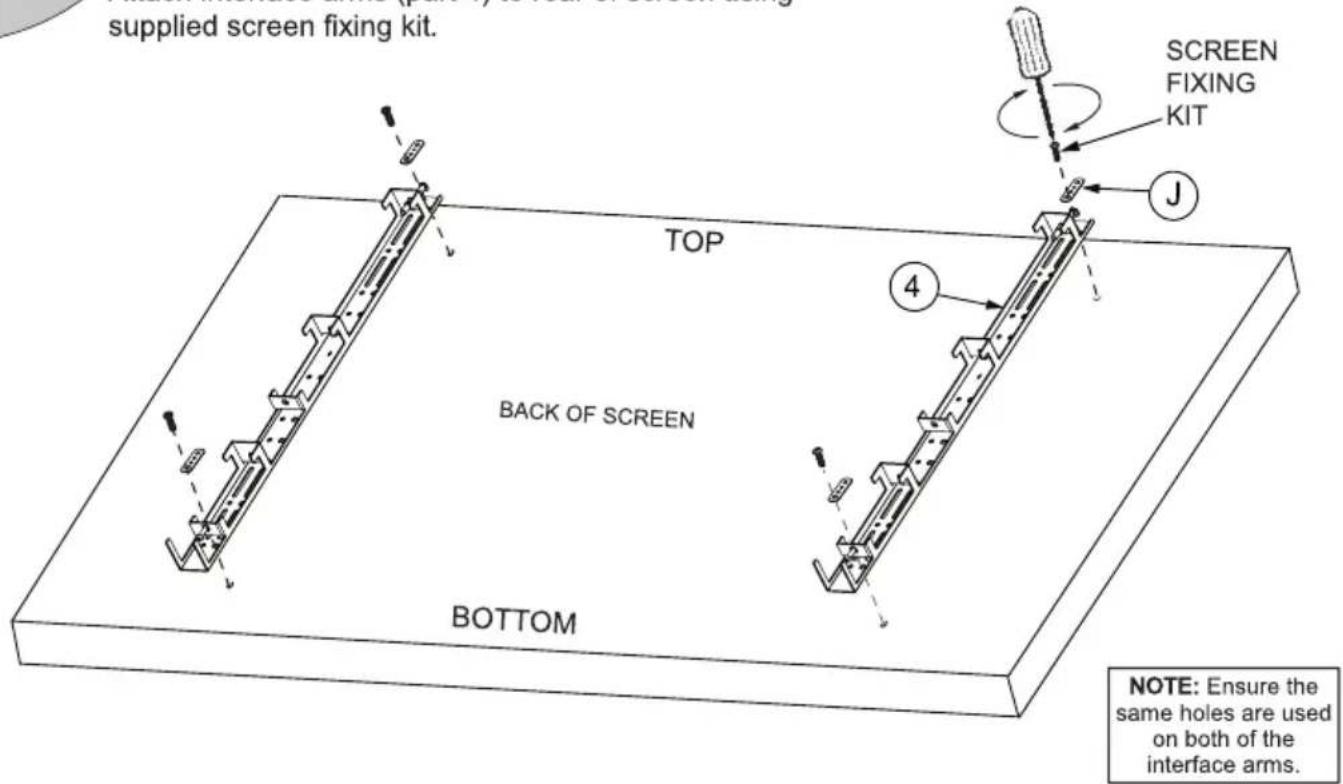

Attach interface arms (part 4) to rear of screen using supplied screen fixing kit.

supplied screen fixing kit. SCREEN FIXING KIT J TOP BACK OF SCREEN BOTTOM NOTE: Ensure the same holes are used on both of the interface arms.

4
Mount Screen to Wall

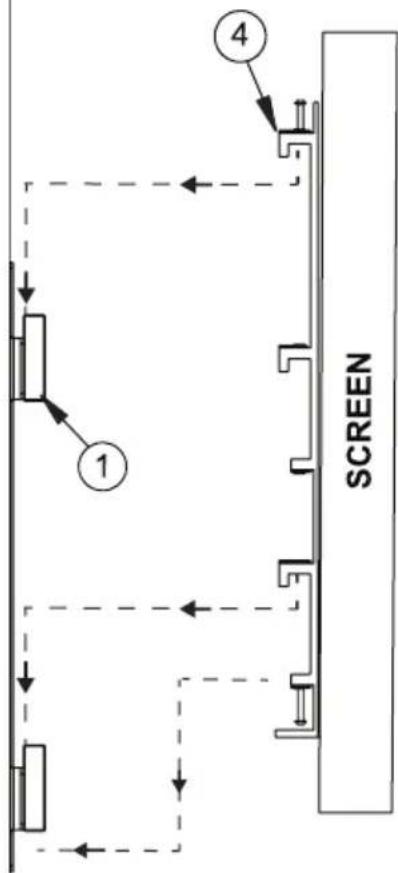

Hook screen onto mounting rail (part 1). This procedure may require two people.

WALL
1 2 3 4 SCREEN

5

Optional - Level Mount

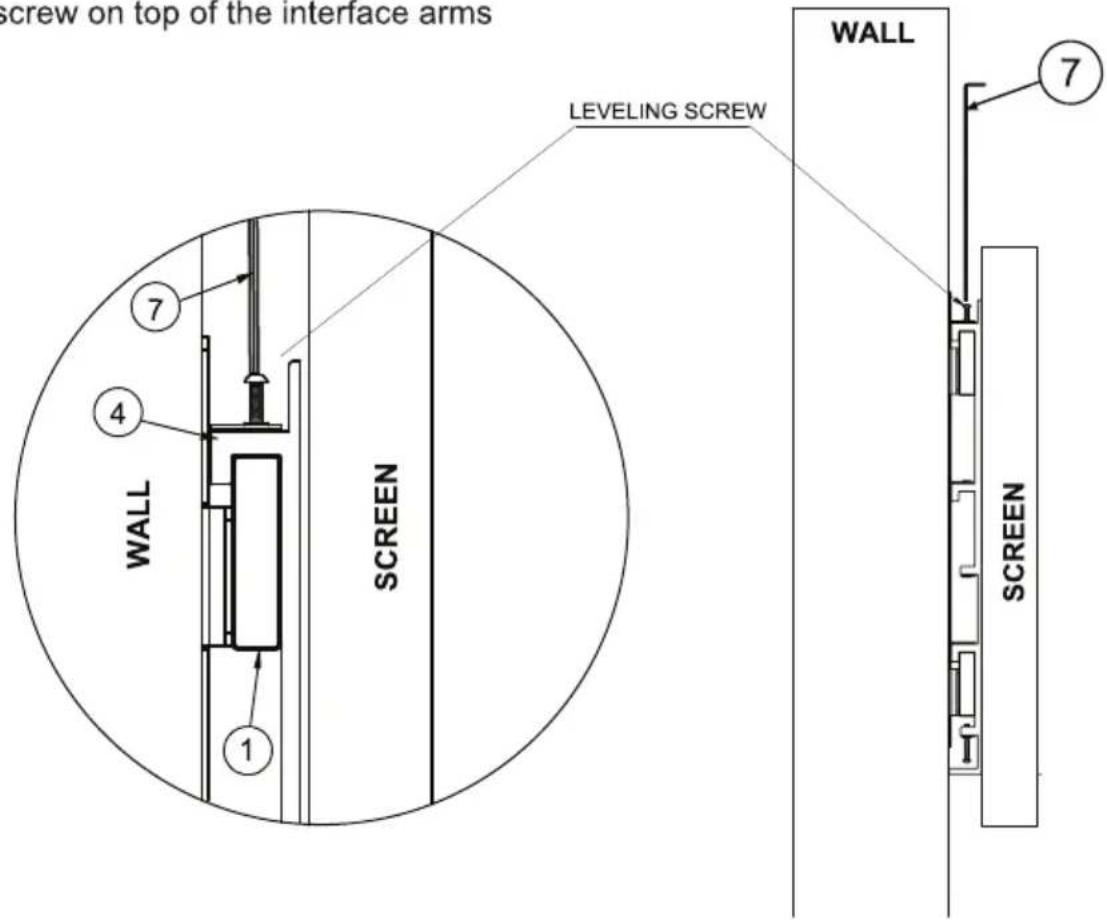

Ensure the screen is level by adjusting the leveling screw on top of the interface arms (part 4).

screw on top of the interface arms LEVELING SCREW WALL 1 4 7 WALL SCREEN SCREEN 7

6

Secure Mount

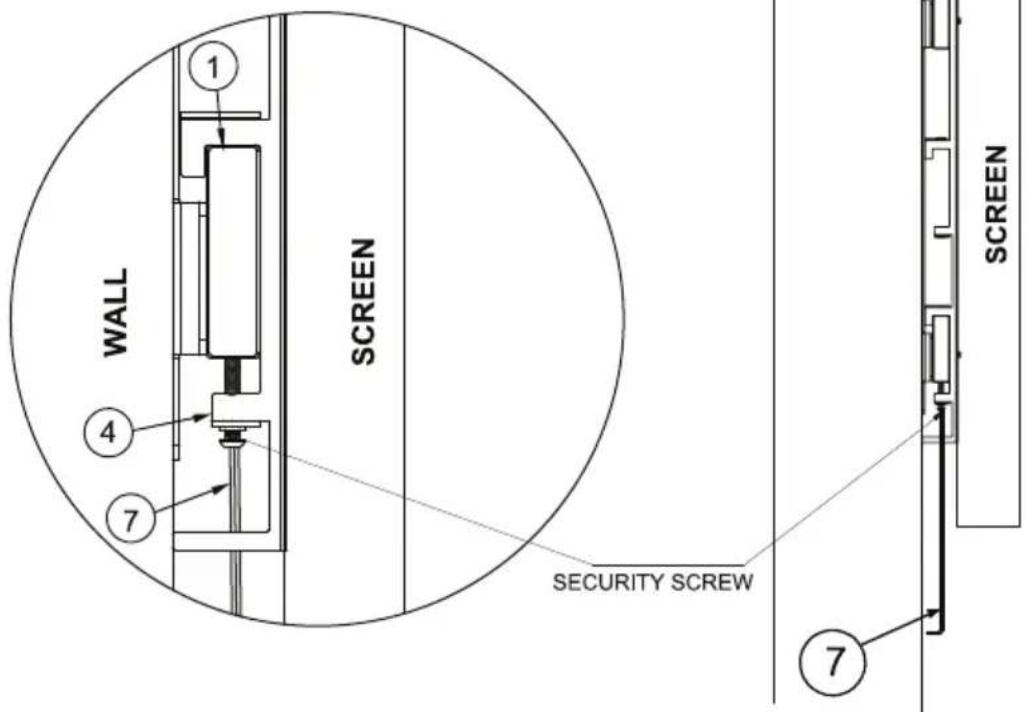

Secure mount by tightening the safety screw on the bottom of the interface arms (part 4).

WALL SCREEN 1 4 7 SECURITY SCREW 7 SCREEN

BT9908

ALTERNATIVE INSTALLATIONS

FLOOR TO CEILING MOUNT

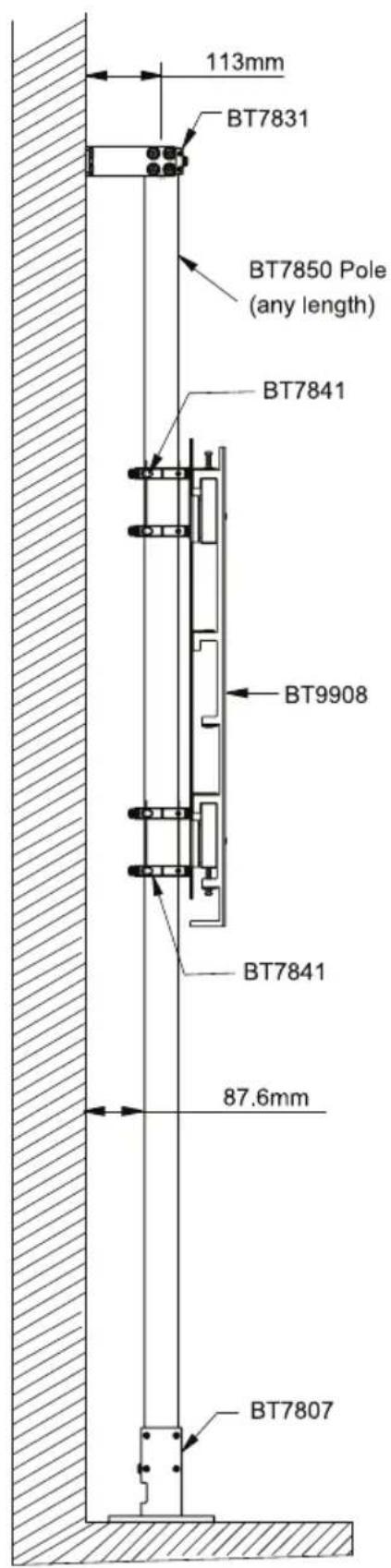

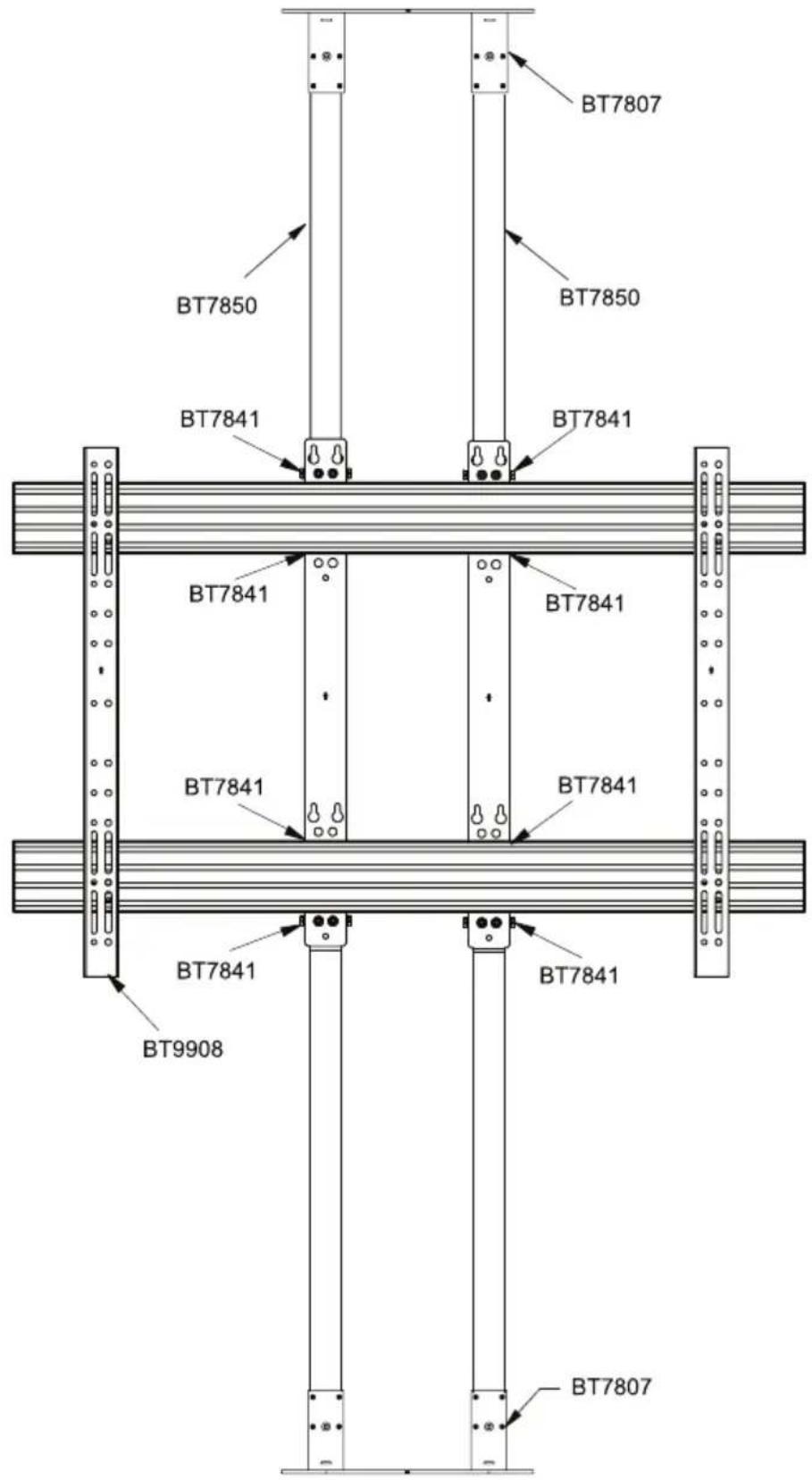

BT9908 with BT7807 x 2, BT7580 x 2 & BT7841 x 8
FLOOR TO WALL MOUNT
BT9908 with BT7850 x 2, BT7807 &
BT7831 and BT7841 x 8
BT7807 BT7850 BT7850 BT7841 BT7841 BT7841 BT7841 BT7841 BT7841 BT7841 BT9908 BT7807

113mm BT7831 BT7850 Pole (any length) BT7841 BT9908 BT7841 87.6mm BT7807

BT9908 PRODUCT DIMENSIONS

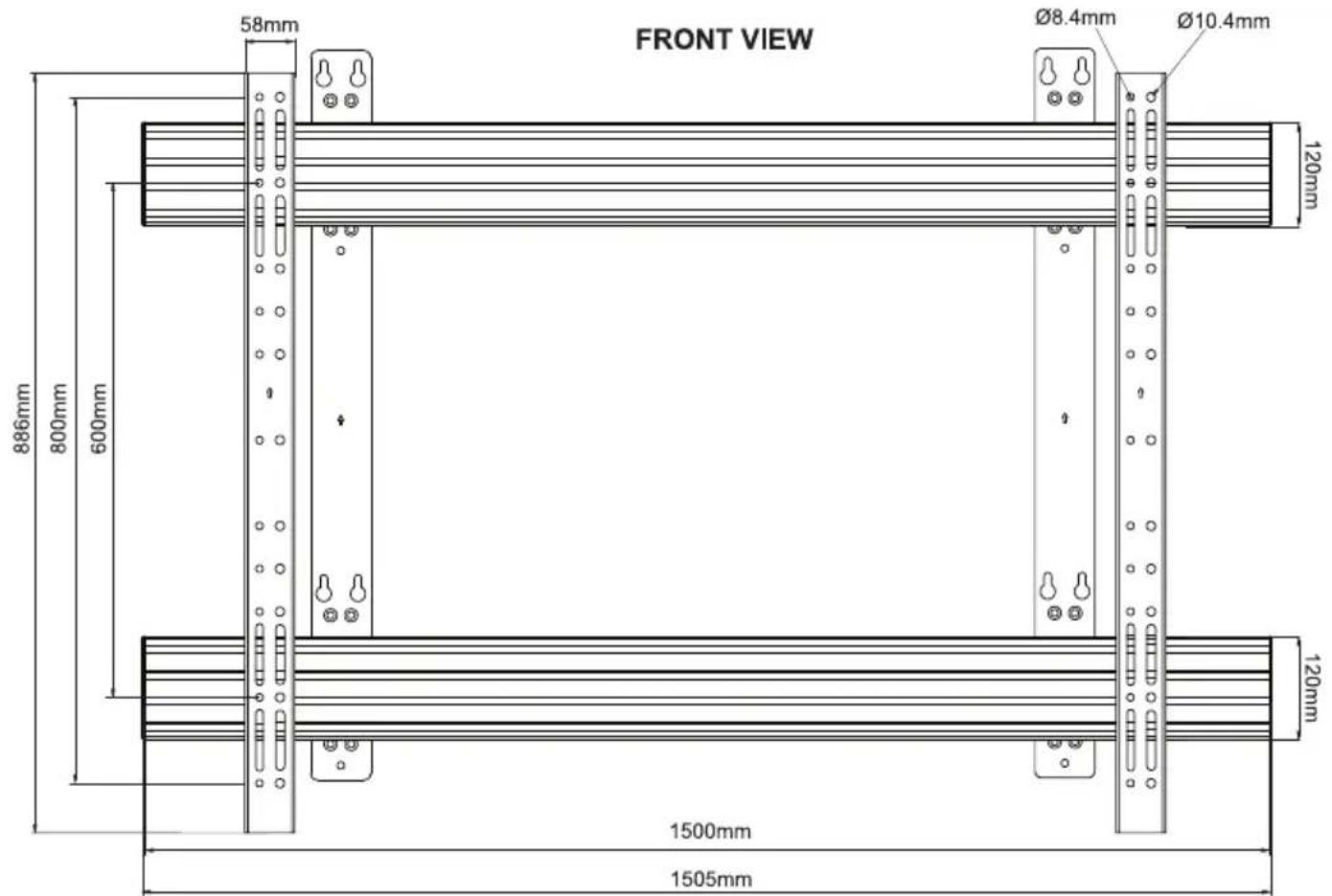

FRONT VIEW 58mm Ø8.4mm Ø10.4mm 120mm 886mm 600mm 120mm 1500mm 1505mm

SIDE VIEW

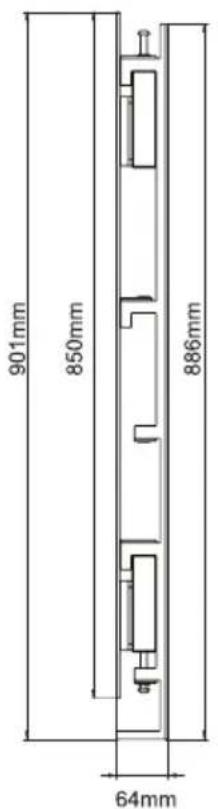

901mm 850mm 886mm 64mm

WALL PLATE

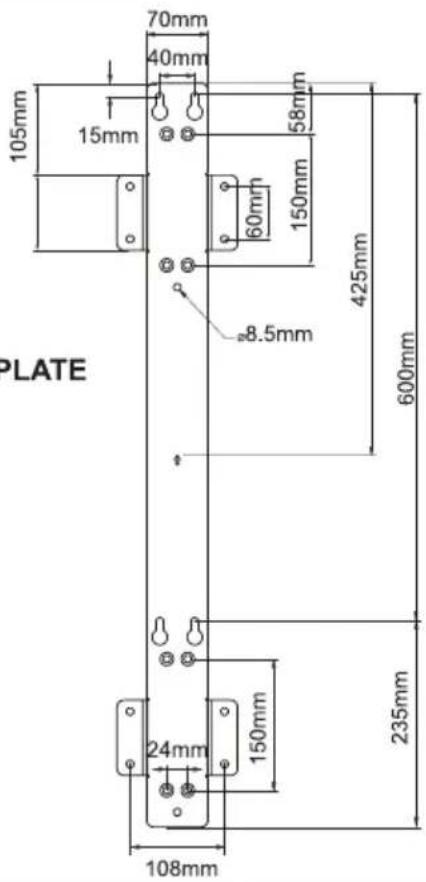

70mm 40mm 15mm 105mm 58mm 60mm 150mm 425mm 600mm 8.5mm 24mm 150mm 235mm 108mm PLATE

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

www.btechavmounts.com

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

B-Tech International Limited

Bennett House, Long March, Daventry, Northants., NN11 4NR, UK

Email: info@btechavmounts.com

©2016 B-Tech International Design and Manufacturing Limited. All rights reserved.

B-Tech Audio Video Mounts is a division of B-Tech International Design and Manufacturing Limited.

B-Tech, Better By Design & System X are registered trademarks of B-Tech International Design and Manufacturing Limited.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.
