Type	Wall-mounted tilting display mount for portrait orientation
Brand	StarTech.com
Model	FPWTLTPORT
Weight Capacity	110 lb (50 kg)
Screen Size Compatibility	40" - 55"
VESA Compatible Patterns	200x200, 200x300, 200x400, 300x300, 400x400, 400x600
Tilt Range	0°, 5°, 10°
Rotation	+3° to -3°
Minimum Profile to Wall	3.1" (78 mm)
Material	Black metal
Mounting Surface	Wood stud, solid concrete, or cinder block wall
Included Accessories	Wall plate, display mounting brackets, extension brackets, security bar, various screws, spacers, washers, tilt pins, Phillips head screwdriver
Warranty	5 years
Installation	Professional installation recommended; indoor use only
Height Adjustment	Micro height adjustment with ratchet levers (+3° to -3° rotation)
Security Feature	Security bar slot for padlock (padlock not included)
Package Dimensions (est.)	24 x 15 x 4 in
Weight (est.)	10 lb (4.5 kg)

Frequently Asked Questions - FPWTLTPORT StarTech.com

What is the maximum weight the FPWTLTPORT can support?

The wall mount can support up to 110 lb (50 kg).

What VESA patterns are compatible?

Compatible VESA patterns include 200x200, 200x300, 200x400, 300x300, 400x400, and 400x600.

Can I tilt the display?

Yes, the mount offers three tilt angles: 0°, 5°, and 10°. Tilt pins are inserted to set the desired angle.

How do I adjust the height of the TV?

Use the ratchet levers on the display mounting brackets. Rotate them clockwise to raise and counterclockwise to lower the TV. Ensure both sides are adjusted evenly.

Is the mount suitable for concrete walls?

Yes, it can be installed on wood stud, solid concrete, or cinder block walls. Ensure the wall can support at least four times the weight of the equipment.

Can I use this mount for portrait orientation?

Yes, this mount is specifically designed for portrait orientation of displays.

What tools are required for installation?

A Phillips head screwdriver is included. You will also need a spirit/bubble level and optionally a padlock for the security bar.

How far from the wall does the mount protrude?

The minimum profile to the wall is 3.1 inches (78 mm).

Is the security bar included?

Yes, a security bar is included to deter theft. It requires a padlock (sold separately).

What is the warranty period?

This product is backed by a five-year warranty. For details, visit www.startech.com/warranty.

USER MANUAL FPWTLTPORT StarTech.com

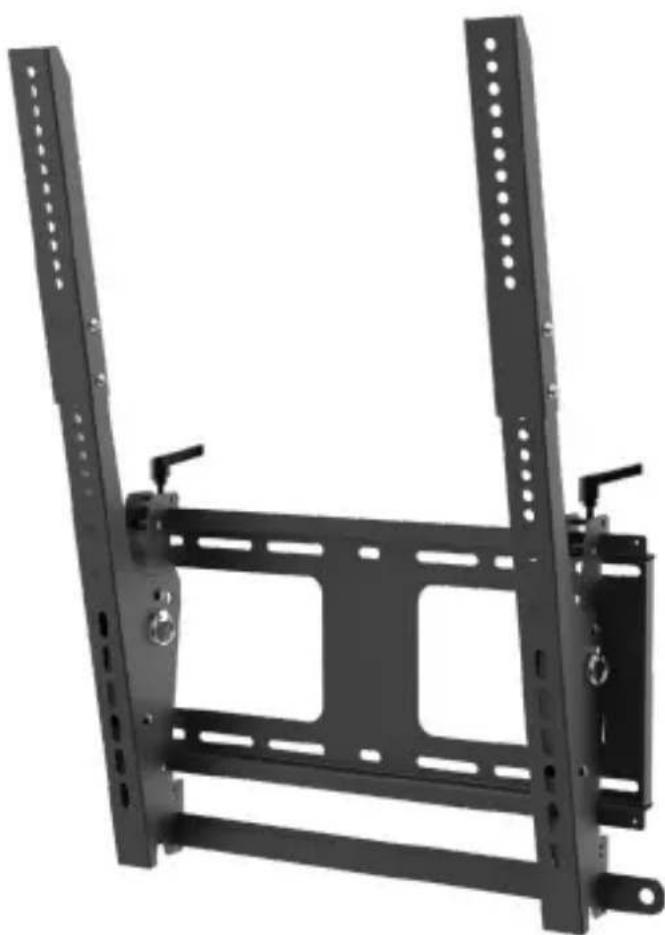

Wall-Mounted Tilting Display Mount - Portrait

Black metal shelving unit with vertical supports and mounting brackets (no text or symbols visible)

Actual product may vary from photos

User Manual

SKU#: FPWTLTPORT

Compliance Statements

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Safety Statements

Safety Measures

- Product installation and/or mounting should be completed by a certified professional as per the local safety and building code guidelines.

Mesures de sécurité

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warning Statements

• Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.

- Never use this product if parts are missing or damaged.

- The Wall-Mounted Tilting Display Mount is designed to be installed on a wood stud, solid concrete, or cinder block wall. The wall structure should also be capable of supporting at least four times the weight of the mounted equipment.

- The mounting hardware included with this product may not be adequate for installation on certain wall structures. Failure to comply with these warnings may result in personal injury or damage to the equipment.

- If you lack the necessary expertise to attach this product to the wall structure that you're using, contact a construction professional to install the wall mount or to provide specific mounting instructions for your wall structure.

- Make sure that the weight of the TV doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment. This product can support the following weight: Up to 110 lb. (50 kg).

Mensagens de Aviso

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Varningsmeddelanden

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Avertissements

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warnhinweise

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements......ii

Warning Statements......iii

Product Diagram....1

Front View 1

Side View 2

Rear View....3

Product Dimensions ....4

Product Information....5

Package Contents .... 5

Requirements 7

Technical Specifications....8

Installation 10

Fasten the Tilting Display Mount to a Wall....10

Extension Bracket Installation....10

Adjust the Tilt Angle....11

Attach the Display Mounting Brackets to a TV....12

Hang the TV on the Wall Plate 15

(Optional) Security Bar Installation....16

Operation 17

Micro Height Adjustment....17

Warranty Information....19

Product Diagram

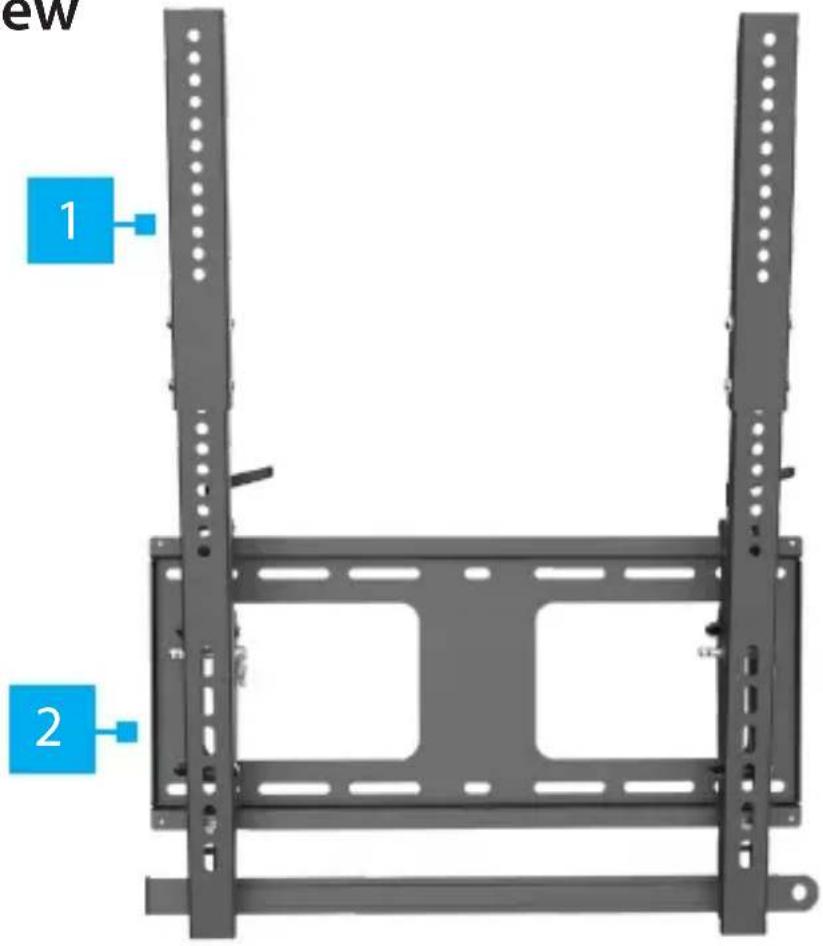

Front View

Components Function
1	Extension Brackets	• Extends the Display Mounting Brackets to hold a large TV• Position the TV higher up to change the pivot point for the TV Tilt
2	Wall Plate	• Mount the Display Mounting Brackets• Evenly distributes the weight of the TV across the Mounting Surface

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

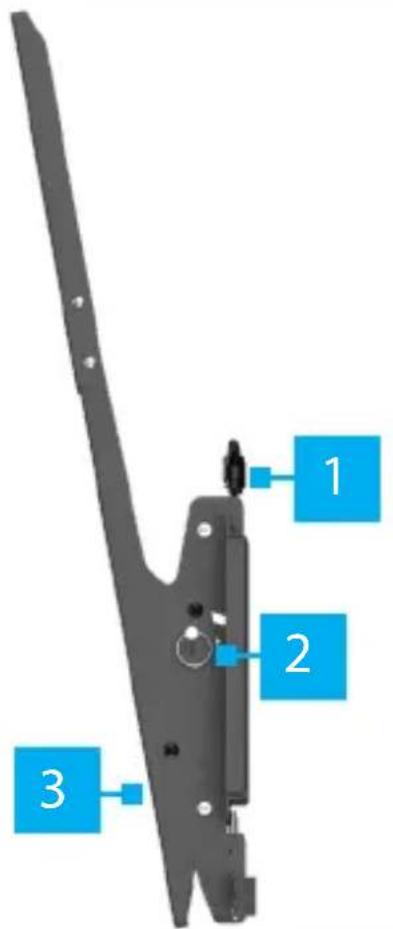

Side View

Components Function
1	Height Adjustment Ratchet Screws	• Micro height adjustment to match the height of other mounted TVs• Ratchet feature for toolless adjustments in a tight space
2	Tilt Pins	• Insert to set the Tilt• Three configurations for tilting the Display Mount - 0°, 5°, or 10°
3	Display Mounting Brackets	• Brackets that hold the Display

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

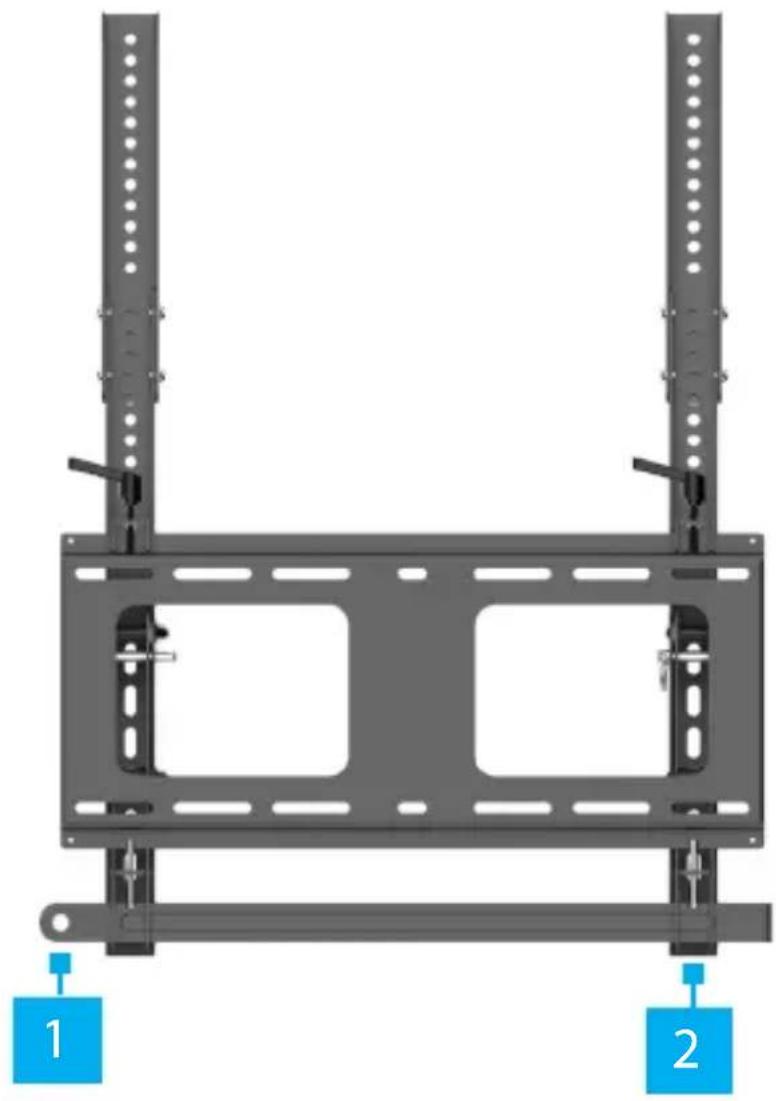

Rear View

Mechanical assembly diagram showing two vertical supports with labeled components (1 and 2), no text or symbols present.

Components Function
1	Security Bar	·Secure the TV to the Display Mount to deter theft·Requires a Padlock (sold separately)
2	Bracket Screws	·Secure the Display Mounting Brackets and Extension Brackets to the Display Mount

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

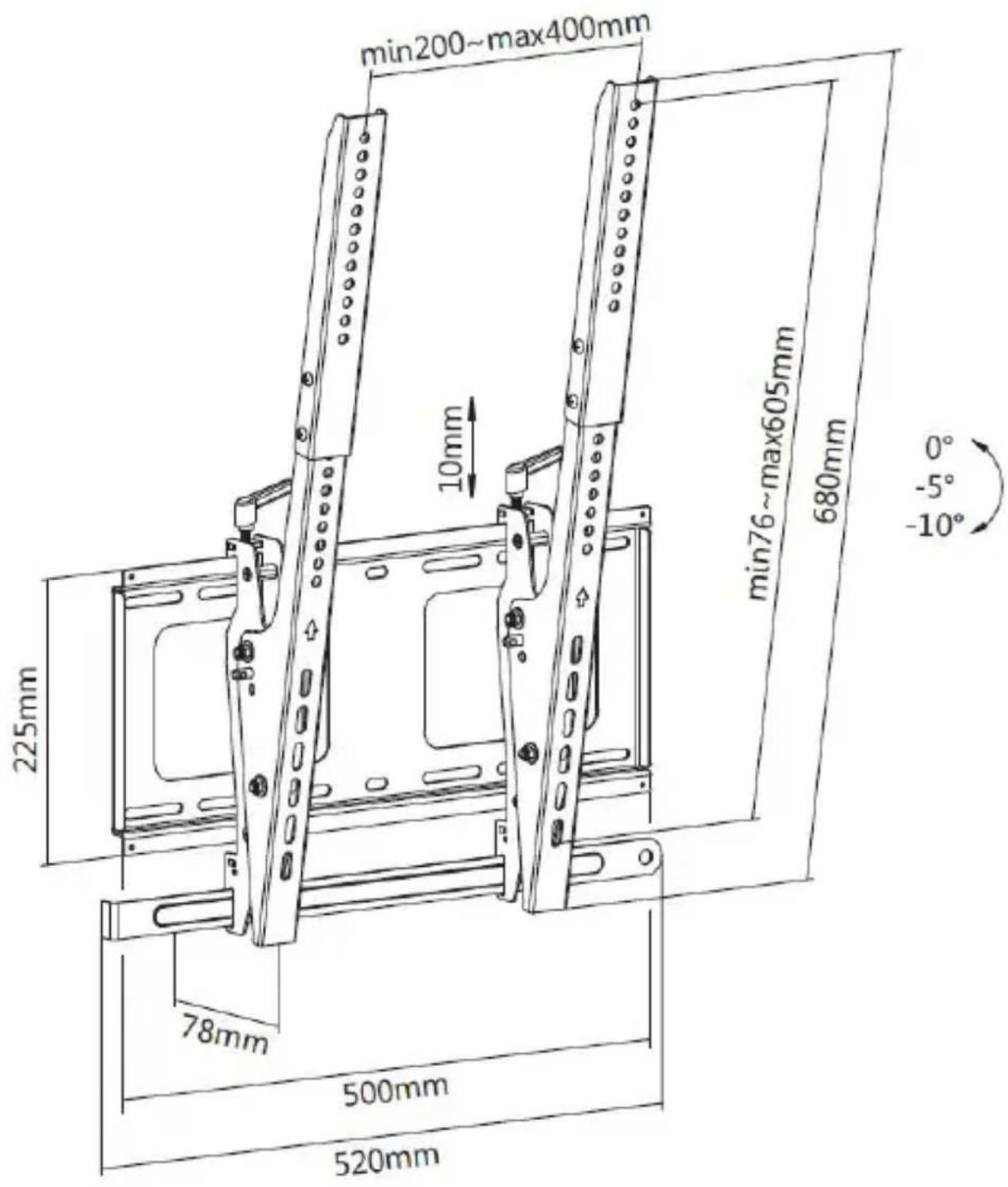

Product Dimensions

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

Wall PlateQty: 1	Display Mounting BracketsQty: 2	Extension BracketsQty: 2	Security BarQty: 1
Extension BracketScrews - M6 x 6 mmQty: 8	Round Washers - SmallQty: 2	Tilt PinsQty: 2	Phillips Head ScrewdriverQty: 1
M5 x 14 mmScrewsQty: 4	M6 x 14 mmScrewsQty: 4	M6 x 30 mmScrewsQty: 4	M8 x 30 mmScrewsQty: 4
M8 x 50 mmScrewsQty: 4	Rectangular WashersQty: 4	Short SpacersQty: 8	Long SpacersQty: 8
Mounting ScrewsQty: 6	Concrete AnchorsQty: 6	Round Washers - LargeQty: 6

Requirements

For the latest requirements, please visit www.startech.com/FPWTLTPORT

• Phillips Head Screwdriver
- Spirit/Bubble Level
- Mounting Surface
• (Optional) Two People for the Installation
• (Optional - for locking) Padlock

Technical Specifications

Type of Measurement Measurement
Screen Size	40" - 55"
Weight Capacity	Up to 110 lb. (50 kg)
VESA Compatible 200 x 200	200 x 300200 x 400300 x 300400 x 400400 x 600

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Minimum Profile to Wall	3.1" (78 mm)
Rotation	+3° to -3°
Tilt Range	0°-5°-10°

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Installation

Fasten the Tilting Display Mount to a Wall

Warnings! The Display Mount - Portrait is designed to be installed on a wood stud, solid concrete, or cinder block wall. The wall structure should be capable of supporting at least four times the weight of the mounted equipment. The Mounting Hardware (Mounting Screws and Concrete Anchors) included with this product may not be adequate for installation on certain wall structures. Contact a construction professional to install the Display Mount - Portrait. Failure to do so may result in personal injury and/or equipment damage.

The Display Mount - Portrait is intended for indoor use only and should not be used outdoors.

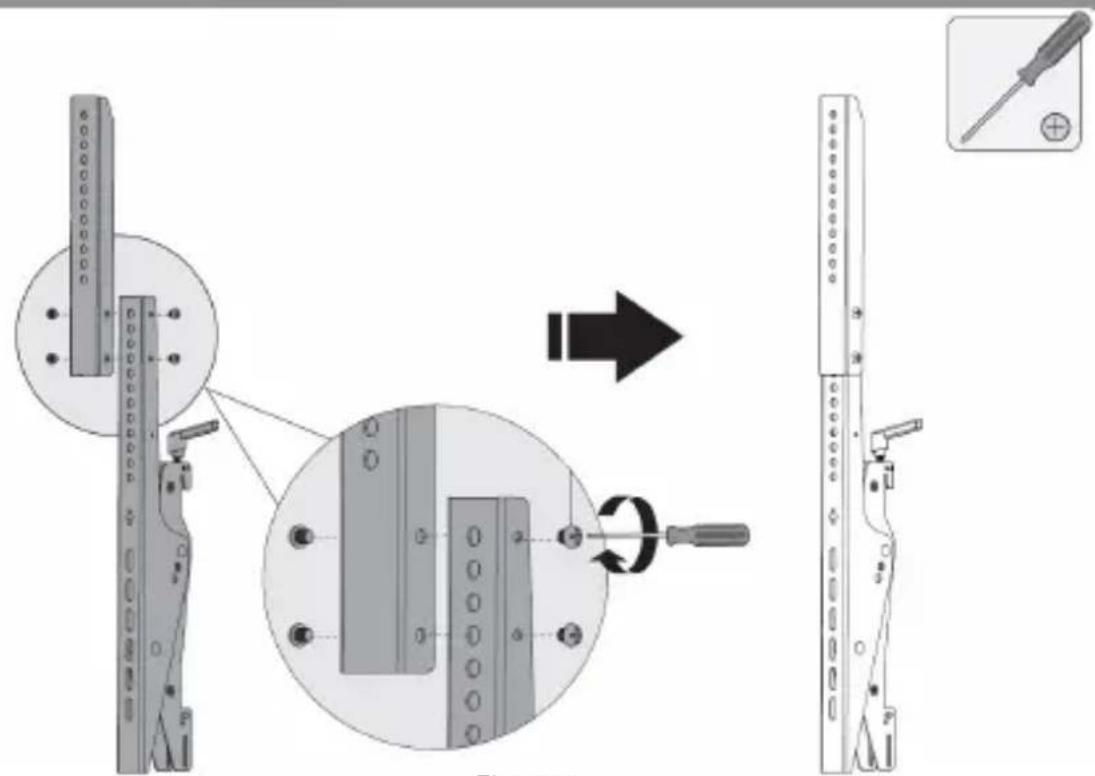

Extension Bracket Installation

1. Slide the Extension Bracket over the Display Mounting Bracket and align the 4 Screw Holes in the Display Mounting Bracket with the 4 Screw Holes in the Extension Bracket. (Figure 1)
2. Insert 4 Extension Bracket Screws - M6 x 6 mm through the Extension Bracket and into the Display Mounting Bracket.
3. Use the Phillips Head Screwdriver to tighten the 4 Extension Bracket Screws - M6 x 6 mm.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Figure 1

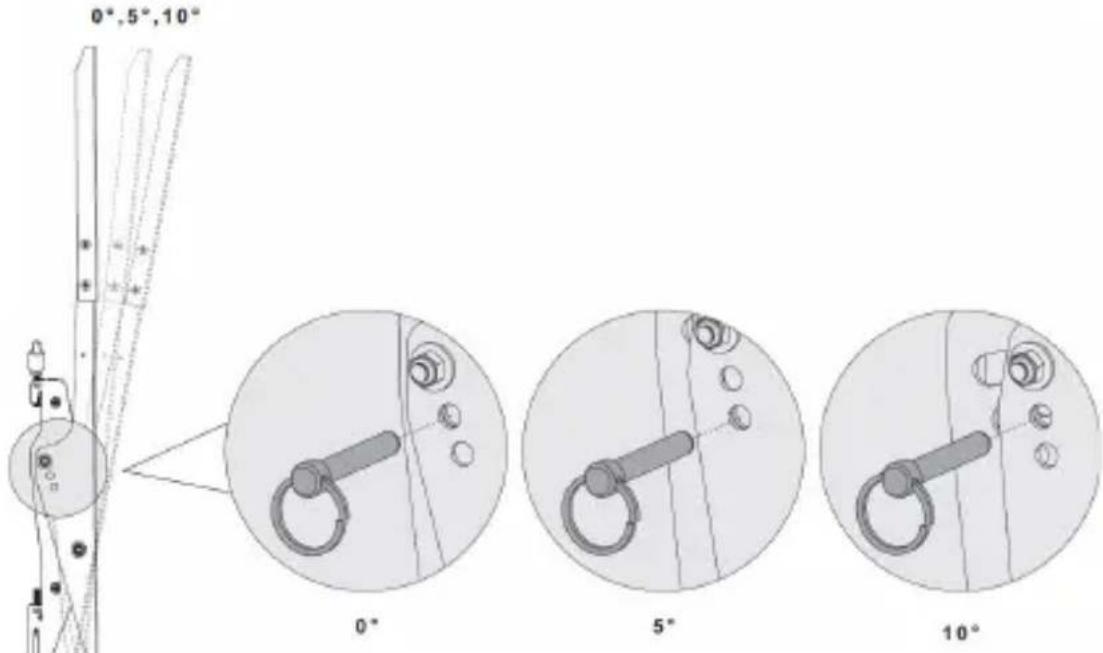

Adjust the Tilt Angle

1. Determine the desired viewing angle for the TV.

2. Use the table below to determine a Tilt Pin Hole alignment that matches the desired viewing angle.

Viewing Angle Tilt Pin Hole Alignment
0°	With the Display Mounting Brackets standing upright, align the Upper Tilt Pin Holes.
5°	With the Display Mounting Brackets tilted slightly forward, align the Lower Tilt Pin Holes.
10°	With the Display Mounting Brackets tilted all the way forward, align the Upper Tilt Pin Holes.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Insert a Tilt Pin into the Tilt Pin Hole on the side of the Display Mounting Bracket. (Figure 2)

Figure 2

1. Repeat step 3 for the second Tilt Pin.

Attach the Display Mounting Brackets to a TV

1. Place your TV on a padded surface, screen side down, so that you can access the back of the TV.
2. (Optional) Identify and remove the pre-installed VESA Hardware from the back of the TV.

Note: Not all TVs will have placeholder VESA Hardware. Ensure you are only removing the four Screws for the VESA Mount. Do not remove any of the screws from your TV's structural assembly.

1. (Optional) Place a Round Washer and the necessary number of Short and/or Long Spacers over each VESA Mounting Hole. Use the Spacer Combination Table to determine the number of Spacers for the application. (Figure 3)

Screw Type Spacer Combination
M6 x 30 mm
M8 x 30 mm
M8 x 50 mm

Mechanical assembly diagram showing a pin inserted into a bracket with three cylindrical components aligned (no text or labels)

Figure 3

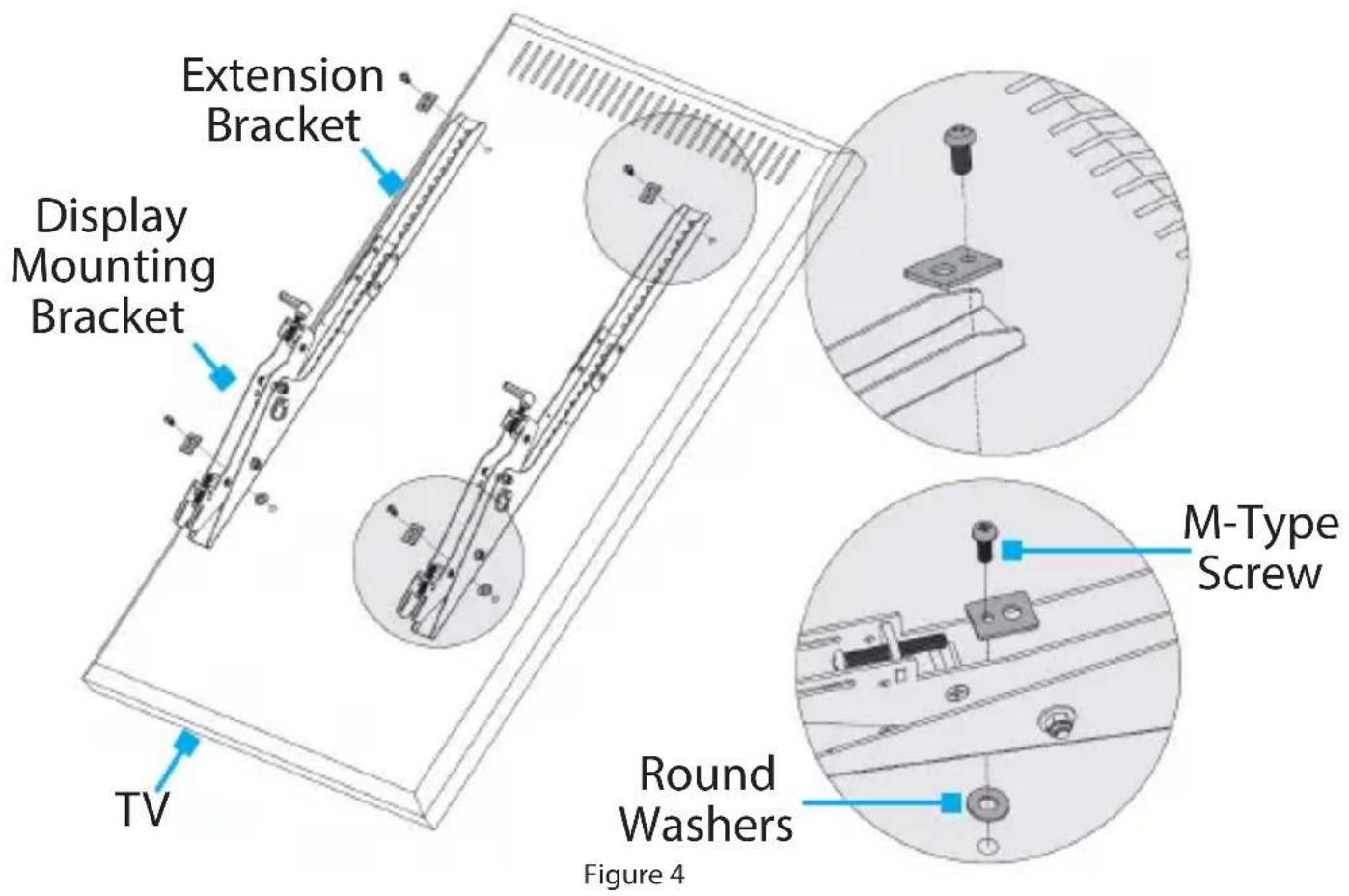

1. Place the Display Mounting Bracket Assemblies (Display Mounting Brackets and Extension Brackets), parallel to one another, on the back of the TV over the VESA Mounting Holes. The arrows on the Display Mounting Brackets should be pointing towards the side of the TV that is intended to be the top when the TV is in the portrait position.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

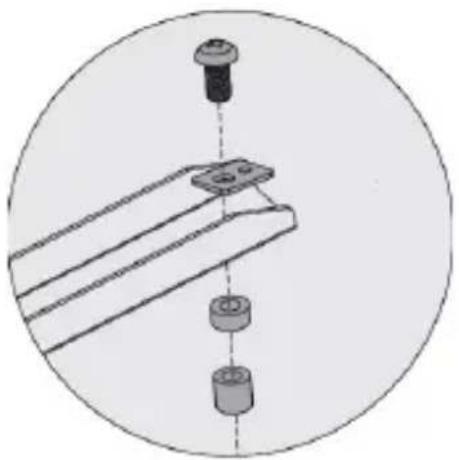

1. Place the four Rectangular Washers onto the Display Mounting Bracket Assemblies. Align the holes in the Rectangular Washers with the VESA Mounting Holes. (Figure 4)

Note: Each Rectangular Washer features two holes. Select the hole that fits the M-Type Screws.

1. Thread the appropriately sized M-Type Screws (ex. M5 x 14 mm Screws) through the Rectangular Washers, Display Mounting Bracket Assemblies, (Optional) Spacers, and into your TV.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. Tighten the M-Type Screws with the Phillips Head Screwdriver, until each Screw is flush with the surface of the Display Mounting Bracket Assemblies.

Warning! Do not over-tighten the M-Type Screws. If you encounter any unexpected resistance as you are fastening these Screws, immediately stop and attempt to use a different length of M-Type Screw.

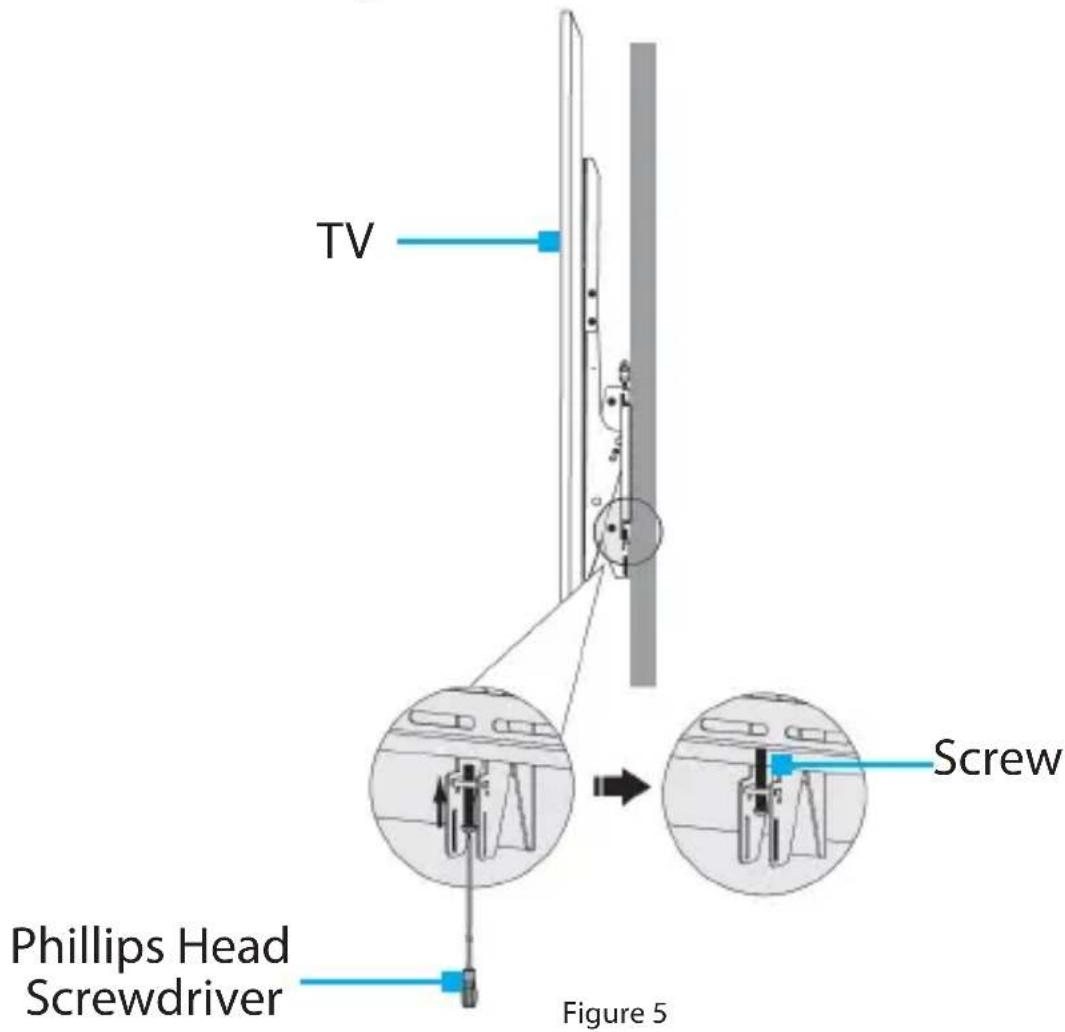

Hang the TV on the Wall Plate

1. Loosen the 2 Screws, located at the bottom of the Display Mounting Bracket Assemblies, with the Phillips Head Screwdriver. (Figure 5)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

1. With two people: lift and hang the TV onto the Wall Plate.
   Tip: Align the top hooks of the Display Mounting Bracket Assemblies with the top rails of the Wall Plate.
2. Tighten the 2 Screws in the bottom of the Display Mounting Bracket Assemblies using the Phillips Head Screwdriver.

(Optional) Security Bar Installation

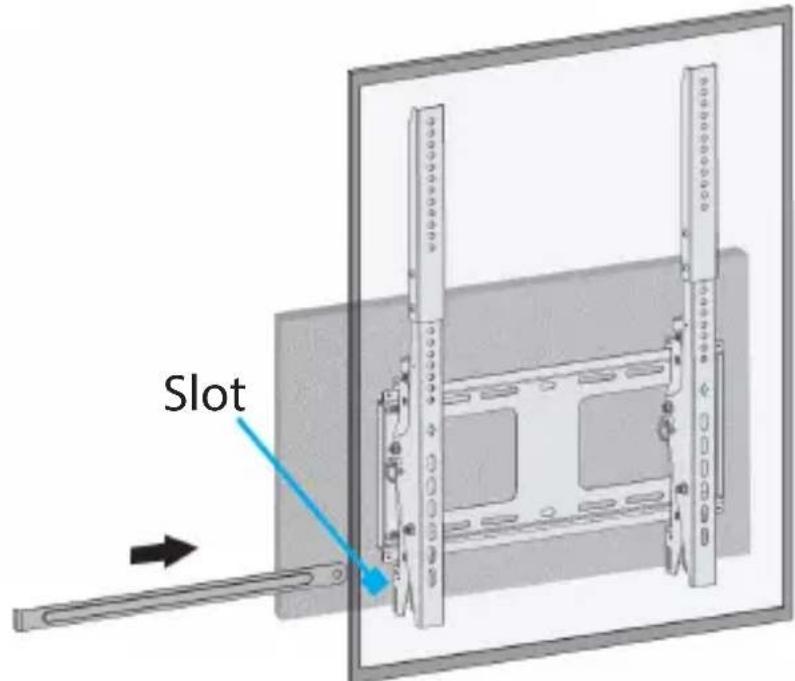

1. Slide the Security Bar through the slots at the base of the Display Mounting Bracket Assemblies. (Figure 6)

Figure 6

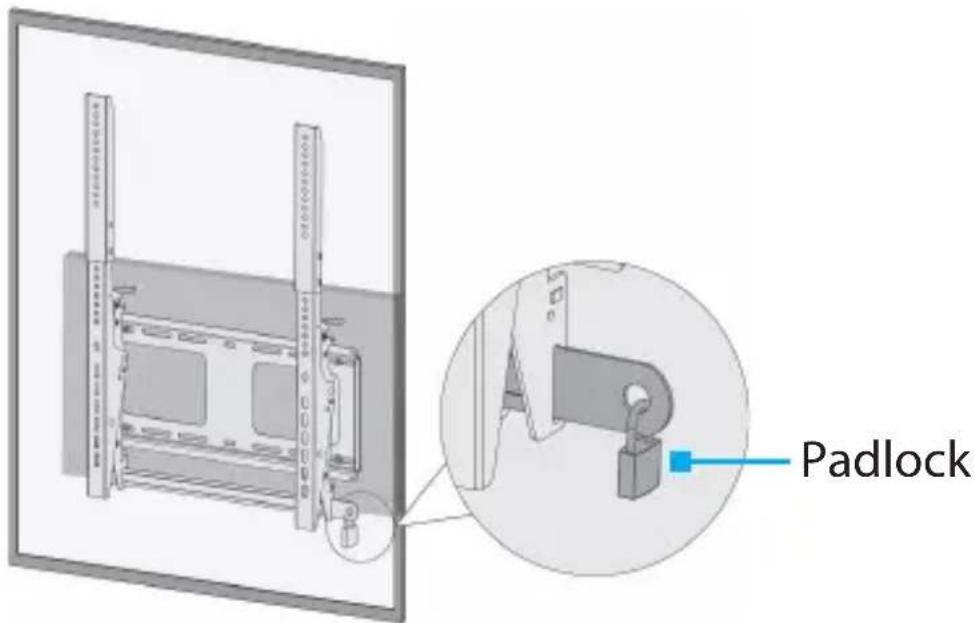

1. Install a Padlock through the hole in the Security Bar. (Figure 7)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Figure 7

Operation

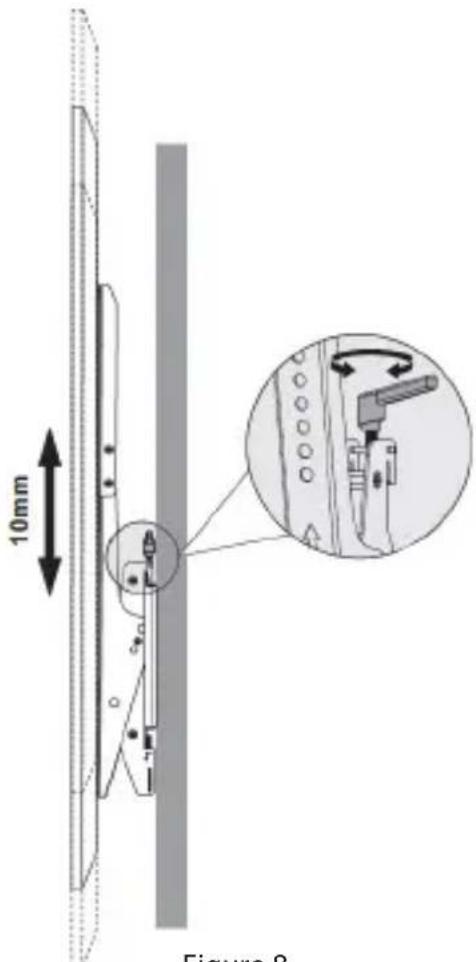

Micro Height Adjustment

Note: The Levers have a ratchet feature. Freely rotate the Levers, without engaging the tightening mechanisms, by pulling them up and rotating them to the desired position.

Push the Levers down and rotate them to engage the tightening mechanisms.

Rotate the Levers on the Display Mounting Bracket Assemblies Clockwise to raise the height of the TV and Counterclockwise to lower the TV. The Levers have to be rotated evenly so that the height setting is the same on both sides. (Figure 8)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Figure 8

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Warranty Information

This product is backed by a five-year warranty.

For further information on product warranty terms and conditions, please refer to www.startech.com/warranty.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
