Brand	Conair
Model	Thinner TH106
Product Type	Digital Bathroom Scale
Display	LCD
Weight Capacity	400 lb (180 kg)
Graduation	0.1 lb (0.05 kg)
Power Source	1 CR2032 battery
Auto On/Off	Yes
Material	Tempered glass platform
Dimensions	12.5 x 12.5 x 1.2 in (31.8 x 31.8 x 3 cm)
Product Weight	3.5 lb (1.6 kg)
Features	Step-on activation, low battery indicator, overload indicator
Cleaning	Clean with a soft damp cloth; do not immerse in water
Safety	Use on a hard, flat surface; avoid slippery floors
Warranty	Limited 1-year warranty

Frequently Asked Questions - Thinner TH106 Conair

How do I change the battery?

Remove the battery compartment cover on the underside of the scale. Replace the old CR2032 battery with a new one, ensuring correct polarity. Replace the cover.

What does 'Err' or 'Lo' mean on the display?

'Err' indicates an overload or unstable weight. Remove weight and try again on a flat surface. 'Lo' means the battery is low; replace it.

How do I clean the scale?

Use a soft, damp cloth to wipe the surface. Do not use abrasive cleaners or submerge the scale in water.

Why does the weight fluctuate?

Ensure the scale is on a hard, level surface. Stand still in the center for accurate reading. Fluctuations may occur due to uneven flooring or movement.

What is the maximum weight limit?

The maximum weight capacity is 400 lb (180 kg). Exceeding this may damage the scale and cause inaccurate readings.

How do I get the most accurate reading?

Place the scale on a hard, flat surface. Step on and wait for the display to stabilize. Weigh yourself at the same time each day for consistency.

Does the scale have a tare function?

No, the Thinner TH106 is a standard weight-only scale and does not include a tare or body composition feature.

Can the scale be used on carpet?

For best accuracy, use on a hard, flat surface. Carpet may cause inaccurate readings. If necessary, place a rigid board under the scale.

How do I reset the scale?

Remove the battery for 30 seconds, then reinsert it. The scale will automatically reset.

What type of battery does it use?

The scale uses one CR2032 lithium coin battery. Ensure you use a new battery of the same type.

USER MANUAL Thinner TH106 Conair

Remember: A scale is an essential tool in any weight management program, but it only records your progress. Exercise, diet and determination are what you need to reach your goal.

FCC Markings: Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

SUPPLIER'S DECLARATION OF CONFORMITY

Brand: Thinner®

Model No.: TH106

Description: Bathroom Scale

Responsible Party: Conair LLC,

1 Cummings Point Road, Stamford, CT 06902

[phone]

Standards: FCC Part 15 Subpart B, ANSI C63.4-2014

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

DATE OF ISSUE: November 26, 2021

Please register this product at: www.conair.com/registration

Service Center

Conair LLC

7475 N. Glen Harbor Blvd.

Glendale, AZ 85307

©2022 Conair LLC, Glendale, AZ 85307

Made in China.

21AD082225

IB-17545

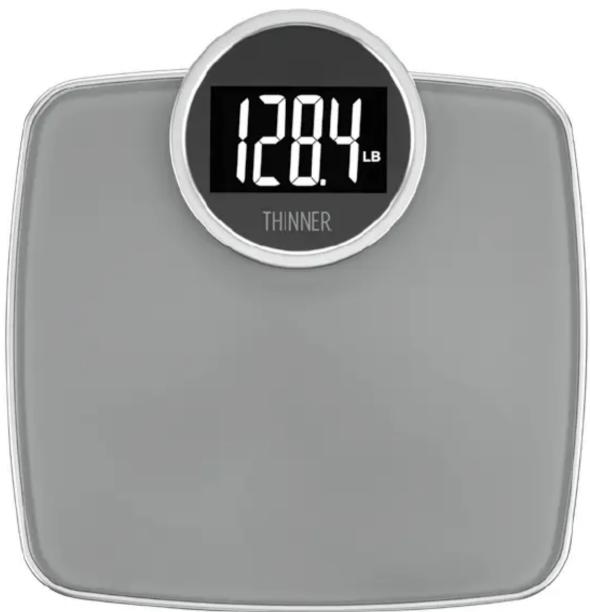

THINNER.

BY CONAIR

Scales for the way you live

Extra-large, easy-to-read display

Bright white backlight LCD

Tempered safety glass scale

Weighs up to 400 lb

Instructions for use of TH106 Scale

Congratulations! By purchasing this Thinner scale, you've made the first step toward taking control of your weight. To get the greatest benefit from your purchase, please read this entire brochure before using your scale.

INSTRUCTIONS FOR USE

How to Operate

1. Remove all packing materials.
2. Remove the isolator tab from the battery compartment – without opening the battery cover at the bottom of the scale, gently pull out the isolator tab. (In case the tab cannot be pulled out or if the display does not light up after the tab is pulled, remove the screw from the battery cover and remove the cover. Gently pull out the isolator tab. Ensure the battery is installed correctly. Replace the battery cover and tighten the screw again.)
3. For best accuracy, place scale on tile or hardwood floor, rather than uneven, flexible or soft flooring (such as carpet).
4. Step on scale platform. The display will light up. Stand on platform without shifting or moving until weight is displayed (4–5 seconds). NOTE: Digital display automatically turns off after several seconds.
5. To change measurement units, when scale display is on, set switch on the base of the scale for measuring in pounds (lb) or kilograms (kg).

Helpful Hints

Your Thinner® scale is a precise measuring instrument that is most accurate when weighing a stationary object. To ensure the most accurate readings, always try to stand on the same area of the scale platform and DO NOT MOVE. Should the weight on the scale exceed the scale's capacity, you may see an error message "Err".

Electronic sensors are sensitive. Be careful not to drop or jar the scale. Place it gently onto floor surface, and store where it will be protected from impact. The scale is an electronic instrument and should never be submerged in water. Clean with damp cloth only.

Battery Replacement

If battery is low and needs to be replaced ("Lo" will appear on screen), remove the screw from the battery cover on the bottom of the scale and remove the cover. Replace the old batteries with 3 new AAA alkaline batteries. Clean the battery contacts and also those of the device prior to battery installation. Ensure the batteries are installed correctly with regard to polarity, then replace the battery cover and tighten the screw again. Remove used batteries promptly. Properly dispose of the old batteries. Do not attempt to open the scale or to remove any components. Servicing should be done by qualified technicians only. See warranty information below below.

When batteries of different brand or type are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference of voltage or capacity. This can result in venting, leakage, and rupture and may cause personal injury. rupture and may cause personal injury.

LIMITED TEN-YEAR WARRANTY (US and Canada only)

Conair will repair or replace, at our option, your appliance free of charge for 120 months from the date of purchase if the appliance is defective in workmanship or materials.

To obtain service under this warranty, return the defective product to the service center listed, together with your sales receipt. California residents need only provide

proof of purchase and should call 1-800-3-CONAIR for shipping instructions. In the absence of a receipt, the warranty period shall be 120 months from the date of manufacture.

ANY IMPLIED WARRANTIES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY ABILI TY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE 120-MONTH DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

IN NO EVENT SHALL CONAIR BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. Some states do not allow the exclusion or limitation of special, incidental, or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

THINGS YOU SHOULD KNOW ABOUT MANAGING YOUR WEIGHT

Diet, exercise, and determination all play a part in effective weight management. Your scale is the tool that lets you chart your progress, and measure your success, whether your goal is weight loss, weight gain, or maintaining your current weight.

Because weight varies, as explained below, focus on the progression and sustained long-term changes rather than on exact day-to-day readings. When you're dieting and exercising, small, fluctuating weight gains and losses are common.

Common Causes of Weight Fluctuations (during the day and day-to-day)

• Water retention and weight gain from consumption of large meals
• Water retention from salt and carbohydrate intake
- Muscle buildup (muscle weighs more than fat) from strenuous resistance training
- Weight loss caused by dehydration due to illness, low fluid intake or strenuous exercise
- Temporary weight gains and losses from menstrual cycle

Weight Maintenance vs. Weight Loss/Gain

Get into the habit of weighing yourself no more than once a week when you're on a weight management program. Weighing in at consistent intervals will give you the most accurate picture of your progress, eliminating many short-term, unrelated weight changes.

Follow These Simple Rules:

• Weigh yourself once a week.
• Weigh yourself on the same day of the week.
• Weigh yourself at the same time of day.
• Weigh yourself wearing the same clothes.
• Weigh yourself in the same place.
• Weigh yourself on the same scale.

Weight fluctuates more when a person is overweight or underweight. When the goal is to maintain current weight, weighing yourself more than once a week is a good way to stay on track.
