MC230L - Audio/video converter TP-LINK - Free user manual and instructions

Product Type	Audio/Video Converter
Brand	TP-Link
Model	MC230L
Dimensions (W x D x H)	94.5 x 73.0 x 27.0 mm (3.7 x 2.9 x 1.1 in)
Weight	Approximately 100 g (3.5 oz)
Power Supply	External power adapter (5 VDC, 1 A)
Power Consumption	< 2.5 W
Network Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z
Connector Types	1 x RJ45 (10/100/1000Mbps), 1 x SFP slot
Fiber Mode Supported	Multi-mode or Single-mode (depending on SFP module)
Wavelength	Depends on SFP module (e.g., 850nm, 1310nm, 1550nm)
Max Fiber Distance	Up to 550m (Multi-mode) or 10km+ (Single-mode) with appropriate SFP
LED Indicators	Power, Link/Act (RJ45), Link/Act (SFP)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	10% to 90% non-condensing
Housing Material	Metal
Installation	Desktop or wall-mount
Compliance	CE, FCC, RoHS
Maintenance	Clean with dry cloth; no liquid cleaners; keep vents unobstructed
Safety	Use only provided power adapter; disconnect during storms; avoid water
Spare Parts & Repairability	No user-serviceable parts; contact TP-Link support for replacements

Frequently Asked Questions - MC230L TP-LINK

What is the TP-Link MC230L used for?

The MC230L is a mini media converter that connects a fiber optic network to a copper Ethernet network, converting signals between SFP fiber modules and RJ45 ports.

Does the MC230L require an SFP module?

Yes, the SFP slot is empty. You need to install a compatible SFP transceiver (sold separately) for fiber connectivity.

What power supply does the MC230L use?

It uses an external power adapter rated 5V DC, 1A with a standard barrel connector. Use only the provided adapter for safety.

Can I use MC230L with a single-mode fiber?

Yes, if you install a single-mode SFP module (e.g., 1310nm or 1550nm), and the distance can reach up to 10 km or more depending on the module.

How do I know if the MC230L is working?

Check the LED indicators: Power should be steady, and Link/Act lights on both RJ45 and SFP sides should be on when connected.

Does the MC230L support PoE?

No, the MC230L does not support Power over Ethernet (PoE). It requires its own power adapter.

What is the maximum cable length for the RJ45 port?

The RJ45 port supports 10/100/1000 Mbps over standard Cat5e or Cat6 cable up to 100 meters.

Can I mount the MC230L on a wall?

Yes, the metal case has mounting holes for wall installation. Use appropriate screws (not included).

Is the MC230L plug-and-play?

Yes, it requires no configuration. Just connect the power, insert an SFP module, and plug in the Ethernet cables.

What should I do if the device overheats?

Ensure proper ventilation. Do not stack devices or cover vents. Operating temperature is 0°C to 40°C.

USER MANUAL MC230L TP-LINK

Gigabit SFP to SFP Fiber Converter

LED Explanation

PWR

On: Power on

Off: Power off

Link

On: Transmitting or receiving data

Off: No link

Package Contents: Converter, Power Adapter, Installation Guide

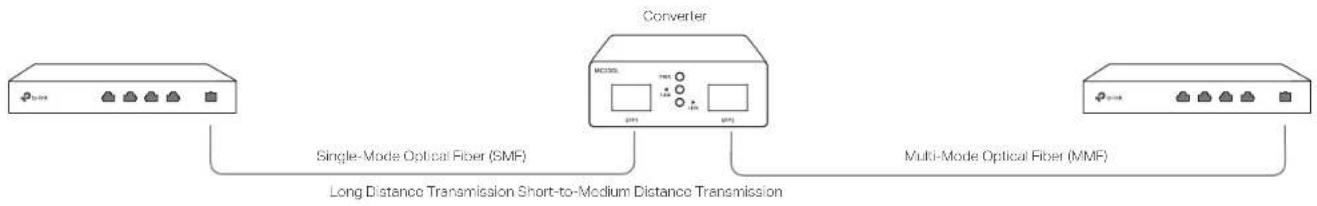

Scenario: Conversion between Different Fiber Types

Take the conversion from SMF to MMF as an example.

^* The conversion of fiber types is based on the type of connecting optical module.

Specifications

General Specifications

Standards	IEEE 802.3z
LED	PWR, Link
Connector	2 SFP
Power	External Power Adapter: 5 V/0.6 A
Dimensions	94.5x73x27 mm

Environmental and Physical Specifications

Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing

To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community.
For technical support and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.
If you have any suggestions or needs on the product guides, welcome to email [e-mail].

Safety Information

• Keep the device away from water, fire, humidity or hot environments.
  ■ Do not attest to disassemble repair or modify the device. If you need service please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other compensant those recommended.
• Adcor shall be installed near the opulment and shall be easily accessible.
• Do not point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can injure your eyesight
• Use only cover supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please cont hoshats to contact us
  • The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.
  Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own day.
