Product Type	Security Camera
Brand	CRUX
Model	CFD-05VY
Dimensions (approx.)	10 × 8 × 8 cm
Weight (approx.)	450 g
Power Supply	DC 12V, 1A
Power Consumption	≤ 12W
Video Output	CVBS (1.0Vp-p, 75Ω)
Resolution	720p (HD)
Night Vision	IR LEDs up to 20 m
Motion Detection	Yes, adjustable sensitivity
Viewing Angle	90° diagonal
Weatherproof Rating	IP66
Mounting Type	Wall or ceiling mount
Operating Temperature	-20°C to 50°C
Storage	NVR or DVR (not included)
Cleaning	Use soft dry cloth; avoid liquids
Safety	Do not open casing; indoor/outdoor use
Spare Parts	Contact CRUX support for replacements
General Info	User manual available for download in PDF

Frequently Asked Questions - CFD-05VY CRUX

How do I install the CRUX CFD-05VY security camera?

Mount the camera using the included bracket, connect the power adapter and video cable to a compatible DVR or NVR, adjust the angle, and lock the screws.

Does the CFD-05VY support wireless (WiFi) connection?

No, the CFD-05VY is a wired analog camera using CVBS video output. For wireless use, you would need a WiFi converter.

What is the night vision range?

The infrared LEDs provide night vision up to 20 meters in complete darkness.

What resolution does the camera record?

The camera outputs 720p HD resolution (1280×720 pixels) via analog CVBS signal.

Can I record video directly to an SD card?

No, the camera requires a DVR or NVR for recording. It does not have an SD card slot.

What power supply is needed?

The camera operates on DC 12V, 1A power. A compatible adapter is included.

Is the camera weatherproof for outdoor use?

Yes, with an IP66 rating, it is suitable for outdoor installation in rain or dust.

How do I mount the camera securely?

Use the provided wall mount bracket and screws. For brick or concrete, install anchor plugs first. Adjust the ball joint for desired angle.

What should I do if the camera has no video signal?

Check power, video cable connections, and ensure the DVR/NVR input is set to the correct channel. Try a different cable or port.

How to clean the camera lens?

Use a soft, dry cloth to gently wipe the lens. Do not use any liquids or abrasive cleaners.

USER MANUAL CFD-05VY CRUX

• Uses a 1/3" Sony CCD sensor.
• Replaces the factory third brake light to maintain the OEM look.
• LED brake light included.
• 6 Infra Red LEDs for night time use.
• With built-in microphone.
• Uses 4-pin aviation type water resistant connectors.

PARTS INCLUDED:

1. Third Brake Light camera
2. Extension cable
3. 4-pin aviation connector to RCA adapter
4. Male to Male RCA adapter

Red and black electronic device with attached cables and connectors (no visible text or symbols)

INSTALLATION INSTRUCTIONS:

1. Remove the factory third brake light.
2. Run the extension cable provided towards the radio.
3. Plug the 4-pin aviation connector of the extension cable to the camera cable.
4. Make the power and video connections at the radio or aftermarket monitor.
5. Tap the CFD-05VY brake light wires to the factory brake light wires.
6. Test the camera and third brake light prior to installing.

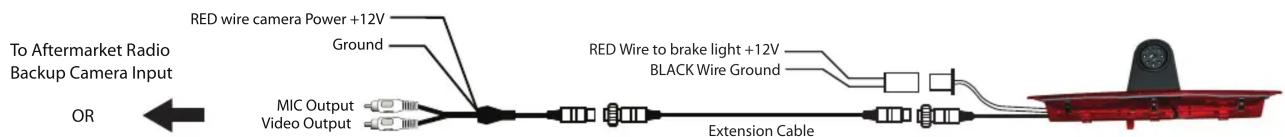


Reverse Camera Interface Backup Camera Input

SPECIFICATIONS:

Sensor: 1/3" SONY CCD sensor.

Pixels: 975H x 582V (NTSC)

Resolution: 600TVL (horizontal)

Viewing Angle: 150°

Illumination: .01Lux (18 IR LEDs)

Connection: G16 Aviation 4pin connectors

VEHICLE APPLICATIONS:

FORD

2014 - 2015 Transit Van

rev.082520
