EO 6784 BG - Oven LERAN - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	LERAN
Model	EO 6784 BG
Energy Source	Electric
Power Supply	220-240 V ~ 50 Hz
Power Consumption	Approx. 2.5 - 3.0 kW
Dimensions (Height x Width x Depth)	595 x 595 x 575 mm
Weight	Approx. 35 kg
Oven Capacity	65-70 Liters
Cooking Functions	Conventional, Fan-Assisted, Grill, Defrost, Pizza, Eco
Temperature Range	50°C - 250°C (Max)
Control Type	Touch + Rotary Knobs
Display	Digital LED Display with Timer
Interior Light	Yes
Cleaning Type	Enamel Interior with Easy-Clean Coating
Safety Features	Child Lock, Cool Touch Door, Automatic Shut-off
Accessories Included	1 x Wire Shelf, 1 x Baking Tray, 1 x Broiler Grid
Spare Parts Availability	Spare parts available for up to 10 years after purchase
Energy Efficiency Class	A+ (Estimated)

Frequently Asked Questions - EO 6784 BG LERAN

How do I install the oven?

The oven should be installed by a qualified technician. Ensure the power supply matches the rating (220-240 V, 50 Hz) and the cabinet has adequate ventilation. Refer to the installation manual for detailed steps.

How do I set the timer?

Press the timer button, then use the +/- buttons to set the desired time. The oven will automatically turn off once the time elapses. You can cancel the timer by pressing the timer button again.

What is the maximum temperature?

The maximum temperature is 250°C (482°F). Avoid exceeding this to prevent damage.

How do I clean the oven?

Wipe the interior with a damp cloth after each use. For stubborn stains, use a mild detergent and non-abrasive sponge. Avoid harsh chemicals. The enamel coating makes cleaning easier.

Can I use aluminum foil?

Yes, but avoid covering the entire shelf or touching the heating elements. Use foil only for lining trays or wrapping food, and keep it away from the oven's back wall.

Why is my oven not heating?

Check the power supply and circuit breaker. Ensure the oven is properly plugged in and the timer is set. If the problem persists, contact service.

How do I use the grill function?

Select the grill mode and preheat for 5 minutes. Place food on the broiler grid on the top shelf. Monitor cooking closely to prevent burning.

What is the child lock feature?

Press and hold the lock button for 3 seconds to activate. The oven controls will be disabled to prevent accidental operation. Repeat to unlock.

How do I replace the oven light?

Disconnect power. Remove the glass cover by turning counterclockwise. Replace with a compatible bulb (e.g., 40W, 300°C resistant). Reattach cover and restore power.

Where can I find spare parts?

Spare parts are available from authorized LERAN service centers or online retailers. Use the model number EO 6784 BG to order. Availability is guaranteed for up to 10 years.

USER MANUAL EO 6784 BG LERAN

Line drawing of a rectangular tray with horizontal lines and side supports (no text or symbols)

Решетка

Simple 3D illustration of a rectangular baking tray with cutouts (no text or symbols)

Line drawing of an oven with a rack and tray, showing internal structure (no text or symbols)

Diagram of a metal grid structure with a curved panel and a rectangular frame, no text or symbols present.

Diagram of a mechanical component with parallel grooves and a central mounting bracket (no text or symbols)

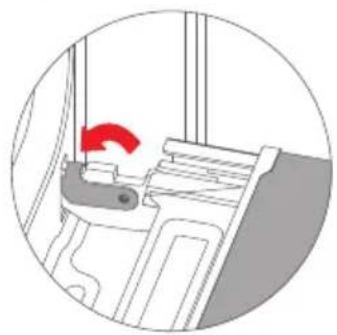

Функция блокировки

Diagram of a mechanical device with a red arrow indicating rotation, no text or symbols present

Diagram of a mechanical component with a red arrow indicating direction, no visible text or symbols

Diagram of an oven with a rack inside, showing a close-up of the interior and a magnified view of the interior (no text or symbols)

Diagram of an oven with internal cooling system and a magnified inset showing airflow direction (no text or symbols)

Pure mechanical assembly diagram showing a door with a knob and red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with a valve and a red arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a bracket with a red arrow indicating a downward motion (no text or symbols present)

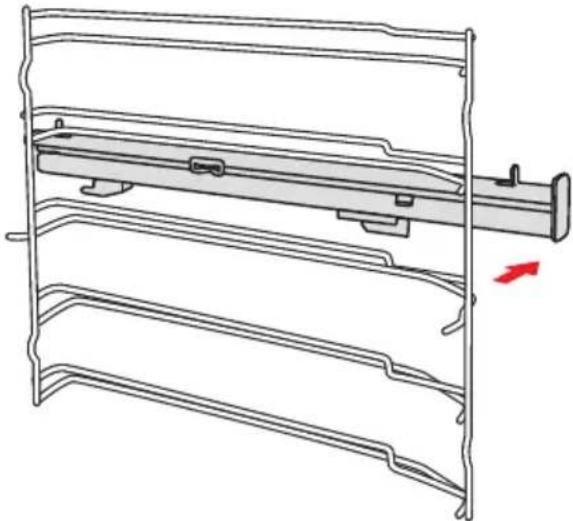

Уровни

Technical line drawing of a mechanical assembly with layered components and a red arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with layered structure and a red arrow indicating direction (no text or symbols)

2

Technical line drawing of a mechanical assembly with layered components and a red arrow indicating direction (no text or symbols)
