633569 - Electric planer SILVERLINE - Free user manual and instructions

Product Type	Electric Planer
Brand	Silverline
Model	633569
Power Input	600 W
Voltage	230 V ~ 50 Hz
No-Load Speed	16000 rpm
Planing Width	82 mm
Planing Depth	0 – 2 mm (adjustable)
Rebating Depth	0 – 10 mm (adjustable)
Weight	2.5 kg
Dimensions (L x W x H)	285 x 165 x 145 mm
Cable Length	2 m
Dust Bag Capacity	1 L
Blade Material	High-speed steel (HSS)
Blade Quantity	2 (reversible)
Safety Features	Double insulation, safety switch, blade guard
Accessories Included	Parallel guide, dust bag, blade wrench, spare carbon brushes
Maintenance	Replace carbon brushes when worn; sharpen or replace blades as needed
Repairability	Spare parts available: blades, carbon brushes, switches
Certification	CE, UKCA

Frequently Asked Questions - 633569 SILVERLINE

How do I replace the blades on the Silverline 633569 planer?

To replace blades, ensure the planer is unplugged. Use the included wrench to loosen the two screws on the blade drum. Slide out the old blades and insert new ones with the cutting edge facing the correct direction. Tighten screws securely. Always check blade alignment before use.

How do I adjust the planing depth?

Turn the depth adjustment knob located on the front of the planer. The scale indicates the cutting depth from 0 to 2 mm. Turn clockwise to increase depth, counterclockwise to decrease. Test on a scrap piece to confirm.

Can I use the planer for rebating?

Yes, the planer supports rebating up to 10 mm depth. Use the parallel guide included to maintain a straight edge. Adjust the rebating depth using the depth stop lever on the side of the planer.

What is the correct way to connect the dust bag?

Attach the dust bag to the exhaust port on the rear of the planer. Ensure it clicks into place. For best results, empty the bag when it is about half full to maintain suction. Alternatively, you can connect a vacuum hose.

Why is the planer not starting?

First, check the power cord and plug for damage. Ensure the switch is set to 'on'. If the planer still does not start, the carbon brushes may be worn. Access the brush holders on the motor housing and inspect. Replace if shorter than 5 mm.

How often should I replace the carbon brushes?

Carbon brushes should be inspected every 50 hours of use. Replace them when they are worn down to less than 5 mm. Always replace both brushes at the same time. Use only genuine Silverline brushes designed for model 633569.

Can I use the planer on hardwood?

Yes, the planer is suitable for both softwood and hardwood. However, for hardwoods like oak or maple, reduce the depth of cut to 0.5-1 mm and use a slower feed rate to avoid damaging the motor or blades.

What should I do if the planer vibrates excessively?

Excessive vibration usually indicates unbalanced or dull blades. First, check if the blades are properly seated and tightened. If blades are dull, replace or sharpen them evenly. Also ensure the workpiece is securely clamped.

Is the Silverline 633569 double insulated?

Yes, the planer is double insulated for safety. This means it does not require an earth wire. However, always use a residual current device (RCD) when operating outdoors.

Where can I buy spare parts for this planer?

Genuine Silverline spare parts are available through authorized dealers and online retailers. Common spare parts for model 633569 include blades (part number 633569-01), carbon brushes (633569-02), and the dust bag (633569-03). Always use original parts for safety.

USER MANUAL 633569 SILVERLINE

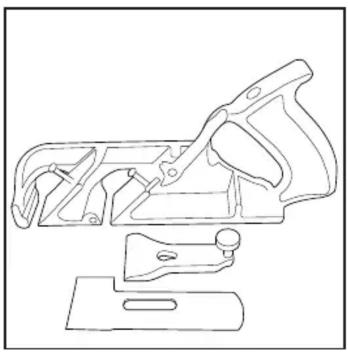

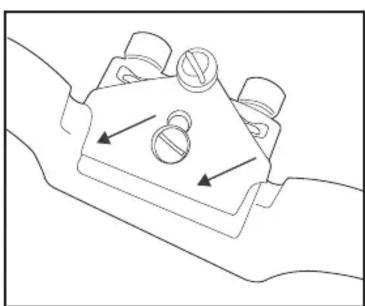

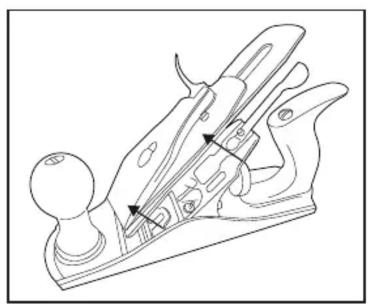

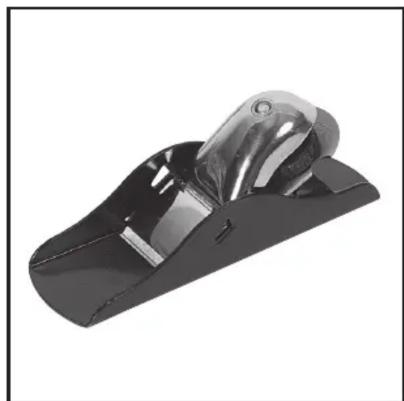

Planers: Owner Manual - Removing the blade

FR Rabots : Manuel d'instructions - Retrait des fers
DE Hobel: Bedienungsanleitung – Hobelmesser entfernen
ES Cepillos: Manual de instrucciones - Desmontaje de las cuchillas
IT Piallatrici: Manuale di istruzioni - Rimozione della lama
NL Schaven: Handleiding - Het mes verwijderen
PL Strugi: Instrukcja obsługi – Zdejmowanie noży

GUARANTEED FOREVER

GARANTIE À VIE UNBEGRENZTE GARANTIE GARANTÍA DE POR VIDA GARANZIA A VITA LEVENSLANGE GARANTIE GWARANCIA DOŻYWOTNIA

Register online: silverlinetools.com

Version date: 19.06.2024
