Product Type	Domestic fan
Model	15EGKA
Brand	KDK
Fan Diameter	40 cm (16 inches)
Overall Height	135 cm
Net Weight	5.2 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	50 W
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, 90° wide angle
Adjustable Tilt	Yes, up/down tilt adjustable
Timer	7.5 hours (built-in timer)
Control Type	Push buttons on base
Remote Control	Not included
Safety Features	Overheat protection, safety grille
Blade Material	Metal with powder coating
Stand Material	Steel tube with plastic base
Cleaning	Wipe with damp cloth, do not immerse
Spare Parts Availability	Yes, through authorized service centers
Warranty	1 year

Frequently Asked Questions - 15EGKA KDK

How do I clean the KDK 15EGKA fan?

Unplug the fan. Use a soft damp cloth to wipe the grille and blades. Do not use abrasive cleaners or immerse in water. For deeper cleaning, remove the front grille by unscrewing the knob and wash it separately.

Can the fan be used outdoors?

No, this fan is designed for indoor use only. Exposure to moisture or dust can damage the motor and pose safety risks.

How many speed settings does it have?

It offers three speed levels: Low, Medium, and High, controlled by push buttons on the base.

Does the fan have a timer?

Yes, it features a built-in timer that can be set up to 7.5 hours for automatic shut-off.

Is the fan noisy?

KDK fans are known for quiet operation. On low speed, the noise level is approximately 35 dB, similar to a whisper. Higher speeds produce more airflow but remain reasonable.

How do I assemble the fan?

Insert the stand tube into the base and tighten the locking ring. Attach the fan head to the tube, secure with screws. Then attach the front grille by aligning it and screwing the knob clockwise. Refer to the user manual for detailed steps.

Does the fan oscillate?

Yes, the oscillation function can be turned on or off via a dedicated button. It sweeps 90° to distribute air evenly.

What should I do if the fan stops working?

Check if the power cord is plugged in and the outlet is working. Ensure the timer is not set to off. If it still does not work, contact KDK customer service or an authorized repair center.

Can I adjust the height?

No, the height is fixed. However, the fan head can be tilted up or down to direct airflow.

Where can I buy spare parts?

Spare parts such as blades, grilles, and motors are available through KDK authorized service centers. Contact KDK support for a list of centers near you.

USER MANUAL 15EGKA KDK

Operating Instructions

3D technical illustration of a heat exchanger unit with ventilation grilles (no text or symbols)

Thank you very much for choosing KDK Ventilating Fan.

Please read these instructions carefully before attempting to install, operate or service the KDK Ventilating Fan. Failure to comply with instructions could result injury and/or property damage. In that case the product shall not warrant them. Please retain this booklet for future reference.

The following instructions should be strictly observed in order to prevent injury to the users and other people, or damage to property.

■ The degrees of injury or damage that can be occurred when the instructions are ignored and if the product is not used properly have been classified and described by the following indications.

This appliance is not intended for use by parsons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Do not disassemble the unit for reconstruction. It may cause fire or electric shock. Repairing should be serviced by authorized service center.

Make sure that its power switch is set to "OFF" before you touch this product. Otherwise, an electric shock may occur.

Do not spray or clean this product directly with water or other liquid: Otherwise, a short circuit or an electric shock may occur.

Do not switch this product on or off in case of gas leakage :

This product must be properly and reliably grounded.

Do not immerse blade or other resin parts in hot water over 60 C.

Do not allow water to contact electrical part such as motors or switches.

Use this product at the rated voltage and frequency indicated on the name plate.

When this product no longer be used. it must not be left in place but removed to prevent it from possibly dropping.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid a hazard.

Jika kabel listrik rusak, maka harus diganti oleh produsen. perusahaan jasa agen atau orang yang mempunyai keahlian sejenis agar terhindar dari bahaya Nếu dây nguồn bị hư hông, nó phải đượcthay thế bởi các d ịch vụ đại lý manufacturer.itshoặc người có 如果電源線損壞, 爲了避免危險, 必須由制造商或其維修部的專業人員進行更換。

This fan must be installed by qualified technician. Otherwise, it is possible to drop down.

When feeling cold by ventilation, turn off power switch. Jika udara terasa dingin, matikan unit tererbut.

Disconnect the power supply until blade is stationary before cleaning and maintenance.

Never use petrol, benzene, thinner or any other such chemicals for cleaning the ventilating fan.

Illustration of four plastic bottles and one black X symbol (no text or labels)

Caution

Perhatian

Thân trọng

注意

Do not allow water to contact electrical part such as motors.

Jangan langsung terkena / tersiram air, seperti motor

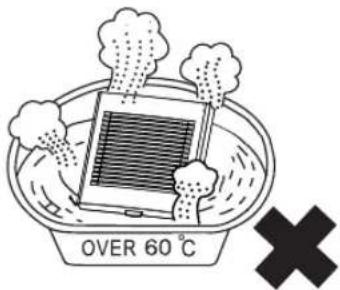

Do not immerse blade or other resin parts in hot water over 60°C.

Diagram of a device emitting exhaust heat from a hose, with no visible text or symbols

Do not take out the blade for cleaning.

Jangan langsung mengambil baling-baling

Wear plastic gloves during cleaning may avoid accidents.

Clean the louver surface with a soft dry cloth.

Clean the dirt from louver, fan body and blade as shown below.

① Remove the louver as shown in the figure.

② Rinse the louver with water, and then dry it with a soft dry cloth or leave it air dry.

Illustration of hands cleaning a tiled surface with a faucet (no text or symbols)

③ Wipe the dust off the fan body with a soft cloth.

Finally, replace the louver.

④ After cleaning, replace the louver as shown in the figure.

1) Hang the louver on the hook and projections.
2) The louver should be completely cover the fan body.

After finishing maintenance, turn on the power switch.

Insulation Class E IP code : IPX4 (Outside)

Instalasi kelas E Kode IP: IPX4(outside)

Type of Insulation : Functional Insulation

Jenis Indulasi : Fungsi Insulasi
