Brand	KDK
Model	35GSC
Product Type	Domestic Ceiling Fan
Blade Sweep (Diameter)	350 mm
Overall Dimensions (A x B x C)	467 x 434 x 250 mm
Motor Housing Diameter (H)	350 mm
Downrod Length (E)	236 mm
Mounting Hole Spacing (F)	12 mm diameter
Blade Material	Metal
Number of Blades	5 (typical)
Speed Settings	3 speeds
Control Type	Pull chain or wall switch (optional)
Reversible Motor	Yes (via wiring change for summer/winter operation)
Power Supply	220-240 V, 50/60 Hz
Power Consumption	55 W (typical)
Noise Level	< 40 dB (typical)
Weight	4.5 kg (estimated)
Installation Height	Minimum 2.3 m above floor (per Saudi standard)
Wiring	User-selectable direction by swapping yellow and red wires
Certifications	Complies with Saudi Arabian standards
Included Accessories	Blades, motor, downrod, mounting hardware
Warranty	2 years (typical)

Frequently Asked Questions - 35GSC KDK

What is the blade sweep of the KDK 35GSC ceiling fan?

The blade sweep (diameter) is 350 mm.

Can the fan be used in both summer and winter?

Yes, the motor is reversible. For summer, blades push air down. For winter, reverse the direction by swapping the yellow and red wires as shown in the manual.

What is the recommended installation height?

The blades must be at least 2.3 m above the floor, especially in Saudi Arabia, to comply with safety standards.

How do I change the fan direction?

Turn off power. Remove the wiring cover, swap the yellow and red wires according to the diagram, then reinstall the cover.

What tools are needed for installation?

You will need screwdrivers, a wrench for the hexagonal nut, and a ladder. Ensure the power is off before installation.

Is the fan suitable for outdoor use?

No, this is an indoor ceiling fan. It should not be exposed to moisture or extreme weather.

What is the power consumption of the 35GSC?

Typical power consumption is about 55 W at high speed, but exact values may vary.

How do I clean the fan?

Turn off the fan and let it stop. Wipe blades with a soft, dry cloth. Do not use water or abrasive cleaners.

What should I do if the fan wobbles?

Check that all blades are securely fastened and not bent. Ensure the mounting bracket is tight. If wobble persists, use a balancing kit.

Where can I find replacement parts?

Contact KDK authorized service centers or your dealer. Use only genuine KDK parts.

USER MANUAL 35GSC KDK

25GSC	50GSC
30GSC	60GSC
35GSC	45GTC
40GSC	50GTC
45GSC	60GTC

KDK Company, Division of PES

Head Office : 4017, Takaki-cho, Kasugai, Aichi, Japan

Printed in Japan

Impreso en el Japón

พิมพ์ที่อยู่ปน

proble في الابان

INSTALLATION CAUTIONS

PRECAUCIONES A TOMARSE AL HACER LA INSTALACION

In The Kingdom of Saudi Arabia, this Ian is to be installed so that the blades are more than 2.3m above the floor in compliance with Saudi Arabian standard.

[25GSC, 30GSC, 35GSC]

[40GSC, 45GSC, 50GSC, 60GSC 45GTC, 50GTC, 60GTC]

1	Frame	Armazón	د้าน reason	الإستعمال
2	Nut	Tuerca	###	###
3	Motor	Motor	###	###
4	Motor support	Soporte del motor	###	###
5	Blade	Cuchilla	###	###
6	Power cord	Cordón de la corriente	###	###
7	Fitting hole 8	Agujero de montaje 8	###	###
8	Fitting hole 4	Agujero de montaje 4	###	###

Model Modeloالنوبيل	A	B	C	D	E	F	G	H
25GSC	327	298	165	—	171	10 dia.	—	250 dia.
30GSC	378	349	210	—	200	10 dia.	—	300 dia.
35GSC	467	434	250	—	236	12 dia.	—	350 dia.
40GSC	518	485	280	460	274	12 dia.	12 dia.	400 dia.
45GSC	570	540	320	—	297	12 dia.	—	450 dia.
50GSC	659	620	355	560	315	15 dia.	15 dia.	500 dia.
60GSC	760	720	400	650	320	15 dia.	15 dia.	620 dia.
45GTC	570	540	320	—	297	12 dia.	—	450 dia.
50GTC	659	620	355	560	304	15 dia.	15 dia.	500 dia.
60GTC	760	720	400	650	320	15 dia.	15 dia.	620 dia.

During installation and carrying work, take special care not to deform the blade. If the blade is deformed, troubles such as unbalance or vibration may occur.

[25GSC, 30GSC, 35GSC]

1. Loosen the blade setscrew to remove the blade.

2. Afloje el tornillo de sujeción de cuchilla para remover la cuchilla.

3. ٤٠٣٥٢٣٥٣٣ وَمُدْرَهِبُّةٍ مُسْتَّاً بِمْنَّدَّةٍ

4. Remove the wiring cover setscrew and exchange the yellow and red wires according to the wiring diagram.

5. Remueva el tornillo de la cubierta de alambrado y efectue el intercambio de los alambres amarillo y rojo de acuerdo con el diagrama de alambrado. Después de esto, vuelva a instalar la cubierta de alambrado en la posición original.

6. กองทะบุตวะรุพของตลับสายไฟแล้วดับเปลี่ยนสายไฟสีเหลืองกับสีแดงตามภาพอธิบายการเดินสายไฟ

7. أَنْزَعِ بِرْغَي تُفْبِت غطاء أَسْلَكَ التوصیل وَبِدَلَ الْأَسْلَكَ الصفراء وَالخمراء قِبما بِنِها طِبقا لِل رسمَّ التخطيطي لُنوصیل الْأَسْلَكَ.

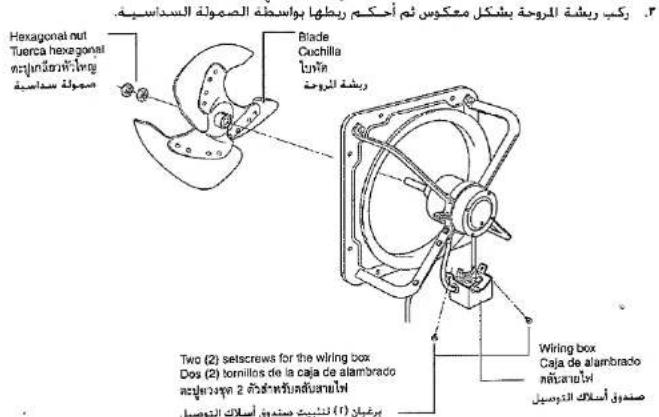

[40GSC, 45GSC, 50GSC, 60GSC]

1. Loosen the hexagonal nut to remove the blade. (For 40GSC. Loosen the blade setscrew)
2. Afloje la tuerca hexagonal para remover la cuchilla. (Para 40GSC, afloje el tornillo de sujeción de la cuchilla)
3. ไขตะบูเกลียวหัวใหญ่เพื่อถอดใบพัต (สำหรับ 40GSC ไขตะบูทางชุดของใบพัต)
   . . فك الصمولة السداسية و ذلك لنزع ريشة المروحة. (للموديل 40GSC، فلك برفي ثنيست الريشه).
4. Remove the two (2) wiring box setscrews and exchange the yellow and red wires according to the wiring diagram. After exchanging, re-install the wiring box in its original position.
5. Remueva los dos (2) tornillos de la caja de alambrado y cambie los alambres amarillo y rojo uno con el otro de acuerdo con el diagrama de alambrado. Después de esto, vuelva a instalar la caja de alambrado en la posición original.

6. ดอตะบุควชุด 2 ตัวของหลับสายไฟออก แล้วดับเปลี่ยนสายไฟสิเหลืองกับจีแดงตามภาพอธิบายการเดินสายไฟหลังจากสับเปลี่ยนแล้วอิตดลัยสายไฟเข้าไปในตําแหน่งเติม

7. أسرغ بргيئى (١) تثېيت صندوق أسلاك التوصیل نعم يدل الأسلام Pharmaceuticals و الحمراء فيه يبنهها و ذلك حسب مخطط åسلات التوصیل، يبعد ذلك، أحمد تركيب صندوق أسلاك التوصیل إلى مکانه الأصلی

8. Mount the blade in reverse position and tighten securely with the hexagonal nut.

9. Instale la cuchilla en la posición inversa y apriétela completamente con la tuerca hexagonal.
10. ยกใบพัตกลับตําแหนดและยืดไหผนตามวยตร์เกลี่ยวหัวใหญ่

[45GTC, 50GTC, 60GTC]

1. Reverse two of the three wires for the power supply.
2. Invierta dos de los tres alambres de la fuente de alimentación

3. ล้อสายไฟ 2 สายในรํานวน 3 สายเพื่อให้จ่ายกําลังไฟฟ้า

4. أعكس سلكين من الأسلامك الثالثة لترتيب الطاقة

If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
