| Product Type | Powered Subwoofer |
| Brand | Martin Logan |
| Model | Grotto i |
| Driver Size | 10-inch |
| Amplifier Power (RMS) | 300 Watts |
| Frequency Response | 25 Hz - 150 Hz |
| Impedance | 22 kOhm (Input) |
| Dimensions (H x W x D) | 14.6 x 12.6 x 15.7 inches (371 x 320 x 399 mm) |
| Weight | 38 lb (17.2 kg) |
| Enclosure Type | Sealed |
| Crossover Frequency | 40 - 120 Hz (adjustable) |
| Inputs | Line-level RCA (L/R), LFE input |
| Outputs | Line-level RCA (L/R) pass-through |
| Power Supply | AC 110-240V, 50/60Hz (auto-switching) |
| Standby Power Consumption | < 1 Watt |
| Protection Features | Overload, thermal, and short-circuit protection |
| Cabinet Finish | High-gloss black lacquer |
| Included Accessories | AC power cord, user manual |
| Maintenance | Wipe with dry cloth; do not use solvents; clean grille with vacuum |
| Safety | Do not expose to moisture or place near heat sources; ensure proper ventilation |
| Spare Parts / Repairability | Contact Martin Logan authorized service centers |
Frequently Asked Questions - Grotto i Martin Logan

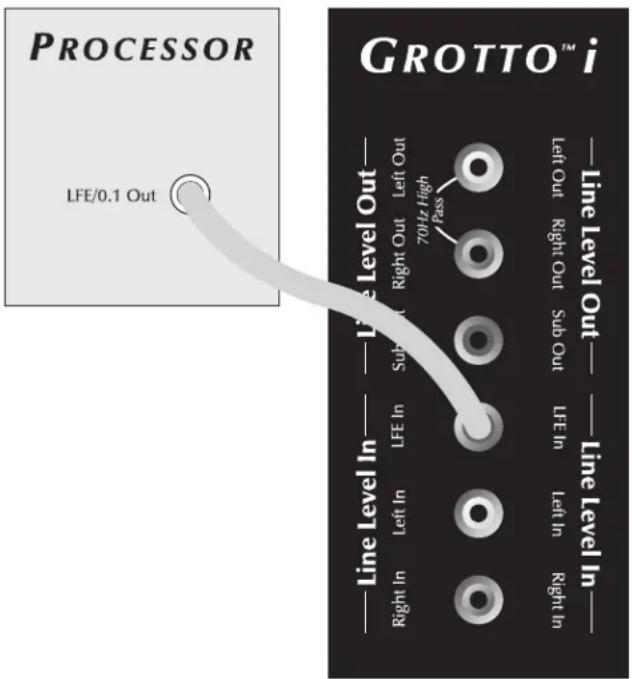

How do I connect the Grotto i to my AV receiver?
Use an RCA cable from the subwoofer output on your receiver to the LFE or LINE IN on the subwoofer. For stereo use, connect to both L and R inputs.

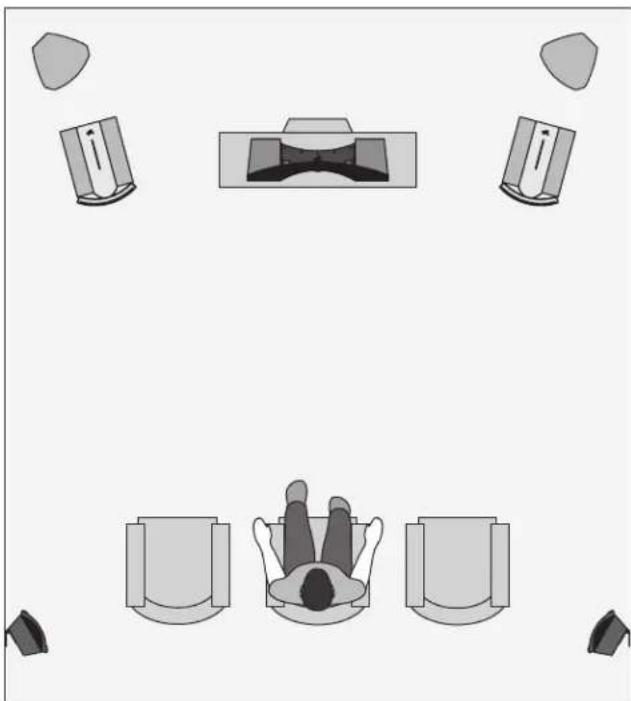

What is the best placement for the subwoofer?
Place it in a corner or along a wall for maximum bass reinforcement. Avoid placing it in the center of the room. Experiment with position to minimize standing waves.

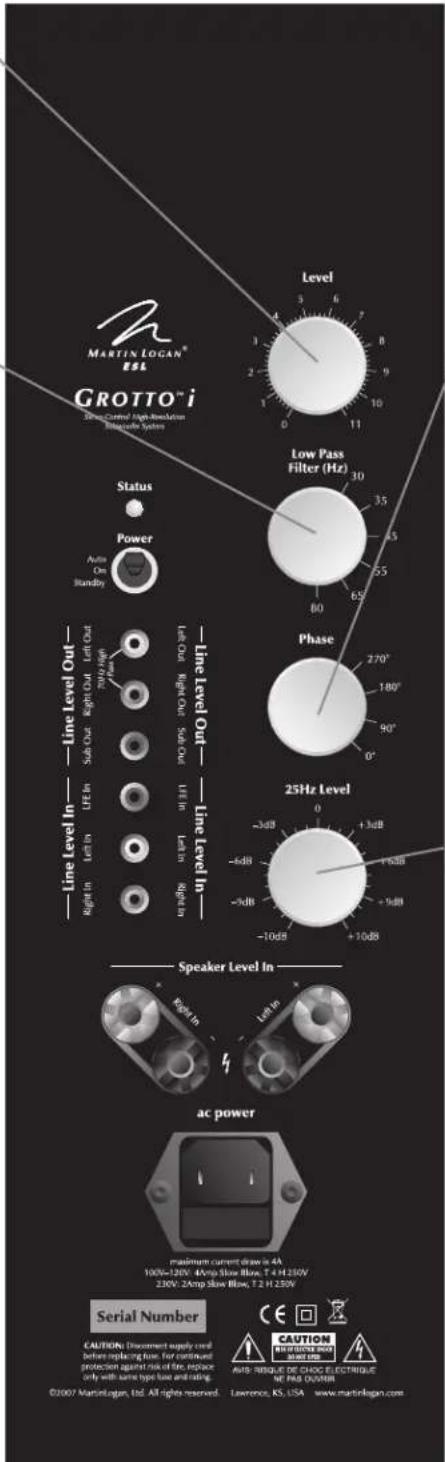

How do I set the crossover frequency?
Set the crossover knob to match your main speakers' low-frequency limit, typically around 80 Hz. Adjust to blend seamlessly; higher for smaller speakers, lower for larger ones.
Why is there no sound coming from the subwoofer?
Check that the subwoofer is powered on (LED indicator), the volume is turned up, and the receiver’s subwoofer output is enabled. Verify the RCA cable connection and try a different source.
How do I clean the subwoofer?
Use a dry, soft cloth to wipe the cabinet. Vacuum the grille gently with a brush attachment. Do not use any liquids or abrasive cleaners.
What does the LED indicator mean?
Green means powered on and receiving signal. Red or off indicates standby or no signal. Flashing may indicate a fault; consult the manual.

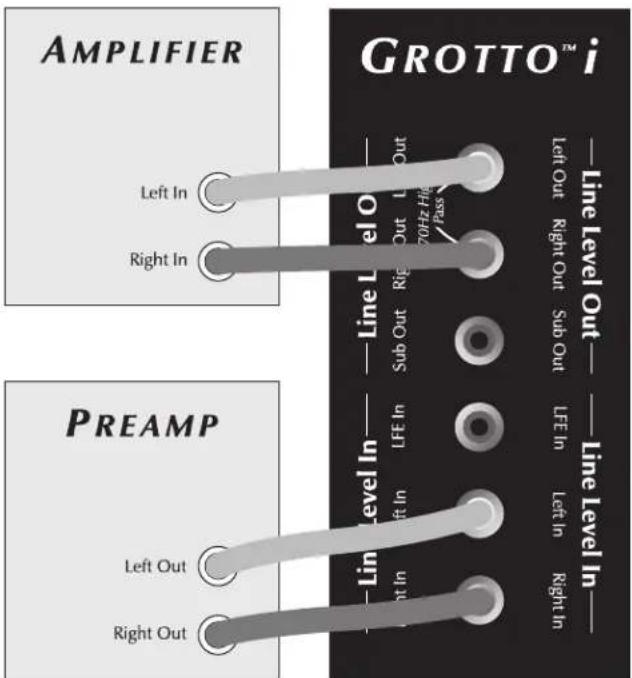

Can I use the Grotto i with a 2-channel stereo system?
Yes, connect your amplifier's speaker outputs to the subwoofer's high-level inputs (if available) or use the line-level inputs from a preamp with subwoofer output.
Does the subwoofer have auto-on/off?
Yes, the Grotto i features auto-on when it detects an audio signal and auto-standby after a period of no signal to save power.
What is the power consumption in standby?
Less than 1 watt, making it energy-efficient.
How do I troubleshoot a humming noise?
Ensure the subwoofer is plugged into the same power circuit as the receiver. Use a grounded outlet and avoid running audio cables parallel to power cords. Try a ground loop isolator.
