PRE-101 - DJ Equipment DAP-Audio - Free user manual and instructions

Product Type	Phono RIAA Equalized Pre-Amp
Model	PRE-101 (Ordercode D1530)
Brand	DAP-Audio
Housing Material	Solid metal
Dimensions (HxWxD)	40 x 113 x 80 mm
Weight	0.35 kg
Power Supply	18V AC (adapter included)
Frequency Response	20 Hz - 20 kHz (RIAA equalized)
Inputs	Phono RCA unbalanced (stereo pair)
Outputs	RCA unbalanced (stereo pair)
Input Sensitivity	3 mV for 1000 mV output
Input Impedance	47 kOhm
Nominal Output Voltage	0 dBV
Max Output Voltage	+16 dBu
Output Impedance	100 - 600 Ohms
Grounding	GND screw for turntable ground wire
Equalization	RIAA standard
Power Switch	On/off switch on front panel
Maintenance	Clean exterior with a dry, lint-free cloth. Keep away from moisture and heat.
Safety	Do not open device. No user-serviceable parts inside. Use only supplied adapter.
Spare Parts & Repairability	No spare parts available. Contact dealer for repair.
General Information	Designed to amplify low-level phono signals from magnetic turntables to line level for mixers or sound cards.

Frequently Asked Questions - PRE-101 DAP-Audio

What is the PRE-101 used for?

The PRE-101 is a phono preamp with RIAA equalization. It amplifies the low-level signal from a magnetic turntable to line level, suitable for connecting to mixers, amplifiers, or USB sound cards.

How do I connect the turntable to the PRE-101?

Connect your turntable's RCA cables to the Phono RCA unbalanced input connectors (labeled PHONO). If your turntable has a ground wire, attach it to the GND screw to reduce hum.

Does the PRE-101 include a power adapter?

Yes, the PRE-101 comes with a 18V AC adapter (DAP audio adapter). Only use the supplied adapter to avoid damage.

What is RIAA equalization?

RIAA equalization is a standard frequency response curve applied to vinyl records during mastering. The PRE-101 applies the inverse RIAA curve to restore the original frequency balance, essential for accurate playback.

Can I use the PRE-101 with a modern turntable?

Yes, if your turntable has a magnetic cartridge and no built-in preamp, the PRE-101 is perfect. For turntables with a built-in preamp, you can bypass it or use the 'phono' output if available.

What are the output voltage specifications?

The nominal output voltage is 0 dBV and the maximum output voltage is +16 dBu. This ensures compatibility with most line-level inputs.

How do I power the PRE-101?

Connect the supplied 18V AC adapter to the Power adapter connector (labeled DC IN) and plug it into a mains outlet. Then use the Power on/off switch to turn it on.

What are the dimensions and weight?

The PRE-101 measures 40 x 113 x 80 mm (HxWxD) and weighs 0.35 kg, making it compact and easy to place near your turntable or mixer.

Can I use the PRE-101 with a ceramic cartridge?

No, the PRE-101 is designed for magnetic cartridges (moving magnet) only. Ceramic cartridges have a different output level and impedance, and would not work properly.

What maintenance does the PRE-101 require?

Keep the device clean and dry. Wipe the exterior with a dry, lint-free cloth. Avoid exposing it to moisture or extreme temperatures. No internal maintenance is needed.

USER MANUAL PRE-101 DAP-Audio

ENGLISH

PRE-101

Ordercode: D1530

Phono RIAA equalized pre-amp

Warning

CAUTION! Keep this device away from rain and moisture!

Every person involved with the installation, operation and maintenance of this system has to:

• be qualified
  • follow the instructions of this manual

Only use the supplied DAP audio adapter.

Description

The PRE-101 is a phono preamp with RIAA equalization. The tiny signal of a magnetic turntable is amplified to fit the line-level inputs of mixers or USB sound-cards.

• Solid housing
• RIAA Equalization
  • High quality components

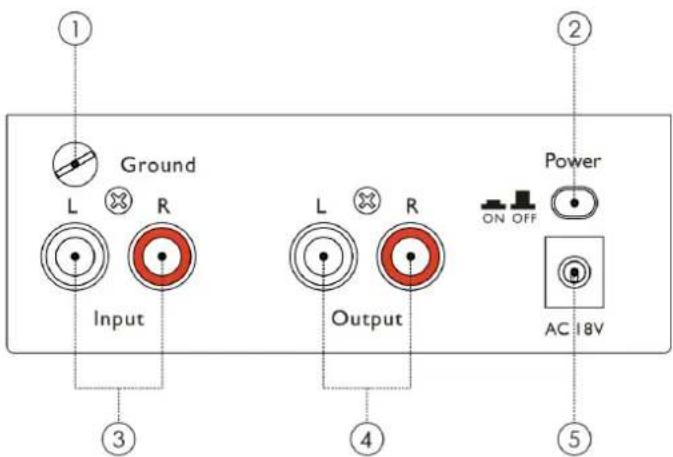

Overview

① GND screw
② Power on/off switch
③ Phono RCA unbalanced input connectors
④ RCA unbalanced output connector
⑤ Power adapter connector

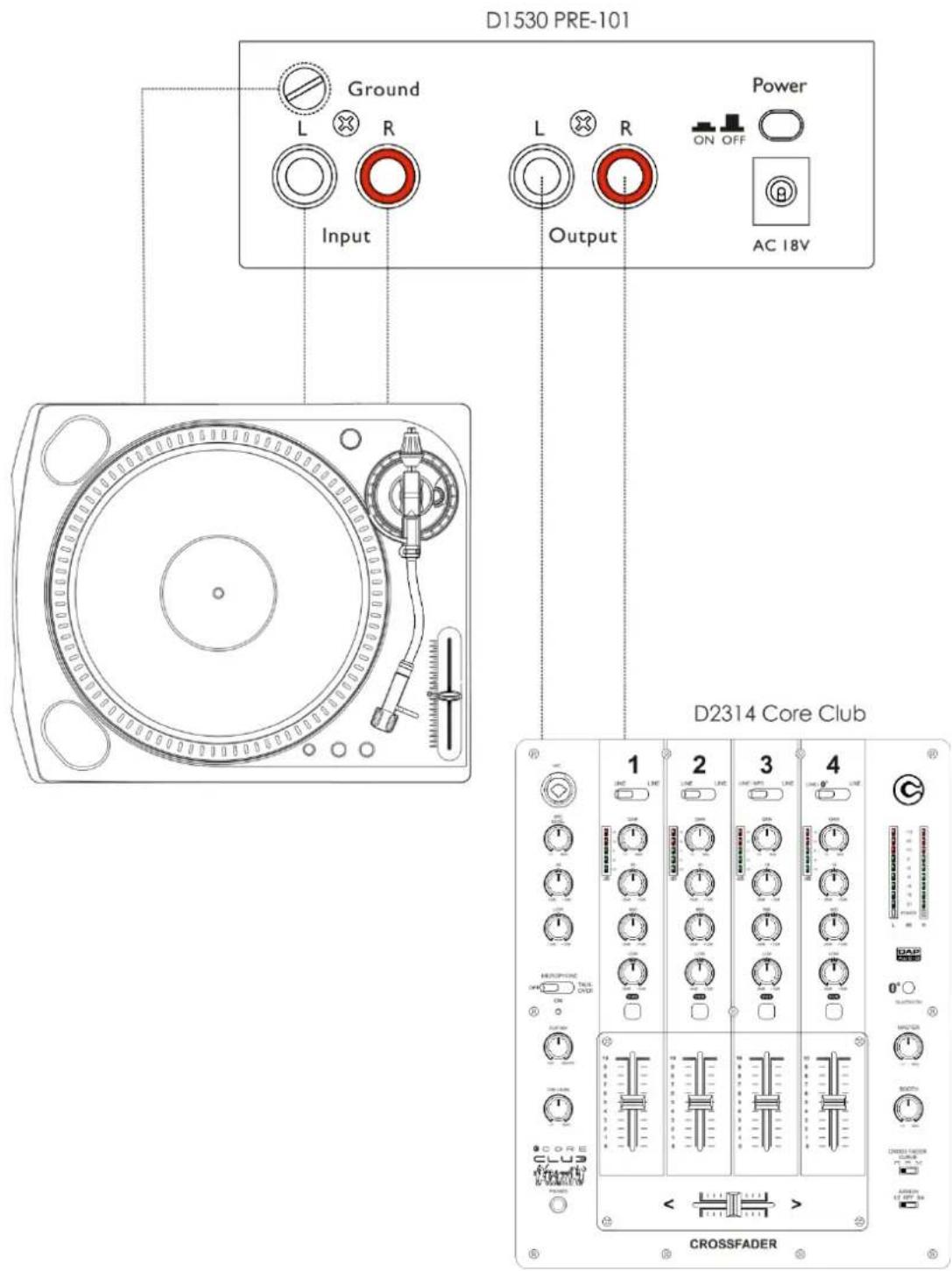

Connection Example

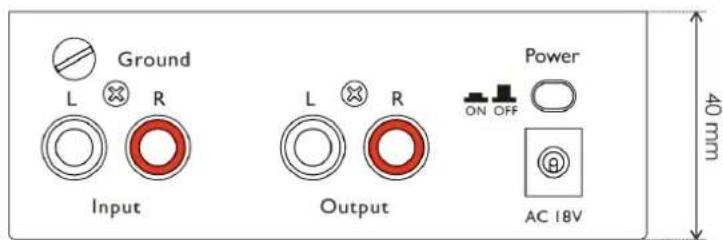

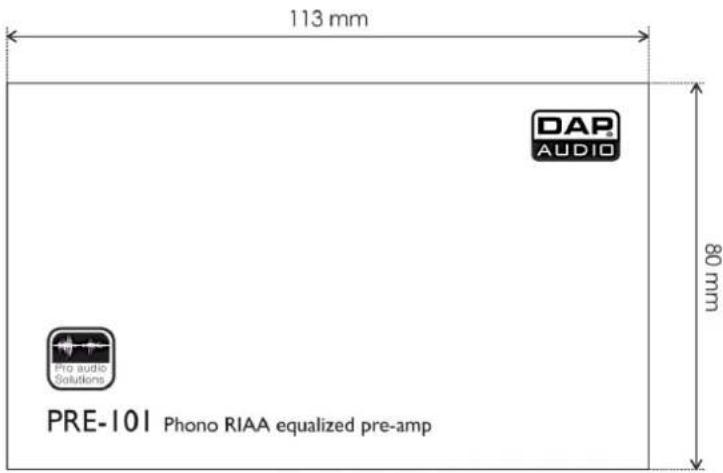

Dimensions

Specifications

Frequency Response:	20Hz-20KHz RIAA
Inputs:	RCA
Outputs:	RCA
Input sensitivity:	3mV for 1000 mV output
Input Impedance:	47 kOhm
Nominal Output Voltage:	0 dBV
Max Output voltage:	+16 dBu
Output impedance:	100-600 Ohms
Power supply:	18V AC (adapter included)
Dimensions:	40x113x80 mm (HxWxD)
Weight:	0,35 Kg
