C2101BG - Oven Caple - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Caple
Model	C2101BG
Dimensions (H x W x D)	595 x 595 x 550 mm
Oven Capacity	70 L
Weight	35 kg
Power Supply	220-240 V / 50 Hz
Total Power Consumption	3.0 kW
Energy Efficiency Class	A
Oven Functions	Conventional, Fan Forced, Grill, Defrost, Light
Temperature Range	50°C - 250°C
Control Type	Knob and Push Button
Display	LED Timer with Clock
Interior Light	Yes
Cleaning	Enamel Interior, Easy Clean
Door Type	Drop-down with Cool Touch
Number of Shelves	2 Wire Shelves included
Safety Features	Child Lock, Auto Shut-off
Spare Parts Availability	Yes, through Caple service centers
Warranty	2 Years Parts and Labor

Frequently Asked Questions - C2101BG Caple

How do I install the Caple C2101BG oven?

Ensure the oven is installed by a qualified electrician. The oven must be connected to a suitable power supply (220-240 V) and placed into a built-in cabinet with proper ventilation. Refer to the installation diagram in the manual for exact measurements.

How do I set the timer?

Turn the timer knob clockwise to set the desired cooking time. The oven will switch off automatically when the timer reaches zero. Use the minute minder function for short intervals.

How do I clean the oven?

Wait for the oven to cool completely. Remove shelves and wipe interior with a damp cloth and mild detergent. Avoid abrasive cleaners. The enamel interior can be cleaned with a soft sponge. Do not use steam cleaners.

How do I change the oven light bulb?

Disconnect the oven from power. Unscrew the glass cover, remove the old bulb (typically 25W, 300°C resistant) and replace with a new one. Screw the cover back on and reconnect power.

How do I remove the oven door for cleaning?

Open the door fully, lift the locking levers at the hinges, then gently close the door until it stops. Lift the door off the hinges. To reattach, reverse the process.

What should I do if the oven is not heating?

Check the power supply and if the timer is set correctly. Verify that the oven is not in demo mode. If the problem persists, contact Caple support. Do not attempt internal repairs.

How can I save energy while using the oven?

Preheat only when necessary, use the fan-assisted function for even cooking at lower temperatures, and avoid opening the door frequently. Use residual heat to finish cooking.

Is it safe to use aluminum foil in the oven?

Yes, but do not cover the oven floor or allow foil to touch the heating elements. Use foil only on shelves or dishes to catch drips.

What is the first use procedure?

Remove all packaging, wipe interior with a damp cloth, and heat the empty oven at 250°C for 30 minutes to burn off any manufacturing residues. Ensure good ventilation.

Where can I find spare parts?

Spare parts such as shelves, bulbs, and door seals can be ordered from Caple authorized service centers. Refer to the manual or contact Caple customer support.

USER MANUAL C2101BG Caple

Sense Single Oven Instruction Manual

C2101BG

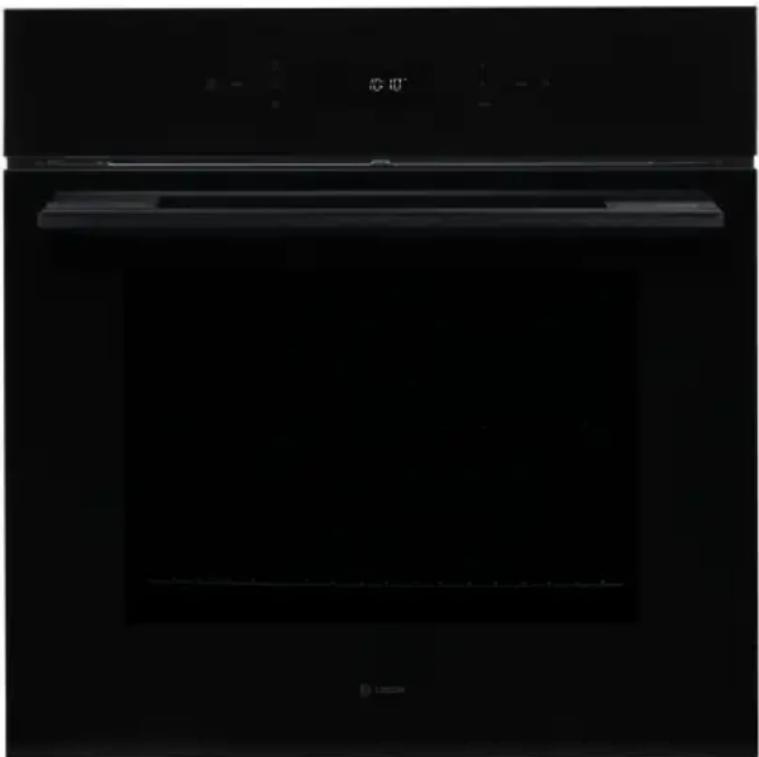

Interior view of a modern kitchen oven with digital display and blackboard (no visible text or symbols)

CONTENTS

Safety	Warnings						3
Installation	Warnings					6
Environmental	Protection					9
Warranty					10
Installation				11
Oven	Dimensions					12
Electrical	Connection				13
Control	Panel and Display
Operation				15
Sound					17
Demo	Mode				19

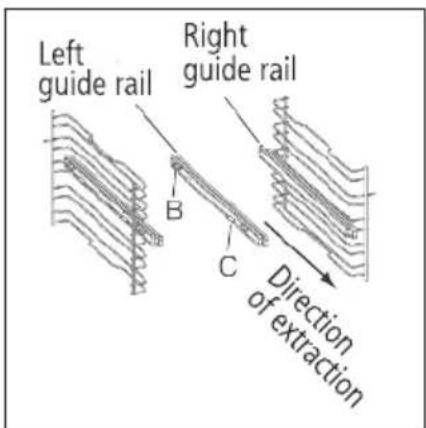

Telescopic	Runners					20
Care and Maintenance						21
Replacing	the	Oven	Lamps
Troubleshooting					23

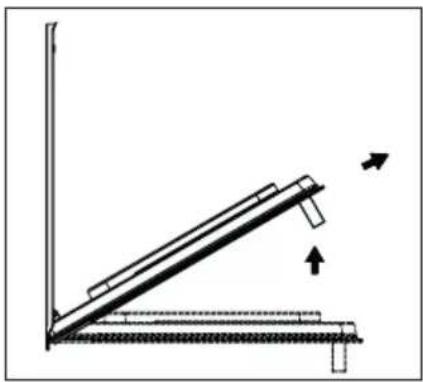

Removing	the	Oven	Door

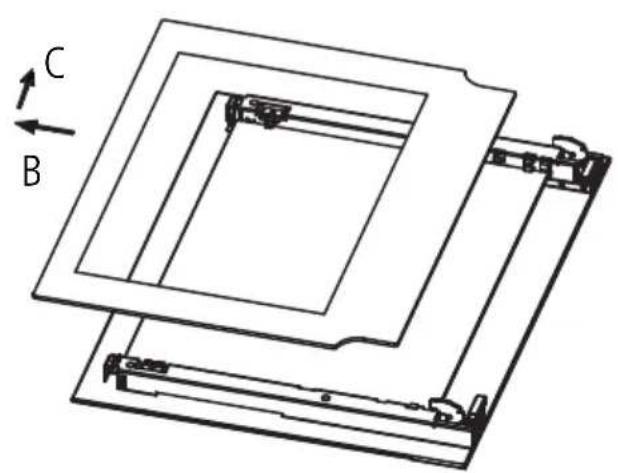

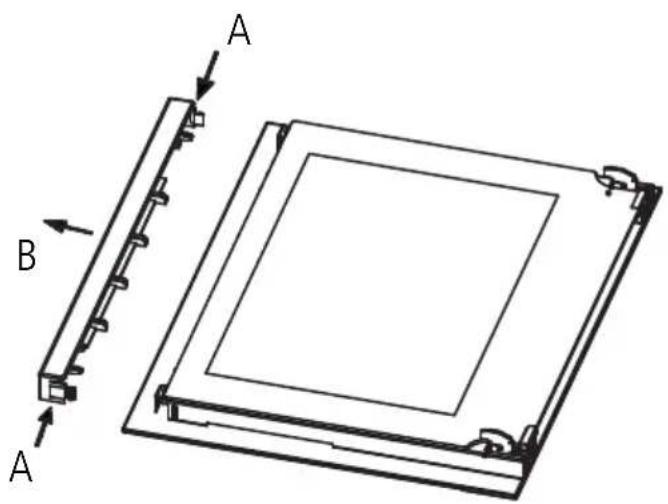

Removing	the	Glass	Panels				2
Caple	Contact	Details				28

SAFETY INSTRUCTIONS

Read these instructions carefully and completely before using your appliance, keep it in a convenient place for reference when necessary.

• This appliance can be used by children aged from 8 years and above.
• Persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge must be supervised and given appropriate instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance should not be carried out by children without supervision.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.

WARNING:

• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
• Children less than 8 years of age should be kept away unless continuously supervised.

- To prevent fire hazards do not store items on the cooking surfaces.

- During use, handles can get hot.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass or any other surface of the appliance as it can scratch the surface which may result in the glass shattering or permanent damage to the surface.

• Do not use steam cleaners for cleaning the appliance.
• Ensure the appliance is switched off before replacing the lamp to avoid the possibility of electric shock

CAUTION:

• Accessible parts may be hot when the cooking or grilling is in use. Young children should be kept away.
• Your appliance is produced in accordance with all applicable local and international standards and regulations.

- Maintenance and repair work must be made only by authorised Caple service technicians. Installation

and repair work that is carried out by unauthorised technicians may endanger you.

- It is dangerous to alter or modify the specifications of the appliance in any way.

- Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the requirements of the appliance are compatible. The requirements for this appliance are stated on the rating label.

- This appliance is designed only for cooking food and is intended for indoor use.

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments.

- Farm Houses.

- By clients in hotels, motels and other residential type environments.

- Bed and breakfast type environments.

- Do not try to lift or move the appliance by pulling the door handle.

- All possible security measures have been taken to ensure your safety. Since the glass may break, you should be careful while cleaning to avoid scratching.

• Avoid hitting or knocking on the glass with accessories.
• Ensure that the supply cord is not wedged or trapped during the installation. If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard.
• While the oven door is open, do not let children climb on the door or sit on it.

INSTALLATION WARNINGS

- Do not operate the appliance before it is fully installed.

- The appliance must be installed by an authorised technician.

- Caple is not responsible for any damage that may be caused by defective placement and installation by unauthorised persons.

- When unpacking the appliance, make sure that it is not damaged during transportation. In the case of any defect; do not use the appliance and contact your retailer or Caple Service immediately.

- Materials used for packaging (nylon, staplers, styrofoam etc) may cause harmful effects to children they should be disposed of immediately.

- Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow etc.

- The surrounding materials of the appliance (i.e. kitchen cabinet or furniture) must be able to withstand a minimum temperature of 120^ C.

DURING USAGE

• Before using the oven for the first time, heat the empty oven at max. temperature for 1 hour – removing any unpleasant smells and smoke caused by working residues and thermal insulation. Make sure you do this in a well ventilated area.
• During usage, the outer and inner surfaces of the oven get hot. While opening the oven door, step back to avoid the hot steam coming out of the oven as there may be a risk of burns.
• Do not put flammable or combustible materials in or near the appliance when it is operating.
• Always use oven gloves to remove and replace food in the oven.
• Pay close attention to the oven while cooking with solid or liquid oils as they could potentially catch fire when oven is hot.
• Never pour water on flames that are caused by oil. Cover the saucepan or frying pan with its lid in order to choke the flame and turn the oven off.
• If you know you will not be using the appliance for a while switch it off from the mains supply.
• The oven shelves and trays incline when pulled out. Be careful not to let hot liquid spill over.

- When the door of the oven is open, do not leave anything on it. It may unbalance your appliance or damage the door.

- Do not put anything heavy, flammable or ignitable (nylon, plastic bag, paper or cloth etc) into the oven. This includes cookware with plastic accessories (e.g. handles).

Do not hang towels, dishcloths or clothes from the appliance or its handles.

- Do not use the oven for storage purposes.

- Do not touch the appliance with wet hands.

- Do not obstruct the ventilation openings.

- Do not allow supply cords from other small appliances to come into contact with the oven.

DURING CLEANING AND MAINTENANCE

- Always switch off the appliance from the mains isolating the electrical supply before any cleaning or maintenance.

- To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call only our authorised Caple Service agents in case of need.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European Directive on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product.

CE DECLARATIONS OF CONFORMITY CE

This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA DECLARATIONS OF CONFORMITY UK CA

This appliance has been manufactured to the strictest standards and complies with all applicable legislation.

TECHNICAL FICHE

This appliance conforms to all current and applicable energy regulations. To view the Technical Fiche that supports the energy labelling data, please visit the product page on our website www.caple.co.uk.

WARRANTY:

Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you must provide the following information to your retailer in order to receive a replacement: date of purchase, model and serial number (placed on the inside of the appliance storage drawer).

Registration can also be completed online by visiting www.caple.co.uk.

Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase.

If you fail to show your warranty card you will incur all repair charges.

Spare parts are only available from Caple Service and spare parts authorised centres.

ATTENTION

Before use, remove all plastic films protecting some parts of the appliance (fascia - panel, parts in stainless steel, etc).

Do not use the appliance to heat a room.

When the appliance is not in use, we recommend you turn it off, and isolate it from the electrical supply.

IMPORTANT:

Isolate your oven from the electrical supply before performing installation or maintenance.

Installation should be carried out according to the instructions by a professionally qualified person only.

The manufacturer declines all responsibility for any damage to persons, animals or materials due to incorrect installation.

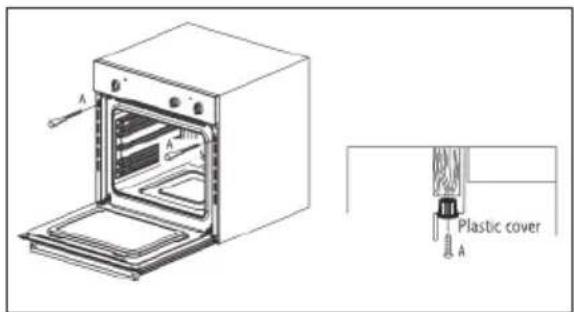

FITTING THE APPLIANCE

Fit the appliance into its surround (beneath a worktop or above another appliance in a tall housing) by inserting screws and plastic covers into the 2 holes (A - fig.3) that can be seen in the frame of the oven when the door is open.

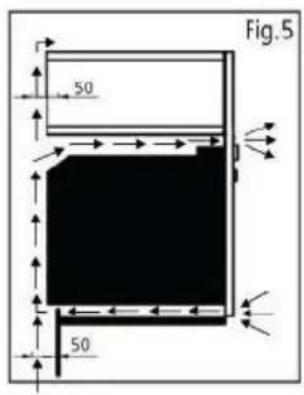

For the most efficient air circulation, the oven should be fitted according to the dimensions shown in fig. 1 & 2.

Fig. 3

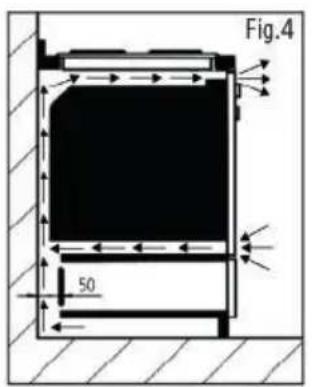

The rear panel of the cabinet must be removed so that air can circulate freely. The panel to which the oven is fitted should have a gap of at least 50mm at the rear for ventilation (fig.4 & fig.5).

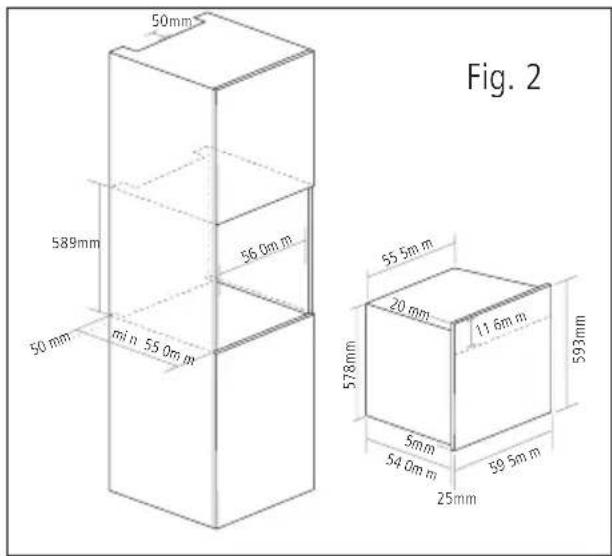

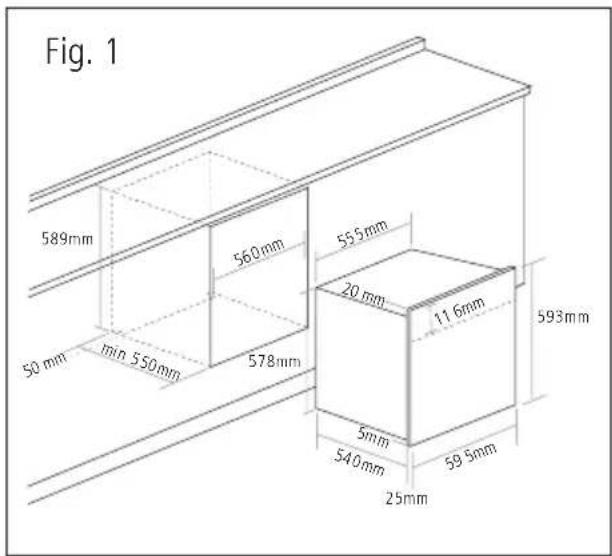

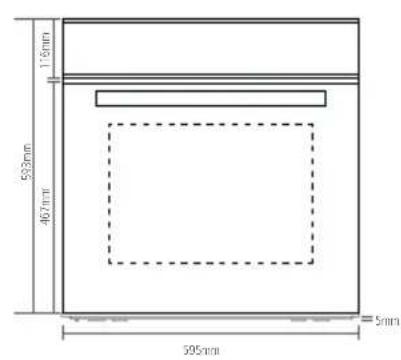

See below for full dimensional drawings of your oven to help with installation.

For a built-in oven to work well the cabinet must be of the right type.

The panels of the adjoining furniture should be heat resistant. Particularly when the adjoining furniture is made of veneered wood, the adhesives should be able to withstand a temperature of 120^ . Plastic materials or adhesive which cannot withstand this temperature may become deformed or unstuck.

To comply with safety regulations, once the appliance has been fitted it should not be possible to make contact with the electrical parts.

All parts which offer protection should be fixed in such a way that they cannot be removed without the use of a tool.

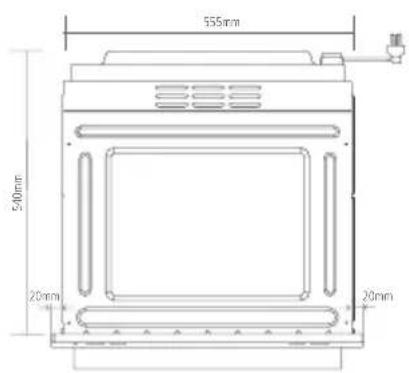

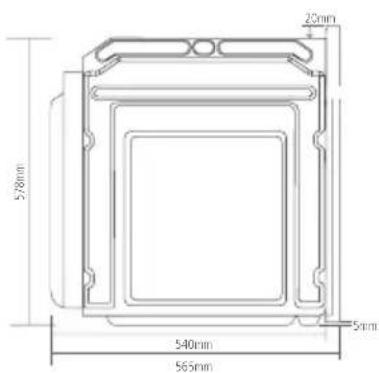

OVEN DIMENSIONS

WARNING: THIS APPLIANCE MUST BE EARTHED

Check that the power rating of the mains supply is suitable for the maximum power of the appliance as indicated on the rating label.

The fuse rating for this appliance is 16amp.

The appliance is supplied with a mains lead it should be "Hard wired" as follows:

The “yellow/green” earth wire, which must be connected to a terminal, and has to be about 10mm longer than the other wire.

The neutral wire has to be connected to the terminal marked with a letter N.

The Live wire should only be connected to the terminal marked L.

Mains connection can also be made by fitting a double pole switch with a minimum gap between the contacts of 3mm, proportionate to the load and complying with the regulations in force.

THE YELLOW/GREEN EARTH WIRE SHOULD NOT BE CONTROLLED BY THE SWITCH.

When a double pole switch is used for mains supply connection it should be easily accessed, once the appliance is in position.

IMPORTANT:

The mains supply cable should be positioned so that it is never subjected to temperatures which are more than 50^ C above ambient temperature.

The electrical safety of the appliance can only be guaranteed when it has been correctly connected to a properly earthed mains electrical supply, as laid down in the current regulations for electrical safety.

The manufacturer cannot be held responsible for any damage to persons or objects due to lack of an earth connection.

The ovens are designed to operate with a mono-phase alternating current of 220-240V, 50Hz.

BEFORE THE INSTALLATION OF THE APPLIANCE, CHECK THE SPECIFICATIONS ON THE RATING LABEL.

CONTROL PANEL AND DISPLAY

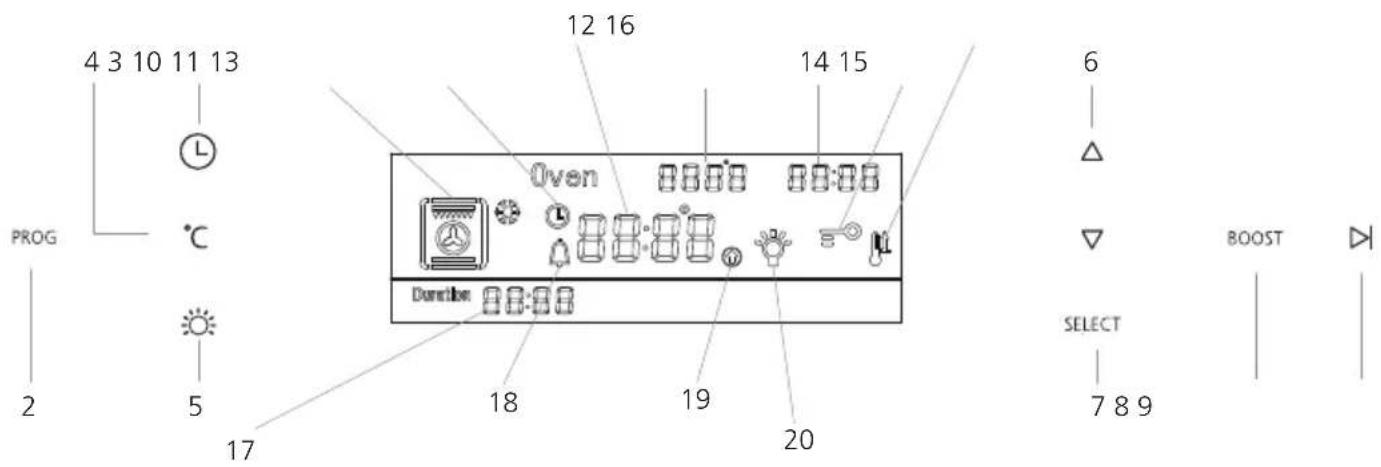

BUTTON DESCRIPTION

1. Power
2. Function / programme
3. Programme 11. Timer
4. Timer 12. Actual Temperature/Time
5. Temperature 13. Set Temperature
6. Light 14. Current Time
7. Up / Down (+/-) 15. Safety Lock
8. Select 16. Boost
9. Boost 17. Cooking Duration Time
10. Start / Pause 18. Alarm

ACCESSORIES

2 x Chrome oven shelves

1 x Grill pan with rack and handle

2 x Telescopic runners (x2 pairs)

To purchase additional or replacement accessories, please visit www.caple.co.uk

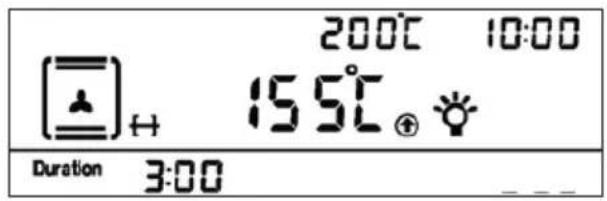

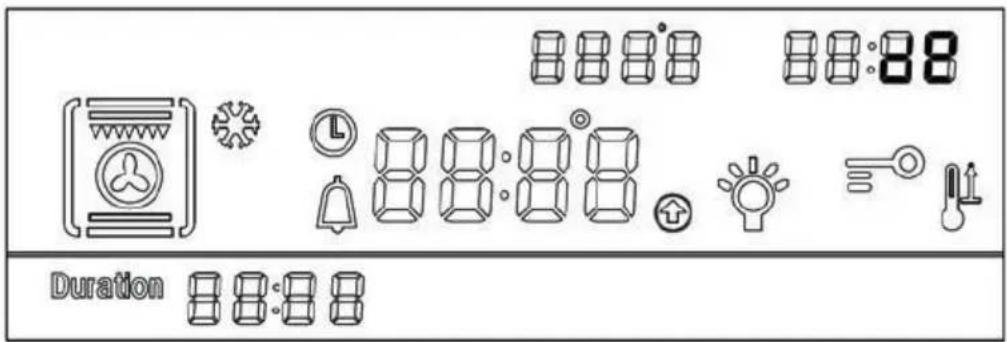

DISPLAY DESCRIPTION

1. Heating Indicator

2. Light

3. Powerbutton ⏻ To turn on/off the display panel. When turned on, the time of day will be shown.

4. Programme button PROG. Press to shift between functions. When you shift to a new function, the current function will stop and the cooking time must be reset. The Function list is as per the below order:

1. Start/Pause button ▶ Once the required function has been selected, press ▶ to start cooking. Once cooking has started the display will show the current oven temperature. For example;

When the oven is paused, the display will show the current time. For example;

4. Timerbutton

Setting the time - Press for 3sec to set current time. Adjust time by pressing + / -. Press select to confirm setting.

Setting timer - Press Ⓛ to bring up Duration. The display will flash "0:00". Adjust time by pressing + / - and then press Select to set the duration. Once the time is up, an alarm will sound and the oven will switch off. Press any button to cancel the alarm. If you wish to cancel the alarm before it sounds, set time back to "0:00" to cancel.

1. Safety Lock ☐ Pressing Select for 5 seconds to enter or cancel the safety lock function.
2. Temperature Setting. Once the function is selected, press °C to set the temperature. Adjust temperature by pressing + / - and press Select to confirm. Press the ▶ button to start cooking.
3. Boost function BOOST If temperature is set to more than 100^ C, you can press this key to heat up oven faster. Once activated the display will show ⚠ ^↑ . The Boost function will stop when the oven gets to the required temperature.
4. Lightfunction 🙏️ Press the light button to turn the internal oven light on/off. The light will automatically turn off if no operation in 3 minutes.
5. Setting the alarm/minute minder By pressing the ⏻ button twice, this takes you to the minute minder function and the ⏱ will appear. Press the + / - button to select the time and press Select to confirm. Once the time runs out an alarm will sound, press any button to turn the alarm off. The oven will continue to run.

SOUND

To turn off the touch control sound on your appliance, simultaneously press △ and for 3 secs. A beep will sound to signal the touch control sounds are Off.

NOTE:

Only the sound from pressing the touch controls will turn off. All other audio alerts will continue to work.

To turn on the touch control sound on your appliance, simultaneously press △ and for 3 secs. A beep will sound to signal the touch control sounds are On.

OVEN FUNCTIONS

NOTE:

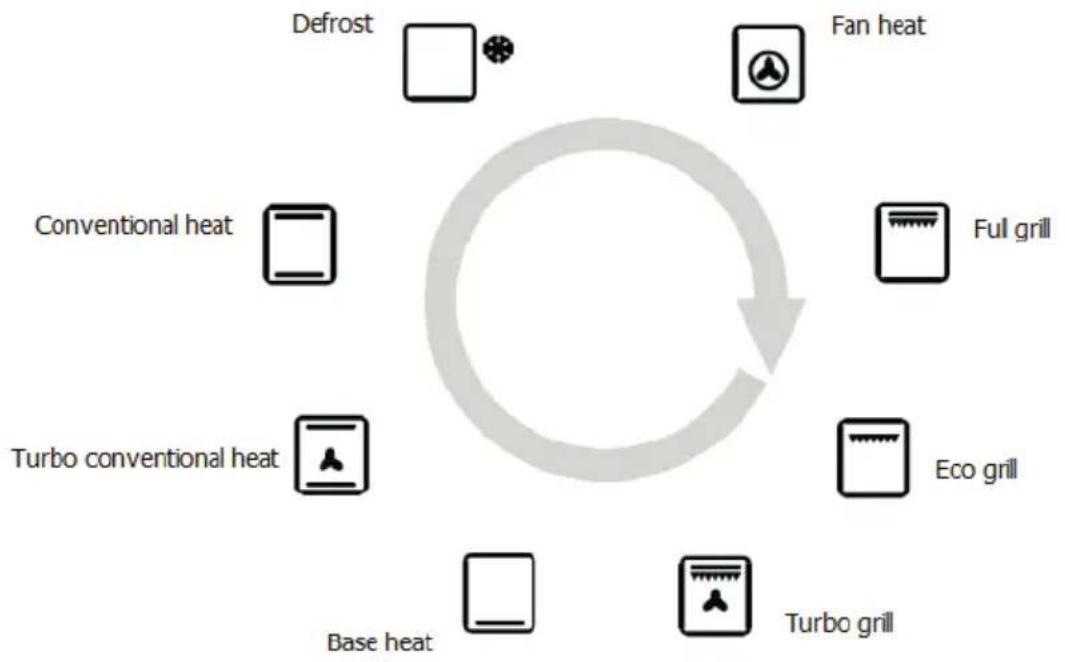

Press the programme button continuously to scroll through the below functions.

	Lights	Press the light button on the control panel to switch the internal oven lights on and off. The light symbol will show on the display when turned on.
	Defrost	The air at ambient temperature is distributed inside the oven for defrosting food quicker.
	Full Grill	Both the top heating element and grill element operate together to grill larger quantities of food. The door must always be closed for this function.
	Fan Heat	Both the fan and circular heating element operate together for the most even air distribution. This is the ideal cooking method for several types of food (meat & fish, pastries etc).
	Eco Grill	This function uses just the grill element, and is primarily used for grilling small quantities of food. This function should be used with a closed door.
	Conventional Heat	This function uses top and bottom heating elements simultaneously. The static cooking function ensures even cooking of the lower and upper food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. It is best to cook on only one shelf at a time in this function.
	Turbo Grill	The heat which is produced by the top element and grill is circulated by the fan for faster and more even cooking.
	Turbo Conventional Heat	This function uses both top and bottom heating elements simultaneously. The heat produced by these is then circulated around the oven by the fan to help distribute the heat more evenly.
	Base Heat	This function uses the bottom heating element only to cook the underside of the food. It is ideal for slow cooking, i.e. casseroles.

TO TURN ON DEMO MODE:

Press the ⏻ button to turn the oven on (in standby mode). Press and hold the ▶ button for 5 seconds. The alarm will beep 3 times, and ▶ will appear in the top right of the display to confirm the oven has entered demo mode.

In demo mode, the normal operation of the cooling fan, circulation fan, and lighting work normally, however all heating elements and other functions are disabled.

If the oven is turned off, it will remain in Demo mode when the oven is turned back on.

TO TURN OFF DEMO MODE

Press the ⏻ button to enter standby mode, then press and hold the ▶ button for 5 seconds. The alarm will beep 3 times, and the dE will disappear from the display to confirm the system has exited Demo mode, and is ready for normal use.

TELESCOPIC RUNNERS

To assemble the telescopic runners:

Remove the side racks.
Choose which shelf to use with the telescopic runner. Pay attention to the direction in which the runner is to be extracted, position joint 'B' and joint 'C' on the frame (see Fig.1).
Finally, re-fit the side racks as per below.

Fig 1.

SIDE RACKS AND CATALYTIC LINERS

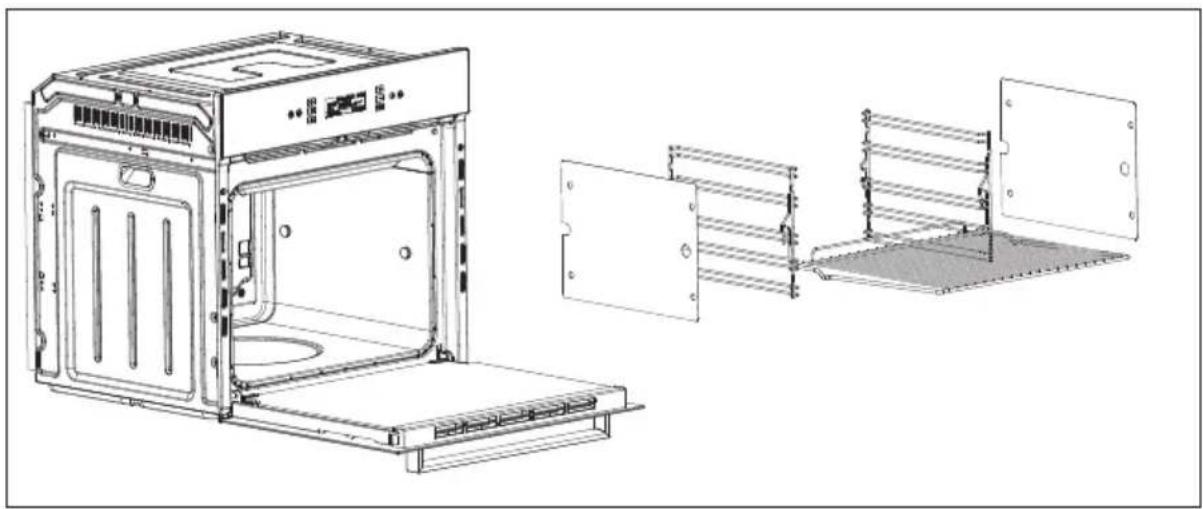

To install, align the 2 holes in the catalytic liners with the 2 steel clips in the side of the oven cavity. Once aligned, attach side racks by pushing these onto the furthest steel clip and then clicking the other end onto the closest steel clip.

This will secure the catalytic liners to the sides of the oven. To remove, unclip the side racks from the side of the oven, and remove the catalytic liners.

Technical line drawing of an oven assembly showing internal components and exterior view (no text or labels)

Scan the QR Code to access the 'How to video'.

IMPORTANT:

Unplug your oven before cleaning, or performing maintenance.

To extend the life of your oven, it must be cleaned frequently, keeping in mind the following:

DO NOT USES STEAM EQUIPMENT TO CLEAN THE APPLIANCE

To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance.

Don't clean the appliance when it still hot. The inside and external surface of the oven should preferably be cleaned by damp cloth when it is cooled down.
Wash all accessories in hot soapy water or in a dishwasher, wipe dry with a paper or cloth towel.
If you use your oven for an extended period of time, condensation may form.
Dry it using a soft cloth.
There is a rubber seal surrounding the oven opening which guarantees its perfect functioning. Check the condition of this seal on a regular basis. If necessary, clean it and avoid using abrasive products or objects to do so. Should it become damaged, please contact Caple service. We recommend you avoid using the oven until it has been repaired.
Never line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and even damage the enamel.
Clean the glass door using damp cloth and dry it with a soft cloth.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

REPLACING THE OVEN LAMPS

Switch off your oven at the mains.

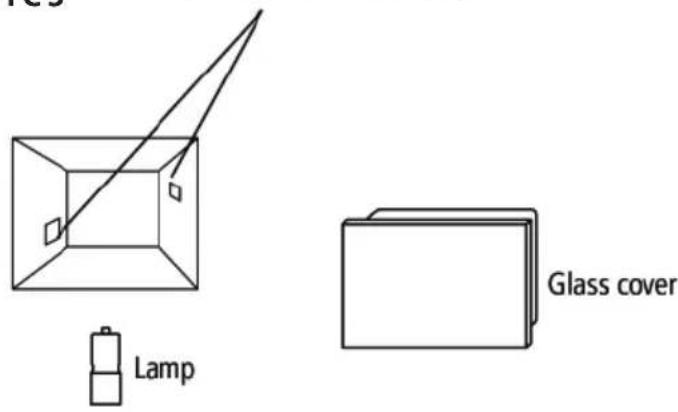

Remove the glass cover of the lamp-holder.
Remove the light bulb and replace it with a similar one.

HALOGEN LAMP CHARACTERISTICS

Voltage: AC220V-240V
Wattage: 25W
Cap: G9

Inner lamp in oven capacity

Remount the glass cover and reconnect the appliance to the power supply.

DO NOT TOUCH THE LIGHT BULB DIRECTLY WITH YOUR HANDS.

WARNING:

Ensure that the appliance is disconnected from the mains before replacing the lamp to avoid the possibility of electric shock.

The oven does not operate	> Check it is switched on at the mains> There has been a power cut> The time is not set
The oven is not heating	> The thermostat is not turned to a temperature
The interior lamp does not illuminate	> Check the product is connected to the electrical supply and is switched on> Replace the bulb
Lower and upper parts of the oven are not cooking evenly	> Control the shelf location, cooking period and temperatures according to the manual

USEFUL NOTES FOR COOKING

In the following table, some indicative hints for cooking:

FAULTS CAUSES SOLUTIONS
The upper crust is dark and the lower part too pale	Not enough heat from the bottom	> Use the natural convection position> Use deeper cake tins> Lower the temperature> Put the cake on a lower shelf
The lower part is dark and the upper crust too pale	Excessive heat from the bottom	> Use the natural convection position> Use lower side tins> Lower the temperature> Put the cake on a higher shelf
The outside is too cooked and the inside not cooked enough	Too high temperature	> Lower the temperature and increase the cooking time
The outside is too dry even though it is the right colour	Too low temperature	> Increase the temperature and reduce the cooking time.

REMOVING THE OVEN DOOR

To make it easier to clean the inside of your oven, the oven door can be easily removed, by proceeding as follows (fig. 11):

Open the door completely and lift the 2 levers "B" (fig.11-1);

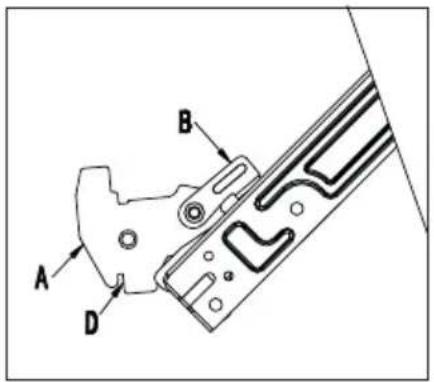

Now, shutting the door slightly, you can lift it out by pulling out the hooks "A" as shown in figure 2.
To reassemble the door:
With the door in a vertical position, insert the two hooks "A" into the slots;
Ensure that seat "D" is hooked perfectly onto the edge of the slot (move the oven door backwards and forward slightly);
Keep the oven door open fully, unhook the 2 levers "B" downwards and then shut the door again.

Fig.11-1

Diagram of a ladder leaning against a wall, showing force direction arrows (no text or symbols)

Fig.11-2

Scan the QR Code below to access the 'How to video'.

REMOVING THE GLASS PANELS

The oven door is made up of 2 panes of glass with vents at the top and bottom. When the oven is operating, air is circulated through the door to keep the outer pane cool. If condensation has worked its way in between the glass panes, the door can be dismantled in order to clean in between the panes.

Remove the door as per above instructions below and place it on a protective surface (e.g. on a table cloth) to prevent it getting scratched. The door handle should line up with the edge of the table. Make sure the glass lies flat to avoid breaking the glass during cleaning.

1. Press the button (A) on left and right side of door, take out top rail. (Fig.1)
2. Take out inner glass slowly, following the direction of the arrow (B) then (C) (Fig.2)

Clean the glass panes and other parts with a damp microfibre cloth or a clean sponge and a solution of hot water with a little washing-up liquid. Wipe dry using a soft cloth and re-assemble following the above instructions in reverse.

Technical diagram of a square electronic component with labeled parts A and B, showing internal structure and mounting points (no text or symbols beyond labels)

Fig.1 Fig.2

Technical line drawing of a layered electronic component with labeled axes (C and B), no text or symbols present.

NOTES

NOTES

caple

Caple Service

Fourth Way

Avonmouth

Bristol

BS11 8DW

T: 0117 938 1900

E: [e-mail]

www.caple.co.uk
