VR-3EX - Audio Mixer ROLAND - Free user manual and instructions

Product Type	AV Mixer
Brand	Roland
Model	VR-3EX

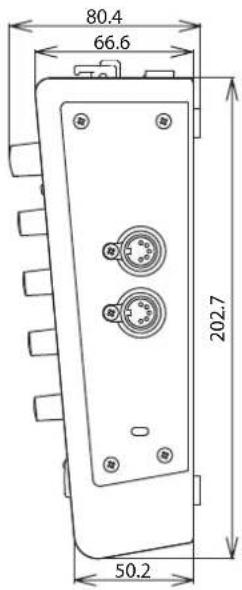

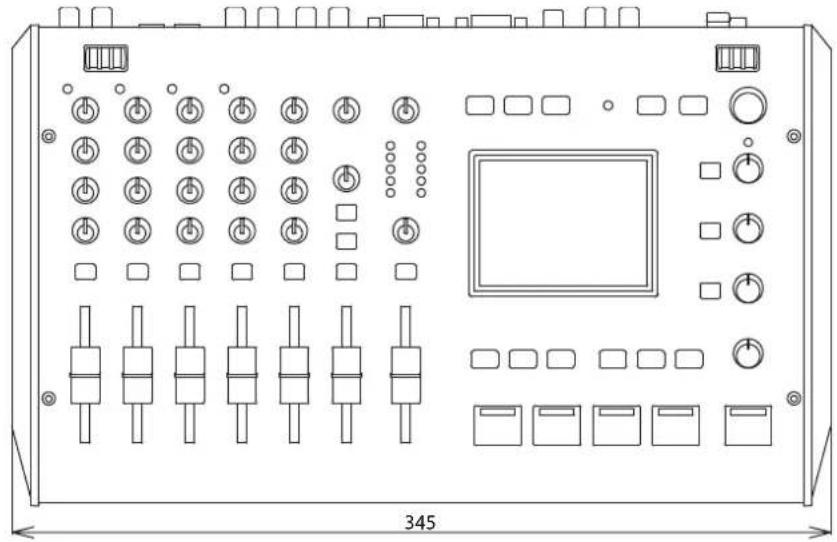

Dimensions	345 (W) x 203 (D) x 80 (H) mm / 13-5/8 x 8 x 3-1/8 inches
Weight	2.3 kg / 5 lbs 2 oz (excluding AC adaptor)
Power Supply	AC adaptor (included), 2.3 A current draw
Video Inputs	4x HDMI, 1x RGB/Component (CH4), 4x Composite (RCA), supports up to 1080p
Video Outputs	HDMI, RGB/Component, Composite, PVW OUT (HDMI), USB (Motion JPEG)
Audio Inputs	4x XLR/TRS combo (phantom power +48V), 2x RCA (5/6), 1x stereo mini (7/8), internal stereo microphones
Audio Outputs	RCA L/R (MAIN), 1/4" TRS L/R (AUX), 1/4" headphone, stereo mini headphone, USB audio (16-bit/48kHz)
Video Processing	4:2:2 (Y/Pb/Pr), 8-bit, internal 480/59.94p (NTSC) or 576/50p (PAL)
Audio Processing	24-bit/48 kHz
Video Effects	Transition: Cut, Mix (3 patterns), Wipe (250 patterns); Video FX: 11 types (Strobe, Negative, Colorize, etc.); Composition: PinP, Split, Quad, Luminance Key, Chroma Key
Audio Effects	3-band EQ per channel, compressor, gate, reverb, delay, high-pass filter, mastering (enhancer, noise suppressor)
Other Features	USB streaming, MIDI remote control, Auto Off, memory save/recall, HDCP support
Display	Graphic color LCD 320x240 dots, touch panel
Maintenance & Cleaning	Wipe with soft dry cloth; use mild detergent for stubborn dirt; never use benzine, thinners, alcohol, or solvents
Safety	Use only supplied AC adaptor and power cord; connect to earthed outlet; do not disassemble; keep away from moisture and heat; turn off if abnormality occurs
Spare Parts & Repairability	Contact authorized Roland distributor or service center for repairs; refer to Roland website for latest information
Accessories	AC adaptor, power cord, owner's manual

Frequently Asked Questions - VR-3EX ROLAND

How do I switch between video sources on the VR-3EX?

How can I use chroma key compositing?

Can I connect a computer to the VR-3EX?

How do I adjust audio input levels?

What is the Freeze function and how do I use it?

How do I set the video output format?

Can I use phantom power for condenser microphones?

How do I factory reset the VR-3EX?

How can I change the transition effects?

What are the steps to output video and audio via USB?

USER MANUAL VR-3EX ROLAND

Before using the VR-3EX, ensure that its system program is at the most recent version. For information on available upgrades for the system program, see the Roland website (https://proav.roland.com/).

VR-3EX

AV MIXER

Owner's Manual

Roland

Owner's Manual (this document)

Read this first. It explains the basic things you need to know in order to use the VR-3EX.

PDF Manual (download from the Web)

• Remote Control Guide

This manual covers remote control of the unit via MIDI. It also describes MIDI Implementations (detailed documentation of MIDI messages).

To obtain the PDF manual

1. Enter the following URL in your computer. https://proav.roland.com/

1. Go to the VR-3EX product page and click the "Support."

For the U.K.

WARNING: THIS APPARATUS MUST BE EARTHED

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

GREEN-AND-YELLOW: EARTH, BLUE: NEUTRAL, BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol ⏻ or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

The VR-3EX includes the following items. Please take a moment to confirm that all of these items have been included with the VR-3EX. If you find that any item is missing, contact the nearest authorized Roland distributor in your country.

□ VR-3EX

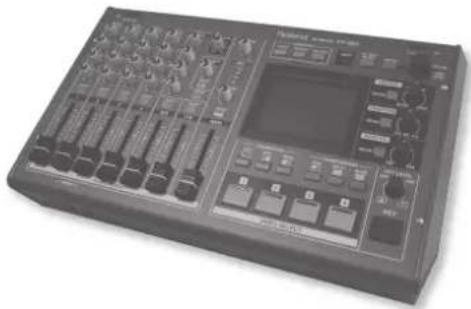

Exterior view of a black electronic audio workstation (no visible text or labels)

□ AC Adaptor/Power Cord

Two black cables and a rectangular electronic device with connectors, shown against a white background (no text or symbols visible)

* The shape of the power cord's plug varies depending on the country.

□ Owner's Manual

Conventions in this manual

In order to explain the operations as clearly as possible, this manual uses the following conventions.

• Text enclosed in square brackets [] indicates the name of a button or a knob, such as the [SETUP] button, [VALUE] knob.
• Text enclosed in angle brackets <> indicates text that appears in the screen, such as .
• When the manual instructs you to "touch" something, it means that you should touch that location in the touch panel screen.

* The explanations in this manual include illustrations that depict what should typically be shown by the display. Note, however, that your unit may incorporate a newer, enhanced version of the system (e.g., includes newer sounds), so what you actually see in the display may not always match what appears in the manual.

Before using this unit, carefully read the sections entitled "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (p. 6). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature of your new unit, read Owner's manual in its entirety. This manual should be saved and kept on hand as a convenient reference.

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About ⚠️ WARNING and ⚠️ CAUTION Notices

WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

	The △symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
	The ⬆symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
	The ●symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING

To completely turn off power to the unit, pull out the plug from the outlet

Even with the power switch turned off, this unit is not completely separated from its main source of power. When the power needs to be completely turned off, turn off the power switch on the unit, then pull out from the outlet. For this reason, the outlet is you choose to connect the power cord's plug be one that is within easy reach and readily

Concerning the Auto Off function

The power to this unit will be turned off automatically after a predetermined amount of time has passed since its buttons or controls were operated (Auto Off function). If you do not want the power to be turned off automatically, disengage the Auto Off function (p. 44).

Do not disassemble or modify by yourself

Do not carry out anything unless you are instructed to do so in the owner's manual. Otherwise, you risk causing malfunction.

Do not repair or replace parts by yourself

Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information."

Do not use or store in the following types of locations

• Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet floors); or are
• Exposed to steam or smoke; or are
• Subject to salt exposure; or are
• Exposed to rain; or are
  • Dusty or sandy; or are
• Subject to high levels of vibration and shakiness.

WARNING

Do not place in an unstable location

Otherwise, you risk injury as the result of the unit toppling over or dropping down.

Use only the supplied AC adaptor and the correct voltage

Be sure to use only the AC adaptor supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.

Use only the supplied power cord

Use only the attached power cord. Also, the supplied power cord must not be used with any other device.

Do not bend the power cord or place heavy objects on it

Otherwise, fire or electric shock may result.

Avoid extended use at high volume

Use of the unit at high volume for extended periods of time may cause hearing loss. If you ever experience any hearing loss or ringing in the ears, you should immediately stop using the unit and consult a specialized physician.

Do not allow foreign objects or liquids to enter unit; never place containers with liquid on unit

Do not place containers containing liquid (e.g., flower vases) on this product. Never allow foreign objects (e.g., flammable objects, coins, wires) or liquids (e.g., water or juice) to enter this product. Doing so may cause short circuits, faulty operation, or other malfunctions.

! WARNING

Turn off the unit if an abnormality or malfunction occurs

Immediately turn the unit off, remove the AC adaptor from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized

Roland distributor, as listed on the "Information" when:

• The AC adaptor or the power cord has been damaged; or
• If smoke or unusual odor occurs; or
- Objects have fallen into, or liquid has been spilled onto the unit; or
- The unit has been exposed to rain (or otherwise has become wet); or
- The unit does not appear to operate normally or exhibits a marked change in performance.

Be cautious to protect children from injury

Always make sure that an adult is on hand to provide supervision and guidance when using the unit in places where children are present, or when a child will be using the unit.

Do not drop or subject to strong impact

Otherwise, you risk causing damage or malfunction.

Do not share an outlet with an unreasonable number of other devices

Otherwise, you risk overheating or fire.

Do not use overseas

Before using the unit in overseas, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information."

CAUTION

Place in a well ventilated location

The unit and the AC adaptor should be located so their location or position does not interfere with their proper ventilation.

When disconnecting the power cord, grasp it by the plug

To prevent conductor damage, always grasp the power cord by its plug when disconnecting it from this unit or from a power outlet.

Periodically clean the power plug

An accumulation of dust or foreign objects between the power plug and the power outlet can lead to fire or electric shock.

At regular intervals, be sure to pull out the power plug, and using a dry cloth, wipe away any dust or foreign objects that may have accumulated.

Disconnect the power plug whenever the unit will not be used for an extended period of time

Fire may result in the unlikely event that a breakdown occurs.

Route all power cords and cables in such a way as to prevent them from getting entangled

Injury could result if someone were to trip on a cable and cause the unit to fall or topple.

Avoid climbing on top of the unit, or placing heavy objects on it

Otherwise, you risk injury as the result of the unit toppling over or dropping down.

Never connect/disconnect a power plug if your hands are wet

Otherwise, you could receive an electric shock.

Disconnect all cords/cables before moving the unit

Before moving the unit, disconnect the power plug from the outlet, and pull out all cords from external devices.

Before cleaning the unit, disconnect the power plug from the outlet

If the power plug is not removed from the outlet, you risk receiving an electric shock.

Whenever there is a threat of lightning, disconnect the power plug from the outlet

If the power plug is not removed from the outlet, you risk receiving an electric shock.

Handle the ground terminal carefully

If you remove the screw from the ground terminal, be sure to replace it; don't leave it lying around where it could accidentally be swallowed by small children. When refastening the screw, make that it is firmly so it won't come loose.

CAUTION

Precautions concerning use of phantom power supply

Always turn the phantom power off when connecting any device other than condenser microphones that require phantom power. You risk causing damage

if you mistakenly supply phantom power to dynamic microphones, audio playback devices, or other devices that don't require such power. Be sure to check the specifications of any microphone you intend to use by referring to the manual that came with it.

(This instrument's phantom power: 48 V DC, 10 mA Max)

Power Supply

• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter or a motor (such as a refrigerator, washing machine, microwave oven, or air conditioner). Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.
• The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a cause for concern.

Placement

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
• This unit may interfere with radio and television reception. Do not use this unit in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface. You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.
• Do not place containers or anything else containing liquid on top of this unit. Also, whenever any liquid has been spilled on the surface of this unit, be sure to promptly wipe it away using a soft, dry cloth.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Repairs and Data

- Before sending the unit away for repairs, be sure to make a backup of the data stored within it; or you may prefer to write down the needed information. Although we will do our utmost to preserve the data stored in your unit when we carry out repairs, in some cases, such as when the memory section is physically damaged, restoration of the stored content may be impossible. Roland assumes no liability concerning the restoration of any stored content that has been lost.

Additional Precautions

• Any data stored within the unit can be lost as the result of equipment failure, incorrect operation, etc. To protect yourself against the irretrievable loss of data, try to make a habit of creating regular backups of the data you've stored in the unit.
• Roland assumes no liability concerning the restoration of any stored content that has been lost.
• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
  • Never strike or apply strong pressure to the display.
• When disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• To avoid disturbing others nearby, try to keep the unit's volume at reasonable levels.
• When you need to transport the unit, pack it in shock-absorbent material. Transporting the unit without doing so can cause it to become scratched or damaged, and could lead to malfunction.
• This unit allows you to switch images at high speed. For some people, viewing such images can cause headache, nausea, or other discomfort. Do not use this unit to create video that might cause these types of health problems. Roland Corporation will accept no responsibility for any such health problems that may occur in yourself or in viewers.

Copyrights/Licenses/Trademarks

• It is forbidden by law to make an audio recording, video recording, copy or revision of a third party's copyrighted work (musical work, video work, broadcast, live performance, or other work), whether in whole or in part, and distribute, sell, lease, perform, or broadcast it without the permission of the copyright owner.
• Do not use this product for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this product.
• This product can be used to record or duplicate audio or visual material without being limited by certain technological copy-protection measures. This is due to the fact that this product is intended to be used for the purpose of producing original music or video material, and is therefore designed so that material that does not infringe copyrights belonging to others (for example, your own original works) can be recorded or duplicated freely.
• MMP (Moore Microprocessor Portfolio) refers to a patent portfolio concerned with microprocessor architecture, which was developed by Technology Properties Limited (TPL). Roland has licensed this technology from the TPL Group.
• Roland is either registered trademark or trademark of Roland Corporation in the United States and/or other countries.
• Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.
  • Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation.
  • Apple, Macintosh, Mac OS, the Mac logo are either registered trademarks or trademarks of Apple Inc.

Check the Included Items 3

USING THE UNIT SAFELY 4

IMPORTANT NOTES.... 6

Panel Descriptions 8

Top Panel/Front Panel 8

Audio Section 8

Video Section 9

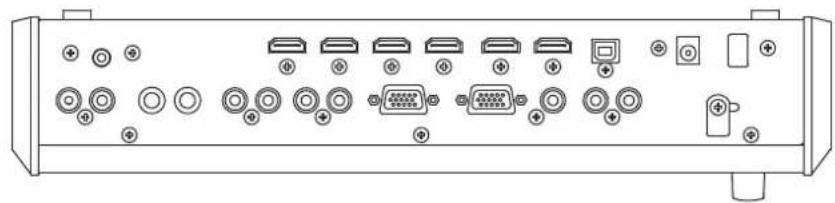

Rear Panel/Side Panel 11

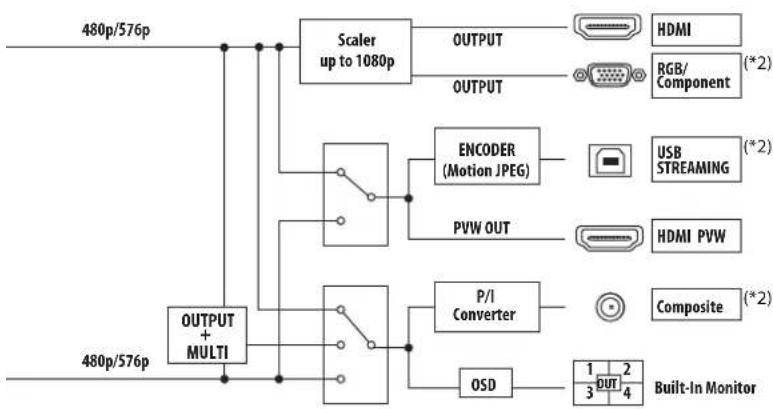

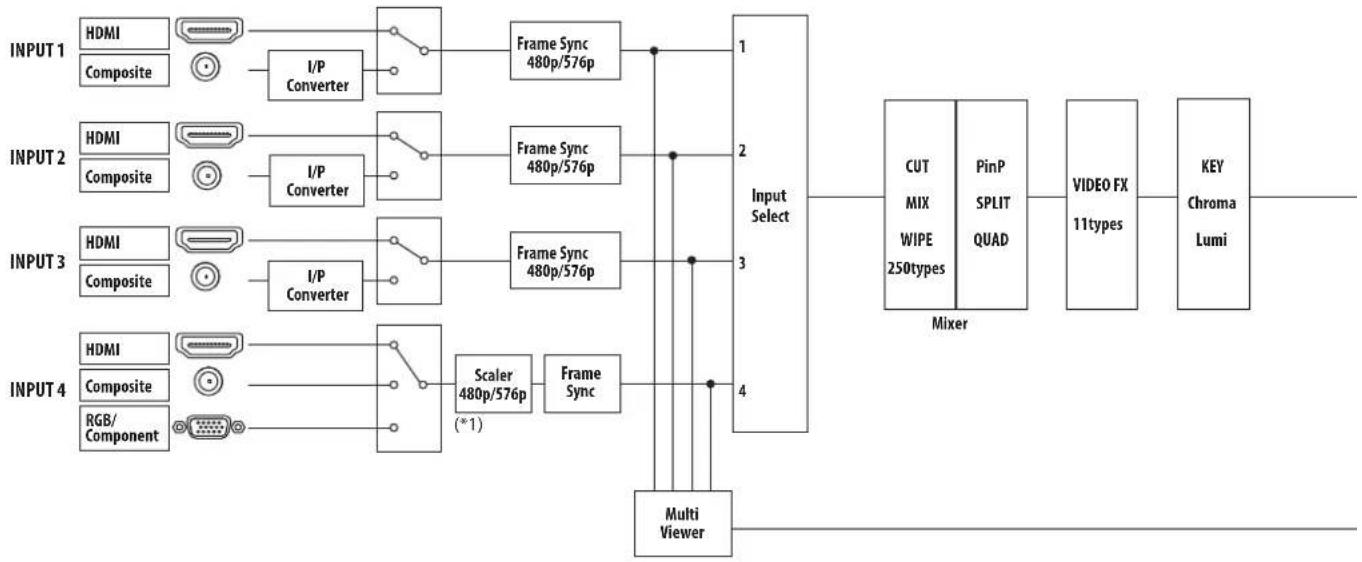

Signal Flow 12

Connecting External Equipment 14

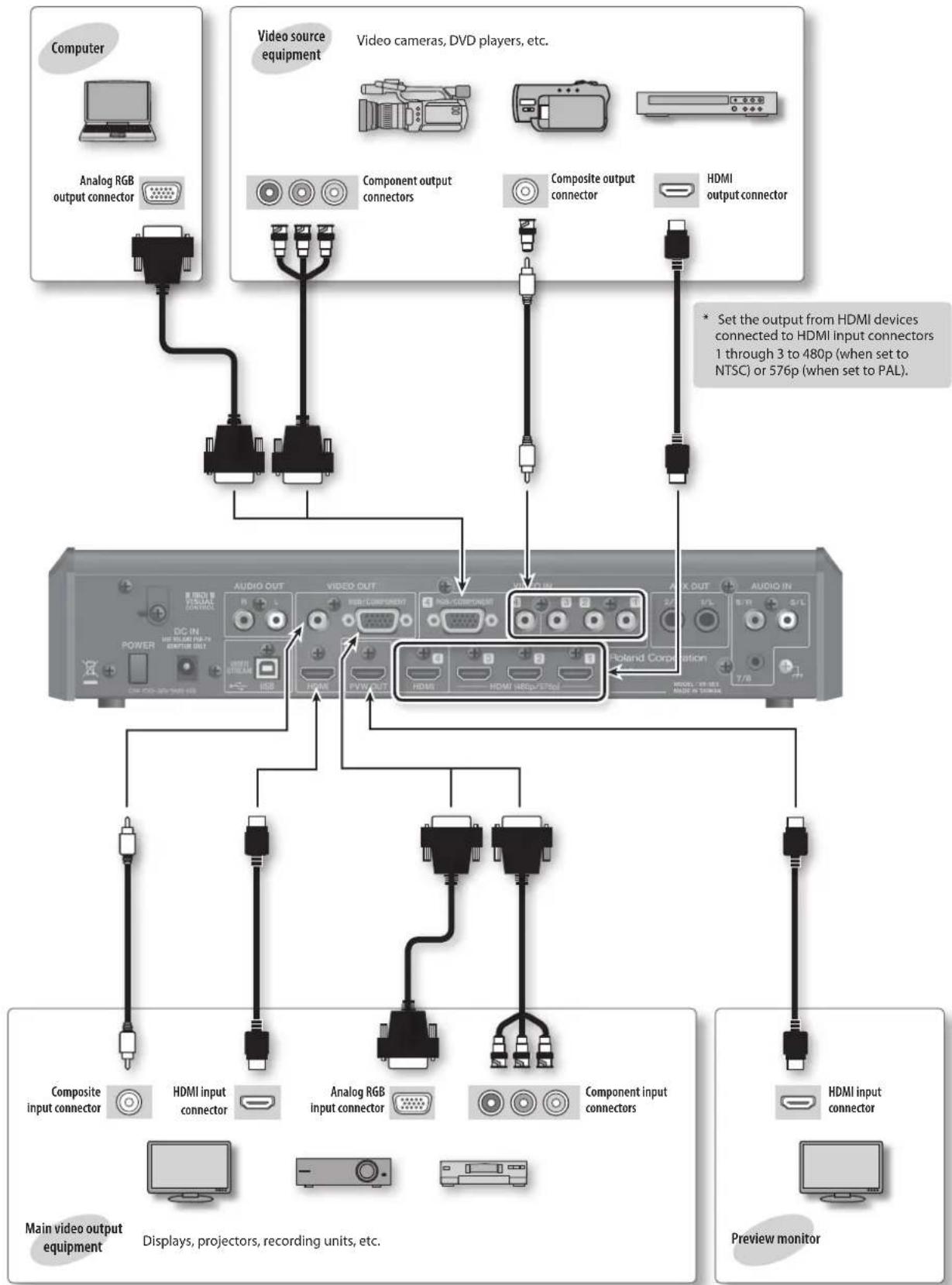

Connecting Video Source/Output Equipment.... 14

Connecting Audio Source/Output Equipment 15

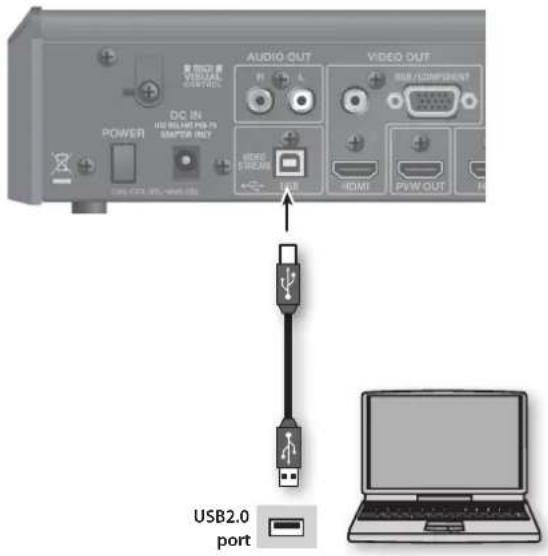

Connecting a Computer Via USB 16

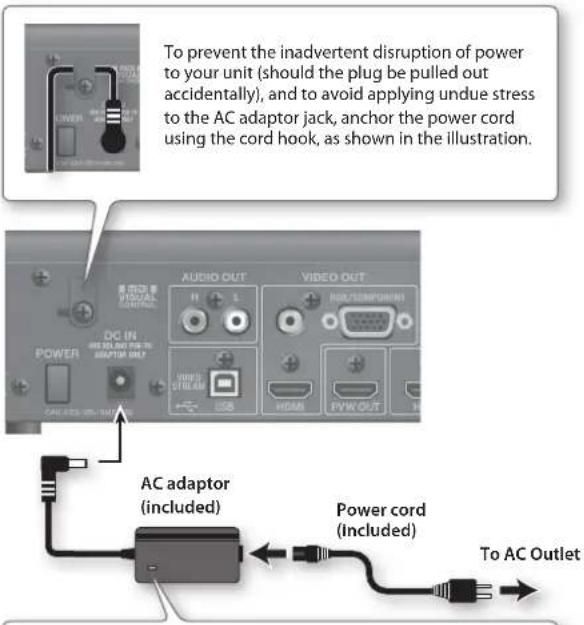

Connecting the AC Adaptor 16

Basic Operations 17

Turning the Power On and Off.... 17

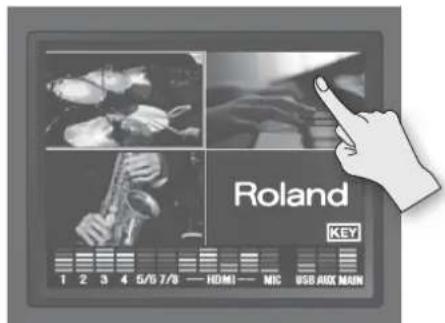

Switching the Monitor View Mode.... 17

Menu Operations 18

Supported Video Formats.... 19

Input Formats 19

Output Formats.... 19

Video Input/Output Settings.... 20

Assigning Video Sources to Video Channels.... 20

Setting the Video Output Format.... 20

Adjusting the Main Output Video.... 21

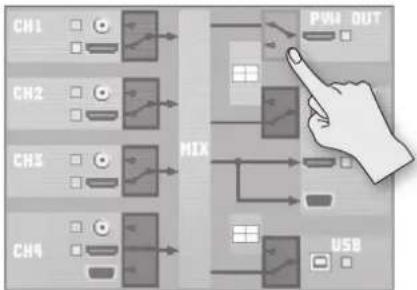

Changing the Video Output from the Video Output Connectors... 21

Adjusting the Input Video on Video Channel 4....22

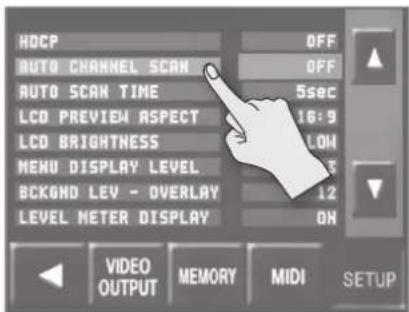

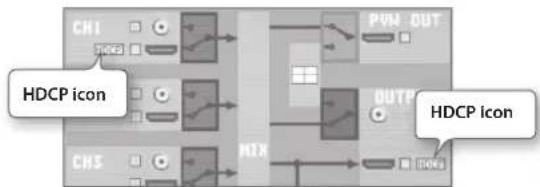

Inputting Copyright-protected (HDCP) Video 23

Video Operations.... 24

Switching the Video.... 24

Switching by Touching the Screen. 24

Switching the Video Using Buttons.... 24

Switching Automatically 25

Using a Different Transition Pattern.... 25

Applying a Fade to the Main Output Video (Output Fade) ..... 26

Stopping (Freezing) the Main Output Video.... 26

Compositing the Video.... 27

Compositing Using Picture-in-Picture (PinP) 27

Compositing Using Split (SPLIT).... 28

Compositing Four Video Streams on a Single Screen (QUAD) .. 29

Compositing Using Luminance Key/Chroma Key.... 30

Applying Effects to Video 33

Audio Operations 34

Adjusting the Volume Balance of Input Audio.... 34

Adjusting the Input Sensitivity 34

Adjusting the Sound Position (Pan).... 34

Adjusting the Volume Balance 35

Adjusting the Volume Level of Main Output Audio 35

Adjusting the Volume Level of USB Output Audio 35

Applying Effects to Audio 36

Applying Effects to Input Audio 36

Applying Effects to Main Output Audio.... 37

Hearing Only Specific Input Audio (Solo/Mute) 38

Aligning the Output Timing of Video and Audio (Lip-sync) ..... 38

Using the AUX Bus 39

Interlinking Audio Output to Video Switching (Audio Follow)..... 40

Operations Using a Computer.... 41

Outputting Streaming-use Video/Audio to a Computer 41

Recording Video on a Computer.... 41

Operating the VR-3EX by Remote Control.... 41

Other Features 42

Saving/Recalling Settings (Memory) 42

Backing Up/Restoring the VR-3EX's Settings 43

Turning Off the Power Automatically (Auto Off).... 44

Returning Settings to the Factory-default State (Factory Reset) .... 44

Switching Between the NTSC and PAL Formats 45

Appendices 46

Troubleshooting.... 46

Menu List.... 47

Menu Screens 47

Setup Screens 49

Transition Effects List 52

Main Specifications 55

Dimensions....56

Index 57

Top Panel/Front Panel

No. Name Explanation Page
1	Internal Microphones	These are internal microphones for picking up ambient audio. To adjust the level, use 11 the [INTERNAL MIC] knob.* The internal microphones are sensitive enough to pick up sounds of the VR-3EX's buttons and faders being operated.	p. 35
2	[MENU] Button	This displays the menu screen on the monitor.	p. 18
3	[VALUE] Knob	This selects menu items and changes setting values. Pressing the [VALUE] knob selects a menu item or applies changes made to a setting value.
4	Monitor (Touch Screen)	This displays the incoming video from the sources, the VR-3EX's output video, a volume level meter, menu screens, and the like. To change the monitor's view mode, use 13 the [MONITOR] buttons.You change the picture and select menu items by touching the screen.* Don't touch the screen in two or more locations simultaneously; the locations cannot be detected correctly.	p. 17p. 18p. 24
5	PHONES Jacks	You can use these to connect standard-type (1/4-inch) and mini-stereo headphones. You can use both at the same time.	p. 15

Audio Section

This section is for mixing audio and adjusting the input sensitivity of the audio channels.

No. Name Explanation Page
6	SIG/PEAK Indicators	These display the input level of the audio channels.· Lighted in green: Input detected· Lighted in red: Volume exceeded maximum input level	p. 34
	[GAIN] Knob	These adjust the gain (input sensitivity) of the audio channels.

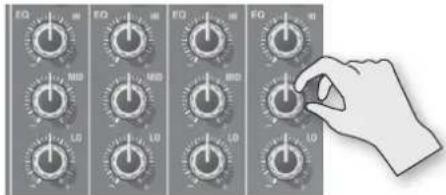

	[EQ] Knobs	You use the [HI], [MID], and [LO] knobs to adjust the sound quality of the audio channels. These let you emphasize or attenuate the high (HI), midrange (MID), and low (LO) bands.	p. 36
	[SETUP] Button	These display the setup screens for the audio channels on the monitor.	—
7	Channel Faders	These adjust the volume levels of the audio channels p. 35
8	Level Meter	This displays the volume level of the main output audio.	p. 35
	[REVERB] Knob	This adjusts the return level from reverb of the audio. p. 37
	[MAIN] Fader	This adjusts the volume level of the main output audio.	p. 35
	[SETUP] Button	This displays the setup screen for main audio output on the monitor.	—
9	[HDMI] Knob	This adjusts the volume level of HDMI audio (embedded audio). p. 35
	[SETUP] Button	This displays the setup screen for HDMI audio on the monitor.	—
10	[USB LEVEL] Knob	This adjusts the volume level of audio output via USB. p. 35
11	[INTERNAL MIC] Knob	This adjusts the volume level of the internal microphones. p. 35
	[SETUP] Button	This displays the setup screen for the internal microphones on the monitor.	—
12	[PHONES] Knob	This adjusts the volume of headphones connected to the PHONES jacks.	—

Video Section

This section is for making picture transitions, compositing video, and making effect settings.

No. Name	Explanation Page
13	[MONITOR] Buttons	You use the [INPUT], [OUTPUT], and [IN+OUT] buttons to switch the view mode for the monitor.[INPUT] Button (Input Mode)This displays the input video from the respective source devices as a four-way split screen. You change the picture by touching the screen.[OUTPUT] Button (Input Mode)This displays the results of video mixing (main output video). You also use it to adjust the location and size of the inset screen for Picture-in-Picture.[IN + OUT] Button (In/Out Mode)This displays the currently output video overlaid on the four-way split screen of input video.	p. 17
14	HDCP Indicator	This lights up, flashes, or goes dark according to the VR-3EX's "HDCP" setting and the connected status of HDCP-compatible equipment.	p. 23
15	[IN/OUT SETUP] Button	This displays the input/output setup screen for video on the monitor. You use it to set the video input connectors assigned to the respective video channels. You also use it to specify which video signals are output from the video output connectors	p. 20p. 21
16	[TRANSITION] Buttons	You use the [CUT], [MIX], and [WIPE] buttons to select video transition effects.[CUT] ButtonThe picture switches instantly.[MIX] ButtonIn this transition, as the original picture gradually disappears, the next video is overlaid and progressively grows more visible.[WIPE] ButtonIn this transition, the original video is broken into by the next video.	p. 24
17	[COMPOSITION] Buttons	You use the [PinP], [SPLIT], and [QUAD] buttons to select video composition effects.[PinP] ButtonThis composites video in an inset screen over a background video.[SPLIT] ButtonThis composites two video streams in a split screen.[QUAD] ButtonThis composites the input pictures on video channels 1 through 4 in a single screen.	p. 27
18	[OUTPUT] Knob	This performs a fade-in or fade-out for the main output video. Turning the control clockwise applies a white fade.Turning it counterclockwise applies a black fade.The indicator above the [OUTPUT] knob shows the status of the fade.Flashing: Fade-in/fade-out in progressLighted: Normal output	p. 26
	[FREEZE] Button	This stops (freezes) the current output video. The [FREEZE] button lights up during a freeze. p. 26
19	[TRANSITION] Knob	This sets the video transition time (in seconds). p. 24
	[SETUP] Button	This displays the setup screen for transition effects on the monitor. You use it to specify the transition effects to the [MIX] button and the [WIPE] button.	p. 25
20	[VIDEO FX] Knob	This turns the effect applied to the output video on and off. Turning the control clockwise or counterclockwise turns on the effect assigned to the respective direction. When the control is centered, effects are set to "off."Also, depending on effect type, this control adjusts the degree of effect applied or changes the setting value.	p. 33
	[SETUP] Button	This displays the setup screen for effects on the monitor. You use it to specify the effects assigned to the [VIDEO FX] knob.
21	[KEY] Button	This switches key composition on or off. When on, the [KEY] button lights up. p. 30
	[KEY LEVEL] Knob	This adjusts the amount of keying for key composition.Turning the control clockwise(+) performs luminance-key composition.Turning the control counterclockwise(+) performs chroma-key composition.	p. 30p. 31
22	[VIDEO SELECT] buttons	You use these buttons to switch the video. p. 24

Rear Panel/Side Panel

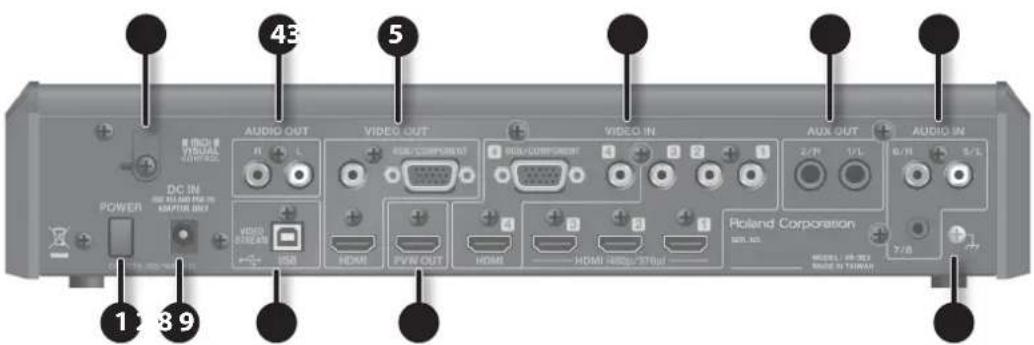

No. Name	Explanation Page
1	[POWER] Switch	This turns the power to the VR-3EX on and off. p. 17
2	AC Adaptor Jack	This is for connecting the included AC adaptor.	p. 16
3	Power Cord Hook	Use this to secure the AC adapter cord in place.
4	Audio Output Connectors	These output the results of audio mixing. Here you connect a video recorder or other recording equipment, or an amplifier or speakers.* The VR-3EX has two internal audio buses (the MAIN bus and the AUX bus), and you can select the audio bus to output for each individual connector.AUDIO OUT Connectors (L, R)These accept RCA phono type plugs.AUX OUT Connectors (L, R)These accept 1/4-inch phone type plugs.	p. 15
5	Video Output Connectors	These output the results of video mixing (main output video).VIDEO output ConnectorHere you can connect a video monitor, recording unit, or other device equipped with a composite input connector.* You can also output the incoming video on video channels 1 through 4 as a four-way split screen.RGB/COMPONENT Output ConnectorHere you connect equipment such as a projector or recording unit that is equipped with an analog RGB/component input connector.HDMI Output ConnectorHere you connect an external display or other device equipped with an HDMI input connector.	p. 14
6	Video Input Connectors 1–4	These are for inputting video signals from a computer or video devices such as video cameras and DVD players.VIDEO Input Connectors (video channels 1–4)Here you connect video cameras, DVD players, and other devices equipped with composite output connectors.RGB/COMPONENT Input Connector (video channel 4)Here you connect a device such as a computer that is equipped with an analog RGB/component output connector.HDMI Input Connectors (video channels 1–4)Here you connect video cameras and other devices equipped with HDMI output connectors.* You can specify the video input connector assigned to each individual video channel.
7	Audio Input Connectors 1–7/8	These are for inputting audio signals from video decks, microphones, audio mixers, and other such audio equipment. You can connect video decks, CD players, microphones, and other devices.AUDIO INPUT (XLR/TRS) Connectors 1–4These accept XLR and TRS 1/4-inch phone type plugs. Input via XLR/TRS connectors 1 through 4 is assigned to audio channels 1 through 4.* You can supply phantom power (+48 V) from the XLR connectors.AUDIO IN 5/6 Connectors (L, R)These accept RCA phono type plugs. Input via the AUDIO IN 5 and 6 connectors is assigned to audio channel 5 and 6.AUDIO IN 7/8 Connector (L, R)This accepts a miniature stereo phone plug. Input via the AUDIO IN 7/8 connector is assigned to audio channels 7 and 8.	p. 15
8	USB port	This outputs the results of video and audio mixing. You can connect a computer and send video and audio over the Internet, or record it on the computer.* You can also output the incoming video on video channels 1 through 4 as a four-way split screen.You can use VR-3EX RCS dedicated software to operate the VR-3EX remotely from a connected computer.	p. 16p. 41

Back panel of a computer interface with four ports and labeled connection points (no text or symbols beyond labels)

Front view of a gray electronic device with two black circular connectors and two circular ports, no visible text or symbols.

No. Name Explanation Page
9	PVW OUT Connector	This outputs the incoming video on video channels 1 through 4 as a four-way split screen. You can connect a preview monitor equipped with an HDMI input connector.* You can also output the same video as the VIDEO OUT connectors (main output video).	p. 14
10	Grounding Terminal	You use this to connect the unit to an external ground. p. 16
11	[PHANTOM] Switches	This switches the phantom power of the AUDIO INPUT (XLR) connectors on and off. The unit has separate switches for audio channels 1/2 and audio channels 3/4, so you can set these individually.NOTEAlways turn the phantom power "OFF" when connecting any device other than condenser microphones that require phantom power. You risk causing damage if you mistakenly supply phantom power to dynamic microphones, audio playback devices, or other devices that don't require such power.	p. 15
12	Security Slot(IRSECURITY LOCK)	You can attach a commercially available security lock here. For details, refer to the following website: http://www.kensington.com/	—
13	MIDI IN ConnectorMIDI OUT/THRU Connector	You can connect external MIDI devices to remotely control the VR-3EX. p. 41

Signal flow inside the VR-3EX is as shown in the figure below.

Video signals


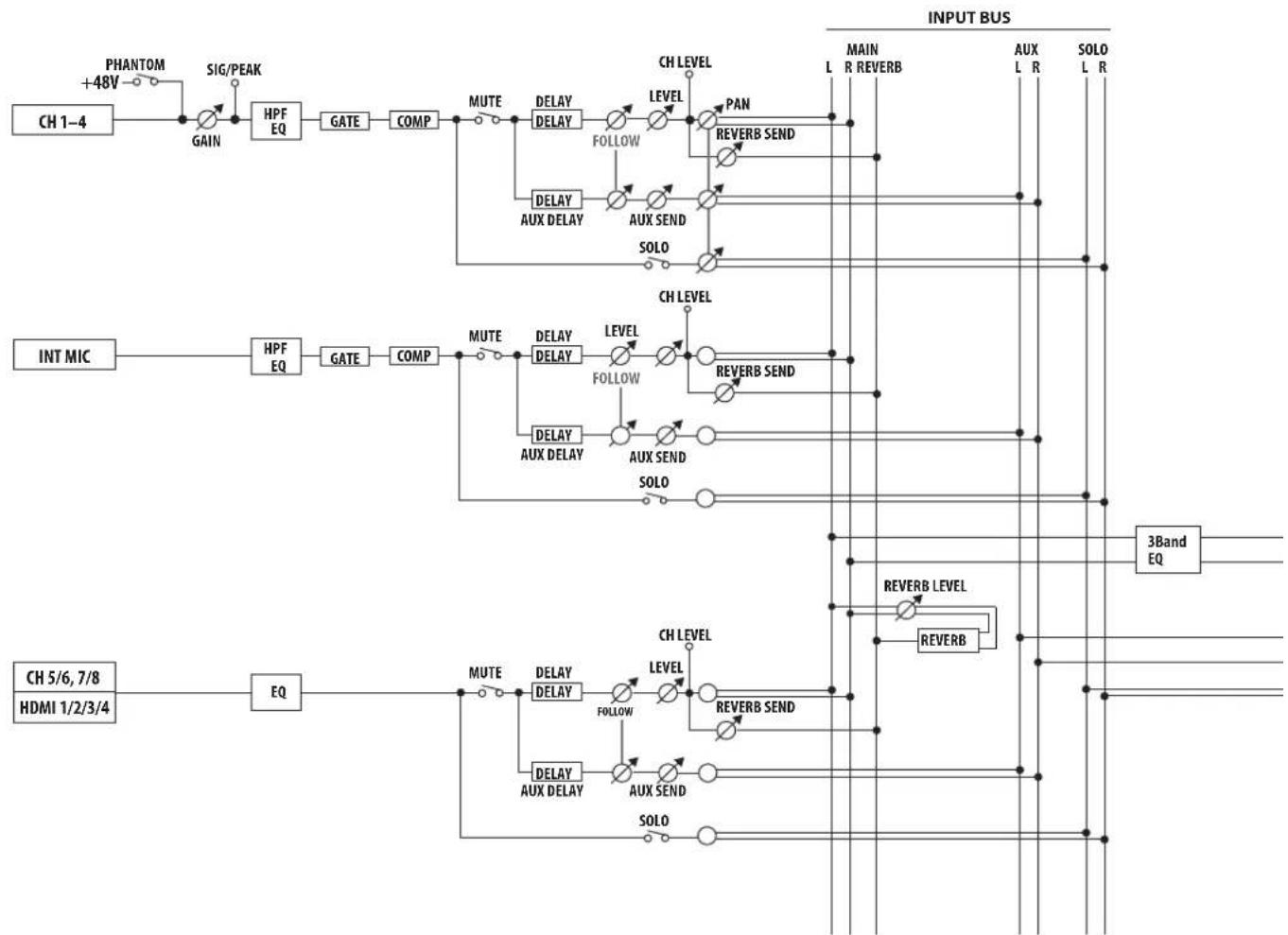

Audio signals

* Total latency: 2 frames (from Input 1–3 to Output), 3 frames (from Input 4 to Output)

* Internal Processing: 480/59.94p when set to NTSC, 576/50p when set to PAL

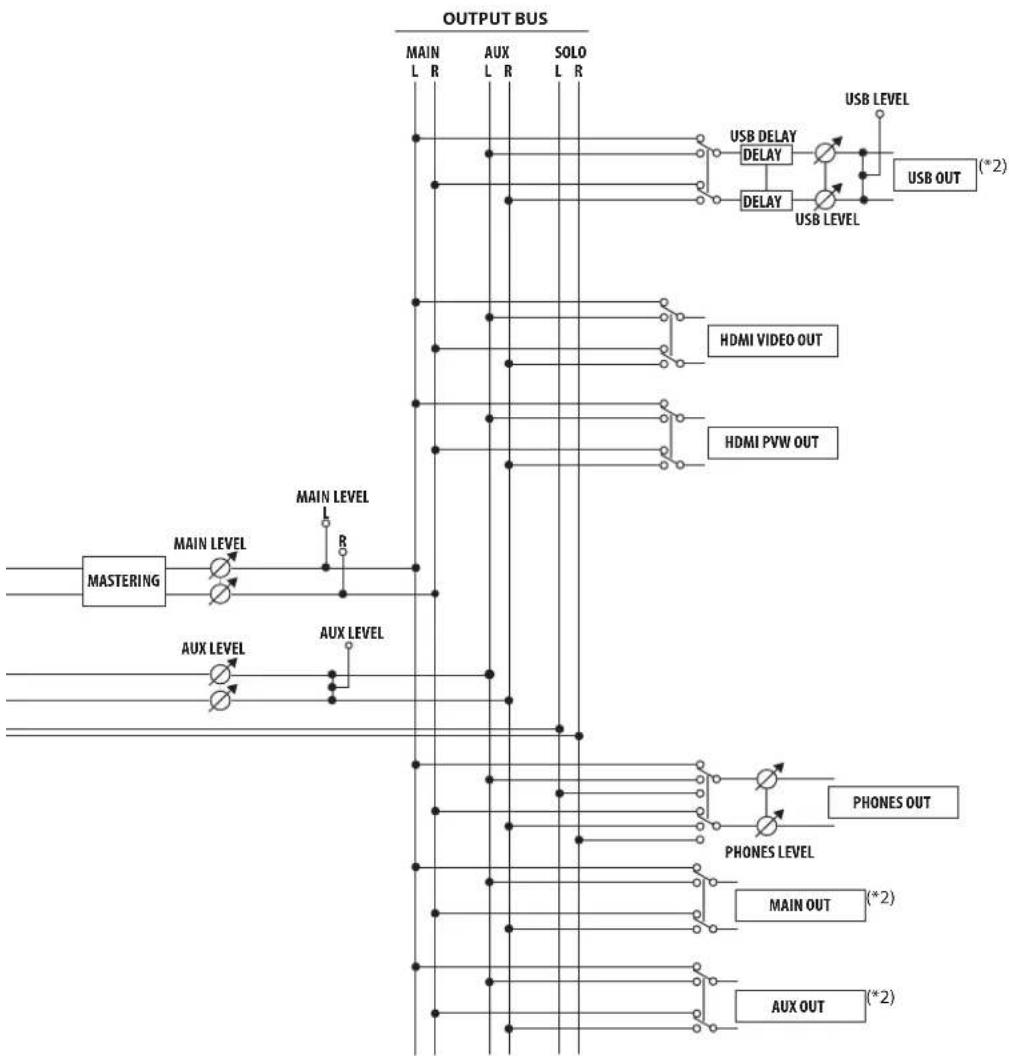


(*1) The scaler is disabled during composite input.

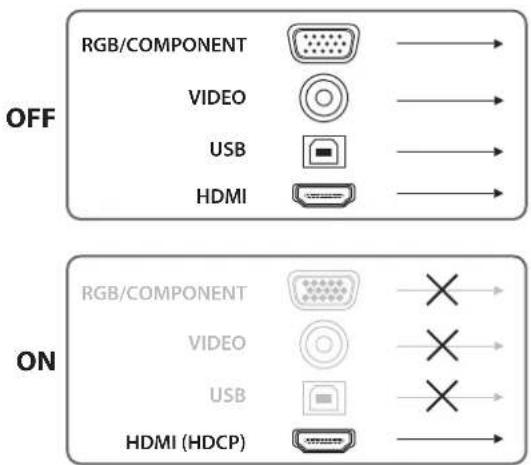

(*2) When "HDCP" is set to "ON" (p. 23), no audio and video signals are output from these connectors. Audio output to PHONES jacks are always on.

Connecting External Equipment

* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.
* Be sure to use cables and adapter plugs with the proper connectors matching those of the other devices you are using.

Connecting Video Source/Output Equipment

After making the connections, press the [IN/OUT SETUP] button and specify the video input connector for inputting video channels 1 through 4 (p. 20).

Audio output equipment

Amplifiers, speakers, recording units, etc.

Audio source equipment

Video decks, CD players, etc.

* The VR-3EX has two internal audio buses (the MAIN bus and the AUX bus), and you can select the audio bus to output for each individual connector (p. 39).

Audio input connectors

Audio output connectors

Headphones

Front Panel

* AUDIO INPUT connectors 1 through 4 are balanced-type (XLR/TRS) input jacks, and are wired as shown in the figure below. Make connections after first checking the wiring diagrams of other equipment you intend to connect.

TIP: HOT

RING: COLD

SLEEVE: GND

1: GND2: HOT

3: COLD

* When connection cables with resistors are used, the volume level of equipment connected to the AUDIO INPUT connectors may be low. If this happens, use connection cables that do not contain resistors.
* Acoustic feedback could be produced depending on the location of microphones relative to speakers. This can be remedied by:

• Changing the orientation of the microphone(s).
- Relocating microphone(s) at a greater distance from speakers.
• Lowering volume levels.

Audio source equipment

Microphones, audio mixers, etc.

Audio output connectors

Using Phantom Power

The VR-3EX supports phantom power. When using a condenser microphone that requires phantom power, set the [PHANTOM] switch to "ON."

Always turn the phantom power off when connecting any device other than condenser microphones that require phantom power. You risk causing damage if you mistakenly supply phantom power to dynamic microphones, audio playback devices, or other devices that don't require such power. Be sure to check the specifications of any microphone you intend to use by referring to the manual that came with it.

(This instrument's phantom power: 48 V DC, 10 mA Max)

Connecting a Computer Via USB

* Making the connection using an extension cable or USB hub might result in the computer failing to recognize the VR-3EX. We recommend using a direct connection between the VR-3EX and the computer.

Supported Operating Systems

Windows

• Windows XP Home Edition / Professional Edition Service Pack 3 or later
• Windows Vista Service Pack 2 or later
- Windows 7
- Windows 8
- Windows 8.1

Mac

• Mac OS X 10.6 or later
* Connection and operation of the VR-3EX with standard computers running the operating systems described above have been verified, but connection and operation with all computers satisfying such conditions is not assured. Connection or operation may be impossible due to differences in setting specifications or the usage environment that are specific to the equipment.

Making the Connection to a Computer

1. Using a USB cable, connect a USB 2.0 port on the computer to the USB port on the VR-3EX.
2. Turn on the power to the VR-3EX (p. 17).
3. Start the computer.
4. Wait for communication between the VR-3EX and the computer to be established.

When communication with the computer starts, the operating system's standard driver is automatically installed.

* The VR-3EX is seen as a USB video device or USB audio device by the computer.

Connecting the AC Adaptor

To prevent the inadvertent disruption of power to your unit (should the plug be pulled out accidentally), and to avoid applying undue stress to the AC adaptor jack, anchor the power cord using the cord hook, as shown in the illustration.

Place the AC adaptor so the side with the indicator (see illustration) faces upwards and the side with textual information faces downwards. The indicator will light when you plug the AC adaptor into an AC outlet.

About the Grounding Terminal

Depending on the circumstances of a particular setup, you may experience a discomforting sensation, or perceive that the surface feels gritty to the touch when you touch this device, microphones connected to it, or the metal portions of other objects. This is due to an infinitesimal electrical charge, which is absolutely harmless. However, if you are concerned about this, connect the ground terminal (see figure) with an external ground. When the unit is grounded, a slight hum may occur, depending on the particulars of your installation. If you are unsure of the connection method, contact the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

Unsuitable places for connection

• Water pipes (may result in shock or electrocution)
• Gas pipes (may result in fire or explosion)
- Telephone-line ground or lightning rod (may be dangerous in the event of lightning)

Turning the Power On and Off

Once everything is properly connected (p. 14), be sure to follow the procedure below to turn on their power. If you turn on equipment in the wrong order, you risk causing malfunction or equipment failure.

* Before turning the unit on/off, always be sure to turn the volume down. Even with the volume turned down, you might hear some sound when switching the unit on/off. However, this is normal and does not indicate a malfunction.

Turning the power on

1. Make sure all devices are turned off.
2. Turn on the power to the VR-3EX.

* The VR-3EX is equipped with a protection circuit. A brief interval (a few seconds) after turning the unit on is required before it will operate normally.

1. Turn on the power to the source devices.

Turn on the power to video cameras or other source equipment connected to input connectors on the VR-3EX.

1. Turn on the power to the output devices.

Turn on the power to projectors or other devices connected to output connectors on the VR-3EX.

Turning the power off

1. Turn off the power in the sequence of first the output equipment, and then the sources.
2. Press the [POWER] button on the VR-3EX to turn off the power.

About the Auto Off function

The power to the VR-3EX turns off automatically when all of the following states persist for 240 minutes (Auto Off function).

• No operation (including remote-control operation) performed on the VR-3EX
• No audio or video input

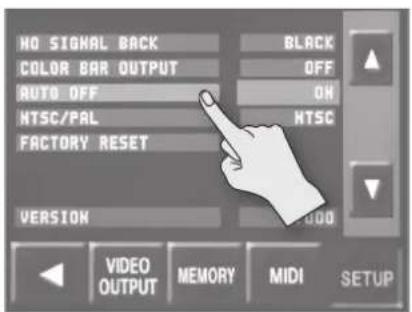

* If you do not want the power to be turned off automatically, disengage the Auto Off function (p. 44).
* When the power has been turned off by the Auto Off function, to restart, first press the [POWER] button to return it, then turn on the power.

NOTE

Any settings that you are in the process of editing will be lost when the power is turned off. If you have any settings that you want to keep, you should save them beforehand.

Switching the Monitor View Mode

The monitor on the VR-3EX has three view modes.

You use the [MONITOR] buttons to switch the view mode. The selected button lights up.

[INPUT] button: Input mode

This displays video input from source equipment on a four-way split screen.

The input video (channels 1 through 4) is arranged as shown below.

Channel 1	Channel 2
Channel 3	Channel 4

Composite grayscale image showing four panels: top-left with abstract shapes, middle-right with blurred human figures, bottom-right with grid pattern (no readable text or symbols)

[OUTPUT] button: Output mode

This displays the video currently being output.

Close-up of a textured surface with indistinct shapes and no visible text or symbols

[IN + OUT] button: In/Out mode

This displays the current video output overlaid on a four-way split screen displaying the input from source equipment.

Microscopic view of a biological sample with visible cellular structures and scale bar (no text or symbols)

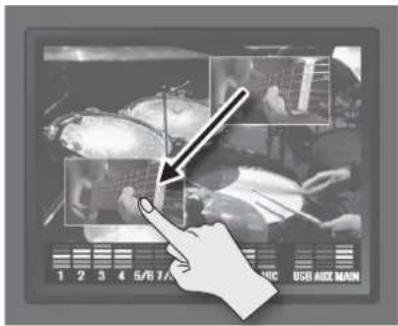

You can change the size and location of the output screen.

• Turning the [VALUE] knob clockwise enlarges the size, and turning it counterclockwise reduces it. You can enlarge or reduce the screen size in greater increments by holding down the [VALUE] knob as you turn it.
• To change the display location of the output screen, touch and drag the screen with your finger.

MEMO

• You can select either "16:9" or "4:3" as the aspect ratio for video displayed on the monitor. Use [MENU] → → to select.
• You can select either "LOW" (dark) or "HIGH" (bright) as the brightness level of the monitor. Use [MENU] → → to select.
• You can dim the background screen (four-way split screen) in the in/out mode. Use [MENU] → → to adjust.

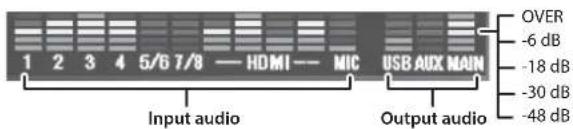

• You can hide the level meter displayed at the bottom of the screen. Use [MENU] → → to set the value to "OFF."

Menu Operations

To make various settings on the VR-3EX, you display and use the menu screen and the respective setup screens.

MEMO

• Settings made at the menu screen and setup screens are saved in the VR-3EX's internal memory when you quit the screen.
• If you want to make the video preview disappear and display only the menu, press the currently lighted [MONITOR] button to make it go dark.

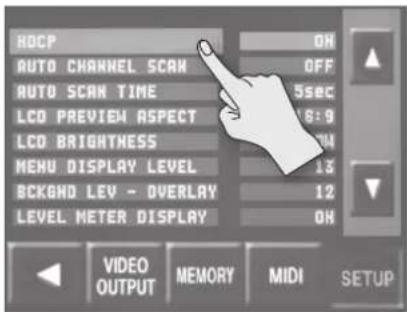

• To display a setup screen, press its [SETUP] button. Except for the step of selecting a category, the procedure is the same as for using the menu screen. At the setup screen for HDMI audio, touch ▲ and at the upper left of the screen to select HDMI audio 1 through 4.

1. Press the [MENU] button to display the menu screen.

Menu category icons are displayed at the bottom of the screen.

2. Touch an icon to choose a category.

• Touching or next to an icon switches the screen and lets you select a different icon.
• You can also choose an icon by turning and pressing the [VALUE] knob.

A list of menu items for the selected category is displayed.

3. Touch the screen to select a setting item.

The selected setting item is displayed with a red background.

- Depending on the item, the setting items might not all fit on a single screen. In such cases, touch the ▲ or cursor to scroll the display.

4. Turn the [VALUE] knob to change the setting value.

- You can change the setting value in larger steps by holding down the [VALUE] knob as you turn it.

5. Press the [VALUE] knob to apply the setting.

• Changes made to the following setting items are not updated until you apply the setting value.

Category Setting item
VIDEO CH4 RESOLUTION
VIDEO OUTPUT	OUTPUT RESOLUTION
	OUTPUT DVI-HDMI
SETUP	HDCP
	NTSC/PAL

6. Press the [MENU] button twice to quit the menu screen.

Pressing the [MENU] button once returns you to the menu screen. Pressing the [MENU] button a second time quits the menu screen.

MEMO

• You can adjust the brightness of the menu display. Use [MENU] → → to adjust.
• For detailed information about menu items, refer to "Menu List" (p. 47).

Input Formats

You can input signals of different video formats via the VIDEO IN connectors on the VR-3EX. The individual connectors support the input formats shown below.

Connector name(VIDEO IN)	When set to NTSC When set to PAL
HDMI (1-3) 480/59.94p	576/50p
HDMI (4)	480/59.94i 576/50i
	480/59.94p 576/50p
	720/59.94p 720/50p
	1080/59.94i 1080/50i
	1080/59.94p 1080/50p
	640 x 480/60 Hz 640 x 480/60 Hz
	800 x 600/60 Hz 800 x 600/60 Hz
	1024 x 768/60 Hz 1024 x 768/60 Hz
	1280 x 768/60 Hz 1280 x 768/60 Hz
	1280 x 1024/60 Hz 1280 x 1024/60 Hz
	1366 x 768/60 Hz 1366 x 768/60 Hz
	1400 x 1050/60 Hz 1400 x 1050/60 Hz
	1600 x 1200/60 Hz 1600 x 1200/60 Hz
	1920 x 1200/60 Hz 1920 x 1200/60 Hz
COMPONENT (4)	480/59.94i 576/50i
	480/59.94p 576/50p
	720/59.94p 720/50p
	1080/59.94i 1080/50i
	1200/59.94p 1200/50p
RGB (4)	640 x 480/60 Hz 640 x 480/60 Hz
	800 x 600/60 Hz 800 x 600/60 Hz
	1024 x 768/60 Hz 1024 x 768/60 Hz
	1280 x 1024/60 Hz 1280 x 1024/60 Hz
	1280 x 1024/60 Hz 1280 x 1024/60 Hz
	1366 x 768/60 Hz 1366 x 768/60 Hz
	1400 x 1050/60 Hz 1400 x 105O/60 Hz
	1600 x 1200/60 Hz 1600 x 1200/60 Hz
	1920 x 1200/60 Hz 1920 x 1200/60 Hz
VIDEO(Composite, 1-4)	480/59.94i 576/50i

MEMO

• The refresh rates noted above are the maximum values for the respective resolutions.
  • The input format is detected automatically.

Note, however, that you can set the input format for incoming signals at the RGB/COMPONENT input connector and the HDMI input connector for video channel 4 (p. 22).

• The input signal format for HDMI audio is 24 bits, 48 kHz, 2 channels, linear PCM.

NOTE

Internal processing by the VR-3EX is carried out at 480p (when set to NTSC) or 576p (when set to PAL).

This means that an interlaced signal that is input is internally converted to a progressive signal by the VR-3EX. The picture might appear jagged at this time. This is due to progressive conversion, and is not a malfunction.

Output Formats

The individual VIDEO OUT connectors support the output formats shown below.

Connector name(VIDEO OUT)	When set to NTSC When set to PAL
HDMI	480/59.94i 576/50i
	480/59.94p 576/50p
	720/59.94p 720/50p
	1080/59.94i 1080/50i
	1080/59.94p 1080/50p
	640 x 480/60 Hz 640 x 480/75 Hz
	800 x 600/60 Hz 800 x 600/75 Hz
	1024 x 768/60 Hz 1024 x 768/75 Hz
	1280 x 768/60 Hz 1280 x 768/75 Hz
	1280 x 1024/60 Hz 1280 x 1024/75 Hz
	1366 x 768/60 Hz 1366 x 768/75 Hz
	1400 x 1050/60 Hz 1400 x 1050/75 Hz
	1600 x 1200/60 Hz 1600 x 1200/50 Hz
	1920 x 1200/60 Hz 1920 x 1200/50 Hz
COMPONENT	480/59.94i 576/50i
	1080/59.94i 1080/50i
RGB	480/59.94p 576/50p
	720/59.94p 720/50p
	1080/59.94p 1080/50p
	640 x 480/60 Hz 640 x 480/75 Hz
	800 x 600/60 Hz 800 x 600/75 Hz
	1024 x 768 / 60 Hz 1024 x 768/75 Hz
	1280 x 768/60 Hz 1280 x 768/75 Hz
	1280 x 1024/60 Hz 1280 x 1024/75 Hz
	1366 x 768/6O Hz 1366 x 768/75 Hz
	1400 x 1050/60 Hz 1400 x 1050/75 Hz
	1600 x 1200/60 Hz 1600 x 1200/50 Hz
	1920 x 1200/ 60 Hz 1920 x 1200/50 Hz
VIDEO (Composite) 480/59.94i 576/50i
PVW OUT 480/59.94p 576/50p
USB	720 x 480 pixels/Motion JPEG	720 x 756 pixels/Motion JPEG

MEMO

• Output video from the HDMI and RGB/COMPONENT output connectors all has the same video format. Selecting individual video formats for these is not possible. To set the video format, refer to "Setting the Video Output Format" (p. 20).
• The output signal format of HDMI audio is 24 bits, 48 kHz, linear PCM.
• The output signal format of USB audio is 16 bits, 48 kHz, linear PCM.

Assigning Video Sources to Video Channels

On the VR-3EX, each video channel is provided with two or three video input connectors. You assign the video input connector carrying the incoming signal you want to use to each individual video channel.

1. Press the [IN/OUT SETUP] button.

The input/output setup screen for video is displayed.

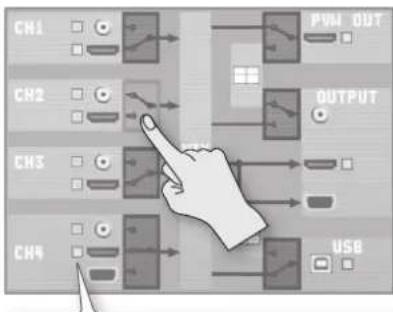

1. Touch the switch section of the video channel you want to set.

Video input indicator

This indicates the input status of the video signal. The indicators for video input connectors carrying an incoming video signal light up in orange.

* The indicator for the CH4 RGB/COMPONENT input connector is displayed only when the connector has been selected.

1. Turn the [VALUE] knob to select the video input connector.
2. Press the [IN/OUT SETUP] button to quit the setup screen.

Setting the Video Output Format

By factory default, the format of video output via the HDMI and RGB/COMPONENT output connectors is set at "AUTO" (the setting for automatic detection).

If you want to specify an output format of your choosing, change the setting to match the setting on the device receiving the output from the VR-3EX.

MEMO

• For a list of supported output formats, refer to "Output Formats" (p. 19).

• Output video from the HDMI and RGB/COMPONENT output connectors all has the same video format. Selecting individual video formats for these is not possible.

• Press the [MENU] button to display the menu screen.

• Touch

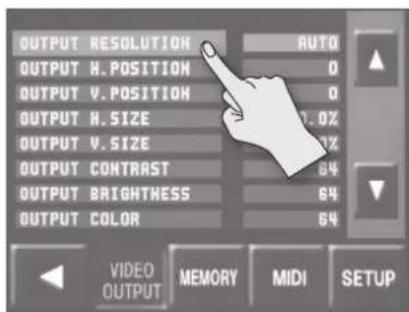

The VIDEO OUTPUT menu is displayed.

1. Touch
   .

1. Turn the [VALUE] knob to set the output format.

Set the output format to match the device receiving output from the VR-3EX.

Value		Video signal that is output
		RGB/COMPONENT connector HDMI connectors
480/576i 1080i Component			HDMI
480/576p 720p		RGB
1080p 640×480
800×600 1024×768
1280×768 1280×1024
1366×768 1400×1050
1600×1200 1920×1200
AUTO		The output format is automatically set to match the connected equipment.

1. Press the [VALUE] knob to apply the setting.
2. Press the [MENU] button twice to quit the menu screen.

Adjusting the Main Output Video

You adjust the main output video to match the equipment receiving output from the VR-3EX.

NOTE

Composite video (video output via the VIDEO output connector) cannot be adjusted.

MEMO

You can output a color bar, useful for adjusting the image quality of a display. Use [MENU] → → to set the value to "ON."

1. Press the [MENU] button to display the menu screen.
2. Touch

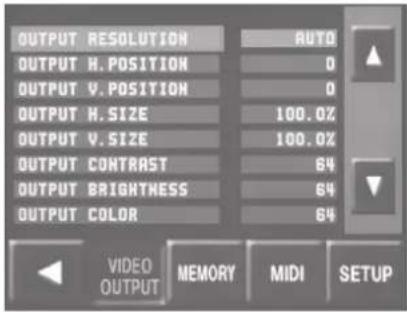

The VIDEO OUTPUT menu is displayed.

1. Adjusting the Main Output Video.

You can make the settings for the items described below.

Setting Item Explanation
OUTPUT RESOLUTION	This sets the output format. "Setting the Video Output Format" (p. 20)
OUTPUT H. POSITION	This adjusts the display position in the horizontal direction.
OUTPUT V. POSITION	This adjusts the display position in the vertical direction.
OUTPUT H. SIZE This adjusts the size in the horizontal direction.
OUTPUT V. SIZE This adjusts the size in the vertical direction.
OUTPUT CONTRAST This adjusts the contrast.
OUTPUT BRIGHTNESS This adjusts the brightness.
OUTPUT COLOR This adjusts the color.
OUTPUT COLOR SPACE	This sets the color space (system for representing colors in video) of the HDMI and RGB/ COMPONENT output connectors.
OUTPUT DVI-D/HDMI	This sets the output mode of the HDMI output connector.
OUTFADE WHITE LEVEL	This adjusts the white level during output fade (p. 26).
OUTFADE BLACK LEVEL	This adjusts the black level during output fade (p. 26).

1. Press the [MENU] button twice to quit the menu screen.

Changing the Video Output from the Video Output Connectors

You can switch the video output of the PVW OUT connector, VIDEO output connector, and USB port between the following two types.

(1) Main output video
(2) Video channels 1–4 input-video four-way split screen, etc.

When "(2) Video channels 1–4 input-video four-way split screen, etc." is used as the setting, the output video is switched as follows according to the view mode of the monitor (p. 17).

Connector	[MONITOR] buttons
	[INPUT] [OUTPUT] [IN + OUT]
PVW OUT connector	Input video is output as four-way split screen.	Input video is output as four-way split screen with the current output video overlaid.
VIDEO output connector	The same picture as on the monitor is output, according to the monitor view mode.
USB port

1. Press the [IN/OUT SETUP] button.

The input/output setup screen for video is displayed.

1. Touch the switch section for the connector you want to set (PVW OUT connector, VIDEO output connector, or USB port).

1. Turn the [VALUE] knob to select the output video.
2. Press the [IN/OUT SETUP] button to quit the setup screen.

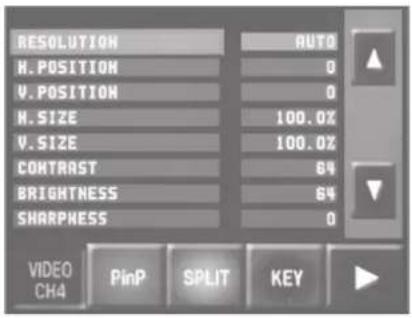

Adjusting the Input Video on Video Channel 4

Of the input video streams on video channel 4, the RGB/COMPONENT and the HDMI inputs can have their input formats and image quality adjusted manually.

NOTE

Composite video (video input via the VIDEO input connector) on video channel 4 cannot be adjusted.

1. Press the [MENU] button to display the menu screen.
2. Touch

The VIDEO CH4 menu is displayed.

1. Adjust the input video on channel 4.

You can make the settings for the items described below.

Setting item Explanation

RESOLUTION This sets the input format. (Refer to the chart at right.)

H. POSITION This adjusts the display position in the horizontal direction.

V. POSITION This adjusts the display position in the vertical direction.

H. SIZE This adjusts the size in the horizontal direction.

V. SIZE This adjusts the size in the vertical direction.

CONTRAST This adjusts the contrast.

BRIGHTNESS This adjusts the brightness.

SHARPNESS This adjusts the sharpness of outlines.

FLICK FILTER This reduces flicker.

COLOR This adjusts the color.

1. Press the [MENU] button twice to quit the menu screen.

Setting the Input Format

By factory default, the input format for video channel 4 is set at "AUTO" (setting for automatic detection).

If you want to specify an input format of your choosing, change the setting of "RESOLUTION" to match the incoming video signal.

Value		Video signal that is input (channel 4)
		RGB/COMPONENT connector HDMI connectors
480/576i 480/576p		Component	HDMI
720p 1080i
1080p
640×480 800×600		RGB
1024×768 1280×768
1280×1024	1366×768
1400×1050	1600×1200
1920×1200
AUTO		The input format is automatically detected.

Inputting Copyright-protected (HDCP) Video

To input copyright-protected (HDCP) video from a Blu-ray Disc player or the like, follow the steps described below to change the "HDCP" setting.

What's HDCP?

HDCP is copyright-protection technology that prevents unlawful copying of content by encoding the path when sending digital signals from a video playback device to a display monitor or other display equipment.

1. Press the [MENU] button to display the menu screen.
2. Touch .

The SETUP menu is displayed.

1. Touch .

1. Turn the [VALUE] knob to set the value to "ON."

Value Explanation

ON Copyright-protected (HDCP) video can be input.

OFF Copyright-protected (HDCP) video cannot be input.

1. Press the [VALUE] knob to apply the setting.
2. Press the [MENU] button twice to quit the menu screen.

Checking HDCP-compatible Equipment

When "HDCP" is set to "ON," you can use the video input/output setup screen (p. 20) to check the status of HDCP support of connected equipment.

An HDCP icon is displayed according to the status of HDCP support.

Connector HDCP support status

HDMI input Copyright-protected (HDCP) video is being input.

HDMI output An HDCP-compatible device is connected.

Output from Connectors

When "HDCP" is set to "ON," video is output only from the HDMI output connector. No video is output from the other video output connectors or the USB port.

NOTE

• When "HDCP" is set to "ON," audio is output only from the HDMI output connectors. Connect audio/video amplifiers or televisions that are HDCP-compatible.
  • Audio output to headphones is always on.

Operation of the HDCP indicator

The HDCP indicator on the top panel operates as follows, regardless of input.

Indicator	"HDCP" setting	Connection status
Lighted ON		An HDCP-compatible device is connected to the HDMI output connector.
Flashing ON		No HDCP-compatible device is connected to the HDMI output connector. Alternatively, a device that does not support HDCP is connected.
Dark OFF		—

Switching the Video

You can switch between the video inputs via channels 1 through 4.

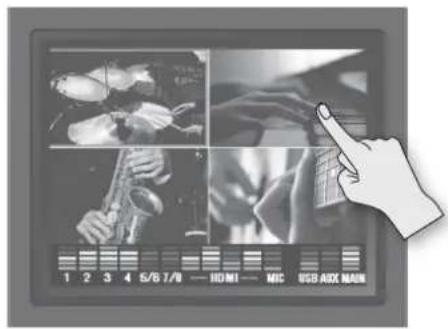

Switching by Touching the Screen

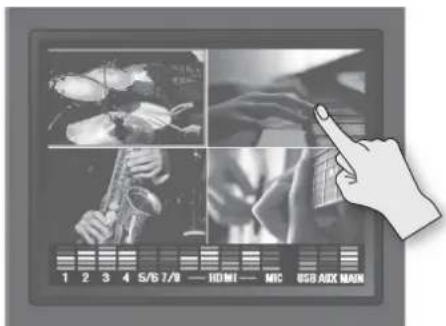

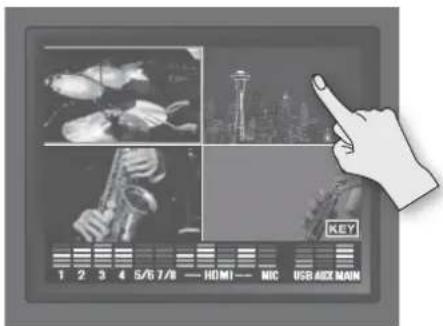

Touch the channel screen on the monitor to switch the video.

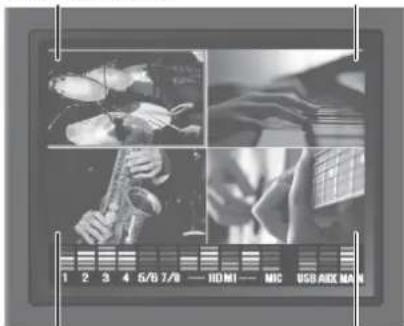

1. Press the MONITOR [INPUT] button, making the button light up.

Input from the source equipment (channels 1–4) is displayed on the monitor.

Channel 1 Channel 2

Black-and-white photo of hands holding a device, with no visible text or symbols in the main image area.

Channel 4Channel 3

1. Press any of the TRANSITION [CUT]–[WIPE] buttons to select a transition effect.

Button	Explanation
[CUT]	The picture switches instantly.
[MIX]	In this transition, as the original picture gradually disappears, the next video is overlaid and progressively grows more visible.
[WIPE]	In this transition, the original video is broken into by the next video.

- You can change mix and wipe transition patterns. For details, refer to "Using a Different Transition Pattern" (p. 25).

1. Use the [TRANSITION] knob to set the length of time for applying the video transition.

When a mix or wipe has been selected as the transition effect, you can set a video transition time in a range of 0.0 to 4.0 seconds. Adjust so that the video changes with the timing you want. When the setting is 0.0 seconds, no transition effect is applied.

1. Touch the screen for the channel you want to output.

NOTE

Don't touch the screen in two or more locations simultaneously; the locations cannot be detected correctly.

The video changes.

While the transition effect is being applied, a green border is displayed around the channel screen for the video that is going live. When the effect has completed the previous source border changes from green to red.

Switching the Video Using Buttons

Press a [VIDEO SELECT] button to switch the video.

1. Carry out the operations described in steps 1 through 3 in the previous section.

2. Press one of the VIDEO SELECT [1]–[4] buttons to select the channel you want to output.

The video changes.

While the transition effect is being applied, a green border is displayed around the channel screen for the video that is going live. When the effect has completed the previous source border changes from green to red.

Switching Automatically

You can make the video on channels 1 through 4 switch automatically.

MEMO

• Any channels carrying no video input are skipped.
- Switching the video manually is not possible while an automatic switch is in progress.

1. Press the [MENU] button to display the menu screen.
2. Touch .

The SETUP menu is display.

1. Touch .

1. Turn the [VALUE] knob to set the value to "ON."

Value Explanation
ON	Video automatic switching is turned on. The video on channels 1 through 4 is switched automatically.
OFF The video automatic switching feature is turned off.

MEMO

You can set a video transition interval in a range of 1 to 120 seconds. Use [MENU] → → to make the setting.

1. Press the [MENU] button twice to quit the menu screen.

Using a Different Transition Pattern

A variety of transition patterns are available for mix and wipe transition effects.

To use a different pattern, change the transition pattern assigned to the TRANSITION [MIX] or [WIPE] button.

MEMO

For a list of transition-pattern types, refer to "Transition Effects List" (p. 52).

1. Press the TRANSITION [SETUP] button.

The setup screen for transition effects is displayed.

1. Touch or .

1. Turn the [VALUE] knob to change the transition pattern.
2. Press the TRANSITION [SETUP] to quit the setup screen.

Applying a Fade to the Main Output Video (Output Fade)

You can apply fade to the VR-3EX's main output video.

This lets you make the main output video fade to a black (or white) picture at times when you want to suppress video output, such as during intervals in a band performance.

Applying a Fade-out

1. Turn the [OUTPUT] knob all the way clockwise or counterclockwise.

Turning the [OUTPUT] knob clockwise applies a white fade-out, and turning it counterclockwise applies a black fade-out.

Applying a fade makes the indicator above the knob flash.

Applying a Fade-in

1. Return the [OUTPUT] knob to its center position.

The indicator stops flashing and lights up steadily, and output starts.

MEMO

You can adjust the level of the fade color. Use [MENU] →

Stopping (Freezing) the Main Output Video

You can freeze the video on the main output.

When you are changing the connections between two computers during output, freezing the output before disconnecting the first computer and then ending the freeze after connecting the second computer makes it possible to change the connections without creating noise in the output.

1. Press the [FREEZE] button.

The [FREEZE] button lights up and the main output video freezes. Pressing the [FREEZE] button a second time makes the [FREEZE] button go dark, and normal output returns.

Compositing the Video

The VR-3EX provides the following four types of video composition.

Button Video composition Explanation
[PinP] Picture-in-Picture This composites video in an inset screen over a background video.
[SPLIT] Split This composites two video streams in a split screen.
[QUAD]	Quad	This composites the input pictures on video channels 1 through 4 in a single screen.
[KEY]	Key	This makes a portion of the video transparent and composites it with background video.

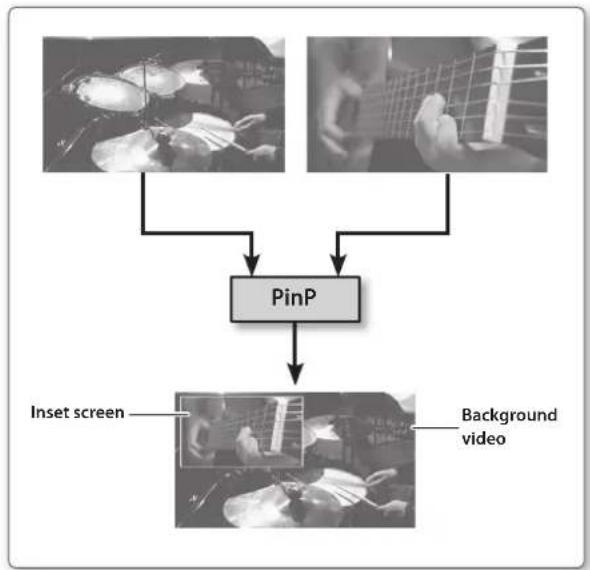

Compositing Using Picture-in-Picture (PinP)

This composites video in an inset screen over a background video.

MEMO

• The duration of the fade when the inset screen appears or disappears is the length of time set for transition effects. Use the [TRANSITION] knob to adjust the fade time.
• While compositing of the video is in progress, the video switches with cuts regardless of the selected transition effect.

1. Press the MONITOR [INPUT] button, making the button light up.

Input from the source equipment (channels 1–4) is displayed on the monitor.

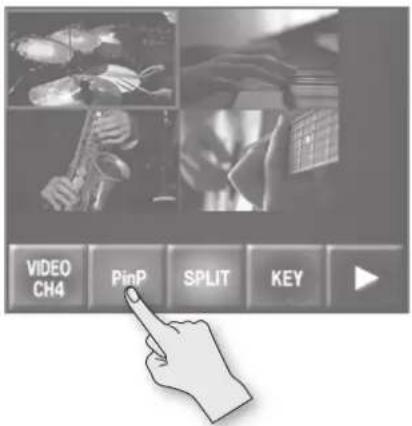

2. Press the COMPOSITION [PinP] button.

The [PinP] button lights up. At the same time, the VIDEO SELECT [1] through [4] buttons all flash in green.

3. Touch the channel screen you want to make the background video.

A red border is displayed around the selected channel screen.

4. Press one of the VIDEO INPUT SELECT [1] through [4] buttons to select the channel you want to make the inset screen.

The indicator for the selected channel lights up in green, and the video selected becomes the inset screen and is composited.

5. If you want to delete the inset screen, press the [PinP] button again.

The [PinP] button goes dark and the inset screen disappears.

Changing the Position and Size of the Inset Screen

1. Press the MONITOR [OUTPUT] button, making the button light up.

The video currently being output is displayed on the monitor.

1. Touch the inset screen and drag with your finger to move the screen.

1. Turn the [VALUE] knob to change the size of the inset screen.

Turning clockwise enlarges the screen, and turning counterclockwise reduces it.

You can enlarge or reduce the screen size in greater increments by holding down the [VALUE] knob as you turn it.

Making Detailed Settings for the Inset Screen

You can make more-detailed settings for the inset screen, such as adjusting its edges and shadows.

1. Press the [MENU] button to display the menu screen.

2. Touch to display the PinP menu.

3. Adjust the inset screen.

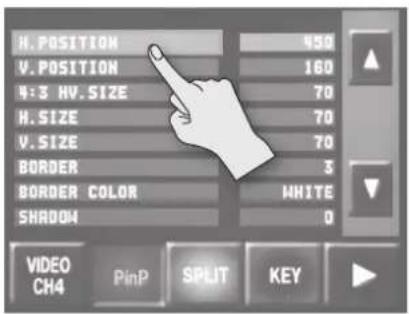

You can make the settings for the items described below.

Setting item Explanation
H. POSITION	This adjusts the position of the inset screen in the horizontal direction.
V. POSITION	This adjusts the position of the inset screen in the vertical direction.
HV. SIZE	This adjusts the size of the inset screen at a fixed aspect ratio.
H. SIZE This adjusts the horizontal size of the inset screen.
V. SIZE This adjusts the vertical size of the inset screen.
BORDER This adjusts the width of the border for the inset screen.
BORDER COLOR This sets the color of the border for the inset screen.
SHADOW	This adjusts the length of the shadow added to the inset screen.
SHADOW COLOR	This sets the color of the shadow added to the inset screen.
TRIMMING This adjusts the trimming width for the inset screen.
PREVIOUS SELECT	When set to "ON," the channel of the previously selected inset screen is selected automatically when the [PinP] button is pressed.

1. Press the [MENU] button twice to quit the menu screen.

Compositing Using Split (SPLIT)

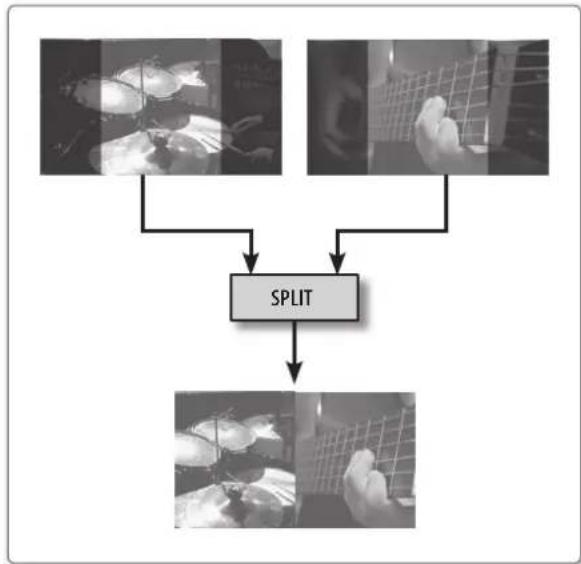

This composites two video streams in a split screen.

MEMO

While compositing of the video is in progress, the video switches with cuts regardless of the selected transition effect.

NOTE

Turning split composition on or off makes the output video briefly turn black.

Split Composition Patterns

The following four patterns are available for split composition. To change the pattern, use [MENU] → → .

Value Explanation
V. CENTER	This vertically crops the center section of the video.
H. CENTER	This horizontally crops the center section of the video.
V. STRETCH This stretches the video vertically.
H. STRETCH This stretches the video horizontally.

Compositing Using Split

1. Press the MONITOR [INPUT] button, making the button light up.

Input from the source equipment (channels 1–4) is displayed on the monitor.

1. Press the COMPOSITION [SPLIT] button.

The [SPLIT] button lights up. At the same time, the VIDEO SELECT [1] through [4] buttons all flash in green.

1. Touch the channel screen you want to display on side A.

A red border is displayed around the selected channel screen.

1. Press one of the VIDEO INPUT SELECT [1] through [4] buttons to select the channel you want to display on side B.

The indicator for the selected channel lights up in green, and the video streams you selected in steps 3 and 4 are composited.

1. To quit the split view, press the [SPLIT] button again.

The [SPLIT] button goes dark and the side-B screen disappears.

Making Detailed Settings for Split Composition

You can make more-detailed settings, such as the cropping location for the video.

1. Press the [MENU] button to display the menu screen.

2. Touch to display the SPLIT menu.

3. Make the detailed settings.

You can make the settings for the items described below.

Setting item Explanation
A-CENTER	This adjusts the center position of the video displayed on side A
B-CENTER	This adjusts the center position of the video displayed on side B.
SOFT EDGE When set to “ON,” this applies soft edges to split areas.
PATTERN This sets the split pattern (p. 28).
PREVIOUS SELECT	When set to “ON,” the previously selected channels for side A and side B are selected automatically when the [SPLIT] button is pressed.

* When "PATTERN" is set to "V. STRETCH" or "H. STRETCH," the "A-CENTER," "B-CENTER," and "SOFT EDGE" settings have no effect.

1. Press the [MENU] button twice to quit the menu screen.

Compositing Four Video Streams on a Single Screen (QUAD)

This composites the input pictures on video channels 1 through 4 in a single screen.

The four input-video pictures are composited using the same layout as when the monitor view is in input mode.

MEMO

Switching the video during video compositing is not possible.

1. Press the COMPOSITION [QUAD] button.

The [QUAD]] button lights up and the input video on video channels 1 through 4 is composited on a single screen.

1. If you want to quit the split view, press the [QUAD] button again.

The [QUAD] button goes dark and normal output returns.

Compositing Using Luminance Key/Chroma Key

This makes a portion of the video transparent and composites it with background video.

With key composition on the VR-3EX, you can take video that has added transitions and compositing and further composite it with other video, logos, or text.

For instance, you can carry out two-screen composition of live video feed from two cameras, then use key composition to add a program logo input from a computer.

Compositing Using Luminance Key

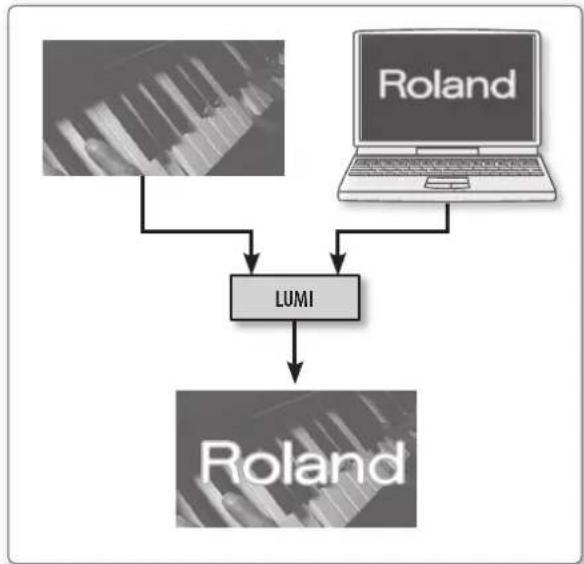

This takes video in which white or black areas are made transparent, and composite it overlaid on a background picture.

Using luminance keying lets you superimpose logos or text on a background picture, as shown below.

MEMO

• The duration of the fade during which the foreground picture and the logo or text appear or disappear is the length of time set for transition effects. Use the [TRANSITION] knob to adjust the fade time.
• You can set the extraction color for luminance keying and the degree of edge blur of the picture displayed in the foreground. Use [MENU] to make the settings.

Setting Item Explanation
LUMI KEY COLOR	This selects either “WHITE” or “BLACK” as the extraction color for luminance keying.
LUMI KEY EDGE	This adjusts the degree of edge blur for the foreground video, text, or logo.

1. Press the [MENU] button to display the menu screen.
2. Touch .

The KEY menu is displayed.

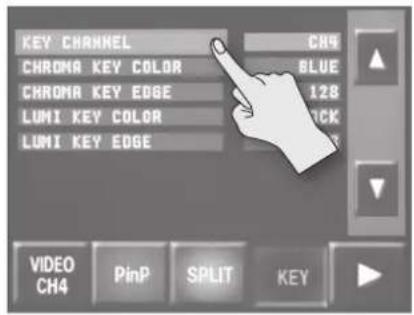

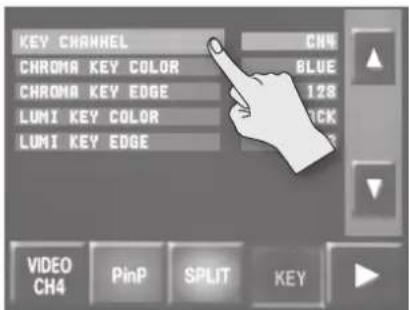

1. Touch .

1. Turn the [VALUE] knob to select the channel you want to display in the foreground (CH1 through CH4).

MEMO

- The selected channel (the channel shown in the foreground in key composition) is displayed on the channel screen with a KEY icon.

- You can disable operation of the [KEY] button by selecting the "OFF" item.

1. Press the [MENU] button twice to quit the menu screen.
2. Press the MONITOR [INPUT] button, making the button light up.

Input from the source equipment (channels 1–4) is displayed on the monitor.

1. Touch the channel screen you want to make the background video.

A red border is displayed around the selected channel screen.

8. Press the [KEY] button.

The [KEY] button lights up and the video on the channels you selected in steps 4 and 7 is composited.

9. Turn the [KEY LEVEL] knob clockwise toward "LUMI ☐" to adjust the amount of keying.

Positioning the [KEY LEVEL] knob at center completely extracts the foreground picture, leaving only the background visible.

Turn the [KEY LEVEL] knob clockwise from center to find just the right amount of keying.

10. To make the foreground video, logo, or text disappear, press the [KEY] button again.

The [KEY] button goes dark and the picture, logo, or text displayed in the foreground disappears.

Compositing Using Chroma Key

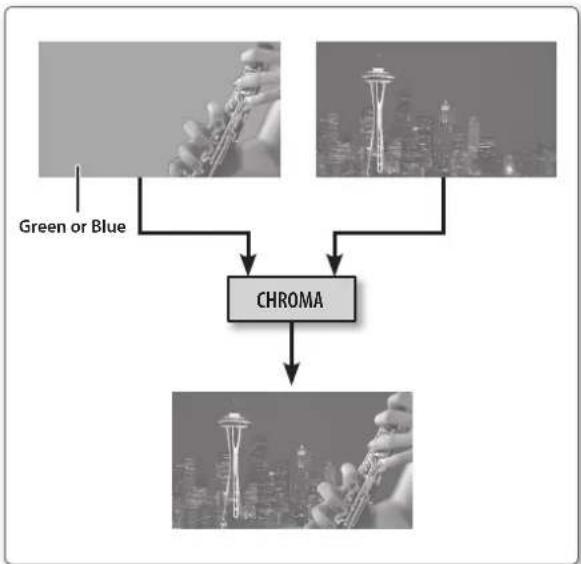

This composites video shot against a blue or green background onto a different background video.

NOTE

Chroma-key composition sometimes leaves color or small artifacts at the edges of the extracted video, but this is not a malfunction.

MEMO

• The duration of the fade during which the foreground picture appears or disappears is the length of time set for transition effects. Use the [TRANSITION] knob to adjust the fade time.
• You can set the extraction color for chroma keying and the degree of edge blur of the picture displayed in the foreground. Use [MENU] to make the settings

Setting item Explanation
CHROMA KEY COLOR	This selects either “GREEN” or “BLUE” as the extraction color for luminance keying.
CHROMA KEY EDGE	This adjusts the degree of edge blur for the foreground video.

1. Press the [MENU] button to display the menu screen.
2. Touch .

The KEY menu is displayed.

1. Touch .

1. Turn the [VALUE] knob to select the channel you want to display in the foreground (CH1 through CH4).

Select the channel shot against the blue or green background.

MEMO

- The selected channel (the channel shown in the foreground in key composition) is displayed on the channel screen with a KEY icon.

- You can disable operation of the [KEY] button by selecting the "OFF" item.

1. Press the [MENU] button twice to quit the menu screen.

2. Press the MONITOR [INPUT] button, making the button light up.

Input from the source equipment (channels 1–4) is displayed on the monitor.

1. Touch the channel screen you want to make the background video.

A red border is displayed around the selected channel screen.

1. Press the [KEY] button.

The [KEY] button lights up and the video on the channels you selected in steps 4 and 7 is composited.

1. Turn the [KEY LEVEL] knob counterclockwise toward "CHR 📁" to adjust the degree of extraction.

Positioning the [KEY LEVEL] knob at center completely extracts the foreground picture, leaving only the background visible.

Turn the [KEY LEVEL] knob clockwise from center to find just the right amount of keying.

1. To make the foreground video disappear, press the [KEY] button again.

The [KEY] button goes dark and the picture displayed in the foreground disappears.

Applying Effects to Video

You can apply effects to the main output video.

The VR-3EX has 11 types of built-in filter effects, including Afterimage and Colorize.

Selecting an Effect

1. Press the VIDEO FX [SETUP] button.

The setup screen for effects is displayed.

2. Touch or .

You can assign separate effects to the counterclockwise (FX1) and clockwise (FX2) directions of the [VIDEO FX] knob.

3. Turn the [VALUE] knob to change the effect.

Effect name Explanation
STROBE This adds a stop-motion effect to the video.
NEGATIVE This inverts the brightness and colors.
COLORIZE This adds color to the video.
FINDEDGE This extracts contours.
SILHOUETTE	This separates the video into light and dark areas, and makes the dark areas black and adds a different color to the light areas.
MONOCHROME This produces monochrome video.
SEPIA This adds a sepia effect to the video.
EMBOSS This adds a bas-relief effect to the video.
POSTERIZE This changes the gradations in brightness.
COLOR PASS	This produces monochrome video with a specific color remaining.
MULTI	This divides the video vertically or horizontally to produce multiple screens.
OFF This assigns no effect.

5. Press the VIDEO FX [SETUP] button to quit the setup screen.

Applying an Effect

NOTE

Some effects cannot be used simultaneously with certain compositing effects or transition effects.

Compositing/transition effect	Effects that cannot be used simultaneously
PinP SILHOUETTE, MULTI
SPLIT SILHOUETTE, MULTI
QUAD STROBE, SILHOUETTE, MULTI
WIPE* When Slide or Stretch is selected.	MULTI
WIPE	SILHOUETTE

1. Output the video to which you want to apply an effect (p. 24).
2. Turn the [VIDEO FX] knob to apply the effect.

Turning the [VIDEO FX] knob counterclockwise applies the "FX1" effect. Turning it clockwise applies the "FX2" effect.

1. Turn the [VIDEO FX] knob to adjust the amount of effect applied.

MEMO

The following effects are only switched on and off by the [VIDEO FX] knob.

• MONOCHROME
  • SEPIA
  • EMBOSS

• When you want to turn off an effect, return the [VIDEO FX] knob to its "OFF" position.

MEMO

When the "FX1" and "FX2" effects are set to "OFF" (no assigned effect), turning the [VIDEO FX] knob applies no effect.

This can help prevent inadvertently applying an effect to video through mistaken operation of the [VIDEO FX] knob.

Adjusting the Volume Balance of Input Audio

You can adjust the input sensitivity, sound position, and volume balance of audio input to the VR-3EX.

NOTE

Lowering the [MAIN] fader all the way results in no audio output from the output connectors assigned to the MAIN bus (p. 39).

Adjusting the Input Sensitivity

This adjusts the input sensitivity of source devices (such as microphones and audio mixers) connected to AUDIO INPUT connectors 1 through 4 on the side panel.

* Operate the knob and fader for the channel corresponding to the input connector.

1. Turn the [GAIN] knob all the way counterclockwise to turn down the input sensitivity.

1. Raise the channel fader to the bold line position (see the figure below).

1. Slowly turn the [GAIN] knob clockwise to adjust the input sensitivity.

While actually playing the incoming audio, turn the [GAIN] knob to raise the input sensitivity.

Adjust so that the SIG/PEAK indicator above the [GAIN] knob briefly lights up in red when the audio from the source equipment is at its highest volume level.

- The SIG/PEAK indicator lights up as shown below according to the audio input.

Indicator Status
Lighted green Lights up in green when audio input is detected.
Lighted red	Lights up in red when volume exceeds maximum input level. If this happens, audio output from the VR-3EX might be distorted.

Adjusting the Sound Position (Pan)

The left-right position of audio is called the sound position (pan). On the VR-3EX, you can adjust the sound position of sources connected to AUDIO INPUT jacks 1 through 4 on the side panel. This lets you broaden the sound by moving its sound position farther to the left and right at times such as when you're transmitting feed of a performance using two microphones.

1. Press the [SETUP] button for the channel whose sound position you want to adjust.

The setup screen is displayed.

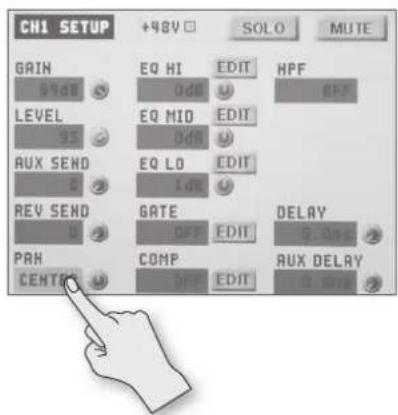

1. Touch .

1. Turn the [VALUE] knob to adjust the sound position.

2. Press the [SETUP] button to quit the setup screen.

Adjusting the Volume Balance

This adjusts the volume balance of channels 1 through 7/8, the internal microphones, and HDMI audio.

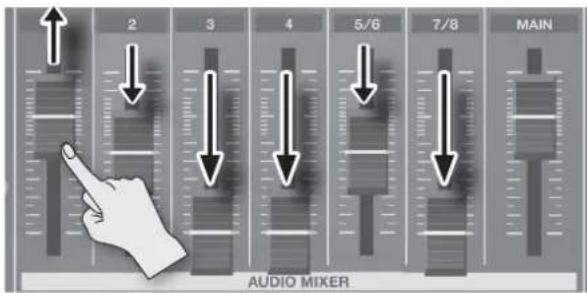

1. Raise and lower the channel faders to adjust the volume balance on the respective channels

Raise the fader for a channel you want to make more prominent, such as, for example, a presenter's microphone, and lower the faders for other channels.

On channels that have no input or that carry audio that is not for output, lower their faders all the way.

1. Turn the [INTERNAL MIC] knob to adjust the volume level of the internal microphones.

You can use the internal microphones to mix ambient sounds, such as the voices of nearby people, into the main output audio.

When you aren't using audio from the internal microphones, turn the [INTERNAL MIC] knob all the way counterclockwise to lower the volume level completely.

NOTE

The internal microphones are sensitive enough to pick up sounds of the VR-3EX's buttons and faders being operated.

1. Turn the HDMI [1] through [4] knobs to adjust the volume level of HDMI audio.

When you aren't using HDMI audio, turn the [HDMI] knobs all the way counterclockwise to lower the volume level completely.

You can check the level meter at the bottom of the screen to determine whether the volume has been adjusted to a suitable level. A level where indicators "-18" through "-6" light up when peak-volume audio is input is appropriate.

Adjusting the Volume Level of Main Output Audio

This adjusts the volume level of the main output audio.

1. See the level meter to check the volume level of the main output audio.

If OVER lights up, the volume level is excessive.

If only the indicators up to -48 or -30 light up, the volume level is insufficient.

1. Move the [MAIN] fader to adjust the volume level.

A level where indicators "-18" through "-6" light up when peak-volume audio is input is appropriate.

NOTE

If the volume level of speaker output is not suitable even after adjustment so that -18 to -6 light up, adjust the volume for the speakers or the amplifier. Using the [MAIN] fader to carry out further adjustment might result in distortion or degradation of sound quality

Adjusting the Volume Level of USB Output Audio

This adjusts the volume level of audio output from the USB port.

1. Turn the [USB LEVEL] knob.

Applying Effects to Audio

You can apply effects to audio that is input and output to adjust its sound quality.

Applying Effects to Input Audio

You can apply effects to the audio on each channel and the audio from the internal microphones and HDMI input, thereby adjusting its sound quality.

The following chart shows the effects you can use with input audio.

Input audio	Effects
	Equalizer		Gate	Compressor High	h-pass Filter
Channel 1-4	√	√	√	√
Channel 5/6, 7/8	√		—	—	—
Internal microphones	√	√	√	√
HDMI 1-4	√		—	—	—

1. Press the [SETUP] button for the input audio to which you want to apply an effect.

The setup screen is displayed.

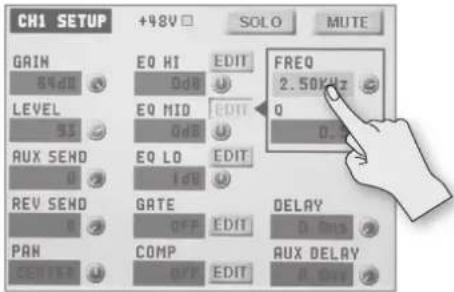

1. Touch the setting item for the effect you want to use, then use the [VALUE] knob to adjust the value.

- Touching displays a popup dialog box for detailed settings.

- For more information about effects, refer to the following section.

1. Press the [SETUP] button to quit the setup screen.

NOTE

When the popup dialog box for detailed settings is displayed, on-screen setting values do not change when the [EQ] knobs, faders or other controls are operated.

Equalizer (EQ)

This adjusts the sound quality for each frequency band.

Setting item Explanation
EQ HI This boosts	or attenuates the high band.
EQ MID This boosts	or attenuates the middle band.
EQ LO This boosts	or attenuates the low band.
FREQ (HI, MID, LO)	This adjusts the center frequency for changing sound quality.
Q (MID)	This adjusts the width of the frequency band when boosting or attenuating the middle band.

You can also use the [EQ] knobs on the top panel to adjust EQ HI, MID, and LO for channels 1 through 4.

Gate (GATE)

This removes audio that is below a specified level.

Setting item Explanation
GATE	This sets gate on or off
THRESHOLD	This sets the level used as the threshold for removing audio. Audio below the level set here is removed.
RELEASE	This adjusts the length of time until the audio is fully attenuated after audio falls below the threshold.

Compressor (COMP)

This compresses the audio.

Setting item Explanation
COMP	This sets the compressor on or off.
THRESHOLD	This sets the level used as the threshold when compressing audio. Compression is applied to audio that exceeds the level set here.
RATIO	This specifies the degree of compression applied to the audio. The state in which no compression is applied is defined as "1."
ATTACK	This sets the time until compression starts when audio exceeding the threshold is input.
RELEASE	This adjusts the length of time until compression ends after audio falls below the threshold.

High-pass Filter (HPF)

This cuts off unneeded low-band audio. The cutoff frequency is 75 Hz.

Setting item Explanation
HPF	This sets the high-pass filter on or off.

Applying Effects to Main Output Audio

You can apply effects (Reverb, Equalizer, and Mastering) to main output audio to adjust its sound quality.

1. Press MAIN [SETUP] button.

The setup screen for main audio output is displayed.

2. Touch the setting item for the effect you want to use, then use the [VALUE] knob to adjust the value.

- Touching displays a popup dialog box for detailed settings.

- For more information about effects, refer to the following section.

3. Press the MAIN [SETUP] button to quit the setup screen.

NOTE

When the popup dialog box for detailed settings is displayed, on-screen setting values do not change when the [REVERB] knob, [MAIN] fader or other controls are operated.

Equalizer (EQ)

This adjusts the sound quality for each frequency band.

Setting item Explanation
EQ HI This boosts or attenuates the high band.
EQ MID This boosts or attenuates the middle band.
EQ LO This boosts or attenuates the low band.
FREQ (HI, MID, LO)	This adjusts the center frequency for changing sound quality.
Q (MID)	This adjusts the width of the frequency band when boosting or attenuating the middle band.

Mastering (MASTERING)

This adjusts the acoustic pressure and tone quality.

Setting Item Explanation
MASTERING This switches mastering on and off.
NS	This adjusts the degree of application of the noise suppressor.
ENHANCER This adjusts the degree of application of the enhancer.
MASTER HIGH	This suppresses high-frequency distortion and adjusts the sound to have sustained tones.
MASTER MID	This suppresses midrange distortion and adjusts the sound to have distinct tones.
MASTER LO	This suppresses low-frequency distortion and adjusts the sound to have stable tones.

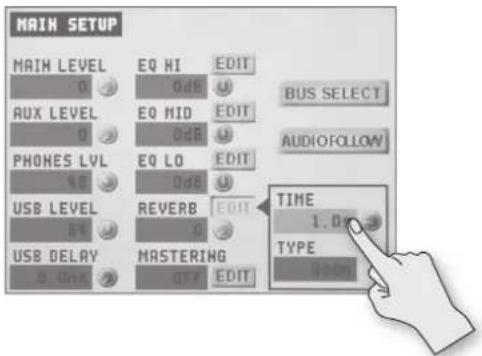

Reverb (REVERB)

This adds lingering reverberations to the audio.

You can apply reverb to the audio on channels 1 through 4 and from the internal microphones and HDMI input.

Setting Item	Explanation
REVERB	This adjusts the return level from reverb of the audio.A setting of "0" results in no reverb applied.* You can also use the [REVERB] knob on the top panel to adjust this.
TIME This adjusts the length of the reverb.
TYPE	This specifies the type of reverb (Room or Hall).Room: Produces the natural reverberations of a highly resonant room.Hall: Produces reverberations like that of a performance in a concert hall or other such space.

1. Press the [SETUP] button for the input audio to which you want to apply reverb.

The setup screen is displayed.

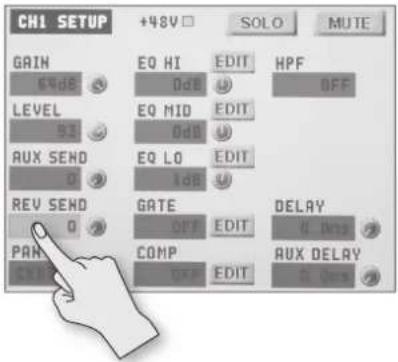

2. Touch .

3. Turn the [VALUE] knob to adjust the send level of audio to Reverb.

You can set the send level of audio to Reverb for each separate input-audio stream, which lets you adjust the degree of reverb individually.

4. Turn the [REVERB] knob to adjust the return level of audio from Reverb.

This adjusts the depth of overall reverb applied while maintaining the balance in the degree of reverb applied to the individual input-audio streams.

* Turning the [REVERB] knob all the way counterclockwise results in no reverb applied.

5. Press the [SETUP] button to quit the setup screen.

Hearing Only Specific Input Audio (Solo/Mute)

You can temporarily monitor specific input audio via headphones (Solo feature). You can also temporarily silence specific input audio (Mute feature).

MEMO

The Solo feature affects output to headphones. It has no effect on non-headphones audio output.

1. Press the [SETUP] button for the input audio on which you want to set Mute or Solo.
   The setup screen is displayed.

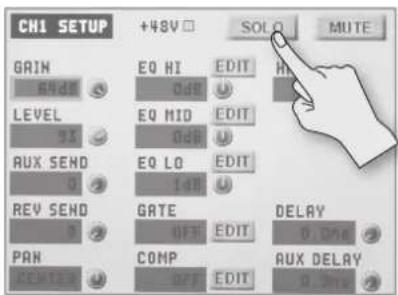

2. Touch or to switch the feature on or off. Each touch switches the feature on or off.

Setting item	Explanation
SOLO	When this is on, theindicator changes to blue. You can hear just the input audio for which this is turned on through the headphones.
MUTE	When this is on, theindicator changes to red. The input audio for which this is turned on is muted out.

1. Press the [SETUP] button to quit the setup screen.

Turning Off Solo/Mute Globally

1. Press the MAIN [SETUP] button.
   The setup screen for main audio output is displayed.

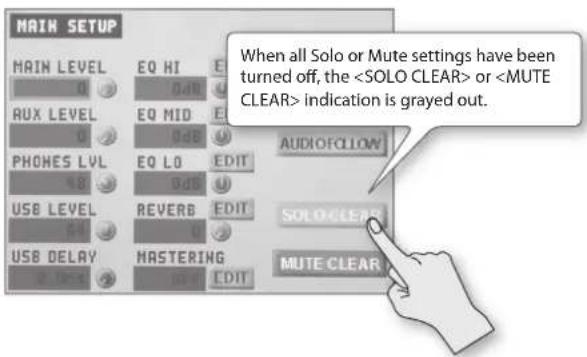

2. Touch or .

Aligning the Output Timing of Video and Audio (Lip-sync)

Normally, because video processing takes more time than audio processing, the video is output later than the audio, resulting in video and audio that are out of sync.

On the VR-3EX, you can delay output of the audio on the respective channels and from the internal microphones and HDMI input. Delaying audio output lets you output video and audio at the same timing.

1. Input the audio and video from a video camera or other source.
2. Output the video to a projector or other display device and the audio to speakers or headphones.
3. Check whether the video and audio are out of sync.
   For example, in a scene showing a drum performance, the sound of the drums being hit might be heard ahead of the video.

4. Press the [SETUP] button for the input audio to which you want to delay output of the audio.
   The setup screen is displayed

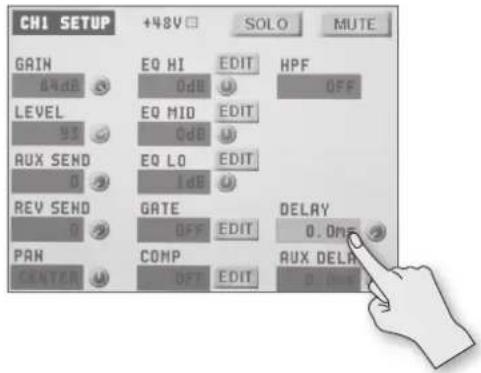

5. Touch .

- When you want to align the output timing of AUX bus audio (p. 39) and video, touch .

1. Turn the [VALUE] knob to adjust the length of the delay for the audio. Delay the audio until it is aligned with the video.

MEMO

The amount of delay you apply to the audio depends on the entire system, including the projector.

1. Press the [SETUP] button to quit the setup screen.

MEMO

You can also delay output just for the audio output via the USB port. Use MAIN [SETUP] → to adjust the delay time for the audio output via USB.

Using the AUX Bus

The VR-3EX has two built-in audio buses (a MAIN bus and an AUX bus). You can select the audio bus to output for each individual connector.

MAIN bus This receives all input audio as a group and sends it to output (main output audio).
AUX bus	This lets you selectively choose and mix the input audio to send, and sends it to output. You can output different audio than the main output audio.

For example, you can use this at a live performance venue to output a mix of all input audio (MAIN bus), and when recording or streaming a broadcast, you can use this to output just certain specific input-audio streams (AUX bus).

MEMO

- Reverb (p. 37) is not applied to audio on the AUX bus.

- You can align the timing of AUX bus audio and video. For details, refer to "Aligning the Output Timing of Video and Audio (Lip-sync)" (p. 38).

Assigning an Audio Bus to Audio Output Connectors

1. Press the MAIN [SETUP] button.

The setup screen for main audio output is displayed.

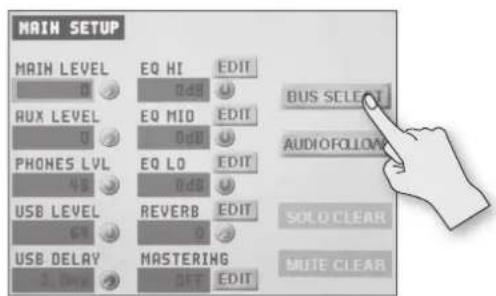

1. Touch .

The BUS SELECT screen is displayed.

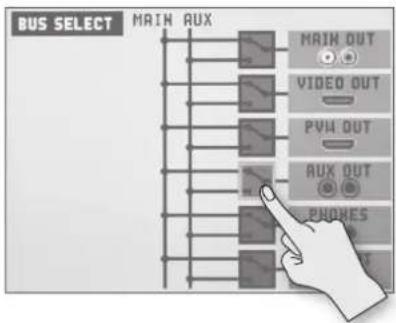

1. Touch the switch section for the output connector for which you want to change the audio bus for output

1. Turn the [VALUE] knob to select the MAIN bus or AUX bus.

2. Press MAIN [SETUP] button twice to quit the BUS SELECT screen.

Sending Audio to the AUX Bus

1. Press the [SETUP] button for the input audio you want to use on the AUX bus. The setup screen is displayed.

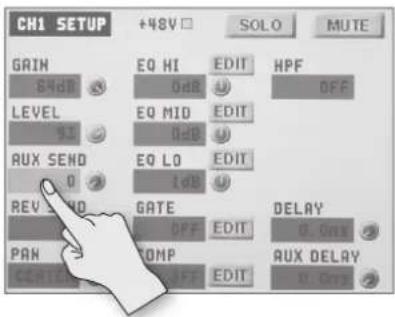

2. Touch .

1. Turn the [VALUE] knob to adjust the send level for the audio to the AUX bus.
2. Press the [SETUP] button to quit the setup screen.

Adjusting the Volume Level of Output Audio on the AUX Bus

1. Press the MAIN [SETUP] button. The setup screen for main audio output is displayed.

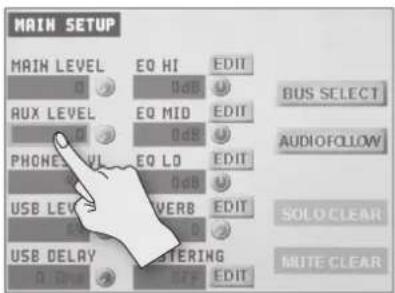

2. Touch .

1. Turn the [VALUE] knob to adjust the volume level of AUXbus output audio.
2. Press MAIN [SETUP] button to quit the setup screen.

Interlinking Audio Output to Video Switching (Audio Follow)

You can associate audio with a video switch so that when the video is switched, the specified audio alone is output automatically, and other audio is automatically muted.

NOTE

When the Audio Follow feature is on, only the switching for output and muting is performed automatically. The positions of volume-adjusting faders and knobs do not change automatically.

1. Follow the procedure in "Adjusting the Volume Balance of Input Audio" (p. 34) to adjust to the volume level you want to output.
2. Press the MAIN [SETUP] button. The setup screen for main audio output is displayed.

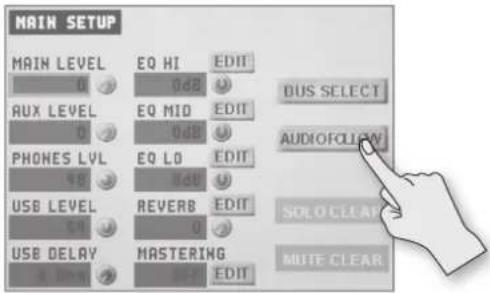

3. Touch

The AUDIO FOLLOW screen is displayed.

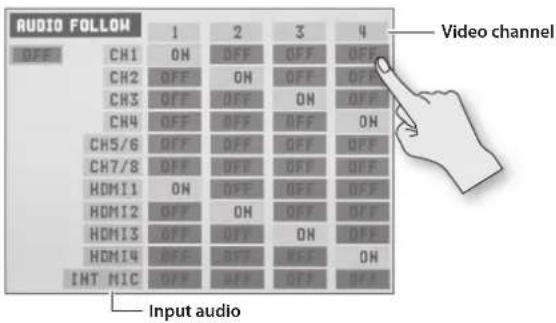

1. Touch the matrix chart and turn the [VALUE] knob to make the settings for Audio Follow.

For each video channel, specify the input audio to use with Audio Follow.

Value Explanation

ON Used by Audio Follow.

OFF Not used by Audio Follow.

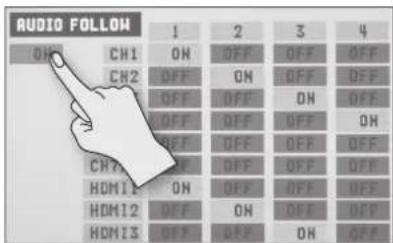

1. Touch the Audio Follow switch (Refer to the figure below.) and turn the [VALUE] knob to set the Audio Follow feature to "ON."

1. Press MAIN [SETUP] button twice to quit the AUDIO FOLLOW screen.
2. Switch the video channel (p. 24). When the video is switched, only the audio interlinked with it by Audio Follow in step 4 is output.

MEMO

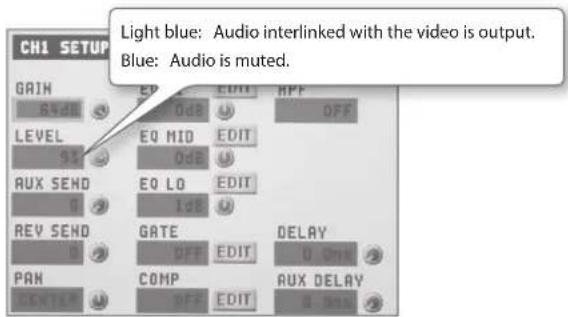

When the Audio Follow feature is on, you can check the text color of on the respective setup screens to determine what audio is output or muted.

Outputting Streaming-use Video/Audio to a Computer

NOTE

For the video and audio signals from the VR-3EX to be viewed and heard correctly on the computer, software that supports USB video class and USB audio class must be installed and set up on the computer.

1. Follow the procedure in "Making the Connection to a Computer" (p. 16) to connect the VR-3EX and a computer using a USB cable.
2. Put the VR-3EX in a state capable of outputting video or audio.

Operate the VR-3EX to get it ready to output video or audio to the computer.

1. On the computer, confirm the input from the VR-3EX.

Start a program that supports USB video class or audio class, and check the video or audio input from the VR-3EX.

If necessary, make the following settings on the VR-3EX.

• Adjust the volume balance of the input audio (p. 35).
• Adjust the volume level of the main output audio (p. 35).
• Use the [USB LEVEL] knob to adjust the volume level of audio output from the USB port (p. 35).
• Correct any deviation in the video and audio output via USB (p. 38).
• You can also delay output just for the audio output via the USB port. Use MAIN [SETUP] to adjust the delay time for the audio output via USB.
• Specify whether the audio output via the USB port is on the MAIN bus or the AUX bus (p. 39).
• Specify which of the following applies for the video output via the USB port (p. 21).

(1) Main output video
(2) Video channels 1–4 input-video four-way split screen, etc.

Output Signals

Signals in the following video and audio formats are output from the VR-3EX's USB port.

Video		Audio
When set to NTSC When set to PAL
720 x 480 pixels/Motion JPEG	720 x 756 pixels/Motion JPEG	16 bits, 48 kHz, linear PCM.

Recording Video on a Computer

You can use the dedicated Video Capture for VR software to capture (record) video and audio output from the VR-3EX on a computer connected via USB.

Video Capture for VR can be downloaded from the following Roland website.

For more information about operation methods, refer to the owner's manual included with Video Capture for VR.

https://proav.roland.com/

Operating the VR-3EX by Remote Control

You can use the VR-3EX RCS dedicated software to operate the VR-3EX by remote control from a computer connected via USB.

VR-3EX RCS can be downloaded from the Roland website mentioned above.

For more information about operation methods, refer to the owner's manual included with VR-3EX RCS.

About Remote Control Via MIDI

The VR-3EX also supports remote control by equipment compatible with MIDI Visual Control.

For information on remote control via MIDI, download and refer to the "VR-3EX Remote Control Guide" (PDF) from the Roland website mentioned above.

What's MIDI Visual Control?

MIDI Visual Control is an internationally-used recommended practice that was added to the MIDI specification so that visual expression could be linked with musical performance.

Video equipment that is compatible with MIDI Visual Control can be connected to electronic musical instruments via MIDI in order to control video equipment in tandem with a performance.

Saving/Recalling Settings (Memory)

You can take the current settings, including audio and video settings and the panel state, and save them as a single set in the VR-3EX's internal memory, for later recall and use when needed.

You can save four sets of settings in internal memory.

Saving

1. Press the [MENU] button to display the menu screen.
2. Touch . The MEMORY menu is displayed.

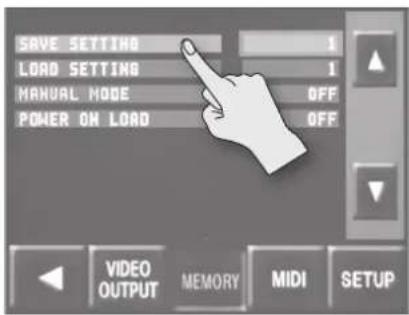

3. Touch .

1. Turn the [VALUE] knob to select the memory number (1 through 4) where you want to save the settings.
2. Press the [VALUE] knob.
3. Check the message and press the [VALUE] knob. (If you want to quit, press the [MENU] button.) The current settings are saved.
4. Press the [MENU] button twice to quit the menu screen.

MEMO

You can back up setting information from the VR-3EX to a computer connected via USB. For details, refer to "Backing Up/Restoring the VR-3EX's Settings" (p. 43).

Recalling

1. Press the [MENU] button to display the menu screen.
2. Touch . The MEMORY menu is displayed.

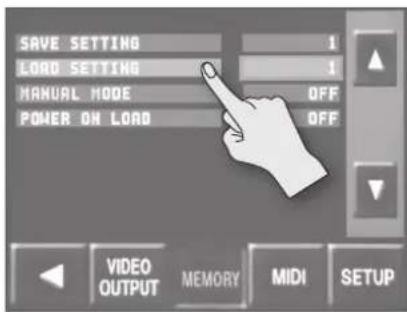

3. Touch .

1. Turn the [VALUE] knob to select the memory number (1 through 4) containing the settings you want to recall.
2. Press the [VALUE] knob.
3. Check the message and press the [VALUE] knob. (If you want to quit, press the [MENU] button.) The settings are recalled.

NOTE

Screen corruption occurs when settings are recalled

When settings in memory are recalled, corruption of the output video occurs when the input connectors are switched or the output format changes.

1. Press the [MENU] button twice to quit the menu screen.

MEMO

• You can maintain the current positions of controls without overwriting them when settings are recalled from memory. Use [MENU] → → to set the value to "ON."
• You can also recall settings from a specified memory number at startup. Use [MENU] → → to specify the memory number whose settings you want to recall.

Backing Up/Restoring the VR-3EX's Settings

You can back up the values of settings on the VR-3EX to a computer connected via USB. You can then restore the backed-up data to the VR-3EX when needed.

Preparing the Computer

To back up and restore data, the VR-3EX RCS dedicated software must be installed and set up on the computer. Download and use VR-3EX RCS from the following Roland website.

https://proav.roland.com/

* Also refer to the owner's manual included with VR-3EX RCS.

Backing Up

1. Using a USB cable, connect the VR-3EX and the computer.
2. On the computer, double-click "VR-3EXRCS.exe" to start VR-3EX RCS.

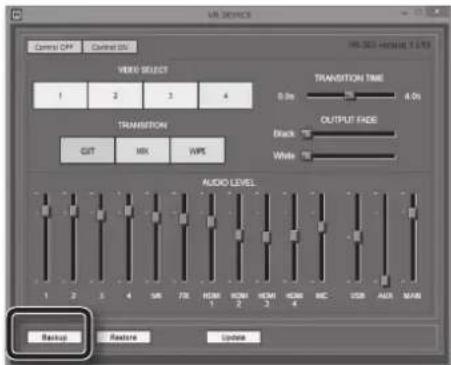

3. In VR-3EX RCS, click [Backup].

A popup dialog box appears.

1. On the VR-3EX, touch [MENU] → → .

2. Press the [VALUE] knob on the VR-3EX.

The settings on the VR-3EX are sent to the computer. When sending finishes, a popup dialog box appears.

1. In the popup dialog box, click [Save].

(To quit without backing up, click [Cancel].)

A dialog box for saving the file appears.

1. Specify the destination for saving the file and a file name (*.txt), then click [OK].

The VR-3EX's setting are backed up as a file on the computer. When the message "Complete" appears, the operation has finished.

Restoring

NOTE

Restoring backed-up data overwrites the current values of settings on the VR-3EX.

1. Using a USB cable, connect the VR-3EX and the computer.

2. On the computer, double-click "VR-3EXRCS.exe" to start VR-3EX RCS.

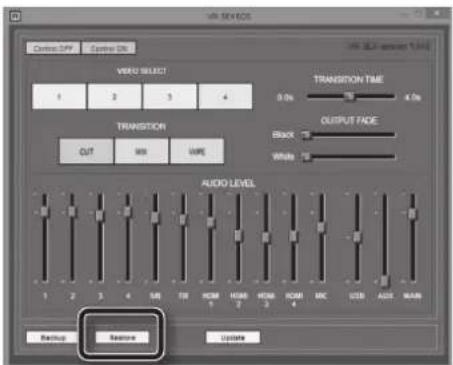

3. In VR-3EX RCS, click [Restore].

A popup dialog box appears.

1. In the popup dialog box, click [Load].

A dialog box for selecting the file appears.

1. Select the backed-up data to restore, then click [OK]. A popup dialog box appears.

1. On the VR-3EX, touch [MENU] → → .

2. Press the [VALUE] knob on the VR-3EX.

3. In the popup dialog box, click [Send]. (To quit without restoring, click [Cancel].)

The restore operation is executed. When the message "Complete" appears, the operation has finished.

Turning Off the Power Automatically (Auto Off)

Auto Off is a feature that automatically turns off the power after no operation for a specific period of time. This helps prevent wasting electrical power.

By factory default, the Auto Off function is set on. When the states described below persist for 240 minutes, the Auto Off function acts to automatically turn off the power.

• No operation (including remote-control operation) performed on the VR-3EX
• No audio or video input

To turn the Auto Off function off or on, follow the steps below to change the setting.

MEMO

When the power has been turned off by the Auto Off function, to restart, first press the [POWER] button to return it, then turn on the power.

1. Press the [MENU] button to display the menu screen.
2. Touch .

The SETUP menu is displayed.

1. Touch .

1. Turn the [VALUE] knob to set the Auto Off function on or off.

Value Explanation
ON	The Auto Off function is turned on. Power is turned off automatically.
OFF	The Auto Off function is turned off. Power is not turned off automatically.

1. Press the [MENU] button twice to quit the menu screen.

Returning Settings to the Factory-default State (Factory Reset)

You can return the values of settings on the VR-3EX to their factory defaults.

If operation that differs from what is described in the owner's manual occurs even when the steps described are followed correctly, try performing a factory reset.

NOTE

Performing a factory reset causes all settings made and values saved in memory (p. 42) to be lost.

1. Press the [MENU] button to display the menu screen.
2. Touch .

The SETUP menu is displayed.

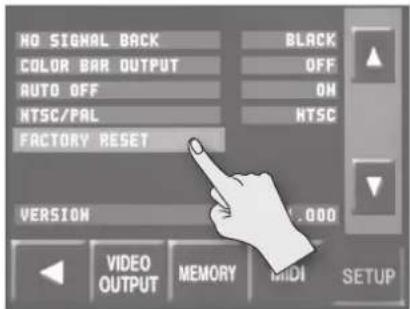

1. Touch .

1. Check the message and press the [VALUE] knob.

(If you want to quit, press the [MENU] button.)

A factory reset is executed.

1. Press the [MENU] button twice to quit the menu screen.

Switching Between the NTSC and PAL Formats

On the VR-3EX, for the video system format, you can select either the NTSC standard used in Japan and the U.S.A. or the PAL standard used in Europe and elsewhere. Switch this to suit the application.

MEMO

Changing the video system also changes the frame rate of the output format for the component video signal (p. 19).

NTSC standard: Frame rate at "59.94"

PAL standard: Frame rate at "50"

1. Press the [MENU] button to display the menu screen.
2. Touch .

The SETUP menu is displayed.

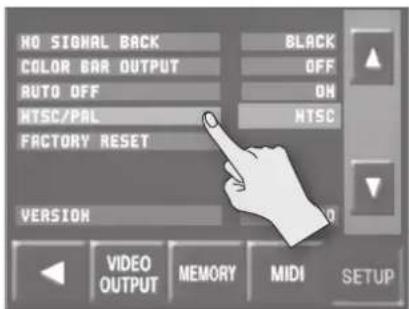

1. Touch .

1. Turn the [VALUE] knob to select "NTSC" or "PAL."
2. Press the [VALUE] knob to apply the setting.
3. Check the message, then reset the power on the VR-3EX.

Resetting the power enables the setting and switches the video system.

MEMO

When the VR-3EX starts, the setting for the video system (NTSC or PAL) is displayed on the monitor for several seconds.

Troubleshooting

If you suspect a malfunction, please check the following points. If this does not resolve the problem, contact a nearby Roland Service Center.

Problem Items to check Action Page
Video-related problems
No picture is input.	Does the equipment connected at HDMI input connectors 1 to 3 support 480p/576p output?	When attaching equipment that does not support 480p/576p output, connect it to HDMI input connector 4.	—
	Have the video sources been assigned correctly for each video channel?	Set which video source is assigned to each individual video channel. p. 20
A logo cannot be input from a computer.	Is the RGB output from the computer compatible with the input formats on the VR-3EX?	RGB signals that are not compatible with the input formats of the VR-3EX cannot be input correctly.	p. 19
Video from the computer is corrupted.	When a rapidly moving video is input from a computer, out-of-sync motion, flicker, or other picture corruption may occur.	This is called "tearing," and does not indicate an equipment malfunction.	—
No picture is output.	Is "HDCP" set to "ON"?	When "HDCP" is set to "ON," video is output only from the HDMI output connectors. No video is output from the other video output connectors or the USB port.	p. 23
	Has the [OUTPUT FADE] knob been turned clockwise or counterclockwise?	[When the [OUTPUT FADE] knob is turned clockwise or counterclockwise, fade is applied to the main output video.When outputting video, adjust the [OUTPUT FADE] knob to its center position.	p. 26
	Is the monitor connected correctly?	• HDMI output connectorsWhen outputting copyright-protected (HDCP) video, connect an HDCP-compatible monitor.• PVW OUT connectorConnect a monitor that supports 480/59.94p (when set to NTSC) or 576/50p (when set to PAL).	—
Video cannot be switched by touching the screen.	Is the menu screen displayed?	The touch screen cannot be used for switching video while the menu screen is displayed. Exit the menu screen.	—
No transition effect (Mix/Wipe) is applied.	Has the [TRANSITION] knob been turned all the way counterclockwise?	When the [TRANSITION] knob has been turned counterclockwise all the way, the transition time is set at 0.0 seconds and no transition effect is applied.Turn the [TRANSITION] knob to adjust the transition time for the video.	p. 24
Compositing a logo or text is not possible.	Is the key extraction color set correctly?	Set the extraction color (white or black) to match the background color of the logo or text.	p. 30
	Has the [KEY LEVEL] knob been turned in the correct direction?	When compositing using luminance key, turn the control clockwise (T).	p. 30
The video is reddish.The video is black and white (monochrome).	Has the [VIDEO FX] knob been turned clockwise or counterclockwise?	When the [VIDEO FX] knob has been turned clockwise or counterclockwise, an effect is applied to the main output video.Return the [VIDEO FX] knob to its "OFF" position to turn off the effect.	p. 33
A black picture is inserted into the output video.	Was key composition and split composition that inserts a black picture into output used at the same time?	During simultaneous use of key composition and split composition, a black picture is inserted into the output video when split composition is turned on or off.	—
Audio-related Problems
No audio is output.Audio volume is low.	Is the volume turned down on the connected amplifications or speakers?	Adjust to an appropriate volume level.	—
	Is the volume turned down on the VR-3EX?	Adjust each input-audio stream to an appropriate volume level. Also, use the [MAIN] fader to adjust the overall volume level.	p. 35
	Is the volume of USB output audio turned down? Turn the [USB LEVEL] knob to adjust to an appropriate volume level. p. 35
	Is "HDCP" set to "ON"?	When "HDCP" is set to "ON," audio is output only from the HDMI output connectors. Connect audio/video amplifiers or televisions that are HDCP-compatible.	p. 23
	Is there input audio for which the Solo feature is turned on?	When Solo is set for an input-audio stream, only the input audio for which Solo has been turned on is heard through headphones. Turn off the Solo feature.	p. 38
	Has the input sensitivity of audio channels 1 through 4 been turned down?	On audio channels 1 through 4, no audio is output when the input sensitivity has been turned downed, even when the faders are raised. Turn the [GAIN] knob to adjust the input sensitivity.	p. 34
	Is a condenser microphone connected?	When connecting a condenser microphone or other device requiring phantom power, set the [PHANTOM] switch to "ON."	p. 15
	Are you using connection cables that contain resistors?	If this happens, use connector cables that do not contain resistors.	—
No reverb is applied when the [REVERB] knob is turned.	Is the amount of audio sent to Reverb set at an appropriate level?	If the send level for audio to Reverb is too low, the amount of reverb effect might be difficult to discern. Adjust the send level of the audio to Reverb.	p. 37

Menu List

* The default value is printed in bold characters.

Menu Screens ([MENU] button)

Category Setting	Item Value Explanation
VIDEO CH4	Of the input video streams on video channel 4, this makes the settings for the video that is input via the RGB/COMPONENT input connector and the HDMI input connector.* Composite video (video input via the VIDEO input connector) on video channel 4 cannot be adjusted.
	RESOLUTION	AUTO, 480/576i, 480/576p, 720p, 1080i, 1080p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 102 4, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200	This sets the input format of the video input via the RGB/COMPONENT input connector and the HDMI input connector.
	H. POSITION -200-0-500 This adjusts the display position in the horizontal direction.
	V. POSITION -200-0-500 This adjusts the display position in the vertical direction.
	H. SIZE 100.0-150.0% This adjusts the size in the horizontal direction.
	V. SIZE 100.0-150.0% This adjusts the size in the vertical direction.
	CONTRAST 0-64-127 This adjusts the contrast.
	BRIGHTNESS 0-64-127 This adjusts the brightness.
	SHARPNESS 0-127 This adjusts the sharpness of outlines.
	FLICK FILTER	0-7-10	This reduces flicker.
	COLOR 0-64-127 This adjusts the color.
	* The valid ranges for "H. POSITION" and "V. POSITION" vary according to the format of the input video. Setting a value that is within an invalid range results in no change in the position of the video.
PinP	H. POSITION	0-705	This adjusts the position of the inset screen in the horizontal direction.
	V. POSITION	0-239	This adjusts the position of the inset screen in the vertical direction.
	HV. SIZE	1-220	This adjusts the size of the inset screen at a fixed aspect ratio.
	H. SIZE 1-220 This adjusts the horizontal size of the inset screen.
	V. SIZE	1-220 This adjusts the vertical size of the inset screen.
	BORDER	0-3-15	This adjusts the width of the border for the inset screen.
	BORDER COLOR	BLACK, WHITE, GRAY, RED, GREEN, BLUE, YELLOW, CYAN, MAGENTA, ORANGE, GREN-CYAN, BLUE-MGNT, YELW-GREN, BLUE-CYAN, PINK	This sets the color of the border for the inset screen.
	SHADOW	0-15	This adjusts the length of the shadow added to the inset screen.
	SHADOW COLOR	BLACK, WHITE, GRAY, RED, GREEN, BLUE, YELLOW, CYAN, MAGENTA, ORANGE, GREN-CYAN, BLUE-MGNT, YELW-GREN, BLUE-CYAN, PINK	This sets the color of the shadow added to the inset screen.
	TRIMMING	0-5-30	This adjusts the trimming width for the inset screen.
	PREVIOUS SELECT	ON, OFF	When set to "ON," the channel of the previously selected inset screen is selected automatically when the [PinP] button is pressed.
SPLIT	A-CENTER	0-50-100%	This adjusts the center position of the video displayed on side A
	B-CENTER	0-50-100%	This adjusts the center position of the video displayed on side B.
	SOFT EDGE	ON, OFF	When set to "ON," this applies soft edges to split areas.
	PATTERN	V. CENTER, H. CENTER, V. STRETCH, H. STRETCH	This sets the split pattern.
	PREVIOUS SELECT	ON, OFF	When set to "ON," the previously selected channels for side A and side B are selected automatically when the [SPLIT] button is pressed.
KEY	KEY CHANNEL	CH1-CH4, OFF	This sets the channel for key composition. When set to "OFF," operating the [KEY] button has no effect.
	CHROMA KEY COLOR	BLUE, GREEN	This sets the extraction color for chroma key.
	CHROMA KEY EDGE	0-128-255	This adjusts the degree of edge blur for chroma key.
	LUMI KEY COLOR	WHITE, BLACK	This sets the separation color for luminance key.
	LUMI KEY EDGE	0-128-255	This adjusts the degree of edge blur for luminance key.
Category Setting	item Value Explanation
VIDEO OUTPUT	This makes the settings for the video that is output via the RGB/COMPONENT output connector and the HDMI output connector.* Composite video (video output via the VIDEO output connector) cannot be adjusted.
	OUTPUT RESOLUTION	AUTO, 480/576i, 480/576p, 720p, 1080i, 1080p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200	This sets the output format for video output from the HDMI output connector and RGB/COMPONENT output connector.
	OUTPUT H. POSITION -200	-0-500 This adjusts the horizontal position of the main output video.
	OUTPUT V. POSITION	-200-0-500	This adjusts the vertical position of the main output video
	OUTPUT H. SIZE 50.0-100.0	-150.0% This adjusts the horizontal size of the main output video.
	OUTPUT V. SIZE	50.0-100.0-150.0%	This adjusts the vertical size of the main output video.
	OUTPUT CONTRAST 0-64	127 This adjusts the contrast of the main output video.
	OUTPUT BRIGHTNESS 0-64	-127 This adjusts the brightness of the main output video.
	OUTPUT COLOR 0-64-127	This adjusts the color of the main output video.
	OUTPUT COLOR SPACE	AUTO, RGB-FULL, RGB-LIMIT, YCbCr	This sets the color space (system for representing colors in video) of the HDMI and RGB/COMPONENT output connectors.
	OUTPUT DVI-D/HDMI AUTO	DVI-D, HDMI	This sets the output mode of the HDMI output connector.
	OUTFADE WHITE LEVEL	0-255	This adjusts the white level during output fade.
	OUTFADE BLACK LEVEL	0-255	This adjusts the black level during output fade.
MEMORY	SAVE SETTING	1-4	This sets the memory number of the destination for saving.
	LOAD SETTING	1-4	This sets the memory number to recall.
	MANUAL MODE ON, OFF		When set to "ON," the settings in memory are recalled while maintaining the settings for the current control positions.
	POWER ON LOAD	OFF, 1-4	Selecting a memory number (1 through 4) causes the settings at the selected memory number to be recalled at startup.
MIDI	For information on remote control via MIDI, download and refer to the "VR-3EX Remote Control Guide" (PDF) from the following Roland website.https://proav.roland.com/
SETUP	HDCP	ON, OFF	When set to "ON," copyright-protected (HDCP) video can be input.
	AUTO CHANNEL SCAN	ON, OFF	When set to "ON," channels 1 through 4 are switched automatically.
	AUTO SCAN TIME	1-5-120sec	This sets the interval time for automatic switching.
	LCD PREVIEW ASPECT	16:9, 4:3	This sets the aspect ratio of the monitor display.
	LCD BRIGHTNESS	LOW, HIGH	This sets the brightness of the monitor.
	MENU DISPLAY LEVEL	5-13-15	This adjusts the brightness of the menu display.
	BCKGND LEV - OVERLAY	1-12	This adjusts the brightness of overlaid background when the monitor view is in the in/out mode.
	LEVEL METER DISPLAY	ON, OFF	This turns display of the volume level meter on or off.
	NO SIGNAL BACK	BLACK, BLUE	This sets the color of the background during no video input.
	COLOR BAR OUTPUT	ON, OFF	When set to "ON," a color bar is output.
	AUTO OFF	ON, OFF	When set to "ON," the power to the VR-3EX is automatically turned off after 240 minutes of no operation.
	NTSC/PAL	NTSC, PAL	This switches between the NTSC and PAL standards.
	FACTORY RESET This returns the unit to its factory defaults.

Setup Screens

Audio Channels 1–4 (Audio Channel 1–4 [SETUP] Buttons)

Setting item Value	Explanation
GAIN 0-64dB This adjusts the input sensitivity.
LEVEL 0-127 This adjusts the volume level of audio channels 1 through 4.
AUX SEND 0-100-127 This adjusts the send level of audio to the AUX bus.
REV SEND 0-100-127 This adjusts the send level of audio to Reverb.
PAN LEFT-CENTER-RIGHT This adjusts the sound position (pan).
EQ HI -15-15dB This boosts or attenuates the high band.
FREQ	700Hz-8.00KHz-11.0KHz	This adjusts the center frequency when changing the sound quality in the high band.
EQ MID	-15-15dB This boosts or attenuates the middle band.
FREQ	20.0Hz-2.50KHz-10.0KHz	This adjusts the center frequency when changing the sound quality in the middle band.
Q	0.5-16.0	This adjusts the width of the frequency band when boosting or attenuating the middle band.
EQ LO -15-15dB This boosts or attenuates the low band.
FREQ	55-110-800Hz	This adjusts the center frequency when changing the sound quality in the low band.
GATE	ON, OFF	This sets gate on or off.
THRESHOLD	-50--48-0dB	This sets the level used as the threshold for removing audio. Audio below the level set here is removed.
RELEASE	30-500-5000ms	This adjusts the length of time until the gate effect ends after audio falls below the threshold.
COMP	ON, OFF	This sets the compressor on or off.
THRESHOLD	-50--16-0dB	This sets the level used as the threshold when compressing audio. Compression is applied to audio that exceeds the level set here.
RATIO	1.0:1, 1.2:1, 1.5:1, 2.0:1, 2.8:1, 4.0:1, 8.0:1, 16:1, INF:1	This specifies the degree of compression applied to the audio. The state in which no compression is applied is defined as "1."
ATTACK	0.2-50-100ms	This sets the time until compression starts when audio exceeding the threshold is input.
RELEASE	30-500-5000ms	This adjusts the length of time until compression ends after audio falls below the threshold.
HPF	ON, OFF	This sets the high-pass filter on or off.
DELAY	0.0-500.0ms	This adjusts the delay time for audio.
AUX DELAY	0.0-500.0ms	This adjusts the delay time for audio sent to the AUX bus.
SOLO ON (blue), OFF		This sets the Solo feature on or off. Only the input audio for the channel which has solo "ON" can be monitored via headphones.
MUTE	ON (red), OFF	This sets the Mute feature on or off. Input audio for which this is set to "ON" is silenced.

Audio Channels 5/6 and 7/8 (Audio Channel 5/6 and 7/8 [SETUP] Buttons)

Setting item Value	Explanation
LEVEL 0-127 This adjusts the volume level of audio channels 5/6 and 7/8.
AUX SEND	0-100-127	This adjusts the send level of audio to the AUX bus.
REV SEND 0-100-127 This adjusts the send level of audio to Reverb.
EQ HI -15-15dB This boosts or attenuates the high band.
FREQ	700Hz-8.00KHz-11.0KHz	This adjusts the center frequency when changing the sound quality in the high band.
EQ MID	-15-15dB This boosts or attenuates the middle band.
FREQ	20.0Hz-2.50KHz-10.0KHz	This adjusts the center frequency when changing the sound quality in the middle band.
Q	0.5-16.0	This adjusts the width of the frequency band when boosting or attenuating the middle band.
EQ LO -15-15dB This boosts or attenuates the low band.
FREQ	55-110-800Hz	This adjusts the center frequency when changing the sound quality in the low band.
DELAY	0.0-500.0ms	This adjusts the delay time for audio.
AUX DELAY	0.0-500.0ms	This adjusts the delay time for audio sent to the AUX bus.
SOLO ON (blue), OFF		This sets the Solo feature on or off. Only the input audio for the channel which has solo “ON” can be monitored via headphones.
MUTE	ON (red), OFF	This sets the Mute feature on or off. Input audio for which this is set to “ON” is silenced.

HDMI Audio 1-4 (HDMI [SETUP] button → / )

Setting item Value	Explanation
LEVEL 0-127 This adjusts the volume level of HDMI audio.
AUX SEND 0-100-127 This adjusts the send level of audio to the AUX bus.
REV SEND 0-100-127 This adjusts the send level of audio to Reverb.
EQ HI -15-0-15dB This boosts or attenuates the high band.
FREQ	700Hz-8.00KHz-11.0KHz	This adjusts the center frequency when changing the sound quality in the high band.
EQ MID -15-0-15dB This boosts or attenuates the middle band.
FREQ	20.0Hz-2.50KHz-10.0KHz	This adjusts the center frequency when changing the sound quality in the middle band.
Q	0.5-16.0	This adjusts the width of the frequency band when boosting or attenuating the middle band.
EQ LO -15-0-15dB This boosts or attenuates the low band.
FREQ	55-110-800Hz	This adjusts the center frequency when changing the sound quality in the low band.
DELAY	0.0-500.0ms	This adjusts the delay time for audio.
AUX DELAY	0.0-500.0ms	This adjusts the delay time for audio sent to the AUX bus.
SOLO ON (blue), OFF		This sets the Solo feature on or off. Only the input audio for the channel which has solo “ON” can be monitored via headphones.
MUTE	ON (red), OFF	This sets the Mute feature on or off. Input audio for which this is set to “ON” is silenced.

Internal Microphone (INTERNAL MIC [SETUP] button)

Setting item Value	Explanation
LEVEL 0-127 This adjusts the volume level of the internal microphones.
AUX SEND	0-127	This adjusts the send level of audio to the AUX bus.
REV SEND 0-100-127 This adjusts the send level of audio to Reverb.
EQ HI -15-0-15dB T this boosts or attenuates the high band.
FREQ	700Hz-8.00KHz-11.0KHz	This adjusts the center frequency when changing the sound quality in the high band.
EQ MID -15-0-15dB	This boosts or attenuates the middle band.
FREQ	20.0Hz-2.50KHz-10.0KHz	This adjusts the center frequency when changing the sound quality in the middle band.
Q	0.5-16.0	This adjusts the width of the frequency band when boosting or attenuating the middle band.
EQ LO -15-0-15dB T this boosts or attenuates the low band.
FREQ	55-110-800Hz	This adjusts the center frequency when changing the sound quality in the low band.
GATE	ON, OFF	This sets gate on or off.
THRESHOLD	-50--24-0dB	This sets the level used as the threshold for removing audio. Audio below the level set here is removed.
RELEASE	30-500-5000ms	This adjusts the length of time until the gate effect ends after audio falls below the threshold.
COMP	ON, OFF	This sets the compressor on or off.
THRESHOLD	-50--16-0dB	This sets the level used as the threshold when compressing audio. Compression is applied to audio that exceeds the level set here.
RATIO	1.0:1, 1.2:1, 1.5:1, 2.0:1, 2.8:1, 4.0:1, 8.0:1, 16:1, INF:1	This specifies the degree of compression applied to the audio. The state in which no compression is applied is defined as "1."
ATTACK	0.2-50-100ms	This sets the time until compression starts when audio exceeding the threshold is input.
RELEASE	30-500-5000ms	This adjusts the length of time until compression ends after audio falls below the threshold.
HPF	ON, OFF	This sets the high-pass filter on or off.
DELAY	0.0-500.0ms	This adjusts the delay time for audio.
AUX DELAY	0.0-500.0ms	This adjusts the delay time for audio sent to the AUX bus.
SOLO ON (blue), OFF		This sets the Solo feature on or off. Only the input audio for the channel which has solo "ON" can be monitored via headphones.
MUTE	ON (red), OFF	This sets the Mute feature on or off. Input audio for which this is set to "ON" is silenced.

Main Output Audio (MAIN [SETUP] button)

Setting item Value Explanation
MAIN LEVEL 0-127 This adjusts the volume level of the main output audio.
AUX LEVEL 0-127 This adjusts the volume level of audio output from the AUX bus.
PHONES LVL 0-127 This adjusts the volume of headphones connected to the PHONES jacks.
USB LEVEL -63-+63 This adjusts the volume level of audio output from the USB port.
USB DELAY 0.0-500.0ms This adjusts the delay time for audio output from the USB port.
EQ HI -15-0-15dB This boosts or attenuates the high band.
FREQ	700Hz-8.00KHz-11.0KHz	This adjusts the center frequency when changing the sound quality in the high band.
EQ MID	-15-0-15dB This boosts or attenuates the middle band.
FREQ	20.0Hz-2.50KHz-10.0KHz	This adjusts the center frequency when changing the sound quality in the middle band.
Q	0.5-16.0	This adjusts the width of the frequency band when boosting or attenuating the middle band.
EQ LO	-15-0-15dB This boosts or attenuates the low band.
FREQ	55-110-800Hz	This adjusts the center frequency when changing the sound quality in the low band.
REVERB	0-127	This adjusts the return level from reverb of the audio. A setting of "0" results in no reverb applied.
TIME	0.0-1.0-5.0s	This adjusts the length of the reverb.
TYPE	Room, Hall	This specifies the type of reverb.
MASTERING ON, OFF	This switches mastering on and off.
NS	0-127	This adjusts the degree of application of the noise suppressor.
ENHANCER	0-127	This adjusts the degree of application of the enhancer.
MASTER HIGH	0-127	This suppresses high-frequency distortion and adjusts the sound to have sustained tones.
MASTER MID	0-127	This suppresses midrange distortion and adjusts the sound to have distinct tones.
MASTER LO	0-127	This suppresses low-frequency distortion and adjusts the sound to have stable tones.
BUS SELECT	—	This displays the BUS SELECT screen (p. 39).
AUDIO FOLLOW	—	This displays the AUDIO FOLLOW screen (see below).
SOLO CLEAR	—	This clears all Solo settings.
MUTE CLEAR	—	This clears all Mute settings.

AUDIO FOLLOW Screen
AUDIO FOLLOW	ON, OFF	This sets the Audio Follow feature on or off.
(Matrix chart)	ON, OFF	This sets the input audio to use with Audio Follow for each video channel. When set to "ON," Audio Follow is applied.

Video Effects (VIDEO FX [SETUP] button)

Setting item Value Explanation
FX1	STROBE, NEGATIVE, COLORIZE, FINDEDGE,SILHOUETTE, MONOCHROME, SEPIA, EMBOSS,POSTERIZE, COLOR PASS, MULTI, OFF	This sets the effect assign to "FX1" on the [VIDEO FX] knob. When set to "OFF," no effect is assigned.
FX2	STROBE, NEGATIVE, COLORIZE, FINDEDGE,SILHOUETTE, MONOCHROME, SEPIA, EMBOSS,POSTERIZE, COLOR PASS, MULTI, OFF	This sets the effect assign to "FX2" on the [VIDEO FX] knob. When set to "OFF," no effect is assigned.

Transition Effects (TRANSITION [SETUP] button)

Setting item Value Explanation
MIX	MIX, FAM, NAM	This sets the transition pattern assigned to the TRANSITION [MIX] button.
WIPE	Wipe01-99, SWipe01-99, Slide01-26, Stretch01-26	This sets the transition pattern assigned to the TRANSITION [WIPE] button.

Transition Effects List

MIX (MIX, FAM, NAM)

Effect Explanation
MIX	In this transition, as the original picture gradually disappears, the next video is overlaid and progressively grows more visible.
FAM	This is an abbreviation of "full additive mix." The A and B luminance levels are maintained during the transition.
NAM	This is an abbreviation of "non-additive mix." Display during transition starts with areas of high luminance.

WIPE (Wipe01-99, SWipe01-99, Slide01-26, Stretch01-26)

Normal (Wipe 01-99)

Wipe01Wipe02Wipe03Wipe04Wipe05Wipe06Wipe07Wipe08

Wipe09Wipe10Wipe11Wipe12Wipe13Wipe14Wipe15Wipe16

Wipe17Wipe18Wipe19Wipe20Wipe21Wipe22Wipe23Wipe24

Wipe25 Wipe26Wipe27Wipe28Wipe29Wipe30Wipe31Wipe32

Wipe33Wipe34Wipe35Wipe36

Wipe37

Wipe38

Wipe39

Wipe40

Wipe41Wipe42Wipe43Wipe44Wipe45Wipe46Wipe47Wipe48

Wipe49Wipe50Wipe51Wipe52Wipe53Wipe54Wipe55Wipe56

Wipe57Wipe58Wipe59Wipe60Wipe61Wipe62Wipe63Wipe64

Wipe65Wipe66Wipe68Wipe69Wipe70Wipe71Wipe72

Wipe73Wipe74Wipe75Wipe76Wipe77Wipe78Wipe79Wipe80

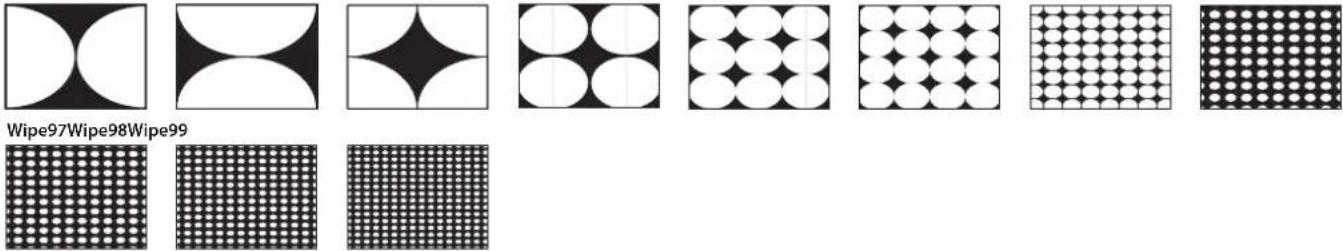

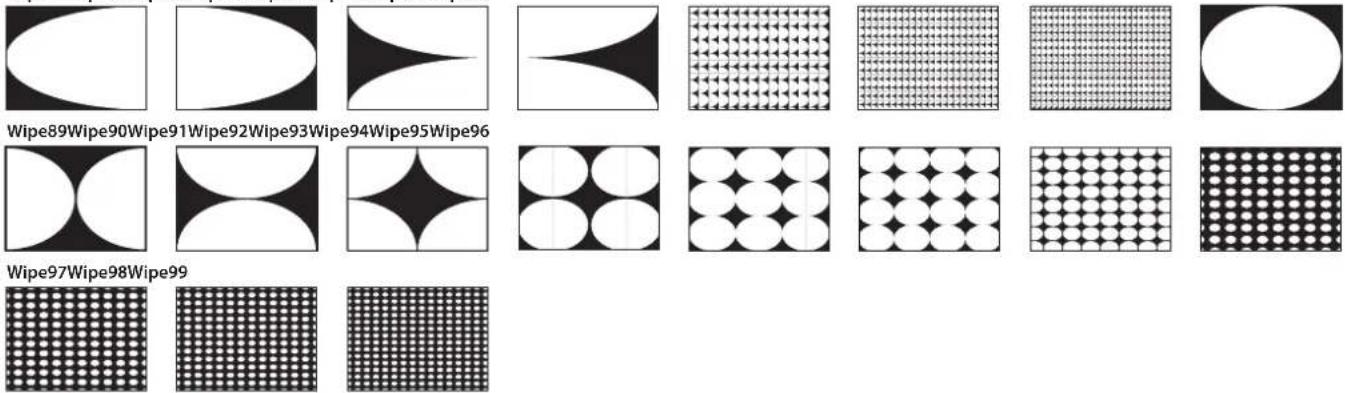

Wipe81Wipe82Wipe83Wipe84Wipe85Wipe86Wipe87Wipe88

Soft Edge (SWipe01-99)

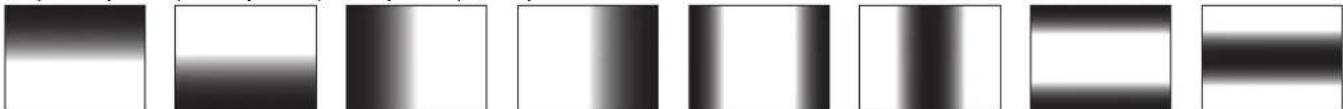

SWIpe01SWIpe02SWIpe03SWIpe04SWIpe05SWIpe06SWIpe07SWIpe08

Video Processing
4:2:2 (Y/Pb/Pr), 8 bits (Internal Processing : 480/59.94p when set to NTSC, 576/50p when set to PAL)
Audio Processing
Sampling Rate 24 bits/48 kHz
Input Formats
HDMI Video (VIDEO IN 1-3)	480/59.94p (when set to NTSC)576/50p (when set to PAL)
HDMI Video (VIDEO IN 4)	480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC)576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p (when set to PAL)
HDMI Audio (VIDEO IN 1-4)	Linear PCM, 24 bits/48 kHz, 2 ch
RGB/Component (VIDEO IN 4)	640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1400 x 1050/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz* The refresh rate is the maximum value of each resolution.* Conforms to VESA DMT Version 1.0 Revision 11.* 1920 x 1200/60 Hz : Reduced blanking
Composite Video (VIDEO IN 1-4)	NTSC, PAL
Output Formats
HDMI and RGB/ Component Video (VIDEO OUT)	480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200* The output format of HDMI and RGB/Component is always the same. When an interlaced format is selected, component signal is output from the RGB/COMPONENT connector. When a non-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector.* The refresh rates of RGB format is 60 Hz when set to NTSC, 75 Hz when set to PAL (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 75 Hz when set to PAL.)* RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.* 1920 x 1200/60 Hz : Reduced blanking
HDMI Audio (VIDEO OUT)	Linear PCM, 24 bits/48 kHz, 2 ch	Preview Audio (PVW OUT)	Linear PCM, 24 bits/48 kHz, 2 ch
Composite Video (VIDEO OUT)	NTSC, PAL USB Video		720 x 480 when set to NTSC,720 x 576 when set to PAL, Motion JPEG
Preview Video (PVW OUT)	480/59.94p when set to NTSC,576/50p when set to PAL	USB Audio Linear PCM, 16 b	ts/48 kHz, 2 ch
Input Connectors
Video	VIDEO IN 1-4 (HDMI : Type A 19 pins)VIDEO IN 4 (RGB/Component : HD DB-15 type)VIDEO IN 1-4 (Composite : RCA phono Type)
Audio	AUDIO IN 1-4 (XLR/TRS combo type, phantom power)AUDIO IN 5-6 (Stereo RCA phono type)AUDIO IN 7/8 (Stereo miniature type)MIC (Internal stereo microphones)
Phantom Power	DC 48 V (unloaded maximum), 10 mA (maximum load)* Current value per channel
Output Connectors
Video	VIDEO OUT (HDMI: Type A 19 pins)VIDEO OUT (RGB/component : HD DB-15 type)VIDEO OUT (Composite : RCA phono type)PVW OUT (HDMI: Type A 19 pins)
Audio	AUDIO OUT L,R (Stereo RCA phono type)AUX OUT L,R (Stereo 1/4-inch phone type)PHONES (1/4-inch phone type) (headphones)PHONES (Stereo miniature type) (headphones)
Other Connectors
MIDI	5 pins DIN type x 2 (IN, OUT/THRU)	USB	B type x 1 (for streaming and remote control)

Signal Level and Impedance			Display
Video	RGB/Component	Input/Output Signal Level: 1.0 Vp-p (luminance)0.7 Vp-p (chroma)Input/Output Impedance: 75 ohms	Graphic Color LCD, 320 x 240 dots, touch panel
			Video Effects
			Transition Cut, Mix (3 patterns), Wipe (250 patterns)
	Composite	Input/Output Signal Level: 1.0 Vp-pInput/Output Impedance: 75 ohms	VIDEO FX	Strobe, Negative, Colorize, Findedge, Silhouette, Monochrome, Sepia, Emboss, Posterize, Color pass, Multi (11 types)
Audio	XLR/TRS combo type	Input Signal Level: -60–+4 dBu (Maximum: +22 dBu)Input Impedance: 10 k ohms (GAIN 0–23 dB)5 k ohms (GAIN 24–64 dB)	Composition Picture in Picture, Split, Quad, Luminance Key, Chroma Key
			Others Output Fade, Freeze
	1/4-inch/RCA phono type	Input Signal Level: -10 dBu (Maximum: +8 dBu)Input Impedance: 15 k ohmsOutput Signal Level: -10 dBu (Maximum: +8 dBu)Output Impedance: 1 k ohms	Others
			Power Supply	AC adaptor
			Current Draw	2.3 A
			Dimensions	345 (W) x 203 (D) x 80 (H) mm13-5/8 (W) x 8 (D) x 3-1/8 (H) inches
	Miniature type	Input Signal Level: -15 dBu (Maximum: +3 dBu)Input Impedance: 15 k ohms	Weight excl. AC adaptor	2.3 kg5 lbs 2 oz
	Headphones	Output Signal Level: 25 mW + 25 mWOutput Impedance: 10 ohms	Accessories	AC Adaptor, Power Cord, Owner's Manual

* 0 dBu = 0.775 V rms
* This document explains the specifications of the product at the time that the document was issued. For the latest information, refer to the Roland website.

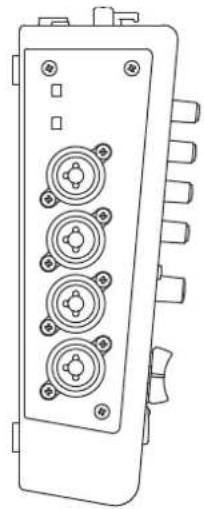

Dimensions

Unit: mm

Back panel of a computer drive showing ports, connectors, and power connections (no text or labels visible)

Line drawing of a device rear panel with four circular ports and mounting holes (no text or symbols)

A

A-CENTER....29
ATTACK 36
Audio bus 39
AUDIO FOLLOW.... 40
AUTO CHANNEL SCAN 25
AUTO OFF 44
AUTO SCAN TIME 25
AUX bus 39
AUX DELAY 38
AUX LEVEL 39
AUX SEND 39

B

Backing up 43
B-CENTER....29
BCKGND LEV-OVERLAY 17
BORDER 28
BORDER COLOR.... 28
BRIGHTNESS....22
Bus 39
BUS SELECT.... 39

C

Capturing.... 41
Channel faders 35
Chroma key.... 31
CHROMA KEY COLOR.... 31
CHROMA KEY EDGE 31
COLOR.... 22
COLOR BAR OUTPUT 21
Color space 21
COMP 36
Compositing.... 27, 28, 29, 30, 31
[COMPOSITION] buttons 27, 29
Composition patterns (Split).... 28
Composition Patterns (Split) 28
Compressor.... 36
Computer
Backing up.... 43
Connection 16
Outputting 41
Restoring 43
Supported OS.... 16
CONTRAST.... 22
Copyright-protection (HDCP).... 23
Cut 24
[CUT] button.... 24

D

DELAY 38

E

Effects (audio) 36, 37
Effects (video).... 33
ENHANCER 37
EQ....36,37
EQ HI....36,37
[EQ] knobs.... 36
EQ LO.... 36,37
EQ MID 36,37
Equalizer 36,37

F

Factory-default state 44
FACTORY RESET 44
Fade-in 26
Fade-out.... 26
Fader 35
FLICK FILTER 22
Follow (audio follow).... 40
Formats 19,20,22
[FREEZE] button.... 26
Freezing 26
FREQ 36,37
FX1, FX2.... 33

G

Gain 34
[GAIN] knob 34
GATE 36

H

HDCP 23
HDCP icon 23
HDCP indicator 23
[HDMI] knob.... 35
High-pass filter.... 36
HPF 36
H. POSITION 22, 28
H. SIZE....22, 28
HV. SIZE 28

|

Indicator.... 20, 23, 26, 34
[IN + OUT] button.... 17
In/Out mode.... 17
[IN/OUT SETUP] button.... 20
[INPUT] button.... 17
Input formats.... 19,22
Input mode.... 17
Input sensitivity.... 34
Inset screen.... 27, 28
Interlinking (audio follow) 40
[INTERNAL MIC] knob 35
Internal microphones 35

K

[KEY] button.... 31,32

KEY CHANNEL 30,31

Key composition.... 30, 31

KEY icon 30,32

[KEY LEVEL] (T) knob 31

[KEY LEVEL] ( ) knob 32

L

LCD BRIGHTNESS 17
LCD PREVIEW ASPECT 17
Level meter.... 35
LEVEL METER DISPLAY 17
Lip-sync 38
LOAD SETTING 42
LUMI KEY COLOR.... 30
LUMI KEY EDGE 30
Luminance key.... 30

M

MAIN bus.... 39
[MAIN] fader 35
Main output video 21
MANUAL MODE.... 42
MASTER HIGH.... 37
MASTERING.... 37
MASTER LO 37
MASTER MID.... 37
MEMORY
Recalling.... 42
Saving 42
[MENU] button.... 18
MENU DISPLAY LEVEL 18
Microphones 35
MIDI 41
Mix 24
MIX 25
[MIX] button 24
Mode (monitor view mode) 17
[MONITOR] buttons.... 17
MUTE.... 38
MUTE CLEAR.... 38

N

Noise suppressor.... 37
NS....37
NTSC format 45
NTSC/PAL 45

0

OS (Supported OS).... 16
OUTFADE BLACK LEVEL 21,26
OUTFADE WHITE LEVEL.... 21, 26
OUTPUT BRIGHTNESS.... 21
[OUTPUT] button 17
OUTPUT COLOR.... 21
OUTPUT COLOR SPACE 21
OUTPUT CONTRAST.... 21
OUTPUT DVI-D/HDMI 21
Output fade 26
Output formats 19,20
OUTPUT H. POSITION 21
OUTPUT H. SIZE 21
[OUTPUT] knob 26
Output mode.... 17
OUTPUT RESOLUTION.... 20
OUTPUT V. POSITION 21
OUTPUT V. SIZE 21

P

PAL format.... 45
PAN 34
PATTERN....28,29
Patterns
Split composition 28
Transition effects.... 25,52
Phantom power.... 15
[PHANTOM] switch.... 15
Picture-in-picture 27
PinP 27
[PinP] button 27
POWER ON LOAD 42
PREVIOUS SELECT.... 28, 29

Q

Q....36,37
QUAD 29
[QUAD] button.... 29

R

RATIO.... 36

RCS (VR-3EX RCS) 41, 43

Recording (capturing)...... 41

RELEASE 36

Remote control 41

Reset 44

RESOLUTION.... 22

Restoring 43

REVERB 37

[REVERB] knob 37

REV SEND.... 37

S

SAVE SETTING 42

Sensitivity 34

Settings

Factory reset 44

Input formats 22

Output formats 20

Recalling.... 42

Saving 42

SHADOW 28

SHADOW COLOR 28

SHARPNESS.... 22

SIG/PEAK indicator 34

SOFT EDGE 29

SOLO 38

SOLO CLEAR 38

Sound position 34

SPLIT 28

[SPLIT] button 29

Streaming 41

Supported OS.... 16

T

THRESHOLD 36

TIME.... 37

Timing (Lip-sync) 38

[TRANSITION] buttons.... 24

Transition effects.... 24, 52

[TRANSITION] knob 24

Transition pattern.... 25, 52

TRIMMING 28

TYPE 37

U

USB DELAY.... 38

[USB LEVEL] knob 35

V

[VALUE] knob 18

Video Capture for VR 41

Video formats.... 19

[VIDEO FX] knob 33

Video input indicator.... 20

[VIDEO SELECT] buttons 24

View mode 17

Volume 35,39

V. POSITION.... 22, 28

VR-3EX RCS 41,43

V. SIZE 22, 28

W

Wipe 24

WIPE 25

[WIPE] button.... 24

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment requires shielded interface cables in order to meet FCC class B limit.

Any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For Canada

CAN ICES-3 (B)/NMB-3 (B)

For Korea

사용자 안내문

Manufacturer: 2036-1 Nakagawa, Hosoe-cho, Kita-ku, Hamamatsu, Shizuoka 431-1304, JAPAN

ENA 23 Zone 1 nr. 1620 Klaus-Michael Kuehnelaan 13, 2440 Geel, BELGIUM Importer:

For the USA

DECLARATION OF CONFORMITY Compliance Information Statement

Model Name: VR-3EX

Type of Equipment: AV-Mixer

Responsible Party: Roland Corporation U.S.

Address: 5100 S.Eastern Avenue, Los Angeles, CA 90040-2938

Telephone : [phone]

For EU Countries

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.
