Q5 Pro - Keyboard Keychron - Free user manual and instructions

Product Type	Mechanical Keyboard
Layout	96% (1800 Compact) with Numpad
Switch Type	Hot-swappable (3-pin/5-pin compatible)
Keycap Material	Double-shot PBT, OEM Profile
Backlight	RGB per-key, 18+ lighting effects
Connectivity	Wired USB-C, Bluetooth 5.1 (up to 3 devices)
Battery	4000 mAh rechargeable lithium-polymer
Dimensions (W x D x H)	447 x 138 x 42 mm
Weight	Approx. 1.2 kg (with cable)
Programmability	Full QMK/VIA support (remap keys, macros, layers)
N-Key Rollover	Yes (NKRO over USB and Bluetooth)
Polling Rate	1000 Hz (wired), 90 Hz (Bluetooth)
Operating System Support	Windows, macOS, Linux, iOS, Android
Cable	Detachable USB-C to USB-A, braided, 1.5 m
Included Accessories	Keycap puller, switch puller, USB cable, user manual
Maintenance	Use dry cloth; avoid liquids; remove keycaps for deep cleaning
Safety	Low voltage device; no user-serviceable parts inside battery compartment
Spare Parts & Repairability	Keycaps, switches, USB cable available online; PCB repairable by experienced users
Warranty	1 year limited warranty

Frequently Asked Questions - Q5 Pro Keychron

How do I switch between wired and Bluetooth mode?

Toggle the switch on the top left of the keyboard to wired (USB icon) or Bluetooth (B icon). In Bluetooth mode, press Fn + 1/2/3 to pair with up to three devices.

How to remap keys on the Q5 Pro?

Use VIA software (available at caniusevia.com). Connect via USB, open VIA, and customize keys, macros, and layers. Bluetooth connection does not support VIA; use wired for configuration.

How do I charge the keyboard?

Connect the USB-C cable to the keyboard and a power source. The indicator light turns red while charging and green when fully charged. Full charge takes about 3 hours.

Can I use 5-pin switches?

Yes, the hot-swap sockets support both 3-pin and 5-pin mechanical switches.

How to adjust the backlight brightness?

Press Fn + W (increase) or Fn + S (decrease) for brightness. To change effects, press Fn + Q (cycle forward) or Fn + A (cycle backward).

Is the Q5 Pro compatible with macOS?

Yes, it supports both Windows and macOS out of the box. Use the included switch to toggle between the two layouts (top left switch: W for Windows, M for macOS).

How to factory reset the keyboard?

Hold Fn + J + Z for 4 seconds until the backlight flashes. This clears all customizations and returns to default settings.

What is the battery life?

With RGB off, battery lasts up to 100 hours. With RGB on medium brightness, approx 40 hours. Actual life varies by usage.

Can I use the keyboard while charging?

Yes, you can use it in wired mode while charging. In Bluetooth mode, charging is slower but still functional.

How to clean the keyboard?

Power off and disconnect. Use a keycap puller to remove keycaps. Clean with a soft, dry cloth. For stubborn dirt, use isopropyl alcohol on a cloth. Avoid liquids inside the switch sockets.

USER MANUAL Q5 Pro Keychron

Fully Assembled Version

Keyboard

1x Fully Assembled Keyboard

Including

1x Aluminum Case
1x PCB
1x PC Plate
1x Sound Absorbing Foam
1x Case Foam
14x Gaskets (10 Installed and 4 in the Box)
7 Sets x Stabilizers
1 Set x Keycaps (PBT Double-shot)
1 Set x Switches

Cable

1x Type-C to Type-C Cable

1x Type-A to Type-C Adapter

Tools

1x Switch Puller
1x Keycap Puller
1x Screwdriver
1x Hex Key

Line drawings of five different screwdriver tools (no text or symbols)

Barebone Version

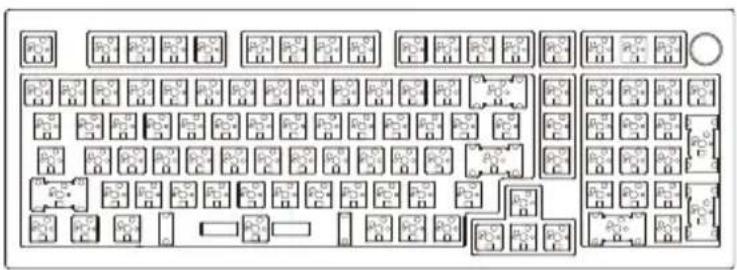

Keyboard Kit

1x Keyboard Kit (Without Keycaps & Switches)

Including

1x Aluminum Case

1x PCB

1x PC Plate

1x Sound Absorbing Foam

1x Case Foam

14x Gaskets (10 Installed and 4 in the Box)

7 Sets x Stabilizers

Cable

1x Type-C to Type-C Cable

1x Type-A to Type-C Adapter

Tools

1x Switch Puller

1x Keycap Puller

1x Screwdriver

1x Hex Key

Pure electrical circuit lines without any symbols

Line drawings of five different screwdriver tools (no text or symbols)

Quick Start Guide

If you are a Windows user, please find the appropriate keycaps in the box, then follow the instructions below to find and replace the following keycaps.

Mac / Windows

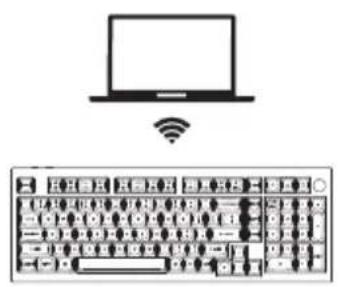

1 Connect Bluetooth

Switch toggle to Bluetooth

Press fn + 1 (for 4 seconds) and pair with device named Keychron Q5 Pro.

2 Connect Cable

3 The VIA Key Remapping Software

Please visit caniusevia.com to download the latest VIA software to remap the keys. If the VIA software cannot recognize your keyboard, please reach out to our support to get the instruction. (VIA only works when the keyboard is connected by wire to the computer.)

4 The Layers

There are four layers of key settings on the keyboard. The layer 0 and layer 1 are for the Mac system. The layer 2 and layer 3 are for the Windows system.

If your system toggle is switched to Mac, then the layer 0 will be activated.

If your system toggle is switched to Windows, then the layer 2 will be activated. Remember that if you are using it in Windows mode, please make changes to the layer 2 instead of the top layer (the layer 0). This is a common mistake people are making.

5 The Backlight

Press fn + Q to change the lighting effect

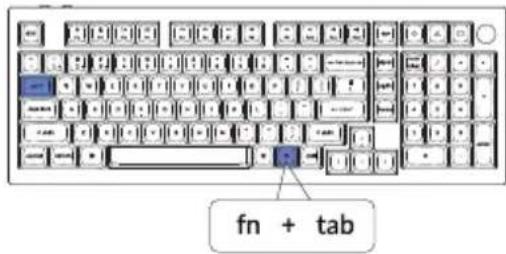

Press fn + tab to turn the backlight on/off

6 Adjust The Backlight Brightness

Press fn + W to increase the backlight brightness

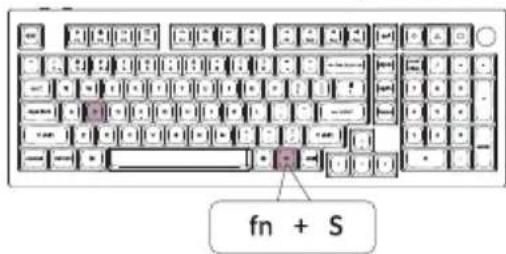

Press fn + S to decrease the backlight brightness

7 Adjust The Backlight Speed

Press fn + T to increase the light effect speed

Press fn + G to decrease the light effect speed

8 Warranty

The keyboard is highly customizable and easy to be rebuilt. If anything goes wrong with any of the keyboard components of keyboard during the warranty period, we will only replace the defective parts of the keyboard, not the whole keyboard.

9 Watch The Building Tutorial On Our Website

If you are building the keyboard for the first time, we highly recommend you watch the building tutorial video on our website first, then start building the keyboard yourself.

10 Factory Reset

Troubleshooting? Don't know what's going on with the keyboard?

① Plug in the power cable and switch the keyboard to Cable mode.
② Factory reset the keyboard by pressing fn + J + Z (for 4 seconds).
③ Download the right firmware and QMK Toolbox from our website.
④ Switch the keyboard to OFF mode and remove the space bar keycap to find the reset button on the PCB.
⑤ Hold the reset key first, then switch the keyboard to Cable mode. Release the reset key, and the keyboard will now enter DFU mode.
⑥ Flash the firmware with the QMK Toolbox.
⑦ Factory reset the keyboard again by pressing fn + J + Z (for 4 seconds).
* Step by step guide can be found on our website.

Q5 PRO BLUETOOTH MECHANICAL KEYBOARD SPECIFICATIONS

Number of keys: 101

Switch type: Mechanical

Battery: 4000mAh

Bluetooth working time (RGB): Up to 100 hours (Lowest brightness)

Charging time: Around 5 hours

Charging port: USB Type-C

Mode: Bluetooth / Wired

Bluetooth operating distance: Within 10 meters (open space)

Name of Bluetooth device: Keychron Q5 Pro

Operating environment: -10 to 50°C

Technical specifications can be subjected to change without notice, we apologize for any inconvenience caused.

Q5 PRO BLUETOOTH MECHANICAL KEYBOARD OVERVIEW

Windows

① Bluetooth indicator
② BT OFF Cable (Mode Toggle Switch)
③ Win/Android Mac/iOS (OS Toggle Switch)
④ Charging port

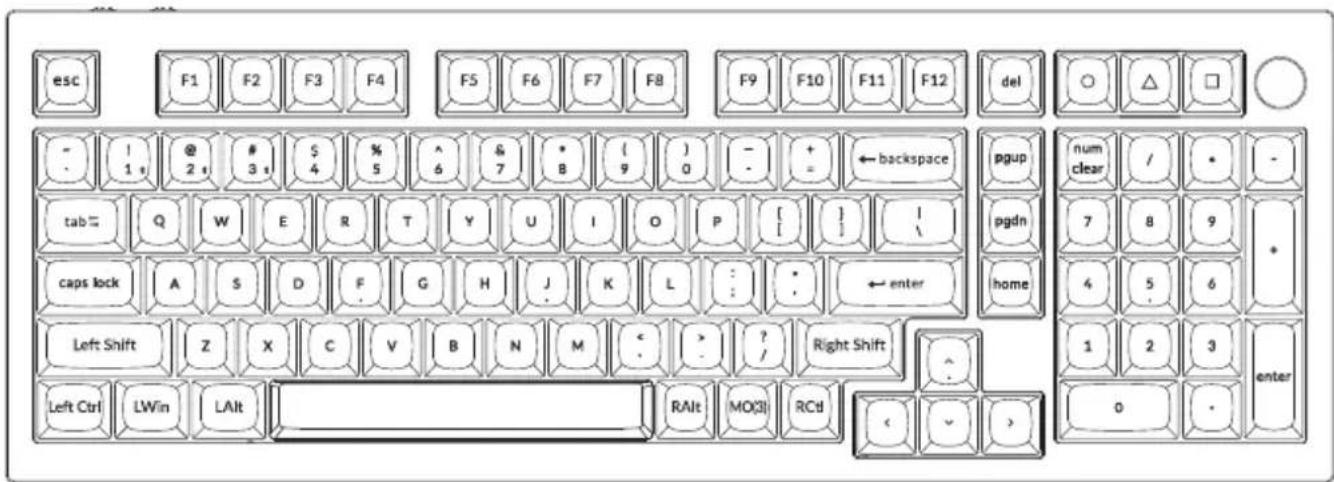

DEFAULT KEY LAYOUT:

LAYER 0: This layer will be activated when your keyboard's system toggle is switched to Mac.

LAYER 1: This layer will be activated when your keyboard's system toggle is switched to Mac and press the fn/MO(1) key.

LAYER 2: This layer will be activated when your keyboard's system toggle is switched to Windows.

LWin = Left Windows LAlt = Left Alt RAlt = Right Alt RCtl = Right Ctrl

LAYER 3: This layer will be activated when your keyboard's system toggle is switched to Windows and press the fn/MO(3) key.

KEY DESCRIPTION

Key Description		Key Description
Scr-	Screen Brightness Decrease	RGBMd-	RGB Mode Previous
Scr+	Screen Brightness Increase	Hue+	Hue Increase
Bright-	Backlight Decrease	Hue-	Hue Decrease
Bright+	Backlight Increase	RGB SPI	RGB Speed Increase
Prvs	Previous	RGB SPD	RGB Speed Decrease
Play	Play/Pause	MO(1)	Layer 1 will be activated when holding this key
Next	Next	MO(2)	Layer 2 will be activated when holding this key
Mute	Mute	MO(3)	Layer 3 will be activated when holding this key
Vol-	Volume Decrease	MO(4)	Layer 4 will be activated when holding this key
Vol+	Volume Increase	BTH1	Bluetooth Host 1
RGB Toggle	Turn Backlight on/off	BTH2	Bluetooth Host 2
RGBMd+	RGB Mode Next	BTH3	Bluetooth Host 3

LED STATUS OVERVIEW

LED Location	Function	Status
Battery indicator	Charging	Charging - Static RedFully charged - Static Green
Bluetooth indicator	Bluetooth	Pairing - Slow BlinkingPaired - Light OffSwitching - Fast Blinking

FUNCTION DESCRIPTION: CHARGING

Plug the cable into a USB port and plug the other end into the keyboard port. Charging Indicator: A red light will stay on while charging; Fully charged in around 5 hours, a green battery indicator will appear.

*The Keychron keyboard is compatible with all USB ports. Please use a 5V 1A adapter or USB 3.0 for the best performance. The Keychron Q5 Pro can be charged in Bluetooth/on/off mode.
**This product supports up to 5V charging voltage and 1A charging current. We are not responsible for any problems caused by improper charging.

BLUETOOTH / WIRED MODE (MODE TOGGLE SWITCH)

WIRED MODE

1. Switch the toggle switch to the Cable option (it only works when a USB cable is plugged in).

2. Connect our cable with your PC and keyboard.

3. Backlighting will be turned on.

*Under Wired Mode, keyboard will not enter into Battery Saver Mode.

BLUETOOTH MODE

1. Switch the toggle switch to the Bluetooth option.
2. Backlighting will be turned on.
3. Hold "fn+1" key for 4 seconds to activate Bluetooth pairing (the Bluetooth indicator fast flashes for 3 minutes to detect pairing).
4. Search for the Bluetooth device "Keychron Q5 Pro" on your device and connect it (the Bluetooth indicator goes off after successful pairing).

Note: This keyboard supports pairing up to 3 devices simultaneously via key combination "fn" + "1" / "fn" + "2" / "fn" + "3".

*The Bluetooth indicator will continue to flash for 3 minutes.

**Slow or failed connections may exist due to different Bluetooth versions, please make sure all the settings are correct.

SWITCH BLUETOOTH DEVICES

Short press key combination "fn" + "1" / "fn" + "2" / "fn" + "3" to switch to other device.

RECONNECT:

1. Switch the keyboard to the Bluetooth option to activate the keyboard.
2. The Bluetooth indicator flashes for 4 seconds and automatically pairs with the last paired device.
3. If the Bluetooth indicator is off, press any button to enter the connection again.
   * The keyboard must have been paired with the device to perform this function.

Switch the keyboard to the OFF option.

BACKLIGHT SETTING

• Short press key combination "fn" + "tab" to turn the backlight on/off.
• Short press key combination "fn" + "Q" / "fn" + "A" to switch between different types of lighting effects.

OS TOGGLE SWITCH

1 - MAC/iOS

Switch the toggle to Mac/iOS when the keyboard is connected to a Mac or iOS operating system.

2 - WINDOWS/ANDROID

Switch the toggle to Windows/Android when the keyboard is connected to a Windows or Android operating system.

*When using the Windows/Android mode, [■] [★] keys are used for "Windows" and "Alt" functions.

3 - INPUT METHOD SWITCH

For iOS:

Input method switch: Ctrl + Space

Caps Lock: Caps (Enable General>Keyboards>Hardware Keyboard>Caps Lock Language Switch)

For Android:

Input method switch: Shift + Space

NOTE: Functions of certain multimedia key may be disabled due to compatibility, versions, brands and drivers of Windows/Android OS. We also recommend not to switch OS frequently as it may impact keyboard operations.

TROUBLESHOOTING

If unable to pair keyboard to device, confirm that the device you're trying to pair with is Bluetooth-capable. If so, restart the device and try pairing it with the keyboard again.

Note: On a Windows computer, a new Bluetooth connection will sometimes require additional software updates—a process that may still be ongoing after a message appears indicating a successful completion. Wait at least 20 minutes after pairing to make sure all updates are completed before restarting the computer.

Confirm that the device is configured to accept Bluetooth connections (Windows) and supports an external keyboard (HID profile).

Go to Bluetooth Devices > Open Settings and select the following:

Allow Bluetooth devices to find this computer

Allow Bluetooth devices to connect to this computer

Alert me when a Bluetooth device wants to connect

My keyboard isn't working.

For the computer/smartphone:

Go to your device Bluetooth settings>Select the keyboard and remove/delete/unpair it.

Then restart your device.

For the keyboard:

Turn the keyboard off and back on. Then reconnect it to your device.

Bluetooth connection is interrupted even within 10 meters.

Check if the keyboard is resting on a metal surface that can interfere with the Bluetooth signal.

Third-party input tools are not compatible with the keyboard.

Due to compatibility, versions, brands and drivers of Windows/Android OS, functions of third-party input tools may be affected while using the keyboard. Please make sure your operating system and drivers are up to date.

Certain multimedia keys or function keys do not work.

Functions of certain multimedia keys may be disabled due to compatibility, versions, brands, and drivers of devices.

*Multimedia keys:

Keep the product, accessories and packaging parts out of the reach of children to prevent any accidents and choking hazards.

Always keep the product dry to avoid corrosion.

Do not expose the product to extreme temperatures below -10^(5^) or above 50^(131^) to preserve the lifespan of the keyboard.

Keychron, Inc.

Dover, DE 19901, United States

Find us at:

https://www.keychron.com

[e-mail]

f@keychron

@keychron

@keychronMK

Designed by Keychron

Made in China

Keychron

Q5 Pro 蓝牙机械键盘

旋钮版本

完全组装版本

键盘

1x 已组装成品键盘

包含

1x铝合金金属外壳

1x PCB

1x PC定位板

1x底部吸音泡棉

1x PCB与定位板夹心吸音泡棉

14x Gaskets缓冲垫(10个缓冲垫已安装

在键盘本体、4个放置在包装内部)

7套PCB卫星轴

1套键帽(PBT材质-双色注塑)

1套机械轴体

线材

1x Type-C to Type-C 接口线材

1x Type-A to Type-C 转接头

工具

1x 拔键器

1x 拔轴器

1x十字螺丝刀

1x 内六角螺丝刀

Line drawings of five different screwdriver tools (no text or symbols)

套件版本

键盘

1x 键盘本体 (不包含键帽、轴体)

包含

1x铝合金金属外壳

1x PCB

1x PC定位板

1x 底部吸音泡棉

1x PCB与定位板夹心吸音泡棉

14x Gaskets缓冲垫(10个缓冲垫已安装

在键盘本体、4个放置在包装内部)

7套PCB卫星轴

线材

1x Type-C to Type-C 接口线材

1x Type-A to Type-C 转接头

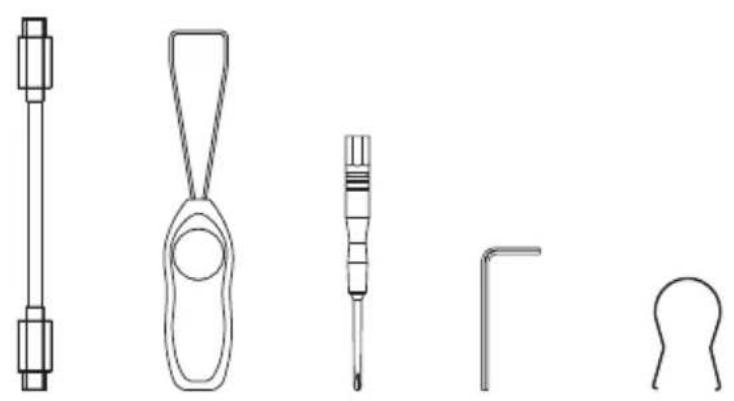

工具

1x 拔键器

1x 拔轴器

1x 十字螺丝刀

1x 内六角螺丝刀

Pure electrical circuit lines without any symbols

Line drawings of five different mechanical or dental tool packages, including a cylindrical rod, funnel-shaped clip, screwdriver, and flange (no text or symbols)

快速上手指南

把开关拨到有线模式

3 关于VIA映射软件

可以访问caniusevia.com

下载最新的VIA软件，

VIA是可以映射按键的软件。

如果VIA软件不能识别你的键盘，

请联系我们以获得技术支持。

4 关于键盘键层说明

键盘有四层按键设置。

层0和层1是用于Mac系统。

层2和层3是用于Windows系统。

Illustration of a standard computer keyboard with no visible text or symbols on the keys or background.

如果键盘出现了故障,不知道怎么办?

① 蓝牙指示灯
② BT OFF Cable
(连接模式切换开关)
③ Win/Android Mac/iOS
(OS切换开关)
④ 充电口

Q5 Pro 键盘规格

按键：101键

轴：机械轴

电池：4000mAh

LWin = Left Windows LAIt = Left Alt RAlt = Right Alt RCtl = Right Ctrl

Dover, DE 19901, United States

https://www.keychron.com

通过以下方式与我们联系

[e-mail]

f@keychron

@keychron

@keychronMK

Keychron设计

中国制造

中国区总代：渴创技术（深圳）有限公司
