KIP540 - Multimedia Cart Peerless-AV - Free user manual and instructions

Product Type	Multimedia Cart / AV Cart
Brand	Peerless-AV
Model	KIP540
Dimensions (W x D x H)	Approx. 30 x 24 x 45 inches (76 x 61 x 114 cm)
Weight	Approx. 50 lbs (22.7 kg)
Maximum Load Capacity	Up to 200 lbs (90.7 kg) evenly distributed
Power Supply	Built-in 15A power strip with surge protection
Materials	Heavy-duty steel frame, plastic shelving
Mobility	4 swivel casters (2 locking), easy roll on carpet
Mounting Options	Adjustable shelves, optional VESA mount for displays
Cable Management	Integrated cable management hooks and channels
Assembly	Requires basic assembly, tools included
Maintenance	Wipe clean with damp cloth; tighten bolts periodically
Safety Features	Locking casters, anti-tip stability, UL listed power strip
Warranty	5-year limited warranty
Spare Parts Availability	Replacement caster sets, shelves, and hardware available

Frequently Asked Questions - KIP540 Peerless-AV

What tools are needed for assembly?

All necessary tools are included in the package. You will need a Phillips screwdriver for a few steps, but basic assembly is straightforward.

What is the maximum weight capacity?

The KIP540 can safely hold up to 200 lbs (90.7 kg) when weight is evenly distributed across the shelves.

Does the cart have cable management?

Yes, it features integrated cable management hooks and channels to keep cords organized and out of the way.

Are the casters locking?

Yes, two of the four swivel casters have brakes to lock the cart in place for stability.

Can I mount a TV on this cart?

Yes, the cart is compatible with optional VESA mounting brackets (not included) for flat-panel displays up to 70 inches.

Is the power strip surge protected?

Yes, the built-in 15A power strip includes surge protection to safeguard your electronics.

How do I clean the cart?

Wipe the steel frame and plastic shelves with a damp cloth. Avoid abrasive cleaners to prevent damage.

What is the warranty period?

Peerless-AV offers a 5-year limited warranty against manufacturing defects.

Where can I find replacement parts?

Replacement casters, shelves, and hardware are available through authorized dealers or the Peerless-AV website.

Can I adjust the shelf heights?

Yes, the shelves are adjustable at multiple positions to accommodate equipment of various sizes.

USER MANUAL KIP540 Peerless-AV

Technical line drawing of a rectangular device with a vertical panel and base, showing internal structure and mounting points (no text or symbols)

WARNING

ENG - Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product must be installed onto flat, hard, level surface to prevent tipping. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. To reduce the risk of electric shock or fire, do not expose product to water or moisture. Be sure power cord is routed so that it will not be tripped on, stepped on, or pinched by heavy items. Avoid overloading electrical outlets or extension cords. Always disconnect the power cord from the power outlet when installing, servicing, or not using the product for an extended period of time. Do not block ventilation slots or fan exhaust on product. Blocking airflow could damage product. Arrange product to allow air to flow freely around product. Keep product away from direct sunlight or any source of heat. For support please call 800-4-SIGNAGE.

ENG Symbols

ENG Tools Needed for Assembly.

Simple line drawing of a screwdriver inside a circle (no text or symbols)

Simple line drawing of a hammer inside a circle (no text or symbols)

Parts List
Description Qty	KIP540 KIP540-S Part #	KIP542 KIP542-S Part #	KIP546 KIP546-S Part #	KIP547 KIP547-S Part #	KIP555 KIP555-S Part #
A kiosk BLK	1 150-P1065	150-P1068	150-P1058	150-P1060	150-P1061
kiosk SLV	150-4065	150-4068	150-4058	150-4060	150-4061
B M5 x 12mm 4 520-1027 520-1027 520-1027 520-1027
C M5 X 25mm 4 520-9543 520-9543 520-9543 520-9543
D M6 x 12mm 4 520-1128 520-1128 520-1128 520-1128
E M6 x 25mm 4 520-1208 520-1208 520-1208 520-1208
F M8 x 12mm 4 520-9571 520-9571 520-9571 520-9571
G M8 x 25mm 4 520-1031 520-1031 520-1031 520-1031
H M5/M4/M6 multi washer 4 580-1398 580-1398 580-1398 580-1398
I spacer 4 540-1059 540-1059 540-1059 540-1059
J key	2 565-0049A	565-0049A	565-0049A	565-0049A	565-0049A
K t-wrench	1 560-1718 560-1718	560-1718 560-1718	560-1718 560-1718
L plug adatper	1 N/A	N/A	N/A	N/A	N/A

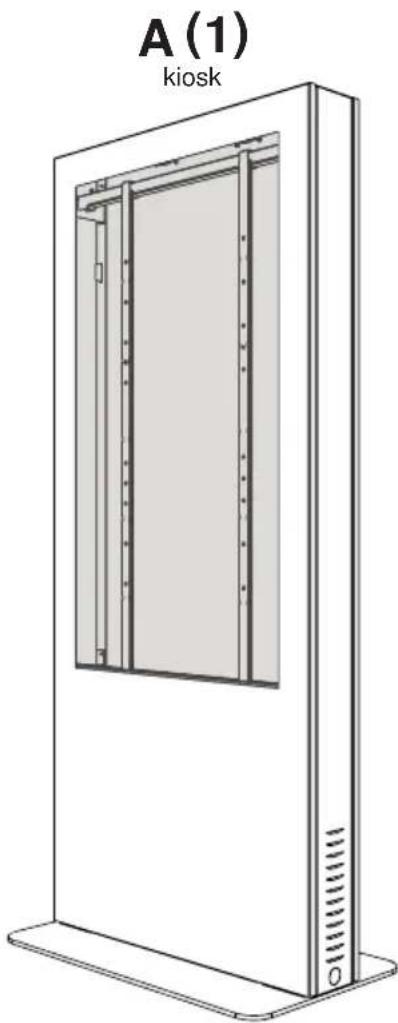

Illustration of a kiosk device with a closed panel and ventilation slots (no text or symbols on the device itself)

1

2

3

Technical line drawing of a server rack unit with mounting feet and ventilation grilles (no text or symbols)

3-1

Simple line drawing of a screwdriver inside a circle (no text or symbols)

VESA PATTERN

Technical line drawing of a mechanical assembly with no visible text or symbols

4

Technical line drawing of a server rack with internal panel and mounting bracket, showing structural details (no text or symbols)

5

6

7

9

Line drawing of a device with a vertical panel and a cable attached to a base plate (no text or symbols)

Line drawing of a vertical panel mounted on a base with a cable, showing no text or symbols

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

9a

9b

Two circular diagrams showing a hammer and screwdriver tool, no text or symbols present

9b-1

Technical line drawing of a computer tower with ventilation grilles and mounting base (no text or symbols)

9b-2

10

11

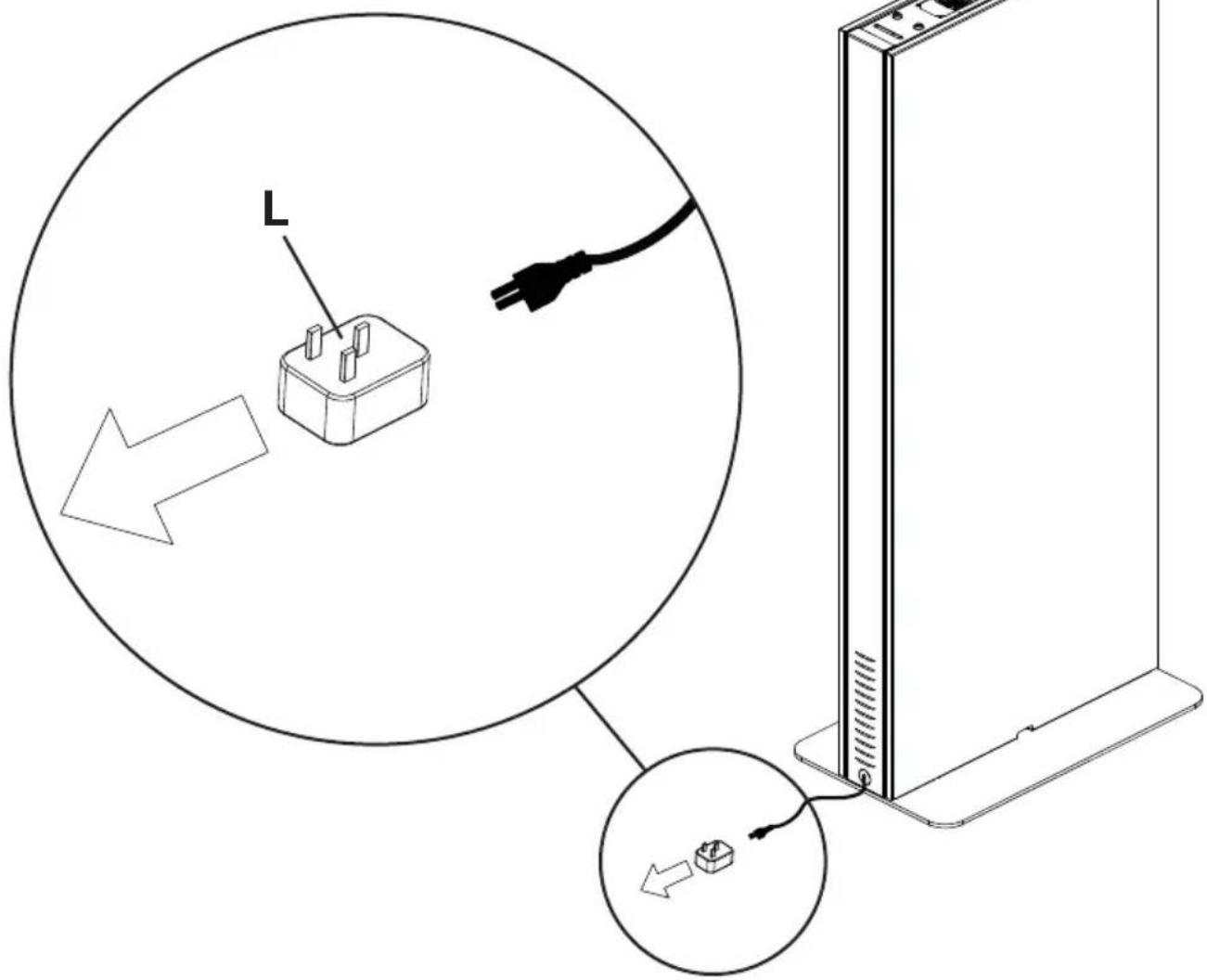

ENG For use with two pin sockets remove plug adapter (L).

LIMITED FIVE-YEAR WARRANTY

Peerless Industries, Inc. ("Peerless") warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture). At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long a implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless' instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.

In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless® product.

This warranty gives specific legal rights, and you may also have other rights which vary from state to state.

Patent Pending

peerless-AV®

Peerless-AV

2300 White Oak Circle

Aurora, IL 60502

Email: [e-mail]

Ph: [phone]

Fax: [phone]

www.peerless-av.com

© 2014, Peerless Industries, Inc.

Peerless-AV Europe

Unit 3 Watford Interchange,

Colonial Way, Watford, Herts,

WD24 4WP, United Kingdom

Customer Care

44 (0) 1923 200 100

www.peerless-av.com

© 2014, Peerless Industries, Inc.
