RIV3CL9G - Range hood Robinhood - Free user manual and instructions

Product Type	Range Hood
Brand	Robinhood
Model	RIV3CL9G
Category	Under-cabinet range hood
Width	90 cm (36 in)
Depth	50 cm (20 in)
Height	15 cm (6 in)
Weight	15 kg (33 lbs)
Power Supply	220-240 V ~ 50 Hz
Motor Power	200 W
Extraction Rate (max)	600 m³/h
Noise Level (max)	65 dB(A)
Filter Type	Aluminum grease filter
Number of Speeds	3
Lighting	2 x 1.5 W LED
Control Type	Push buttons
Ducted/Recirculating	Ducted (optional recirculation with charcoal filter)
Energy Class	A+
Annual Energy Consumption	30 kWh/a
Grease Filter Cleaning	Monthly in dishwasher or by hand
Charcoal Filter Replacement	Every 3-6 months (if recirculating)
Safety Features	Thermal safety cut-off
Warranty	2 years

Frequently Asked Questions - RIV3CL9G Robinhood

How do I install the Robinhood RIV3CL9G range hood?

Install the hood above your cooktop at a height of 65-75 cm for electric hobs or 75-85 cm for gas hobs. Secure it to the cabinet with screws provided. Connect the ducting for exhaust or use the recirculation kit.

How do I clean the grease filter?

Remove the aluminum grease filter and wash it monthly with warm water and mild detergent, or in the dishwasher at low temperature. Dry thoroughly before reinstalling.

How often should I replace the charcoal filter?

If used in recirculation mode, replace the charcoal filter every 3 to 6 months, depending on usage. A saturated filter reduces efficiency.

Why is my range hood noisy?

Noise may come from blocked filters, loose ductwork, or a faulty motor. Ensure filters are clean, ductwork is secure, and if noise persists, contact customer service.

Can I use the hood without ducting?

Yes, the hood can be used in recirculation mode with an optional charcoal filter (sold separately). The air is filtered and returned to the kitchen.

How do I replace the LED bulbs?

The LED lights are integrated and not user-replaceable. Contact Robinhood service for assistance if the lights fail.

What does the thermal safety cut-off do?

The thermal safety cut-off automatically turns off the motor if it overheats, preventing damage or fire hazards.

How do I reset the filter cleaning indicator?

After cleaning the filters, press and hold the speed button for 3 seconds until the indicator light turns off.

What is the maximum extraction rate?

The maximum extraction rate is 600 m³/h, suitable for medium to large kitchens.

Where can I purchase spare parts or accessories?

Spare parts like filters and charcoal filters are available from Robinhood authorized dealers or online. Check the brand's official website for compatible accessories.

USER MANUAL RIV3CL9G Robinhood

Description: ROBINHOOD ISLAND CANOPY CURVED GLASS 90CM

Model Numbers: RIV3CL9G

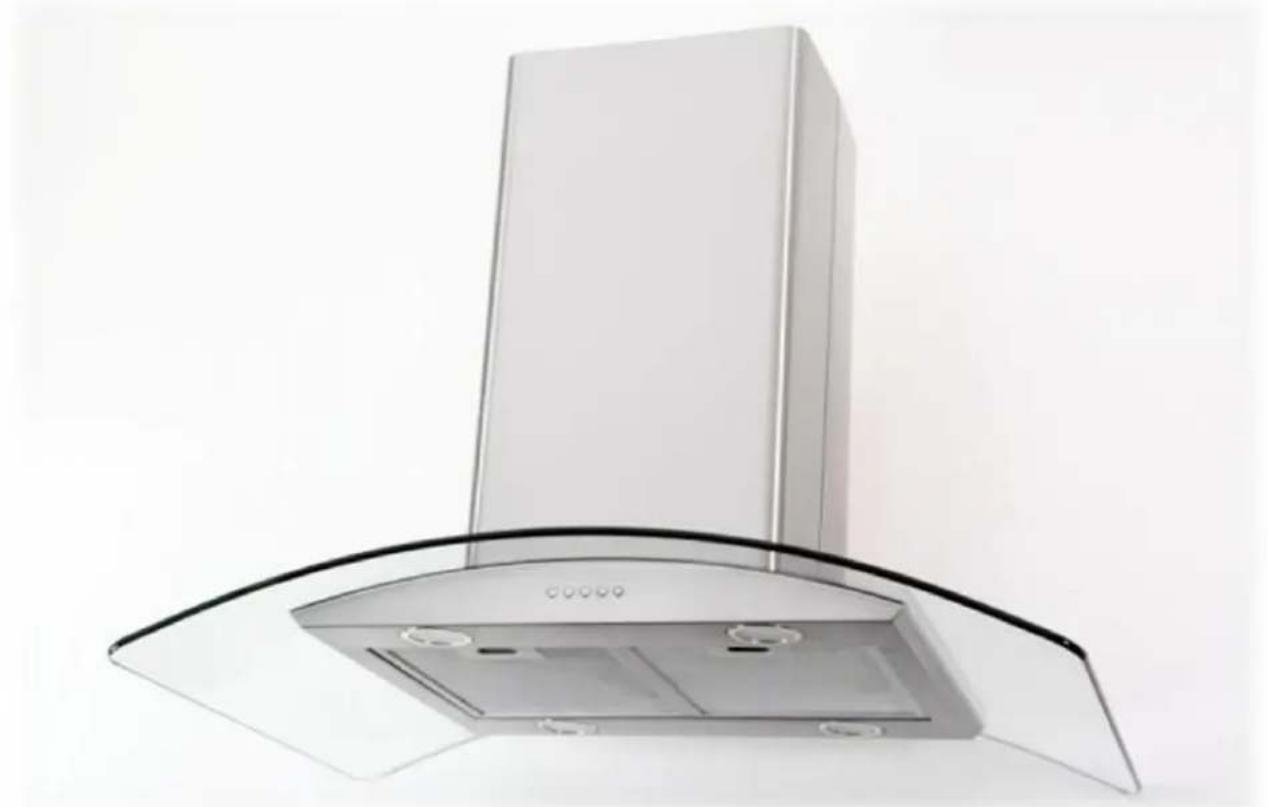

Exterior view of a modern stainless steel kitchen range hood with ventilation duct and mounting flange (no text or symbols visible)

Product may vary slightly from the picture

Thank you for purchasing a quality Robinhood rangehood. Robinhood has a high standard of quality control and every rangehood is tested and approved before it leaves the factory.

Important:

Please read the entire instructions before installing the rangehood, always switch power off prior to installation. All electrical work must be done by a registered electrician in accordance with local and national electrical codes as applicable. For your safety, this product must be earthed.

The power socket must be accessible and enable the end user to isolate the rangehood from the power for the purpose of internal cleaning or maintenance.

A power outlet should be within 1500mm of the power cord exit from the rangehood.

The canopy hood is not intended for use by persons (including children) with reduced physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

Children should be supervised to ensure that they do not play with the appliance.

There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.

There is a fire risk if cleaning is not carried out in accordance with the instructions. You must read the details concerning the method and frequency of cleaning.

Do not flambé under the rangehood.

Exhaust air must not be discharged into an existing flue which is used for exhausting fumes from appliances burning gas or other fuels.

The minimum distance between the hob surface and the lowest part of the rangehood is 600mm. This distance shall be at least 650mm, if the rangehood is installed over a gas hob. If the instructions for the gas hob specify a greater distance, this has to be taken into account.

Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air is fulfilled. If re-circulating, ensure that the side outlet grilles on the upper chimney are not obstructed. Even a partial obstruction will restrict the efficiency of the rangehood.

Stainless steel is very easily damaged during installation if abraded or knocked by tools. Protect the rangehood with the cardboard box or plastic bag during installation.

Check the contents of the packaging, check all electrical functions of the canopy before installation. Canopy is heavy. Please ensure adequate care when installing to prevent personal injury.

CAUTION: Accessible parts may become hot when used with cooking appliances

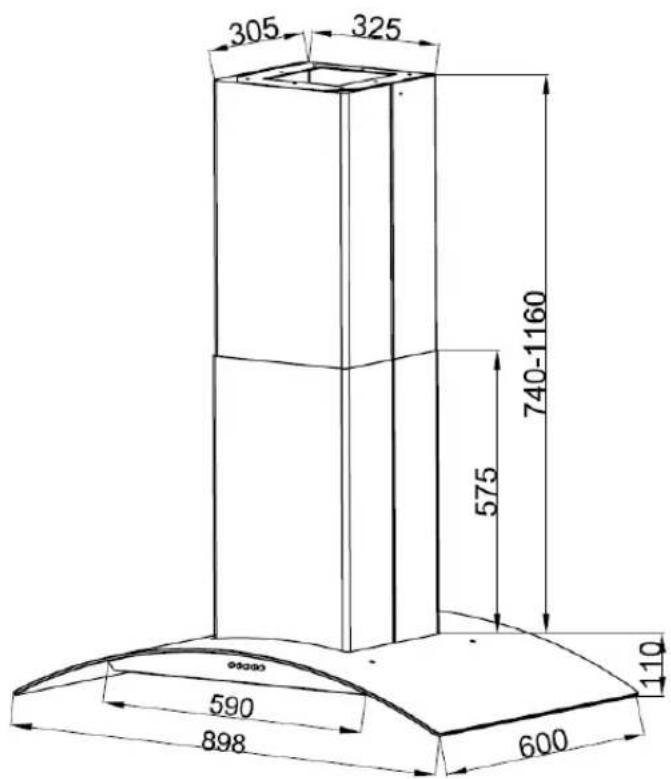

•The canopy hood is designed for 2400mm or 2700mm ceilings.
•The chimney is telescopic and is designed for hood installations between 650 to 750mm above the cooking surface.
- Ascertain the desired installation height of the canopy hood.
- Any installation above 750mm will compromise the extraction performance.
•The air outlet from the motor requires 150mm round ducting which requires 170mm diameter hole in the ceiling.

A=650mm(electric cook top) min

A=650mm(gas cook top) min

Contents of packaging: Typical equipment required:

1 x rangehood electric drill and screwdriver
1 x packet of fasteners tape measure and spirit level
2 x chimney pieces (upper and lower) step ladder
2 x support frames duct tape (if ducting)
1 x Installation and Operating Instructions jig saw (if ducting) ladder (if ducting)

Ducting Options

The method of ducting should be carefully considered before installing the rangehood. The guide below recommends the ducting components to use for all common ducting configurations - through the top of the home (for the roof and soffit) and through the rear of the home. 150mm round ducting should be used in conjunction with this model rangehood.

The highlighted area in the table below gives the recommended Uniduct item numbers for different mounting and outlet options.

Duct mounting option
Rear	Top (roof)	Top (soffit/eave)
Uniduct item numbers
150mm diameter round outlet	UTWSE150	UHRS150	USSR150

Extra lengths and/or bends may be required, depending on the length required and whether there is any structural material in the way, e.g. rafters.

Please note that this chart is designed as a guide. Please consult Robinhood customer services if unsure. For NZ phone [phone] or www.robinhood.co.nz. For AUS phone [phone] or www.robinhood.com.au.

Before drilling any holes check that the area behind the surface to be drilled is clear of any electrical cables, pipes etc. Fixing to a solid joist or 50mm deep truss is recommended.

Whenever possible protect the hob top with cardboard or similar.

1. Before commencement unpack the canopy hood and check that it functions correctly.
2. Use a plumb line to mark the centre of the cooking surface on the ceiling.
3. Using the upper support frame as a template mark the eight holes on the ceiling.
4. Ensure that the support frame front edge is parallel with the bench top and that the plumb line mark is central to the mounting screw holes.
5. Drill holes in the ceiling at the points marked.

a. When fitting to a 50mm truss drill a pilot hole through the ceiling and the truss.

b. If securing to any other ceiling type please use appropriate fasteners and follow their instructions of use carefully.

For the ducting mark out and cut a ∅170mm hole in the ceiling.

Note that this hole is not central to the four mounting screw holes.

1. Fix the upper support frame to the ceiling using the screws supplied.

2. Secure ducting to the top of the motor housing, use duct tape if required. Solid ducting, galvanized or plastic is recommended. Use flexi ducting only in difficult installations and if used ensure that it is pulled tight. The smoother, straighter and shorter the ducting the quieter and more efficient the canopy hood will perform. Tape the power plug to somewhere near the top of the ducting, this will enable easy access to the plug after installation.

3. Secure the lower part of the support frame to the top of the canopy hood using the screws provided.

4. Strip the plastic protective film off the two chimney pieces and place these over the lower support frame. The lower chimney will rest on top of the canopy hood and the upper chimney will be extended and secured to the upper support frame. To ensure that the upper chimney does not slip inside the lower chimney, secure it so that the upper chimney is showing. Duct tape or two screws/nails through the upper chimney securing holes will do this.

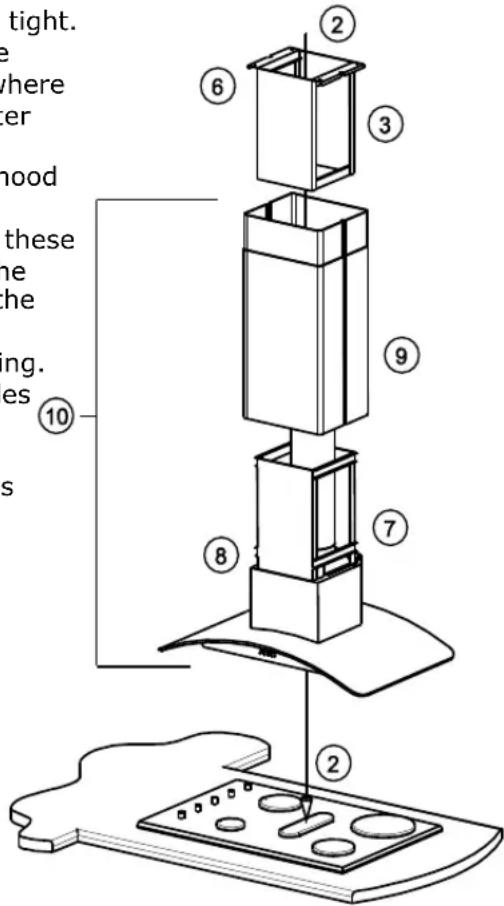

5. Offer the canopy hood, lower support frame, chimneys and ducting up to the upper support frame and secure in place with the four screws provided. The dimension between the filters and the cooking surface should be in line with those suggested in the 'height of canopy hood' section. An additional person will be required for this operation or a simple support frame manufactured to the correct dimensions will aid assembly of the island canopy hood.

Finish assembling the ducting ensuring the path is as short, straight and smooth as possible.

Connect to the power supply and switch on the power to the canopy hood.

Slide the upper chimney piece up to the ceiling and secure in place with the four screws supplied.

Remove the transport tape that holds the oil cup in place under the motor unit and fit the filters.

FRONT FACE OF CANOPYHOOD

Control Panel

Timer switch

Canopy hood will remain on a low, mid or high speed for 15 minutes to clear away all residual cooking odours before switching off automatically

Cleaning and maintenance

Particular care must be taken with the aluminium filters which must be periodically cleaned (at least every two months). Remove the grease filters and wash them either by hand using hot soapy water or in the dishwasher using mild detergent.

Note- some discolouration of the frame may occur.

Caution: Never use abrasive or oil based liquid cleaners.

To clean the stainless steel and glass components of the appliance use mild detergent and warm water. In areas of high humidity and coastal environments cleaning should be carried out frequently.

LED bulb replacement

1. Switch off the power to the canopy hood and allow the bulb to cool.
2. Use a small bladed screwdriver to pop out the light assembly, taking care not to damage the surrounding material.
3. Unplug the assembly from the wiring.
4. Plug in the new assembly.
5. Push the light assembly back into place

Pure technical line drawing of a mechanical bracket or latch (no text or symbols)

Optional accessories:

For other accessories, parts and service, please contact your local supplier (Refer to the Warranty Certificate).

Product approval number SGSEA/110866
Product rating 223W, 220-240	Volt,50 hertz
Electrical approval AS/NZS 603	335.2.31:2004 + A1 + A2 + A3
EMC AS/NZS CISPR14:2001
Performance tested IEC61591

Important safety information

The canopy hood is not intended for use by persons (including children) with reduced physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.

You must read the details concerning the method and frequency of cleaning.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Do not flambé under the rangehood.

Exhaust air must not be discharged into an existing flue which is used for exhausting fumes from appliances burning gas or other fuels.

The minimum distance between the hob surface and the lowest part of the rangehood is 600mm. This distance shall be at least 650mm, if the rangehood is installed over a gas hob.

If the instructions for the gas hob specify a greater distance, this has to be taken into account.

Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air is fulfilled.

If the supply cord of this equipment is damaged, it must only be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

CAUTION: Accessible parts may become hot when used with cooking appliances

Terms and Conditions

The following conditions apply in respect of the warranty given in this certificate:

1. Parbury Pty Limited ("Parbury") warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of:

Rangehood - 24 months from date of original purchase for domestic use.

Uniduct - 12 months from date of original purchase for domestic use.

Ironing centre - 12 months from date of original purchase for domestic use.

Waste disposal - 24 months from date of original purchase for domestic use.

"Original purchase", when used in this certificate, means purchase by the customer directly from Parbury or one of its approved suppliers.

1. This warranty is limited to the repair or replacement, at our option, within the warranty period of any component part which we at our discretion determines to contain faulty materials or a manufacturing defect in breach of this warranty. This warranty is subject to terms and conditions set out in this certificate.
2. The warranty only applies within New Zealand.
3. The customer must produce the original invoice or other purchase documentation as proof of the original purchase date.

Warranty exclusions

1. The warranty does not apply where, in Parbury's opinion:

The defect is caused by misuse, wear and tear, dirt, fire or accidental damage.

The product has been repaired or serviced by an unauthorised person.

The product was not installed in accordance with our instructions.

The product was purchased overseas or was not designed for use in New Zealand.

The product was not used, cleaned or cared for in accordance with our instructions.

The product was used outdoors.

All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.

In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to:

Exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;

Using inappropriate household cleaning products such as abrasive cream or powder cleansers, furniture polish, bleach, mentholated spirits, drain cleaners, sugar soap, metal pads and strongly alkaline or acidic cleaners;

Heat damage, including from washing the product at high temperatures;

Impact or mishandling the product, including the impact caused by objects scraped along, thrown or dropped on the product surface or excessive weight being placed on the product;

Structural or support changes in or affecting the building or the application where the product has been installed;

Failure to clean or maintain the product as recommended; or

Any other causes specified in the product information as being excluded from this warranty.

Variations with the colour or gloss within the product or any ageing or fading of colour, shine or gloss level over time are not covered by this warranty. The warranty does not cover visual imperfections or blemishes in the surface and edges of the product that were not brought to your supplier's attention at the time you inspected the product.

Costs incurred on installation or removal of a product, or any reinstallation of a product, or any associated costs, are not covered by this warranty.

Parbury will not be liable for consequential or indirect loss or damage whatsoever and however arising out of or in connection with the supply, performance or removal of the product, including (but not limited to) loss of profit, loss of revenue, loss of contract, loss of goodwill or increased cost of workings, even if due to the negligence of Parbury or any of its approved suppliers, employees or agents.

Charcoal filters and light bulbs are not covered by this warranty

This warranty and the statements contained in this certificate or other documents given to you do not exclude, restrict or modify the application of any term implied into this warranty by statute, provided that (to the extent any statutory provision permits Parbury to limit its liability for a breach of an implied condition or warranty) Parbury's liability for such breach is limited to the payment of the cost of replacing the product, repairing the product or acquiring an equivalent product.

Subject to clause 5, our obligations under this warranty are limited to those set out in this certificate, and this warranty is expressly instead of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular purpose and notwithstanding any course of dealing between the parties or custom and usage in trade to the contrary.

Should warranty service be required, please contact us:

Free Phone: [phone]

Free Fax: [phone]

Email: [e-mail]

Website: www.robinhood.co.nz

Terms and conditions are subject to change without notice

Warranty Certificate (Australia)

Terms and Conditions

If you are a consumer under the Australian Consumer Law, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure

1. Parbury Pty Limited ("Parbury") also warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this cercate, for a period of:

Rangehood, Ovens, Cooktops - 24 months from date of original purchase for domesc use.

Uniduct - 12 months from date of original purchase for domesc use.

Ironing centre - 12 months from date of original purchase for domesc use.

Taps, including Pull-out and Mixer taps – 5 years on parts only from date of original purchase domesc for use, 24 months parts and labour from date of original purchase for domesc use

Sinks sets—5 years on stainless steel sink including draining bench from date of original purchase for domesc use, 6 months on all stainless steel accessories, including wire rack, colander and tray from date of original purchase for domesc use.

Supertub - 5 years on stainless bowl, 24 months on Tap, Cabinet and other components from the date of original purchase for domesc use.

"Original purchase", when used in this cercate, means purchase by the customer directly from Parbury or one of its approved suppliers.

1. This warranty is limited to the repair or replacement, at our opon, within the warranty period of any component part which we at our discretion determine to contain faulty materials or a manufacturing defect in breach of this warranty. This warranty is subject to terms and conditions set out in this cercate.
2. The warranty only applies within Australia.
3. For warranty service outside of capital city metropolitan area or 30 km from nearest authorised service agent you will be liable for reasonable travelling expenses and the cost of transport of the product or parts to and from the service agent
4. To make a claim under this warranty, you must produce the original invoice or other purchase documentaon as proof of the original purchase date. You must send your claim to Parbury Pty Limited, 76 Postle Street, Coopers Plains QLD 4108 within 7 days of any alleged defect or failure of the product rst becoming apparent, you are responsible for the expense of making a claim under this warranty.

This warranty is given by:

Parbury Pty Ltd

ABN 83 004 568 138

Telephone: [phone]

Facsimile: 1800 628 577

Email: [e-mail]

www.robinhood.com.au

Aenon Customer Services Manager

Warranty exclusions

1. The warranty does not apply where, in Parbury's opinion:

The defect is caused by misuse, wear and tear, dirt, re or accidental damage.

The product has been repaired or serviced by an unauthorised person.

The product was not installed in accordance with our instrucons.

The product was purchased overseas or was not designed for use in Australia.

The product was not used, cleaned or cared for in accordance with our instrucons.

The product was used outdoors.

1. All Robinhood rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use.

2. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone; using inappropriate household cleaning products such as abrasive cream or powder cleansers, furniture polish, bleach, mentholated spirits, drain cleaners, sugar soap, metal pads and strongly alkaline or acidic cleaners; heat damage, including from washing the product at high temperatures;

impact or mishandling the product, including the impact caused by objects scraped along, thrown or dropped on the product surface or excessive weight being placed on the product; structural or support changes in or aecng the building or the applicaon where the product has been installed; failure to clean or maintain the product as recommended; or any other causes specied in the product informaon as being excluded from this warranty.

1. Variaons with the colour or gloss within the product or any ageing or fading of colour, shine or gloss level over time are not covered by this warranty. The warranty does not cover visual imperfecons or blemishes in the surface and edges of the product that were not brought to your supplier's aenon at the me you inspected the product.

2. We will not be responsible under this warranty for, nor pay the costs of, removing the exisng product, or reinstalling the new product, or any associated costs or damages.

3. Charcoal Iters and light bulbs are not covered by this warranty

The benets given by this warranty are in addition to other rights and remedies of consumers under any law in relation to the goods which cannot be excluded.

This warranty cercate is not intended to create a contract between Parbury Pty Limited and the purchaser.
