Product Type	Loaded Subwoofer Enclosure
Speaker Size	12 inches
RMS Power Handling	400 Watts
Peak Power Handling	800 Watts
Impedance	2 Ohms (final)
Sensitivity	86 dB
Frequency Response	25 Hz - 250 Hz
Enclosure Type	Ported (Bass-Reflex)
Enclosure Material	MDF with Carpet Covering
Dimensions (H x W x D)	14" x 18" x 14"
Weight	35 lbs
Mounting Depth	6.5"
Voice Coil Configuration	Dual 2-Ohm
Connection Type	Spring-Loaded Terminals
Color	Black Carpet
Warranty	1 Year
Cleaning Instructions	Wipe with dry cloth; avoid moisture
Repair/Service	Contact authorized Rockford Fosgate service center
Recommended Amplifier	400W RMS at 2 Ohms

Frequently Asked Questions - Punch P2L-112 Rockford Fosgate

What is the recommended amplifier power for the Punch P2L-112?

The subwoofer handles 400 Watts RMS and 800 Watts peak. An amplifier delivering 400 Watts RMS at 2 Ohms is ideal for optimum performance.

How do I wire the Punch P2L-112 subwoofer?

The subwoofer has dual 2-ohm voice coils. For a final 2-ohm load, wire the coils in series (positive of first coil to positive of terminal, negative of first coil to positive of second coil, negative of second coil to negative of terminal). For a 4-ohm load, wire in series; for 1 ohm, wire in parallel. Consult the manual for details.

What are the dimensions of the enclosure?

The enclosure measures approximately 14 inches high, 18 inches wide, and 14 inches deep. Weight is about 35 lbs.

Can I use this subwoofer in a sealed enclosure?

The Punch P2L-112 is designed as a loaded ported enclosure. While the driver can be removed, Rockford Fosgate recommends using the supplied enclosure for best performance. If installing in a custom box, refer to the manual for recommended sealed volume.

What is the frequency response of the P2L-112?

The frequency response is 25 Hz to 250 Hz, making it suitable for deep bass reproduction.

Is the enclosure marine-rated?

This model is not specifically marine-rated. It uses carpet covering best suited for dry interior use. Avoid exposure to moisture.

How do I clean the enclosure?

Clean the carpet with a dry cloth or vacuum. Do not use water or cleaning agents as they may damage the material. For terminals, use a dry brush.

What is the sensitivity rating?

The sensitivity is 86 dB, measured at 1 watt/1 meter. This indicates moderate efficiency.

Does the enclosure come with a grille?

The Punch P2L-112 typically does not include a grille. The exposed cone is protected by the enclosure's recessed design. A separate grille may be available as an accessory.

What is the warranty on this subwoofer?

Rockford Fosgate offers a 1-year warranty from date of purchase against defects in materials and workmanship. Retain your receipt for service.

USER MANUAL Punch P2L-112 Rockford Fosgate

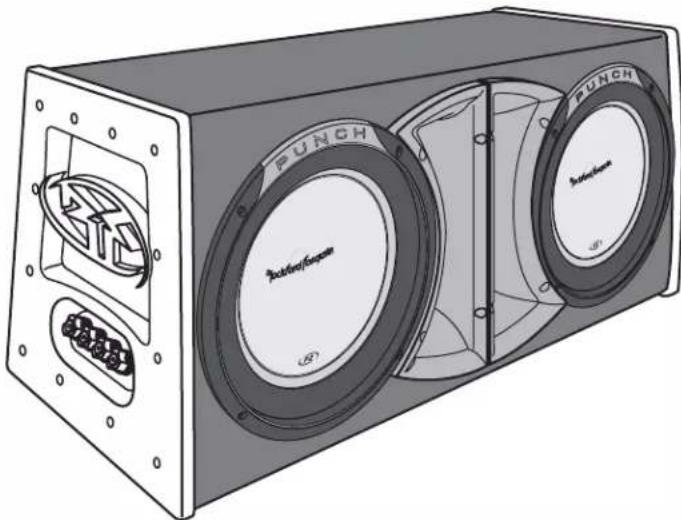

Illustration of a speaker chamber with labeled components (no text or symbols beyond branding)

Illustration of a two-tiered electronic device with speaker plates and ventilation slots (no text or symbols)

PUNCH™

P1L & P2L - LOADED ENCLOSURES

SVC - SINGLE VOICE COIL SUBWOOFERS

P1L 10" 12"

SingleP1L-110P1L-112

DualP1L-210P1L-212

DVC - DUAL VOICE COIL SUBWOOFERS

P2L 10" 12"

SingleP2L-110P2L-112

DualP2L-210P2L-212

Installation & Operation

INSTALLATION - ENGLISH

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

Run the speaker cable from the amp. When routing the speaker cable from the amplifier, avoid running it close to any sources of high current (wiring harnesses). The positive (+) speaker output from the amp connects to the red terminal of the enclosure, and the negative (-) connects to the black terminal.

INSTALLATION - FRANÇAIS

Vented Enclosure Features

• Proprietary High-Flow, Low-Noise Ports
  • High Current Binding Posts
• Constructed with 5/8" MDF
  • Covered with High Density Carpet
  • Wired Exclusively with Connecting Punch

Speaker Features - P1L - SVC (Single Voice Coil)

• High modulus closed conical polypropylene cone.
• Tear & fatigue resistant poly-cotton spider.
• High density compressed half-roll sealed poly-foam surround.
- High temp voice coil with spun-laced Nomex™ insulating re-inforcement collar.
- Optimized motor magnetics with extended pole and bumped backplate.
- Sturdy 16 guage compound bend frame geometry.
- Proprietary spider venting/cooling technique.

Speaker Features - P2L - DVC (Dual Voice Coil)

• Venturi-effect center pole dispersion venting/cooling system.
• High modulus closed conical polypropylene cone.
  • Tear & fatigue resistant poly-cotton spider.
  • High density compressed half-roll sealed poly-foam surround.
• High temp voice coil with spun-laced Nomex™ insulating re-inforcement collar.
• Optimized motor magnetics with extended pole and bumped backplate.
  • Double stack ferrite magnet structure.
• Sturdy 16 guage compound bend frame geometry.
• Proprietary spider venting/cooling technique.
• Diamond cut cast aluminum motor cover for improved heat dissipation.

SPECIFICATIONS

P1L-110 (Single 10" SVC)

Nominal Impedance (Ohms) 4

Power Handling (Watts-RMS/Peak) 150 / 300

Internal Box Volume (f ^2 /liter) 1.05 (29.73L)

Overall Dimensions (HxWxD) 13.5" x 17.25" x 16"

(cm) (34.3 × 43.8 × 40.6)

P1L-210 (Dual 10" SVC)

Nominal Impedance (Ohms) 4 (8x2)

Power Handling (Watts-RMS/Peak) 300 / 600

Internal Box Volume (ft³/liter) 2.10 (59.46L)

Overall Dimensions (HxWxD) 13.5" x 31.25" x 16"

(cm) (34.3 × 81.9 × 40.6)

P1L-112 (Single 12" SVC)

Nominal Impedance (Ohms) 4

Power Handling (Watts-RMS/Peak) 150 / 300

Internal Box Volume (ft³/liter) 1.35 (38.23L)

Overall Dimensions (HxWxD) 15.5" x 19.25" x 16.5"

(cm) (39.4 × 48.9 × 41.9)

P1L-212 (Dual 12" SVC)

Nominal Impedance (Ohms) 4 (8x2)

Power Handling (Watts-RMS/Peak) 300 / 600

Internal Box Volume (f ^2 /liter) 2.70 (59.46L)

Overall Dimensions (HxWxD) 15.5" x 34" x 16.5"

(cm) (39.4 × 86.4 × 41.9)

P2L-110 (Single 10" DVC)

Nominal Impedance (Ohms) 4

Power Handling (Watts-RMS/Peak) 200 / 400

Internal Box Volume (f ^2 /liter) 1.05 (29.73L)

Overall Dimensions (HxWxD) 13.5" x 17.25" x 16"

(cm) (34.3 × 43.8 × 40.6)

P2L-210 (Dual 10" DVC)

Nominal Impedance (Ohms) 4 (8x2)

Power Handling (Watts-RMS/Peak) 400 / 800

Internal Box Volume (fē/liter) 2.10 (59.46L)

Overall Dimensions (HxWxD) 13.5" x 31.25" x 16"

(cm) (34.3 × 81.9 × 40.6)

P2L-112 (Single 12" DVC)

Nominal Impedance (Ohms) 4

Power Handling (Watts-RMS/Peak) 200 / 400

Internal Box Volume (fē/liter) 1.35 (38.23L)

Overall Dimensions (HxWxD) 15.5" x 19.25" x 16.5"

(cm) (39.4 × 48.9 × 41.9)

P2L-212 (Dual 12" DVC)

Nominal Impedance (Ohms) 4 (8x2)

Power Handling (Watts-RMS/Peak) 400 / 800

Internal Box Volume (fē/liter) 2.70 (59.46L)

Overall Dimensions (HxWxD) 15.5" x 34" x 16.5"

(cm) (39.4 × 86.4 × 41.9)

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

Speakers – 1 Year. Any Factory Refurbished Product – 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

I. Damage caused by accident, abuse, improper operations, water, theft, shipping
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from.

If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return

Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

12/06 B.M.

1230-53317-01 Printed in China
