Product Type	Built-in Electric Oven
Brand	Cookology
Model	COF600SS
Dimensions (W x H x D)	595 mm x 595 mm x 575 mm
Weight	35 kg
Power Supply	230 V ~ 50 Hz, 2.8 kW
Energy Class	A+
Oven Capacity	65 L
Functions	Conventional, Fan, Grill, Fan Grill, Defrost
Control Type	Rotary knobs and digital timer
Cleaning	Catalytic enamel back panel
Safety	Child lock, cooling fan, auto shut-off
Door Type	Double-glazed, cool touch
Inner Light	Yes, halogen
Warranty	2 years

Frequently Asked Questions - COF600SS Cookology

What are the dimensions of the Cookology COF600SS oven?

The oven has standard built-in dimensions of 595 mm width, 595 mm height, and 575 mm depth. Always check your cabinet space before installation.

How do I install the COF600SS oven?

Installation must be carried out by a qualified electrician. Ensure the oven is connected to a 230 V supply with adequate circuit protection. Follow the installation guide in the manual for proper ventilation and securing.

Can I use the oven without preheating?

Preheating is recommended for most recipes to ensure even cooking. However, for some functions like fan cooking, you may reduce preheating time. Refer to the cooking tables in the manual.

How do I clean the oven?

The oven features a catalytic enamel back panel that absorbs grease and cleans itself at high temperatures. Wipe the interior with a damp cloth after use. Avoid abrasive cleaners.

What safety features does the oven have?

Safety features include a child lock, cooling fan to prevent overheating, and auto shut-off after prolonged use. The door is double-glazed and remains cool to the touch.

How do I replace the oven light?

The oven uses a halogen bulb (type G9, 25-40 W). To replace, disconnect power, remove the glass cover, and swap the bulb. Refer to the manual for exact specifications.

Why is my oven not heating properly?

Check that the power supply is connected and the fuse hasn't tripped. Ensure the correct function and temperature are selected. If the issue persists, contact a service technician.

Can I grill meat directly on the oven shelf?

It is recommended to use the grill pan provided to catch drippings and prevent grease from falling onto the heating element. This also makes cleaning easier.

What is the energy efficiency rating?

The Cookology COF600SS has an A+ energy rating, meaning it is energy-efficient. Actual consumption depends on usage patterns.

How long is the warranty on this oven?

The oven comes with a 2-year warranty covering manufacturing defects. Register your product on the Cookology website to activate the warranty.

USER MANUAL COF600SS Cookology

Built-in Electric Oven User Manual

COF600SS

ACKNOWLEDGMENT

Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.

WARNING

• When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run up the new empty product with the conventional cooking function, 250 °C, 90 minutes to clean oil impurities inside the cavity.
• During the first use, it is completely normal that there will be a slight smoke and odors. If it does occur, you merely have wait for the smell to clear before putting food into the oven.
• Please use the product under the open environment.
• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• During use, the appliance becomes very hot. Care should be taken to avoid touching heating elements inside the oven.
• Do not allow children to go near the oven when it is operating, especially when the grill is on.
• Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring specifications.
  ● Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by person responsible for their safety.
• Accessible parts may become hot during use. Young children should be kept away.

• An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
  ● A steam cleaner is not to be used.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• The instructions for ovens that have shelves shall include details indicating the correct installations of the shelves.

SAFETY HINTS

• Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet.
  ● For oven: Oven door should not be opened often during the cooking period.
• The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.
• When the door or drawer of oven is open do not leave anything on it, you may unbalance your appliance or break the door.
• Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly.
• If you will not use the appliance for a long time, it is advised to plug it off.

FITTING THE OVEN INTO THE KITCHEN UNIT

Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances adhered to when fixing the oven.

IMPORTANT

If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glues of units that are made of veneered wood can with stand temperatures of at least 120 °C. Plastics or glues that cannot withstand such temperatures will melt and deform the unit, once the oven has been lodged inside the units, electrical parts must be completely insulated. This is a legal safety requirement. All guards must be firmly fixed into place so that it is impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear gap of at least 45 mm.

DECLARATION OF COMPLIANCE

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.

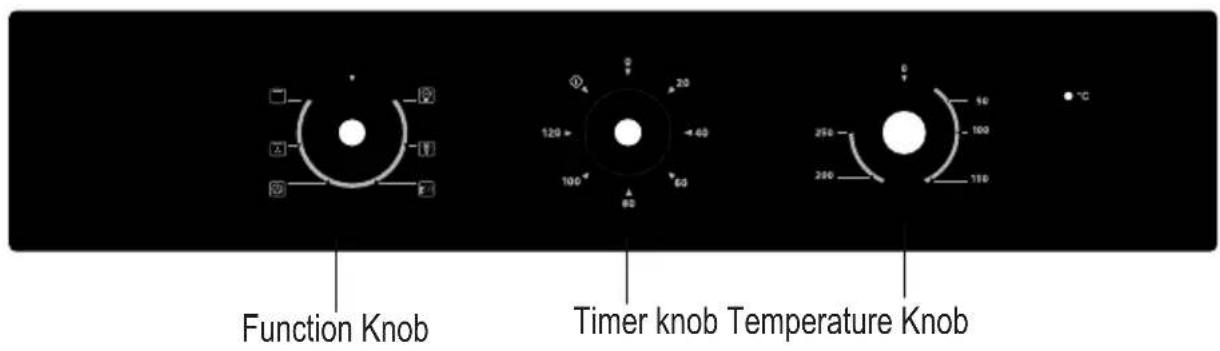

HOW TO USE

If no need to set the cooking time, when turn counterclockwise the timer knob to "1", the timer will not return to "0" automatically and the oven will keep in power-on state.
If need to set the cooking time, turn clockwise the timer knob to the time you need. When the setting cooking time was reached, the timer will return to "0" automatically with the sound of "Ding, Ding, Ding" and the oven will be power-off.
■ To set functions by turning the function knob to desired level.
- To set the temperature by turning the temperature knob. The oven will automatically start cooking after function, time and temperature are set. - If the oven is not in use, always set all the knobs to "0".

PRODUCT DESCRIPTION

	Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions. except ECO function
	Defrost: The circulation of air at room temperature enables quicker thawing of frozen food, (without the use of any heat). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.
	Convection: Warm air heated by the rear heater is evenly distributed throughout the oven very fast by means of the fan. This results in a faster and more economical cooking process. The convection allows food to be cooked simultaneously on different shelves.
	Grill-small: This cooking method is normal grilling, utilizing the inner part only of the top heating element, which directs heat downwards onto the food.
	Grill with fan (at the rear panel):Top heating is working with fan.
	For energy-saved cooking. Cooking the selected ingredients in a gentle manner, and the heat comes from the back heater.

Recipes for ECO mode

Recipes Temperature ( ) Level Time (min)		Pre-heat
Potato Cheese Gratin	180 1 90-100 No
Cheese Cake	160 1 100-150 No
Meatloaf 190	1 110-130 No

ACCESSORIES

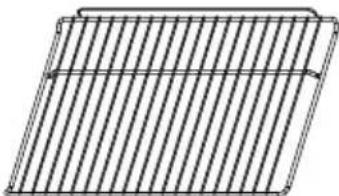

Wire shelf : For grill .dishes, cake pan with items for roasting and grilling.

Pure geometric diagram of a rectangular grid with vertical lines, no text or symbols present

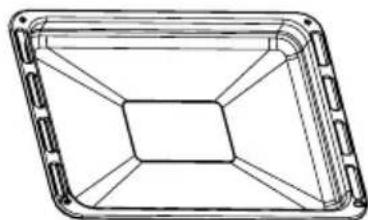

Universal pan: For cooking large quantities of food such as moist cakes, pastries, frozen food etc, or for collecting fat/ spillage and meat juices.

Technical line drawing of a rectangular frame with internal grid lines (no text or symbols)

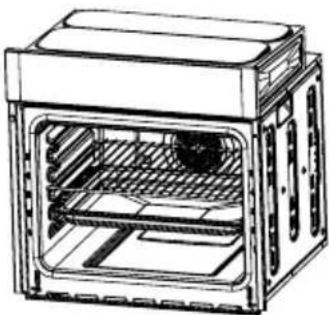

SHELF PLACEMENT WARNING:

To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. This will ensure that during careful removal of the shelf or tray, hot food items should not slide out.

Technical line drawing of a multi-tiered oven or rack unit (no text or symbols)

BULB REPLACEMENT

For replacement, process as follows:

1>.Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet.
2>.Unscrew the glass lamp cover by turning it counter-clockwise (note, it may be stiff) and replace the bulb with a new one of the same type.
3>.Screw the glass lamp cover back in place.

NOTE: Only use 25-40W/220V-240V, T300°C halogen lamps.

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

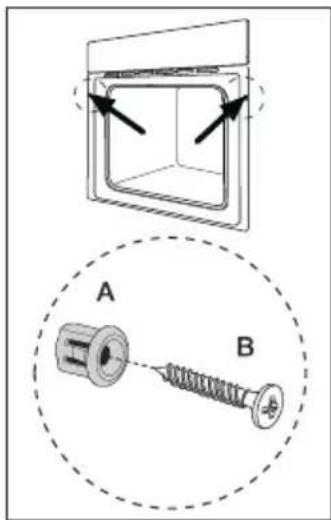

SECURING THE OVEN TO THE CABINET

1. Fit oven into the cabinet recess.
2. Open the oven door.
3. Secure the oven to the kitchen cabinet with two distance holders "A" which fit the holes in the oven frame and fit the two screws "B".

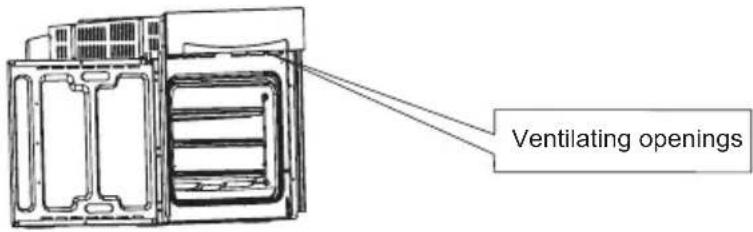

VENTILATING OPENINGS

When cooking is finished, if the temperature of ventilating openings is over 70 degree, the cooling fan will continue working. The cooling fan will not stop working until the temperature becomes lower than 60 degree.

CONNECTION OF THE OVEN

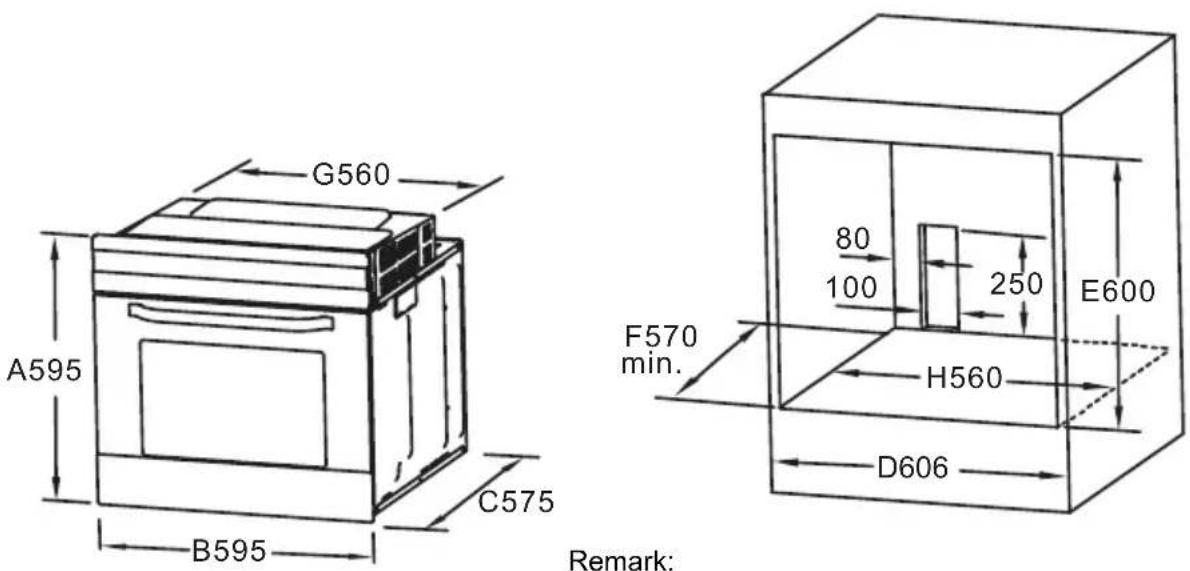

INSTALLATION

1. Only plus deviations are admissible for all dimension.
2. The cabinet is not include the power switch or socket.

NOTE: The number of accessories included depends on the particular appliance purchased.

CLEANING AND MAINTENANCE

For the sake of good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly.

■ Before any maintenance and cleaning, disconnect the power.
■ Set all controls in the OFF position.
- Wait until the inside of the unit is not hot but only slightly warm- cleaning is easier than when warm.
- Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry. In case of heavy soiling, use hot water with non-abrasive cleaning product.
For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal scrapers, these can scratch the surface or lead to the glass being damaged.
- Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
- Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild detergent.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment(WEEE).

By ensuring this product is disposed correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
