Product Type	Undercounter Refrigerator
Brand	Cookology
Model	UCFF87BK
Color	Black
Dimensions (H x W x D)	850 x 600 x 550 mm
Net Weight	35 kg
Power Supply	220-240 V ~ 50 Hz
Energy Class	F (EU 2019)
Annual Energy Consumption	221 kWh/year
Total Net Capacity	130 L
Fridge Net Capacity	115 L
Freezer Net Capacity	15 L (icebox)
Noise Level	42 dB(A)
Climate Class	N-ST (16-38°C)
Refrigerant	R600a (isobutane)
Adjustable Thermostat	Yes, 1-7 knob
Interior Light	Yes, LED
Reversible Door	Yes, user reversible
Defrost Method	Manual defrost (icebox) / Autodefrost (fridge)
Shelves Material	Glass
Number of Shelves	3 (adjustable) + 1 bottle rack
Crisper Drawer	Yes, 1 drawer
Door Storage	3 door bins
Leg Levelers	Yes, adjustable front feet
Maintenance	Clean with damp cloth; defrost icebox manually
Safety Features	Child lock (mechanical) - none; stable design
Spare Parts	Available via Cookology customer service or authorized dealers

Frequently Asked Questions - UCFF87BK Cookology

How do I install the Cookology UCFF87BK fridge?

Place the fridge on a level floor, away from heat sources. Ensure a 10 cm gap at the back for ventilation. Level the feet using a screwdriver. Connect to a grounded power socket (220-240 V, 50 Hz).

How can I adjust the temperature?

Turn the thermostat knob inside the fridge compartment. Positions 1-2 (warmest), 3-4 (medium), 5-7 (coldest). Recommended setting is 3-4 for normal use. The freezer compartment temperature is fixed and varies with fridge setting.

Why is my fridge making noise?

Normal operation sounds: compressor humming, refrigerant gurgling, and occasional clicking from the thermostat. If loud or irregular, check if the fridge is level and not touching the wall. If persistent, contact support.

How do I defrost the icebox?

When ice build-up exceeds 5 mm, turn off the fridge, remove food, and leave the door open. Place towels to catch water. Do not use sharp tools to remove ice. Clean and dry before restarting.

Can I reverse the door opening direction?

Yes, the door is reversible. Unscrew the hinges, swap the door and handle to the opposite side, and reattach hinges. Refer to the user manual for step-by-step instructions. Tools required: screwdriver and spanner.

What is the energy consumption of this fridge?

The annual energy consumption is approximately 221 kWh. Actual consumption depends on usage, ambient temperature, and door opening frequency. It is rated Energy Class F under EU regulations.

How to clean the fridge properly?

Unplug the fridge. Remove all shelves and drawers. Wash them with warm soapy water. Wipe the interior with a damp cloth and mild detergent. Dry thoroughly before reassembling. Avoid abrasive cleaners.

What should I do if the fridge is not cooling?

Check if the power cord is plugged in and the socket works. Ensure the thermostat is not set to 0 (off). Verify that the door closes properly and the condenser is clean. If still not cooling, contact a technician.

Is the fridge suitable for a garage?

The climate class is N-ST (16-38°C). It can operate in ambient temperatures between 16°C and 38°C. In colder conditions, the fridge may not maintain correct temperatures. Not recommended for unheated garages in winter.

Where can I get spare parts for the UCFF87BK?

Contact Cookology customer service via their website or phone. Authorized dealers also stock common parts like shelves, door bins, and thermostat. Provide your model number for accurate parts.

USER MANUAL UCFF87BK Cookology

Under Counter Fridge Freezer

USER'S MANUAL

UCFF87WH

UCFF87BK

UCFF87SL

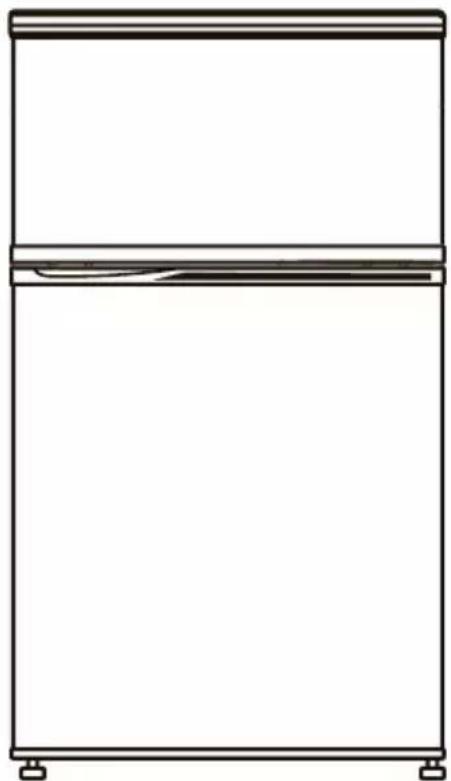

Simple line drawing of a two-tiered rectangular cabinet or enclosure with no text, numbers, or symbols.

Contents

1. WARNING 1-2
2. INSTALLATION.... 3

2.1 Locaon....3
2.2 Reversing the Door Swing 3-4
2.3 Door Space Requirements.... 4
2.4 Levelling the Unit 5
2.5 Cleaning Before Use 5
2.6 Before Using Your Unit....5
2.7 Interior Accessories....5

1. PRODUCT OVERVIEW 6
2. OPERATION....6

4.1 Adjusting the Temperature....6
4.2 Noise Inside the Unit!......6
4.3 Tips for Keeping Food in the Unit....6

1. CLEANING 7

5.1 Defrosng....7
5.2 Cleaning the Interior and the Exterior of the Unit....7
5.3 Cleaning Tips 7

1. MAINTENANCE 8

6.1 Changing the Internal Light....8
6.2 Care When Handling / Moving Your Unit....8
6.3 Servicing 8
6.4 Switching Of for Long Periods of Time 8

1. Trouble shoong 8

7.1 Warm ps: 8

1. TIPS FOR ENERGY SAVING 9
2. DISPOSAL 9
3. ENERGY SAVING TIPS.... 10

1 Safety warnings

1.1 Warning

Warning: risk of fire / flammable materials

THIS appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

IF the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

DO not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

THE appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the appliance according to local regulators for it use flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

DO not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away the appliance:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

THE appliance must be disconnected from the source of electrical supply before attempting the installation of accessory.

REFRIGERANT and cyclopentane foaming material used for the appliance are

flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

FOR EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

FOR IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

CHILDREN should be supervised to ensure that they do not play with the appliance.

TO avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star ✉* frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. (note 2)

- One *, two ** - and three-star *** compartments are not suitable for the freezing of fresh food. (note 3)

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1,2,3: Please confirm whether it is applicable according to your product compartment type.

2. INSTALLTION

2.1 Locaon

When selecng a posion for your unit you should make sure the oor is at and rm, and the room is well venlated. Avoid locang your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumpon. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installaon. Do not drape the unit with any covering.

When installing the unit, ensure that 20 cm of free space is le at both sides, 15 cm at the rear and 20 cm at the top of the unit. This will allow cold air to circulate around the Fridge Freezer and improve the efficiency of the cooling process. The door can be opened to the right or the le, depending on what beer suits the locaon. Please ensure there is adequate space for the door to fully open.

2.2 Reversing the Door Swing (oponal)

Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner

If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

◆ Ensure the unit is unplugged and empty.
◆ Adjust the two levelling feet to their highest posion.
◆ To take the door of it is necessary to It the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
◆ All parts removed must be saved to do the reinstallaon of the door.
◆ Do not lay the unit fat as this may damage the coolant system.
◆ We recommend that 2 people handle the unit during assembly.

1) Start by removing the bracket from the boom of the refrigerator. Unscrew the two screws from the boom bracket. Remove the foot from opposite side.

Technical line drawing of a mechanical bracket or mounting bracket with no visible text or symbols

2) Self-Tapping Screws/Boom Bracket/Foot

Illustration of four mechanical components: screw, pin, and knob (no text or symbols)

3) Slide the door down, away from the hinge pin located

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

on the top of the door.

4) Remove the plasc cover from door hinge rst. Then unscrew the two screws from top bracket and replace on the other side.

5) To install the bracket on the le side of the appliance, screw the two screws through the bracket and into the top of the appliance.Slide the door back on to the top hinge.Ensure the door is face up.Replace the plasc cover on the top bracket by pressing down unl it clicks into posion.

Line drawing of a device with a tool inserted, showing no text or symbols

6) Screw the boom hinge into place on the new side. Replace the foot on the other side.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

7) Check that the door is aligned horizontally and vertically and that the seals are closed on all sides before nally hightening the boom hinge. Readjust the leveling feet.

(The picture above is only for reference. The actual conguraon will depend on the physical product or statement by the distributor)

Simple line drawing of a 3D geometric shape resembling a truncated prism or container (no text or symbols)

2.3 Door Space Requirements

The unit's door must be able to open fully as shown. W × D ≥ 800mm × 780mm

2.4 Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnec seal alignments will not be covered properly.

2.5 Cleaning Before Use

Wipe the inside of the unit with a weak soluon of bicarbonate soda. Then rinse with warm water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. If you require more informaon refer to the Cleaning secon.

2.6 Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it me to fall to the correct temperature. Your unit should not be overlled.

Before Plugging in

You must check that you have a socket which is compatible with the plug supplied with the unit.

Before Turning On!

Do not turn on unl two hours aer moving the unit. The coolant uid needs me to sele.

2.7 Interior Accessories

Various glass or plasc storage shelves are included with your appliance - dierent models have dierent combinaons.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this posion. To do this, pull the storage shelf forward until it can be swivelled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a dierent height.

In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves, drawers, out of the appliance, according to your daily use.

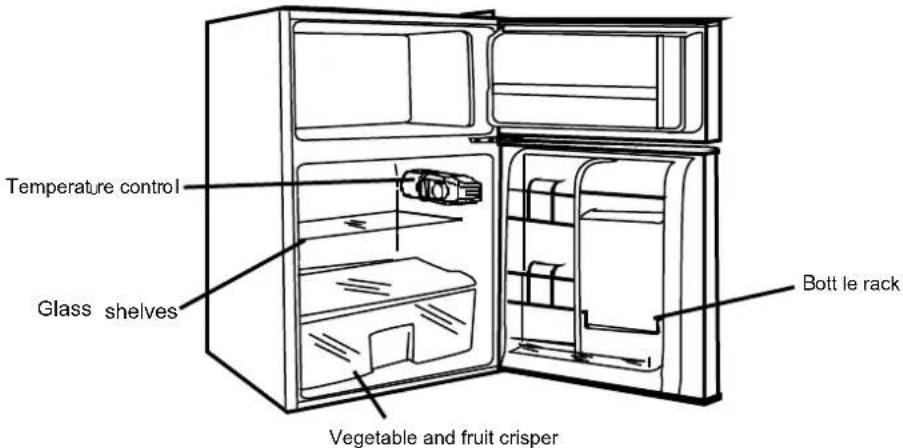

3. PRODUCT OVERVIEW

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

4. OPERATION

4.1 Adjusting the Temperature

When using the refrigerator-freezer for the first time or after defros rig,

turn the temperature control to set "MAX" for at least two hours before introducing the food to be stored. All frozen food products you purchase

should be placed in the freezer compartment as soon as possible to avoid the frozen food from defrosting.

In Winter or low temperature surrounded condition, please switch the temperature controller to large settings, like:MAX.

Storage recommendation printed on the packaging of frozen food by the manufacturers should be always be followed.

Be careful that the drawer mustn't mangle the refrigeration pipeline.

4.2 Noise Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

4.3 Tips for Keeping Food in the Unit

◆ Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.

Leave space around your food, to a llow air to circulate inside the unit. Ensure all parts of the unit are kept cool.

◆ To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.

◆ Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.

To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

5. CLEANING

5.1 Defrosting

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

5.2 Cleaning the Interior and the Exterior of the Unit

◆ Remove all the shelves and the salad bin. To remove the salad bin first remove the lower door shelf.
◆ Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a "wrung-out" sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.
◆ Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
◆ The interior of the refrigerator should be cleaned regularly to avoid odor.
◆ Check the door gasket regularly to make sure there are no debris.
◆ Please turn off the power before cleaning, remove all food, shelves, drawers, etc.
◆ Clean the door gasket with mild soap and water.
Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.
For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator.
◆ Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.
◆ Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.
◆ Do not rinse with water so as not to affect the electrical insulation properties.

5.3 Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified technician for assistance.

6. MAINTENANCE

6.1 Changing the Internal Light

Lamp replacement by professionals.

6.2 Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

6.3 Servicing

The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualitatively technician.

6.4 Switching Of for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

7. Trouble shooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation	Whether the freezer is plugged and connected to power;Low voltage;Power failure or tripping circuit
Odor	Odorous foods should closely wrapped;Whether foods are rotten;Whether the interior needs to be cleaned.
Long-term operation of compressor	It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher;Do not put too much food in the freezer at one time;Do not put food in the appliance until it has cooled down;Frequent opening of refrigerator door.
Illuminating light does not shine	Whether the refrigerator is connected to power,Whether the interior light is damaged.
The refrigerator door can not be properly closed.	The freezer door is stuck by food packages;Too much food;Tilt refrigerator.
Loud noises	Whether the food is leveled, whether the refrigerator is balanced;Whether the refrigerator parts are properly placed.

7.1 Warm tips:

◆The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
◆Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
◆Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.

8. TIPS FOR ENERGY SAVING

Try not to open the door too oen, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.

Every now and then check if the appliance is suciently venlated (adequate air circulaon behind the appliance).

In normal temperature conditions, please arrange the thermostat at the middle seng.

Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.

Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.

◆ The appliance should be located in the coolest area of the room, away from heat producing appliances or heang ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
- Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
◆ Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulaon, making the appliance less ecient.
Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one me, and close the door as soon as possible.

9. DISPOSAL

Old units sill have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulaon materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal. Up to date informaon concerning opons of disposing of your old unit and packaging from the new one can be obtained from your local council oce.

When disposing of an old unit break of any old locks or latches and remove the door as a safeguard.

Correct Disposal of this product

Correct Disposal of this productThis marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collecon systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

For more informaon, please contact the local authority or your retailer where you purchased the product.

10. ENERGY SAVING TIPS

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.
