Product Type	Insect Trap (Pest Control)
Brand	Dynatrap
Model	DT160-DEC2
Power Input	100-240VAC 50/60 Hz
Power Output	12Vdc 1.0A 12VA
Indoor/Outdoor Use	Yes, all-weather resistant (rain or shine)
Attraction Method	UV light and CO2 generated by photo-catalysis between UV lamps and TiO2 coating
Fan	Yes, pulls insects into retaining cage
Operation	Automatic when plugged in; recommended 24/7 operation
Placement Distance	At least 20-40 feet away from people
Competing Light	Keep away from other light sources for best results
Cleaning Frequency	At least once per week
Cleaning Method	Unplug, twist cage clockwise, remove damper, clean with included brush
UV Lamp Lifespan	20,000 hours (non-replaceable)
Safety Features	Double insulation; connect only to GFCI-protected circuit
Warranty	1 year limited from date of purchase (proof required)
Spare Parts (Retaining Cage)	Part #41076
Fire Prevention	Clean collected insects frequently to reduce fire risk
Disposal	Empty retaining cage into trash when full

Frequently Asked Questions - DT160-DEC2 Dynatrap

How does the Dynatrap DT160-DEC2 attract and trap insects?

The trap uses UV light and CO2 generated by photo-catalysis between UV lamps and a special TiO2 coating to attract flying insects. A fan then pulls them into the retaining cage, where they dehydrate and die.

Can the DT160-DEC2 be used outdoors in the rain?

Yes, it is all-weather resistant and designed for outdoor use including rainy conditions. However, always use a GFCI-protected outlet.

How often should I clean the insect trap?

Clean the unit at least once per week to prolong its life, prevent fire, and ensure efficient operation. Unplug before cleaning.

Where should I place the Dynatrap for best results?

Place it 20 to 40 feet away from areas where people sit, and away from competing light sources. For best results, run it 24/7.

What should I do if the UV bulb does not light up?

The UV lamp has a 20,000-hour lifespan and is not replaceable. If it fails before 20,000 hours, call customer service at 1-877-403-8727.

Is the Dynatrap DT160-DEC2 safe to use around children and pets?

It is recommended to keep out of reach of children. The unit has double insulation and no grounding needed, but always follow safety instructions.

What kind of warranty does the DT160-DEC2 have?

It comes with a one-year limited warranty to the original purchaser against defective materials and workmanship. Proof of purchase is required.

Can I replace the retaining cage?

Yes, replacement retaining cages are available as part #41076. Visit www.DynaTrap.com to order.

Why does the fan not spin even though the bulb is on?

The fan may be obstructed by foreign material or debris. Unplug the unit and clean the fan area as described in the cleaning section.

What type of extension cord should I use outdoors?

Use only extension cords marked 'Suitable for Use with Outdoor Appliances' and with matching plug and receptacle. Do not abuse the cord.

USER MANUAL DT160-DEC2 Dynatrap

Thank you for purchasing

the DynaTrap® Insect Trap!

This product may be covered by one or more U.S. patents

or pending patent applications. See www.DynaTrap.com/patents

ALL-WEATHER CONSTRUCTION INDOOR/OUTDOOR RAIN OR SHINE

IMPORTANT: READ CAREFULLY IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

WARNING: when using electric appliances, basic precautions should always be followed, including the following:

1. Please read all instructions before using the DynaTrap ^ Insect Trap and keep for future reference.

2. To disconnect, remove plug from outlet.

3. To reduce the risk of injury from moving parts or electric shock, disconnect plug before servicing or cleaning.

4. Do not position the unit near heat, gas, oil or other flammable materials.

5. Place out of reach from children.

6. To reduce the risk of electrical shock, do not put appliance in water or other liquid.

7. Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if it has been dropped into water or other liquid.

8. Connect only to a circuit that is protected by a ground-fault circuit-interrupter (GFCI).

9. Do not insert fingers or any foreign objects into the unit while it is connected to an electrical outlet.

10. Collected insects within the unit may contribute to fire, so clean insects from the unit frequently.

11. Do not clean this product with water spray. Do not place where it can fall into water, or near flammable materials.

12. Do not touch fan while in motion.

13. Do not abuse cord—never carry or hang unit by cord or yank it to disconnect from receptacle. Keep cord away from sharp edges.

14. If using outdoors, use only extension cords with a tag stating, "Suitable for Use with Outdoor Appliances."

15. Use only extension cords that have plug and receptacles that match the product plug. Replace or repair damaged cords.

16. Only use attachments recommended or sold by the manufacturer.

17. This appliance is provided with double insulation. Use only identical replacement parts. See instructions or Servicing of Double-Insulated Appliances.

INSTALLATION & OPERATING INSTRUCTIONS

1. Unpack unit. Save carton for off-season storage (if needed).

2. The unit will turn on automatically when plugged in. For best catch results, leave the trap on and running, 24/7.

3. Catch rate activity will be higher at night. For best catch results it is recommended to keep the unit away from competing light sources.

4. It is recommended to place the unit at least 20 to 40 feet away from where people will be sitting.

5. This unit is all-weather resistant - designed for outdoor use including rainy conditions.

6. SERVICING OF DOUBLE-INSULATED APPLICIANCES - In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing of a double-insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double-insulated appliance must be identical to those parts in the appliance. The symbol must be identical to those parts in the appliance.

A double-insulated appliance is marked with the words "DOUBLE INSULATION", "DOUBLE-INSULATED" or the symbol:

1. The electrical adapter provided with this product is equipped with a 2-conductor cord and a 2-prong plug as a safety feature. If the plug does not fully fit in the outlet, contact a qualified electrician. To reduce the risk of electrical shock, only plug into a properly installed outlet. Do not attempt to defeat this safety feature.

CLEANING

Frequent cleaning will prolong the life of the unit, ensure fire prevention and provide for more efficient operation.

1. Be sure to clean the unit at least once per week.

2. Unplug the unit.

3. For weekly cleaning, twist the cage clockwise, and remove the damper by grasping the crossbar near the edge of the damper. Pull up firmly. Remove any buildup from the inside of the retaining cage and fan with a brush (included). Replace damper, snap firmly into place.

4. When replacing the retaining cage — DO NOT press/push against the screen windows.

5. Clean prior to off-season storage.

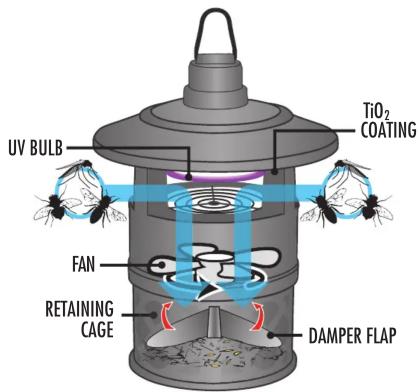

HOW THE DYNATRAP® INSECT TRAP WORKS

Flying insects are attracted to the unit by UV light and CO2 that is generated by the photo-catalysis between the UV lamps and special TiO2 coating. The fan then pulls the insects into the screened base, trapping them until they dehydrate and die. The base can be removed, allowing the contents to be periodically emptied into the trash. Monitor the insects trapped in the retaining cage through the see-through screen, and empty when compartment becomes full.

TROUBLESHOOTING

Problem: Possible cause	Correction:
Bulb does not illuminate and fan does not spin.	No electrical power. 1. Check plug, receptacle, fuse or circuit breaker.
Bull illuminates, but fan does not spin.	Shorted fan. UNPLUG UNIT:Examine fan to see that it is free from foreign material, dirt or buildup of dead insects.Clean unit as in "CLEANING" section.
Fan spins, but bulb does not illuminate.	Burnt out bulb." The UV-Lamp has an expected lifespan of 20,000 hours and is not replaceable.If lamp fails to illuminate before 20,000 hours of operation, call customer service at 877-403-8727.

LIMITED WARRANTY

DYNAMIC guarantees to the original purchaser that this product is free from defective materials and workmanship. This warranty is limited to remedy any defective part for a period of one year from date of original date of purchase. Retain your original receipt as proof of purchase. This warranty does not apply to the light bulb, nor to, in our judgment, misuse or abuse. If this unit has been altered, no warranty is in force. This warranty does not apply if this unit is purchased outside the United States, Canada and Mexico. In no case shall DYNAMIC be liable for any accidental, punitive, consequential, or any other damages of any kind for breach of this or any other warranty, expressed or implied, whatsoever. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

REPLACEMENT PARTS

41076 Retaining Cage

To see all replacement and accessory parts available for your DynaTrap, visit www.DynaTrap.com.

FOR HOUSEHOLD, INDOOR AND OUTDOOR USE

Input: 100-240VAC 50/60 Hz, Output: 12Vdc 1.0A 12VA

Dynamic Solutions Worldwide, LLC

U.S.A. & Canada

12247 W. Fairview Ave. Milwaukee, WI 53226 1-877-403-TRAP (8727)

[e-mail] | www.DynaTrap.com

Mexico

Dynatrap Servicios de Mexico S. de R. L. de C.V. 01-800-880-8727 | [e-mail]

©2019 Dynamic Solutions Worldwide, LLC

Intertek 4002907

This device complies with Performance Standards for Light-Emitting Products, 21 DFR, Part 1040, Chapter 1, Subchapter J, Radiological health.
