GDK15BK - Kettle GEMINI - Free user manual and instructions

Product Type	Electric Kettle
Brand	Gemini
Model	GDK15BK
Capacity	1.5 Liters
Power	1500 Watts
Voltage	220-240 V, 50/60 Hz
Housing Material	Stainless Steel
Heating Element	Concealed Stainless Steel
Dimensions (L x W x H)	22 x 15 x 24 cm
Weight	0.95 kg
Power Cord Length	0.75 m
Features	Auto Shut-Off, Boil-Dry Protection, 360° Rotational Base
Filter	Removable Mesh Filter
Lid Opening	One-Button Spring-Open Lid
Indicator Light	Power On Indicator
Cleaning	Descale Regularly with Vinegar or Citric Acid
Maintenance	Wipe Exterior with Damp Cloth, Do Not Immerse
Safety	Auto Shut-Off, Overheat Protection, Stable Base
Replaceable Parts	Filter, Lid Seal (Contact Support)
Warranty	1 Year Limited

Frequently Asked Questions - GDK15BK GEMINI

How do I clean the kettle?

Unplug the kettle and let it cool. Wipe the exterior with a damp cloth. For descaling, fill with water and vinegar (1:2 ratio), boil, let sit 30 minutes, rinse thoroughly.

What is the capacity of the GDK15BK?

The kettle has a 1.5-liter capacity, suitable for 6-8 cups of water.

Does the kettle have auto shut-off?

Yes, it features auto shut-off when water reaches boiling point, and boil-dry protection for safety.

Can I use the kettle on a stove?

No, this is an electric kettle designed for base use only. Do not place on stove or open flame.

How do I replace the filter?

The mesh filter is removable. Press the release tab or pull it out gently. Rinse under water or replace with a new one.

Why is the kettle not boiling?

Check that the base is plugged in and the kettle is properly seated. Ensure the lid is closed. If still not working, descaling may be needed.

Is the kettle BPA-free?

The kettle is made of stainless steel with BPA-free plastic parts. A safe choice for daily use.

What is the warranty period?

Gemini offers a 1-year limited warranty covering manufacturing defects. Retain your proof of purchase.

Can I open the lid while boiling?

It is not recommended as steam can cause burns. Wait until the kettle has automatically shut off and cooled slightly.

How often should I descale the kettle?

Every 1-2 months depending on water hardness. Descaling improves performance and extends lifespan.

USER MANUAL GDK15BK GEMINI

1. Read all instruction carefully and thoroughly, before any operation of the kettle.
2. Close supervision is necessary when any appliance is used by or near children.
3. Before connecting the kettle, check whether the voltage indicated on the appliance(underside of kettle and base unit) corresponds with the mains voltage in your home. If this is not the case, contact your dealer and not use the kettle.
4. Switch off and unplug from the outlet before filling, emptying or cleaning, or when not in use.
5. Do not overfill the maximum level indicator as boiling water may be ejected. Fill with cold water only.
6. To avoid against fire, do not operate in the presence of explosive and/or flammable fumes. Do not operate or place any party of this appliance on or near gas and electric burner or in a heated oven.
7. Do not let the cord hang over the edge of a table or a counter. Do not let the cord touch hot surface.
8. Never pull on the cord as this may damage the cord and eventually cause a risk of electric shock.
9. If the cord or plug is damaged, or after the appliance malfunctions or is dropped or damaged in any way, return the appliance completely to your nearest authorized service agent for examination, repair or adjustment.
10. Avoid touching the surface of the hot kettle, use the handle.
11. To avoid possible steam damage, do not face the spout when operating the kettle.
12. If operated on wood furniture, use a protective pad to prevent damage to delicate finishes.
13. To avoid scalding, always ensure the lid is correctly positioned before operation.
14. Scalding may occur if the lid is removed while heating.
15. Remove and replace the lid carefully when hot.
16. Extreme caution must be used when moving the kettle containing hot water. Never lift the kettle by its lid. Always use the handle.

17. Do not switch on your kettle if it is empty.

18. To avoid electrical hazard, do not immerse this kettle, power base or cord set in any liquid.

19. While the water boiling or short time after the water boiled, please be sure that don't attempt to open the cover for avoid steam scalding your hand.
20. Please regular clean or descale bottom residuum, because this may affect the normal use of the product.
21. Please turn off the switch and pullout the plug after boiling.

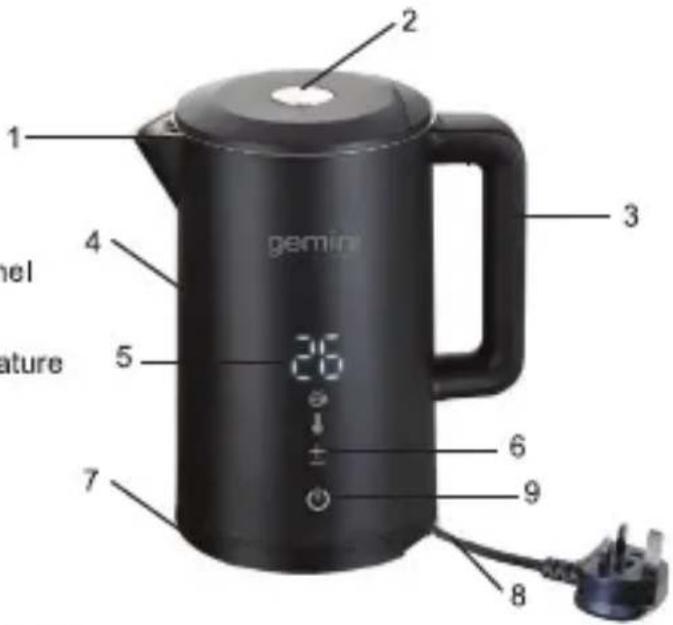

Product Names

1. Kettle mouth
2. Open Button
3. Handle
4. Body
5. Temperature display panel
6. Temperature controller button-Adjusting temperature from 40-55-80-90°C
7. Base
8. Power wire
9. ⏻ Switch Button

How to operate the kettle

1. Place the kettle on the level surface.

2. To fill the kettle, remove it from the power base and open the lid by pressing the open button, fill with the desired amount of water, and then close the lid.
   The water level should not exceed MAX marks or sit below MIN level. Too little water will cause the kettle switching off before the water has boiled.
   NOTE: Do not fill the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is firmly in place before plugging the power outlet.

3. Position the kettle on the power base.

4. Connect the plug into a power outlet. Press ⏻, kettle will start to boil water, once the water has being boiled, the kettle will be off automatically. You can shut off the power by pressing ⏻ at any moment during boiling water. If you want to boil water again, only press ⏻ directly to restart the kettle.

NOTE: Ensure that the lid is firmly closed; the kettle will not turn off if the lid is opening.

1. Lift the kettle from the power base and then pour the water.

NOTE: Operate carefully when pouring the water from your kettle as boiling water may result in scald, besides, do not remove the lid while the water is boiling, and position the lid so that steam is directed away from the handle.

1. The kettle will not re-boil until ⏻ is pressed again. The kettle may be stored on the power base when not in use.

NOTE: Always disconnect the power supply when not use.

1. The heating element surface may have residual heat after use.

2. Once the kettle is powered on, there is a self-check, and a "beep" sound and "188" shown in display for 1 second. After that, the kettle is in standard mode. The display will be turned off after idle for 12 hours for power saving. Press any key resume to standard by mode.

3. Choose function you need from below:

Function 1: Press * ^i *, heating water to 100°C

Function 2: Press "() button firstly, then press "+/-" button to select the temperature (40°C -55°C -80°C -90°C) you need. Water can be heated to 100 °C firstly and kept at the temperature you chose for 24 hrs.

Function 3: Press "+/-" button firstly to select temperature (40°C -55°C -80°C -90°C) you need, Water can be heated to the temperature you chose and kept at the temperature you selected for 24 hrs.

To implement this function, please make sure using purified water. If you need to stop heating, please press " ⏻" button.

How to care for your kettle

Wipe the exterior of the kettle with a soft, damp cloth or sponge. Remove stubborn spots with a cloth moistened with mild liquid detergent. Do not use abrasive scouring pads or powers.

Never immerse the kettle in water or other liquids.

From time to time, depended on the nature of your water supply, a boiled scale deposit is naturally formed and can be found mostly adhered to the heating element, thus reducing the heating efficiency.

The amount of boiled scale deposited (and subsequently the need to clean or rescale) largely depends on the water hardness in your area the frequency with which the kettle is used.

Boiled scale is not harmful to your health. But if poured into your beverage, it can give a powdery taste to your drink. Therefore, the kettle should be descaled periodically as indicated below.

Descaling

Descale kettle regularly.

1. Fill the kettle up to "max" with a mixture of one part ordinary vinegar and two parts water. Switch on and wait for the appliance to switch off automatically.
2. Let the mixture remain inside the kettle overnight.
3. Discard the mixture the next morning.
4. Fill the kettle with clean water up to "max" mark and boil again.
5. Discard the boiled water to remove any remaining scale and vinegar.
6. Rinse the inside of the kettle with clean water.

Product Specification

Product model	GDK15BK
Power	1850W
Voltage	220-240V~
Rated frequency	50/60Hz
Capacity	1.5 L

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return the device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

重要安全事項

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return the device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

11

請記錄下列產品資料

型號 Mode I No.:

機身編號 Serial No.:

經銷商名稱 Dealer:

購買日期 Date of Purchase:

單據編號 Invo ice No.:

The product specifications may be changed without prior notice.

Please contact customer service for details if necessary.

說明書內容以英文版本為準

If there is any inconsistency or ambiguity

between the English version and the Chinese version,

the English version shall prevail.
