XB103 - Battery Xtorm - Free user manual and instructions

Product Type	Portable Battery
Brand	Xtorm
Model	XB103
Battery Chemistry	Lithium-ion
Capacity	10,000 mAh
Input	5V/2A (Micro-USB)
Output	5V/2.1A (USB-A)
Dimensions	140 x 68 x 15 mm
Weight	210 g
Charging Time	Approx. 5 hours
Cycle Life	500+ cycles
Protection Features	Overcharge, over-discharge, short circuit, overcurrent
LED Indicator	Yes (4 LEDs for battery level)
Operating Temperature	0°C to 45°C (charging), -10°C to 60°C (discharging)
Storage Temperature	-20°C to 60°C
Materials	ABS plastic, electronic components
Cleaning Instructions	Wipe with dry cloth; do not use liquid cleaners
Maintenance	Recharge every 3 months if not in use
Safety Certifications	CE, FCC, RoHS
Spare Parts	Micro-USB cable (not included)
Repairability	Not user-serviceable; contact manufacturer
General Information	Suitable for charging smartphones, tablets, and other USB devices

Frequently Asked Questions - XB103 Xtorm

How do I charge the Xtorm XB103 battery?

Connect the Micro-USB cable to the input port and a USB power source (5V/2A). The LED indicators will show charging progress.

How long does it take to fully charge the battery?

Full charging takes approximately 5 hours using a standard 5V/2A charger.

What devices can I charge with the XB103?

You can charge smartphones, tablets, Bluetooth headphones, and other USB-powered devices.

How do I know the battery level?

Press the power button to activate the 4 LED indicators showing remaining capacity (25% per LED).

Can I use the battery while it is charging?

Yes, the XB103 supports pass-through charging, but it may generate more heat.

What safety features does the XB103 have?

It includes overcharge, over-discharge, short circuit, and overcurrent protection for safe operation.

How should I store the battery when not in use?

Store in a cool, dry place away from direct sunlight. Maintain charge at 50% for long-term storage.

How often should I recharge the battery if unused?

It is recommended to recharge every 3 months to maintain battery health.

What should I do if the battery gets wet?

Disconnect immediately and let it dry completely. Do not use until fully dry; if damaged, consult the manufacturer.

Is the Xtorm XB103 repairable?

The battery is not user-serviceable. For any issues, contact Xtorm support or an authorized service center.

USER MANUAL XB103 Xtorm

Don't drop, dissemble or attempt to repair the charger by yourself.

Don't expose to any heat source. Keep out of reach of children.

Don't use in the presence of flammable gas.

Mill. Wastewater

NL: Waarschuwing

* THIS MANUAL IS AVAILABLE IN DIFFERENT LANGUAGES ON OUR WEBSITE

Hoofdveste 19

3992 DH Houten

The Netherlands

m = 311

BY A-SOLAR

Portable Power Bank USB
XB103 Wireless Power Bank 8000 mAh

Exterior view of a gray and orange electronic device with a circular logo and 'X' mark (no readable text or symbols beyond branding)

（一）公司董事会会议决议公告
Dank u voor de aankoop van ons product
Vielen Dank, dass Sie sich für unser Produkt entschieden haben
Merci d'avoir acheté notre produit
Grazie per aver acquistato questo prodotto
Děkujeme vám za zakoupení tohoto výrobku
Čakuleme vám za zakúpenie tohto virobku
Tack för att du köpt vår produkt

Box contains

MICRO USB CABLE

POWER BANK

Specifications:

Battery

Battery type:
Input:
USB output:
Wireless output
Wireless technology
Transmit dist Dimestices:
Dimentions: Weight:
Weight LED bar
LED battery indication Charging time:
Charging time Mobile equipment:

8000mAh
Polymer Cell
2A
2× 2.5A/5V
1A
Qi-technology
3-7mm
138x72x20mm
260gram
Yes 4.5 bus
4-5 hrs 1-4 hrs
1-4 hrs

1. Product overview

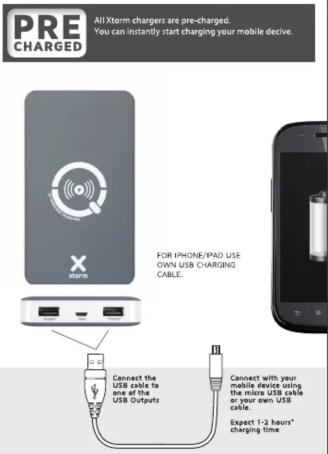

1. QUICK START / Charging by USB


1. Charge the Power Bank by USB or A/C


1. Charge your mobile device wirelessly


By ideal conditions,

1. Is your device compatible?

	Works	Works with add on*
Google Nexus 4+5 and higher	√
Nokia Lumia 920 - 928 and higher	√
HTC Droid DNA	√
Samsung S5, 6S, 6S EDGE	√	√ S5
Apple iPhone		√

An Add-on is a separate product (e.g. a case or sticker) to make the Qi wireless
charging work with a device that does not standard includes this feature.
* Add-ons sold separately. We advise to use only branded original add-ons.

Check www.xtorm.eu/qi for the full list.
