Product Type	Pedestal Fan
Brand	SPT
Model	SF-1691C
Dimensions (Height)	Approximately 45 cm (17.7 inches)
Weight	Approximately 3.5 kg (7.7 lbs)
Power Supply	120V, 60Hz (AC)
Power Consumption	60 Watts
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, 90° wide oscillation
Remote Control	Included, with battery
Control Type	Button panel on base and remote
Blade Material	ABS plastic
Blade Diameter	16 inches (40 cm)
Safety Features	Tip-over switch, overheat protection
Cleaning Instructions	Wipe with a damp cloth; do not immerse in water
Maintenance	Periodic cleaning of grille and blades
Spare Parts Available	Replacement screws, remote control, and feet
Repairability	User replaceable fuse and blade assembly
Warranty	1 year limited warranty

Frequently Asked Questions - SF-1691C SPT

How do I assemble the fan?

Attach the base to the pole, then slide the fan head onto the pole and tighten the locking knob. Refer to the manual for detailed steps.

How do I clean the fan?

Unplug the fan. Use a soft, damp cloth to wipe the grille and blades. Do not use water or solvent directly on the motor.

The remote control is not working. What should I do?

Check if the battery is installed correctly (CR2025). Replace if dead. Ensure no obstructions between remote and fan.

Can the fan be used outdoors?

No, this fan is designed for indoor use only. Exposure to moisture may cause electrical hazards.

How do I adjust the fan height?

Loosen the height adjustment collar on the pole, slide to desired height, then tighten securely.

Does the fan oscillate?

Yes, press the oscillation button on the base or remote to enable 90-degree oscillation.

What is the power consumption?

The fan consumes approximately 60 watts on high speed.

My fan is making noise. What can I do?

Check if blades are loose or hitting the grille. Tighten screws if necessary. Lubricate motor bearings if specified in manual.

Is there an auto shut-off timer?

This model does not include a timer. It must be turned off manually or via remote.

Where can I find replacement parts?

Visit the SPT website or contact customer support for spare parts like screws, remote, or feet.

USER MANUAL SF-1691C SPT

Technical line drawing of a circular mechanical component with concentric rings and mounting brackets (no text or symbols)

16"

DC MOTOR DROP GRID CEILING FAN WITH REMOTE CONTROL

Thank you for the purchase of your new SPT product.

Please thoroughly read and maintain this manual for future reference.

CAUTION:

1. This appliance is intended for household only.
2. Never operate this unit if the cord is damaged. In case of damage, the cord must be replaced by the manufacturer, an authorized service agency or a similarly qualified electrician.
3. Close supervision is necessary when this item is used by or near children.
4. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.

1 IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire or electric shock, DO NOT use this fan with any solid-state speed control device.

Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

Please read all instructions before using this product.

Save these instructions for easy reference. When using electrical appliances, basic precautions should always be followed to reduce breakage, risk of fire, electric shock and injury to persons including the following:

• Do not use the fan outdoors.
• Never use the fan unless it is fully assembled.
• Do not use the fan under the following conditions:

1) High temperature of over 104^ F.
2) High humidity.
3) Steam filled room.

• Do not push finger or any object through the frilles and do not touch the fan blade during use. Especially be aware children and infants around during use.
• Do not spray the fan with insecticide, which will damage the surface of the fan.
  • Cut off power before servicing.

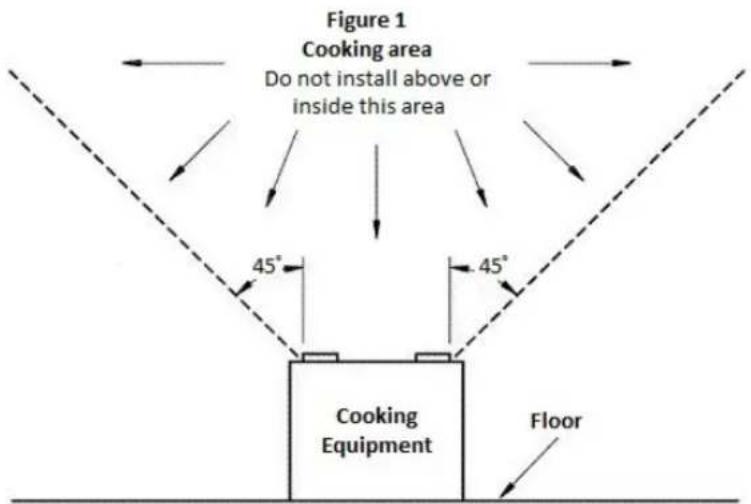

• NOT for use in cooking area – see figure 1 for demonstration.

<1>

2

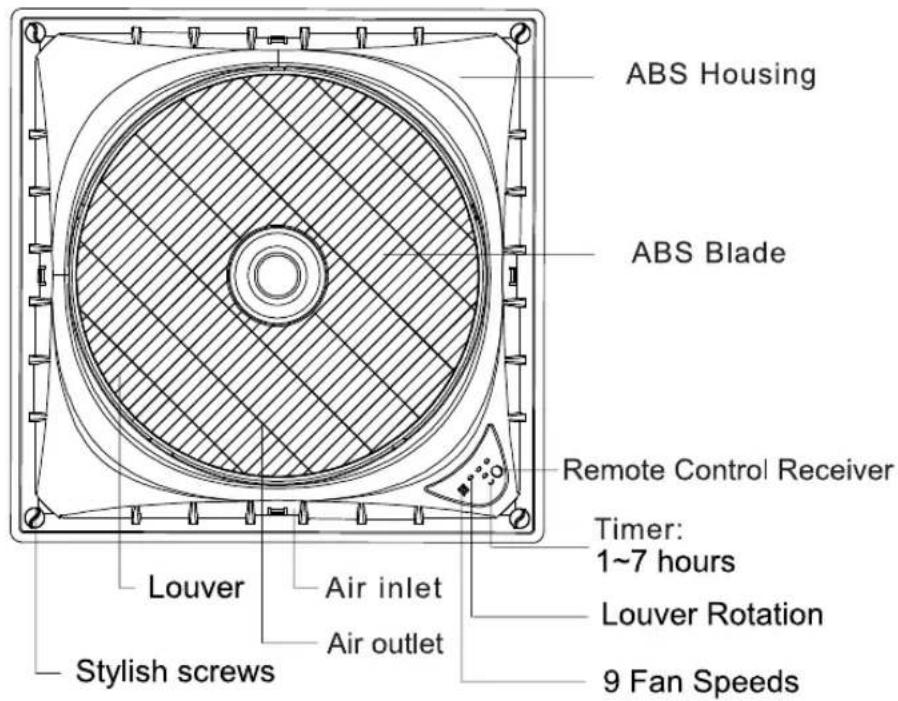

PART LIST

1. Power connection and cutoff for the drop grid ceiling fan is based on the home electrical wiring.

The home electrical wiring must be equipped with all-pole disconnection switch. Connect the black and white lead with live and neutral wire respectively.

Adjust the all-pole disconnection switch to "OFF" position whenever the power of the fan needs to be cut off.

1. To search for a proper location for installation, it is suggested that there should be at least 7.5ft between the fan blade and the floor.

3

INSTALLATION

WARNING: Adjust the all-pole disconnection switch to "OFF" position

Illustration of hands opening a fan with concentric circles (no text or symbols)

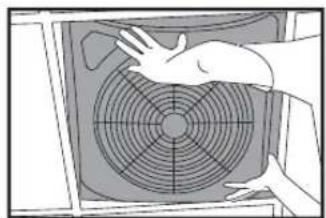

1. Place the fan on the ceiling grid.

Pure electrical circuit lines without any symbols

1. Run the home electrical wires through a protection box* and connect with the terminals on the fan. Add insulations to the wires.

Diagram of a triangular fan or vent with concentric circles and radial lines, enclosed in a diamond-shaped frame (no text or symbols)

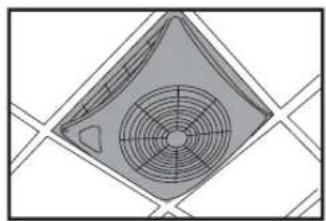

1. Install the ceiling fan.

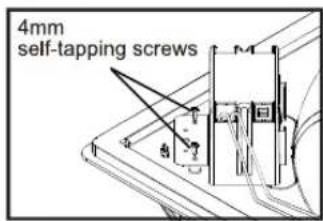

1. Secure the protection box at the location shown in the graphic by two 4mm self-tapping screws.

*The protection box is a separate component that can be purchased at stores. The demonstrated protection box in the illustration above is B118B-UPC by Thomas & btees.

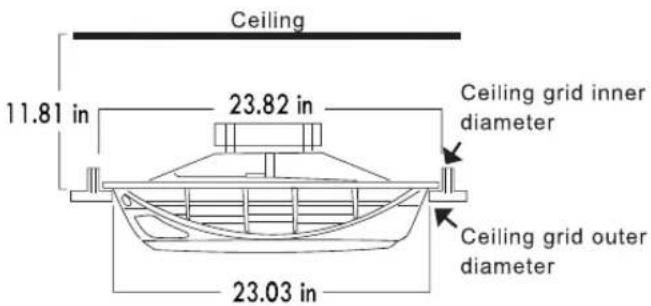

23.74×23.74×9.53 in

Technical diagram of a circular fan or vent with concentric rings and radial lines, labeled 23.74 in at the bottom (no other text or symbols)

<3>

4

OPERATION

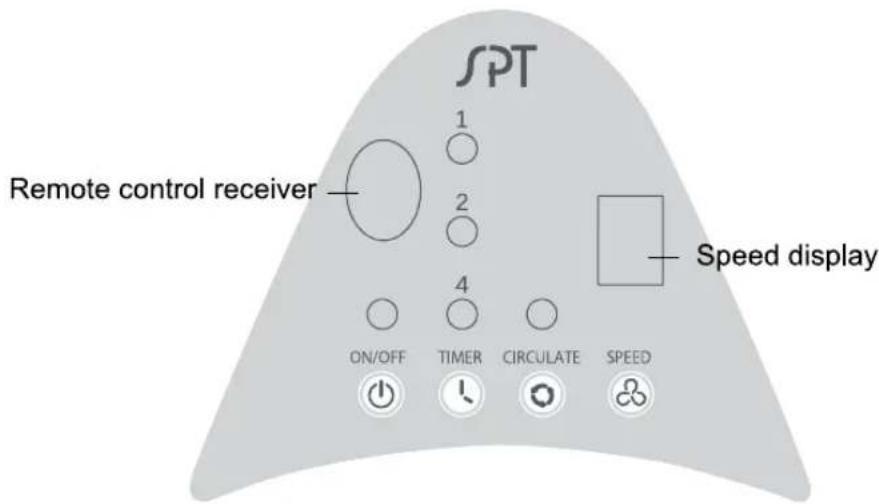

Remote Controller panel:

Power Button:

Press this button to turn on/off unit.

Circulate:

Press this button to turn on or off the grille rotation.

Off-Timer:

Press the button to set up auto shut-off timer. The off timer can be set up to 7 hours.

+ Speed control button +:

Press this button to increase fan speed.

- Speed control button -:

Press this button to reduce fan speed.

Using your Fan:

1. Power: Switch the unit on by pressing "On/Off" button. To turn off press the "On/Off" button again.
2. Circulate: Press this button to turn on or off the grille rotation.
3. Shut-off Timer (up to 7 hours): Set the desired time by pressing "Timer" button. There are three LED lights – "1H", "2H", and "4H". The LED lights indicate the selected timer (hours). For example: when "1H" and "4H" light up, the selected timer is 5 (5=1+4) hours.
4. Fan speed: Select the desired fan speed by pressing "Speed" buttons. There are nine speeds. Press SPEED + to increase fan speed. Press SPEED- to decrease fan speeds. When switched "ON" the Green On/Off and Green Fan Speed LED lights on the display panel will illuminate. The unit will beep when you press any button on the control panel of the remote controller.

5

CLEANING THE UNIT

Before servicing or cleaning the ceiling fan, turn off power at breaker and lock service disconnecting means to prevent power from being turned on accidentally.

1. Turn the fan off and unplug the power, verify that the fan blade is no longer spinning.

2. Remove the screws from the fan and clean fan with warm moistened soft cloth only. DO NOT pour or splash water on the fan. DO NOT use any abrasive or harsh cleaners, as this may damage the unit.

3. DO NOT polish the plastic part, or it will cause color change or damage

6

TECHNICAL SPECIFICATIONS

Model No.	SF-1691C
Input Voltage	120V, 60Hz
Output Voltage	DC24V
Power Consumption	30W
Fan Blade Size	16 inches
Unit Dimension	23.74 x 23.74 x 9.53 in
Unit Weight	10.6 lbs
Oscillation	Yes
Speed Separation	9
Off-Timer	Up to 7hours

7 YOUR GUARANTEE

If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge.

This guarantee is subject to the following terms:

• Sunpentown must be notified of the fault.
• Proof of purchase must be presented to Sunpentown's nominated representative.
• The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
• The warranty after repair will not be extended beyond the original one-year period.
• All replacement parts will be new or reconditioned.
• Parts, which are replaced, become the property of Sunpentown.
  • The warranty applies for the use of the product in the USA only.

What is NOT COVERED:

• Warranty does not include freight charges.
• Damage due to installation error, product abuse and/or misuse.
• Incidental or consequential damage caused by possible defects with this product.
• Labor cost incurred for the installation and/or removal of a possible defective unit.
• Damage to product caused by improper power supply voltage, accident, fire, floods or acts of nature.
• Failure of product resulting from unauthorized modifications to the product.
• Improper installation or failure to perform the necessary maintenance.
• Normal wear and tear on parts or replacement of parts designed to be replaced.
  • Damage to personal property from use of product.
• Replacement or repair of household fuses, circuit breakers, wiring or plumbing.

This GUARANTEE is in addition to your Statutory Rights

SUNPENTOWN INTERNATIONAL INC.

14625 Clark Ave. City of Industry, CA 91745
